◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#43782) — 265 parça
çizim 67019
1 17 99 2 18 16 19 12 24 228 13 15 69 382 71 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-633-5 01 1 9312-9611 ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-633-5 01 1 9612-9711 ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97869-329-1 01 1 9712-9712 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-329-1 01 1 9801- ● ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-632-3 01 1 9312-9611 ● ● ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-632-3 01 1 9612-9711 ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-342-1 01 1 9712-9712 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-342-2 01 1 9801- ● ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-217-0 01 1 9801- ● ● ● ● ●
1 16.720 BACK ASM; SEAT
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97196-217-0 01 1 9801- ● ● ● ●
1 16.720 BACK ASM; SEAT
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-225-0 01 1 9801- ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-325-2 01 1 9801-9803 ● ●
1 16.720 BACK ASM; SEAT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-325-2 01 1 9804- ● ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-325-2 01 1 9804- ●
1 16.720 BACK ASM; SEAT
ISRAEL EQUIPMENT(7LX) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-325-2 01 1 9712-9712 ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-635-4 01 1 9312-9704 ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX) DARK BEIGE 		8-97854-635-5 01 1 9705-9711 ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97869-346-1 01 1 9712-9712 ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-346-1 01 1 9801-9803 ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-346-1 01 1 9804- ● ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97869-346-1 01 1 9804- ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-634-2 01 1 9312-9704 ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK BEIGE 		8-97854-634-3 01 1 9705-9711 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-647-3 01 1 9312-9611 ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-647-3 01 1 9612-9711 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97869-330-1 01 1 9712-9712 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-330-1 01 1 9801- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-646-1 01 1 9312-9611 ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-646-1 01 1 9612-9711 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-343-1 01 1 9712-9712 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-343-2 01 1 9801- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-218-0 01 1 9801- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97196-218-0 01 1 9801- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-226-0 01 1 9801- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-327-2 01 1 9801-9803 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-327-2 01 1 9804- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-327-2 01 1 9804- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
ISRAEL EQUIPMENT(7LX) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-327-2 01 1 9712-9712 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-649-2 01 1 9312-9704 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX) DARK BEIGE 		8-97854-649-3 01 1 9705-9711 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97869-347-1 01 1 9712-9712 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-347-1 01 1 9801-9803 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-347-1 01 1 9804- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97869-347-1 01 1 9804- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-648-0 01 1 9312-9704 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK BEIGE 		8-97854-648-1 01 1 9705-9711 ●
12 16.670 CUSHION; SEAT,FRT
4BD1 ENG(LJ6) EXC. EUROPEAN BASIC EQUIPMENT(EK4), SEAT CLOTH<7FL> DARK BEIGE 		8-97854-656-0 01 1 9312-9402 ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-656-0 01 1 9312-9402 ●
12 16.670 CUSHION; SEAT,FRT
4BD1 ENG(LJ6) EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL> DARK BEIGE 		8-97854-656-1 01 1 9403-9504 ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-656-1 01 1 9403-9504 ●
12 16.670 CUSHION; SEAT,FRT
4BD1 ENG(LJ6) EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL>,I SRAEL EQUIPMENT(7LX) DARK BEIGE 		8-97854-656-1 01 1 9505-9506 ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-656-1 01 1 9505-9506 ●
12 16.670 CUSHION; SEAT,FRT
4BD1 ENG(LJ6) EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-656-1 01 1 9507-9510 ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-656-1 01 1 9511-9704 ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK BEIGE 		8-97854-656-1 01 1 9705-9711 ●
12 16.670 CUSHION; SEAT,FRT
4BD1 ENG(LJ6) SEAT CLOTH<7FL> EXC. EUROPEAN BASIC EQUIPMENT(EK4) DARK BEIGE 		8-97854-657-1 01 1 9312-9402 ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-657-1 01 1 9312-9402 ●
12 16.670 CUSHION; SEAT,FRT
4BD1 ENG(LJ6) SEAT CLOTH<7FL> EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF) DARK BEIGE 		8-97854-657-3 01 1 9403-9504 ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-657-3 01 1 9403-9504 ●
12 16.670 CUSHION; SEAT,FRT
4BD1 ENG(LJ6) SEAT CLOTH<7FL> EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK BEIGE 		8-97854-657-3 01 1 9505-9506 ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-657-3 01 1 9505-9506 ●
12 16.670 CUSHION; SEAT,FRT
4BD1 ENG(LJ6) SEAT CLOTH<7FL> DARK BEIGE 		8-97854-657-3 01 1 9507-9510 ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-657-3 01 1 9511-9704 ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX) DARK BEIGE 		8-97854-657-3 01 1 9705-9711 ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97869-348-0 01 1 9712-9712 ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-348-0 01 1 9801-9803 ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-348-0 01 1 9804- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97869-348-0 01 1 9804- ●
12 16.670 CUSHION; SEAT,FRT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) SEAT CLOTH<7FL> DARK BEIGE 		8-97854-720-5 01 1 9312-9510 ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-720-6 01 1 9511-9603 ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-720-6 01 1 9604-9611 ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-720-6 01 1 9612-9711 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97869-331-1 01 1 9712-9712 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-331-1 01 1 9801- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-719-3 01 1 9312-9510 ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-719-4 01 1 9511-9603 ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-719-4 01 1 9604-9611 ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-719-4 01 1 9612-9711 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-344-1 01 1 9712-9712 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-344-2 01 1 9801- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-219-0 01 1 9801- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97196-219-0 01 1 9801- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-227-0 01 1 9801- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-326-1 01 1 9801-9803 ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-326-1 01 1 9804- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-326-1 01 1 9804- ●
12 16.670 CUSHION; SEAT,FRT
ISRAEL EQUIPMENT(7LX) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-326-1 01 1 9712-9712 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4BD1 ENG(LJ6) EXC. EUROPEAN BASIC EQUIPMENT(EK4), SEAT CLOTH<7FL> DARK BEIGE 		8-97854-662-0 01 1 9312-9402 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-662-0 01 1 9312-9402 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4BD1 ENG(LJ6) EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL> DARK BEIGE 		8-97854-662-1 01 1 9403-9504 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-662-1 01 1 9403-9504 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4BD1 ENG(LJ6) EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL>,I SRAEL EQUIPMENT(7LX) DARK BEIGE 		8-97854-662-1 01 1 9505-9506 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-662-1 01 1 9505-9506 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4BD1 ENG(LJ6) EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-662-1 01 1 9507-9510 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-662-1 01 1 9511-9704 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK BEIGE 		8-97854-662-1 01 1 9705-9711 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4BD1 ENG(LJ6) SEAT CLOTH<7FL> EXC. EUROPEAN BASIC EQUIPMENT(EK4) DARK BEIGE 		8-97854-663-1 01 1 9312-9402 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-663-1 01 1 9312-9402 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4BD1 ENG(LJ6) SEAT CLOTH<7FL> EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF) DARK BEIGE 		8-97854-663-3 01 1 9403-9504 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-663-3 01 1 9403-9504 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4BD1 ENG(LJ6) SEAT CLOTH<7FL> EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK BEIGE 		8-97854-663-3 01 1 9505-9506 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-663-3 01 1 9505-9506 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4BD1 ENG(LJ6) SEAT CLOTH<7FL> DARK BEIGE 		8-97854-663-3 01 1 9507-9510 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-663-3 01 1 9511-9704 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX) DARK BEIGE 		8-97854-663-3 01 1 9705-9711 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97869-349-0 01 1 9712-9712 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-349-0 01 1 9801-9803 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-349-0 01 1 9804- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97869-349-0 01 1 9804- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) SEAT CLOTH<7FL> DARK BEIGE 		8-97854-728-3 01 1 9312-9510 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-728-4 01 1 9511-9603 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-728-4 01 1 9604-9611 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-728-4 01 1 9612-9711 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97869-332-1 01 1 9712-9712 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-332-1 01 1 9801- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-727-1 01 1 9312-9510 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-727-2 01 1 9511-9603 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-727-2 01 1 9604-9611 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-727-2 01 1 9612-9711 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-345-1 01 1 9712-9712 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-345-2 01 1 9801- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-220-0 01 1 9801- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97196-220-0 01 1 9801- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-228-0 01 1 9801- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-328-1 01 1 9801-9803 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-328-1 01 1 9804- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-328-1 01 1 9804- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
ISRAEL EQUIPMENT(7LX) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-328-1 01 1 9712-9712 ●
15 16.716 FRAME; CUSHION,FRT SEAT
4BD1 ENG(LJ6) 		8-97854-665-0 01 1 9312-9506 ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT 8-97854-665-0 01 1 9312-9506 ●
15 16.716 FRAME; CUSHION,FRT SEAT
4BD1 ENG(LJ6) EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97854-665-0 01 1 9507-9510 ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT 8-97854-665-0 01 1 9507-9510 ●
15 16.716 FRAME; CUSHION,FRT SEAT 8-97854-665-0 01 1 9511-9712 ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ> 		8-97854-665-0 01 1 9801-9803 ●
15 16.716 FRAME; CUSHION,FRT SEAT 8-97854-665-0 01 1 9801-9803 ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ> 		8-97854-665-0 01 1 9804- ● ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT 8-97854-665-0 01 1 9804- ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-080-1 01 1 9312-9611 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-080-2 01 1 9612-9711 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-080-2 01 1 9712- ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER DARK BEIGE 		8-97854-266-1 01 1 9312-9405 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-273-3 01 1 9406-9611 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-273-3 01 1 9612-9711 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-273-3 01 1 9712- ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER DARK BEIGE 		8-97854-276-1 01 1 9312-9405 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-274-3 01 1 9406-9611 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-274-3 01 1 9612-9711 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-274-3 01 1 9712- ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9312-9611 ● ● ● ●
17 16.682 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9612-9711 ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9712- ● ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK BEIGE 		8-97854-667-0 01 1 9312-9611 ● ● ● ●
18 16.682 COVER; RECLINING
DARK BEIGE 		8-97854-667-0 01 1 9612-9711 ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97859-018-0 01 1 9712- ● ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9312-9611 ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9612-9711 ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9712- ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK BEIGE 		8-97854-669-0 01 1 9312-9611 ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK BEIGE 		8-97854-669-0 01 1 9612-9711 ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97859-019-0 01 1 9712- ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF) 		8-97854-670-2 01 1 9312-9504 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97854-670-2 01 1 9505-9704 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97854-670-2 01 1 9705-9711 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97854-670-2 01 1 9712-9712 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX),SEAT FRT,LONG SIZE<7UG> 		8-97854-670-2 01 1 9801- ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EUROPEAN BASIC EQUIPMENT(EK4),BRAZIL EQUIPMENT(RWF) 		8-97854-947-2 01 1 9312-9504 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EUROPEAN BASIC EQUIPMENT(EK4),BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97854-947-2 01 1 9505-9506 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EUROPEAN BASIC EQUIPMENT(EK4),BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97854-947-2 01 1 9507-9712 ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97854-947-2 01 1 9801- ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 		8-97854-947-2 01 1 9801- ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT FRT,LONG SIZE<7UG> 		8-97854-947-2 01 1 9801- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-947-2 01 1 9801- ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 02 1 9312-9611 ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 02 1 9612-9711 ● ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 02 1 9712- ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X18 		8-94279-109-1 02 1 9312-9611 ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X18 		8-94279-109-1 02 1 9612-9711 ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X18 		8-94279-109-1 02 1 9712- ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 9312-9611 ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 9612-9711 ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 9712- ● ● ● ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 9312-9611 ● ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 9612-9711 ● ● ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 9712- ● ● ● ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 02 1 9312-9611 ● ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 02 1 9612-9711 ● ● ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 02 1 9712- ● ● ● ● ● ●

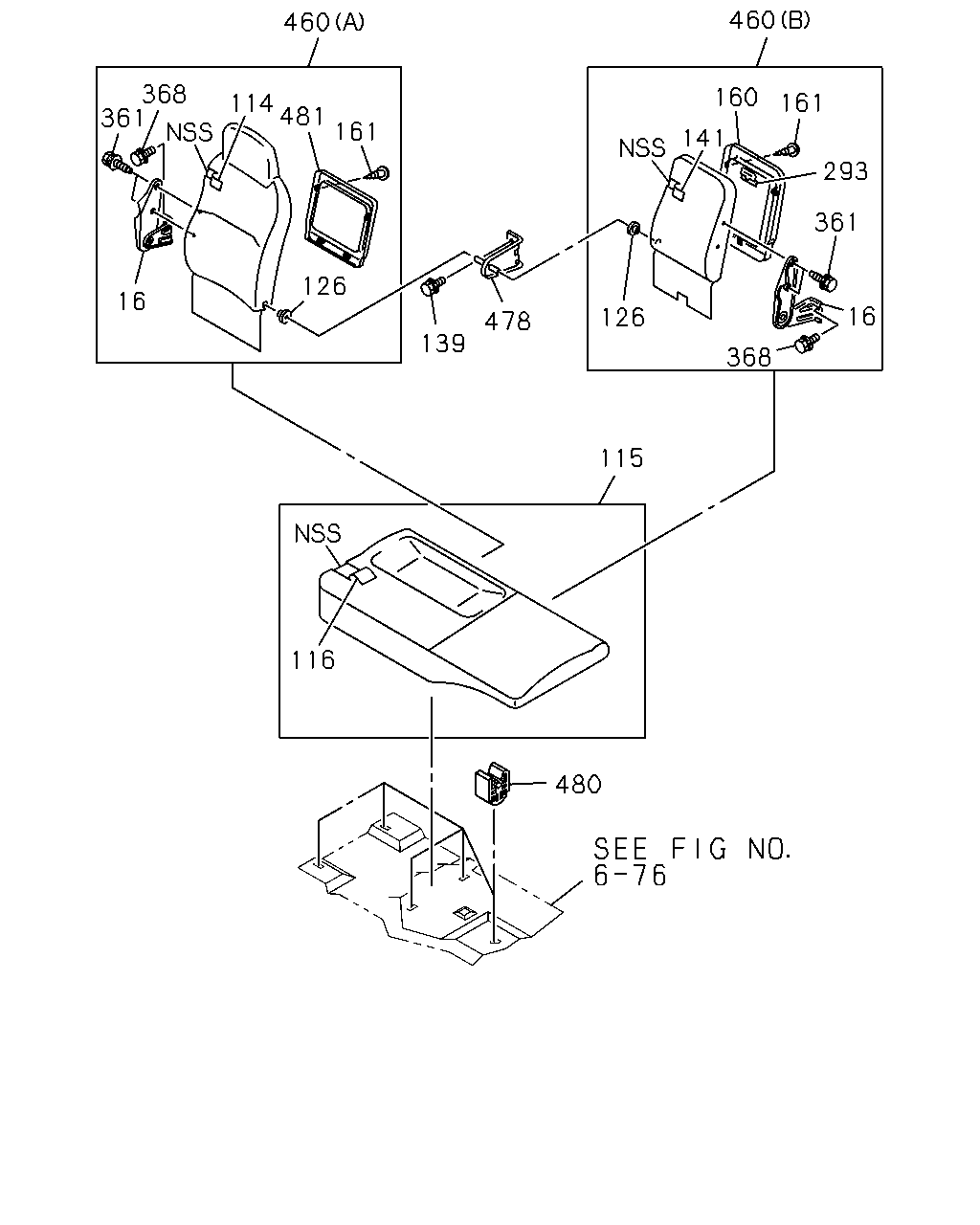

çizim 68163
460 460 368 361 160 161 114 481 161 141 293 361 126 16 16 126 478 139 368 115 116 480
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-080-1 01 1 9312-9611 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-080-2 01 1 9612-9711 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-080-2 01 1 9712- ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER DARK BEIGE 		8-97854-266-1 01 1 9312-9405 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-273-3 01 1 9406-9611 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-273-3 01 1 9612-9711 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-273-3 01 1 9712- ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER DARK BEIGE 		8-97854-276-1 01 1 9312-9405 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-274-3 01 1 9406-9611 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-274-3 01 1 9612-9711 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-274-3 01 1 9712- ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-828-3 01 1 9312-9611 ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-828-3 01 1 9612-9711 ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97869-356-1 01 1 9712- ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-827-2 01 1 9312-9611 ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-827-2 01 1 9612-9711 ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-355-2 01 1 9712- ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-614-4 01 1 9312-9611 ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-614-4 01 1 9612-9711 ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97868-481-0 01 1 9712- ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-613-3 01 1 9312-9611 ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-613-3 01 1 9612-9711 ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97868-478-1 01 1 9712- ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-808-4 01 1 9312-9611 ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-808-4 01 1 9612-9711 ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97869-365-0 01 1 9712- ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-807-3 01 1 9312-9611 ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-807-3 01 1 9612-9711 ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-364-1 01 1 9712- ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 02 1 9312-9611 ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 02 1 9612-9711 ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 02 1 9712- ● ● ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9312-9611 ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9612-9711 ● ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9712- ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-817-3 01 1 9312-9611 ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-817-3 01 1 9612-9711 ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97869-362-1 01 1 9712- ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-816-2 01 1 9312-9611 ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-816-2 01 1 9612-9711 ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-360-1 01 1 9712- ● ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK BEIGE 		8-97854-345-1 01 1 9312-9611 ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK BEIGE 		8-97854-345-1 01 1 9612-9711 ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK GRAY 		8-97859-028-1 01 1 9712- ● ● ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 08 1 9312-9611 ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 08 1 9612-9711 ● ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 08 1 9712- ● ● ● ● ● ●
293 16.650 BINDER; CENTER CONSOLE 8-97854-344-1 01 1 9312-9611 ● ● ● ●
293 16.650 BINDER; CENTER CONSOLE 8-97854-344-1 01 1 9612-9711 ● ● ● ● ●
293 16.650 BINDER; CENTER CONSOLE 8-97854-344-1 01 1 9712- ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 04 1 9312-9611 ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 04 1 9612-9711 ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 04 1 9712- ● ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 9312-9611 ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 9612-9711 ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 9712- ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK BEIGE 		8-97854-778-6 01 1 9312-9611 ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK BEIGE 		8-97854-778-6 01 1 9612-9711 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-466-1 01 1 9712- ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK BEIGE 		8-97854-783-6 01 1 9312-9611 ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK BEIGE 		8-97854-783-6 01 1 9612-9711 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97868-476-1 01 1 9712- ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK BEIGE 		8-97854-777-5 01 1 9312-9611 ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK BEIGE 		8-97854-777-5 01 1 9612-9711 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-464-2 01 1 9712- ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) DARK BEIGE 		8-97854-782-5 01 1 9312-9611 ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) DARK BEIGE 		8-97854-782-5 01 1 9612-9711 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) DARK GRAY 		8-97868-473-1 01 1 9712- ● ● ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97854-609-1 01 1 9312-9610 ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-185-0 01 1 9611-9611 ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-185-0 01 1 9612-9711 ● ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-185-0 01 1 9712- ● ● ● ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 9312-9611 ● ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 9612-9711 ● ● ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 9712- ● ● ● ● ● ●
481 16.120 TRAY; SEAT BACK
DARK BEIGE 		8-97854-265-0 01 1 9312-9611 ● ● ● ●
481 16.120 TRAY; SEAT BACK
DARK BEIGE 		8-97854-265-0 01 1 9612-9711 ● ● ● ● ●
481 16.120 TRAY; SEAT BACK
DARK GRAY 		8-97859-024-0 01 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
