Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#43780) — 275 parça

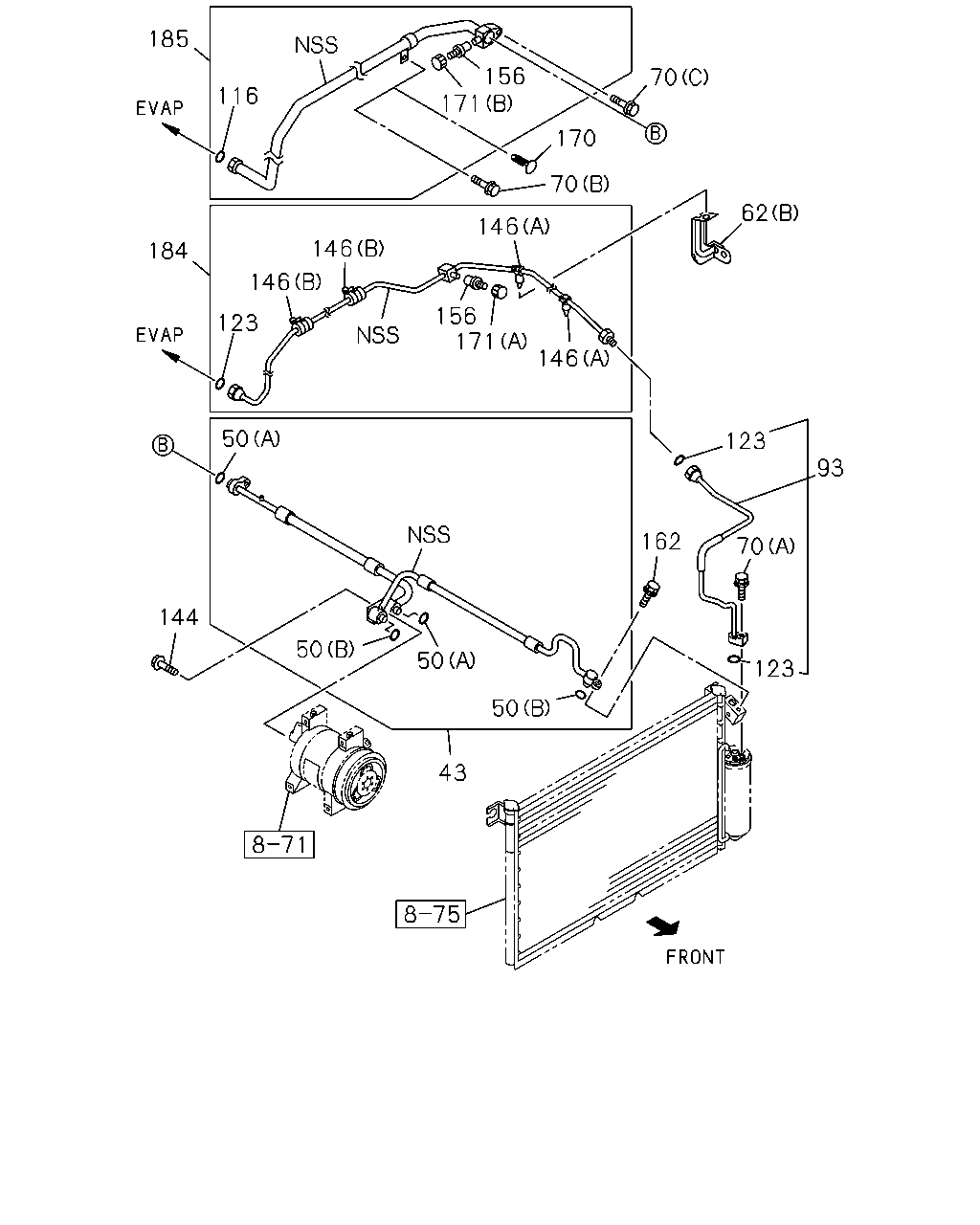

185 156 171 70 116 170 70 62 146 146 184 146 156 171 123 146 123 144 144 93 66 67 162 70 67 67 67 66 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
62	09.242 BRACKET; PIPE HIGH PRESSURE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94462-279-2	01	1	9804-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-94459-508-1	01	1	9804-9812	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-94459-508-1	01	1	9901-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97181-331-0	01	1	9804-9812			●	●				●
66	09.225 HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97181-332-0	01	1	9804-9812			●	●				●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97177-228-0	01	1	9804-9812				●				●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97177-228-1	01	1	9901-0109			●	●			●	●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97301-239-1	01	1	0110-			●	●			●	●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97177-229-1	01	1	9804-9812				●				●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97177-229-1	01	1	9901-0109			●	●			●	●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97301-240-0	01	1	0110-			●	●			●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=15.5	8-97161-777-0	02	1	9804-9812			●	●				●
67	09.260 GASKET; FLEX HOSE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=15.5	8-97161-777-0	02	1	9901-			●	●			●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (B) ID=18.3	8-97161-778-0	02	1	9804-9812			●	●				●
67	09.260 GASKET; FLEX HOSE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (B) ID=18.3	8-97161-778-0	02	1	9901-			●	●			●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9804-0012	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.334 (A) M6X25 FLANGE	0-28680-625-0	01	1	0101-	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 16.505 (B) M6X12 FLANGE	0-28480-612-0	01	1	9804-0108	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 16.505 (B) M6X12 FLANGE	0-28480-612-0	01	1	0109-	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 (C) M8X25 FLANGE	0-28680-825-0	01	1	9804-0108	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 (C) M8X25 FLANGE	0-28680-825-0	01	1	0109-	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) TURKISH EQUIPMENT(S6S)	8-97301-235-0	01	1	0207-								●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97181-358-0	01	1	9804-0109	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97301-236-0	01	1	0110-0206	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97301-236-0	01	1	0207-	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURKISH EQUIPMENT(S6S)	8-97301-236-0	01	1	0207-								●
116	09.225 GASKET; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=18.3	8-97161-778-0	01	1	9804-0108	●	●	●	●	●	●	●	●
116	09.225 GASKET; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=18.3	8-97161-778-0	01	1	0109-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	01	1	9804-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	02	1	9804-0206	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	02	1	0207-	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) TURKISH EQUIPMENT(S6S)	8-97161-776-0	02	1	0207-								●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURKISH EQUIPMENT(S6S)	8-97161-776-0	02	1	0207-								●
144	09.242 BOLT; CONN TO CMPR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9804-0108	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	0109-	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9804-9812				●				●
144	09.242 BOLT; CONN TO CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9901-			●	●			●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9804-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=17 H=13.9 BLACK	8-97064-671-0	02	1	9804-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9804-0108	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9804-0108	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	0109-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	0109-	●	●	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9804-	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 16.067	8-94279-922-0	01	1	9804-9812	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.067	8-94279-922-0	01	1	9804-9812	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF) 16.067	8-94279-922-0	01	1	9901-0108	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.067	8-94279-922-0	01	1	9901-0108	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF) 16.067	8-94279-922-0	01	1	0109-0212	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.067	8-94279-922-0	01	1	0109-0212	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	0301-	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	0301-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9804-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9804-0108	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	0109-	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97177-166-0	01	1	9804-	●	●	●	●	●	●	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97177-169-0	01	1	9804-0108	●	●	●	●	●	●	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97177-169-0	01	1	0109-0109	●	●	●	●	●	●	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97301-238-0	01	1	0110-	●	●	●	●	●	●	●	●

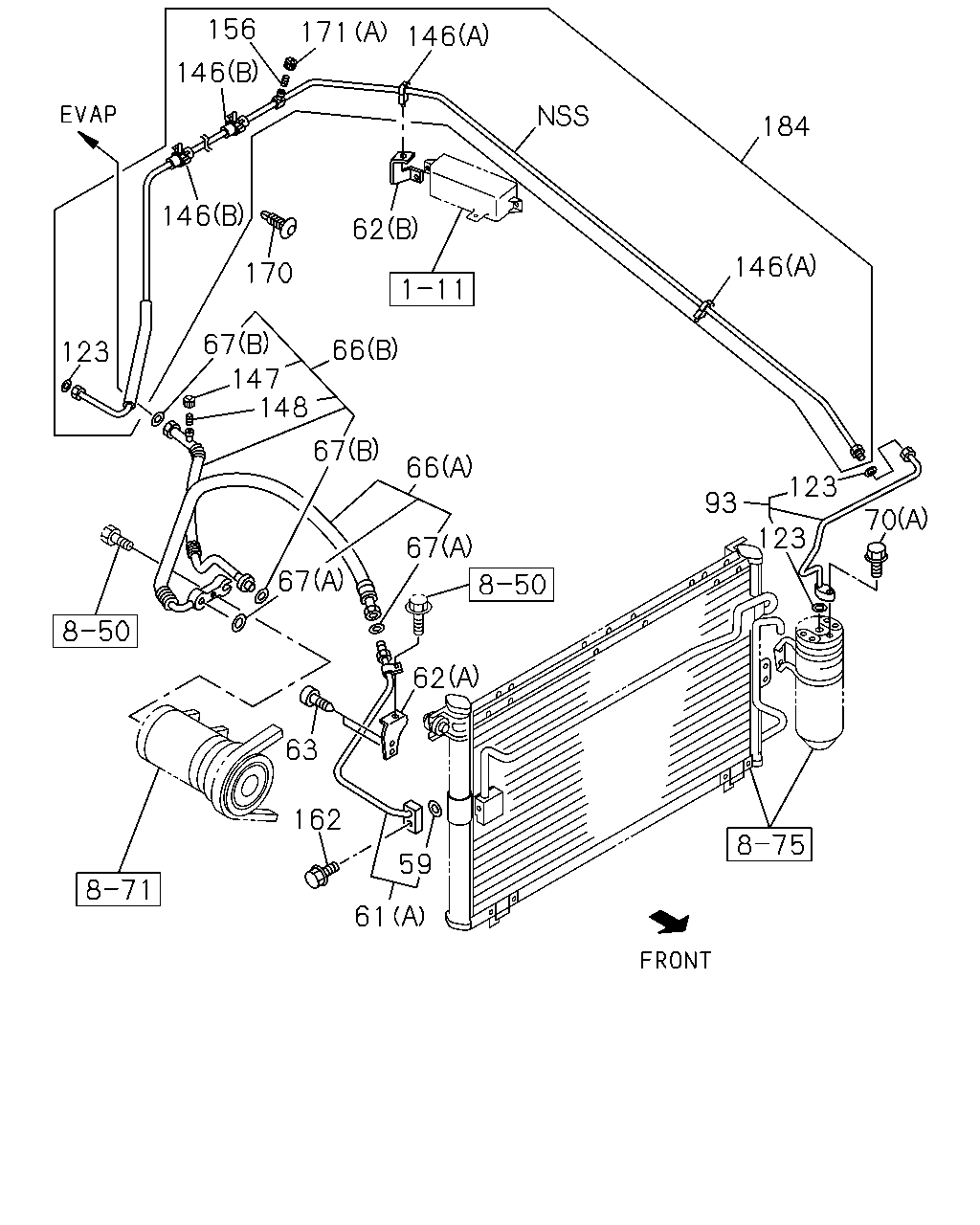

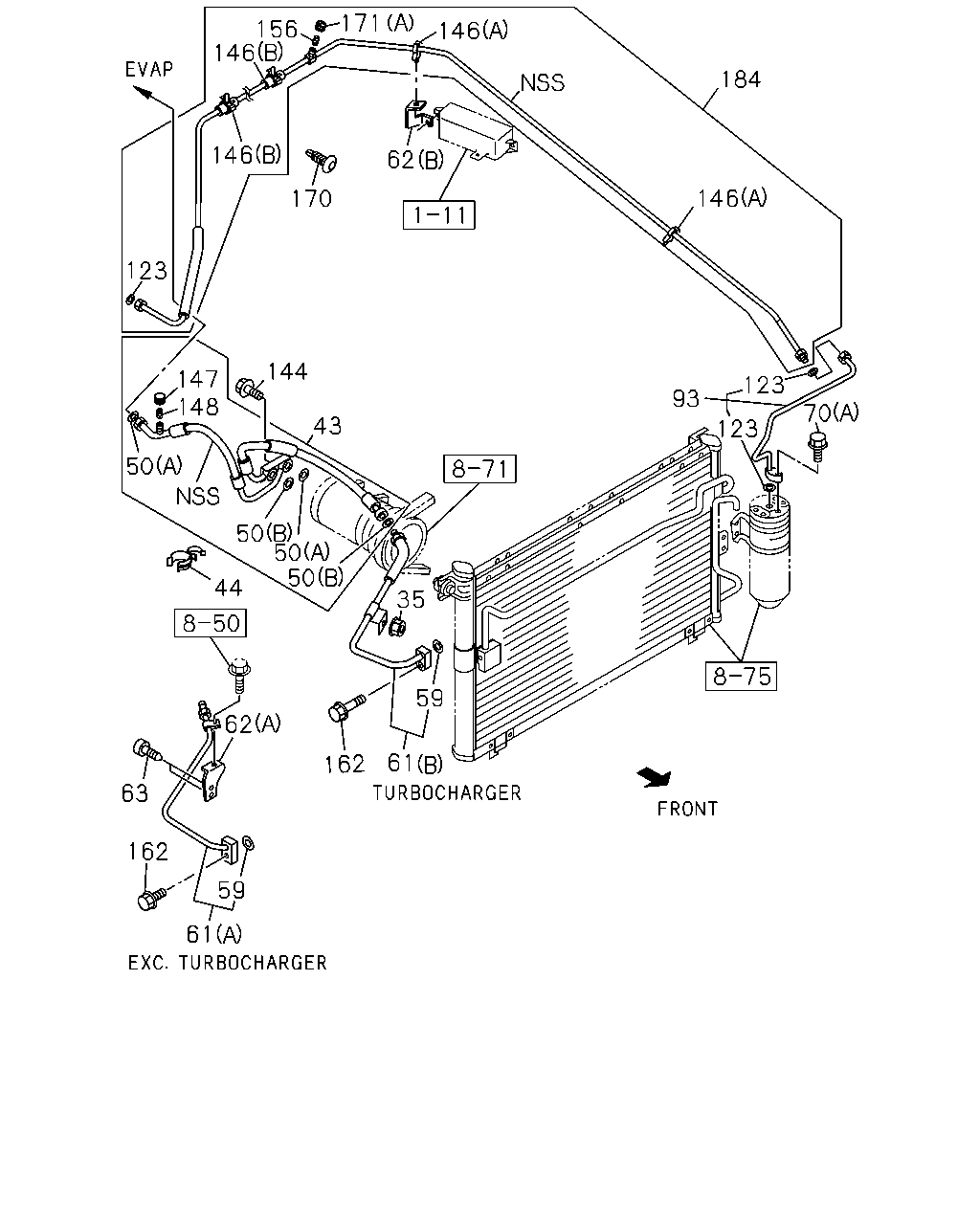

171 156 146 146 184 146 62 146 170 123 144 147 148 123 93 70 43 123 50 50 50 50 44 35 59 62 61 63 162 59 61 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
35	09.242 NUT; FLEX HOSE,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) TURBOCHARGER<K51> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 01.062 M6 FLANGE	0-91150-206-0	01	1	9804-9811	●		●	●	●		●	●
35	09.242 NUT; FLEX HOSE,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2), HALOGEN HEAD LAMP RECTANGULAR<TR4> 01.062 M6 FLANGE	0-91150-206-0	01	1	9812-0012	●		●	●	●		●	●
35	09.242 NUT; FLEX HOSE,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2), HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 01.062 M6 FLANGE	0-91150-206-0	01	1	0101-0111	●		●	●	●		●	●
35	09.242 NUT; FLEX HOSE,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2), HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 04.594 M6 FLANGE	0-91150-106-0	01	1	0112-	●		●	●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97180-918-1	01	1	9804-9909	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97225-665-0	01	1	9910-0108	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 22LE/C22NE ENG(RJT),20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97225-665-0	01	1	0109-0109	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 22LE/C22NE ENG(RJT),20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97301-242-1	01	1	0110-	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97180-920-0	01	1	9804-9806	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97211-319-0	01	1	9807-9810	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97217-081-0	01	1	9811-9811	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97217-081-0	01	1	9812-9909	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97217-081-0	01	1	9812-9909	●		●	●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97227-322-1	01	1	9910-0109	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97227-322-1	01	1	9910-0109	●		●	●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97301-244-0	01	1	0110-	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97301-244-0	01	1	0110-	●		●	●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2)	8-97222-394-1	01	1	9812-0109			●	●			●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2)	8-97301-241-1	01	1	0110-			●	●			●	●
44	09.242 CLIP; FLEX HOSE 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) 03.671	8-94362-189-0	02	1	9812-			●	●			●	●
50	09.222 GASKET; FLEX HOSE,A/C 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 (B) ID=15.5	8-97161-777-0	02	1	9804-9909	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (A) ID=18.3	8-97161-778-0	02	1	9804-9909	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 (B) ID=15.5	8-97161-777-0	02	1	9910-0108	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 (B) ID=15.5	8-97161-777-0	02	1	0109-	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (A) ID=18.3	8-97161-778-0	02	1	9910-0108	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (A) ID=18.3	8-97161-778-0	02	1	0109-	●	●	●	●	●	●	●	●
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 ID=15.5	8-97161-777-0	01	1	9804-9811	●	●	●	●	●	●	●	●
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. SAUDI ARABIA EQUIPMENT(EU2) 09.260 ID=15.5	8-97161-777-0	01	1	9812-9812	●	●	●	●	●	●	●	●
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. SAUDI ARABIA EQUIPMENT(EU2) 09.260 ID=15.5	8-97161-777-0	01	1	9901-	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-97177-164-0	01	1	9804-9812	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-97177-164-0	01	1	9901-0109	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-97301-233-0	01	1	0110-	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) TURBOCHARGER<K51> (B)	8-97180-850-0	01	1	9804-9811	●		●	●	●		●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG(RLE),4JB1 ENG(RLF) TURBOCHARGER<K51> AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97180-850-0	01	1	9812-0109	●		●	●	●		●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG(RLE),4JB1 ENG(RLF) TURBOCHARGER<K51> AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97301-234-0	01	1	0110-	●		●	●	●		●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94462-279-2	01	1	9804-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-94459-508-1	01	1	9804-9812	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-94459-508-1	01	1	9901-	●	●	●	●	●	●	●	●
63	09.242 SCREW; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> M6X12	9-09829-330-1	02	1	9804-9812	●	●	●	●	●	●	●	●
63	09.242 SCREW; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> M6X12	9-09829-330-1	02	1	9901-	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9804-0012	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.334 (A) M6X25 FLANGE	0-28680-625-0	01	1	0101-	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 16.505 (B) M6X12 FLANGE	0-28480-612-0	01	1	9804-0108	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 16.505 (B) M6X12 FLANGE	0-28480-612-0	01	1	0109-	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 (C) M8X25 FLANGE	0-28680-825-0	01	1	9804-0108	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 (C) M8X25 FLANGE	0-28680-825-0	01	1	0109-	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) TURKISH EQUIPMENT(S6S)	8-97301-235-0	01	1	0207-								●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97181-358-0	01	1	9804-0109	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97301-236-0	01	1	0110-0206	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97301-236-0	01	1	0207-	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURKISH EQUIPMENT(S6S)	8-97301-236-0	01	1	0207-								●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	01	1	9804-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	02	1	9804-0206	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	02	1	0207-	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) TURKISH EQUIPMENT(S6S)	8-97161-776-0	02	1	0207-								●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURKISH EQUIPMENT(S6S)	8-97161-776-0	02	1	0207-								●
144	09.242 BOLT; CONN TO CMPR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9804-0108	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	0109-	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9804-9812				●				●
144	09.242 BOLT; CONN TO CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9901-			●	●			●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9804-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=17 H=13.9 BLACK	8-97064-671-0	02	1	9804-	●	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 CAP MARK L	8-97083-102-0	01	1	9804-9812	●	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 CAP MARK L	8-97083-102-0	01	1	9901-	●	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9804-9812	●	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9901-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9804-0108	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9804-0108	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	0109-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	0109-	●	●	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9804-	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 16.067	8-94279-922-0	01	1	9804-9812	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.067	8-94279-922-0	01	1	9804-9812	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF) 16.067	8-94279-922-0	01	1	9901-0108	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.067	8-94279-922-0	01	1	9901-0108	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF) 16.067	8-94279-922-0	01	1	0109-0212	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.067	8-94279-922-0	01	1	0109-0212	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	0301-	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	0301-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9804-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9804-0108	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	0109-	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97177-166-0	01	1	9804-	●	●	●	●	●	●	●	●

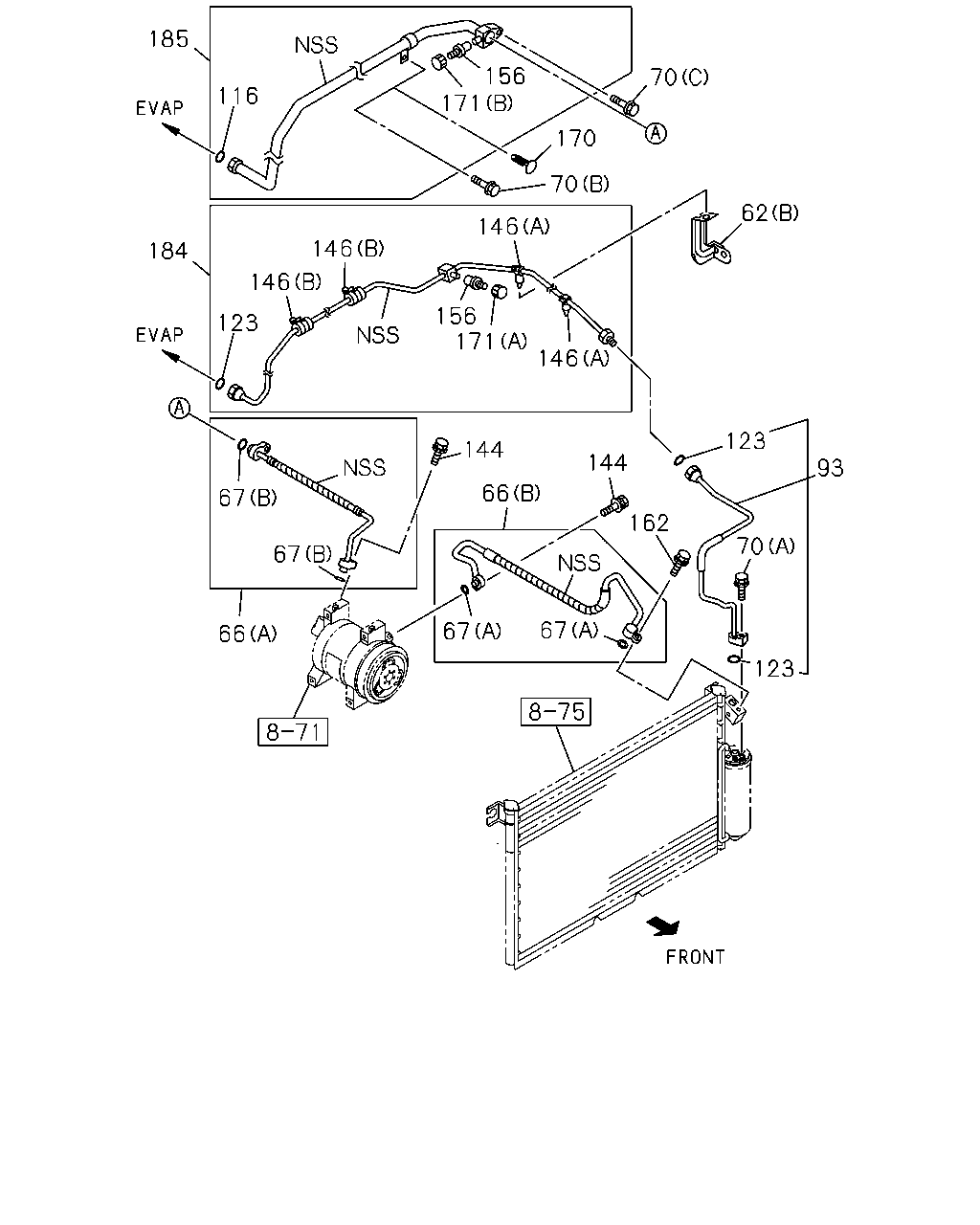

185 156 171 70 116 170 70 62 146 146 184 146 156 171 123 146 50 123 93 162 70 144 50 50 123 50 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97180-918-1	01	1	9804-9909	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97225-665-0	01	1	9910-0108	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 22LE/C22NE ENG(RJT),20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97225-665-0	01	1	0109-0109	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 22LE/C22NE ENG(RJT),20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97301-242-1	01	1	0110-	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97180-920-0	01	1	9804-9806	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97211-319-0	01	1	9807-9810	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97217-081-0	01	1	9811-9811	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97217-081-0	01	1	9812-9909	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97217-081-0	01	1	9812-9909	●		●	●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97227-322-1	01	1	9910-0109	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97227-322-1	01	1	9910-0109	●		●	●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97301-244-0	01	1	0110-	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97301-244-0	01	1	0110-	●		●	●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2)	8-97222-394-1	01	1	9812-0109			●	●			●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2)	8-97301-241-1	01	1	0110-			●	●			●	●
50	09.222 GASKET; FLEX HOSE,A/C 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 (B) ID=15.5	8-97161-777-0	02	1	9804-9909	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (A) ID=18.3	8-97161-778-0	02	1	9804-9909	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 (B) ID=15.5	8-97161-777-0	02	1	9910-0108	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 (B) ID=15.5	8-97161-777-0	02	1	0109-	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (A) ID=18.3	8-97161-778-0	02	1	9910-0108	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (A) ID=18.3	8-97161-778-0	02	1	0109-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94462-279-2	01	1	9804-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-94459-508-1	01	1	9804-9812	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-94459-508-1	01	1	9901-	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9804-0012	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.334 (A) M6X25 FLANGE	0-28680-625-0	01	1	0101-	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 16.505 (B) M6X12 FLANGE	0-28480-612-0	01	1	9804-0108	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 16.505 (B) M6X12 FLANGE	0-28480-612-0	01	1	0109-	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 (C) M8X25 FLANGE	0-28680-825-0	01	1	9804-0108	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 (C) M8X25 FLANGE	0-28680-825-0	01	1	0109-	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) TURKISH EQUIPMENT(S6S)	8-97301-235-0	01	1	0207-								●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97181-358-0	01	1	9804-0109	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97301-236-0	01	1	0110-0206	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97301-236-0	01	1	0207-	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURKISH EQUIPMENT(S6S)	8-97301-236-0	01	1	0207-								●
116	09.225 GASKET; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=18.3	8-97161-778-0	01	1	9804-0108	●	●	●	●	●	●	●	●
116	09.225 GASKET; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=18.3	8-97161-778-0	01	1	0109-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	01	1	9804-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	02	1	9804-0206	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	02	1	0207-	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) TURKISH EQUIPMENT(S6S)	8-97161-776-0	02	1	0207-								●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURKISH EQUIPMENT(S6S)	8-97161-776-0	02	1	0207-								●
144	09.242 BOLT; CONN TO CMPR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9804-0108	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	0109-	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9804-9812				●				●
144	09.242 BOLT; CONN TO CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9901-			●	●			●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9804-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=17 H=13.9 BLACK	8-97064-671-0	02	1	9804-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9804-0108	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9804-0108	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	0109-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	0109-	●	●	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9804-	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 16.067	8-94279-922-0	01	1	9804-9812	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.067	8-94279-922-0	01	1	9804-9812	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF) 16.067	8-94279-922-0	01	1	9901-0108	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.067	8-94279-922-0	01	1	9901-0108	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF) 16.067	8-94279-922-0	01	1	0109-0212	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.067	8-94279-922-0	01	1	0109-0212	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	0301-	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	0301-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9804-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9804-0108	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	0109-	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97177-166-0	01	1	9804-	●	●	●	●	●	●	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97177-169-0	01	1	9804-0108	●	●	●	●	●	●	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97177-169-0	01	1	0109-0109	●	●	●	●	●	●	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97301-238-0	01	1	0110-	●	●	●	●	●	●	●	●

156 171 146 146 184 146 62 146 170 67 147 148 66 123 67 66 123 93 70 123 67 67 62 63 162 59 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 ID=15.5	8-97161-777-0	01	1	9804-9811	●	●	●	●	●	●	●	●
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. SAUDI ARABIA EQUIPMENT(EU2) 09.260 ID=15.5	8-97161-777-0	01	1	9812-9812	●	●	●	●	●	●	●	●
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. SAUDI ARABIA EQUIPMENT(EU2) 09.260 ID=15.5	8-97161-777-0	01	1	9901-	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-97177-164-0	01	1	9804-9812	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-97177-164-0	01	1	9901-0109	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-97301-233-0	01	1	0110-	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) TURBOCHARGER<K51> (B)	8-97180-850-0	01	1	9804-9811	●		●	●	●		●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG(RLE),4JB1 ENG(RLF) TURBOCHARGER<K51> AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97180-850-0	01	1	9812-0109	●		●	●	●		●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG(RLE),4JB1 ENG(RLF) TURBOCHARGER<K51> AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97301-234-0	01	1	0110-	●		●	●	●		●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94462-279-2	01	1	9804-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-94459-508-1	01	1	9804-9812	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-94459-508-1	01	1	9901-	●	●	●	●	●	●	●	●
63	09.242 SCREW; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> M6X12	9-09829-330-1	02	1	9804-9812	●	●	●	●	●	●	●	●
63	09.242 SCREW; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> M6X12	9-09829-330-1	02	1	9901-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97181-331-0	01	1	9804-9812			●	●				●
66	09.225 HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97181-332-0	01	1	9804-9812			●	●				●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97177-228-0	01	1	9804-9812				●				●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97177-228-1	01	1	9901-0109			●	●			●	●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97301-239-1	01	1	0110-			●	●			●	●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97177-229-1	01	1	9804-9812				●				●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97177-229-1	01	1	9901-0109			●	●			●	●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97301-240-0	01	1	0110-			●	●			●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=15.5	8-97161-777-0	02	1	9804-9812			●	●				●
67	09.260 GASKET; FLEX HOSE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=15.5	8-97161-777-0	02	1	9901-			●	●			●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (B) ID=18.3	8-97161-778-0	02	1	9804-9812			●	●				●
67	09.260 GASKET; FLEX HOSE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (B) ID=18.3	8-97161-778-0	02	1	9901-			●	●			●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9804-0012	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.334 (A) M6X25 FLANGE	0-28680-625-0	01	1	0101-	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 16.505 (B) M6X12 FLANGE	0-28480-612-0	01	1	9804-0108	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 16.505 (B) M6X12 FLANGE	0-28480-612-0	01	1	0109-	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 (C) M8X25 FLANGE	0-28680-825-0	01	1	9804-0108	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 (C) M8X25 FLANGE	0-28680-825-0	01	1	0109-	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) TURKISH EQUIPMENT(S6S)	8-97301-235-0	01	1	0207-								●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97181-358-0	01	1	9804-0109	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97301-236-0	01	1	0110-0206	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97301-236-0	01	1	0207-	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURKISH EQUIPMENT(S6S)	8-97301-236-0	01	1	0207-								●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	01	1	9804-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	02	1	9804-0206	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	02	1	0207-	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) TURKISH EQUIPMENT(S6S)	8-97161-776-0	02	1	0207-								●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURKISH EQUIPMENT(S6S)	8-97161-776-0	02	1	0207-								●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9804-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=17 H=13.9 BLACK	8-97064-671-0	02	1	9804-	●	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 CAP MARK L	8-97083-102-0	01	1	9804-9812	●	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 CAP MARK L	8-97083-102-0	01	1	9901-	●	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9804-9812	●	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9901-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9804-0108	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9804-0108	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	0109-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	0109-	●	●	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9804-	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 16.067	8-94279-922-0	01	1	9804-9812	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.067	8-94279-922-0	01	1	9804-9812	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF) 16.067	8-94279-922-0	01	1	9901-0108	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.067	8-94279-922-0	01	1	9901-0108	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF) 16.067	8-94279-922-0	01	1	0109-0212	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.067	8-94279-922-0	01	1	0109-0212	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	0301-	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	0301-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9804-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9804-0108	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	0109-	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97177-166-0	01	1	9804-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
