0-85B — AUTO TIMER; INJECTION PUMP (#4378) — 137 parça

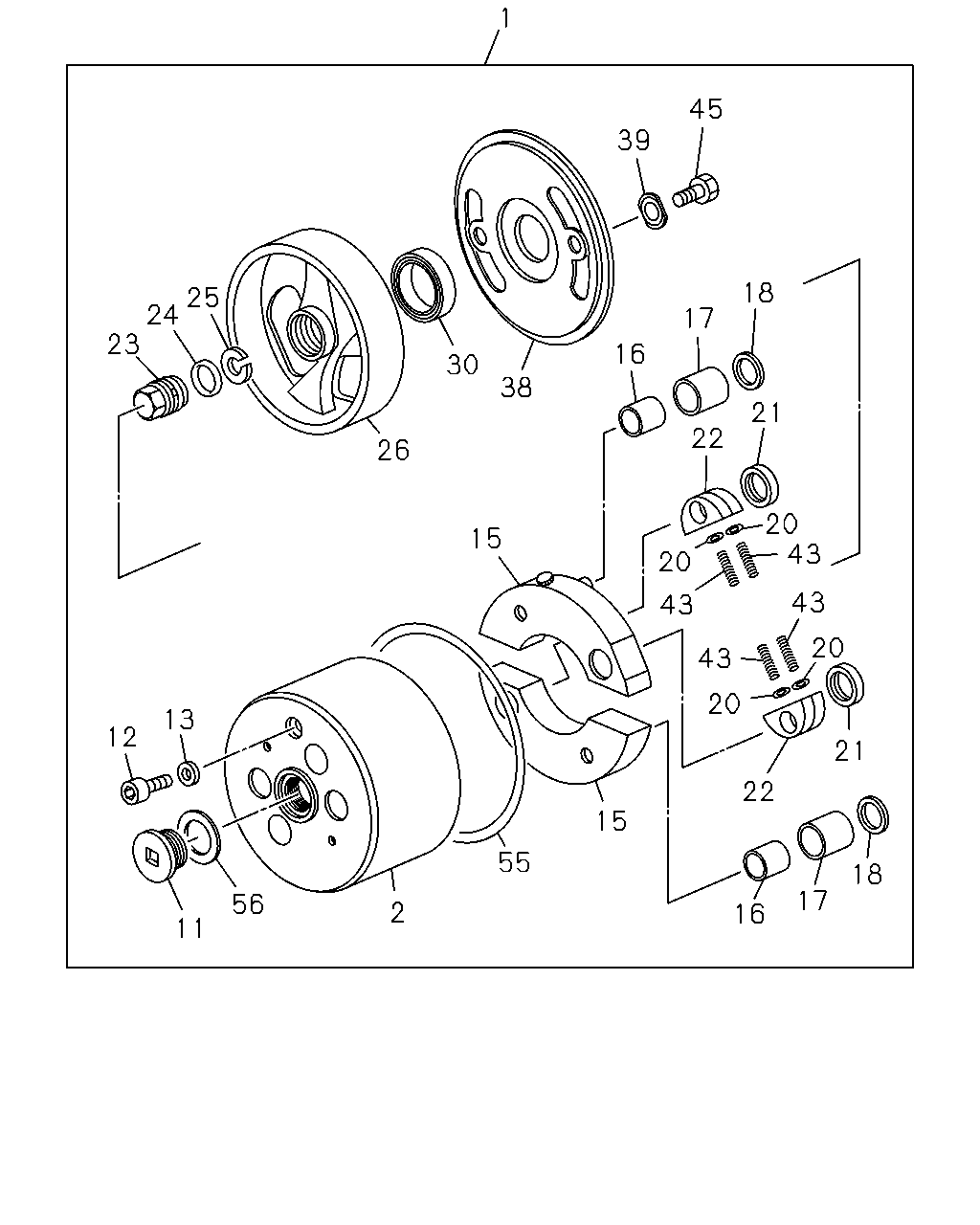

1 45 39 18 25 24 23 17 16 30 38 21 22 26 20 43 15 20 43 43 20 43 20 13 12 21 22 15 55 18 17 56 2 16 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4	1-15740-478-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2	1-15740-479-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15740-483-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: H = 8-94395-979-4, I = 8-94395-980-4	1-15740-492-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15741-032-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15741-077-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-454-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-594-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-031-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-452-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15719-093-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4	1-15743-101-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: H = 8-94395-979-4, I = 8-94395-980-4	1-15743-122-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15743-146-0	02	1	-
16	BUSHING; ROLLER,TIMER FLYWEIGHT,INJ PU ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	5-15749-042-0	02	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.00 ASM PART: B = 8-94392-108-2, H = 8-94395-979-4, I = 8-94395-980-4	5-15749-043-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.00 ASM PART: A = 8-94390-961-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4	5-15749-043-0	AR	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=17.90 ASM PART: B = 8-94392-108-2, H = 8-94395-979-4, I = 8-94395-980-4	5-15749-044-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=17.90 ASM PART: A = 8-94390-961-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4	5-15749-044-0	AR	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.10 ASM PART: B = 8-94392-108-2, H = 8-94395-979-4, I = 8-94395-980-4	5-15749-045-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.10 ASM PART: A = 8-94390-961-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4	5-15749-045-0	AR	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.20 ASM PART: A = 8-94390-961-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4	5-15749-046-0	AR	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.20 ASM PART: B = 8-94392-108-2, H = 8-94395-979-4, I = 8-94395-980-4	5-15749-046-0	01	1	-
18	WASHER; ROLLER,TIMER FLYWEIGHT,INJ PUM ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	5-15749-047-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-394-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-395-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-396-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-397-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-495-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-496-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.25 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	9-81325-382-0	AR	1	-
21	RETAINER; SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	5-15749-048-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	5-15749-040-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	8-97085-026-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-318-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	5-15749-051-1	01	1	-
24	GASKET; FLANGE,TIMER,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-455-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-593-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4	1-15742-149-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15742-151-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: H = 8-94395-979-4, I = 8-94395-980-4	1-15742-156-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-451-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-592-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-072-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-591-0	01	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ID=8.2 OD=13.2 ASM PART: H = 8-94395-979-4, I = 8-94395-980-4	1-09630-082-0	02	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4	1-15339-010-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4	1-15749-621-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP D=2.2 L=46 ASM PART: H = 8-94395-979-4, I = 8-94395-980-4	1-15749-887-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP D=2.1 L=46 ASM PART: H = 8-94395-979-4, I = 8-94395-980-4	1-15749-888-0	02	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-029-0	02	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-449-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	9-81345-138-0	01	1	-
56	GASKET; CAP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, C = 8-94395-968-3, D = 8-94395-969-3, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-453-0	01	1	-

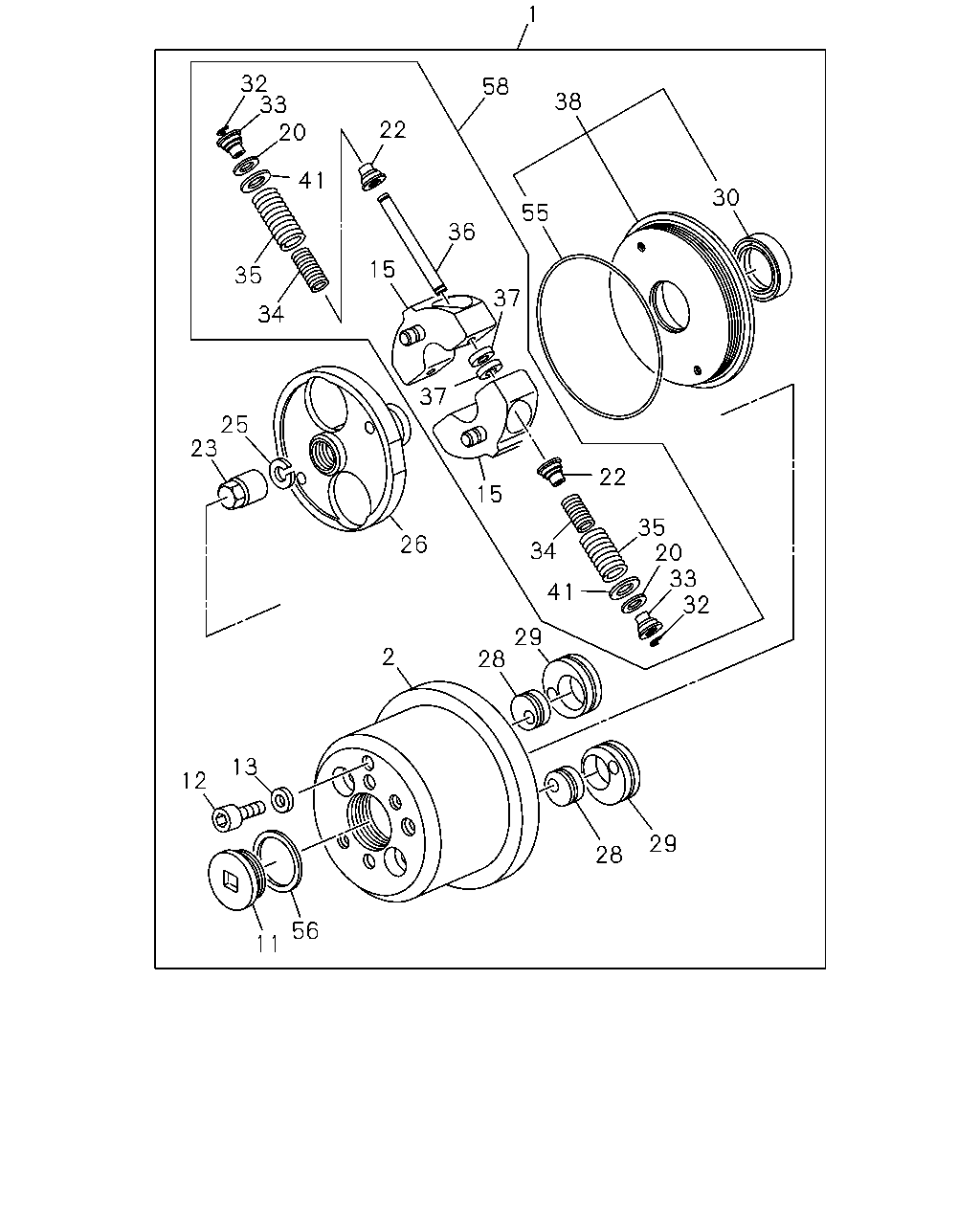

1 32 33 20 58 38 22 41 30 55 36 15 35 37 34 37 25 23 22 15 35 20 33 32 26 34 41 29 28 2 13 12 29 28 56 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4	1-15740-478-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2	1-15740-479-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15740-483-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: H = 8-94395-979-4, I = 8-94395-980-4	1-15740-492-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15741-032-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15741-077-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-454-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-594-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-031-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-452-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15719-093-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4	1-15743-101-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: H = 8-94395-979-4, I = 8-94395-980-4	1-15743-122-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15743-146-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-394-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-395-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-396-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-397-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-495-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-496-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.25 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	9-81325-382-0	AR	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	5-15749-040-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	8-97085-026-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-318-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	5-15749-051-1	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-593-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4	1-15742-149-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15742-151-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: H = 8-94395-979-4, I = 8-94395-980-4	1-15742-156-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-152-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-151-0	02	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-451-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-592-0	01	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-159-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	8-97085-026-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-860-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP D=1.9 L=37.0 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-859-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP D=1.7 L=39.5 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-861-0	01	1	-
35	SPRING; TIMER,OUTER,INJ PUMP D=1.8 L=38.0 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-862-0	01	1	-
35	SPRING; TIMER,OUTER,INJ PUMP D=2.0 L=36.0 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-863-0	01	1	-
35	SPRING; TIMER,OUTER,INJ PUMP D=2.1 L=36.0 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-864-0	01	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-868-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-418-0	04	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-072-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-591-0	01	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-390-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-391-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-392-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-393-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-493-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15749-494-0	AR	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-449-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	9-81345-138-0	01	1	-
56	GASKET; CAP ASM PART: A = 8-94390-961-2, B = 8-94392-108-2, C = 8-94395-968-3, D = 8-94395-969-3, E = 8-94395-975-3, F = 8-94395-976-3, G = 8-94395-977-4, H = 8-94395-979-4, I = 8-94395-980-4	1-15749-453-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: C = 8-94395-968-3, D = 8-94395-969-3	1-15743-144-0	01	1	-
