Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#43778) — 185 parça

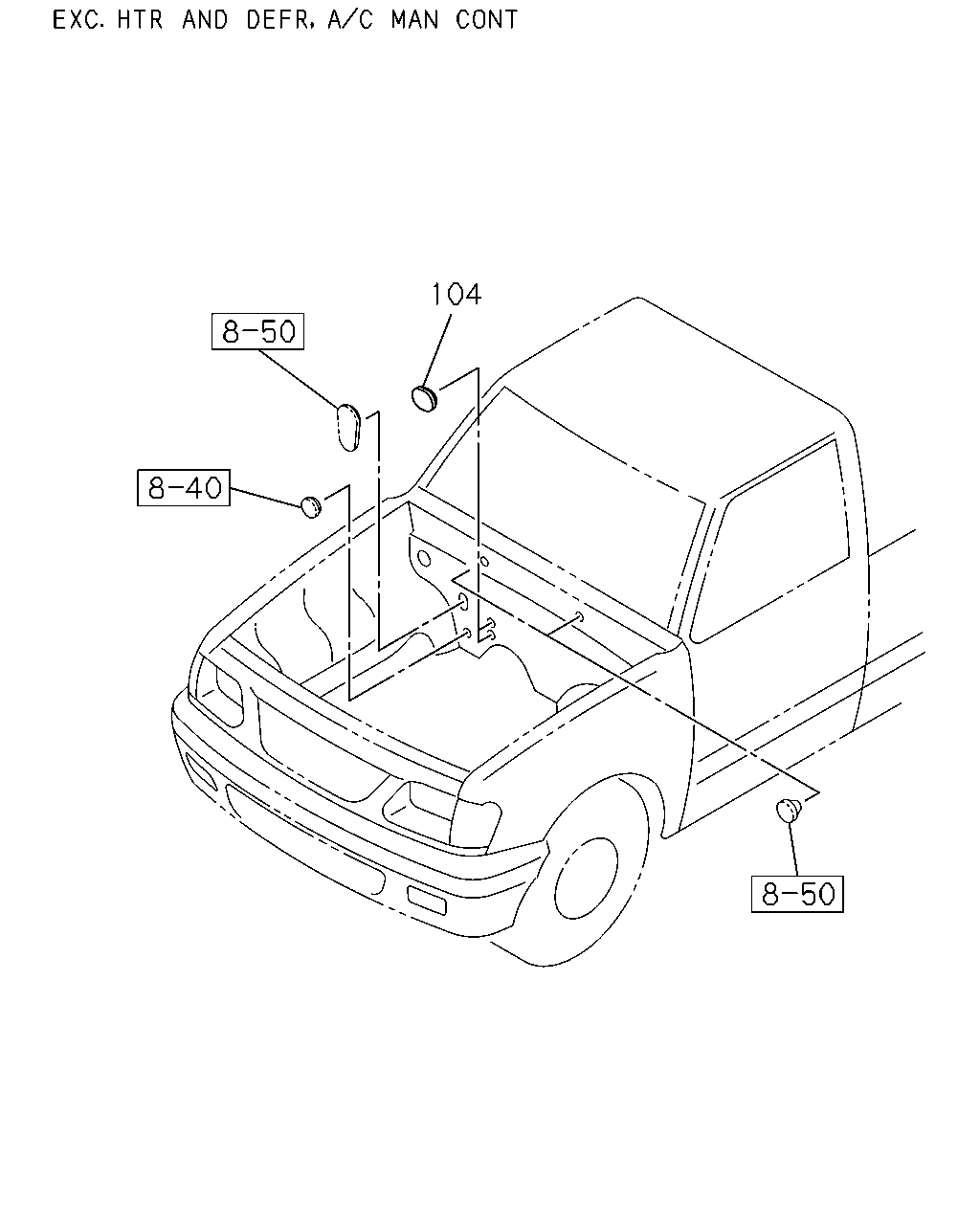

104

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
	104	16.550 PLUG; RUBBER,HTR HOSE HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97125-023-0	02	1	9804-	●	●	●	●	●	●	●	●

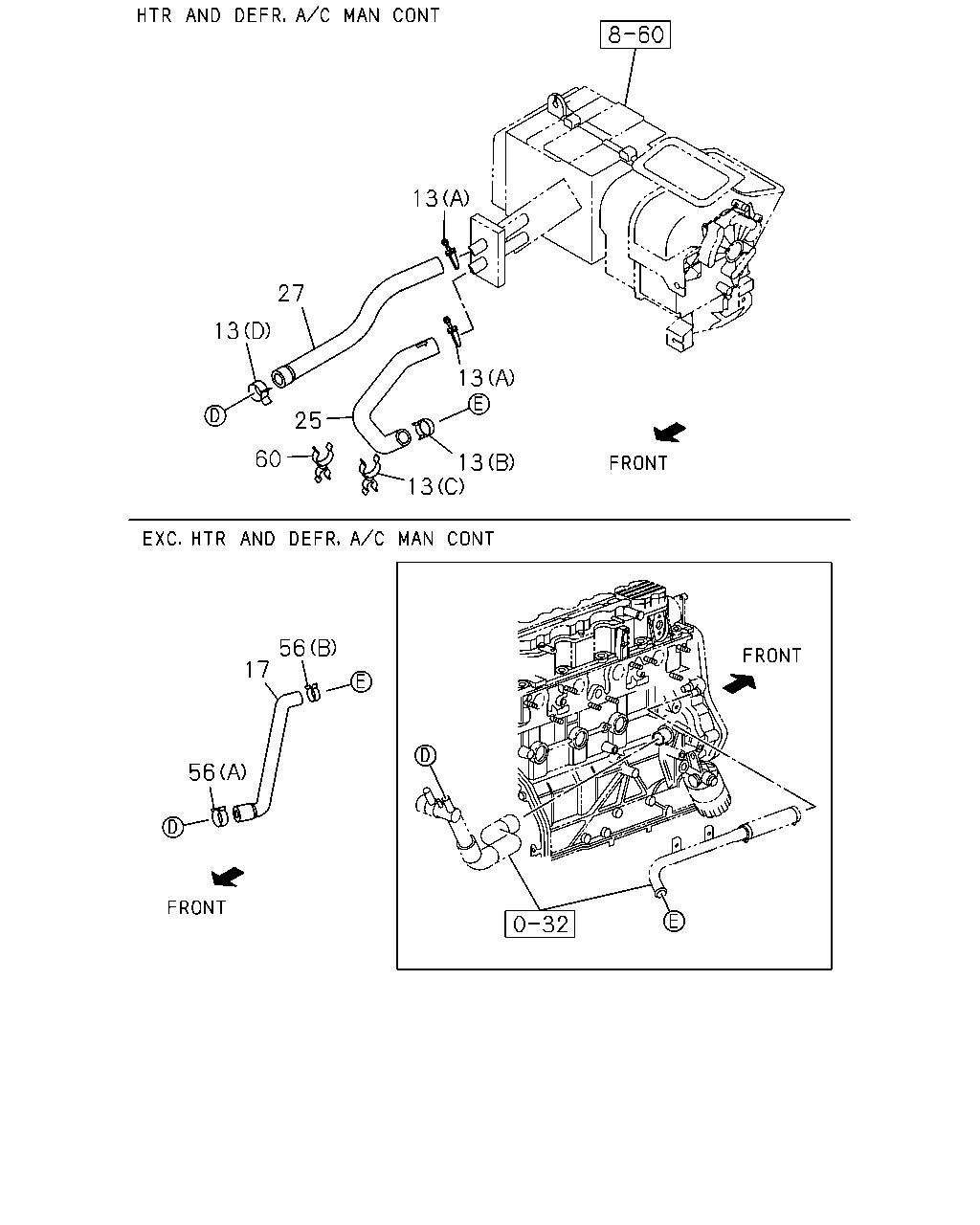

107 13 27 13 13 25 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	9804-0108	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	0109-0109	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	0110-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	01	1	0110-	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=23	8-94382-402-0	01	1	9804-0108	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=23	8-94382-402-0	01	1	0109-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (C) ID=13 & 21	8-94417-626-0	01	1	9804-0108	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (C) ID=13 & 21	8-94417-626-0	01	1	0109-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9804-9812	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9901-0108	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	0109-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	02	1	9804-9812	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	02	1	9901-0109	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	02	1	0110-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	03	1	9804-0109	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=23	8-94382-402-0	02	1	9804-9812				●				●
13	08.846 CLIP; HTR HOSE 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=23	8-94382-402-0	02	1	9901-			●	●			●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-923-0	01	1	9804-0108	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-923-0	01	1	0109-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94435-214-5	01	1	9804-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97070-690-2	01	1	9804-9805	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-97039-293-0	01	1	9804-0012	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B)	8-97081-556-1	01	1	9804-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-97039-293-0	01	1	0101-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97176-376-0	01	1	9804-9805	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. ELECTRIC FUEL INJECTION<6GG>	8-97078-644-0	01	1	9804-9812			●	●				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-696-0	01	1	9804-9812				●				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-696-0	01	1	9901-			●	●			●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97176-376-0	01	1	9806-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-921-2	01	1	9804-0108	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-921-2	01	1	0109-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94435-211-6	01	1	9804-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97070-691-2	01	1	9804-9805	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-97039-290-0	01	1	9804-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97176-375-0	01	1	9804-9805	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-209-3	01	1	9804-9812			●	●				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-697-0	01	1	9804-9812				●				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97176-375-0	01	1	9806-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-697-0	01	1	9901-			●	●			●	●
107	08.864 HOSE; WATER,HTR 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) COOLER WO/HEATER(YL1)	8-97170-129-1	01	1	9912-			●	●			●	●

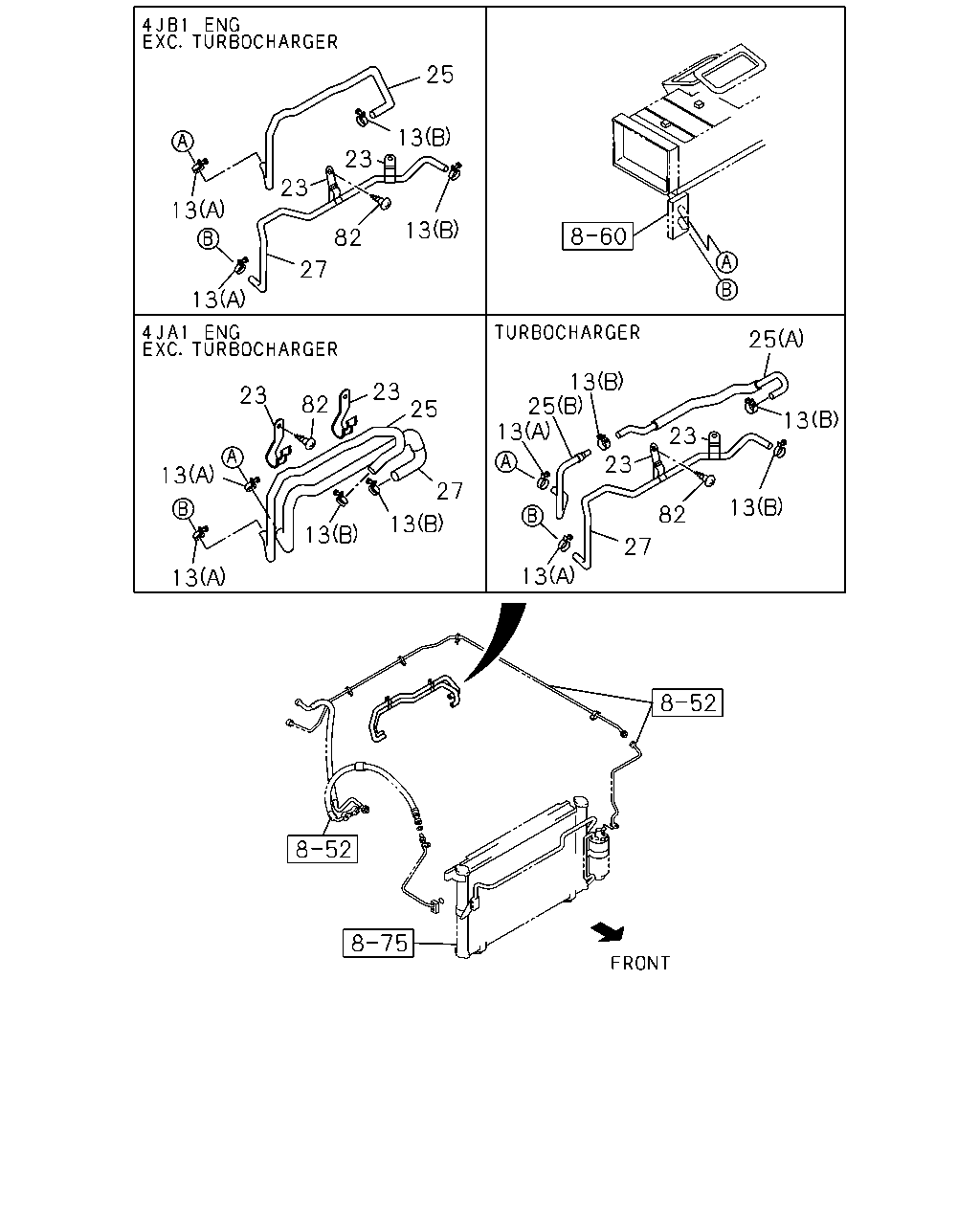

25 13 23 23 13 13 82 27 13 25 13 25 13 23 23 82 25 23 23 13 27 13 82 13 13 27 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	9804-0108	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	0109-0109	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	0110-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	01	1	0110-	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=23	8-94382-402-0	01	1	9804-0108	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=23	8-94382-402-0	01	1	0109-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (C) ID=13 & 21	8-94417-626-0	01	1	9804-0108	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (C) ID=13 & 21	8-94417-626-0	01	1	0109-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9804-9812	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9901-0108	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	0109-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	02	1	9804-9812	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	02	1	9901-0109	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	02	1	0110-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	03	1	9804-0109	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=23	8-94382-402-0	02	1	9804-9812				●				●
13	08.846 CLIP; HTR HOSE 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=23	8-94382-402-0	02	1	9901-			●	●			●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94338-298-0	02	1	9804-9805	●	●	●	●	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94338-298-0	02	1	9804-9805	●		●	●	●		●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-94338-298-0	01	1	9804-9805	●		●	●	●		●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94338-298-1	02	1	9806-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-923-0	01	1	9804-0108	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-923-0	01	1	0109-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94435-214-5	01	1	9804-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97070-690-2	01	1	9804-9805	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-97039-293-0	01	1	9804-0012	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B)	8-97081-556-1	01	1	9804-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-97039-293-0	01	1	0101-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97176-376-0	01	1	9804-9805	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. ELECTRIC FUEL INJECTION<6GG>	8-97078-644-0	01	1	9804-9812			●	●				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-696-0	01	1	9804-9812				●				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-696-0	01	1	9901-			●	●			●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97176-376-0	01	1	9806-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-921-2	01	1	9804-0108	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-921-2	01	1	0109-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94435-211-6	01	1	9804-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97070-691-2	01	1	9804-9805	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-97039-290-0	01	1	9804-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97176-375-0	01	1	9804-9805	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-209-3	01	1	9804-9812			●	●				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-697-0	01	1	9804-9812				●				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97176-375-0	01	1	9806-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-697-0	01	1	9901-			●	●			●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> 02.343	8-94470-854-1	02	1	9804-9805	●	●	●	●	●	●	●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.343	8-94470-854-1	02	1	9804-9805	●		●	●	●		●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> 02.343	8-94470-854-1	01	1	9804-9805	●		●	●	●		●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.343	8-94470-854-1	02	1	9806-	●	●	●	●	●	●	●	●

13 13 27 13 25 13 74 56 9 56 56 14 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
9	08.846 PIPE; HTR 4ZE1 ENG(RLJ)	8-94474-073-2	01	1	9804-9812			●	●				●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	9804-0108	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	0109-0109	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	0110-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	01	1	0110-	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=23	8-94382-402-0	01	1	9804-0108	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=23	8-94382-402-0	01	1	0109-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (C) ID=13 & 21	8-94417-626-0	01	1	9804-0108	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (C) ID=13 & 21	8-94417-626-0	01	1	0109-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9804-9812	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9901-0108	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	0109-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	02	1	9804-9812	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	02	1	9901-0109	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	02	1	0110-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	03	1	9804-0109	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=23	8-94382-402-0	02	1	9804-9812				●				●
13	08.846 CLIP; HTR HOSE 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=23	8-94382-402-0	02	1	9901-			●	●			●	●
14	08.846 HOSE; WATER,CONN TO PIPE 4ZE1 ENG(RLJ)	8-94381-104-1	01	1	9804-9812			●	●				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-923-0	01	1	9804-0108	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-923-0	01	1	0109-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94435-214-5	01	1	9804-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97070-690-2	01	1	9804-9805	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-97039-293-0	01	1	9804-0012	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B)	8-97081-556-1	01	1	9804-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-97039-293-0	01	1	0101-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97176-376-0	01	1	9804-9805	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. ELECTRIC FUEL INJECTION<6GG>	8-97078-644-0	01	1	9804-9812			●	●				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-696-0	01	1	9804-9812				●				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-696-0	01	1	9901-			●	●			●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97176-376-0	01	1	9806-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-921-2	01	1	9804-0108	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-921-2	01	1	0109-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94435-211-6	01	1	9804-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97070-691-2	01	1	9804-9805	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-97039-290-0	01	1	9804-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97176-375-0	01	1	9804-9805	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-209-3	01	1	9804-9812			●	●				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-697-0	01	1	9804-9812				●				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97176-375-0	01	1	9806-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-697-0	01	1	9901-			●	●			●	●
56	08.846 CLAMP; HTR HOSE 22LE/C22NE ENG(RJT) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	9804-0108	●	●	●	●	●	●	●	●
56	08.846 CLAMP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	0109-	●	●	●	●	●	●	●	●
56	08.846 CLAMP; HTR HOSE 22LE/C22NE ENG(RJT) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=23	8-94382-402-0	01	1	9804-0108	●	●	●	●	●	●	●	●
56	08.846 CLAMP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=23	8-94382-402-0	01	1	0109-	●	●	●	●	●	●	●	●
56	08.846 CLAMP; HTR HOSE 4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	02	1	9804-9812			●	●				●
56	08.846 CLAMP; HTR HOSE 4ZE1 ENG(RLJ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	04	1	9804-9812			●	●				●
74	08.866 HOSE; WATER,ENG TO PIPE 4ZE1 ENG(RLJ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ELECTRIC FUEL INJECTION<6GG>	8-94474-076-2	01	1	9804-9812			●	●				●

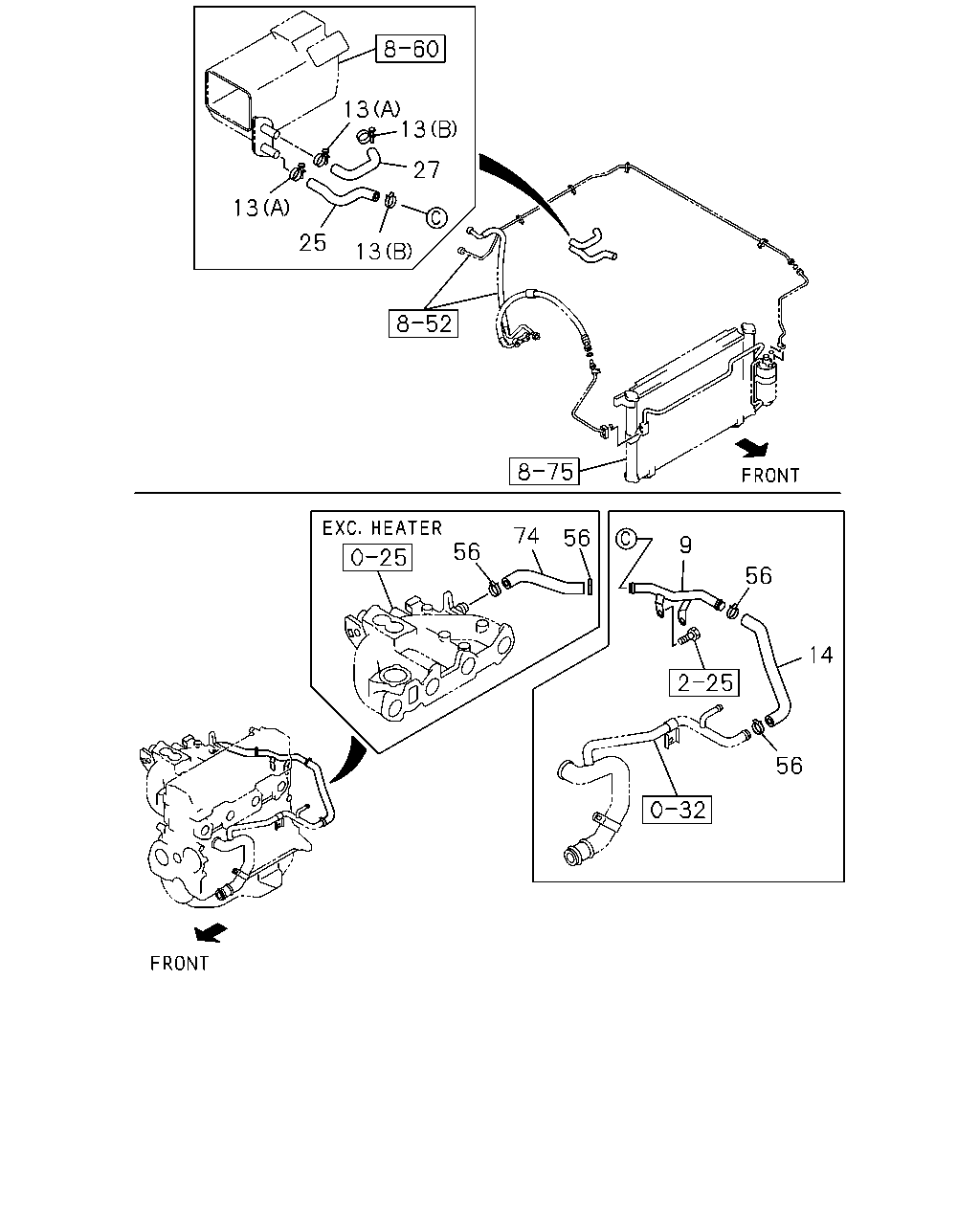

13 27 13 13 25 60 13 13 56 17 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	9804-0108	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	0109-0109	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	0110-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	01	1	0110-	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=23	8-94382-402-0	01	1	9804-0108	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=23	8-94382-402-0	01	1	0109-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (C) ID=13 & 21	8-94417-626-0	01	1	9804-0108	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (C) ID=13 & 21	8-94417-626-0	01	1	0109-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9804-9812	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9901-0108	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	0109-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	02	1	9804-9812	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	02	1	9901-0109	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	02	1	0110-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	03	1	9804-0109	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=23	8-94382-402-0	02	1	9804-9812				●				●
13	08.846 CLIP; HTR HOSE 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=23	8-94382-402-0	02	1	9901-			●	●			●	●
17	08.846 HOSE; WATER,BYPASS 22LE/C22NE ENG(RJT) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97181-424-0	01	1	9804-0108	●	●	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 22LE/C22NE ENG(RJT),20SE ENG(RND) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97181-424-0	01	1	0109-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-923-0	01	1	9804-0108	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-923-0	01	1	0109-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94435-214-5	01	1	9804-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97070-690-2	01	1	9804-9805	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-97039-293-0	01	1	9804-0012	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B)	8-97081-556-1	01	1	9804-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-97039-293-0	01	1	0101-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97176-376-0	01	1	9804-9805	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. ELECTRIC FUEL INJECTION<6GG>	8-97078-644-0	01	1	9804-9812			●	●				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-696-0	01	1	9804-9812				●				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-696-0	01	1	9901-			●	●			●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97176-376-0	01	1	9806-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-921-2	01	1	9804-0108	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-921-2	01	1	0109-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94435-211-6	01	1	9804-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97070-691-2	01	1	9804-9805	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-97039-290-0	01	1	9804-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97176-375-0	01	1	9804-9805	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-209-3	01	1	9804-9812			●	●				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-697-0	01	1	9804-9812				●				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97176-375-0	01	1	9806-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-697-0	01	1	9901-			●	●			●	●
56	08.846 CLAMP; HTR HOSE 22LE/C22NE ENG(RJT) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	9804-0108	●	●	●	●	●	●	●	●
56	08.846 CLAMP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	0109-	●	●	●	●	●	●	●	●
56	08.846 CLAMP; HTR HOSE 22LE/C22NE ENG(RJT) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=23	8-94382-402-0	01	1	9804-0108	●	●	●	●	●	●	●	●
56	08.846 CLAMP; HTR HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=23	8-94382-402-0	01	1	0109-	●	●	●	●	●	●	●	●
56	08.846 CLAMP; HTR HOSE 4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	02	1	9804-9812			●	●				●
56	08.846 CLAMP; HTR HOSE 4ZE1 ENG(RLJ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	04	1	9804-9812			●	●				●
60	01.166 CLIP; HOSE 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 ID=13 & 21	8-94417-626-0	01	1	9910-0108	●	●	●	●	●	●	●	●
60	01.166 CLIP; HOSE 22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 ID=13 & 21	8-94417-626-0	01	1	0109-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
