8-40 — HEATER SYSTEM (#43776) — 60 parça

348 241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

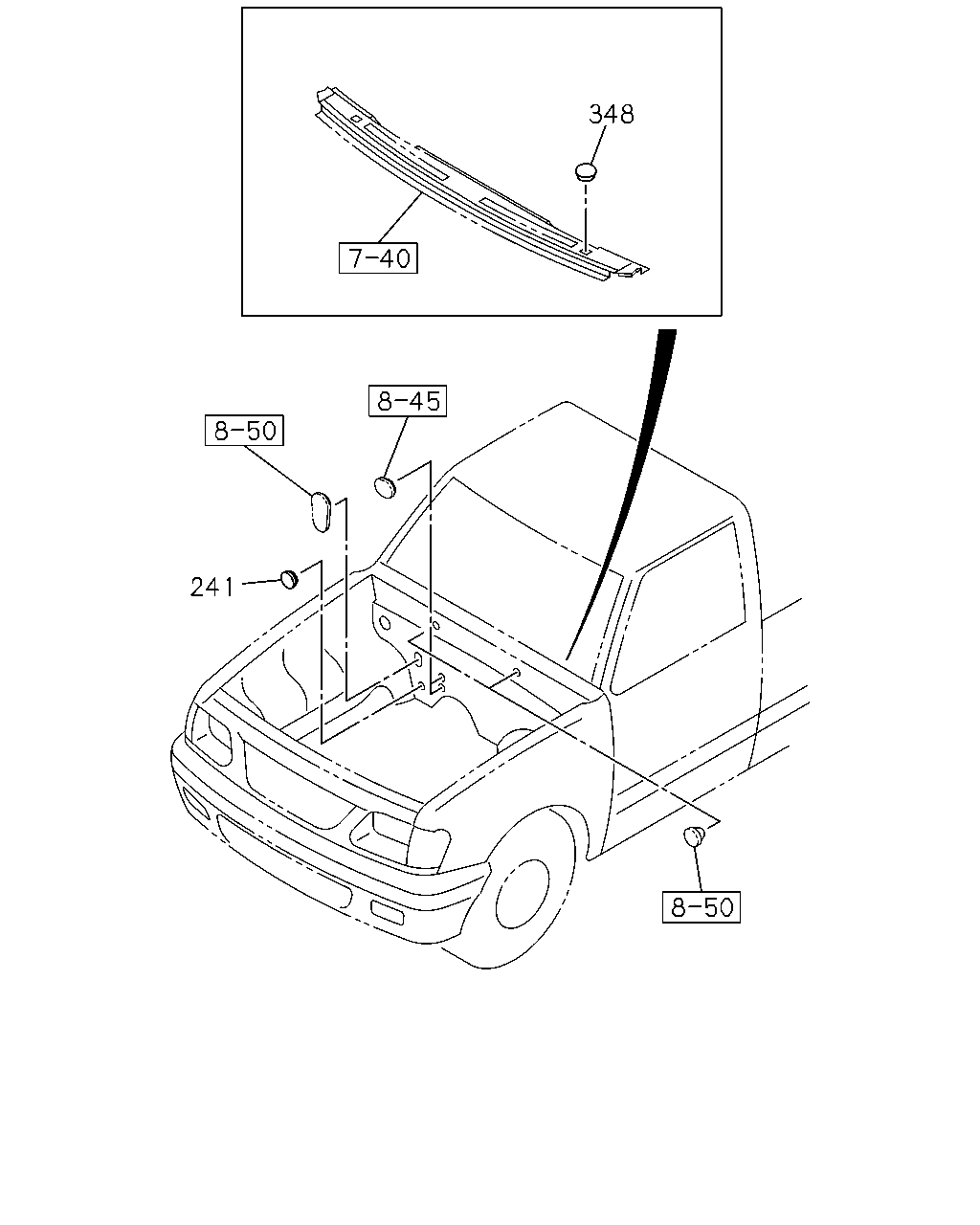

	241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 00.206	8-94222-309-1	01	1	9804-	●	●	●	●	●	●	●	●
	348	08.850 COVER; SUN SENSOR EXC. VENTILATION RAM AIR(6TN)	8-97121-843-1	01	1	9804-0112	●	●	●	●	●	●	●	●

24 6 1 24 6 222 25 24 222 116 222 222 300 59 280 116 185 65 72 71 44 105 104 103 98 26 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

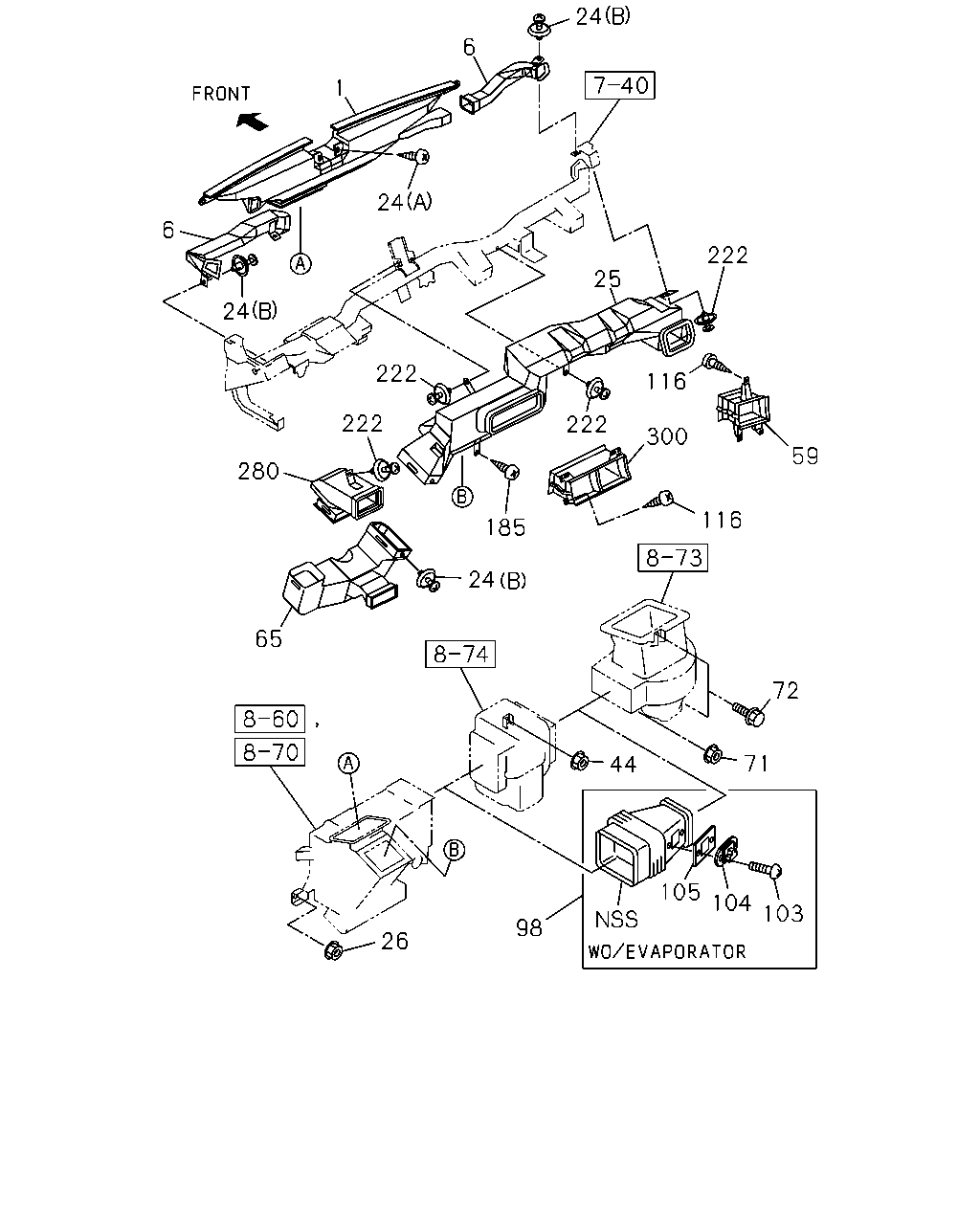

1	09.779 NOZZLE; DEFROSTER,INST PNL HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97107-800-0	01	1	9804-0009	●	●	●	●	●	●	●	●
1	09.779 NOZZLE; DEFROSTER,INST PNL HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97107-800-0	01	1	0010-	●	●	●	●	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97119-906-1	01	1	9804-0009	●	●	●	●	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97119-906-1	01	1	0010-	●	●	●	●	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97100-190-0	01	1	9804-0009	●	●	●	●	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97100-190-0	01	1	0010-	●	●	●	●	●	●	●	●
24	03.890 SCREW; NOZZLE TO INST PNL HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 15.222 (A) M5X16 TAPPING W/PL WASHER	0-74315-516-0	04	1	9804-0009	●	●	●	●	●	●	●	●
24	03.890 SCREW; NOZZLE TO INST PNL HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1) 15.222 (A) M5X16 TAPPING W/PL WASHER	0-74315-516-0	04	1	0010-	●	●	●	●	●	●	●	●
24	03.890 SCREW; NOZZLE TO INST PNL HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 06.760 (B)	8-94243-190-0	05	1	9804-0009	●	●	●	●	●	●	●	●
24	03.890 SCREW; NOZZLE TO INST PNL HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1) 06.760 (B)	8-94243-190-0	05	1	0010-0112	●	●	●	●	●	●	●	●
24	03.890 SCREW; NOZZLE TO INST PNL HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1) 09.787 (B)	8-97326-594-0	05	1	0201-	●	●	●	●	●	●	●	●
25	09.786 DUCT; CENTER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97100-192-1	01	1	9804-0009	●	●	●	●	●	●	●	●
25	09.786 DUCT; CENTER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97100-192-1	01	1	0010-	●	●	●	●	●	●	●	●
26	08.845 NUT; HTR HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE	8-97063-399-0	04	1	9804-	●	●	●	●	●	●	●	●
26	08.845 NUT; HTR AIR CONDITIONER PREPARATORY PACK(S6D) 07.833 M6 FLANGE	8-97063-399-0	03	1	0010-0012			●
26	08.845 NUT; HTR AIR CONDITIONER PREPARATORY PACK(S6D) 07.833 M6 FLANGE	8-97063-399-0	03	1	0101-			●	●				●
44	09.222 NUT; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 07.833 M6 FLANGE	8-97063-399-0	02	1	9804-	●	●	●	●	●	●	●	●
59	09.786 DUCT; VENT,ASSIST SIDE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97101-305-0	01	1	9804-0009	●	●	●	●	●	●	●	●
59	09.786 DUCT; VENT,ASSIST SIDE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97101-305-0	01	1	0010-	●	●	●	●	●	●	●	●
65	09.786 DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97100-193-0	01	1	9804-0009	●	●	●	●	●	●	●	●
65	09.786 DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97100-193-0	01	1	0010-	●	●	●	●	●	●	●	●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE	8-97063-399-0	01	1	9804-0009	●	●	●	●	●	●	●	●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE	8-97063-399-0	01	1	0010-	●	●	●	●	●	●	●	●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 10.701 M6X16	8-94206-784-0	02	1	9804-0009	●	●	●	●	●	●	●	●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1) 10.701 M6X16	8-94206-784-0	02	1	0010-	●	●	●	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57)	8-94376-106-0	01	1	9804-	●	●	●	●	●	●	●	●
103	08.855 SCREW; TAPPING,RESISTOR FIX HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57) 09.789 M4X16 TAPPING	1-83579-114-0	02	1	9804-	●	●	●	●	●	●	●	●
104	08.855 RESISTOR; HTR DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57)	8-97045-850-0	01	1	9804-	●	●	●	●	●	●	●	●
105	08.856 PLATE; HTR DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57) 00.030	8-97045-851-0	01	1	9804-	●	●	●	●	●	●	●	●
116	08.845 SCREW; TAP AIR DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING	9-09829-323-1	07	1	9804-0009	●	●	●	●	●	●	●	●
116	08.845 SCREW; TAP AIR DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING	9-09829-323-1	07	1	0010-	●	●	●	●	●	●	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 15.222 M5X16 TAPPING W/PL WASHER	0-74315-516-0	01	1	9804-0009	●	●	●	●	●	●	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1) 15.222 M5X16 TAPPING W/PL WASHER	0-74315-516-0	01	1	0010-	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1) 06.760	8-94243-190-0	02	1	0203-	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 06.760	8-94243-190-0	05	1	9804-0009	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1) 06.760	8-94243-190-0	05	1	0010-0112	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97326-594-0	05	1	0201-0202	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97326-594-0	03	1	0203-	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT VENTILATION RAM AIR(6TN) 06.760	8-94243-190-0	02	1	9804-0112	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT VENTILATION RAM AIR(6TN)	8-97326-594-0	02	1	0201-	●	●	●	●	●	●	●	●
280	09.264 DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97100-194-0	01	1	9804-0009	●	●	●	●	●	●	●	●
280	09.264 DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97100-194-0	01	1	0010-	●	●	●	●	●	●	●	●
300	09.264 DUCT; VENT,CENTER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97118-559-1	01	1	9804-0009	●	●	●	●	●	●	●	●
300	09.264 DUCT; VENT,CENTER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97118-559-1	01	1	0010-	●	●	●	●	●	●	●	●

222 192 191 190 196 192 191 190 222 196 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

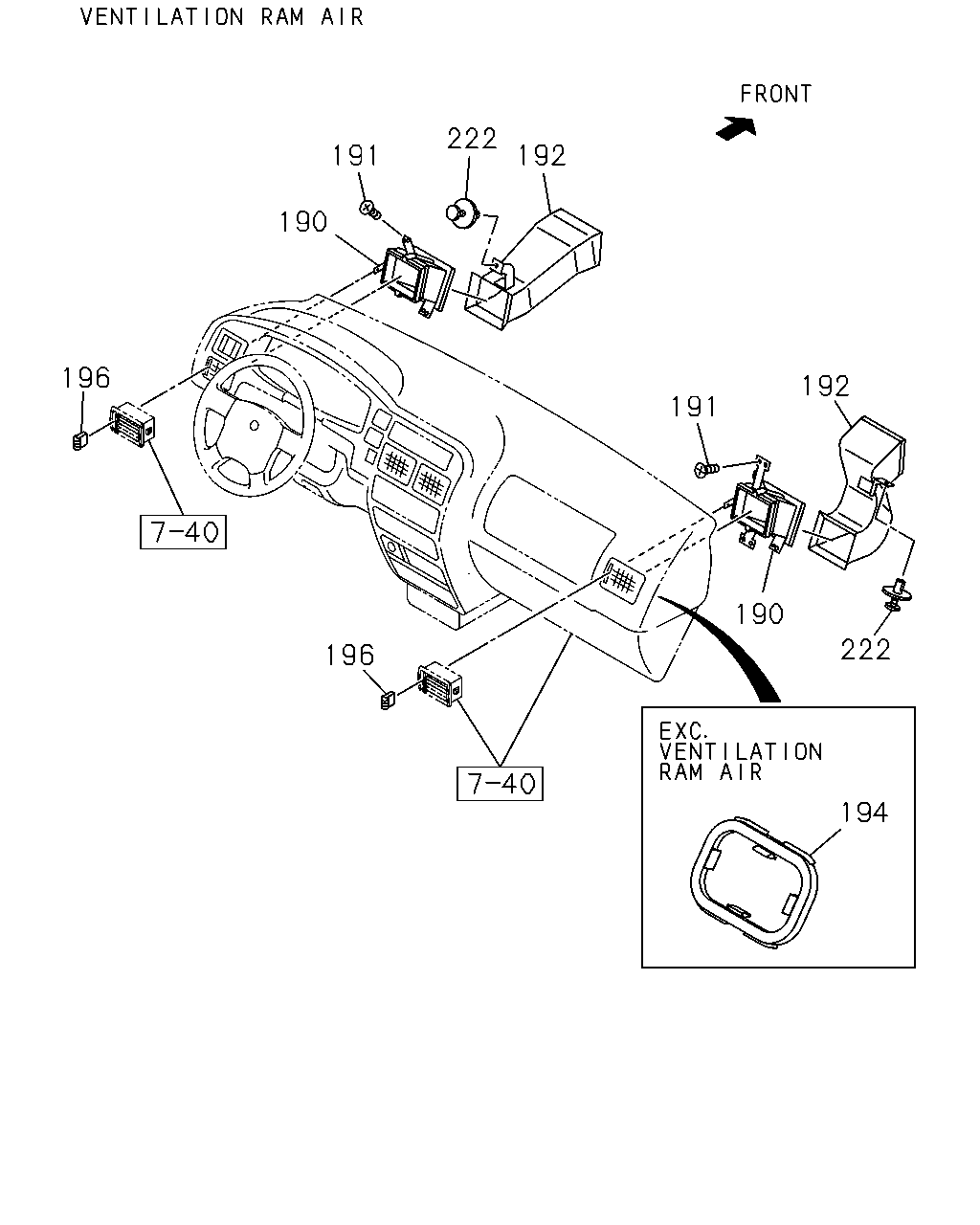

190	09.262 BOX; VENT,RAM AIR VENTILATION RAM AIR(6TN)	8-97112-932-2	01	1	9804-	●	●	●	●	●	●	●	●
190	09.262 BOX; VENT,RAM AIR VENTILATION RAM AIR(6TN)	8-97112-931-2	01	1	9804-	●	●	●	●	●	●	●	●
191	09.262 SCREW; VENT BOX VENTILATION RAM AIR(6TN) 16.085 M5X16 TAPPING	9-09829-323-1	04	1	9804-	●	●	●	●	●	●	●	●
192	09.262 DUCT; RAM AIR VENTILATION RAM AIR(6TN)	8-97112-935-1	01	1	9804-	●	●	●	●	●	●	●	●
192	09.262 DUCT; RAM AIR VENTILATION RAM AIR(6TN)	8-97112-933-1	01	1	9804-	●	●	●	●	●	●	●	●
194	09.262 COVER; HOLE,RAM AIR EXC. VENTILATION RAM AIR(6TN)	8-94435-191-1	02	1	9804-	●	●	●	●	●	●	●	●
196	09.262 KNOB; VENT BOX VENTILATION RAM AIR(6TN) BLACK	8-97000-038-0	02	1	9804-	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1) 06.760	8-94243-190-0	02	1	0203-	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 06.760	8-94243-190-0	05	1	9804-0009	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1) 06.760	8-94243-190-0	05	1	0010-0112	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97326-594-0	05	1	0201-0202	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97326-594-0	03	1	0203-	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT VENTILATION RAM AIR(6TN) 06.760	8-94243-190-0	02	1	9804-0112	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT VENTILATION RAM AIR(6TN)	8-97326-594-0	02	1	0201-	●	●	●	●	●	●	●	●
