8-28 — CHASSIS ELECTRICAL (#43775) — 34 parça

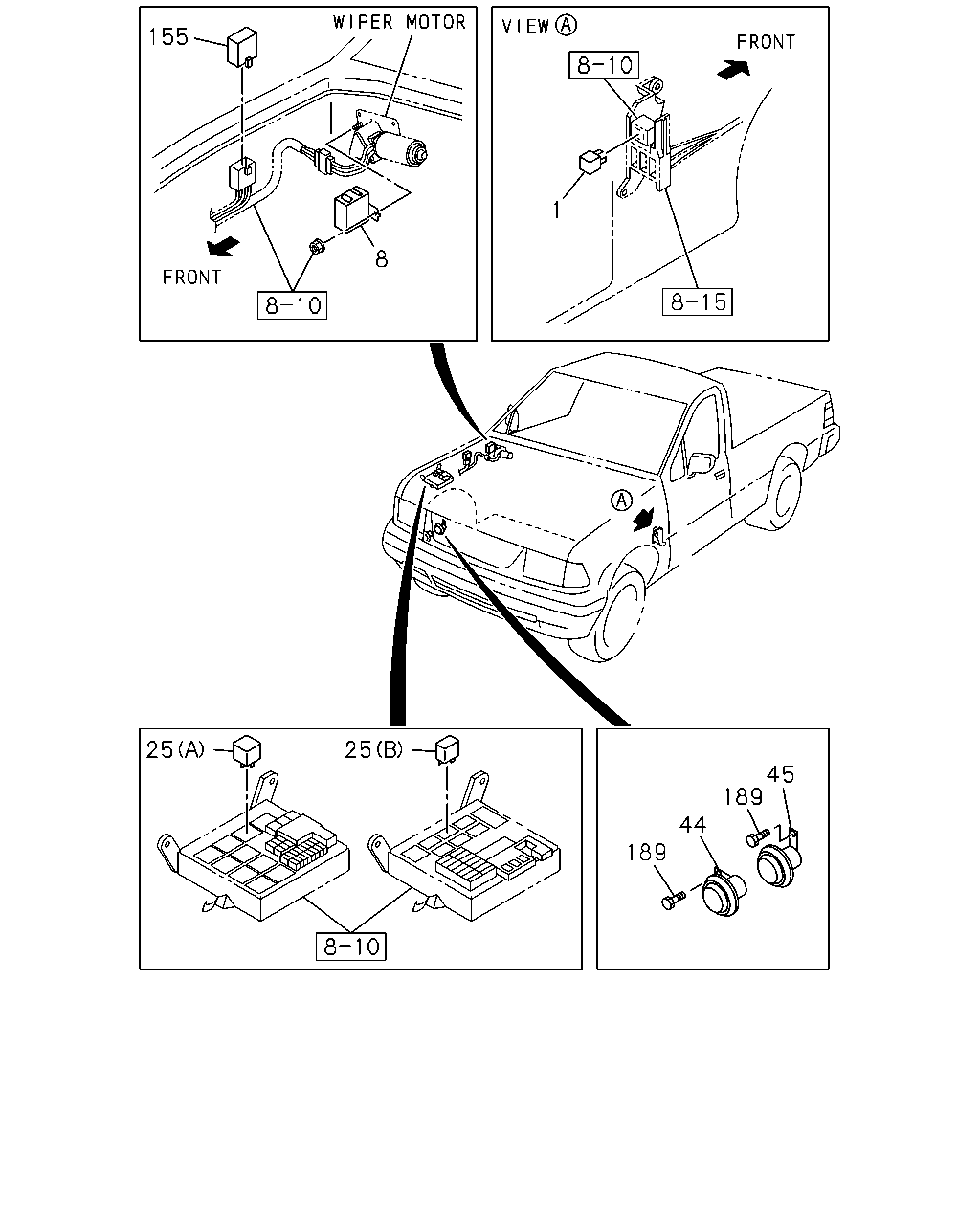

çizim 71206
155 1 8 25 25 45 189 44 189
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.575 UNIT; FLASHER
DENSO 		8-97038-317-0 01 1 9804-9902 ● ● ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
DENSO 		8-97202-225-1 01 1 9903- ● ● ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
VALEO 		8-97105-453-0 01 1 9804-0110 ● ● ● ● ● ● ● ●
8 16.067 RELAY; WIPER 8-97096-762-1 01 1 9804- ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97096-762-1 01 1 9804- ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) (B) 12V 20A 		8-97173-039-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
(B) 12V 20A 		8-97173-039-1 01 1 9910- ● ● ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 08.852 (A) 12V 20A 		8-97060-926-1 01 1 9804-9812 ● ● ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.852 (A) 12V 20A 		8-97060-926-1 01 1 9901-9909 ● ● ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97109-359-0 01 1 9804-9903 ● ● ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97109-359-0 01 1 9904-9909 ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97109-359-0 01 1 9910-0012 ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> EGYPT EQUIPMENT(YJ4) 		8-97109-359-0 01 1 0101- ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97218-380-0 01 1 9904-9909 ● ● ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> EXC. EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97218-380-2 01 1 9910- ● ● ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
SAUDI ARABIA EQUIPMENT(EU2) DUAL TONE HORN<U05> 		8-97138-273-0 01 1 9804-9909 ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> CHINA EQUIPMENT(YT2) 		8-97138-273-1 01 1 0101- ● ●
45 02.810 HORN; LOW NOTE 8-97109-360-0 01 1 9804-9903 ● ● ● ●
45 02.810 HORN; LOW NOTE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97109-360-0 01 1 9804-9903 ● ● ● ●
45 02.810 HORN; LOW NOTE
EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97109-360-0 01 1 9904-0012 ● ● ●
45 02.810 HORN; LOW NOTE
EGYPT EQUIPMENT(YJ4) 		8-97109-360-0 01 1 0101- ● ● ●
45 02.810 HORN; LOW NOTE 8-97218-382-0 01 1 9904-9909 ● ● ● ●
45 02.810 HORN; LOW NOTE
EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97218-382-0 01 1 9904-9909 ● ● ● ●
45 02.810 HORN; LOW NOTE 8-97218-382-2 01 1 9910- ● ● ● ● ●
45 02.810 HORN; LOW NOTE
EXC. EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97218-382-2 01 1 9910- ● ● ●
45 02.810 HORN; LOW NOTE
SAUDI ARABIA EQUIPMENT(EU2) 		8-97138-270-0 01 1 9804-9909 ● ● ● ●
45 02.810 HORN; LOW NOTE
CHINA EQUIPMENT(YT2) 		8-97138-270-1 01 1 0101- ● ●
155 16.067 CONNECTOR; SHORT
EXC. INTERMITTENT WIPER<C13> 02.559 		8-97114-443-0 01 1 9804- ● ● ● ● ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.343 M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9804- ● ● ● ● ● ● ● ●
189 02.812 BOLT; HORN
EXC. DUAL TONE HORN<U05> 02.343 M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9804- ● ● ● ● ● ● ● ●

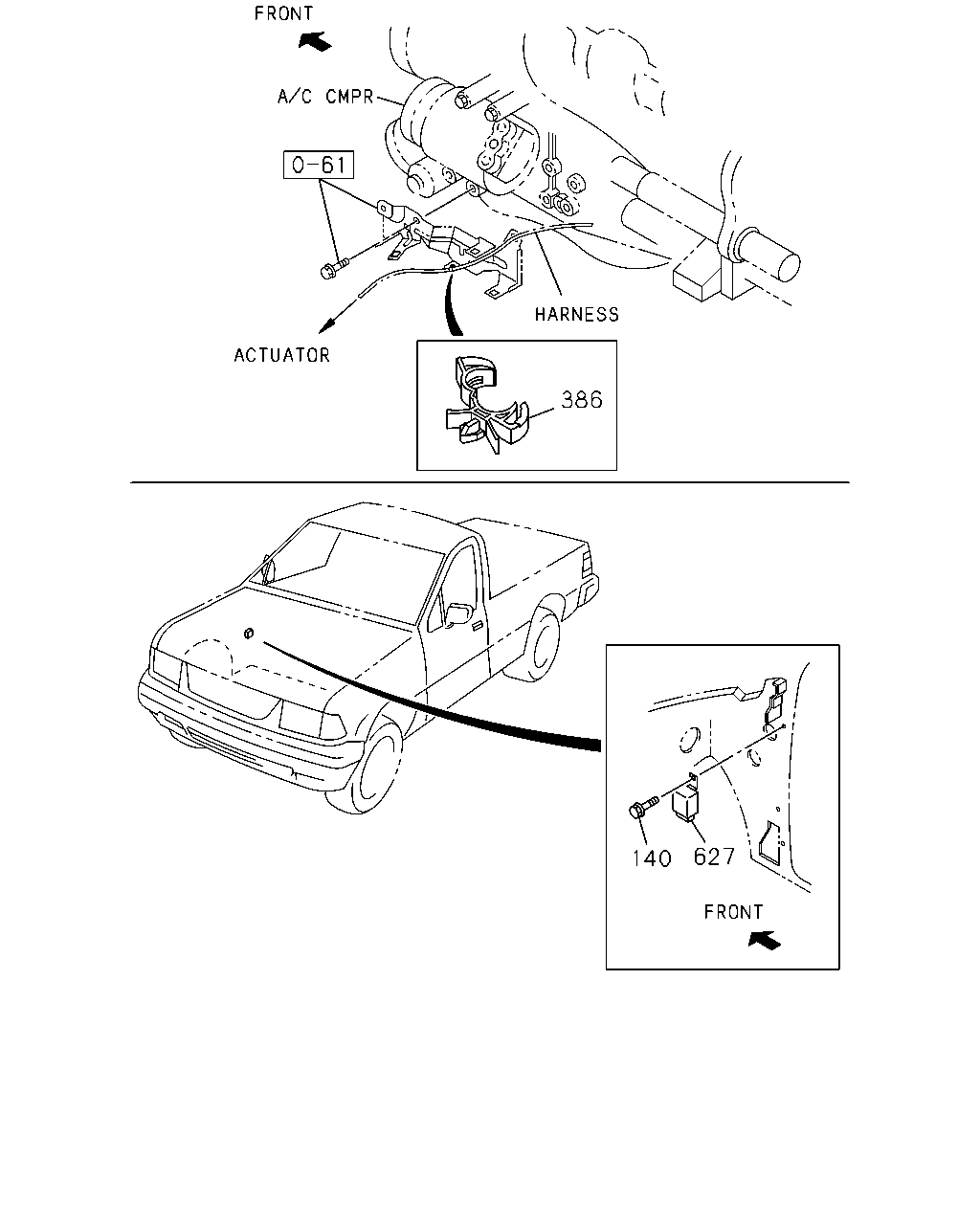

çizim 74046
386 627 140
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
140 16.263 BOLT; CONTROLLER
SHIFT ON THE FLY(7EX) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9910- ● ● ●
386 02.559 CLIP; HARNESS
6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) ID=7-10 		8-94472-578-0 01 1 9910- ● ●
627 02.440 CONTROLLER; SHIFT ON THE FLY
SHIFT ON THE FLY(7EX) 		8-97215-990-1 01 1 9910-0301 ● ● ●
627 02.440 CONTROLLER; SHIFT ON THE FLY
SHIFT ON THE FLY(7EX) 		8-97364-910-0 01 1 0302- ● ● ●
