8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#43774) — 48 parça

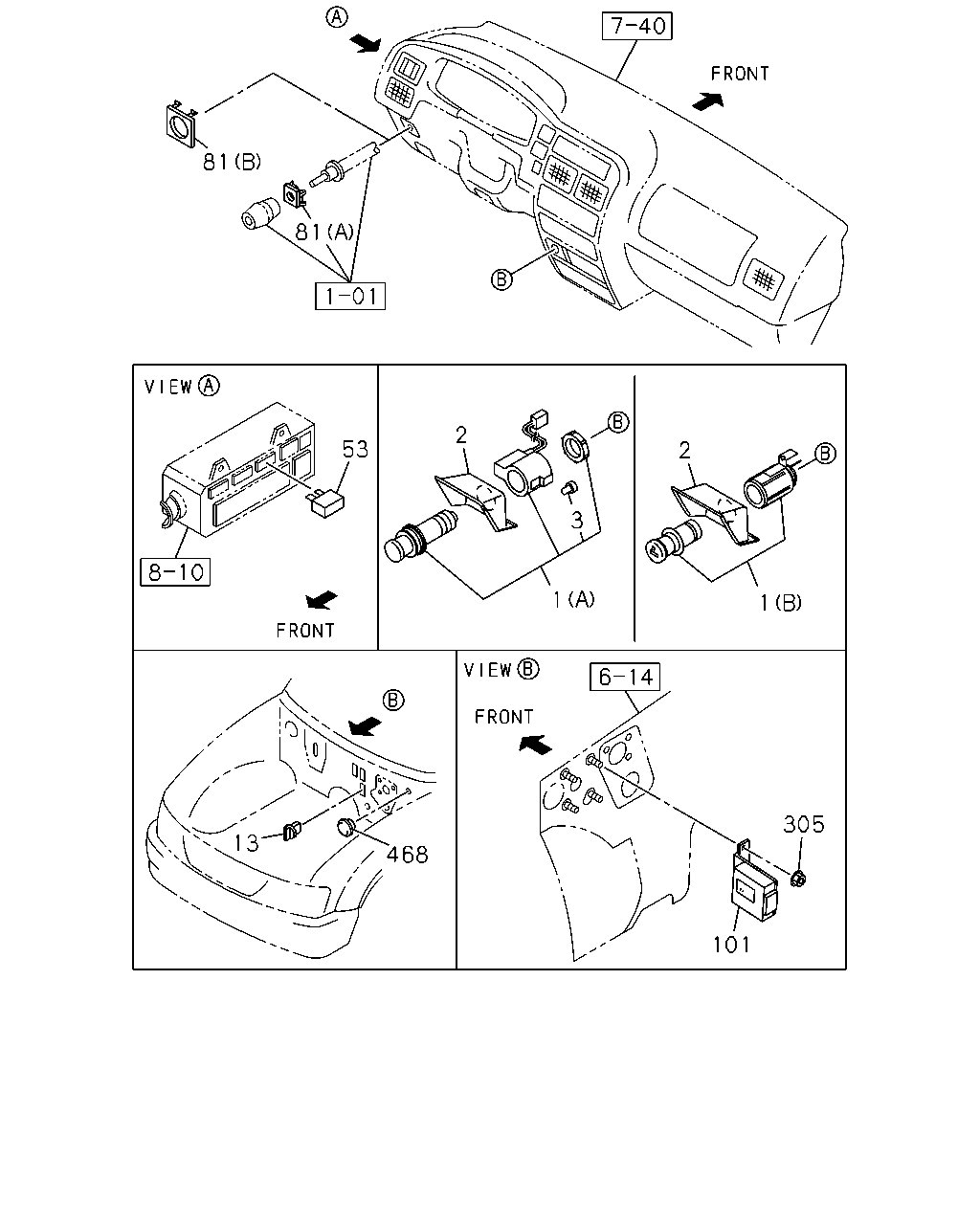

çizim 19722
81 81 2 53 2 3 1 1 305 13 468 101
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.709 LIGHTER; CIGAR
(A) 		8-97094-468-2 01 1 9804-0109 ● ●
1 09.709 LIGHTER; CIGAR
GRADE LS(RBD) (A) 		8-97094-468-2 01 1 9804-0109 ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
GRADE S(RBA) (B) 		8-97100-029-0 01 1 9804-0109 ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
(B) 		8-97100-029-0 01 1 9804-0109 ●
1 09.709 LIGHTER; CIGAR
(B) 		8-97100-029-0 01 1 0110-0206 ● ● ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
(B) 		8-97314-003-0 01 1 0207- ● ● ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
BLACK 		8-97000-043-0 01 1 9804-0109 ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE LS(RBD) BLACK 		8-97000-043-0 01 1 9804-0109 ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE S(RBA) BLACK 		8-94333-793-0 01 1 9804-0109 ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
BLACK 		8-94333-793-0 01 1 9804-0109 ●
2 09.709 BEZEL; CIGAR LIGHTER
BLACK 		8-94333-793-0 01 1 0110-0206 ● ● ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
BLACK 		8-97000-043-0 01 1 0207- ● ● ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W WO/CAP 		5-82194-026-0 01 1 9804-0109 ● ●
3 08.991 BULB; CIGAR LIGHTER
GRADE LS(RBD) 14V 1.4W WO/CAP 		5-82194-026-0 01 1 9804-0109 ● ● ● ● ●
13 03.880 PLUG; CONTROLLER,CRUISE
12.804 		8-94147-164-1 01 1 9804- ● ● ● ● ● ● ● ●
53 02.510 BREAKER; ELEC CIRCUIT
POWER WINDOW<A30> 02.485 		8-97106-113-0 01 1 9804-9909 ● ● ● ● ● ●
53 02.510 BREAKER; ELEC CIRCUIT
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> 02.485 		8-97106-113-0 01 1 9911-0012 ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ), 6VD1 ENG(RLV) (B) 		8-97165-448-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) (B) 		8-97165-448-0 01 1 9901-0108 ● ● ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) (B) 		8-97165-448-0 01 1 0109- ● ● ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-97065-377-3 01 1 9804- ● ● ● ● ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JB1 ENG(RLF) A/T AISIN(RMD) 		8-97300-158-0 01 1 0010- ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JB1 ENG(RLF) A/T AISIN(RMD) 		8-97300-159-0 01 1 0010- ●
305 08.915 NUT; CONT UNIT
A/T AISIN(RMD) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0010- ● ●
468 04.342 GROMMET; HOLE,METER CABLE
16.585 OD=31.6 		8-94198-177-0 01 1 9804- ● ● ● ● ● ● ● ●

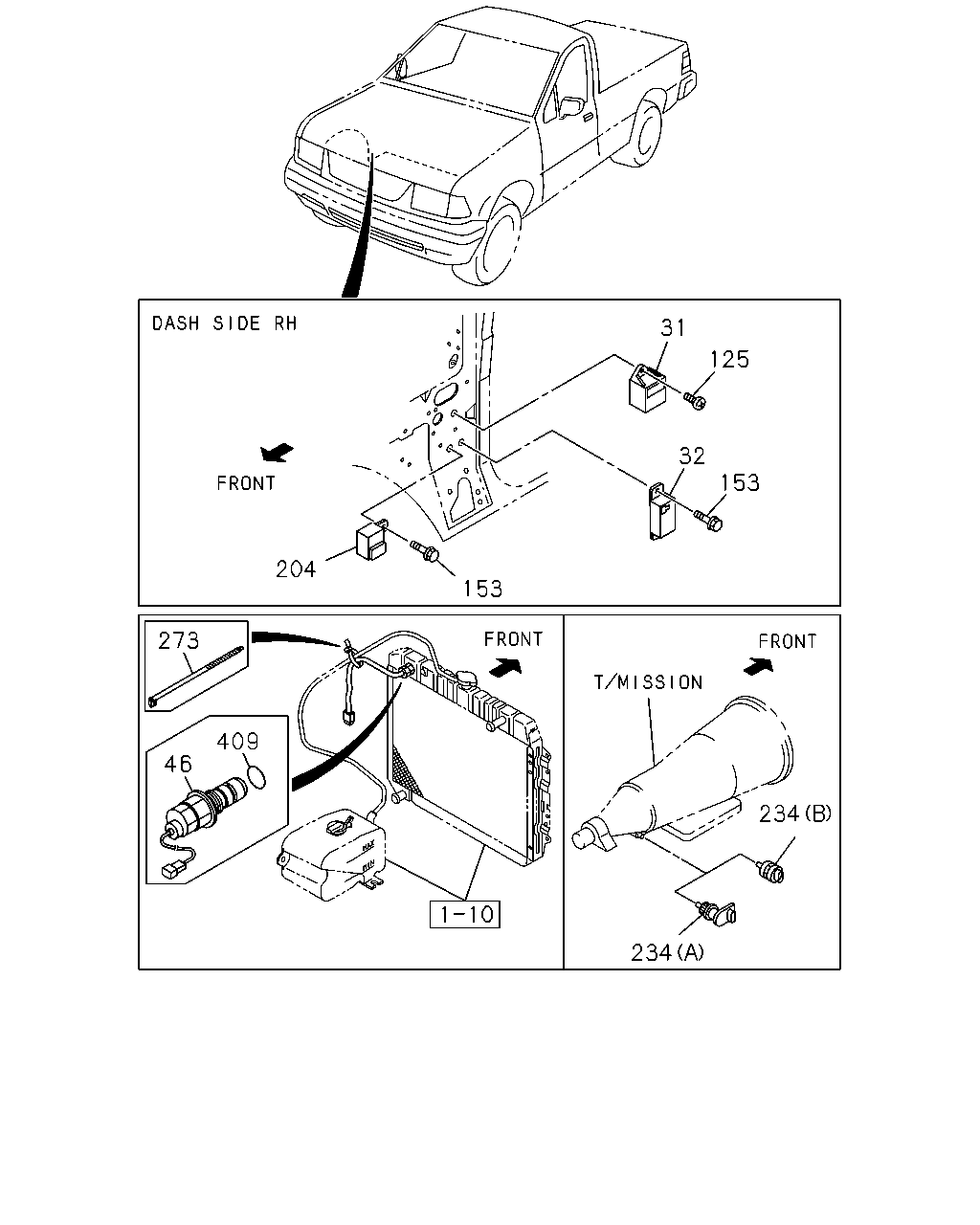

çizim 20052
31 125 32 153 204 153 273 409 46 234 234
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
31 01.240 CONTROLLER; RAD LEVEL
RADIATOR COOLANT LEVELING WARNING<7DL> 		8-97063-273-0 01 1 9804-0012 ● ● ● ● ● ●
31 01.240 CONTROLLER; RAD LEVEL
RADIATOR COOLANT LEVELING WARNING<7DL> 		8-97063-273-0 01 1 0101- ● ● ● ● ● ● ●
32 01.240 BUZZER; RAD LEVEL
RADIATOR COOLANT LEVELING WARNING<7DL> 09.765 		8-94131-441-0 01 1 9804-0012 ● ● ● ● ● ●
32 01.240 BUZZER; RAD LEVEL
RADIATOR COOLANT LEVELING WARNING<7DL> 09.765 		8-94131-441-0 01 1 0101- ● ● ● ● ● ● ●
46 01.240 SENSOR; RAD LEVEL
RADIATOR COOLANT LEVELING WARNING<7DL> 		8-97061-492-0 01 1 9804-0012 ● ● ● ● ● ●
46 01.240 SENSOR; RAD LEVEL
RADIATOR COOLANT LEVELING WARNING<7DL> 		8-97061-492-0 01 1 0101- ● ● ● ● ● ● ●
125 01.240 SCREW; CONTROLLER
RADIATOR COOLANT LEVELING WARNING<7DL> 16.570 M6X16 W/LK&PL WASHER 		9-03920-616-0 01 1 9804-0012 ● ● ● ● ● ●
125 01.240 SCREW; CONTROLLER
RADIATOR COOLANT LEVELING WARNING<7DL> 16.570 M6X16 W/LK&PL WASHER 		9-03920-616-0 01 1 0101-0108 ● ● ● ● ● ● ●
125 01.240 SCREW; CONTROLLER
RADIATOR COOLANT LEVELING WARNING<7DL> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 0109- ● ● ● ● ● ● ●
153 16.085 BOLT; BUZZER FIX
RADIATOR COOLANT LEVELING WARNING<7DL> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9804-0012 ● ● ● ● ● ●
153 16.085 BOLT; BUZZER FIX
SAUDI ARABIA EQUIPMENT(EU2) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9804-0012 ● ● ● ●
153 16.085 BOLT; BUZZER FIX
RADIATOR COOLANT LEVELING WARNING<7DL> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 0101- ● ● ● ● ● ● ●
153 16.085 BOLT; BUZZER FIX
SAUDI ARABIA EQUIPMENT(EU2) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 0101- ● ● ● ●
204 02.195 BUZZER; KEY REMIND
SAUDI ARABIA EQUIPMENT(EU2) 16.081 		8-97135-562-0 01 1 9804- ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED(M75) (A) 		8-97129-727-0 01 1 9804-0208 ● ● ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4JA1 ENG(RLE) EXC. ARGENTINA EQUIPMENT(7SZ) (A) 		8-97129-727-0 01 1 0209-0302 ● ● ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4JA1 ENG(RLE) EXC. ARGENTINA EQUIPMENT(7SZ) (A) 		8-97365-743-0 01 1 0303- ● ● ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED(RMN) (B) 4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9804- ● ● ● ● ● ● ●
273 02.559 CLIP; HARNESS
RADIATOR COOLANT LEVELING WARNING<7DL> 03.162 L=140 		5-09707-031-1 01 1 9804-0012 ● ● ● ● ● ●
273 02.559 CLIP; HARNESS
RADIATOR COOLANT LEVELING WARNING<7DL> 03.162 L=140 		5-09707-031-1 01 1 0101- ● ● ● ● ● ● ●
409 09.709 GASKET
CHILE EQUIPMENT(6KB) RADIATOR COOLANT LEVELING WARNING<7DL> 01.097 		1-09623-185-0 01 1 9804-9804 ● ● ● ●
409 09.709 GASKET
CHILE EQUIPMENT(6KB) RADIATOR COOLANT LEVELING WARNING<7DL> EXC. KD PREPARATORY PACK<6HF> 01.097 		1-09623-185-0 01 1 9805-0012 ● ● ● ●
409 09.709 GASKET
CHILE EQUIPMENT(6KB) RADIATOR COOLANT LEVELING WARNING<7DL> EXC. KD PREPARATORY PACK<6HF> 01.097 		1-09623-185-0 01 1 0101- ● ● ● ● ●
