Sayfa 8-25 - Isuzu EPC

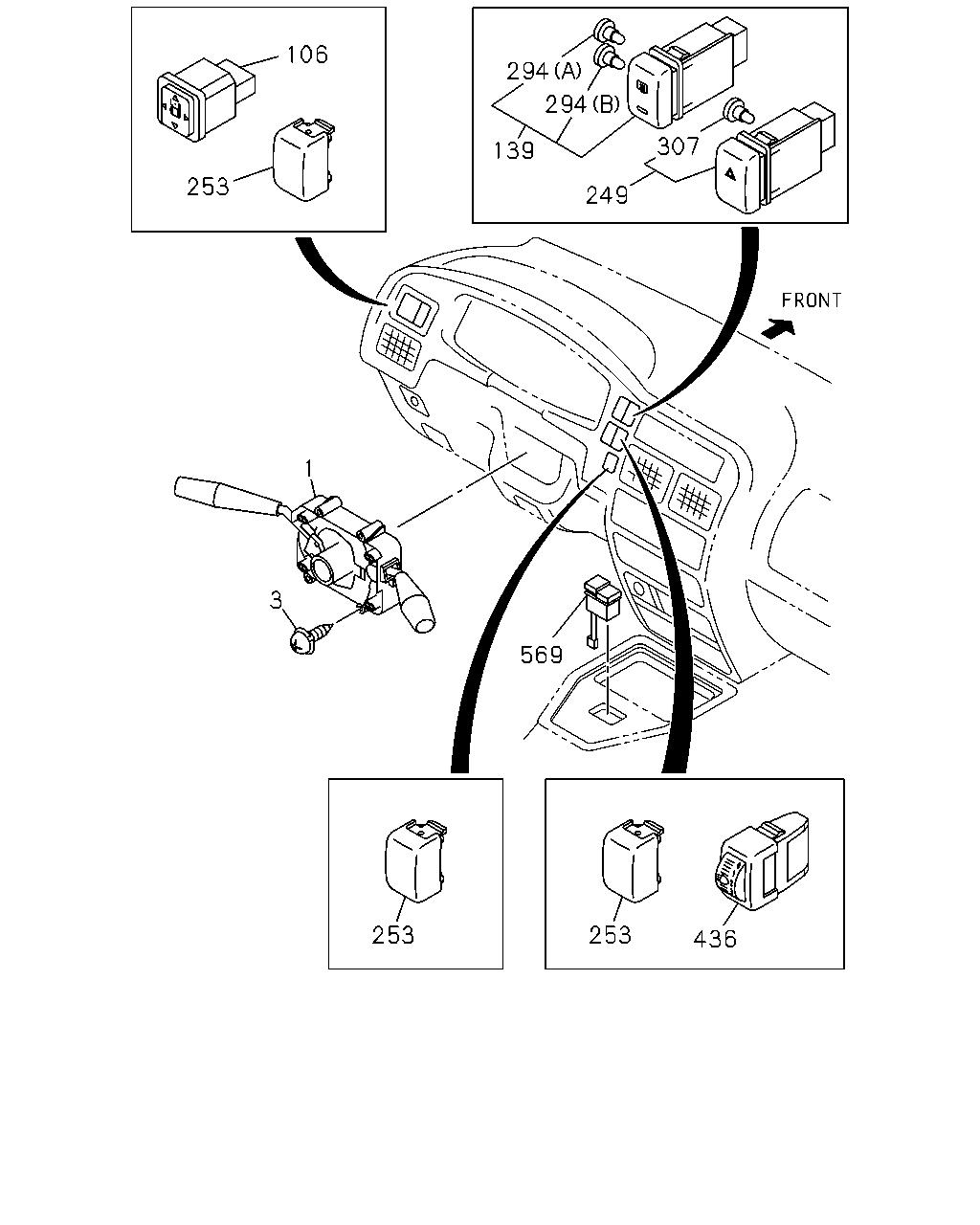

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#43773) — 129 parça

106 294 294 307 139 253 249 1 3 569 253 253 436

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	02.895 SWITCH; COMB	8-97111-495-1	01	1	9804-0005	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-97111-495-1	01	1	9804-0005			●	●	●	●	●	●
1	02.895 SWITCH; COMB	8-97111-495-3	01	1	0006-0109	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-97111-495-3	01	1	0006-0109			●	●		●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79>	8-97111-495-3	01	1	0006-0109					●			●
1	02.895 SWITCH; COMB	8-97111-495-4	01	1	0110-	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79>	8-97111-495-4	01	1	0110-			●	●	●	●	●	●
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-97111-494-1	01	1	9804-0009			●	●	●	●	●	●
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-97111-494-3	01	1	0010-0109			●	●		●	●
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>,RR FOGLAMP<T79>	8-97111-494-3	01	1	0010-0109					●			●
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>,RR FOGLAMP<T79>	8-97111-494-4	01	1	0110-			●	●	●	●	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> RR FOG LAMP<T79>	8-97137-621-4	01	1	0006-					●			●
1	02.895 SWITCH; COMB RR FOG LAMP<T79> EXC. INTERMITTENT WIPER<C13>	8-97304-081-3	01	1	0010-0207					●			●
3	02.897 SCREW; COMB SW 06.512 M5X14 W/LK WASHER	9-03910-514-0	04	1	9804-	●	●	●	●	●	●	●	●
106	10.186 SWITCH; REMOTE CONT MIRROR DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97131-293-0	01	1	9804-9909	●	●		●	●		●	●
106	10.186 SWITCH; REMOTE CONT MIRROR DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97131-293-1	01	1	9910-	●	●		●	●		●	●
139	09.778 SWITCH; RR DEFOGGER REAR DEFOGGER<C49>	8-97094-074-2	01	1	9804-9909					●			●
139	09.778 SWITCH; RR DEFOGGER REAR DEFOGGER<C49>	8-97094-074-2	01	1	9910-9911		●		●	●		●	●
139	09.778 SWITCH; RR DEFOGGER REAR DEFOGGER<C49>	8-97094-074-2	01	1	9912-		●			●			●
249	02.485 SWITCH; HAZARD	8-97093-961-1	01	1	9804-	●	●	●	●	●	●	●	●
253	16.081 COVER; SW HOLE	8-97081-617-1	01	1	9804-9909	●	●	●	●	●	●	●	●
253	16.081 COVER; SW HOLE	8-97081-617-1	01	1	9804-9909	●	●	●	●	●	●	●	●
253	16.081 COVER; SW HOLE	8-97081-617-1	01	1	9804-9909	●	●	●	●	●	●	●	●
253	16.081 COVER; SW HOLE	8-97081-617-1	01	1	9804-9909	●	●	●	●		●	●
253	16.081 COVER; SW HOLE DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97081-617-1	01	1	9804-9909	●	●		●	●		●	●
253	16.081 COVER; SW HOLE EXC. REAR DEFOGGER<C49>	8-97081-617-1	01	1	9804-9909					●			●
253	16.081 COVER; SW HOLE	8-97081-617-1	01	1	9910-9911	●	●	●	●	●	●	●	●
253	16.081 COVER; SW HOLE	8-97081-617-1	01	1	9910-9911	●	●	●	●	●	●	●	●
253	16.081 COVER; SW HOLE	8-97081-617-1	01	1	9910-9911	●	●	●	●	●	●	●	●
253	16.081 COVER; SW HOLE	8-97081-617-1	01	1	9910-9911	●		●			●
253	16.081 COVER; SW HOLE DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97081-617-1	01	1	9910-9911	●	●		●	●		●	●
253	16.081 COVER; SW HOLE EXC. REAR DEFOGGER<C49>	8-97081-617-1	01	1	9910-9911		●		●	●		●	●
253	16.081 COVER; SW HOLE	8-97081-617-1	01	1	9912-	●	●	●	●	●	●	●	●
253	16.081 COVER; SW HOLE	8-97081-617-1	01	1	9912-	●	●	●	●	●	●	●	●
253	16.081 COVER; SW HOLE	8-97081-617-1	01	1	9912-	●		●	●		●	●
253	16.081 COVER; SW HOLE DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97081-617-1	01	1	9912-	●	●		●	●		●	●
253	16.081 COVER; SW HOLE EXC. REAR DEFOGGER<C49>	8-97081-617-1	01	1	9912-		●			●			●
294	08.991 BULB; DEFOGGER SW REAR DEFOGGER<C49> 10.186 (B) 14V 0.84W	8-97102-440-0	01	1	9804-9909					●			●
294	08.991 BULB; DEFOGGER SW REAR DEFOGGER<C49> 10.186 (B) 14V 0.84W	8-97102-440-0	01	1	9910-9911		●		●	●		●	●
294	08.991 BULB; DEFOGGER SW REAR DEFOGGER<C49> 10.186 (B) 14V 0.84W	8-97102-440-0	01	1	9912-		●			●			●
294	08.991 BULB; DEFOGGER SW REAR DEFOGGER<C49> (A) 14V 0.84W	8-97117-108-0	01	1	9804-9909					●			●
294	08.991 BULB; DEFOGGER SW REAR DEFOGGER<C49> (A) 14V 0.84W	8-97117-108-0	01	1	9910-9911		●		●	●		●	●
294	08.991 BULB; DEFOGGER SW REAR DEFOGGER<C49> (A) 14V 0.84W	8-97117-108-0	01	1	9912-		●			●			●
307	08.991 BULB ASM; SW	8-97130-932-0	01	1	9804-	●	●	●	●	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING TURKISH EQUIPMENT(S6S) EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW>	8-97081-614-1	01	1	0206-								●
569	16.283 SWITCH; POWER-NORMAL A/T AISIN(RMD)	8-97101-782-1	01	1	0010-					●			●

12 12 140 224 200 200 140 224 131 29 30 8 8 28 144 8 31

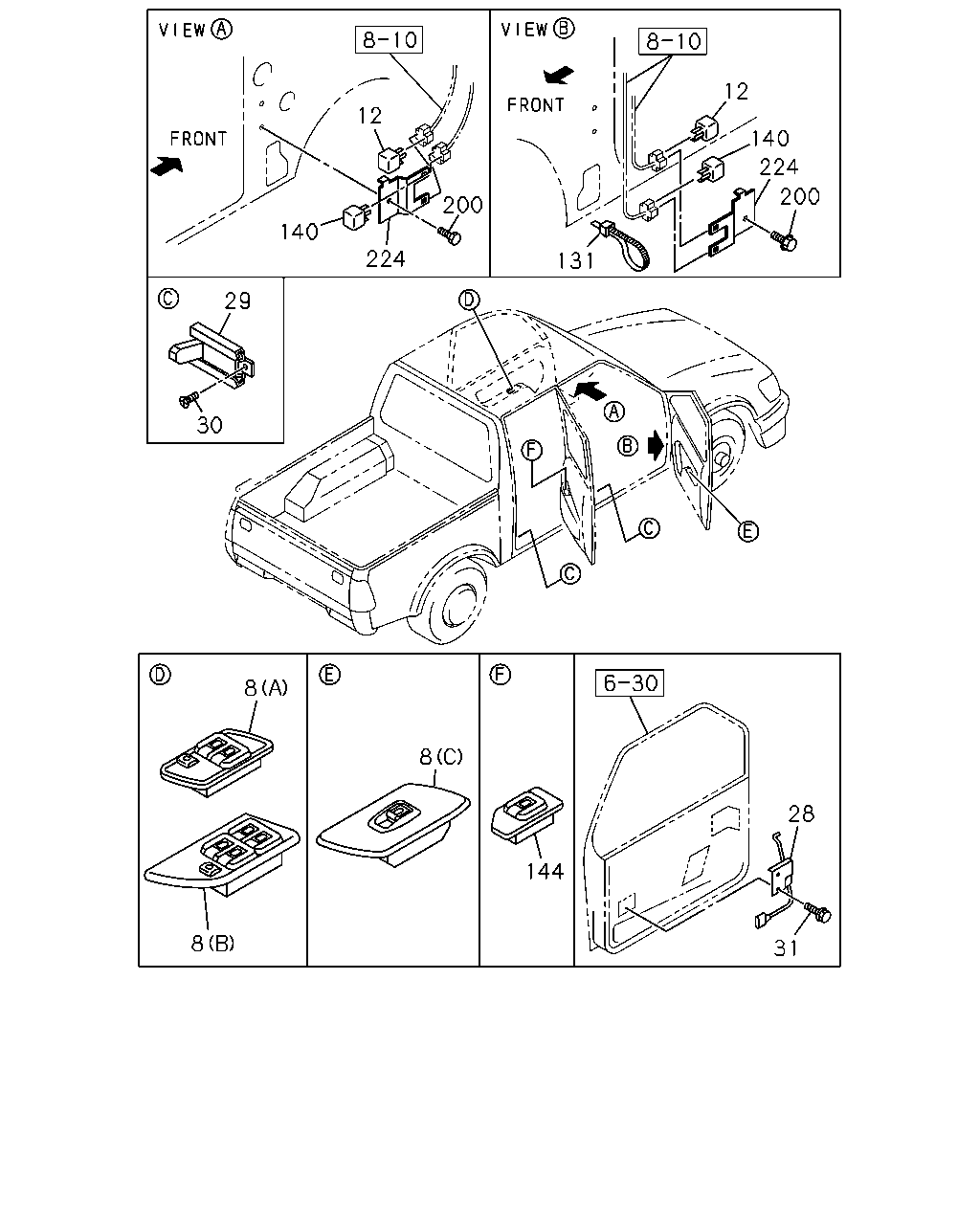

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A30> (C) BLACK	8-97155-249-1	01	1	9804-	●	●		●	●		●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A30> (A) BLACK	8-97155-248-1	01	1	9804-	●	●		●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A30> (B) BLACK	8-97155-246-0	01	1	9804-					●			●
12	08.852 RELAY; POWER WINDOW POWER WINDOW<A30> 12V 20A	8-97060-926-1	01	1	9804-	●	●		●	●		●	●
28	16.341 SWITCH ASM; DOOR LOCK AUTO DOOR LOCK<AU4> 03.611	8-94450-809-1	01	1	9804-					●			●
29	16.263 SWITCH; DOOR	8-97146-196-0	02	1	9804-	●	●	●	●		●	●
29	16.263 SWITCH; DOOR	8-97146-196-0	04	1	9804-					●			●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	02	1	9804-	●	●	●	●		●	●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	04	1	9804-					●			●
31	16.342 BOLT; DOOR LK SW AUTO DOOR LOCK<AU4> 10.701 M6X8	8-94155-893-0	02	1	9804-					●			●
131	02.575 CLIP; BAND 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> ARGENTINA EQUIPMENT(7SZ) 03.162 L=140	5-09707-031-0	01	1	9804-9901	●	●		●	●		●	●
131	02.575 CLIP; BAND 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> ARGENTINA EQUIPMENT(7SZ) 03.162 L=140	5-09707-031-1	01	1	9902-9909	●	●		●	●		●	●
131	02.575 CLIP; BAND 4JA1 ENG(RLE),4JB1 ENG(RLF) GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.162 L=140	5-09707-031-1	01	1	9902-9909		●		●	●		●	●
131	02.575 CLIP; BAND 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 03.162 L=140	5-09707-031-1	01	1	9910-9910		●		●	●		●	●
140	09.778 RELAY; RR DEFOGGER REAR DEFOGGER<C49> 08.852 12V 20A	8-97060-926-1	01	1	9804-9909					●			●
140	09.778 RELAY; RR DEFOGGER REAR DEFOGGER<C49> 08.852 12V 20A	8-97060-926-1	01	1	9910-9911		●		●	●		●	●
140	09.778 RELAY; RR DEFOGGER REAR DEFOGGER<C49> 08.852 12V 20A	8-97060-926-1	01	1	9912-		●			●			●
144	16.283 SWITCH; POWER WINDOW,RR POWER WINDOW<A30> BLACK	8-97098-342-3	01	1	9804-					●			●
144	16.283 SWITCH; POWER WINDOW,RR POWER WINDOW<A30> BLACK	8-97098-341-3	01	1	9804-					●			●
200	09.277 BOLT; RELAY BRKT POWER WINDOW<A30> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9804-9909	●	●		●	●		●	●
200	09.277 BOLT; RELAY BRKT REAR DEFOGGER<C49> EXC. POWER WINDOW<A30> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9804-9909					●			●
200	09.277 BOLT; RELAY BRKT POWER WINDOW<A30> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9910-9911	●	●		●	●		●	●
200	09.277 BOLT; RELAY BRKT REAR DEFOGGER<C49> EXC. POWER WINDOW<A30> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9910-9911		●		●	●		●	●
200	09.277 BOLT; RELAY BRKT POWER WINDOW<A30> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9912-	●	●		●	●		●	●
200	09.277 BOLT; RELAY BRKT REAR DEFOGGER<C49> EXC. POWER WINDOW<A30> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9912-		●			●			●
224	02.510 BRACKET; RELAY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30>	8-97161-133-0	01	1	9804-9909	●	●		●	●		●	●
224	02.510 BRACKET; RELAY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>	8-97161-133-0	01	1	9804-9909					●			●
224	02.510 BRACKET; RELAY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30>	8-97161-133-0	01	1	9910-9911	●	●		●	●		●	●
224	02.510 BRACKET; RELAY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>	8-97161-133-0	01	1	9910-9911		●		●	●		●	●
224	02.510 BRACKET; RELAY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30>	8-97161-133-0	01	1	9912-0012	●	●		●	●		●	●
224	02.510 BRACKET; RELAY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>	8-97161-133-0	01	1	9912-0012		●			●			●
224	02.510 BRACKET; RELAY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> EXC. REAR DEFOGGER<C49>	8-97161-133-0	01	1	0101-0108	●	●		●	●		●	●
224	02.510 BRACKET; RELAY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) REAR DEFOGGER<C49>	8-97161-133-0	01	1	0101-0108		●			●			●
224	02.510 BRACKET; RELAY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) POWER WINDOW<A30> EXC. REAR DEFOGGER<C49>	8-97161-133-0	01	1	0109-	●	●		●	●		●	●
224	02.510 BRACKET; RELAY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) REAR DEFOGGER<C49>	8-97161-133-0	01	1	0109-		●			●			●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> ARGENTINA EQUIPMENT(7SZ)	8-97133-595-0	01	1	9804-9901	●	●		●	●		●	●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ)	8-97133-595-0	01	1	9902-9909	●	●		●	●		●	●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) REAR DEFOGGER<C49> GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. POWER WINDOW<A30>	8-97133-595-0	01	1	9902-9909					●			●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ)	8-97133-595-0	01	1	9910-9910		●		●	●		●	●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> EXC. ARGENTINA EQUIPMENT(7SZ)	8-97161-132-0	01	1	9804-9812	●	●					●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER WINDOW<A30> EXC. ARGENTINA EQUIPMENT(7SZ)	8-97161-132-0	01	1	9804-9812				●	●			●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>	8-97161-132-0	01	1	9804-9812					●			●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> EXC. ARGENTINA EQUIPMENT(7SZ)	8-97161-132-0	01	1	9901-9901	●	●		●	●		●	●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>	8-97161-132-0	01	1	9901-9901					●			●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ)	8-97161-132-0	01	1	9902-9909	●	●		●	●		●	●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>	8-97161-132-0	01	1	9902-9909					●			●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ)	8-97161-132-0	01	1	9910-9910	●	●		●	●		●	●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>	8-97161-132-0	01	1	9910-9910		●		●	●		●	●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30>	8-97161-132-0	01	1	9911-9911	●	●		●	●		●	●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>	8-97161-132-0	01	1	9911-9911		●		●	●		●	●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30>	8-97161-132-0	01	1	9912-0012	●	●		●	●		●	●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>	8-97161-132-0	01	1	9912-0012		●			●			●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> EXC. REAR DEFOGGER<C49>	8-97161-132-0	01	1	0101-	●	●		●	●		●	●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) REAR DEFOGGER<C49>	8-97161-132-0	01	1	0101-		●			●			●

45 85 151 154 490 85 45 490 154 45 85 98 154 490 151 277 277 85 490 45 98 151 151 154 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
45	02.252 RELAY; HORN 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 02.100 12V 20A	8-97173-039-1	01	1	9804-9909	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 02.100 12V 20A	8-97173-039-1	01	1	9910-	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 08.852 12V 20A	8-97060-926-1	01	1	9804-9812	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 4JA1 ENG(RLE),4JB1 ENG(RLF) 08.852 12V 20A	8-97060-926-1	01	1	9901-9909	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 02.100 12V 20A	8-97173-039-1	01	1	9804-9909	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 02.100 12V 20A	8-97173-039-1	01	1	9910-	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 08.852 12V 20A	8-97060-926-1	01	1	9804-9812	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JA1 ENG(RLE),4JB1 ENG(RLF) 08.852 12V 20A	8-97060-926-1	01	1	9901-9909	●	●	●	●	●	●	●	●
98	02.485 RELAY; RR FOG LAMP RR FOG LAMP<T79> 02.100 12V 20A	8-97173-039-1	01	1	0006-					●			●
151	09.277 RELAY; HTR & A/C HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 08.852 12V 20A	8-97060-926-1	01	1	9804-0009	●	●	●	●	●	●	●	●
151	09.277 RELAY; HTR & A/C 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.852 12V 20A	8-97060-926-1	01	1	9804-0009	●	●	●	●	●	●	●	●
151	09.277 RELAY; HTR & A/C HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1) 08.852 12V 20A	8-97060-926-1	01	1	0010-0108	●	●	●	●	●	●	●	●
151	09.277 RELAY; HTR & A/C 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER PREPARATORY PACK(S6D) ,COOLER WO/HEATER(YL1) 08.852 12V 20A	8-97060-926-1	01	1	0010-0108	●	●	●	●	●	●	●	●
151	09.277 RELAY; HTR & A/C HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREP ARATORY PACK(S6D),COOLER WO/HEATER(YL1) 08.852 12V 20A	8-97060-926-1	01	1	0109-	●	●	●	●	●	●	●	●
151	09.277 RELAY; HTR & A/C 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER PREPARATORY PACK(S6D) ,COOLER WO/HEATER(YL1) 08.852 12V 20A	8-97060-926-1	01	1	0109-	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 22LE/C22NE ENG(RJT) 02.100 12V 20A	8-97173-039-0	01	1	9804-9901	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 22LE/C22NE ENG(RJT) 02.100 12V 20A	8-97173-039-1	01	1	9902-9909	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 02.100 12V 20A	8-97173-039-1	01	1	9902-9909				●	●		●	●
154	09.277 RELAY; CONDENSER FAN 22LE/C22NE ENG(RJT) 02.100 12V 20A	8-97173-039-1	01	1	9910-0108	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JB1 ENG(RLF),6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 02.100 12V 20A	8-97173-039-1	01	1	9910-0108				●	●		●	●
154	09.277 RELAY; CONDENSER FAN 22LE/C22NE ENG(RJT),20SE ENG(RND) 02.100 12V 20A	8-97173-039-1	01	1	0109-	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JB1 ENG(RLF),6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 02.100 12V 20A	8-97173-039-1	01	1	0109-				●	●		●	●
154	09.277 RELAY; CONDENSER FAN 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 08.852 12V 20A	8-97060-926-1	01	1	9902-9909				●	●		●	●
277	03.900 RELAY; FUEL PUMP 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 08.852 12V 20A	8-97060-926-1	01	1	9804-0108	●	●	●	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) 08.852 12V 20A	8-97060-926-1	01	1	0109-	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.100 12V 20A	8-97173-039-1	01	1	9804-0009	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER PREPARATORY PACK(S6D) ,COOLER WO/HEATER(YL1) 02.100 12V 20A	8-97173-039-1	01	1	0010-	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.852 12V 20A	8-97060-926-1	01	1	9804-9812	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.852 12V 20A	8-97060-926-1	01	1	9901-9909	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
