◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#43769) — 526 parça

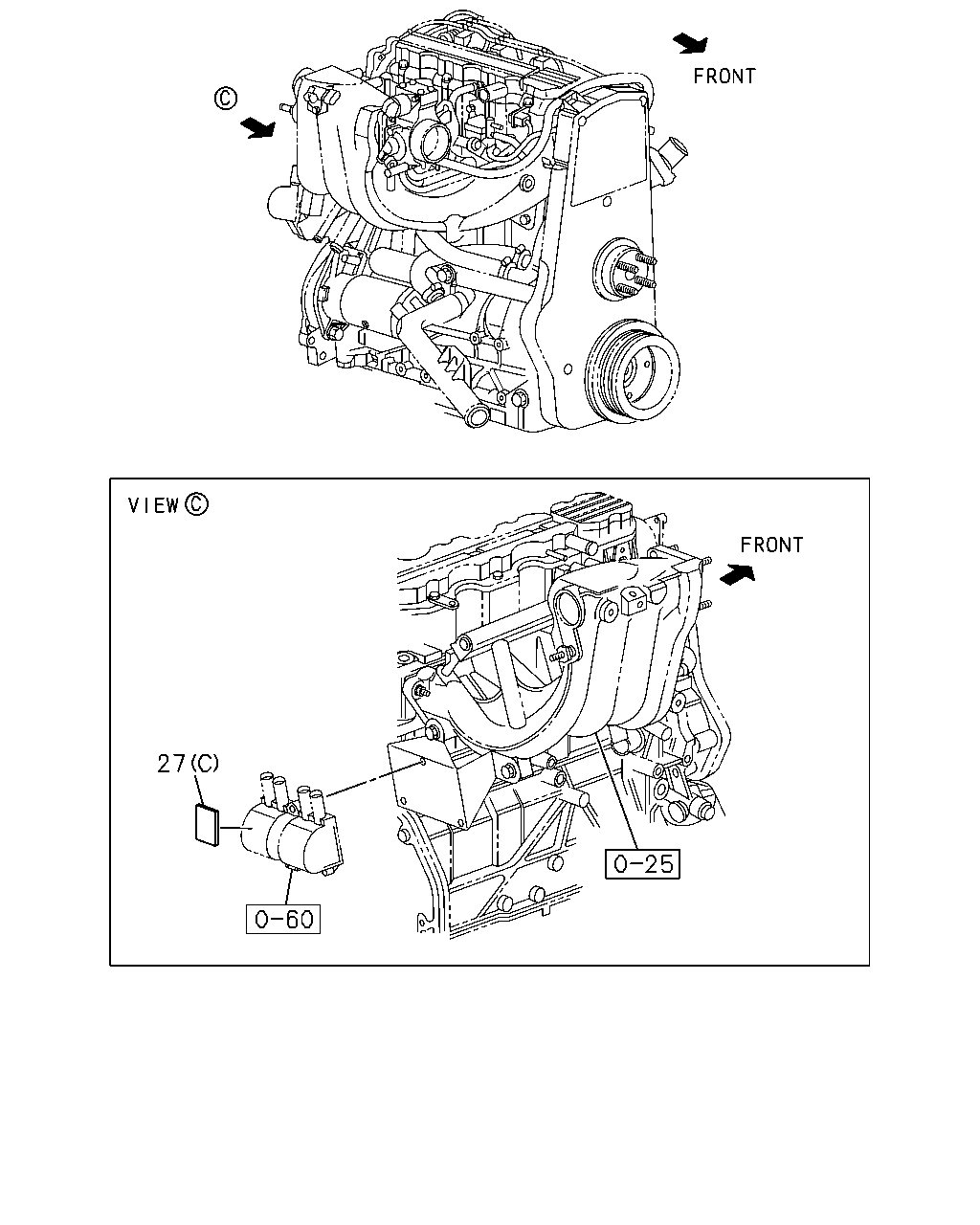

çizim 19524
27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
27 02.559 PROTECTOR; EDGE
(D) 		1-76679-007-0 02 1 0203- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
16.550 (A) L=250 SERVICED BY L=2040 		1-71997-513-1 02 1 9804- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
03.162 (B) L=88 		8-97069-335-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
02.530 (B) L=65 		8-94235-856-0 01 1 0101-0207 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
22LE/C22NE ENG(RJT) (C) 		8-97263-384-0 01 1 0008-0108 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
22LE/C22NE ENG(RJT),20SE ENG(RND) (C) 		8-97263-384-0 01 1 0109- ● ● ● ● ● ● ● ●

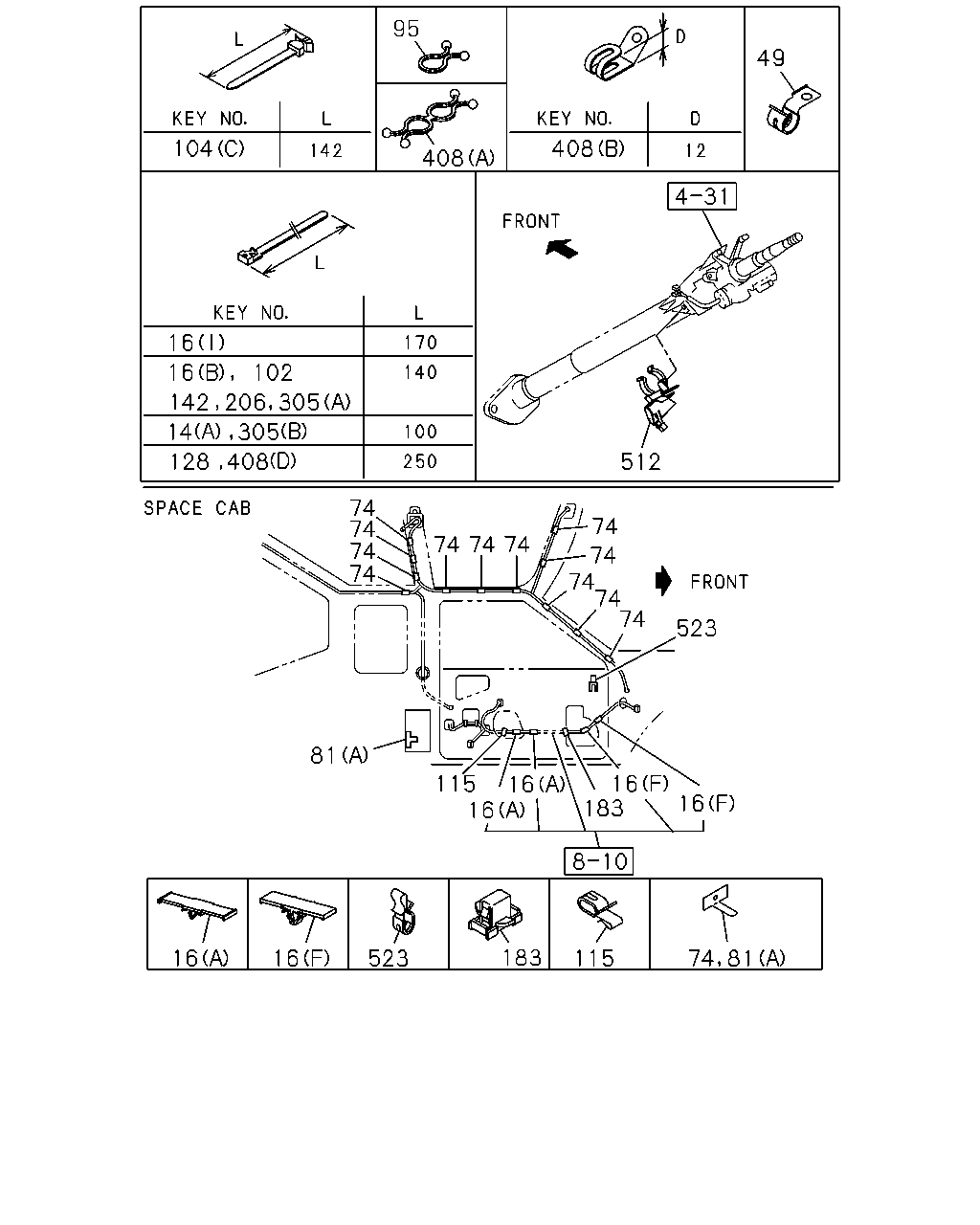

çizim 19604
95 49 104 408 408 16 16 102 14 512 74 74 74 74 74 74 74 74 74 523 16 183 81 115 16 16 16 183 16 16 523 115 128 206 305 305 408 74 74 74 81 142 74
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-0 02 1 9804-9812 ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT) 04.594 (A) L=100 		5-09707-036-1 02 1 9901-0108 ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) 04.594 (A) L=100 		5-09707-036-1 02 1 0109- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9804-9909 ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9910-0009 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0010- ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9804- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 08 1 9804- ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9804- ● ●
14 02.559 CLIP; BAND,HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) 03.162 (D) L=140 		5-09707-031-1 03 1 0010- ● ●
14 02.559 CLIP; BAND,HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) 03.162 (D) L=140 		5-09707-031-1 01 1 0105- ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-0 01 1 9804-9812 ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT) 04.594 (A) L=100 		5-09707-036-1 01 1 9901- ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 0005- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0005- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9804-0106 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0107- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804-9812 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE S(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804-9812 ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9901- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE S(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9901- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9804-9901 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9902-0009 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0010-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0110-0302 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) (H) L=250 		5-09707-030-1 01 1 0010- ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) SHIFT ON THE FLY(7EX) 03.162 (I) L=170 		5-09707-054-0 01 1 0101-0104 ●
49 02.559 CLIP; GEN HARNESS
4ZE1 ENG(RLJ) 		8-94319-607-0 01 1 9804-9812 ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 11 1 9804-9909 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 11 1 9910-0006 ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 11 1 9910-0006 ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-94138-987-0 11 1 9910-0006 ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 11 1 0007- ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. HIGH MOUNT STOP LAMP<TS6>,MAP LAMP<UF3> 		8-94138-987-0 11 1 0007- ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-94138-987-0 11 1 0007- ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 09 1 9804-9909 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 09 1 9910- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 08 1 9804-9909 ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 08 1 9910- ● ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 06 1 9804-9909 ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 06 1 9804-9909 ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 06 1 9910- ● ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 17 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 17 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 15 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> MAP LAMP<UF3> 		8-94138-987-0 13 1 9910-0003 ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. MAP LAMP<UF3> 		8-94138-987-0 13 1 0004- ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> MAP LAMP<UF3> 		8-94138-987-0 13 1 0004- ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9804- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.742 (C) LIGHT GRAY 		8-97153-254-0 01 1 9804-0111 ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.069 (C) OD=12 L=14.8 		8-94279-921-0 01 1 0112- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804-9812 ● ● ● ●
81 02.483 CLIP; HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9901- ● ● ● ●
95 02.559 CLIP; CABLE
4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ARGENTINA EQUIPMENT(7SZ) 02.480 ID=25 		8-94120-831-0 01 1 9804-9901 ● ● ● ● ● ●
95 02.559 CLIP; CABLE
4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 02.480 ID=25 		8-94120-831-0 01 1 9902-9909 ● ● ● ● ● ●
95 02.559 CLIP; CABLE
4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 02.480 ID=25 		8-94120-831-0 01 1 9910-0009 ● ● ● ● ●
95 02.559 CLIP; CABLE
4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 02.480 ID=25 		8-94120-831-0 01 1 0010-0010 ● ● ● ● ● ●
95 02.559 CLIP; CABLE
4JA1 ENG(RLE) TURBOCHARGER<K51> AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 02.480 ID=25 		8-94120-831-0 01 1 0011- ● ● ● ● ● ●
102 02.559 CLIP; BAND
INST PANEL FOR DIN E SIZE AUDIO(7QL) 03.162 L=140 		5-09707-031-1 01 1 9804-9812 ● ●
102 02.559 CLIP; BAND
INST PANEL FOR DIN E SIZE AUDIO(7QL) 03.162 L=140 		5-09707-031-1 01 1 9901- ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (B) L=172 		8-94232-620-0 02 1 9804- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.587 (A) L=112 		8-94232-618-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 02.587 (A) L=112 		8-94232-618-0 01 1 9901- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZE1 ENG(RLJ) (C) L=142 		8-94232-619-0 01 1 9804-9812 ● ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> ID=12 		8-94423-045-0 02 1 9804- ● ● ● ● ● ●
128 02.559 CLIP; COMB SW HARNESS,STRG COLUM
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) L=250 		5-09707-030-1 01 1 9804-0009 ● ● ● ● ● ● ● ●
128 02.559 CLIP; COMB SW HARNESS,STRG COLUM
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),R R BODY DBL WALL CTR PULL INNER & OU TER HOOK(7TN) L=250 		5-09707-030-1 01 1 0010- ● ● ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 L=140 		5-09707-031-0 01 1 9804-9812 ● ● ●
183 02.559 CLIP; CONNECTOR
POWER WINDOW<A30> L=15 		8-94315-436-1 02 1 9804- ● ● ● ● ● ●
206 02.559 CLIP; FUEL TANK HARNESS
03.162 L=140 		5-09707-031-1 01 1 9804- ● ● ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZE1 ENG(RLJ) 03.162 (A) L=140 		5-09707-031-0 01 1 9804-9812 ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 04.594 (B) L=100 		5-09707-036-0 01 1 9804-9812 ● ● ●
408 02.559 CLIP; TRANS HARNESS
22LE/C22NE ENG(RJT) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD) 03.145 (A) 		8-94423-042-0 01 1 9804-9805 ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
22LE/C22NE ENG(RJT) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) (C) ID=13 & 21 		8-94417-626-0 01 1 9806-9806 ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) (C) ID=13 & 21 		8-94417-626-0 01 1 9807-0012 ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQ UIPMENT(7LD) (C) ID=13 & 21 		8-94417-626-0 01 1 0101-0108 ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQ UIPMENT(7LD) (C) ID=13 & 21 		8-94417-626-0 01 1 0109- ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
22LE/C22NE ENG(RJT) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) L=250 		5-09707-030-1 01 1 9806-0012 ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
22LE/C22NE ENG(RJT) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQ UIPMENT(7LD) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) L=250 		5-09707-030-1 01 1 0101-0108 ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQ UIPMENT(7LD) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) L=250 		5-09707-030-1 01 1 0109- ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) EXC. CHONGQING SPECIAL PACKAGE<7VK> 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9804-9806 ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) EXC. CHONGQING SPECIAL PACKAGE<7VK> 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804-9806 ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9807-9810 ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9807-9810 ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) CHINA CHONGQING EQUIPMENT(R5B) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9807-9810 ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9811- ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) CHINA CHONGQING EQUIPMENT(R5B) CHONGQING SPECIAL PACKAGE<7VK> 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9804-9806 ● ● ●
512 02.559 PROTECTOR; HARNESS
06.518 		8-97109-628-2 01 1 9804- ● ● ● ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> EXC. DOOR MIRROR ELEC CONT<DG2>, DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9804-9909 ● ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9804-9909 ● ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> EXC. DOOR MIRROR ELECTRIC CONT BRIG HT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9910- ● ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9910- ● ● ● ● ● ●

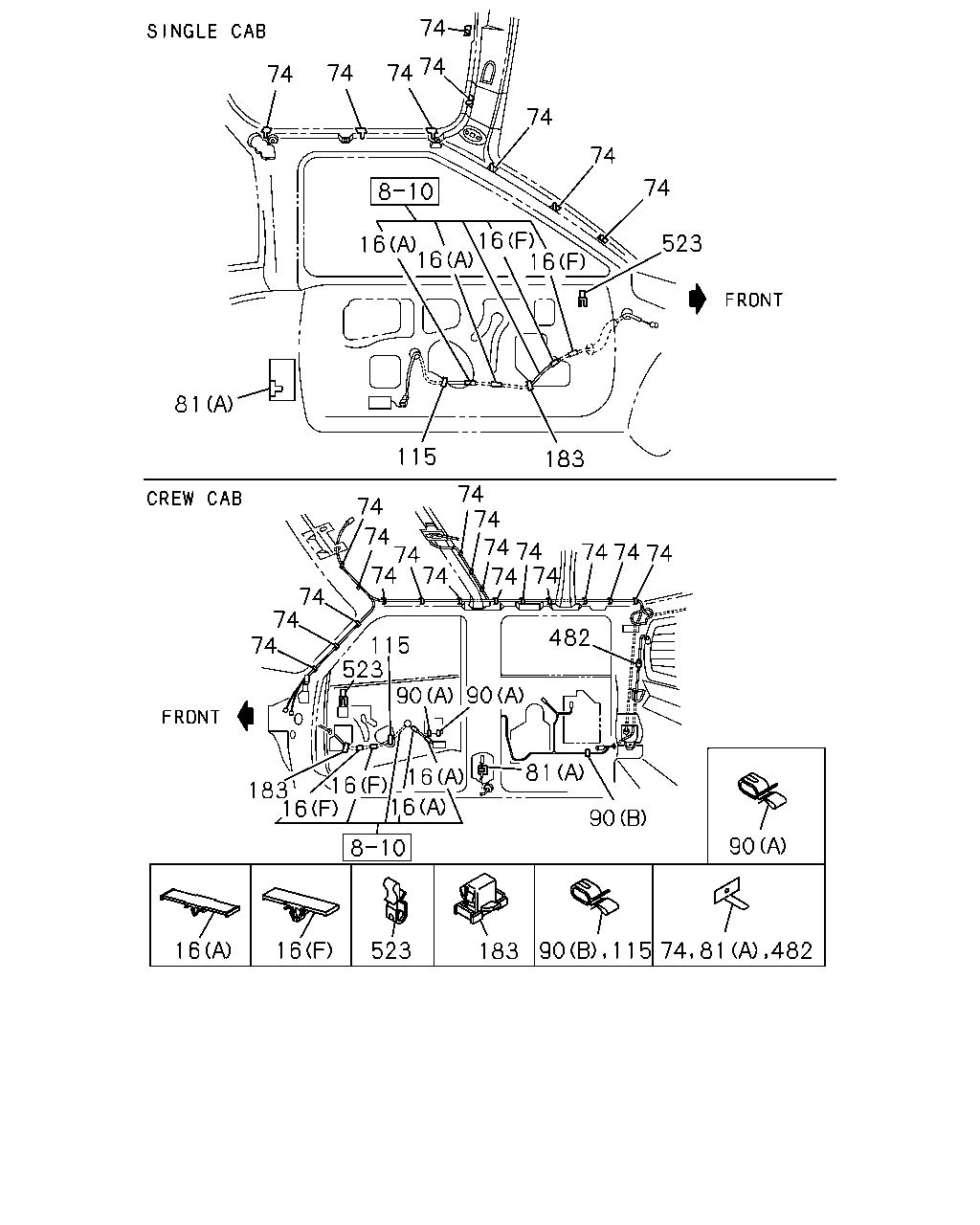

çizim 19723
74 74 74 74 74 74 74 74 16 16 16 16 523 81 115 183 74 74 74 74 74 74 74 74 74 74 482 115 523 16 81 183 16 16 16 90 90 16 16 523 90 183 74 74 74 74 74 74 90 90 115 74 81 482 74
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 0005- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0005- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9804-0106 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0107- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804-9812 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE S(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804-9812 ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9901- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE S(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9901- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9804-9901 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9902-0009 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0010-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0110-0302 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) (H) L=250 		5-09707-030-1 01 1 0010- ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) SHIFT ON THE FLY(7EX) 03.162 (I) L=170 		5-09707-054-0 01 1 0101-0104 ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 11 1 9804-9909 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 11 1 9910-0006 ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 11 1 9910-0006 ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-94138-987-0 11 1 9910-0006 ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 11 1 0007- ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. HIGH MOUNT STOP LAMP<TS6>,MAP LAMP<UF3> 		8-94138-987-0 11 1 0007- ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-94138-987-0 11 1 0007- ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 09 1 9804-9909 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 09 1 9910- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 08 1 9804-9909 ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 08 1 9910- ● ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 06 1 9804-9909 ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 06 1 9804-9909 ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 06 1 9910- ● ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 17 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 17 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 15 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> MAP LAMP<UF3> 		8-94138-987-0 13 1 9910-0003 ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. MAP LAMP<UF3> 		8-94138-987-0 13 1 0004- ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> MAP LAMP<UF3> 		8-94138-987-0 13 1 0004- ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9804- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.742 (C) LIGHT GRAY 		8-97153-254-0 01 1 9804-0111 ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.069 (C) OD=12 L=14.8 		8-94279-921-0 01 1 0112- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804-9812 ● ● ● ●
81 02.483 CLIP; HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9901- ● ● ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> 13.090 (A) ID=9 		8-94177-914-0 04 1 9804- ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> (B) ID=12 		8-94423-045-0 02 1 9804- ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> ID=12 		8-94423-045-0 02 1 9804- ● ● ● ● ● ●
183 02.559 CLIP; CONNECTOR
POWER WINDOW<A30> L=15 		8-94315-436-1 02 1 9804- ● ● ● ● ● ●
482 02.559 CLIP; RR DEFOGGER HARNESS
REAR DEFOGGER<C49> 02.480 		8-94138-987-0 02 1 9804- ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> EXC. DOOR MIRROR ELEC CONT<DG2>, DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9804-9909 ● ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9804-9909 ● ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> EXC. DOOR MIRROR ELECTRIC CONT BRIG HT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9910- ● ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9910- ● ● ● ● ● ●
çizim 20621
27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
27 02.559 PROTECTOR; EDGE
(D) 		1-76679-007-0 02 1 0203- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
16.550 (A) L=250 SERVICED BY L=2040 		1-71997-513-1 02 1 9804- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
03.162 (B) L=88 		8-97069-335-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
02.530 (B) L=65 		8-94235-856-0 01 1 0101-0207 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
22LE/C22NE ENG(RJT) (C) 		8-97263-384-0 01 1 0008-0108 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
22LE/C22NE ENG(RJT),20SE ENG(RND) (C) 		8-97263-384-0 01 1 0109- ● ● ● ● ● ● ● ●

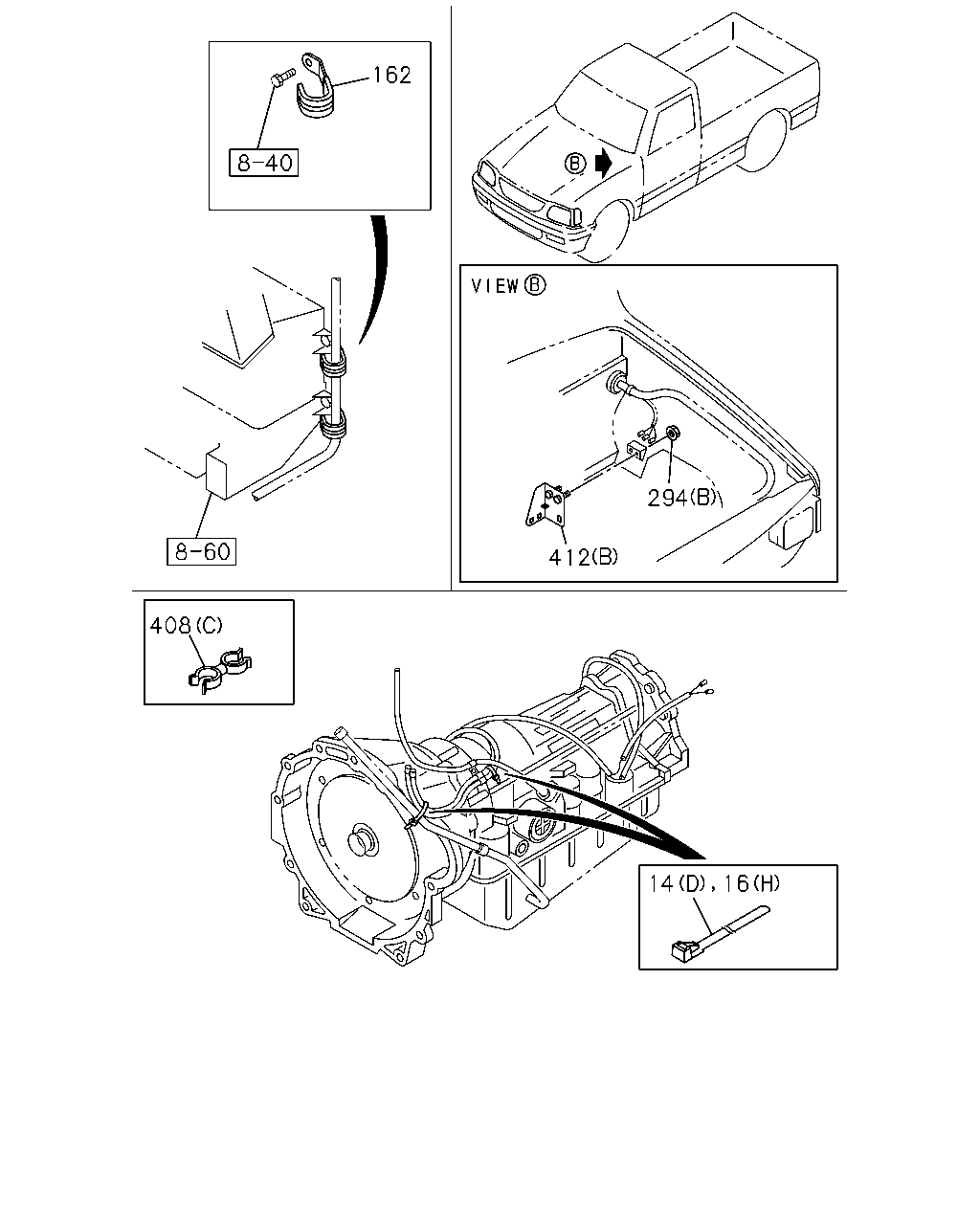

çizim 71588
162 408 14 16 412 294
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-0 02 1 9804-9812 ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT) 04.594 (A) L=100 		5-09707-036-1 02 1 9901-0108 ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) 04.594 (A) L=100 		5-09707-036-1 02 1 0109- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9804-9909 ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9910-0009 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0010- ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9804- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 08 1 9804- ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9804- ● ●
14 02.559 CLIP; BAND,HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) 03.162 (D) L=140 		5-09707-031-1 03 1 0010- ● ●
14 02.559 CLIP; BAND,HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) 03.162 (D) L=140 		5-09707-031-1 01 1 0105- ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-0 01 1 9804-9812 ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT) 04.594 (A) L=100 		5-09707-036-1 01 1 9901- ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 0005- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0005- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9804-0106 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0107- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804-9812 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE S(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804-9812 ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9901- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE S(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9901- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9804-9901 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9902-0009 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0010-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0110-0302 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) (H) L=250 		5-09707-030-1 01 1 0010- ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) SHIFT ON THE FLY(7EX) 03.162 (I) L=170 		5-09707-054-0 01 1 0101-0104 ●
162 02.559 CLIP; SW HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) 01.152 ID=8.5 		5-09700-275-0 02 1 0010- ● ●
294 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) 07.829 (A) M6 FLANGE 		5-09440-004-0 02 1 9804- ● ● ● ● ● ● ● ●
294 02.559 NUT
4JB1 ENG(RLF) A/T AISIN(RMD) 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0103- ● ●
408 02.559 CLIP; TRANS HARNESS
22LE/C22NE ENG(RJT) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD) 03.145 (A) 		8-94423-042-0 01 1 9804-9805 ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
22LE/C22NE ENG(RJT) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) (C) ID=13 & 21 		8-94417-626-0 01 1 9806-9806 ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) (C) ID=13 & 21 		8-94417-626-0 01 1 9807-0012 ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQ UIPMENT(7LD) (C) ID=13 & 21 		8-94417-626-0 01 1 0101-0108 ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQ UIPMENT(7LD) (C) ID=13 & 21 		8-94417-626-0 01 1 0109- ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
22LE/C22NE ENG(RJT) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) L=250 		5-09707-030-1 01 1 9806-0012 ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
22LE/C22NE ENG(RJT) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQ UIPMENT(7LD) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) L=250 		5-09707-030-1 01 1 0101-0108 ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQ UIPMENT(7LD) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) L=250 		5-09707-030-1 01 1 0109- ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) EXC. CHONGQING SPECIAL PACKAGE<7VK> 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9804-9806 ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) EXC. CHONGQING SPECIAL PACKAGE<7VK> 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804-9806 ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9807-9810 ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9807-9810 ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) CHINA CHONGQING EQUIPMENT(R5B) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9807-9810 ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9811- ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) CHINA CHONGQING EQUIPMENT(R5B) CHONGQING SPECIAL PACKAGE<7VK> 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9804-9806 ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
22LE/C22NE ENG(RJT) (A) 		8-97210-945-0 01 1 9808-0108 ● ● ● ● ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
22LE/C22NE ENG(RJT),20SE ENG(RND) (A) 		8-97210-945-0 01 1 0109- ● ● ● ● ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
4JB1 ENG(RLF) A/T AISIN(RMD) (B) 		8-97216-059-0 01 1 0010- ● ●

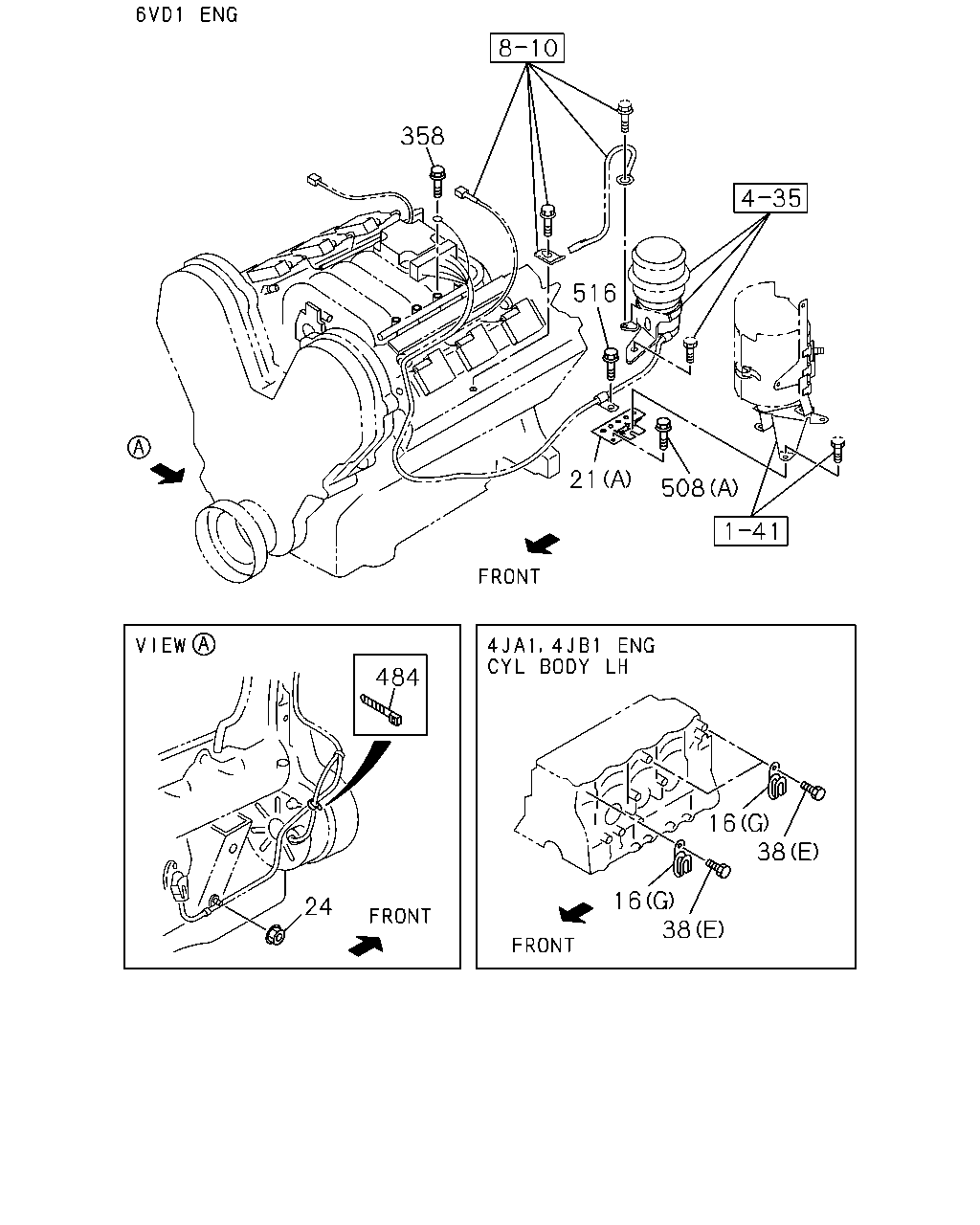

çizim 71590
358 516 21 508 484 16 38 16 38 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 0005- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0005- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9804-0106 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0107- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804-9812 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE S(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804-9812 ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9901- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE S(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9901- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9804-9901 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9902-0009 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0010-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0110-0302 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) (H) L=250 		5-09707-030-1 01 1 0010- ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) SHIFT ON THE FLY(7EX) 03.162 (I) L=170 		5-09707-054-0 01 1 0101-0104 ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) 03.671 (B) 		8-94475-021-2 01 1 9804-0108 ● ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) 03.671 (B) 		8-94475-021-2 01 1 0109- ● ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) 02.510 (C) 		8-94479-552-2 01 1 9804-0108 ● ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) 02.510 (C) 		8-94479-552-2 01 1 0109- ● ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) (D) 		8-97127-268-0 02 1 9804-0108 ● ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) (D) 		8-97127-268-0 02 1 0109- ● ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
6VD1 ENG(RLV) (A) 		8-97108-281-0 01 1 9804-9812 ● ●
21 02.483 BRACKET; ENG HARNESS
6VD1 ENG(RLV) (A) 		8-97108-281-1 01 1 9901- ● ● ● ●
24 02.559 NUT; HARNESS
6VD1 ENG(RLV) 07.833 M8 W/LK WASHER 		8-94327-073-0 01 1 9804-9812 ● ●
24 02.559 NUT; HARNESS
6VD1 ENG(RLV) 07.833 M8 W/LK WASHER 		8-94327-073-0 01 1 9901- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9804-9812 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9901- ● ● ● ●
358 02.480 BOLT; EARTH
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9804-0109 ● ● ● ●
358 02.480 BOLT; EARTH
6VD1 ENG(RLV) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0110- ● ● ● ●
484 02.559 CLIP; ECGI HARNESS TO C/MBR
6VD1 ENG(RLV) 04.594 L=100 		5-09707-036-0 03 1 9804-9806 ● ●
484 02.559 CLIP; ECGI HARNESS TO C/MBR
6VD1 ENG(RLV) 04.594 L=100 		5-09707-036-1 01 1 9807-9812 ● ●
484 02.559 CLIP; ECGI HARNESS TO C/MBR
6VD1 ENG(RLV) 04.594 L=100 		5-09707-036-1 01 1 9901- ● ● ● ●
508 02.559 BOLT; BRKT,ENG HARNESS
22LE/C22NE ENG(RJT) 01.428 (B) M6X12 FLANGE 		0-28080-612-0 04 1 9804-0108 ● ● ● ● ● ● ● ●
508 02.559 BOLT; BRKT,ENG HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) 01.428 (B) M6X12 FLANGE 		0-28080-612-0 04 1 0109- ● ● ● ● ● ● ● ●
508 02.559 BOLT; BRKT,ENG HARNESS
6VD1 ENG(RLV) 03.670 (A) M6X20 FLANGE 		0-28080-620-0 02 1 9804-9812 ● ●
508 02.559 BOLT; BRKT,ENG HARNESS
6VD1 ENG(RLV) 03.670 (A) M6X20 FLANGE 		0-28080-620-0 02 1 9901-0102 ● ● ● ●
508 02.559 BOLT; BRKT,ENG HARNESS
6VD1 ENG(RLV) 04.930 (A) M6X20 FLANGE 		0-28680-620-0 02 1 0103- ● ● ● ●
516 02.559 BOLT; HARNESS
6VD1 ENG(RLV) 08.155 M8X16 FLANGE 		0-28480-816-0 01 1 9804-9812 ● ●
516 02.559 BOLT; HARNESS
6VD1 ENG(RLV) 08.155 M8X16 FLANGE 		0-28480-816-0 01 1 9901- ● ● ● ●

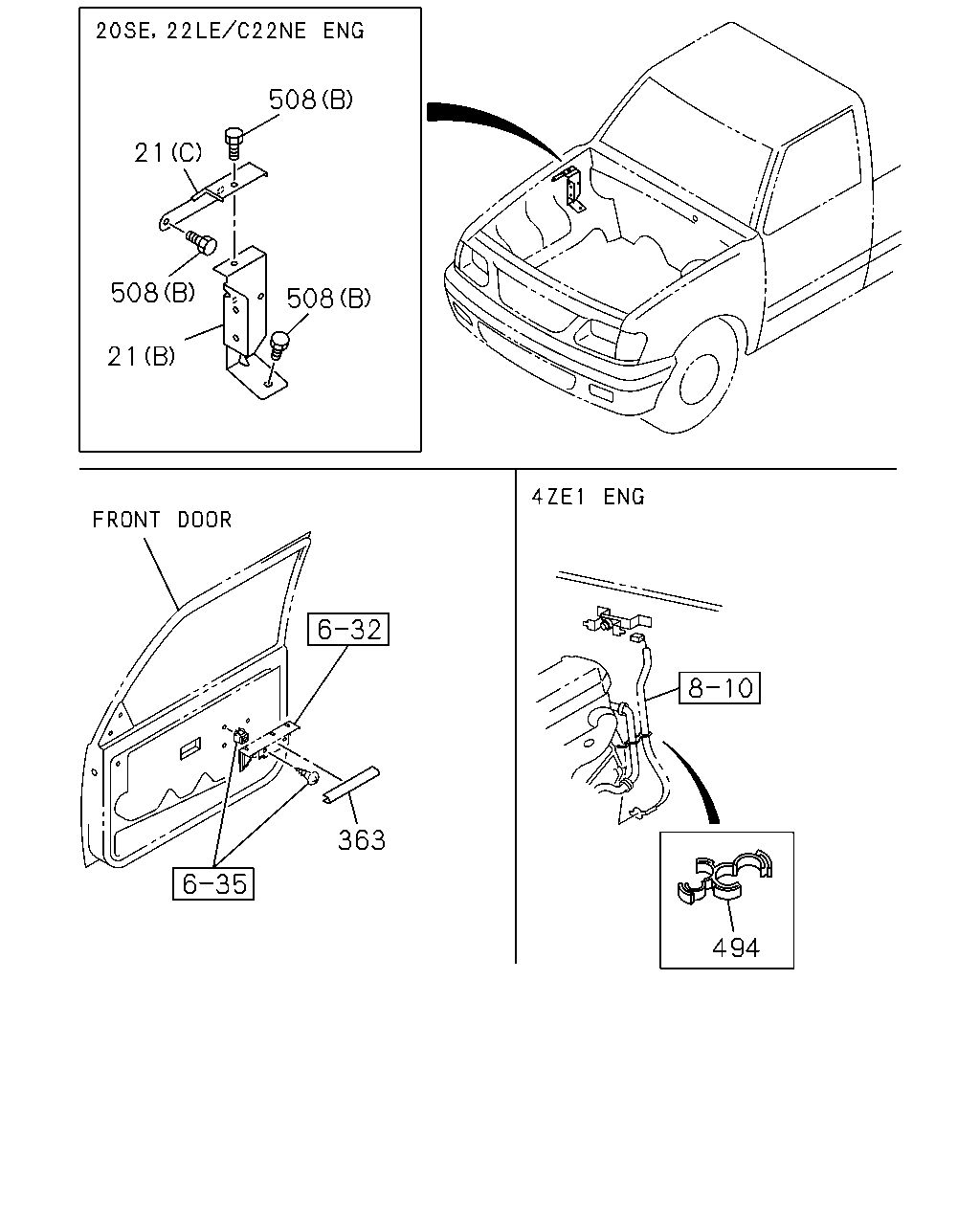

çizim 71720
508 21 508 508 21 363 494
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) 03.671 (B) 		8-94475-021-2 01 1 9804-0108 ● ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) 03.671 (B) 		8-94475-021-2 01 1 0109- ● ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) 02.510 (C) 		8-94479-552-2 01 1 9804-0108 ● ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) 02.510 (C) 		8-94479-552-2 01 1 0109- ● ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) (D) 		8-97127-268-0 02 1 9804-0108 ● ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) (D) 		8-97127-268-0 02 1 0109- ● ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
6VD1 ENG(RLV) (A) 		8-97108-281-0 01 1 9804-9812 ● ●
21 02.483 BRACKET; ENG HARNESS
6VD1 ENG(RLV) (A) 		8-97108-281-1 01 1 9901- ● ● ● ●
363 16.085 FINISHER; PROTECTOR
POWER WINDOW<A30> 16.570 SERVICED BY L=190 		1-71998-300-0 02 1 9804- ● ● ● ● ● ●
494 02.559 CLIP; BONDING CABLE
4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.242 ID=12.5 & 24 		5-09709-034-0 01 1 9804-9812 ● ● ●
508 02.559 BOLT; BRKT,ENG HARNESS
22LE/C22NE ENG(RJT) 01.428 (B) M6X12 FLANGE 		0-28080-612-0 04 1 9804-0108 ● ● ● ● ● ● ● ●
508 02.559 BOLT; BRKT,ENG HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) 01.428 (B) M6X12 FLANGE 		0-28080-612-0 04 1 0109- ● ● ● ● ● ● ● ●
508 02.559 BOLT; BRKT,ENG HARNESS
6VD1 ENG(RLV) 03.670 (A) M6X20 FLANGE 		0-28080-620-0 02 1 9804-9812 ● ●
508 02.559 BOLT; BRKT,ENG HARNESS
6VD1 ENG(RLV) 03.670 (A) M6X20 FLANGE 		0-28080-620-0 02 1 9901-0102 ● ● ● ●
508 02.559 BOLT; BRKT,ENG HARNESS
6VD1 ENG(RLV) 04.930 (A) M6X20 FLANGE 		0-28680-620-0 02 1 0103- ● ● ● ●

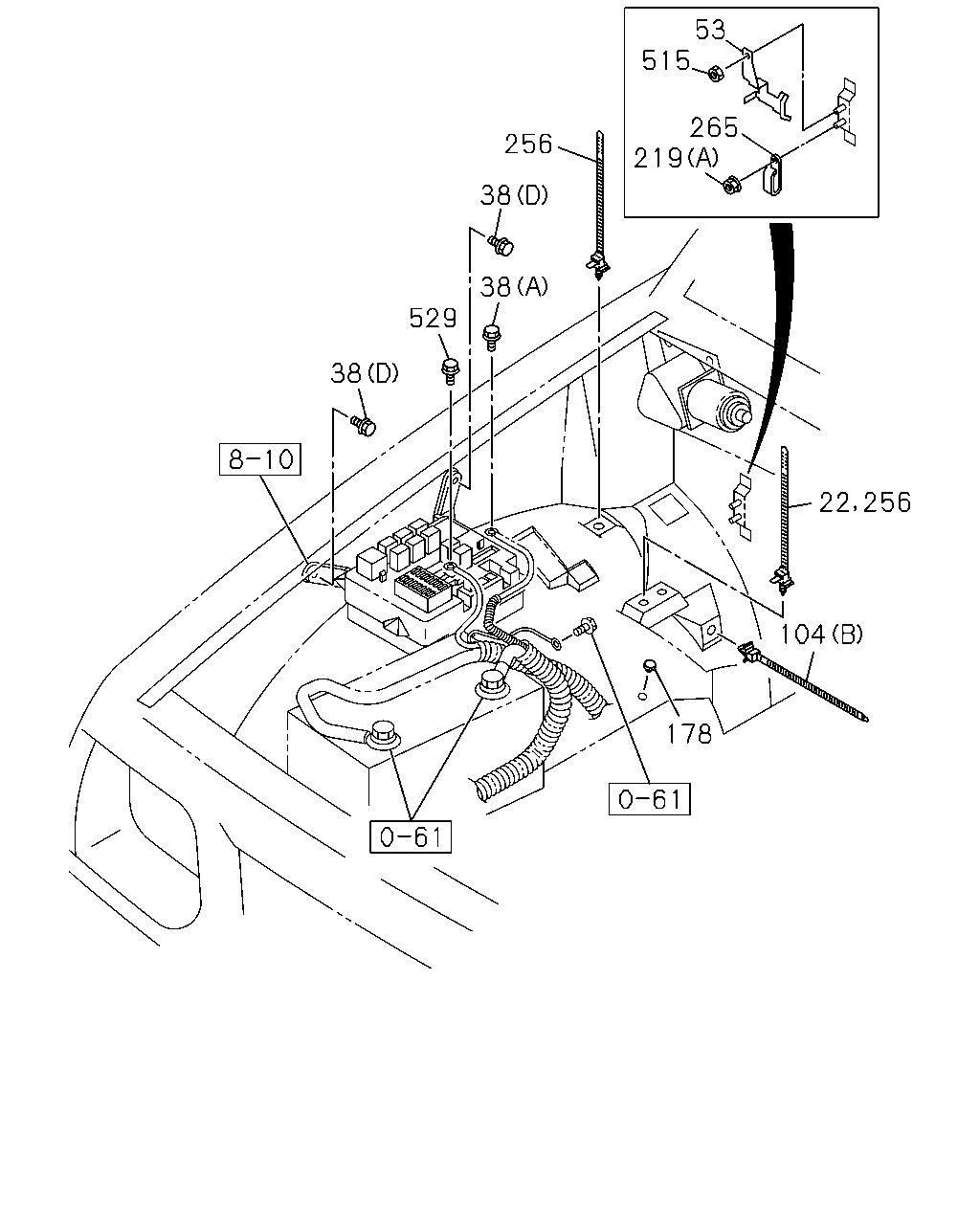

çizim 71721
53 515 265 219 256 38 38 529 38 104 178 22 256
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
22 02.559 CLIP; ENG HARNESS
22LE/C22NE ENG(RJT) EXC. POWER STEERING<N40> 02.587 L=172 		8-94232-620-0 01 1 9806-0108 ● ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) EXC. POWER STEERING<N40> 02.587 L=172 		8-94232-620-0 01 1 0109- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9804-9812 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9901- ● ● ● ●
53 02.483 BRACKET; HARNESS
4JB1 ENG(RLF) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97183-049-0 01 1 9804-9909 ● ● ● ● ● ●
53 02.483 BRACKET; HARNESS
4JB1 ENG(RLF) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97183-049-0 01 1 9910- ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (B) L=172 		8-94232-620-0 02 1 9804- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.587 (A) L=112 		8-94232-618-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 02.587 (A) L=112 		8-94232-618-0 01 1 9901- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZE1 ENG(RLJ) (C) L=142 		8-94232-619-0 01 1 9804-9812 ● ● ●
178 02.559 GROMMET; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. AIR CONDITIONER MANUAL CONT(C60) 16.550 OD=12 		9-09956-122-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4ZE1 ENG(RLJ),6VD1 ENG(RLV) 16.550 OD=12 		9-09956-122-0 01 1 9804-9812 ● ● ●
178 02.559 GROMMET; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. AIR CONDITIONER MANUAL CONT(C60) 16.550 OD=12 		9-09956-122-0 01 1 9901- ● ● ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
6VD1 ENG(RLV) 16.550 OD=12 		9-09956-122-0 01 1 9901- ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. ARGENTINA EQUIPMENT(7SZ) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
219 02.559 NUT
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ARGENTINA EQUIPMENT(7SZ) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9901-9909 ● ● ● ● ● ● ● ●
219 02.559 NUT
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9901-9909 ● ● ● ● ● ● ● ●
219 02.559 NUT
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9910-0012 ● ● ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9910-0012 ● ● ● ● ● ● ● ●
219 02.559 NUT
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHINA EQUIPMENT(YT2), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RI CA EQUIPMENT(7LD) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 0101-0108 ● ● ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 0101-0108 ● ● ● ● ● ● ● ●
219 02.559 NUT
22LE/C22NE ENG(RJT),20SE ENG(RND) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHINA EQUIPMENT(YT2), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RI CA EQUIPMENT(7LD) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 0109- ● ● ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 0109- ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZE1 ENG(RLJ) 02.343 (B) M6 W/LK WASHER 		8-94424-179-0 01 1 9804-9812 ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. ARGENTINA EQUIPMENT(7SZ) L=135 		8-94473-399-0 02 1 9804-9812 ● ● ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. ARGENTINA EQUIPMENT(7SZ) L=135 		8-94473-399-0 02 1 9901-9909 ● ● ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
22LE/C22NE ENG(RJT) L=135 		8-94473-399-0 02 1 9910-0108 ● ● ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ARGENTINA EQUIPMENT(7SZ) L=135 		8-94473-399-0 02 1 9910-0108 ● ● ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) L=135 		8-94473-399-0 02 1 0109- ● ● ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ARGENTINA EQUIPMENT(7SZ) L=135 		8-94473-399-0 02 1 0109- ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. ARGENTINA EQUIPMENT(7SZ) ID=21 L=47.5 		8-94178-108-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=21 L=47.5 		8-94178-108-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ARGENTINA EQUIPMENT(7SZ) ID=21 L=47.5 		8-94178-108-0 01 1 9901-9909 ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=21 L=47.5 		8-94178-108-0 01 1 9901-9909 ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=21 L=47.5 		8-94178-108-0 01 1 9910-0012 ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) ID=21 L=47.5 		8-94178-108-0 01 1 9910-0012 ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),EGYPT EQUIPMENT(YJ4), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=21 L=47.5 		8-94178-108-0 01 1 0101-0108 ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) ID=21 L=47.5 		8-94178-108-0 01 1 0101-0108 ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
22LE/C22NE ENG(RJT),20SE ENG(RND) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),EGYPT EQUIPMENT(YJ4), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=21 L=47.5 		8-94178-108-0 01 1 0109- ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) ID=21 L=47.5 		8-94178-108-0 01 1 0109- ● ● ● ● ● ● ● ●
515 02.559 NUT; BRKT
4JB1 ENG(RLF) EXC. ARGENTINA EQUIPMENT(7SZ) 07.833 M6 FLANGE 		8-97063-399-0 01 1 9804-9909 ● ● ● ● ● ●
515 02.559 NUT; BRKT
4JB1 ENG(RLF) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) 07.833 M6 FLANGE 		8-97063-399-0 01 1 9910- ● ● ● ● ● ●
529 02.559 BOLT; RELAY BOX
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
529 02.559 BOLT; RELAY BOX
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9910- ● ● ● ● ● ● ● ●

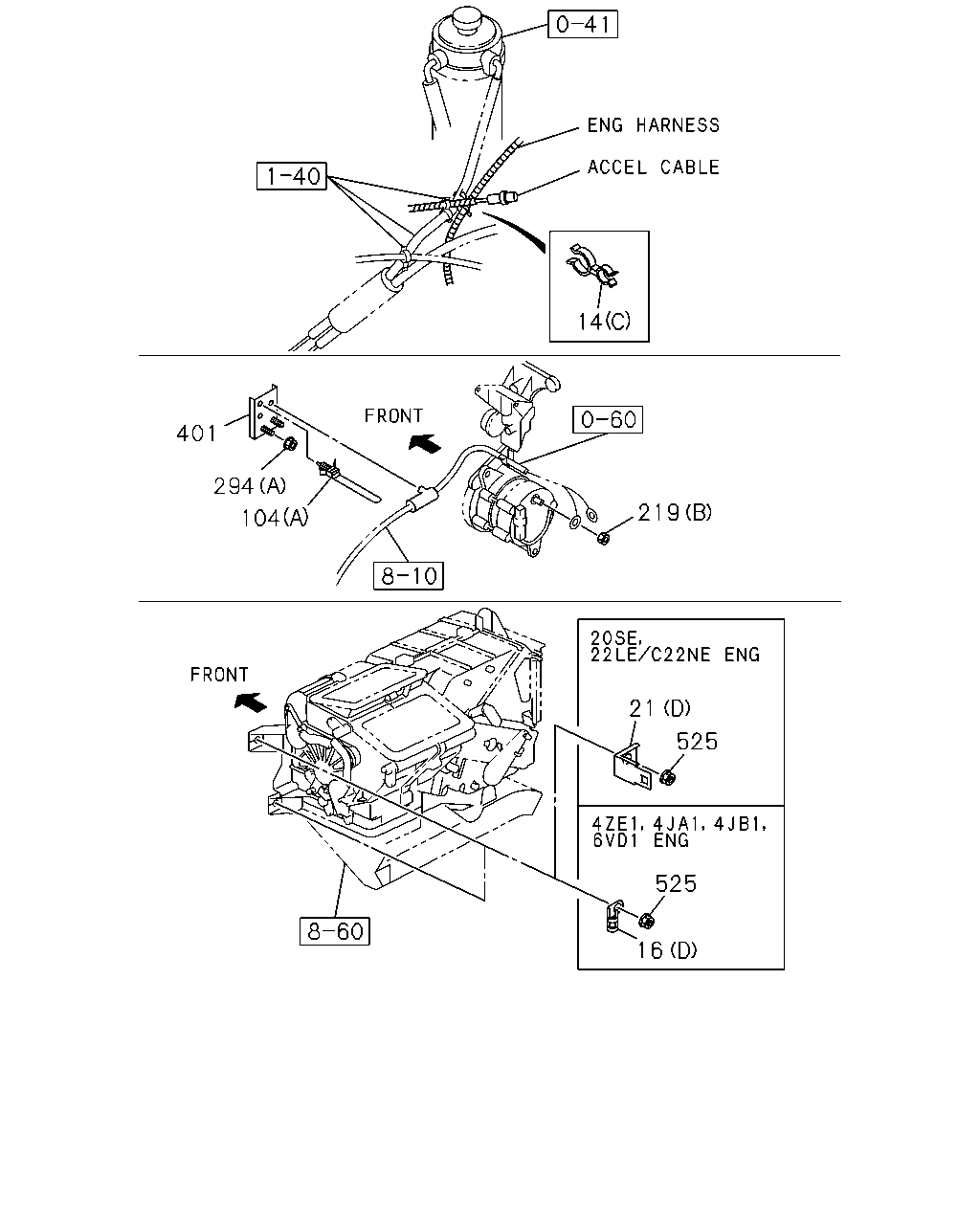

çizim 73602
14 401 294 219 104 21 525 525 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-0 02 1 9804-9812 ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT) 04.594 (A) L=100 		5-09707-036-1 02 1 9901-0108 ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) 04.594 (A) L=100 		5-09707-036-1 02 1 0109- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9804-9909 ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9910-0009 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0010- ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9804- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 08 1 9804- ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9804- ● ●
14 02.559 CLIP; BAND,HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) 03.162 (D) L=140 		5-09707-031-1 03 1 0010- ● ●
14 02.559 CLIP; BAND,HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) 03.162 (D) L=140 		5-09707-031-1 01 1 0105- ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-0 01 1 9804-9812 ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT) 04.594 (A) L=100 		5-09707-036-1 01 1 9901- ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 0005- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0005- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9804-0106 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0107- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804-9812 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE S(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804-9812 ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9901- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE S(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9901- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9804-9901 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9902-0009 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0010-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0110-0302 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) (H) L=250 		5-09707-030-1 01 1 0010- ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) SHIFT ON THE FLY(7EX) 03.162 (I) L=170 		5-09707-054-0 01 1 0101-0104 ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) 03.671 (B) 		8-94475-021-2 01 1 9804-0108 ● ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) 03.671 (B) 		8-94475-021-2 01 1 0109- ● ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) 02.510 (C) 		8-94479-552-2 01 1 9804-0108 ● ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) 02.510 (C) 		8-94479-552-2 01 1 0109- ● ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) (D) 		8-97127-268-0 02 1 9804-0108 ● ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) (D) 		8-97127-268-0 02 1 0109- ● ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
6VD1 ENG(RLV) (A) 		8-97108-281-0 01 1 9804-9812 ● ●
21 02.483 BRACKET; ENG HARNESS
6VD1 ENG(RLV) (A) 		8-97108-281-1 01 1 9901- ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (B) L=172 		8-94232-620-0 02 1 9804- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.587 (A) L=112 		8-94232-618-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 02.587 (A) L=112 		8-94232-618-0 01 1 9901- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZE1 ENG(RLJ) (C) L=142 		8-94232-619-0 01 1 9804-9812 ● ● ●
219 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. ARGENTINA EQUIPMENT(7SZ) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
219 02.559 NUT
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ARGENTINA EQUIPMENT(7SZ) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9901-9909 ● ● ● ● ● ● ● ●
219 02.559 NUT
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9901-9909 ● ● ● ● ● ● ● ●
219 02.559 NUT
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9910-0012 ● ● ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9910-0012 ● ● ● ● ● ● ● ●
219 02.559 NUT
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHINA EQUIPMENT(YT2), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RI CA EQUIPMENT(7LD) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 0101-0108 ● ● ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 0101-0108 ● ● ● ● ● ● ● ●
219 02.559 NUT
22LE/C22NE ENG(RJT),20SE ENG(RND) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHINA EQUIPMENT(YT2), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RI CA EQUIPMENT(7LD) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 0109- ● ● ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 0109- ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZE1 ENG(RLJ) 02.343 (B) M6 W/LK WASHER 		8-94424-179-0 01 1 9804-9812 ● ● ●
294 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) 07.829 (A) M6 FLANGE 		5-09440-004-0 02 1 9804- ● ● ● ● ● ● ● ●
294 02.559 NUT
4JB1 ENG(RLF) A/T AISIN(RMD) 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0103- ● ●
401 02.559 BRACKET; HARNESS,GEN
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94330-360-1 01 1 9804- ● ● ● ● ● ● ● ●
525 02.559 NUT; CLIP
22LE/C22NE ENG(RJT) EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 02 1 9804-0108 ● ● ● ● ● ● ● ●
525 02.559 NUT; CLIP
22LE/C22NE ENG(RJT),20SE ENG(RND) EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 02 1 0109- ● ● ● ● ● ● ● ●
525 02.559 NUT; CLIP
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 01 1 9804- ● ● ● ● ● ● ● ●

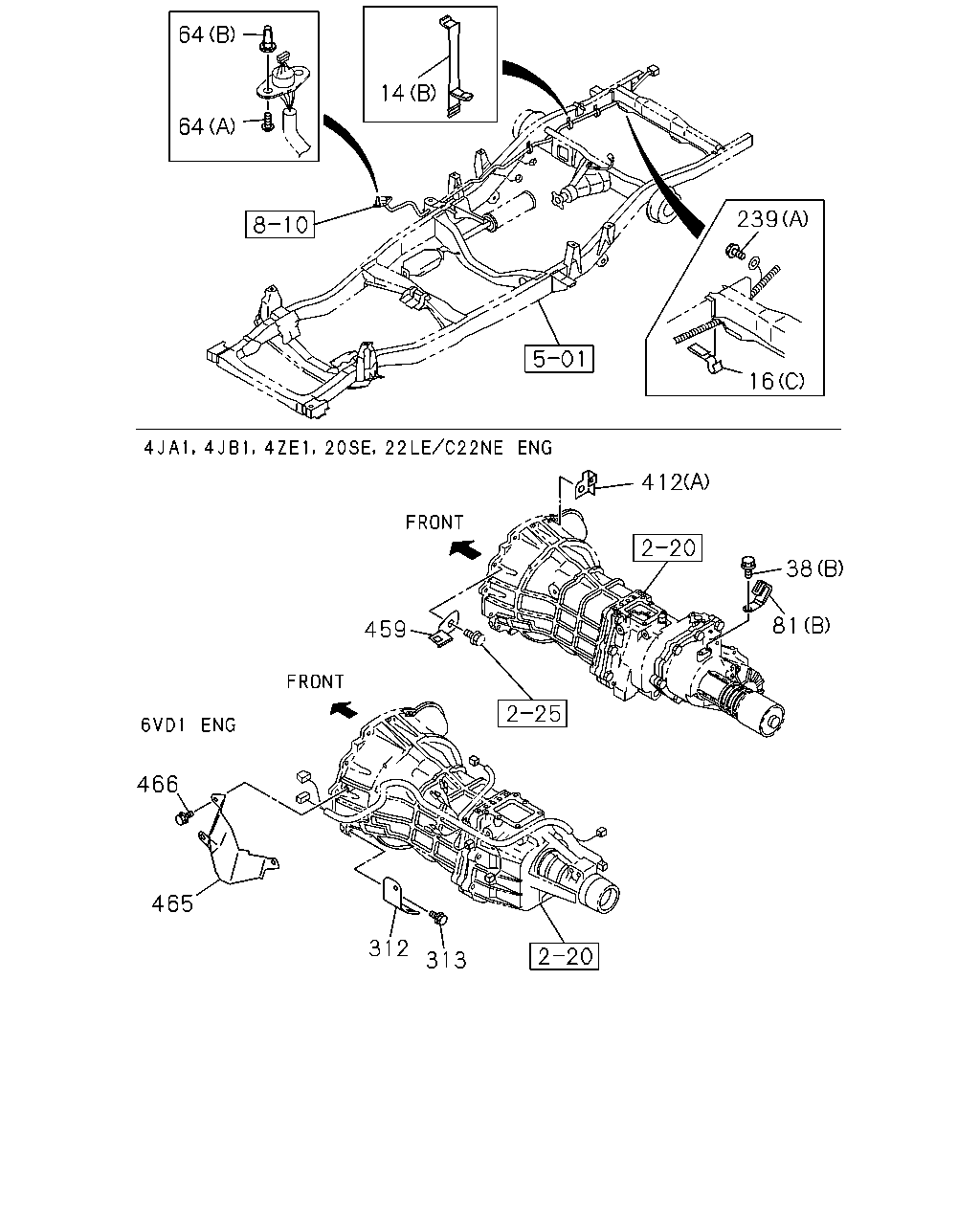

çizim 74111
64 14 64 239 16 412 38 81 459 466 465 312 313
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-0 02 1 9804-9812 ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT) 04.594 (A) L=100 		5-09707-036-1 02 1 9901-0108 ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT),20SE ENG(RND) 04.594 (A) L=100 		5-09707-036-1 02 1 0109- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9804-9909 ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9910-0009 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0010- ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9804- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 08 1 9804- ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9804- ● ●
14 02.559 CLIP; BAND,HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) 03.162 (D) L=140 		5-09707-031-1 03 1 0010- ● ●
14 02.559 CLIP; BAND,HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) 03.162 (D) L=140 		5-09707-031-1 01 1 0105- ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-0 01 1 9804-9812 ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT) 04.594 (A) L=100 		5-09707-036-1 01 1 9901- ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 0005- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0005- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9804-0106 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0107- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804-9812 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE S(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804-9812 ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9901- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE S(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9901- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9804-9901 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9902-0009 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0010-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0110-0302 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) (H) L=250 		5-09707-030-1 01 1 0010- ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) SHIFT ON THE FLY(7EX) 03.162 (I) L=170 		5-09707-054-0 01 1 0101-0104 ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9804-9812 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9901- ● ● ● ●
64 02.559 SCREW; CLIP
10.240 (A) M5X14 		8-94120-095-0 02 1 9804- ● ● ● ● ● ● ● ●
64 02.559 SCREW; CLIP
02.679 (B) D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 9804- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9804- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.742 (C) LIGHT GRAY 		8-97153-254-0 01 1 9804-0111 ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.069 (C) OD=12 L=14.8 		8-94279-921-0 01 1 0112- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804-9812 ● ● ● ●
81 02.483 CLIP; HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9901- ● ● ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 9804-0012 ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 05 1 0101- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
4JA1 ENG(RLE),4JB1 ENG(RLF) 02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9901-0004 ● ● ● ● ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-94359-008-1 01 1 9804-9812 ● ●
312 02.559 BRACKET; CLIP HARNESS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-94359-008-1 01 1 9901- ● ● ● ●
313 02.559 BOLT; BRKT
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 01.271 M8X40 FLANGE 		0-28080-840-0 01 1 9804-9812 ● ●
313 02.559 BOLT; BRKT
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 01.271 M8X40 FLANGE 		0-28080-840-0 01 1 9901- ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
22LE/C22NE ENG(RJT) (A) 		8-97210-945-0 01 1 9808-0108 ● ● ● ● ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
22LE/C22NE ENG(RJT),20SE ENG(RND) (A) 		8-97210-945-0 01 1 0109- ● ● ● ● ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
4JB1 ENG(RLF) A/T AISIN(RMD) (B) 		8-97216-059-0 01 1 0010- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 		8-94315-284-0 01 1 9804-9909 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JA1 ENG(RLE) TURBOCHARGER<K51> 		8-94315-284-0 01 1 9910- ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JB1 ENG(RLF) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ARGENTINA EQUIPMENT(7SZ) 		8-94315-284-0 01 1 9910- ● ● ● ● ●
465 02.483 PROTECTOR; HEAT,HARNESS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-97108-280-0 01 1 9804-9812 ● ●
465 02.483 PROTECTOR; HEAT,HARNESS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-97809-116-1 01 1 9901- ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 01.428 M6X12 FLANGE 		0-28080-612-0 03 1 9804-9812 ● ●
466 02.483 BOLT; HEAT PROTECTOR
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 01.428 M6X12 FLANGE 		0-28080-612-0 03 1 9901-0102 ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 02.500 M6X10 FLANGE 		0-28080-610-0 03 1 0103- ● ● ● ●
çizim 74116
27 507 81 38 16 239 239 187 531 531 27 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 0005- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0005- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9804-0106 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0107- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804-9812 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE S(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804-9812 ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9901- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE S(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9901- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9804-9901 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9902-0009 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0010-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0110-0302 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) (H) L=250 		5-09707-030-1 01 1 0010- ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) SHIFT ON THE FLY(7EX) 03.162 (I) L=170 		5-09707-054-0 01 1 0101-0104 ●
27 02.559 PROTECTOR; EDGE
(D) 		1-76679-007-0 02 1 0203- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
16.550 (A) L=250 SERVICED BY L=2040 		1-71997-513-1 02 1 9804- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
03.162 (B) L=88 		8-97069-335-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
02.530 (B) L=65 		8-94235-856-0 01 1 0101-0207 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
22LE/C22NE ENG(RJT) (C) 		8-97263-384-0 01 1 0008-0108 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
22LE/C22NE ENG(RJT),20SE ENG(RND) (C) 		8-97263-384-0 01 1 0109- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9804-9812 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9901- ● ● ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9804- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.742 (C) LIGHT GRAY 		8-97153-254-0 01 1 9804-0111 ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.069 (C) OD=12 L=14.8 		8-94279-921-0 01 1 0112- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804-9812 ● ● ● ●
81 02.483 CLIP; HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9901- ● ● ● ●
187 02.559 CLIP; CHAS HARN TO DASH 8-94474-013-2 01 1 9804- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 9804-0012 ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 05 1 0101- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
4JA1 ENG(RLE),4JB1 ENG(RLF) 02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9901-0004 ● ● ● ● ● ● ● ●
507 02.559 FINISHER
L=80 		5-71997-133-0 01 1 9804-0103 ● ● ● ● ● ● ● ●
507 02.559 FINISHER
L=80 		5-71997-133-0 02 1 0104- ● ● ● ● ● ● ● ●
531 02.559 HOLDER
02.483 (A) 		8-97102-731-2 01 1 9804- ● ● ● ● ● ● ● ●
531 02.559 HOLDER
02.483 (B) 		8-97110-341-1 01 1 9804- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
