◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#43768) — 388 parça

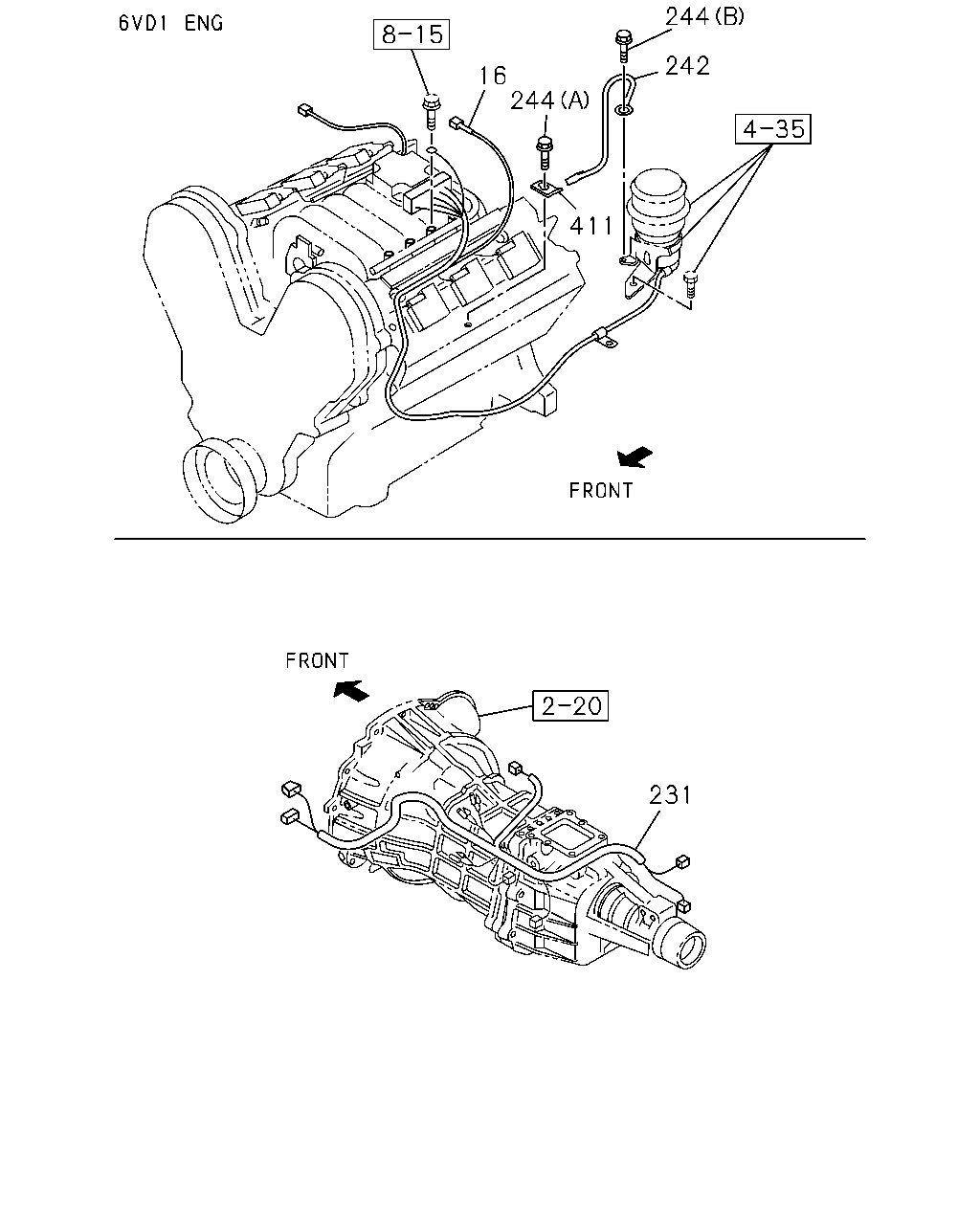

çizim 19105
244 242 16 244 411 231
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97358-257-0 01 1 0212- ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
22LE/C22NE ENG(RJT) 		8-92063-679-0 01 1 9804-0108 ● ● ● ● ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
22LE/C22NE ENG(RJT),20SE ENG(RND) 		8-92063-679-0 01 1 0109- ● ● ● ● ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-97180-043-4 01 1 9804-0109 ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) 		8-97180-043-7 01 1 0110-0211 ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 		8-97180-043-7 01 1 0212- ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD) 		8-97178-798-1 01 1 9804-9807 ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD) 		8-97210-946-0 01 1 9808-9904 ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CH ILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97210-946-0 01 1 9905-0012 ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CH INA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97210-946-0 01 1 0101-0108 ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT),20SE ENG(RND) M/T MSG 5 SPEED(M75) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CH INA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97210-946-1 01 1 0109- ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICAEQUIPMENT(7LD) 		8-97178-832-1 01 1 9804-9807 ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICAEQUIPMENT(7LD) 		8-97210-948-0 01 1 9808-9904 ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75) EXC. ECUADOR EQUIPMENT(S6E), COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/C OSTA RICA EQUIPMENT(7LD) 		8-97210-948-0 01 1 9905-0012 ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75) EXC. ECUADOR EQUIPMENT(S6E), COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD) 		8-97210-948-0 01 1 0101-0108 ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT),20SE ENG(RND) M/T MSG 5 SPEED(M75) EXC. ECUADOR EQUIPMENT(S6E), COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD) 		8-97210-948-1 01 1 0109- ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MUA 5 SPEED(RMN) 		8-97210-952-0 01 1 9808-0103 ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MUA 5 SPEED(RMN) 		8-97210-952-0 01 1 0104-0108 ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT),20SE ENG(RND) M/T MUA 5 SPEED(RMN) 		8-97210-952-1 01 1 0109- ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-97166-003-0 01 1 9804-9807 ● ● ●
231 02.480 HARNESS; TRANS
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-97166-003-0 01 1 9808-9812 ● ●
231 02.480 HARNESS; TRANS
6VD1 ENG(RLV) EXC. CHILE EQUIPMENT(6KB) 		8-97186-417-0 01 1 9901-9908 ● ● ● ●
231 02.480 HARNESS; TRANS
6VD1 ENG(RLV) EXC. ECUADOR EQUIPMENT(S6E), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97186-417-0 01 1 9909-9909 ● ● ● ●
231 02.480 HARNESS; TRANS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. ECUADOR EQUIPMENT(S6E), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),SHIFT ON THE FLY(7EX) 		8-97186-417-1 01 1 9910- ● ● ● ●
231 02.480 HARNESS; TRANS
6VD1 ENG(RLV) 		8-97186-416-0 01 1 9804-9806 ● ●
231 02.480 HARNESS; TRANS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) CHILE EQUIPMENT(6KB) 		8-97186-416-0 01 1 9807-9812 ● ●
231 02.480 HARNESS; TRANS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) CHILE EQUIPMENT(6KB) 		8-97186-416-0 01 1 9901-9908 ● ● ● ●
231 02.480 HARNESS; TRANS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97186-416-0 01 1 9909-9909 ● ● ● ●
231 02.480 HARNESS; TRANS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. SHIFT ON THE FLY(7EX) 		8-97186-416-1 01 1 9910- ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICAEQUIPMENT(7LD) 		8-97178-833-0 01 1 9804-9807 ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICAEQUIPMENT(7LD) 		8-97210-949-0 01 1 9808-9904 ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75) EXC. ECUADOR EQUIPMENT(S6E), COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/C OSTA RICA EQUIPMENT(7LD) 		8-97210-949-0 01 1 9905-0012 ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75) EXC. ECUADOR EQUIPMENT(S6E), COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD) 		8-97210-949-1 01 1 0101- ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MUA 5 SPEED(RMN) EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICAEQUIPMENT(7LD) 		8-97166-002-0 01 1 9804-9807 ● ● ● ●
231 02.480 HARNESS; TRANS
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-97166-002-0 01 1 9804-9807 ●
231 02.480 HARNESS; TRANS
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-97166-002-0 01 1 9808-9812 ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MUA 5 SPEED(RMN) EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICAEQUIPMENT(7LD) 		8-97210-951-0 01 1 9808-0012 ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MUA 5 SPEED(RMN) EXC. COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) ,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97210-951-1 01 1 0101- ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD) 		8-97178-799-0 01 1 9804-9807 ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD) 		8-97210-947-0 01 1 9808-9904 ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUAT EMALA/COSTA RICA EQUIPMENT(7LD) 		8-97210-947-0 01 1 9905-0012 ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHIL E EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97210-947-1 01 1 0101- ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MUA 5 SPEED(RMN) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD) 		8-97185-429-0 01 1 9804-9807 ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MUA 5 SPEED(RMN) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD) 		8-97210-950-0 01 1 9808-9904 ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MUA 5 SPEED(RMN) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GU ATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97210-950-0 01 1 9905-0012 ● ● ● ●
231 02.480 HARNESS; TRANS
22LE/C22NE ENG(RJT) M/T MUA 5 SPEED(RMN) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CH ILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97210-950-1 01 1 0101- ● ● ● ●
231 02.480 HARNESS; TRANS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) SHIFT ON THE FLY(7EX) 		8-97217-414-3 01 1 9910- ● ●
231 02.480 HARNESS; TRANS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX) EXC. ECUADOR EQUIPMENT(S6E), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97217-413-3 01 1 9910- ● ●
242 02.559 CABLE; BONDING,ENG TO BODY
6VD1 ENG(RLV) 		8-97091-683-0 01 1 9804-9812 ● ●
242 02.559 CABLE; BONDING,ENG TO BODY
6VD1 ENG(RLV) 		8-97091-683-0 01 1 9901- ● ● ● ●
244 02.559 BOLT; GRAND BONDING CABLE
6VD1 ENG(RLV) 01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9804-9812 ● ●
244 02.559 BOLT; GRAND BONDING CABLE
6VD1 ENG(RLV) 01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9901- ● ● ● ●
244 02.559 BOLT; GRAND BONDING CABLE
6VD1 ENG(RLV) (B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9804-9812 ● ●
244 02.559 BOLT; GRAND BONDING CABLE
6VD1 ENG(RLV) (B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9901- ● ● ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 02.530 		8-94102-644-0 01 1 9804-0108 ● ● ● ● ● ● ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) 02.530 		8-94102-644-0 01 1 0109- ● ● ● ● ● ● ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
4ZE1 ENG(RLJ) 		8-97116-129-0 01 1 9804-9812 ● ● ●
çizim 20177
293 533 533 534 16 293
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97358-257-0 01 1 0212- ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
22LE/C22NE ENG(RJT) 		8-92063-679-0 01 1 9804-0108 ● ● ● ● ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
22LE/C22NE ENG(RJT),20SE ENG(RND) 		8-92063-679-0 01 1 0109- ● ● ● ● ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-97180-043-4 01 1 9804-0109 ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) 		8-97180-043-7 01 1 0110-0211 ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 		8-97180-043-7 01 1 0212- ● ● ● ●
293 02.559 NUT
22LE/C22NE ENG(RJT) 00.004 		8-11014-038-0 02 1 9804-0108 ● ● ● ● ● ● ● ●
293 02.559 NUT
22LE/C22NE ENG(RJT),20SE ENG(RND) 00.004 		8-11014-038-0 02 1 0109- ● ● ● ● ● ● ● ●
533 02.559 CLIP
22LE/C22NE ENG(RJT) (A) 		8-92063-709-0 02 1 9804-0108 ● ● ● ● ● ● ● ●
533 02.559 CLIP
22LE/C22NE ENG(RJT),20SE ENG(RND) (A) 		8-92063-709-0 02 1 0109- ● ● ● ● ● ● ● ●
533 02.559 CLIP
22LE/C22NE ENG(RJT) (B) 		8-92063-863-0 01 1 9804-0108 ● ● ● ● ● ● ● ●
533 02.559 CLIP
22LE/C22NE ENG(RJT),20SE ENG(RND) (B) 		8-92063-863-0 01 1 0109- ● ● ● ● ● ● ● ●
534 02.483 BOLT
22LE/C22NE ENG(RJT) 		8-90412-680-0 01 1 9804- ● ● ● ● ● ● ● ●
534 02.483 BOLT
20SE ENG(RND) M/T MSG 5 SPEED(M75) 		8-11042-402-0 01 1 0109- ● ●

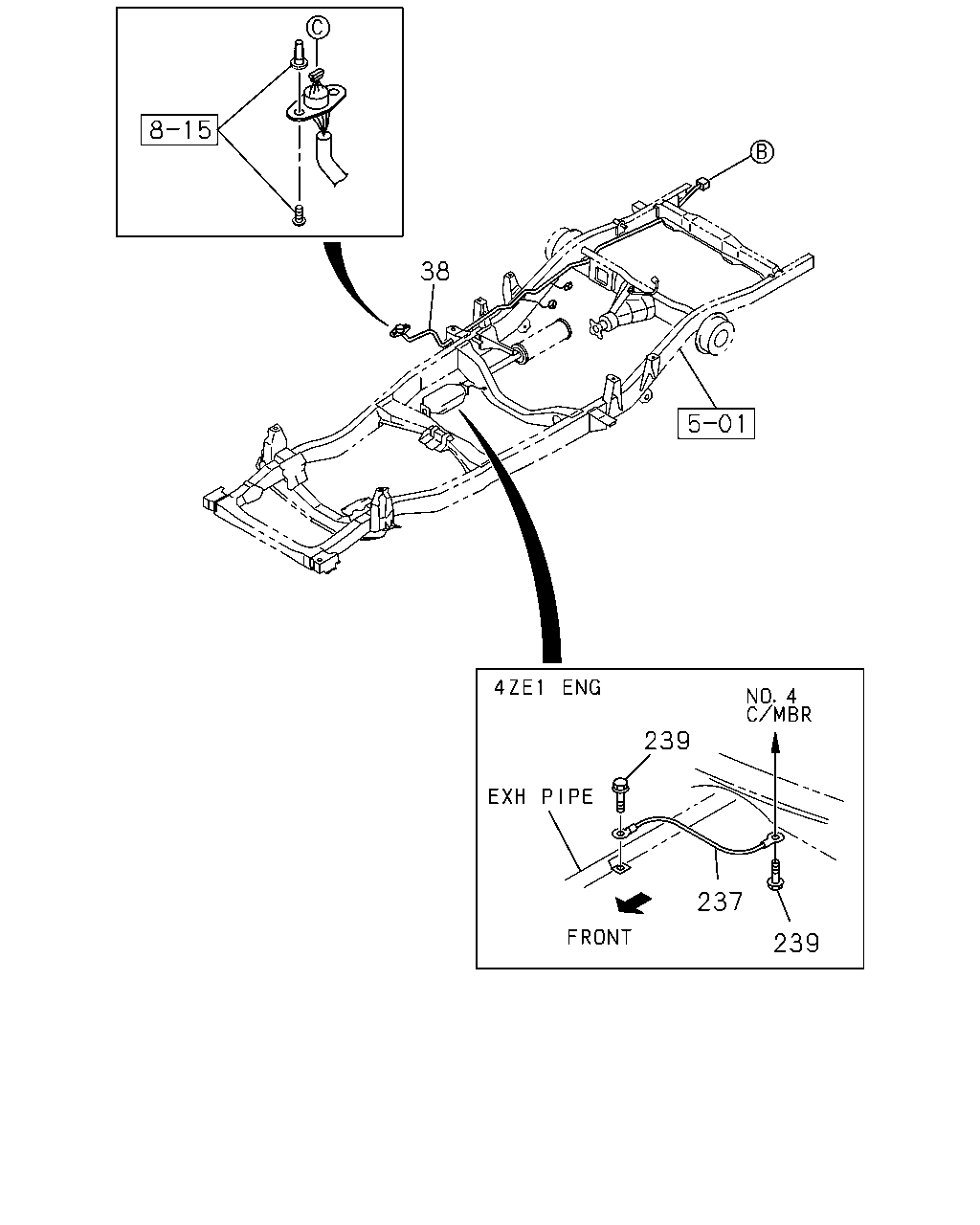

çizim 69425
38 239 237 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
38 02.480 HARNESS; CHAS
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97139-745-2 01 1 9804-9909 ● ● ● ● ● ●
38 02.480 HARNESS; CHAS
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97217-407-0 01 1 9910- ● ● ● ● ● ●
38 02.480 HARNESS; CHAS
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 		8-97178-830-0 01 1 9804-9909 ● ● ● ● ● ●
38 02.480 HARNESS; CHAS
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 		8-97217-410-0 01 1 9910-0005 ● ● ● ● ● ●
38 02.480 HARNESS; CHAS
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) EXC. CHINA EQUIPMENT(YT2) 		8-97217-410-0 01 1 0006-0108 ● ● ● ● ● ●
38 02.480 HARNESS; CHAS
22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) EXC. CHINA EQUIPMENT(YT2) 		8-97217-410-0 01 1 0109- ● ● ● ● ● ●
38 02.480 HARNESS; CHAS
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97139-744-2 01 1 9804-9909 ● ●
38 02.480 HARNESS; CHAS
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97217-411-0 01 1 9910- ● ●
38 02.480 HARNESS; CHAS
22LE/C22NE ENG(RJT) 		8-97178-831-0 01 1 9804-9909 ● ●
38 02.480 HARNESS; CHAS
22LE/C22NE ENG(RJT) 		8-97217-412-0 01 1 9910- ● ●
38 02.480 HARNESS; CHAS
22LE/C22NE ENG(RJT) CHINA EQUIPMENT(YT2) 		8-97252-918-0 01 1 0006- ● ●
237 02.630 CABLE; BONDING,EXH PIPE
4ZE1 ENG(RLJ) 		8-94318-797-0 01 1 9804-9812 ●
239 02.559 BOLT; BONDING CABLE
4ZE1 ENG(RLJ) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 9804-9812 ●

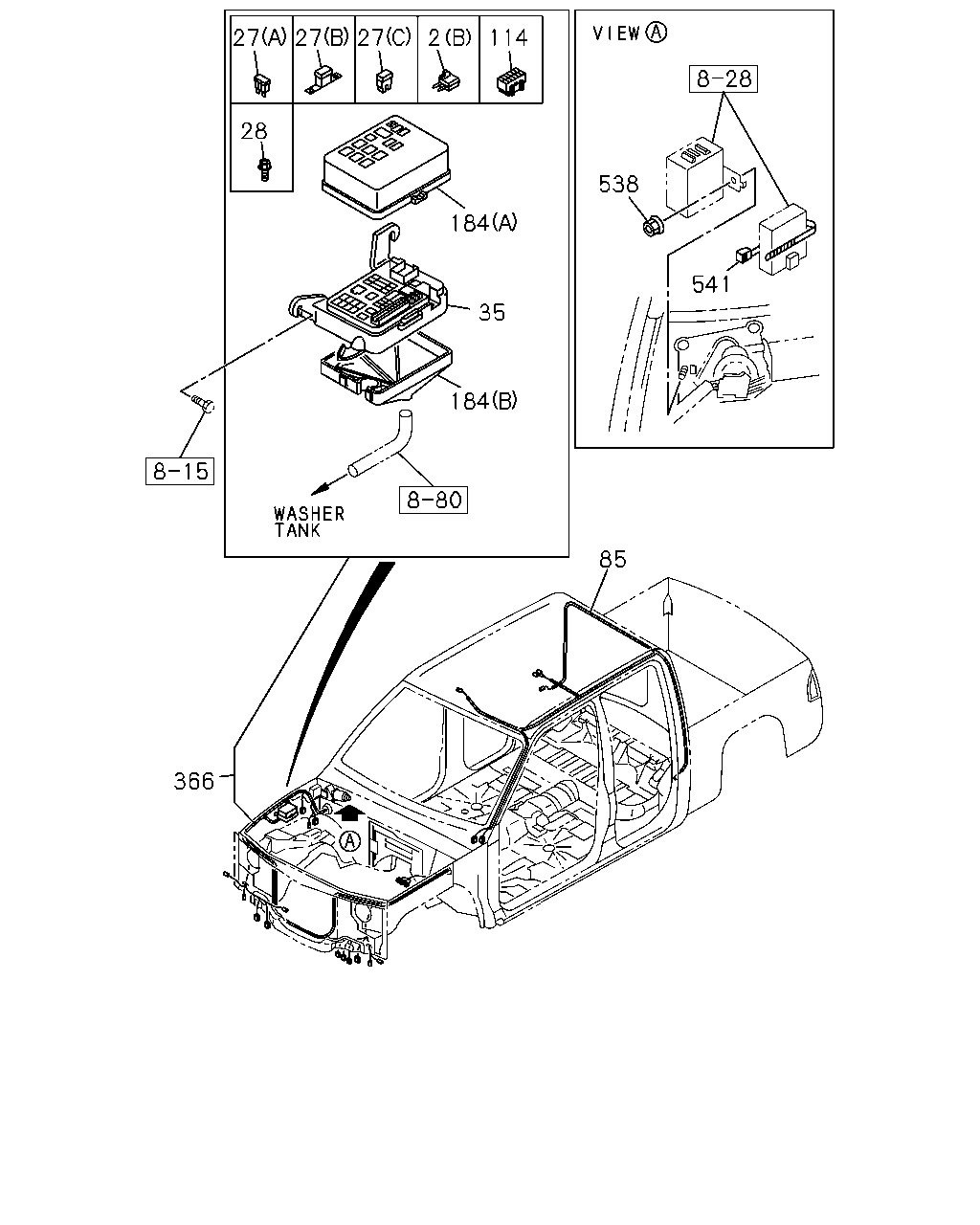

çizim 71871
2 114 28 538 184 541 35 184 85 366 27 27 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9804- ● ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-2.0A 		8-97138-524-0 AR 1 9804- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 40A GREEN 		8-94388-301-0 AR 1 9804- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 80A BLACK 		8-94388-305-0 AR 1 9804-9812 ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 100A BLUE 		8-94388-306-0 AR 1 9804- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 40A GREEN 		8-94468-662-0 AR 1 9804-9909 ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
02.483 (B) 50A RED 		8-94468-663-0 AR 1 9804-9909 ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 10A MINI RED 		8-97062-022-0 AR 1 9804- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 15A MINI BLUE 		8-97062-023-0 AR 1 9804- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 20A MINI YELLOW 		8-97062-024-0 AR 1 9804- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 30A PINK 		8-97183-643-0 AR 1 9804- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 40A GREEN 		8-97183-644-0 AR 1 9804- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 30A PINK 		8-94468-661-0 AR 1 9902-9909 ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 50A RED 		8-97183-645-0 AR 1 9910- ● ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
22LE/C22NE ENG(RJT) 		8-97249-192-0 04 1 9804-0108 ● ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
22LE/C22NE ENG(RJT),20SE ENG(RND) 		8-97249-192-0 04 1 0109-0109 ● ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
22LE/C22NE ENG(RJT),20SE ENG(RND) 		8-97249-192-0 04 1 0110-0205 ● ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
4JA1 ENG(RLE) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97249-192-0 04 1 0110-0205 ● ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
4JB1 ENG(RLF) A/T AISIN(RMD) 		8-97249-192-0 04 1 0110-0205 ● ●
28 02.483 SCREW; FUSE BOX
22LE/C22NE ENG(RJT),20SE ENG(RND) 		8-97249-192-0 04 1 0206-0305 ● ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
4JB1 ENG(RLF) A/T AISIN(RMD) 		8-97249-192-0 04 1 0206-0305 ● ●
28 02.483 SCREW; FUSE BOX
22LE/C22NE ENG(RJT),20SE ENG(RND) 		8-97249-192-0 04 1 0306- ● ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 		8-97249-192-0 02 1 9804-0205 ● ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX 8-97249-192-0 02 1 0206-0211 ● ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
4JA1 ENG(RLE),6VD1 ENG(RLV) 		8-97249-192-0 02 1 0212-0305 ● ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
4JA1 ENG(RLE) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97249-192-0 02 1 0212-0305 ● ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 		8-97249-192-0 02 1 0212-0305 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 		8-97249-192-0 02 1 0306- ● ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
4JA1 ENG(RLE) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97249-192-0 02 1 0306- ● ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
4ZE1 ENG(RLJ) 		8-97249-192-0 04 1 9804-9812 ● ● ●
35 02.530 BOX; RELAY & FUSE
4JA1 ENG(RLE) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97940-316-1 02 1 0110-0205 ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97940-316-1 01 1 0206- ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4JA1 ENG(RLE) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97940-316-1 01 1 0206- ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 		8-97940-316-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97940-316-1 01 1 9910-0109 ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
22LE/C22NE ENG(RJT),4JB1 ENG(RLF), 6VD1 ENG(RLV),20SE ENG(RND) 		8-97940-316-1 01 1 0110-0205 ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ARGENTINA EQUIPMENT(7SZ) 		8-97940-316-1 01 1 0110-0205 ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97104-108-2 01 1 9804-9812 ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97104-108-2 01 1 9901-9909 ● ● ● ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
MAP LAMP<UF3> 		8-97132-558-0 01 1 9804-9909 ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-97132-558-1 01 1 9910- ● ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. MAP LAMP<UF3> 		8-97132-666-0 01 1 9804-9806 ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97132-666-0 01 1 9804-9806 ●
85 06.495 HARNESS; ROOM LAMP
EXC. MAP LAMP<UF3> 		8-97132-666-0 01 1 9807-9909 ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-97132-666-1 01 1 9910- ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. MAP LAMP<UF3> 		8-97912-648-1 01 1 9807-9909 ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97912-648-1 01 1 9807-9909 ●
85 06.495 HARNESS; ROOM LAMP
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-97912-648-1 01 1 9910-9911 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. MAP LAMP<UF3> 		8-97912-648-1 01 1 9912- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-97160-428-1 01 1 9804- ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD) 		8-97160-429-2 01 1 9804- ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> 		8-97160-430-2 01 1 9804- ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-97139-705-1 01 1 9804- ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> 		8-97254-434-1 01 1 0004- ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> MAP LAMP<UF3> 		8-97132-560-0 01 1 9910-0003 ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> MAP LAMP<UF3> EXC. HIGH MOUNT STOP LAMP<TS6> 		8-97132-560-1 01 1 0004- ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-97132-559-0 01 1 9910-0003 ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> EXC. HIGH MOUNT STOP LAMP<TS6>,MAP LAMP<UF3> 		8-97132-559-1 01 1 0004- ●
114 02.483 BOX ASM; FUSE
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97104-121-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
114 02.483 BOX ASM; FUSE
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97104-121-0 01 1 9901-9909 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) (B) 		8-97104-115-1 02 1 0110-0205 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-97104-115-1 01 1 0206- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) (B) 		8-97104-115-1 01 1 0206- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97226-282-0 02 1 0110-0205 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-97226-282-0 01 1 0206- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97226-282-0 01 1 0206- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-97104-115-1 01 1 9804-0109 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
22LE/C22NE ENG(RJT),4JB1 ENG(RLF), 6VD1 ENG(RLV),20SE ENG(RND) (B) 		8-97104-115-1 01 1 0110-0205 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ARGENTINA EQUIPMENT(7SZ) (B) 		8-97104-115-1 01 1 0110-0205 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
22LE/C22NE ENG(RJT) (A) 		8-97182-315-1 01 1 9804-0108 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
22LE/C22NE ENG(RJT),20SE ENG(RND) (A) 		8-97182-315-1 01 1 0109- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-97142-801-1 01 1 9804-9901 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) (A) 		8-97142-801-1 01 1 9804-9901 ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) (A) 		8-97142-801-1 01 1 9902-9909 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4) (A) 		8-97142-801-1 01 1 9902-9909 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) (A) 		8-97222-387-0 01 1 9902-9909 ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-97226-282-0 01 1 9910-0109 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) (A) 		8-97226-282-0 01 1 0110-0205 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JB1 ENG(RLF) (A) 		8-97226-282-0 01 1 0110-0205 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97180-243-1 01 1 9902-9904 ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZE1 ENG(RLJ) CHINA EQUIPMENT(YT2) (A) 		8-97142-800-1 01 1 9804-9812 ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
6VD1 ENG(RLV) (A) 		8-97180-242-1 01 1 9804-9812 ● ●
184 02.559 COVER; RELAY & FUSE BOX
6VD1 ENG(RLV) ECUADOR EQUIPMENT(S6E),CHILE EQUIPMENT(6KB) (A) 		8-97180-242-1 01 1 9901-9904 ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),CHILE EQUIPMENT(6KB) (A) 		8-97180-242-1 01 1 9905-9909 ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),CHILE EQUIPMENT(6KB) (A) 		8-97226-900-0 01 1 9910- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) A/T AISIN(RMD) 		8-97300-218-0 01 1 0110-0305 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) A/T AISIN(RMD) EXC. SHIFT ON THE FLY(7EX) 		8-97300-218-0 01 1 0110-0305 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) A/T AISIN(RMD) 		8-97318-129-0 01 1 0306- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) A/T AISIN(RMD) EXC. SHIFT ON THE FLY(7EX) 		8-97318-129-0 01 1 0306- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) A/T AISIN(RMD) SHIFT ON THE FLY(7EX) 		8-97300-217-0 01 1 0110-0305 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) A/T AISIN(RMD) SHIFT ON THE FLY(7EX) 		8-97318-144-0 01 1 0306- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EXC. TURKISH EQUIPMENT(S6S), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENT INA EQUIPMENT(7SZ) 		8-97318-124-0 01 1 0306- ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97217-345-3 02 1 0110-0205 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EXC. TURKISH EQUIPMENT(S6S), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENT INA EQUIPMENT(7SZ) 		8-97217-345-3 01 1 0206-0305 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97217-345-3 01 1 0306- ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) GRADE S(RBA) TURKISH EQUIPMENT(S6S) 		8-97352-424-0 01 1 0206- ●
366 02.525 HARNESS; CABLE,ENG ROOM
22LE/C22NE ENG(RJT) EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),GUATEMALA/COSTA RICAEQUIPMENT(7LD) 		8-97201-459-1 01 1 9804-9904 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
22LE/C22NE ENG(RJT) EXC. ECUADOR EQUIPMENT(S6E), COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),GUATEMALA/C OSTA RICA EQUIPMENT(7LD) 		8-97201-459-1 01 1 9905-0005 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
22LE/C22NE ENG(RJT) EXC. ECUADOR EQUIPMENT(S6E), COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIP MENT(7KS),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97201-459-4 01 1 0006-0108 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
22LE/C22NE ENG(RJT),20SE ENG(RND) EXC. ECUADOR EQUIPMENT(S6E), COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIP MENT(7KS),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97201-459-4 01 1 0109-0305 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
22LE/C22NE ENG(RJT),20SE ENG(RND) EXC. ECUADOR EQUIPMENT(S6E), COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIP MENT(7KS),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97318-149-1 01 1 0306- ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97165-618-2 01 1 9804-9901 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97165-618-2 01 1 9902-9909 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) 		8-97165-618-2 01 1 9902-9909 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97217-345-3 01 1 9910-0109 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
22LE/C22NE ENG(RJT) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97201-460-1 01 1 9804-9908 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
22LE/C22NE ENG(RJT) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97201-460-4 01 1 9909-0108 ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
22LE/C22NE ENG(RJT),20SE ENG(RND) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97201-460-4 01 1 0109-0305 ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
22LE/C22NE ENG(RJT),20SE ENG(RND) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97318-150-1 01 1 0306- ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 		8-97188-100-0 01 1 9804-9901 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 		8-97188-100-0 01 1 9902-9909 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 		8-97217-347-3 01 1 9910-0009 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 		8-97217-347-3 01 1 0010-0305 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 		8-97318-125-0 01 1 0306- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 		8-97188-101-0 01 1 9804-9901 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 		8-97188-101-0 01 1 9902-9909 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) EXC. SHIFT ON THE FLY(7EX) 		8-97217-356-3 01 1 9910-0009 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) EXC. SHIFT ON THE FLY(7EX) 		8-97217-356-3 01 1 0010-0305 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) EXC. SHIFT ON THE FLY(7EX) 		8-97318-127-0 01 1 0306- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97165-622-2 01 1 9804-9901 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97165-622-2 01 1 9902-9909 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),SHIFT ON THE FLY (7EX),GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97217-355-3 01 1 9910-0009 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),SHIFT ON THE FLY (7EX),GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97217-355-3 01 1 0010-0211 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2), SHIFT ON THE FLY(7EX),GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUI PMENT(7SZ) 		8-97217-355-3 01 1 0212-0305 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2), SHIFT ON THE FLY(7EX),GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUI PMENT(7SZ) 		8-97318-121-0 01 1 0306- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
22LE/C22NE ENG(RJT) GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97201-457-1 01 1 9804-9901 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
22LE/C22NE ENG(RJT) GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97201-457-1 01 1 9902-9904 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
22LE/C22NE ENG(RJT) ECUADOR EQUIPMENT(S6E),EGYPT EQUIPMENT(YJ4),GUATEMALA/COSTA RICA EQUIP MENT(7LD) 		8-97201-457-4 01 1 9905-0108 ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
22LE/C22NE ENG(RJT),20SE ENG(RND) ECUADOR EQUIPMENT(S6E),EGYPT EQUIPMENT(YJ4),GUATEMALA/COSTA RICA EQUIP MENT(7LD) 		8-97201-457-4 01 1 0109-0305 ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
22LE/C22NE ENG(RJT),20SE ENG(RND) ECUADOR EQUIPMENT(S6E),EGYPT EQUIPMENT(YJ4),GUATEMALA/COSTA RICA EQUIP MENT(7LD) 		8-97318-147-1 01 1 0306- ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-97222-250-1 01 1 9902-9909 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. SHIFT ON THE FLY(7EX) 		8-97225-526-3 01 1 9910-0211 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. SHIFT ON THE FLY(7EX) 		8-97225-526-3 01 1 9910-0211 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97225-526-3 01 1 0212-0305 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. SHIFT ON THE FLY(7EX) 		8-97225-526-3 01 1 0212-0305 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97318-123-0 01 1 0306- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. SHIFT ON THE FLY(7EX) 		8-97318-123-0 01 1 0306- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 		8-97222-251-1 01 1 9902-9909 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) EXC. SHIFT ON THE FLY(7EX) 		8-97226-904-2 01 1 9910-0305 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) EXC. SHIFT ON THE FLY(7EX) 		8-97318-136-0 01 1 0306- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
22LE/C22NE ENG(RJT) REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97201-458-4 01 1 9804-0108 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
22LE/C22NE ENG(RJT),20SE ENG(RND) REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97201-458-4 01 1 0109-0305 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
22LE/C22NE ENG(RJT),20SE ENG(RND) REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97318-148-1 01 1 0306- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) CHINA EQUIPMENT(YT2) 		8-97164-612-4 01 1 9804-9812 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
22LE/C22NE ENG(RJT) CHINA EQUIPMENT(YT2) 		8-97252-425-3 01 1 0006-0012 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
22LE/C22NE ENG(RJT) CHINA EQUIPMENT(YT2) 		8-97304-322-3 01 1 0101- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) 		8-97189-635-0 01 1 9804-9812 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) ECUADOR EQUIPMENT(S6E),CHILE EQUIPMENT(6KB) 		8-97189-635-0 01 1 9901-9908 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97189-635-0 01 1 9909-9909 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. SHIFT ON THE FLY(7EX) 		8-97226-903-2 01 1 9910-0305 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. SHIFT ON THE FLY(7EX) 		8-97318-135-0 01 1 0306- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 		8-97217-354-3 01 1 9910-0305 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 		8-97318-126-0 01 1 0306- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97217-353-3 01 1 9910-0009 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97217-353-3 01 1 0010-0211 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX) EXC. SAUDI ARABIA EQUIPMENT(EU2), GUATEMALA/COSTA RICA EQUIPMENT(7LD),A RGENTINA EQUIPMENT(7SZ) 		8-97217-353-3 01 1 0212-0305 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX) EXC. SAUDI ARABIA EQUIPMENT(EU2), GUATEMALA/COSTA RICA EQUIPMENT(7LD),A RGENTINA EQUIPMENT(7SZ) 		8-97318-120-0 01 1 0306- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) SHIFT ON THE FLY(7EX) 		8-97220-685-3 01 1 9910-0211 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) SHIFT ON THE FLY(7EX) 		8-97220-685-3 01 1 9910-0211 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) SHIFT ON THE FLY(7EX) 		8-97220-685-3 01 1 0212-0305 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) SHIFT ON THE FLY(7EX) 		8-97318-122-0 01 1 0306- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) SHIFT ON THE FLY(7EX) 		8-97217-368-2 01 1 9910-0305 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) SHIFT ON THE FLY(7EX) 		8-97318-133-0 01 1 0306- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) SHIFT ON THE FLY(7EX) 		8-97222-386-2 01 1 9910-0305 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) SHIFT ON THE FLY(7EX) 		8-97318-134-0 01 1 0306- ● ●
538 02.483 NUT
10.147 M6 W/DISHED WASHER 		8-94423-325-0 01 1 9804- ● ●
538 02.483 NUT
INTERMITTENT WIPER<C13> 10.147 M6 W/DISHED WASHER 		8-94423-325-0 01 1 9804- ● ● ● ● ● ●
541 02.483 CLIP
EXC. INTERMITTENT WIPER<C13> 02.559 L=219.5 		1-09987-136-0 01 1 9804- ● ● ● ● ● ●
çizim 73601
413 411 416 243 413 411 416 13 292 292
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97165-597-2 01 1 9804-9901 ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97165-597-3 01 1 9902- ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) EXC. CHINA CHONGQING EQUIPMENT(R5B) ,ARGENTINA EQUIPMENT(7SZ) 		8-97165-646-2 01 1 9804-9812 ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97165-646-2 01 1 9901-9901 ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97165-646-3 01 1 9902- ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 		8-97188-103-2 01 1 9804-9901 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 		8-97188-103-2 01 1 9902-9906 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 		8-97231-861-0 01 1 9907-0009 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 		8-97231-861-0 01 1 0010- ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97188-104-2 01 1 9804-9901 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 		8-97188-104-2 01 1 9902- ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT(R5B) 		8-97166-280-2 01 1 9804-9812 ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) A/T AISIN(RMD) TURBOCHARGER<K51> 		8-97300-221-0 01 1 0010- ● ●
243 02.480 CABLE; BONDING,TRANS
4ZE1 ENG(RLJ) 		8-94389-187-0 01 1 9804-9812 ● ● ●
292 02.483 BOLT; BOX
09.190 M6X30 FLANGE 		0-28680-630-0 02 1 9804- ● ● ● ● ● ● ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 02.530 		8-94102-644-0 01 1 9804-0108 ● ● ● ● ● ● ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) 02.530 		8-94102-644-0 01 1 0109- ● ● ● ● ● ● ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
4ZE1 ENG(RLJ) 		8-97116-129-0 01 1 9804-9812 ● ● ●
413 02.559 WASHER; LK,TERMINAL
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ) 00.002 ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
413 02.559 WASHER; LK,TERMINAL
22LE/C22NE ENG(RJT) 00.002 ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 9901-0108 ● ● ● ● ● ● ● ●
413 02.559 WASHER; LK,TERMINAL
22LE/C22NE ENG(RJT),20SE ENG(RND) 00.002 ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 0109- ● ● ● ● ● ● ● ●
416 02.559 NUT; TERMINAL
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ) 07.829 M6 FLANGE 		5-09440-004-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
416 02.559 NUT; TERMINAL
22LE/C22NE ENG(RJT) 07.829 M6 FLANGE 		5-09440-004-0 01 1 9901-0108 ● ● ● ● ● ● ● ●
416 02.559 NUT; TERMINAL
22LE/C22NE ENG(RJT),20SE ENG(RND) 07.829 M6 FLANGE 		5-09440-004-0 01 1 0109- ● ● ● ● ● ● ● ●
çizim 74141
11 2 50 4 29 171 226 308 18 548 347
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9804- ● ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-2.0A 		8-97138-524-0 AR 1 9804- ● ● ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97102-735-4 01 1 9804- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
EXC. POWER WINDOW<A30>,REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2), DIGITAL CLOCK<UE8>,TACHOMETER<U16>, CHINA EQUIPMENT(YT2) 		8-97352-816-0 01 1 0206- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE) GRADE S(RBA) REAR DEFOGGER<C49> TURKISH EQUIPMENT(S6S) 		8-97352-423-0 01 1 0206- ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) EXC. POWER WINDOW<A30>,REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2) 		8-97179-837-2 01 1 9804-9908 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) EXC. POWER WINDOW<A30>,REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2) 		8-97238-783-0 01 1 9909-9909 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) EXC. POWER WINDOW<A30>,REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2) 		8-97179-837-2 01 1 9910-0108 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) EXC. POWER WINDOW<A30>,REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2) 		8-97179-837-3 01 1 0109-0205 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) EXC. POWER WINDOW<A30>,REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2) 		8-97349-332-0 01 1 0206- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. POWER WINDOW<A30>,REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97165-643-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. POWER WINDOW<A30>,REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97165-643-0 01 1 9901-9901 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. POWER WINDOW<A30>,REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CH ILE EQUIPMENT(6KB) 		8-97165-643-0 01 1 9902-9909 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. POWER WINDOW<A30>,REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4) 		8-97217-393-4 01 1 9910- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> EXC. REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2) 		8-97179-836-2 01 1 9804-9908 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> EXC. REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2) 		8-97238-779-0 01 1 9909-9909 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> EXC. REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2) 		8-97179-836-2 01 1 9910-0005 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> EXC. REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 		8-97179-836-2 01 1 0006-0012 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> EXC. REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 		8-97260-832-1 01 1 0101-0108 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) POWER WINDOW<A30> EXC. REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 		8-97260-832-1 01 1 0109- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER WINDOW<A30> EXC. REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74), CHILEEQUIPMENT(6KB) 		8-97165-642-0 01 1 9804-9812 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> EXC. REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74), CHILEEQUIPMENT(6KB) 		8-97165-642-0 01 1 9901-9909 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> EXC. REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2) 		8-97226-939-3 01 1 9910- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT) POWER WINDOW<A30> SAUDI ARABIA EQUIPMENT(EU2) 		8-97179-834-2 01 1 9804-9901 ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> SAUDI ARABIA EQUIPMENT(EU2) 		8-97179-834-4 01 1 9902-9908 ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> SAUDI ARABIA EQUIPMENT(EU2) 		8-97238-774-0 01 1 9909-9909 ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> SAUDI ARABIA EQUIPMENT(EU2) 		8-97179-834-4 01 1 9910-0012 ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> SAUDI ARABIA EQUIPMENT(EU2) 		8-97260-830-1 01 1 0101-0108 ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) POWER WINDOW<A30> SAUDI ARABIA EQUIPMENT(EU2) 		8-97260-830-1 01 1 0109- ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT) SAUDI ARABIA EQUIPMENT(EU2) EXC. POWER WINDOW<A30> 		8-97179-835-2 01 1 9804-9901 ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) EXC. POWER WINDOW<A30> 		8-97179-835-3 01 1 9902-9908 ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) EXC. POWER WINDOW<A30> 		8-97238-777-0 01 1 9909-9909 ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) EXC. POWER WINDOW<A30> 		8-97179-835-3 01 1 9910-0108 ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) SAUDI ARABIA EQUIPMENT(EU2) EXC. POWER WINDOW<A30> 		8-97179-835-4 01 1 0109- ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE) POWER WINDOW<A30> SAUDI ARABIA EQUIPMENT(EU2) 		8-97165-638-0 01 1 9804-9901 ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-97222-252-1 01 1 9902-9909 ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> SAUDI ARABIA EQUIPMENT(EU2) 		8-97226-938-2 01 1 9910- ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) EXC. POWER WINDOW<A30> 		8-97165-639-0 01 1 9804-9901 ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. POWER WINDOW<A30> 		8-97222-253-1 01 1 9902-9909 ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. POWER WINDOW<A30> 		8-97217-400-3 01 1 9910- ● ● ● ●
11 02.480 HARNESS; BODY
A/T AISIN(RMD) GRADE LS(RBD) REAR DEFOGGER<C49> 		8-97226-936-1 01 1 0010-0010 ● ●
11 02.480 HARNESS; BODY
A/T AISIN(RMD) GRADE LS(RBD) EXC. REAR DEFOGGER<C49> 		8-97226-937-1 01 1 0010-0010 ● ●
11 02.480 HARNESS; BODY
A/T AISIN(RMD) GRADE S(RBA) 		8-97234-135-1 01 1 0010-0010 ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT) CHINA EQUIPMENT(YT2) EXC. POWER WINDOW<A30>, TACHOMETER<U16> 		8-97252-429-1 01 1 0006- ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT) POWER WINDOW<A30> CHINA EQUIPMENT(YT2) EXC. TACHOMETER<U16> 		8-97252-427-2 01 1 0006- ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT) POWER WINDOW<A30> REAR DEFOGGER<C49> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97179-838-2 01 1 9804-9908 ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> REAR DEFOGGER<C49> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97238-785-0 01 1 9909-9909 ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> REAR DEFOGGER<C49> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97179-838-2 01 1 9910-9911 ● ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> REAR DEFOGGER<C49> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97179-838-2 01 1 9912-0012 ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> REAR DEFOGGER<C49> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97260-834-1 01 1 0101-0108 ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) POWER WINDOW<A30> REAR DEFOGGER<C49> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97260-834-1 01 1 0109- ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT) POWER WINDOW<A30> TACHOMETER<U16> CHINA EQUIPMENT(YT2) 		8-97252-426-2 01 1 0006- ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>,SAUDI ARABIAEQUIPMENT(EU2) 		8-97179-839-2 01 1 9804-9908 ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>,SAUDI ARABIAEQUIPMENT(EU2) 		8-97238-787-0 01 1 9909-9909 ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>,SAUDI ARABIAEQUIPMENT(EU2) 		8-97179-839-2 01 1 9910-9911 ● ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>,SAUDI ARABIAEQUIPMENT(EU2) 		8-97179-839-3 01 1 9912-0108 ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>,SAUDI ARABIAEQUIPMENT(EU2) 		8-97179-839-3 01 1 0109- ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT) TACHOMETER<U16> CHINA EQUIPMENT(YT2) EXC. POWER WINDOW<A30> 		8-97252-428-1 01 1 0006- ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> REAR DEFOGGER<C49> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97179-832-0 01 1 9804-9909 ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) REAR DEFOGGER<C49> POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97227-172-4 01 1 9910- ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>,SAUDI ARABIAEQUIPMENT(EU2) 		8-97179-833-0 01 1 9804-9909 ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>,SAUDI ARABIAEQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-97227-171-5 01 1 9910-0205 ● ● ● ● ●
11 02.480 HARNESS; BODY
22LE/C22NE ENG(RJT) EXC. ECUADOR EQUIPMENT(S6E), COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD) 		8-97227-171-5 01 1 0206- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JB1 ENG(RLF) A/T AISIN(RMD) POWER WINDOW<A30> 		8-97300-214-1 01 1 0108- ● ●
11 02.480 HARNESS; BODY
4JB1 ENG(RLF) A/T AISIN(RMD) EXC. POWER WINDOW<A30> 		8-97300-215-1 01 1 0108- ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		8-97181-137-1 02 1 9804- ● ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> 		8-97149-916-2 01 1 9804- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> 		8-97149-915-2 01 1 9804- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> 		8-97166-696-2 01 1 9804- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> 		8-97132-569-3 01 1 9804- ● ●
29 02.483 COVER; FUSE BOX
A/T AISIN(RMD) GRADE LS(RBD) 		8-97103-389-1 01 1 0010-0010 ● ●
50 08.965 FUSE; BODY HARNESS
10A MINI RED 		8-97062-022-0 AR 1 9804- ● ● ● ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
15A MINI BLUE 		8-97062-023-0 AR 1 9804- ● ● ● ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
20A MINI YELLOW 		8-97062-024-0 AR 1 9804- ● ● ● ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
20A MINI YELLOW 		8-97062-024-0 02 1 0206- ● ● ● ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
10A MINI RED 		8-97062-022-0 04 1 0206- ● ● ● ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
15A MINI BLUE 		8-97062-023-0 07 1 0206- ● ● ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR COMB LAMP VERTICAL<T98> EXC. CHINA EQUIPMENT(YT2) 		8-97147-709-0 01 1 9804- ● ● ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. RR COMB LAMP VERTICAL<T98>, CHINA EQUIPMENT(YT2) 		8-97147-714-0 01 1 9804- ● ● ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR BODY FLAT BED<RS6> 		8-97147-714-0 01 1 9804- ●
171 02.596 HARNESS; CABLE,TAIL LAMP
CHINA EQUIPMENT(YT2) EXC. RR BODY FLAT BED<RS6>,RR COMB LAMP VERTICAL<T98> 		8-97147-712-0 01 1 9804-9909 ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
CHINA EQUIPMENT(YT2) EXC. RR COMB LAMP VERTICAL<T98> 		8-97147-712-0 01 1 9910-0005 ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
CHINA EQUIPMENT(YT2) EXC. RR COMB LAMP VERTICAL<T98> 		8-97147-715-0 01 1 0006- ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
CHINA EQUIPMENT(YT2) RR COMB LAMP VERTICAL<T98> 		8-97147-711-0 01 1 9804-9909 ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
CHINA EQUIPMENT(YT2) RR COMB LAMP VERTICAL<T98> 		8-97147-711-0 01 1 9910-0005 ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
CHINA EQUIPMENT(YT2) RR COMB LAMP VERTICAL<T98> 		8-97147-710-0 01 1 0006-0103 ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR COMB LAMP VERTICAL<T98> CHINA EQUIPMENT(YT2) 		8-97147-710-0 01 1 0104- ● ●
226 02.480 HARNESS; RR DOOR
CONVENIENT PACKAGE<6QZ> 		8-97188-858-0 02 1 9804-9909 ● ●
226 02.480 HARNESS; RR DOOR
POWER WINDOW<A30> 		8-97188-858-1 02 1 9910- ● ●
308 02.559 BRACKET; CONNECTOR
POWER WINDOW<A30> 		8-97102-552-0 02 1 9804- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) EXC. POWER WINDOW<A30>,SAUDI ARABIAEQUIPMENT(EU2) 		8-97178-682-2 01 1 9804-9909 ● ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. POWER WINDOW<A30>,SAUDI ARABIAEQUIPMENT(EU2) 		8-97178-682-3 01 1 9910- ● ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97142-240-1 01 1 9804-9812 ● ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. POWER WINDOW<A30> 		8-97142-240-1 01 1 9804-9812 ● ●
347 02.480 HARNESS; CABLE,RR BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97142-240-1 01 1 9901-9909 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. POWER WINDOW<A30>,SAUDI ARABIAEQUIPMENT(EU2) 		8-97142-240-1 01 1 9901-9909 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW<A30> 		8-97231-009-1 01 1 9910- ● ●
347 02.480 HARNESS; CABLE,RR BODY
22LE/C22NE ENG(RJT) POWER WINDOW<A30> 		8-97178-684-1 01 1 9804-9812 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> 		8-97178-684-1 01 1 9901-9909 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW<A30> 		8-97217-472-1 01 1 9910- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) EXC. POWER WINDOW<A30> 		8-97178-681-2 01 1 9804-9909 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
SAUDI ARABIA EQUIPMENT(EU2) EXC. POWER WINDOW<A30> 		8-97178-681-3 01 1 9910- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) 		8-97160-434-0 01 1 9804-9901 ● ●
347 02.480 HARNESS; CABLE,RR BODY
4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) EXC. POWER WINDOW<A30> 		8-97160-434-0 01 1 9804-9901 ● ●
347 02.480 HARNESS; CABLE,RR BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97160-434-0 01 1 9902-9909 ● ●
347 02.480 HARNESS; CABLE,RR BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. POWER WINDOW<A30> 		8-97160-434-0 01 1 9902-9909 ● ●
347 02.480 HARNESS; CABLE,RR BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> 		8-97188-857-0 01 1 9804-9909 ● ●
347 02.480 HARNESS; CABLE,RR BODY
4JA1 ENG(RLE) POWER WINDOW<A30> SAUDI ARABIA EQUIPMENT(EU2) 		8-97188-856-0 01 1 9804-9902 ● ●
347 02.480 HARNESS; CABLE,RR BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> SAUDI ARABIA EQUIPMENT(EU2) 		8-97188-856-0 01 1 9903-9909 ● ●
347 02.480 HARNESS; CABLE,RR BODY
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97188-855-0 01 1 9804-9812 ● ●
347 02.480 HARNESS; CABLE,RR BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97188-855-0 01 1 9901-9909 ● ●
548 02.483 GROMMET
EXC. POWER WINDOW<A30> 04.785 		8-94126-868-0 02 1 9804- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
