8-03 — LAMP; REAR AND REAR SIDE (#43766) — 119 parça

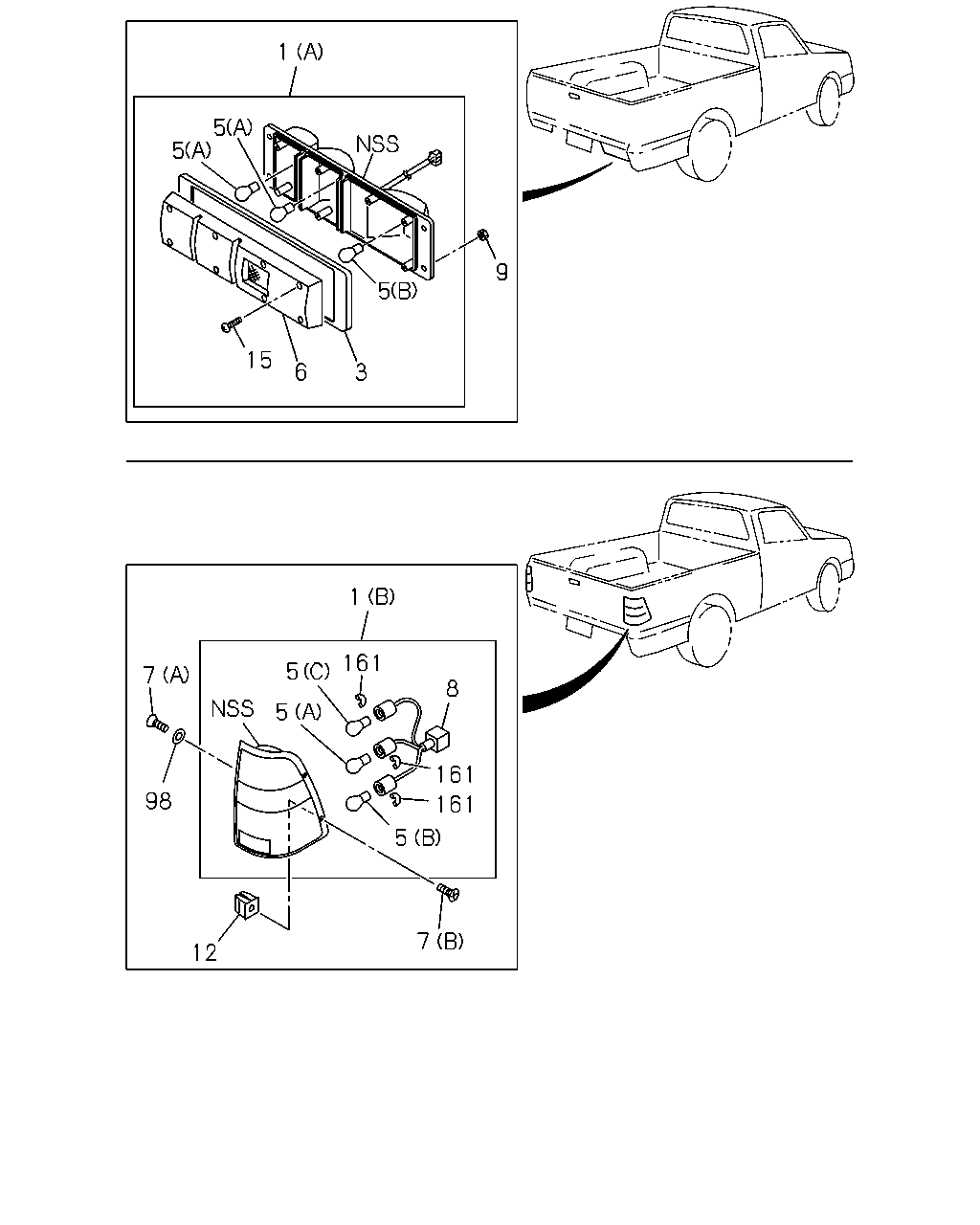

çizim 69882
1 5 5 9 5 15 6 3 1 161 5 7 8 5 161 98 161 5 7 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97137-732-0 01 1 9804-0009 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97137-732-0 01 1 0010- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97137-731-0 01 1 9804-0009 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97137-731-0 01 1 0010- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> (B) 		8-97114-450-0 01 1 9804-0008 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> (B) 		8-97114-450-0 01 1 0009-0012 ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXC. PHILIPPINE EQUIPMENT(S2U) (B) 		8-97114-450-0 01 1 0009-0012 ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> (B) 		8-97114-449-0 01 1 9804-0008 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> (B) 		8-97114-449-0 01 1 0009-0012 ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXC. PHILIPPINE EQUIPMENT(S2U) (B) 		8-97114-449-0 01 1 0009-0012 ● ● ●
1 02.679 LAMP ASM; RR COMB
PHILIPPINE EQUIPMENT(S2U) RR COMB LAMP VERTICAL<T98> (B) 		8-97228-846-0 01 1 0009-0012 ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> (B) 		8-97228-846-0 01 1 0101- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
PHILIPPINE EQUIPMENT(S2U) RR COMB LAMP VERTICAL<T98> (B) 		8-97228-845-0 01 1 0009-0012 ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> (B) 		8-97228-845-0 01 1 0101- ● ● ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW) 02.689 		5-82236-002-0 01 1 9804-0009 ● ● ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 02.689 		5-82236-002-0 01 1 0010- ● ● ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW) 02.689 		5-82236-001-0 01 1 9804-0009 ● ● ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 02.689 		5-82236-001-0 01 1 0010- ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 02 1 9804- ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (A),(C) 12V 21W 		8-94124-074-0 04 1 9804-0008 ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
PHILIPPINE EQUIPMENT(S2U) RR COMB LAMP VERTICAL<T98> (A) 12V 21W 		8-94124-074-0 02 1 0009-0012 ● ● ●
5 08.991 BULB; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (A) 12V 21W 		8-94124-074-0 02 1 0101- ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(A),(C) 12V 21W 		8-94124-074-0 04 1 0009-0012 ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> EXC. PHILIPPINE EQUIPMENT(S2U) (A),(C) 12V 21W 		8-94124-074-0 04 1 0009-0012 ● ● ●
5 08.991 BULB; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> (A),(C) 12V 21W 		8-94124-074-0 04 1 0009-0012 ● ● ●
5 08.991 BULB; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 12V 21W 		8-94124-074-0 04 1 0101-0109 ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 12V 21W 		8-94124-074-0 04 1 0009- ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW) (A) 12V 21W 		8-94124-074-0 04 1 9804-0008 ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
PHILIPPINE EQUIPMENT(S2U) RR COMB LAMP VERTICAL<T98> (C) 12V 21W 		8-97179-967-0 02 1 0009-0012 ● ● ●
5 08.991 BULB; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (C) 12V 21W 		8-97179-967-0 02 1 0101- ● ● ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW) 		5-82235-002-0 01 1 9804-0009 ● ● ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		5-82235-002-0 01 1 0010- ● ● ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW) 		5-82235-001-0 01 1 9804-0009 ● ● ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		5-82235-001-0 01 1 0010- ● ● ● ● ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 09.744 (A) M5X14 TAPPING 		1-72548-072-0 04 1 9804- ● ● ● ● ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (B) M5X20 		8-97811-082-0 04 1 9804- ● ● ● ● ● ● ● ●
8 02.664 HARNESS; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-97166-176-0 02 1 9804-0008 ● ● ● ● ● ● ● ●
8 02.664 HARNESS; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-97166-176-0 02 1 0009-0012 ● ● ● ● ●
8 02.664 HARNESS; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> EXC. PHILIPPINE EQUIPMENT(S2U) 		8-97166-176-0 02 1 0009-0012 ● ● ●
8 02.664 HARNESS; RR COMB LAMP
PHILIPPINE EQUIPMENT(S2U) RR COMB LAMP VERTICAL<T98> 		8-97263-535-0 02 1 0009-0012 ● ● ●
8 02.664 HARNESS; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-97263-535-0 02 1 0101- ● ● ● ● ● ● ● ●
9 02.689 NUT; LAMP,RR COMB
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW) 09.744 M5 FLANGE 		5-09440-003-0 08 1 9804-0009 ● ● ● ● ● ● ● ●
9 02.689 NUT; LAMP,RR COMB
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 09.744 M5 FLANGE 		5-09440-003-0 08 1 0010- ● ● ● ● ● ● ● ●
12 02.664 GROMMET; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 16.588 D=7X7 L=7.5 		5-09983-007-0 04 1 9804- ● ● ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 9804-0009 ● ● ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 0010- ● ● ● ● ● ● ● ●
98 02.708 WASHER
RR COMB LAMP VERTICAL<T98> 16.225 ID=6 		8-94126-642-0 04 1 9804-9903 ● ● ● ● ● ● ● ●
98 02.708 WASHER
RR COMB LAMP VERTICAL<T98> 08.054 D=16 		8-94427-941-0 04 1 9904- ● ● ● ● ● ● ● ●
161 02.689 TUBE; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-97166-174-0 06 1 9804- ● ● ● ● ● ● ● ●

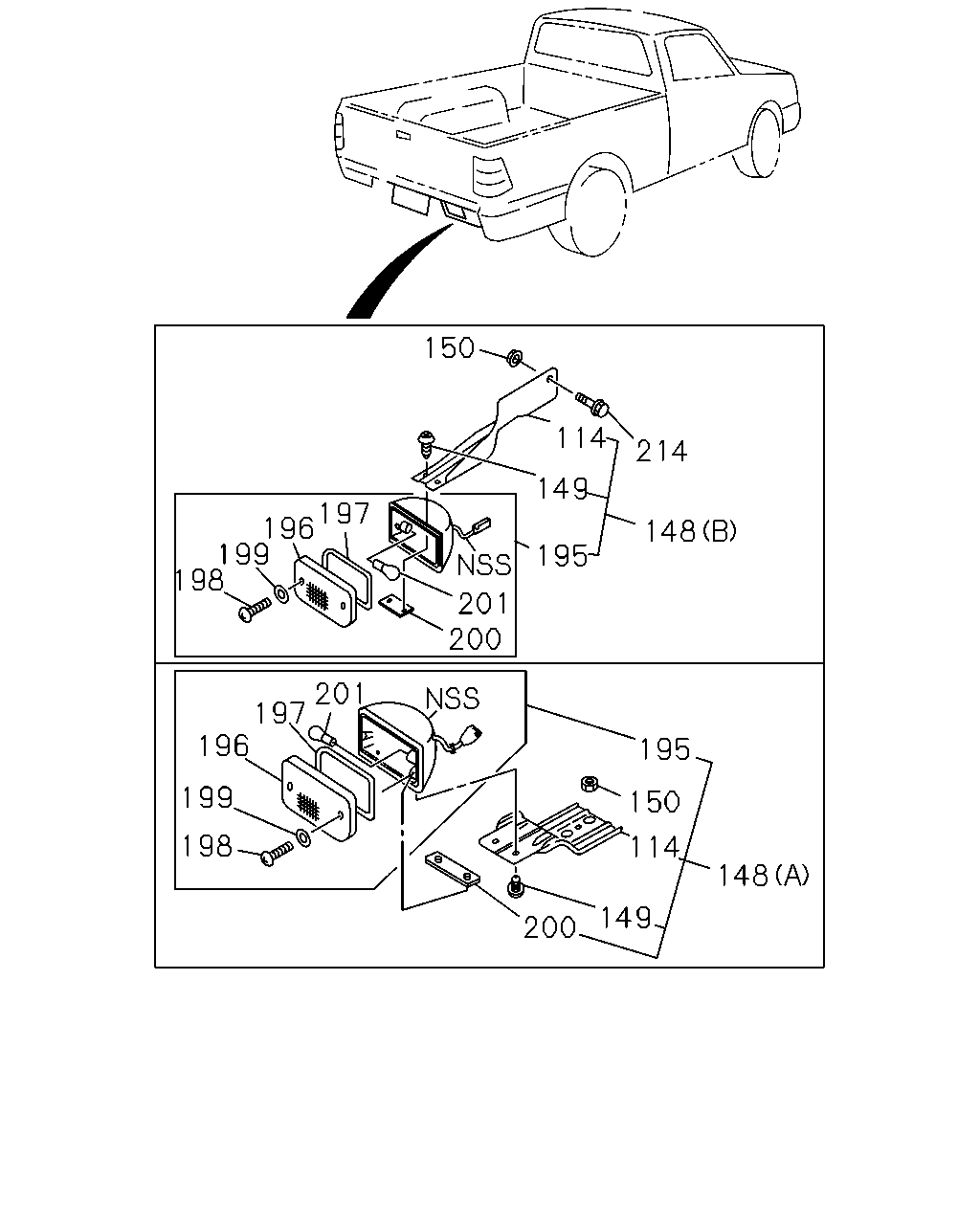

çizim 73872
150 114 214 149 197 196 199 198 148 195 201 200 201 197 196 195 199 150 198 114 148 149 200
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
114 02.679 BRACKET; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-330-0 01 1 0006- ● ●
114 02.679 BRACKET; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 		8-94336-328-0 01 1 0006- ● ●
148 02.679 LAMP ASM; RR FOG
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> (A) 		8-94313-111-2 01 1 0006- ● ●
148 02.679 LAMP ASM; RR FOG
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) (B) 		8-94334-657-4 01 1 0006- ● ●
149 02.689 SCREW; BRKT TO LAMP BODY
RR FOG LAMP<T79> EXC. REAR STEP BUMPER BLACK(S2Z), REAR STEP BUMPER CHROME(VB3) 		8-94336-327-0 02 1 0006- ● ●
150 02.664 NUT; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0006- ● ●
150 02.664 NUT; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 09.011 M12 FLANGE 		8-97028-764-0 02 1 0006- ● ●
195 02.679 LAMP UNIT; RR FOG
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-332-0 01 1 0006- ● ●
195 02.679 LAMP UNIT; RR FOG
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 		8-94336-322-0 01 1 0006- ● ●
196 02.679 LENS; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-331-0 01 1 0006- ● ●
196 02.679 LENS; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 		8-94336-325-0 01 1 0006- ● ●
197 02.679 GASKET; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR STEP BUMPER BLACK(S2Z), REAR STEP BUMPER CHROME(VB3) 		8-94336-324-0 01 1 0006- ● ●
198 02.688 SCREW; LENS TO BODY
RR FOG LAMP<T79> EXC. REAR STEP BUMPER BLACK(S2Z), REAR STEP BUMPER CHROME(VB3) 		0-71190-416-0 02 1 0006- ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR STEP BUMPER BLACK(S2Z), REAR STEP BUMPER CHROME(VB3) 		8-94336-326-0 02 1 0006- ● ●
200 02.679 PLATE; SET,RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-329-0 01 1 0006- ● ●
200 02.679 PLATE; SET,RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 		8-94336-323-0 01 1 0006- ● ●
201 08.991 BULB; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR STEP BUMPER BLACK(S2Z), REAR STEP BUMPER CHROME(VB3) 12V 21W 		8-94124-074-0 01 1 0006- ● ●
214 02.679 BOLT; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 07.874 M12X30 FLANGE 		0-28691-230-0 02 1 0006- ● ●

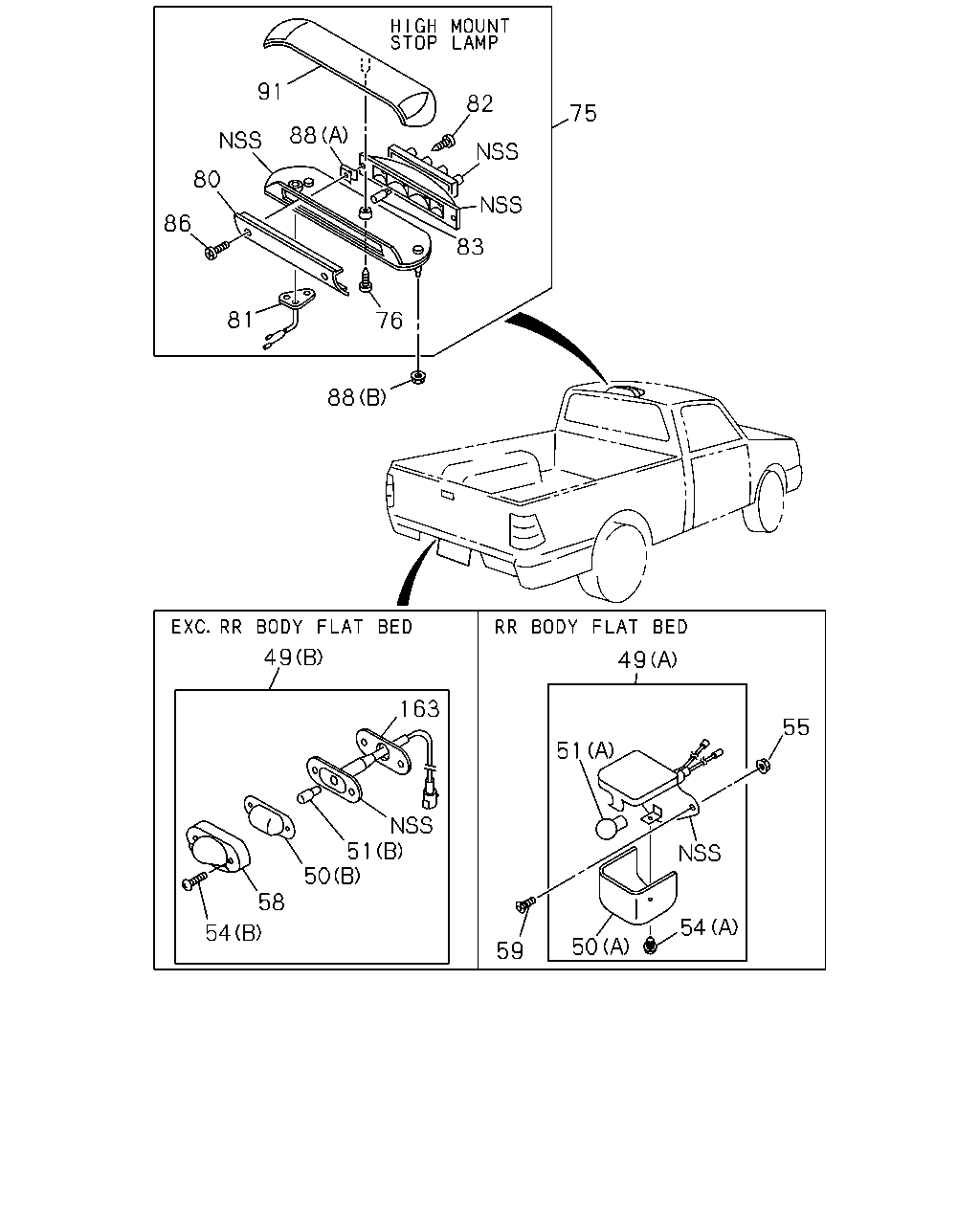

çizim 73930
91 82 75 88 80 86 83 81 76 88 49 49 163 55 51 51 50 58 54 54 50 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
49 02.700 LAMP; LICENSE PLATE
(B) 		8-94443-186-2 01 1 9804- ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
EXC. RR BODY FLAT BED<RS6>,CHINA EQUIPMENT(YT2) (B) 		8-94443-186-2 01 1 9804- ● ● ●
49 02.700 LAMP; LICENSE PLATE
RR BODY FLAT BED<RS6> (A) 		8-94479-603-1 01 1 9804- ●
49 02.700 LAMP; LICENSE PLATE
CHINA EQUIPMENT(YT2) EXC. RR BODY FLAT BED<RS6> (B) 		8-94443-186-2 02 1 9804-9909 ● ● ●
49 02.700 LAMP; LICENSE PLATE
CHINA EQUIPMENT(YT2) (B) 		8-94443-186-2 02 1 9910- ● ●
50 02.709 LENS; LICENSE PLATE LAMP
(B) 		8-94135-878-2 01 1 9804- ● ● ● ● ●
50 02.709 LENS; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6>,CHINA EQUIPMENT(YT2) (B) 		8-94135-878-2 01 1 9804- ● ● ●
50 02.709 LENS; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> (A) 		5-82125-004-0 01 1 9804- ●
50 02.709 LENS; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) EXC. RR BODY FLAT BED<RS6> (B) 		8-94135-878-2 02 1 9804-9909 ● ● ●
50 02.709 LENS; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) (B) 		8-94135-878-2 02 1 9910- ● ●
51 08.991 BULB; LICENSE PLATE LAMP
(B) 12V 5W 		8-94124-595-0 01 1 9804- ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6>,CHINA EQUIPMENT(YT2) (B) 12V 5W 		8-94124-595-0 01 1 9804- ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> (A) 12V 7.5W 		9-82692-128-0 01 1 9804- ●
51 08.991 BULB; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) EXC. RR BODY FLAT BED<RS6> (B) 12V 5W 		8-94124-595-0 02 1 9804-9909 ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) (B) 12V 5W 		8-94124-595-0 02 1 9910- ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
08.977 (B) M4X20 TAPPING STAINLESS 		0-71190-420-0 02 1 9804- ● ● ● ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6>,CHINA EQUIPMENT(YT2) 08.977 (B) M4X20 TAPPING STAINLESS 		0-71190-420-0 02 1 9804- ● ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 02.709 (A) M4X8 		8-94419-312-0 01 1 9804- ●
54 02.708 SCREW; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) EXC. RR BODY FLAT BED<RS6> 08.977 (B) M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 9804-9909 ● ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) 08.977 (B) M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 9910- ● ●
55 02.708 NUT; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 09.744 M5 FLANGE 		5-09440-003-0 02 1 9804- ●
58 02.705 COVER; LICENSE PLATE LAMP
BLACK 		8-94323-724-0 01 1 9804- ● ● ● ● ●
58 02.705 COVER; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6>,CHINA EQUIPMENT(YT2) BLACK 		8-94323-724-0 01 1 9804- ● ● ●
58 02.705 COVER; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) EXC. RR BODY FLAT BED<RS6> BLACK 		8-94323-724-0 02 1 9804-9909 ● ● ●
58 02.705 COVER; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) BLACK 		8-94323-724-0 02 1 9910- ● ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
RR BODY FLAT BED<RS6> 02.726 M5X12 		9-93490-512-0 02 1 9804- ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> BLACK 		8-97097-244-7 01 1 9804-0003 ● ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> BLACK 		8-97097-244-7 01 1 0004- ● ● ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> 		8-97087-147-0 03 1 9804-0003 ● ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> 		8-97087-147-0 03 1 0004- ● ● ●
80 02.679 UNIT; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 		8-94383-513-0 01 1 9804-0003 ● ●
80 02.679 UNIT; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 		8-94383-513-0 01 1 0004- ● ● ●
81 02.694 GASKET; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 		8-97087-146-0 01 1 9804-0003 ● ●
81 02.694 GASKET; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 		8-97087-146-0 01 1 0004- ● ● ●
81 02.694 GASKET; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 		8-97087-145-0 01 1 9804-0003 ● ●
81 02.694 GASKET; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 		8-97087-145-0 01 1 0004- ● ● ●
82 02.662 SCREW; LAMP UNIT TO SOCKET
HIGH MOUNT STOP LAMP<TS6> 		0-71090-412-0 03 1 9804-0003 ● ●
82 02.662 SCREW; LAMP UNIT TO SOCKET
HIGH MOUNT STOP LAMP<TS6> 		0-71090-412-0 03 1 0004- ● ● ●
83 08.991 BULB; STOP LAMP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> 12V 5W 		8-94124-595-0 04 1 9804-0003 ● ●
83 08.991 BULB; STOP LAMP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> 12V 5W 		8-94124-595-0 04 1 0004- ● ● ●
86 02.688 SCREW; LENS TO HSG
HIGH MOUNT STOP LAMP<TS6> 		8-97087-144-0 02 1 9804-0003 ● ●
86 02.688 SCREW; LENS TO HSG
HIGH MOUNT STOP LAMP<TS6> 		8-97087-144-0 02 1 0004- ● ● ●
88 02.689 NUT; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 04.594 (B) M6 FLANGE 		0-91150-106-0 04 1 9804-0003 ● ●
88 02.689 NUT; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 04.594 (B) M6 FLANGE 		0-91150-106-0 04 1 0004- ● ● ●
88 02.689 NUT; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> (A) 		8-97087-149-0 02 1 9804-0003 ● ●
88 02.689 NUT; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> (A) 		8-97087-149-0 02 1 0004- ● ● ●
91 02.680 COVER; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 		8-97087-148-0 01 1 9804-0003 ● ●
91 02.680 COVER; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 		8-97087-148-0 01 1 0004- ● ● ●
163 02.705 SPACER; LICENSE PLATE LAMP 8-94232-866-0 01 1 9804- ● ● ● ● ●
163 02.705 SPACER; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6>,CHINA EQUIPMENT(YT2) 		8-94232-866-0 01 1 9804- ● ● ●
163 02.705 SPACER; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) EXC. RR BODY FLAT BED<RS6> 		8-94232-866-0 02 1 9804-9909 ● ● ●
163 02.705 SPACER; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) 		8-94232-866-0 02 1 9910- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
