7-60 — SEAT BELT (#43764) — 303 parça

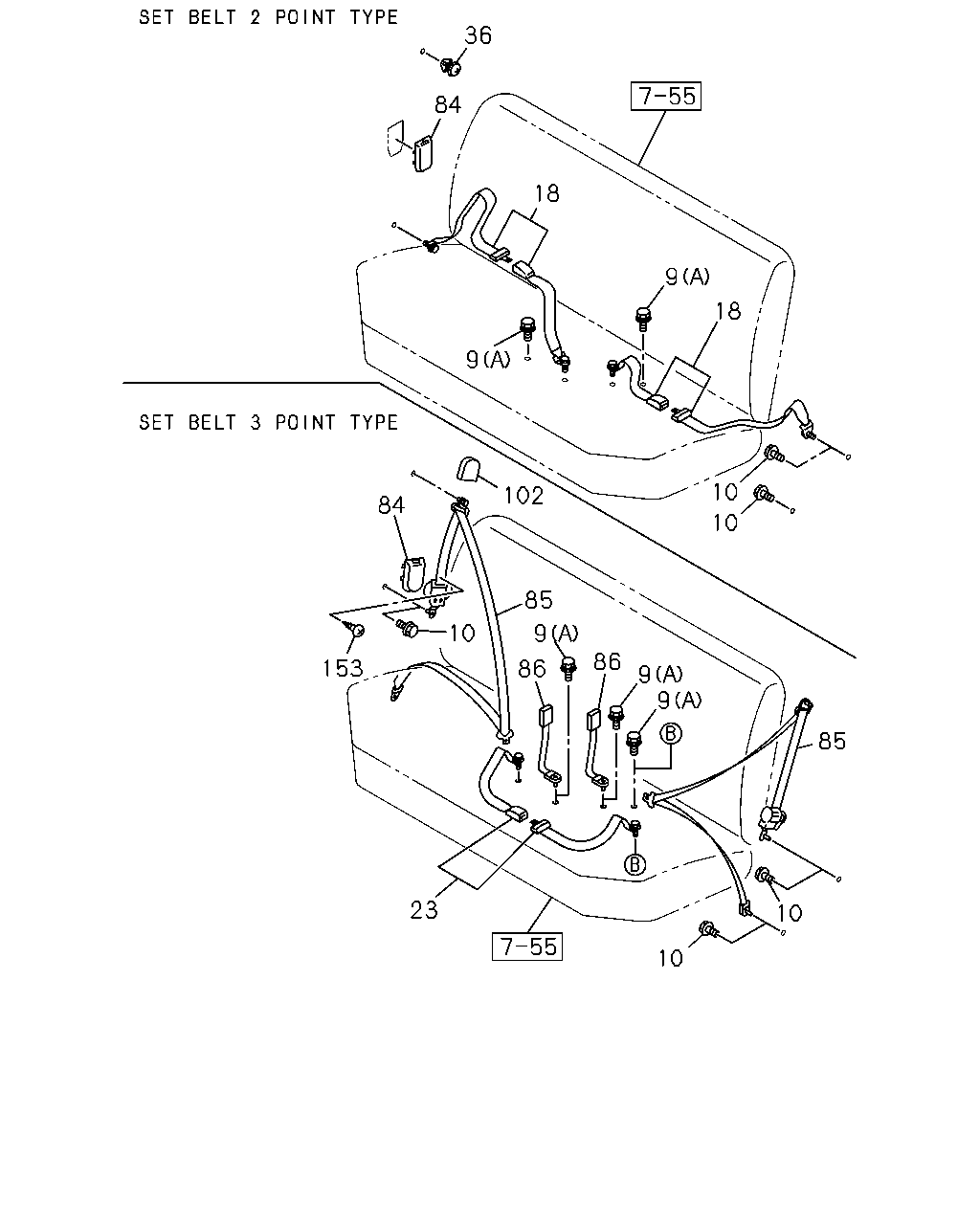

çizim 71207
36 84 18 9 18 9 102 10 10 84 85 9 86 86 10 153 9 9 85 23 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) (C) 		8-97039-649-0 04 1 0010- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SAUDI ARABIA EQUIPMENT(EU2), SEAT BELT CENTER<S4D>,ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
SAUDI ARABIA EQUIPMENT(EU2) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49>,SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) BUCKET SEAT W/RECLINING(S3B) EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9812 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9812 ●
9 16.714 BOLT; SEAT BELT ANCHOR
GRADE S(RBA) EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9812 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9901-9909 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
GRADE S(RBA) EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9901-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ),PARKING BRAKE FLOOR<7XW> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9910-0009 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D>,CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ),PARKING BRAKE FLOOR<7XW> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 0010-0011 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D>,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2), ARGENTINA EQUIPMENT(7SZ),PARKING BRA KE FLOOR<7XW> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 0012- ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D> (A) 		8-97039-649-0 02 1 9804-9812 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D> (A) 		8-97039-649-0 02 1 9901-9909 ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
GRADE S(RBA) ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D> (A) 		8-97039-649-0 02 1 9901-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (A) 		8-97039-649-0 02 1 9910-0001 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (A) 		8-97039-649-0 02 1 0002-0009 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (A) 		8-97039-649-0 02 1 0010-0011 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (A) 		8-97039-649-0 02 1 0012- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) (A) 		8-97039-649-0 04 1 9804-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. ARGENTINA EQUIPMENT(7SZ) (C) 7/16"X14 UNF 		8-97039-648-0 04 1 9804-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(C) 7/16"X14 UNF 		8-97039-648-0 04 1 9910-0009 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. ARGENTINA EQUIPMENT(7SZ) (C) 7/16"X14 UNF 		8-97039-648-0 04 1 0010- ●
9 16.714 BOLT; SEAT BELT ANCHOR
(C) 7/16"X14 UNF 		8-97039-648-0 04 1 0010- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 04 1 9804-9909 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49>,ARGENTINA EQUIPMENT(7SZ) (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9804-9909 ● ● ● ● ● ●
10 16.714 BOLT; RETRACTOR
EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9804-9909 ● ●
10 16.714 BOLT; RETRACTOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9804-9909 ● ●
10 16.714 BOLT; RETRACTOR
EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9910-0012 ● ●
10 16.714 BOLT; RETRACTOR
EXC. REAR 3 POINT SEAT BELT<AK9> 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 0101- ● ●
18 16.714 BELT; SEAT,RR
CHINA EQUIPMENT(YT2) DARK GRAY 		8-97295-954-0 02 1 0006-0010 ● ●
18 16.714 BELT; SEAT,RR
EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97295-954-0 02 1 0011-0012 ● ●
18 16.714 BELT; SEAT,RR
EXC. REAR 3 POINT SEAT BELT<AK9>, SAUDI ARABIA EQUIPMENT(EU2), ARGENTINAEQUIPMENT(7SZ) DARK GRAY 		8-97295-954-0 02 1 0101- ● ●
18 16.714 BELT; SEAT,RR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT(R5B),ARGENT INA EQUIPMENT(7SZ) DARK GRAY 		8-97156-092-0 02 1 9804-9812 ● ●
18 16.714 BELT; SEAT,RR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-092-0 02 1 9901-9909 ● ●
18 16.714 BELT; SEAT,RR
EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-092-1 02 1 9910-0005 ● ●
18 16.714 BELT; SEAT,RR
EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-092-1 02 1 0006-0010 ● ●
23 16.714 BELT; SEAT,CENTER
SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-092-1 01 1 9804-0011 ● ●
23 16.714 BELT; SEAT,CENTER
SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97295-954-0 01 1 0012-0012 ● ●
23 16.714 BELT; SEAT,CENTER
REAR 3 POINT SEAT BELT<AK9> DARK GRAY 		8-97295-954-0 01 1 0101- ● ●
36 09.775 PLUG; DUMMY HOLE,SEAT BELT
EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) 16.714 		8-94433-190-0 02 1 9804-0012 ● ●
36 09.775 PLUG; DUMMY HOLE,SEAT BELT
EXC. REAR 3 POINT SEAT BELT<AK9> 16.714 		8-94433-190-0 02 1 0101- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97153-655-5 02 1 9804-0012 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
REAR 3 POINT SEAT BELT<AK9> GRAY 		8-97153-655-6 02 1 0101- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> GRAY 		8-97153-656-5 02 1 9804-9909 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97153-656-5 02 1 9804-9909 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97153-656-5 02 1 9910-0012 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. REAR 3 POINT SEAT BELT<AK9> GRAY 		8-97153-656-6 02 1 0101- ● ●
85 16.714 BELT; SEAT,RR OUTER
ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-089-4 02 1 9804-0012 ● ●
85 16.714 BELT; SEAT,RR OUTER
REAR 3 POINT SEAT BELT<AK9> EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97156-089-4 02 1 0101- ● ●
85 16.714 BELT; SEAT,RR OUTER
SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97156-088-4 02 1 9804-0012 ● ●
85 16.714 BELT; SEAT,RR OUTER
REAR 3 POINT SEAT BELT<AK9> SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97156-088-4 02 1 0101- ● ●
86 16.714 BELT; SEAT,RR INNER
SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97156-090-0 02 1 9804-0012 ● ●
86 16.714 BELT; SEAT,RR INNER
REAR 3 POINT SEAT BELT<AK9> GRAY 		8-97156-090-0 02 1 0101- ● ●
102 16.714 COVER; SHOULDER ANCHOR
ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97154-700-0 02 1 9804-0012 ● ●
102 16.714 COVER; SHOULDER ANCHOR
REAR 3 POINT SEAT BELT<AK9> EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97154-700-0 02 1 0101- ● ●
102 16.714 COVER; SHOULDER ANCHOR
SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97152-754-1 02 1 9804-0012 ● ●
102 16.714 COVER; SHOULDER ANCHOR
REAR 3 POINT SEAT BELT<AK9> SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97152-754-1 02 1 0101- ● ●
153 16.714 SCREW; RETRACTOR
SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) M8X10 		9-03800-810-0 02 1 9804-0012 ● ●
153 16.714 SCREW; RETRACTOR
REAR 3 POINT SEAT BELT<AK9> M8X10 		9-03800-810-0 02 1 0101- ● ●

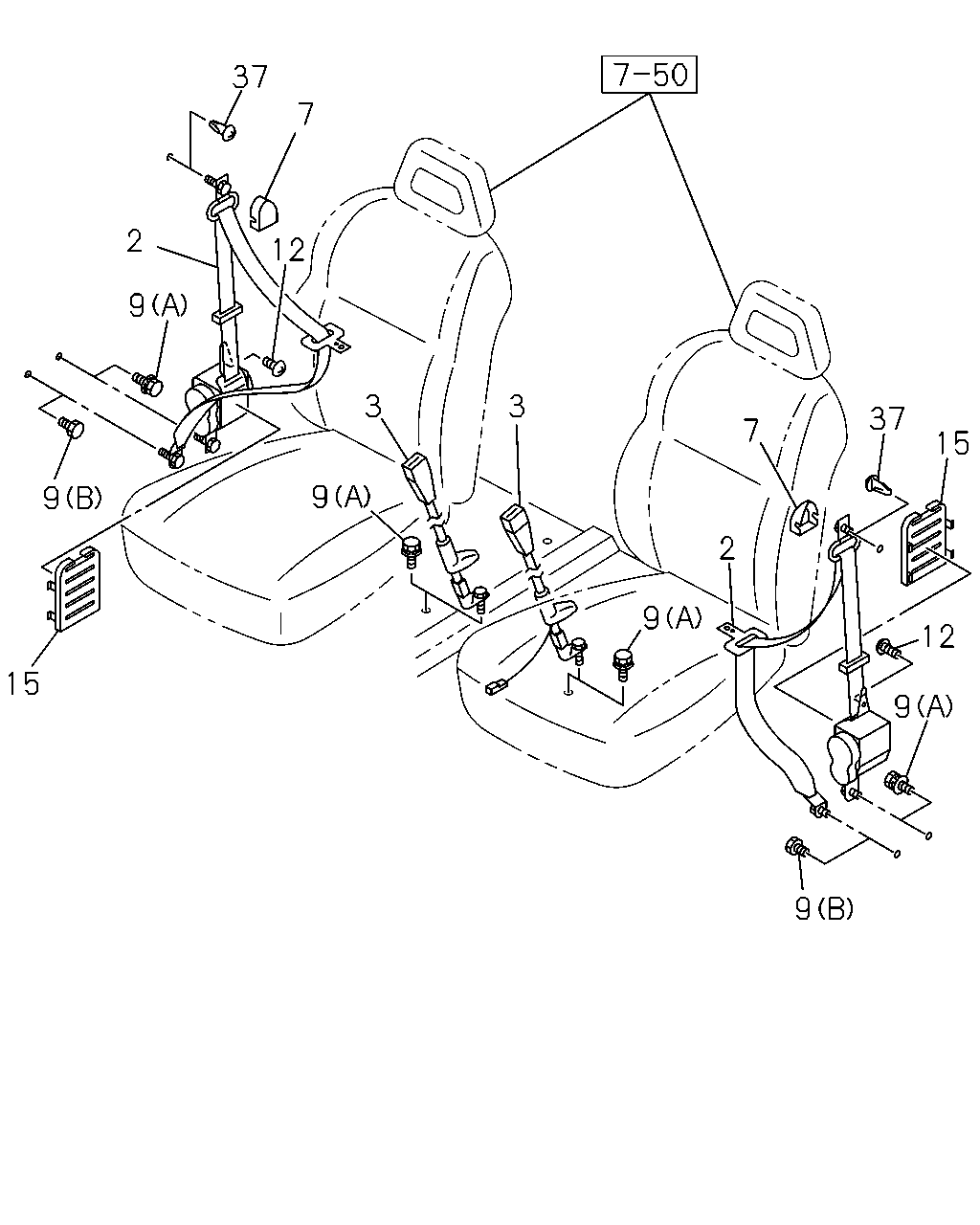

çizim 71494
37 7 2 12 9 3 3 37 7 15 9 9 2 9 12 15 9 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 16.714 BELT; SEAT,TONGUE SIDE
ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-071-4 02 1 0010- ●
2 16.714 BELT; SEAT,TONGUE SIDE
ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-071-3 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-074-3 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97156-074-4 02 1 9910-0009 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-074-4 02 1 0010- ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97156-074-4 02 1 0010- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-076-2 02 1 9804-9909 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-076-3 02 1 9910- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-073-2 02 1 9804-9909 ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-073-3 02 1 9910- ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
ARGENTINA EQUIPMENT(7SZ) BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-070-3 02 1 9804- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
ARGENTINA EQUIPMENT(7SZ) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-078-3 02 1 9804- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
ARGENTINA EQUIPMENT(7SZ) BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-069-3 02 1 9804- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
ARGENTINA EQUIPMENT(7SZ) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-077-3 02 1 9804- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) CHINA EQUIPMENT(YT2) DARK GRAY 		8-97295-952-0 02 1 0006-0109 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97295-952-0 02 1 0110- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97295-953-0 02 1 0011- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-072-2 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-072-3 02 1 9910-0005 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. CHINA EQUIPMENT(YT2), ARGENTINAEQUIPMENT(7SZ) DARK GRAY 		8-97156-072-3 02 1 0006-0109 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-075-2 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-075-3 02 1 9910-0005 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B), CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-075-3 02 1 0006-0010 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
RR CONSOLE<D63> GRAY 		8-97157-997-0 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97157-997-0 01 1 9804-9909 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97157-997-0 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97157-997-0 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97157-997-0 01 1 9910-0009 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97157-997-0 01 1 9910-0009 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97157-997-0 01 1 0010- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
RR CONSOLE<D63> GRAY 		8-97157-996-0 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-996-0 01 1 9804-9909 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97157-996-0 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-996-0 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97157-996-0 01 1 9910-0009 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97157-996-0 01 1 9910-0009 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97157-996-0 01 1 0010- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. RR CONSOLE<D63> GRAY 		8-97156-086-1 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. RR CONSOLE<D63>,SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97156-086-1 01 1 9804-9909 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. SAUDI ARABIA EQUIPMENT(EU2), FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOO R CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97156-086-1 01 1 9910- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. RR CONSOLE<D63> GRAY 		8-97156-081-1 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. RR CONSOLE<D63> GRAY 		8-97156-081-1 01 1 9804-9909 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97156-081-1 01 1 9910- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-079-1 01 1 9804-9909 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-079-1 01 1 9910- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-085-1 01 1 9804-9909 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-085-1 01 1 9910- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) BUCKET SEAT W/RECLINING(S3B) EXC. RR CONSOLE<D63> GRAY 		8-97156-082-1 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SAUDI ARABIA EQUIPMENT(EU2) BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97156-082-1 01 1 9910- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> RR CONSOLE<D63> SAUDI ARABIA EQUIPMENT(EU2) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-998-0 01 1 9804-9909 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SAUDI ARABIA EQUIPMENT(EU2) BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97157-998-0 01 1 9910- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-080-1 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-080-1 01 1 9910- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-083-1 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-083-1 01 1 9910- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-087-1 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-087-1 01 1 9910- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-084-1 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-084-1 01 1 9910- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97154-700-0 02 1 9804-9909 ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97154-700-0 02 1 9910-0009 ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97154-700-0 02 1 0010- ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
EXC. ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97152-754-1 02 1 9804-9909 ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97152-754-1 02 1 9804-9909 ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
GRAY 		8-97152-754-1 02 1 9910-0009 ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
EXC. ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97152-754-1 02 1 9910-0009 ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
EXC. ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97152-754-1 02 1 0010- ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
GRAY 		8-97152-754-1 02 1 0010- ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) (C) 		8-97039-649-0 04 1 0010- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SAUDI ARABIA EQUIPMENT(EU2), SEAT BELT CENTER<S4D>,ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
SAUDI ARABIA EQUIPMENT(EU2) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49>,SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) BUCKET SEAT W/RECLINING(S3B) EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9812 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9812 ●
9 16.714 BOLT; SEAT BELT ANCHOR
GRADE S(RBA) EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9812 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9901-9909 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
GRADE S(RBA) EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9901-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ),PARKING BRAKE FLOOR<7XW> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9910-0009 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D>,CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ),PARKING BRAKE FLOOR<7XW> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 0010-0011 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D>,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2), ARGENTINA EQUIPMENT(7SZ),PARKING BRA KE FLOOR<7XW> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 0012- ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D> (A) 		8-97039-649-0 02 1 9804-9812 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D> (A) 		8-97039-649-0 02 1 9901-9909 ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
GRADE S(RBA) ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D> (A) 		8-97039-649-0 02 1 9901-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (A) 		8-97039-649-0 02 1 9910-0001 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (A) 		8-97039-649-0 02 1 0002-0009 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (A) 		8-97039-649-0 02 1 0010-0011 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (A) 		8-97039-649-0 02 1 0012- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) (A) 		8-97039-649-0 04 1 9804-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. ARGENTINA EQUIPMENT(7SZ) (C) 7/16"X14 UNF 		8-97039-648-0 04 1 9804-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(C) 7/16"X14 UNF 		8-97039-648-0 04 1 9910-0009 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. ARGENTINA EQUIPMENT(7SZ) (C) 7/16"X14 UNF 		8-97039-648-0 04 1 0010- ●
9 16.714 BOLT; SEAT BELT ANCHOR
(C) 7/16"X14 UNF 		8-97039-648-0 04 1 0010- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 04 1 9804-9909 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49>,ARGENTINA EQUIPMENT(7SZ) (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9804-9909 ● ● ● ● ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M8X10 		9-03800-810-0 02 1 9804-9909 ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> M8X10 		9-03800-810-0 02 1 9804-9909 ● ● ● ● ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M8X10 		9-03800-810-0 02 1 9910- ● ● ● ● ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE S(RBA) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97154-701-3 02 1 9804-9909 ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE S(RBA) GRAY 		8-97154-701-4 02 1 9910- ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRAY 		8-97154-701-4 02 1 9910- ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE S(RBA) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> GRAY 		8-97154-702-3 02 1 9804-9909 ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
GRADE S(RBA) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 		8-94433-190-0 02 1 9804-9909 ● ● ● ● ● ●

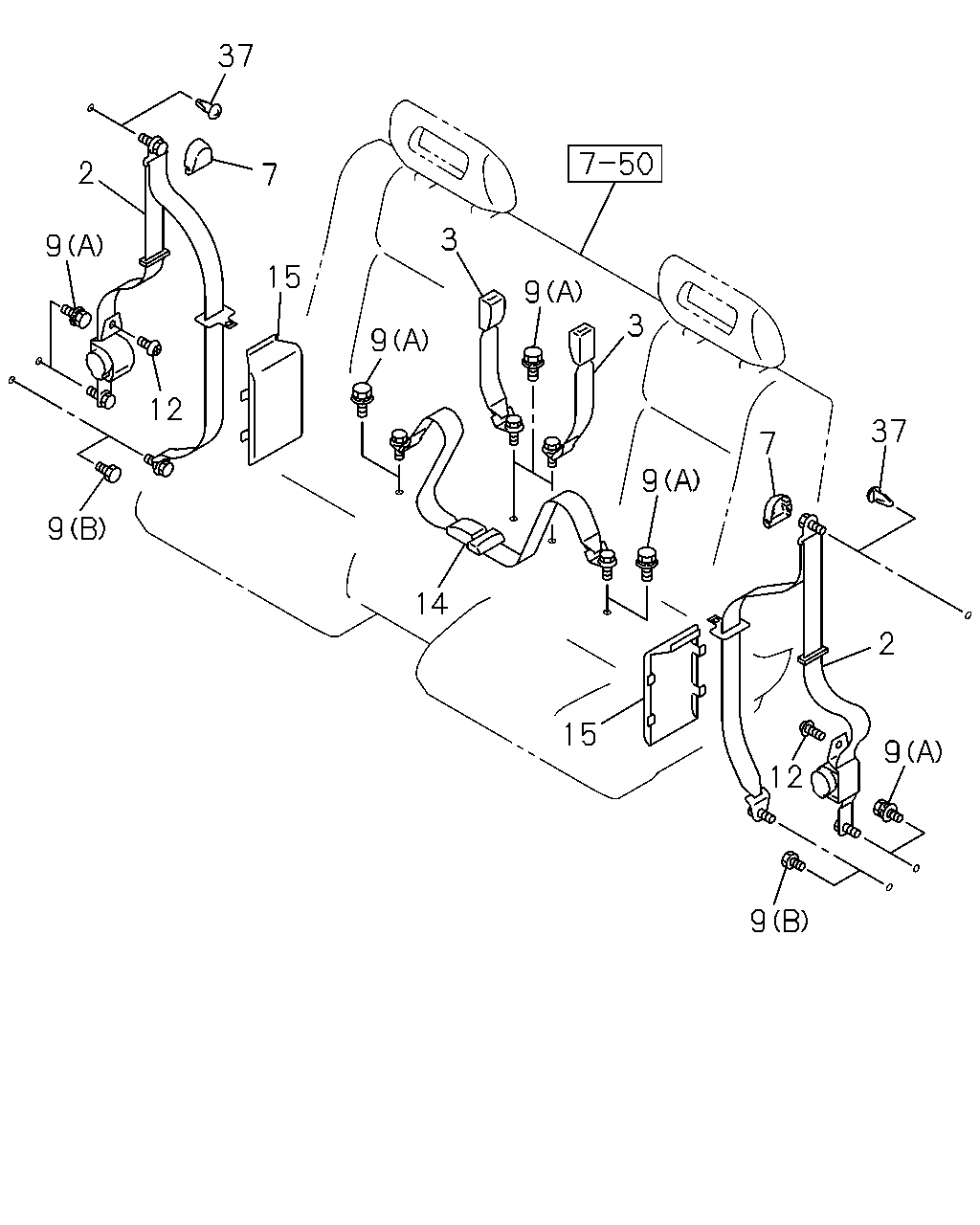

çizim 71538
37 2 7 3 9 15 9 3 9 12 37 7 9 9 14 2 15 9 12 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 16.714 BELT; SEAT,TONGUE SIDE
ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-071-4 02 1 0010- ●
2 16.714 BELT; SEAT,TONGUE SIDE
ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-071-3 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-074-3 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97156-074-4 02 1 9910-0009 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-074-4 02 1 0010- ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97156-074-4 02 1 0010- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-076-2 02 1 9804-9909 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-076-3 02 1 9910- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-073-2 02 1 9804-9909 ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-073-3 02 1 9910- ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
ARGENTINA EQUIPMENT(7SZ) BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-070-3 02 1 9804- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
ARGENTINA EQUIPMENT(7SZ) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-078-3 02 1 9804- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
ARGENTINA EQUIPMENT(7SZ) BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-069-3 02 1 9804- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
ARGENTINA EQUIPMENT(7SZ) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-077-3 02 1 9804- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) CHINA EQUIPMENT(YT2) DARK GRAY 		8-97295-952-0 02 1 0006-0109 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97295-952-0 02 1 0110- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97295-953-0 02 1 0011- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-072-2 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-072-3 02 1 9910-0005 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. CHINA EQUIPMENT(YT2), ARGENTINAEQUIPMENT(7SZ) DARK GRAY 		8-97156-072-3 02 1 0006-0109 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-075-2 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-075-3 02 1 9910-0005 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B), CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-075-3 02 1 0006-0010 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
RR CONSOLE<D63> GRAY 		8-97157-997-0 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97157-997-0 01 1 9804-9909 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97157-997-0 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97157-997-0 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97157-997-0 01 1 9910-0009 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97157-997-0 01 1 9910-0009 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97157-997-0 01 1 0010- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
RR CONSOLE<D63> GRAY 		8-97157-996-0 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-996-0 01 1 9804-9909 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97157-996-0 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-996-0 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97157-996-0 01 1 9910-0009 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97157-996-0 01 1 9910-0009 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97157-996-0 01 1 0010- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. RR CONSOLE<D63> GRAY 		8-97156-086-1 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. RR CONSOLE<D63>,SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97156-086-1 01 1 9804-9909 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. SAUDI ARABIA EQUIPMENT(EU2), FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOO R CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97156-086-1 01 1 9910- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. RR CONSOLE<D63> GRAY 		8-97156-081-1 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. RR CONSOLE<D63> GRAY 		8-97156-081-1 01 1 9804-9909 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97156-081-1 01 1 9910- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-079-1 01 1 9804-9909 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-079-1 01 1 9910- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-085-1 01 1 9804-9909 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-085-1 01 1 9910- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) BUCKET SEAT W/RECLINING(S3B) EXC. RR CONSOLE<D63> GRAY 		8-97156-082-1 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SAUDI ARABIA EQUIPMENT(EU2) BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97156-082-1 01 1 9910- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> RR CONSOLE<D63> SAUDI ARABIA EQUIPMENT(EU2) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-998-0 01 1 9804-9909 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SAUDI ARABIA EQUIPMENT(EU2) BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97157-998-0 01 1 9910- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-080-1 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-080-1 01 1 9910- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-083-1 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-083-1 01 1 9910- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-087-1 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-087-1 01 1 9910- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-084-1 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-084-1 01 1 9910- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97154-700-0 02 1 9804-9909 ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97154-700-0 02 1 9910-0009 ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97154-700-0 02 1 0010- ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
EXC. ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97152-754-1 02 1 9804-9909 ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97152-754-1 02 1 9804-9909 ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
GRAY 		8-97152-754-1 02 1 9910-0009 ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
EXC. ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97152-754-1 02 1 9910-0009 ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
EXC. ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97152-754-1 02 1 0010- ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
GRAY 		8-97152-754-1 02 1 0010- ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) (C) 		8-97039-649-0 04 1 0010- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SAUDI ARABIA EQUIPMENT(EU2), SEAT BELT CENTER<S4D>,ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
SAUDI ARABIA EQUIPMENT(EU2) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49>,SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) BUCKET SEAT W/RECLINING(S3B) EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9812 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9812 ●
9 16.714 BOLT; SEAT BELT ANCHOR
GRADE S(RBA) EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9812 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9901-9909 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
GRADE S(RBA) EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9901-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ),PARKING BRAKE FLOOR<7XW> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9910-0009 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D>,CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ),PARKING BRAKE FLOOR<7XW> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 0010-0011 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D>,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2), ARGENTINA EQUIPMENT(7SZ),PARKING BRA KE FLOOR<7XW> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 0012- ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D> (A) 		8-97039-649-0 02 1 9804-9812 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D> (A) 		8-97039-649-0 02 1 9901-9909 ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
GRADE S(RBA) ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D> (A) 		8-97039-649-0 02 1 9901-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (A) 		8-97039-649-0 02 1 9910-0001 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (A) 		8-97039-649-0 02 1 0002-0009 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (A) 		8-97039-649-0 02 1 0010-0011 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (A) 		8-97039-649-0 02 1 0012- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) (A) 		8-97039-649-0 04 1 9804-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. ARGENTINA EQUIPMENT(7SZ) (C) 7/16"X14 UNF 		8-97039-648-0 04 1 9804-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(C) 7/16"X14 UNF 		8-97039-648-0 04 1 9910-0009 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. ARGENTINA EQUIPMENT(7SZ) (C) 7/16"X14 UNF 		8-97039-648-0 04 1 0010- ●
9 16.714 BOLT; SEAT BELT ANCHOR
(C) 7/16"X14 UNF 		8-97039-648-0 04 1 0010- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 04 1 9804-9909 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49>,ARGENTINA EQUIPMENT(7SZ) (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9804-9909 ● ● ● ● ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M8X10 		9-03800-810-0 02 1 9804-9909 ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> M8X10 		9-03800-810-0 02 1 9804-9909 ● ● ● ● ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M8X10 		9-03800-810-0 02 1 9910- ● ● ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
SEAT BELT CENTER<S4D> DARK GRAY 		8-97156-068-0 01 1 9804-9909 ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-068-0 01 1 9804-9909 ● ● ● ●
14 16.714 BELT; SEAT,CENTER
SEAT BELT CENTER<S4D> DARK GRAY 		8-97156-068-0 01 1 9910-0001 ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
SEAT BELT CENTER<S4D> EXC. CHINA EQUIPMENT(YT2) DARK GRAY 		8-97156-068-0 01 1 0002-0011 ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
SEAT BELT CENTER<S4D> EXC. EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) DARK GRAY 		8-97156-068-0 01 1 0012- ● ● ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE S(RBA) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97154-701-3 02 1 9804-9909 ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE S(RBA) GRAY 		8-97154-701-4 02 1 9910- ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRAY 		8-97154-701-4 02 1 9910- ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE S(RBA) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> GRAY 		8-97154-702-3 02 1 9804-9909 ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
GRADE S(RBA) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 		8-94433-190-0 02 1 9804-9909 ● ● ● ● ● ●

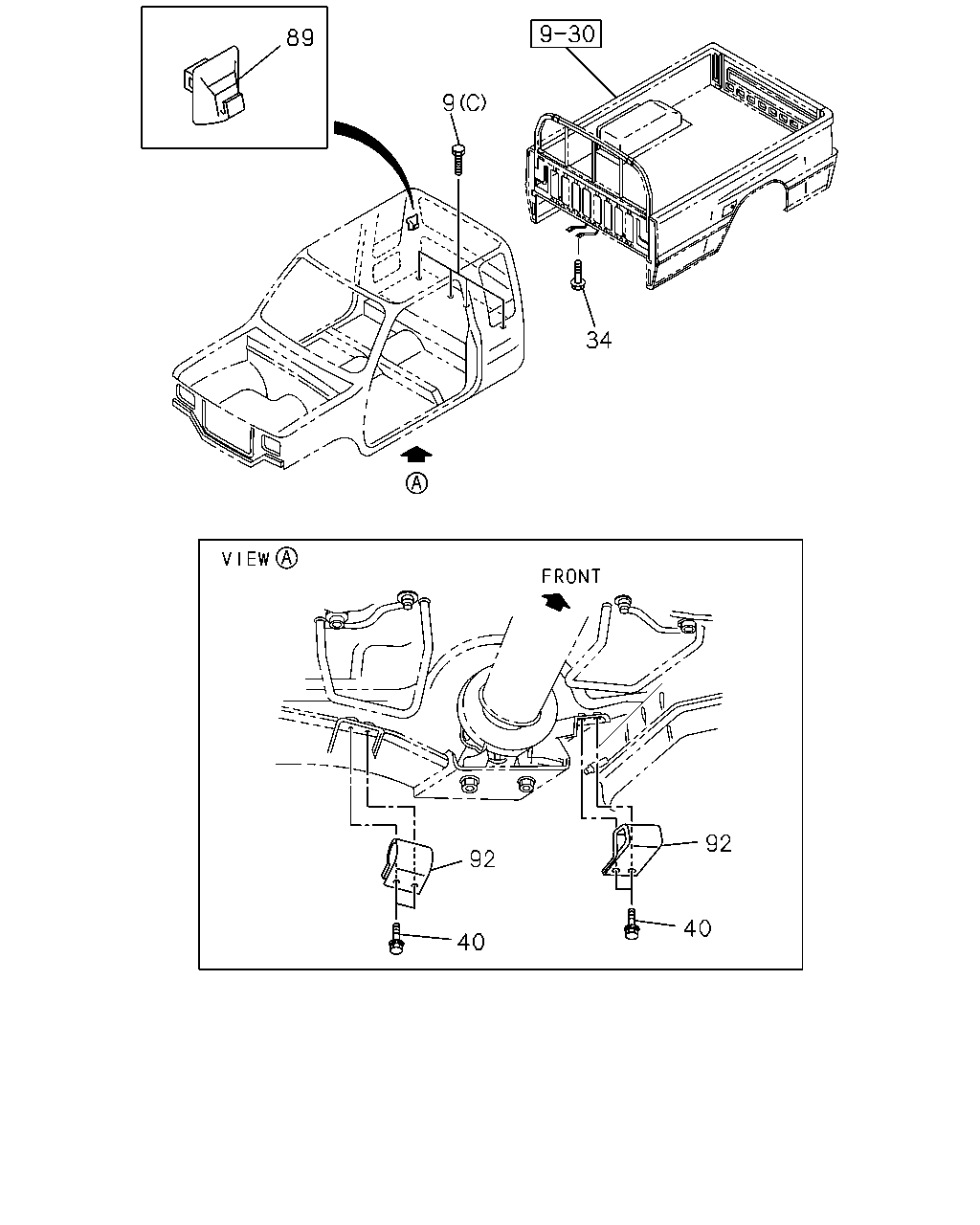

çizim 74189
89 9 34 92 92 40 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) (C) 		8-97039-649-0 04 1 0010- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SAUDI ARABIA EQUIPMENT(EU2), SEAT BELT CENTER<S4D>,ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
SAUDI ARABIA EQUIPMENT(EU2) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49>,SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) BUCKET SEAT W/RECLINING(S3B) EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9812 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9812 ●
9 16.714 BOLT; SEAT BELT ANCHOR
GRADE S(RBA) EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9812 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9901-9909 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
GRADE S(RBA) EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9901-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ),PARKING BRAKE FLOOR<7XW> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9910-0009 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D>,CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ),PARKING BRAKE FLOOR<7XW> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 0010-0011 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D>,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2), ARGENTINA EQUIPMENT(7SZ),PARKING BRA KE FLOOR<7XW> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 0012- ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D> (A) 		8-97039-649-0 02 1 9804-9812 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D> (A) 		8-97039-649-0 02 1 9901-9909 ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
GRADE S(RBA) ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D> (A) 		8-97039-649-0 02 1 9901-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (A) 		8-97039-649-0 02 1 9910-0001 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (A) 		8-97039-649-0 02 1 0002-0009 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (A) 		8-97039-649-0 02 1 0010-0011 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (A) 		8-97039-649-0 02 1 0012- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) (A) 		8-97039-649-0 04 1 9804-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. ARGENTINA EQUIPMENT(7SZ) (C) 7/16"X14 UNF 		8-97039-648-0 04 1 9804-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(C) 7/16"X14 UNF 		8-97039-648-0 04 1 9910-0009 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. ARGENTINA EQUIPMENT(7SZ) (C) 7/16"X14 UNF 		8-97039-648-0 04 1 0010- ●
9 16.714 BOLT; SEAT BELT ANCHOR
(C) 7/16"X14 UNF 		8-97039-648-0 04 1 0010- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 04 1 9804-9909 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49>,ARGENTINA EQUIPMENT(7SZ) (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9804-9909 ● ● ● ● ● ●
34 16.714 BOLT; SEAT BELT ROD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-94198-549-0 04 1 9804-0009 ● ●
34 16.714 BOLT; SEAT BELT ROD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-94198-549-0 04 1 0010- ● ●
40 16.545 BOLT; BRKT,ANCHOR
M8X30 W/LK&PL WASHER 		8-94320-540-1 04 1 9804-0201 ● ● ● ● ● ● ● ●
40 16.545 BOLT; BRKT,ANCHOR
01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0202- ● ● ● ● ● ● ● ●
89 16.714 HOOK; LATCH PLATE,SEAT BELT
GRAY 		8-97154-708-2 02 1 9804- ● ●
92 16.714 BRACKET; SEAT BELT ANCHOR 8-94473-965-3 02 1 9804- ● ● ● ● ●
92 16.714 BRACKET; SEAT BELT ANCHOR
16.545 		8-94471-108-2 02 1 9804- ●
92 16.714 BRACKET; SEAT BELT ANCHOR 8-97146-231-0 02 1 9804- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
