7-55 — REAR SEAT (#43763) — 32 parça

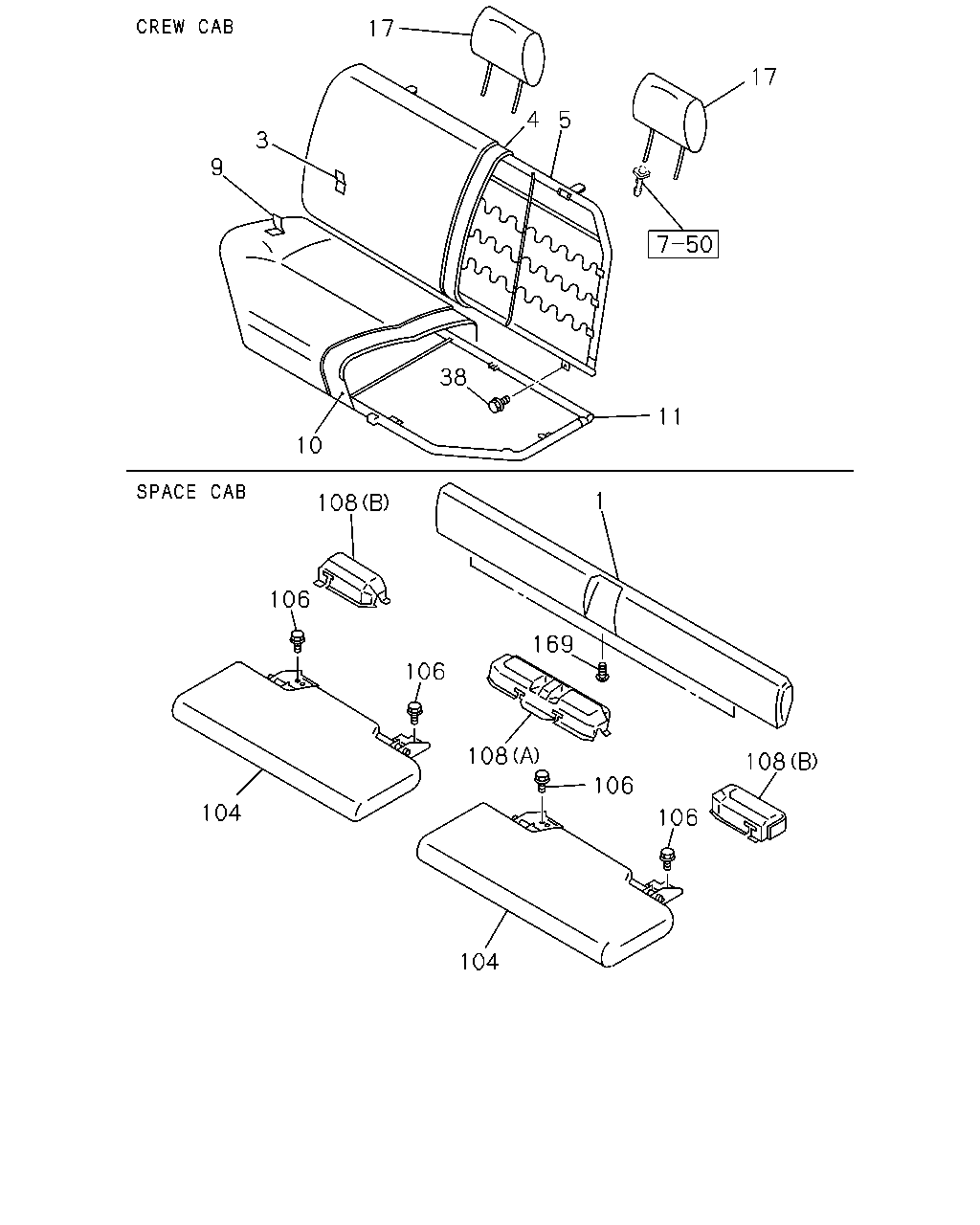

çizim 71537
17 17 4 5 3 9 38 11 10 1 108 106 169 106 108 108 106 104 106 104
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.720 BACK ASM; RR SEAT
JUMP SEAT<AJ2> GRAY 		8-97159-993-0 01 1 9804- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
BENCH SEAT W/HEAD REST VINYL(A54) GRAY 		8-97197-138-0 01 1 9804- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
EXC. BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B), BENCH SEAT W/HEAD REST MOQUETTE FABRI C(6SC) GRAY 		8-97197-130-0 01 1 9804-9909 ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
BENCH SEAT WO/HEAD REST VINYL(S9W) GRAY 		8-97197-130-0 01 1 9910- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97197-198-0 01 1 9804-0012 ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-125-1 01 1 0101- ● ●
4 16.720 PAD; RR,SEAT BACK 8-94473-477-3 01 1 9804- ● ●
5 16.720 FRAME ASM; RR SEAT BACK
BENCH SEAT W/HEAD REST VINYL(A54), BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97137-928-1 01 1 9804- ● ●
5 16.720 FRAME ASM; RR SEAT BACK
EXC. BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B), BENCH SEAT W/HEAD REST MOQUETTE FABRI C(6SC) 		8-97137-929-1 01 1 9804-9909 ● ●
5 16.720 FRAME ASM; RR SEAT BACK
BENCH SEAT WO/HEAD REST VINYL(S9W) 		8-97137-929-1 01 1 9910- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97197-200-0 01 1 9804-0012 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-121-1 01 1 0101- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
GRADE S(RBA) EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97197-132-0 01 1 9804-9909 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
GRADE LS(RBD) BENCH SEAT W/HEAD REST VINYL(A54) GRAY 		8-97197-132-0 01 1 9804-9909 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
BENCH SEAT W/HEAD REST VINYL(A54), BENCH SEAT WO/HEAD REST VINYL(S9W) GRAY 		8-97197-132-1 01 1 9910- ● ●
10 16.716 PAD; CUSHION,RR SEAT 8-94473-481-1 01 1 9804- ● ●
11 16.716 FRAME ASM; CUSHION,RR SEAT 8-94473-480-1 01 1 9804- ● ●
17 16.718 REST; HD,RR SEAT
BENCH SEAT W/HEAD REST VINYL(A54), BENCH SEAT W/HEAD REST MOQUETTE FABR IC(6SC) GRAY 		8-97156-535-0 02 1 9804-9910 ● ●
17 16.718 REST; HD,RR SEAT
BENCH SEAT W/HEAD REST VINYL(A54) GRAY 		8-97156-535-0 02 1 9911-0208 ● ●
17 16.718 REST; HD,RR SEAT
GRADE LS(RBD) BENCH SEAT W/HEAD REST MOQUETTE FAB RIC(6SC) GRAY 		8-97156-535-0 02 1 9911-0208 ● ●
17 16.718 REST; HD,RR SEAT
BENCH SEAT W/HEAD REST VINYL(A54) GRAY 		8-97156-535-0 02 1 0209- ● ●
17 16.718 REST; HD,RR SEAT
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-536-1 02 1 9804-9910 ● ●
17 16.718 REST; HD,RR SEAT
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-536-1 02 1 9911-0208 ● ●
17 16.718 REST; HD,RR SEAT
GRADE S(RBA) BENCH SEAT W/HEAD REST MOQUETTE FAB RIC(6SC) GRAY 		8-97156-536-1 02 1 9911-0208 ● ●
17 16.718 REST; HD,RR SEAT
BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-536-1 02 1 0209- ● ●
38 16.679 BOLT; SEAT TO FLOOR
16.682 M10X25 		8-97178-440-2 04 1 9910- ● ●
104 16.714 SEAT ASM; JUMP
JUMP SEAT<AJ2> GRAY 		8-97195-343-0 02 1 9804- ● ●
106 16.682 BOLT; JUMP SEAT
M8X25 W/PL WASHER 		8-94175-938-1 08 1 9804- ● ●
108 16.714 COVER; HINGE BRKT
JUMP SEAT<AJ2> (A) GRAY 		8-97154-713-3 01 1 9804- ● ●
108 16.714 COVER; HINGE BRKT
JUMP SEAT<AJ2> (B) GRAY 		8-97154-712-3 01 1 9804- ● ●
108 16.714 COVER; HINGE BRKT
JUMP SEAT<AJ2> (B) GRAY 		8-97154-711-3 01 1 9804- ● ●
169 16.720 SCREW; SEAT BACK
GRADE LS(RBD) JUMP SEAT<AJ2> 16.100 M4X12 TAPPING OVAL-HEAD 		9-09829-312-1 03 1 9804- ● ● ● ●
