◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#43761) — 492 parça
çizim 19310
2 95 95 5 2 2 95 5
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.081 CONSOLE; CENTER
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (D) GRAY 		8-97158-517-0 01 1 9804-9812 ● ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (D) GRAY 		8-97158-517-0 01 1 9804-9812 ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> (D) GRAY 		8-97158-517-0 01 1 9901-9909 ● ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (D) GRAY 		8-97158-517-0 01 1 9901-9909 ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (D) GRAY 		8-97158-517-0 01 1 9910- ● ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> (E) GRAY 		8-97159-160-0 01 1 0010- ● ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> (F) GRAY 		8-97150-578-3 01 1 0010- ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) UP GRADE PACKAGE<7MA> (C) GRAY 		8-97155-554-1 01 1 9804-9909 ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (C) GRAY 		8-97155-554-1 01 1 9910- ● ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> (G) GRAY 		8-97152-692-1 01 1 0010- ● ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> (F) GRAY 		8-97154-030-2 01 1 0101- ● ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (A) GRAY 		8-97156-743-0 01 1 9804-9812 ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (A) GRAY 		8-97156-743-0 01 1 9804-9812 ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (A) GRAY 		8-97156-743-0 01 1 9901-9909 ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (A) GRAY 		8-97156-743-0 01 1 9901-9909 ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) FRONT CONSOLE<D55> FLOOR REMOTE SHIFT<M11> (A) GRAY 		8-97156-743-0 01 1 9910-0012 ● ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (A) GRAY 		8-97156-743-0 01 1 0101- ● ●
2 16.081 CONSOLE; CENTER
4X4 LONG(TFS**F) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> (B) GRAY 		8-97156-745-0 01 1 9804-9909 ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> (B) GRAY 		8-97156-745-0 01 1 9910-0009 ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (B) GRAY 		8-97156-745-0 01 1 0010- ● ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (B) 		8-97162-353-0 01 1 9804-9812 ● ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (B) 		8-97162-353-0 01 1 9804-9812 ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> (B) 		8-97162-353-0 01 1 9901-9909 ● ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (B) 		8-97162-353-0 01 1 9901-9909 ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) 		8-97162-353-0 01 1 9910- ● ●
5 16.650 COVER; SHIFT LEVER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> (D) BLACK 		8-97155-687-0 01 1 0010- ● ●
5 16.650 COVER; SHIFT LEVER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> (C) GRAY 		8-97154-032-0 01 1 0101- ● ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (A) 		8-97147-044-0 01 1 9804-9812 ●
5 16.650 COVER; SHIFT LEVER
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (A) 		8-97147-044-0 01 1 9804-9812 ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (A) 		8-97147-044-0 01 1 9901-9909 ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (A) 		8-97147-044-0 01 1 9901-9909 ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) FRONT CONSOLE<D55> FLOOR REMOTE SHIFT<M11> (A) 		8-97147-044-0 01 1 9910-0012 ● ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (A) 		8-97147-044-0 01 1 0101- ● ●
95 16.650 NUT; SPIRE,RR PNL TO CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 09.262 M5 SPIRE NUT 		8-94217-271-0 02 1 9804-9909 ● ●
95 16.650 NUT; SPIRE,RR PNL TO CONSOLE
4X4(TFS***) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> 09.262 M5 SPIRE NUT 		8-94217-271-0 02 1 9910-0009 ● ●
95 16.650 NUT; SPIRE,RR PNL TO CONSOLE
A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> 09.262 M5 SPIRE NUT 		8-94217-271-0 02 1 0010- ● ●
95 16.650 NUT; SPIRE,RR PNL TO CONSOLE
4X4(TFS***) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> 09.262 M5 SPIRE NUT 		8-94217-271-0 02 1 0010- ● ●

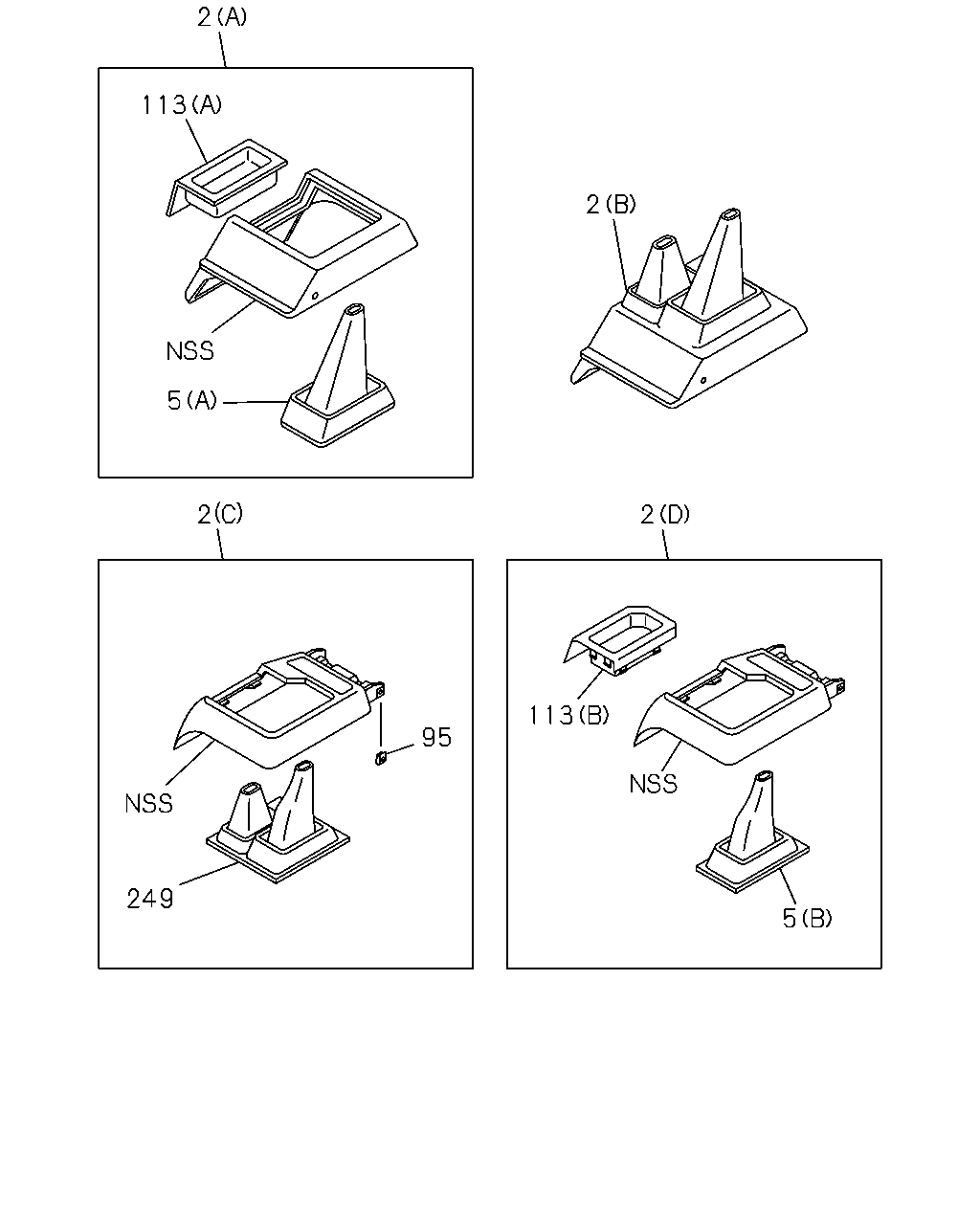

çizim 19311
2 113 2 5 2 2 113 95 249 5
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.081 CONSOLE; CENTER
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (D) GRAY 		8-97158-517-0 01 1 9804-9812 ● ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (D) GRAY 		8-97158-517-0 01 1 9804-9812 ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> (D) GRAY 		8-97158-517-0 01 1 9901-9909 ● ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (D) GRAY 		8-97158-517-0 01 1 9901-9909 ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (D) GRAY 		8-97158-517-0 01 1 9910- ● ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> (E) GRAY 		8-97159-160-0 01 1 0010- ● ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> (F) GRAY 		8-97150-578-3 01 1 0010- ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) UP GRADE PACKAGE<7MA> (C) GRAY 		8-97155-554-1 01 1 9804-9909 ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (C) GRAY 		8-97155-554-1 01 1 9910- ● ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> (G) GRAY 		8-97152-692-1 01 1 0010- ● ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> (F) GRAY 		8-97154-030-2 01 1 0101- ● ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (A) GRAY 		8-97156-743-0 01 1 9804-9812 ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (A) GRAY 		8-97156-743-0 01 1 9804-9812 ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (A) GRAY 		8-97156-743-0 01 1 9901-9909 ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (A) GRAY 		8-97156-743-0 01 1 9901-9909 ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) FRONT CONSOLE<D55> FLOOR REMOTE SHIFT<M11> (A) GRAY 		8-97156-743-0 01 1 9910-0012 ● ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (A) GRAY 		8-97156-743-0 01 1 0101- ● ●
2 16.081 CONSOLE; CENTER
4X4 LONG(TFS**F) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> (B) GRAY 		8-97156-745-0 01 1 9804-9909 ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> (B) GRAY 		8-97156-745-0 01 1 9910-0009 ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (B) GRAY 		8-97156-745-0 01 1 0010- ● ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (B) 		8-97162-353-0 01 1 9804-9812 ● ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (B) 		8-97162-353-0 01 1 9804-9812 ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> (B) 		8-97162-353-0 01 1 9901-9909 ● ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (B) 		8-97162-353-0 01 1 9901-9909 ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) 		8-97162-353-0 01 1 9910- ● ●
5 16.650 COVER; SHIFT LEVER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> (D) BLACK 		8-97155-687-0 01 1 0010- ● ●
5 16.650 COVER; SHIFT LEVER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> (C) GRAY 		8-97154-032-0 01 1 0101- ● ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (A) 		8-97147-044-0 01 1 9804-9812 ●
5 16.650 COVER; SHIFT LEVER
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (A) 		8-97147-044-0 01 1 9804-9812 ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (A) 		8-97147-044-0 01 1 9901-9909 ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (A) 		8-97147-044-0 01 1 9901-9909 ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) FRONT CONSOLE<D55> FLOOR REMOTE SHIFT<M11> (A) 		8-97147-044-0 01 1 9910-0012 ● ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (A) 		8-97147-044-0 01 1 0101- ● ●
95 16.650 NUT; SPIRE,RR PNL TO CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 09.262 M5 SPIRE NUT 		8-94217-271-0 02 1 9804-9909 ● ●
95 16.650 NUT; SPIRE,RR PNL TO CONSOLE
4X4(TFS***) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> 09.262 M5 SPIRE NUT 		8-94217-271-0 02 1 9910-0009 ● ●
95 16.650 NUT; SPIRE,RR PNL TO CONSOLE
A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> 09.262 M5 SPIRE NUT 		8-94217-271-0 02 1 0010- ● ●
95 16.650 NUT; SPIRE,RR PNL TO CONSOLE
4X4(TFS***) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> 09.262 M5 SPIRE NUT 		8-94217-271-0 02 1 0010- ● ●
113 04.015 BOX; CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (B) BLACK 		8-97097-007-1 01 1 9804-9812 ● ●
113 04.015 BOX; CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (B) BLACK 		8-97097-007-1 01 1 9804-9812 ●
113 04.015 BOX; CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> (B) BLACK 		8-97097-007-1 01 1 9901-9909 ● ●
113 04.015 BOX; CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (B) BLACK 		8-97097-007-1 01 1 9901-9909 ●
113 04.015 BOX; CONSOLE
4X2(TFB***) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) BLACK 		8-97097-007-1 01 1 9910- ● ●
113 04.015 BOX; CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (A) BLACK 		8-94373-417-2 01 1 9804-9812 ●
113 04.015 BOX; CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (A) BLACK 		8-94373-417-2 01 1 9804-9812 ●
113 04.015 BOX; CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (A) BLACK 		8-94373-417-2 01 1 9901-9909 ●
113 04.015 BOX; CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (A) BLACK 		8-94373-417-2 01 1 9901-9909 ●
113 04.015 BOX; CONSOLE
4X2(TFB***) FRONT CONSOLE<D55> FLOOR REMOTE SHIFT<M11> (A) BLACK 		8-94373-417-2 01 1 9910-0012 ● ●
113 04.015 BOX; CONSOLE
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (A) BLACK 		8-94373-417-2 01 1 0101- ● ●
249 16.674 COVER
4X4(TFS***) UP GRADE PACKAGE<7MA> BLACK 		8-97155-555-1 01 1 9804-9909 ● ●
249 16.674 COVER
4X4(TFS***) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> BLACK 		8-97155-555-1 01 1 9910- ● ●

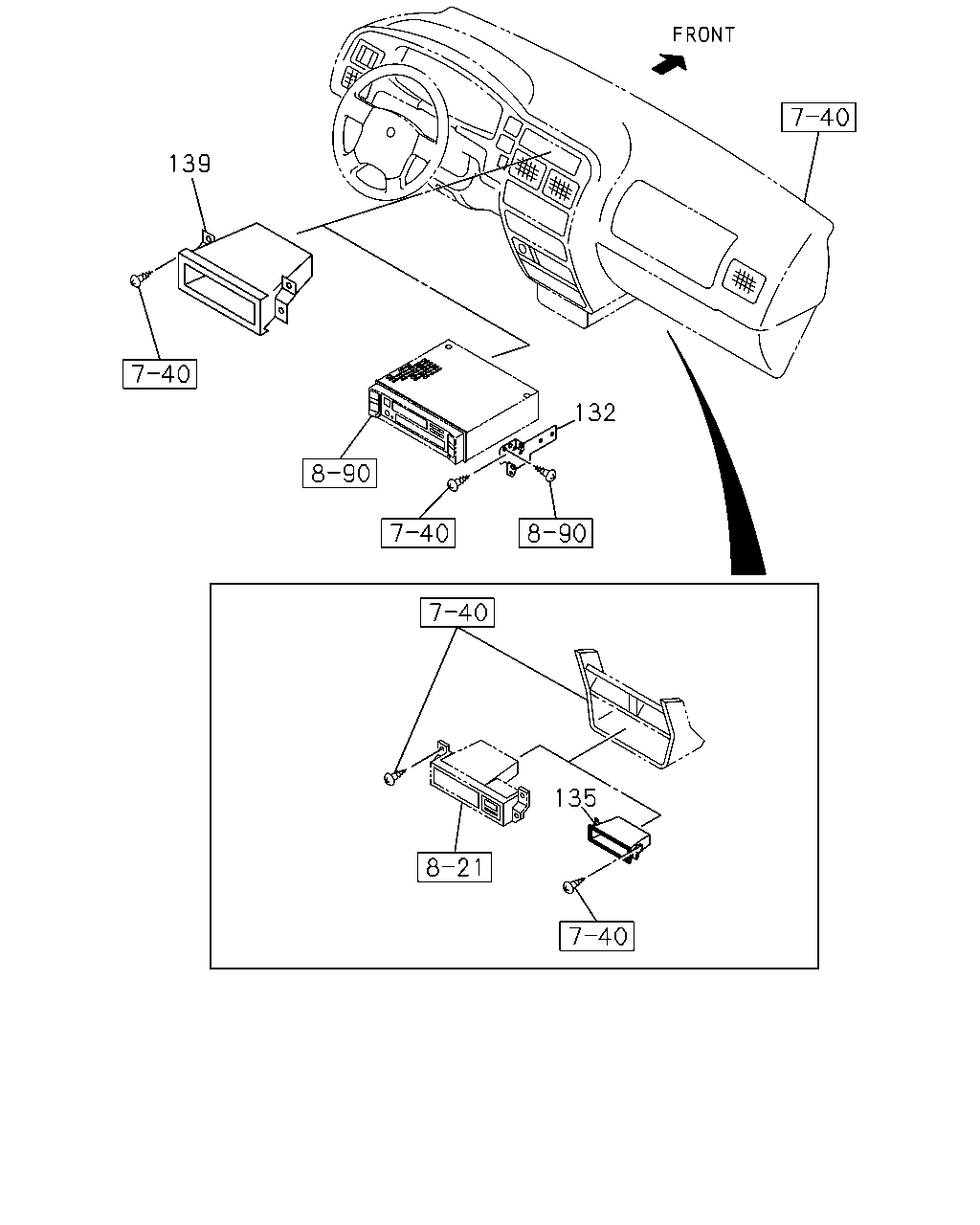

çizim 19523
139 132 135
BalonParca AdiParca NoAdetTipApplied Date A B
132 16.650 BRACKET; AUDIO BOX
AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),RADIO AM ASIA/OCEANIA BAND(7AQ),AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS(7ND) 		8-97107-583-2 01 1 9804- ● ●
132 16.650 BRACKET; AUDIO BOX
AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),RADIO AM ASIA/OCEANIA BAND(7AQ),AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS(7ND) 		8-97107-582-2 01 1 9804- ● ●
135 16.650 BOX; CONSOLE,LWR
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) ,6VD1 ENG(RLV) EXC. DIGITAL CLOCK<UE8> 		8-97114-757-0 01 1 9804-9812 ● ●
135 16.650 BOX; CONSOLE,LWR
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> EXC. DIGITAL CLOCK<UE8> 		8-97114-757-0 01 1 9804-9812 ● ●
135 16.650 BOX; CONSOLE,LWR
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. DIGITAL CLOCK<UE8> 		8-97114-757-0 01 1 9901-0108 ● ●
135 16.650 BOX; CONSOLE,LWR
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> EXC. DIGITAL CLOCK<UE8> 		8-97114-757-0 01 1 9901-0108 ● ●
135 16.650 BOX; CONSOLE,LWR
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. DIGITAL CLOCK<UE8> 		8-97114-757-0 01 1 0109- ● ●
135 16.650 BOX; CONSOLE,LWR
22LE/C22NE ENG(RJT),20SE ENG(RND) FLOOR REMOTE SHIFT<M11> EXC. DIGITAL CLOCK<UE8> 		8-97114-757-0 01 1 0109- ● ●
139 16.650 BOX; CONSOLE,UPR
EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6), AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4), RADIO AM ASIA/OCEANIA BAND(7AQ),AM/FM W/CAS SETTE ALL AREA BAND 2SPEAKERS(7ND),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97114-757-0 01 1 9804- ● ●

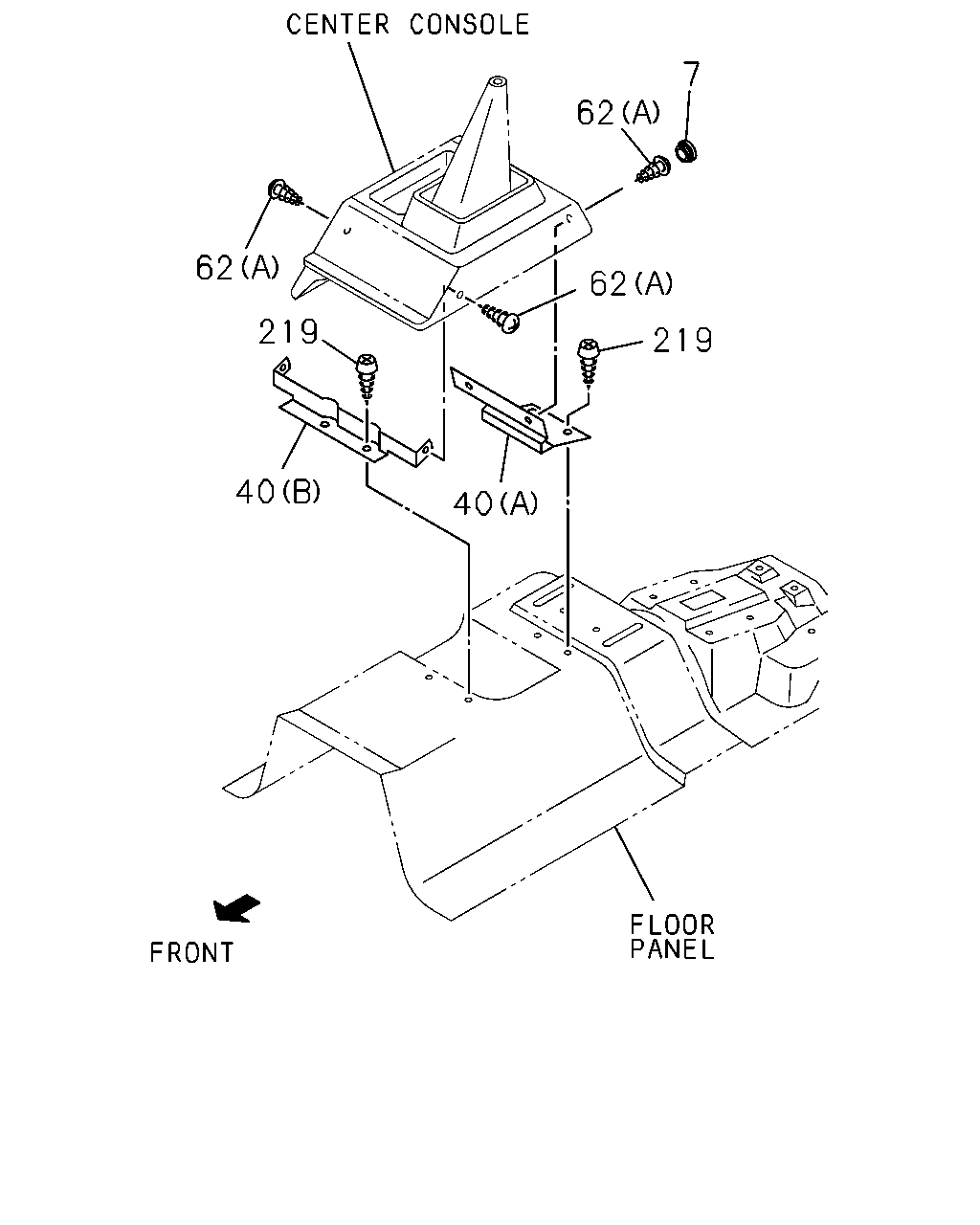

çizim 72367
7 62 62 62 219 219 40 40
BalonParca AdiParca NoAdetTipApplied Date A B
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> GRAY 		8-97150-582-1 02 1 9804-9812 ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97150-582-1 02 1 9804-9812 ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97150-582-1 02 1 9804-9812 ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> GRAY 		8-97150-582-1 02 1 9901-9909 ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97150-582-1 02 1 9901-9909 ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97150-582-1 02 1 9901-9909 ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> GRAY 		8-97150-582-1 02 1 9910- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (C) 		8-97072-944-0 01 1 9804-9812 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> (C) 		8-97072-944-0 01 1 9804-9812 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (C) 		8-97072-944-0 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> (C) 		8-97072-944-0 01 1 9901-9909 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> (C) 		8-97072-944-0 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (C) 		8-97072-944-0 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (C) 		8-97072-944-1 01 1 9910- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (A) 		8-94463-384-0 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> (A) 		8-94463-384-0 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (A) 		8-94463-384-0 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (A) 		8-94463-384-0 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> (A) 		8-94463-384-0 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (A) 		8-94463-384-0 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (A) 		8-94463-384-1 01 1 9910- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (B) 		8-94479-072-1 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> (B) 		8-94479-072-1 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (B) 		8-94479-072-1 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (B) 		8-94479-072-1 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> (B) 		8-94479-072-1 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (B) 		8-94479-072-1 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (B) 		8-94479-072-2 01 1 9910- ● ●
62 16.650 SCREW; BRKT
RR CONSOLE<D63> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9909 ● ●
62 16.650 SCREW; BRKT
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9910- ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (B) M8X14 		9-03900-814-0 02 1 9804-9812 ● ●
62 16.650 SCREW; BRKT
4X4(TFS***) UP GRADE PACKAGE<7MA> (B) M8X14 		9-03900-814-0 02 1 9804-9812 ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (B) M8X14 		9-03900-814-0 02 1 9804-9812 ●
62 16.650 SCREW; BRKT
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> (B) M8X14 		9-03900-814-0 02 1 9901-9909 ● ●
62 16.650 SCREW; BRKT
4X4(TFS***) UP GRADE PACKAGE<7MA> (B) M8X14 		9-03900-814-0 02 1 9901-9909 ●
62 16.650 SCREW; BRKT
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (B) M8X14 		9-03900-814-0 02 1 9901-9909 ●
62 16.650 SCREW; BRKT
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) M8X14 		9-03900-814-0 02 1 9910- ● ●
62 16.650 SCREW; BRKT
4X4 SHORT(TFS**C) (B) M8X14 		9-03900-814-0 04 1 9804-9909 ● ●
62 16.650 SCREW; BRKT
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) EXC. FRONT CONSOLE<D55> (B) M8X14 		9-03900-814-0 04 1 9804-9909 ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9812 ●
62 16.650 SCREW; BRKT
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9812 ●
62 16.650 SCREW; BRKT
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9812 ●
62 16.650 SCREW; BRKT
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9901-9909 ●
62 16.650 SCREW; BRKT
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9901-9909 ●
62 16.650 SCREW; BRKT
4X2(TFB***) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9901-9909 ●
62 16.650 SCREW; BRKT
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9910-0012 ● ●
62 16.650 SCREW; BRKT
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0101- ● ●
62 16.650 SCREW; BRKT
A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0101- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> M8X14 		9-03900-814-0 02 1 9804-9812 ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 02 1 9804-9812 ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 02 1 9804-9812 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> M8X14 		9-03900-814-0 02 1 9901-9909 ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 02 1 9901-9909 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 02 1 9901-9909 ●
219 16.650 SCREW; BRKT TO CONSOLE
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> M8X14 		9-03900-814-0 02 1 9910- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> M8X14 		9-03900-814-0 04 1 9804-9812 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 04 1 9804-9812 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 04 1 9804-9812 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> M8X14 		9-03900-814-0 04 1 9901-9909 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 04 1 9901-9909 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 04 1 9901-9909 ●
219 16.650 SCREW; BRKT TO CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> M8X14 		9-03900-814-0 04 1 9910- ● ●

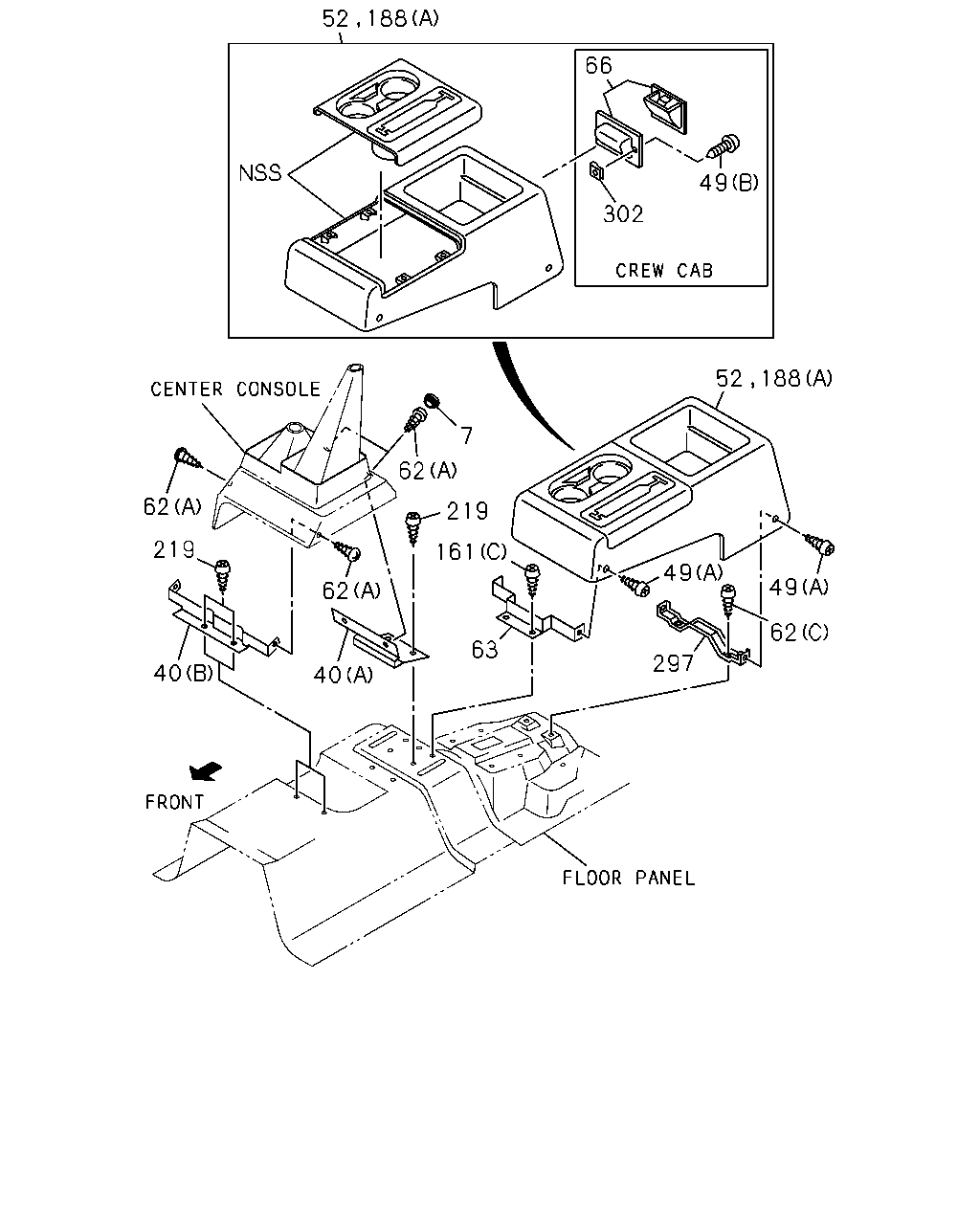

çizim 73529
52 188 66 49 302 52 188 7 62 62 219 219 161 49 49 62 62 63 297 40 40
BalonParca AdiParca NoAdetTipApplied Date A B
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> GRAY 		8-97150-582-1 02 1 9804-9812 ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97150-582-1 02 1 9804-9812 ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97150-582-1 02 1 9804-9812 ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> GRAY 		8-97150-582-1 02 1 9901-9909 ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97150-582-1 02 1 9901-9909 ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97150-582-1 02 1 9901-9909 ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> GRAY 		8-97150-582-1 02 1 9910- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (C) 		8-97072-944-0 01 1 9804-9812 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> (C) 		8-97072-944-0 01 1 9804-9812 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (C) 		8-97072-944-0 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> (C) 		8-97072-944-0 01 1 9901-9909 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> (C) 		8-97072-944-0 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (C) 		8-97072-944-0 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (C) 		8-97072-944-1 01 1 9910- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (A) 		8-94463-384-0 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> (A) 		8-94463-384-0 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (A) 		8-94463-384-0 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (A) 		8-94463-384-0 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> (A) 		8-94463-384-0 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (A) 		8-94463-384-0 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (A) 		8-94463-384-1 01 1 9910- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (B) 		8-94479-072-1 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> (B) 		8-94479-072-1 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (B) 		8-94479-072-1 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (B) 		8-94479-072-1 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> (B) 		8-94479-072-1 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (B) 		8-94479-072-1 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (B) 		8-94479-072-2 01 1 9910- ● ●
49 04.017 SCREW; CONSOLE
RR CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9909 ● ●
49 04.017 SCREW; CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9910- ● ●
49 04.017 SCREW; CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9804-9909 ● ●
49 04.017 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9804-9909 ● ●
49 04.017 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9910-0009 ● ●
49 04.017 SCREW; CONSOLE
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0010- ● ●
52 16.650 CONSOLE; FRT
4X4 SPACE CAB(TFS*C*) EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97154-601-3 01 1 9804-9909 ● ●
52 16.650 CONSOLE; FRT
4X4 SINGLE CAB LONG(TFS*SF) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97154-601-3 01 1 9804-9909 ● ●
52 16.650 CONSOLE; FRT
4X4 SPACE CAB(TFS*C*) FLOOR CONSOLE SEPARATE TYPE<7WF> GRAY 		8-97154-601-3 01 1 9910-0012 ● ●
52 16.650 CONSOLE; FRT
4X4 SINGLE CAB LONG(TFS*SF) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> GRAY 		8-97154-601-3 01 1 9910-0012 ● ●
52 16.650 CONSOLE; FRT
SINGLE CAB LONG(TF**SF) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> GRAY 		8-97154-601-3 01 1 0101- ● ●
52 16.650 CONSOLE; FRT
4X4 SPACE CAB(TFS*C*) FLOOR CONSOLE SEPARATE TYPE<7WF> GRAY 		8-97154-601-3 01 1 0101- ● ●
62 16.650 SCREW; BRKT
RR CONSOLE<D63> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9909 ● ●
62 16.650 SCREW; BRKT
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9910- ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (B) M8X14 		9-03900-814-0 02 1 9804-9812 ● ●
62 16.650 SCREW; BRKT
4X4(TFS***) UP GRADE PACKAGE<7MA> (B) M8X14 		9-03900-814-0 02 1 9804-9812 ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (B) M8X14 		9-03900-814-0 02 1 9804-9812 ●
62 16.650 SCREW; BRKT
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> (B) M8X14 		9-03900-814-0 02 1 9901-9909 ● ●
62 16.650 SCREW; BRKT
4X4(TFS***) UP GRADE PACKAGE<7MA> (B) M8X14 		9-03900-814-0 02 1 9901-9909 ●
62 16.650 SCREW; BRKT
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (B) M8X14 		9-03900-814-0 02 1 9901-9909 ●
62 16.650 SCREW; BRKT
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) M8X14 		9-03900-814-0 02 1 9910- ● ●
62 16.650 SCREW; BRKT
4X4 SHORT(TFS**C) (B) M8X14 		9-03900-814-0 04 1 9804-9909 ● ●
62 16.650 SCREW; BRKT
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) EXC. FRONT CONSOLE<D55> (B) M8X14 		9-03900-814-0 04 1 9804-9909 ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9812 ●
62 16.650 SCREW; BRKT
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9812 ●
62 16.650 SCREW; BRKT
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9812 ●
62 16.650 SCREW; BRKT
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9901-9909 ●
62 16.650 SCREW; BRKT
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9901-9909 ●
62 16.650 SCREW; BRKT
4X2(TFB***) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9901-9909 ●
62 16.650 SCREW; BRKT
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9910-0012 ● ●
62 16.650 SCREW; BRKT
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0101- ● ●
62 16.650 SCREW; BRKT
A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0101- ● ●
63 16.650 BRACKET; FRT CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 		8-97115-115-0 01 1 9804-9812 ●
63 16.650 BRACKET; FRT CONSOLE
4X4(TFS***) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 		8-97115-115-0 01 1 9804-9812 ●
63 16.650 BRACKET; FRT CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 		8-97115-115-0 01 1 9901-9909 ●
63 16.650 BRACKET; FRT CONSOLE
4X4(TFS***) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 		8-97115-115-0 01 1 9901-9909 ●
63 16.650 BRACKET; FRT CONSOLE
4X4 LONG(TFS**F) FLOOR CONSOLE SEPARATE TYPE<7WF> 		8-97115-115-0 01 1 9910-0009 ● ●
63 16.650 BRACKET; FRT CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF> 		8-97115-115-0 01 1 0010- ● ●
66 16.120 TRAY ASM; ASH
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97150-683-1 01 1 9804-9808 ● ●
66 16.120 TRAY ASM; ASH
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97150-683-1 01 1 9804-9808 ● ●
66 16.120 TRAY ASM; ASH
CREW CAB(TF**W*) RR CONSOLE<D63> GRAY 		8-97150-683-1 01 1 9809-9909 ● ●
66 16.120 TRAY ASM; ASH
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97150-683-1 01 1 9910-0009 ● ●
66 16.120 TRAY ASM; ASH
4X4 CREW CAB(TFS*W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> GRAY 		8-97150-683-1 01 1 9910-0009 ● ●
66 16.120 TRAY ASM; ASH
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97150-683-1 01 1 0010- ● ●
66 16.120 TRAY ASM; ASH
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> GRAY 		8-97150-683-1 01 1 0010- ● ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (A) 		0-70080-031-0 04 1 9804-9812 ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> (A) 		0-70080-031-0 04 1 9804-9812 ●
161 16.650 SCREW; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> (A) 		0-70080-031-0 04 1 9804-9812 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> (A) 		0-70080-031-0 04 1 9901-9909 ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> (A) 		0-70080-031-0 04 1 9901-9909 ●
161 16.650 SCREW; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> (A) 		0-70080-031-0 04 1 9901-9909 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) FLOOR CONSOLE ONE PIECE TYPE<7WG> (A) 		0-70080-031-0 04 1 9910- ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> (A) 		0-70080-031-0 04 1 9910- ● ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9804-9812 ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9804-9812 ●
161 16.650 SCREW; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9804-9812 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9901-9909 ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9901-9909 ●
161 16.650 SCREW; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9901-9909 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9910- ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9910- ● ●
161 16.650 SCREW; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9812 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9812 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9901-9909 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9901-9909 ●
161 16.650 SCREW; RR CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9910- ● ●
188 16.650 CONSOLE; RR
SINGLE CAB LONG(TF**SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-990-1 01 1 9910- ● ●
188 16.650 CONSOLE; RR
4X4 SPACE CAB(TFS*C*) FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) GRAY 		8-97159-990-1 01 1 9910- ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (B) GRAY 		8-97159-991-1 01 1 9804-9812 ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> (B) GRAY 		8-97159-991-1 01 1 9901-9909 ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-991-1 01 1 9910- ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> (B) GRAY 		8-97159-988-1 01 1 9804-9909 ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> (B) GRAY 		8-97159-988-1 01 1 9804-9909 ● ●
188 16.650 CONSOLE; RR
CREW CAB(TF**W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-988-1 01 1 9910- ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> (A) GRAY 		8-97154-600-3 01 1 9804-9909 ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> (A) GRAY 		8-97154-600-3 01 1 9804-9909 ● ●
188 16.650 CONSOLE; RR
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> (A) GRAY 		8-97154-600-3 01 1 9910- ● ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (B) GRAY 		8-97159-992-1 01 1 9804-9812 ● ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> (B) GRAY 		8-97159-992-1 01 1 9901-9909 ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-992-1 01 1 9910- ● ●
188 16.650 CONSOLE; RR
4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> (B) GRAY 		8-97159-990-1 01 1 9804-0012 ● ●
188 16.650 CONSOLE; RR
4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-990-1 01 1 0101- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> M8X14 		9-03900-814-0 02 1 9804-9812 ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 02 1 9804-9812 ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 02 1 9804-9812 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> M8X14 		9-03900-814-0 02 1 9901-9909 ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 02 1 9901-9909 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 02 1 9901-9909 ●
219 16.650 SCREW; BRKT TO CONSOLE
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> M8X14 		9-03900-814-0 02 1 9910- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> M8X14 		9-03900-814-0 04 1 9804-9812 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 04 1 9804-9812 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 04 1 9804-9812 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> M8X14 		9-03900-814-0 04 1 9901-9909 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 04 1 9901-9909 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 04 1 9901-9909 ●
219 16.650 SCREW; BRKT TO CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> M8X14 		9-03900-814-0 04 1 9910- ● ●
297 16.650 BRACKET; RR CONSOLE
RR CONSOLE<D63> 		8-97069-670-0 01 1 9804-9909 ● ●
297 16.650 BRACKET; RR CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-97069-670-2 01 1 9910- ● ●
302 16.650 RETAINER; ASH TRAY
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 		8-94123-300-5 02 1 9804-9808 ● ●
302 16.650 RETAINER; ASH TRAY
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 		8-94123-300-5 02 1 9804-9808 ● ●
302 16.650 RETAINER; ASH TRAY
CREW CAB(TF**W*) RR CONSOLE<D63> 		8-94123-300-5 02 1 9809-9909 ● ●
302 16.650 RETAINER; ASH TRAY
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-94123-300-5 02 1 9910-0009 ● ●
302 16.650 RETAINER; ASH TRAY
4X4 CREW CAB(TFS*W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 		8-94123-300-5 02 1 9910-0009 ● ●
302 16.650 RETAINER; ASH TRAY
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> 		8-94123-300-5 02 1 0010- ● ●
302 16.650 RETAINER; ASH TRAY
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 		8-94123-300-5 02 1 0010- ● ●

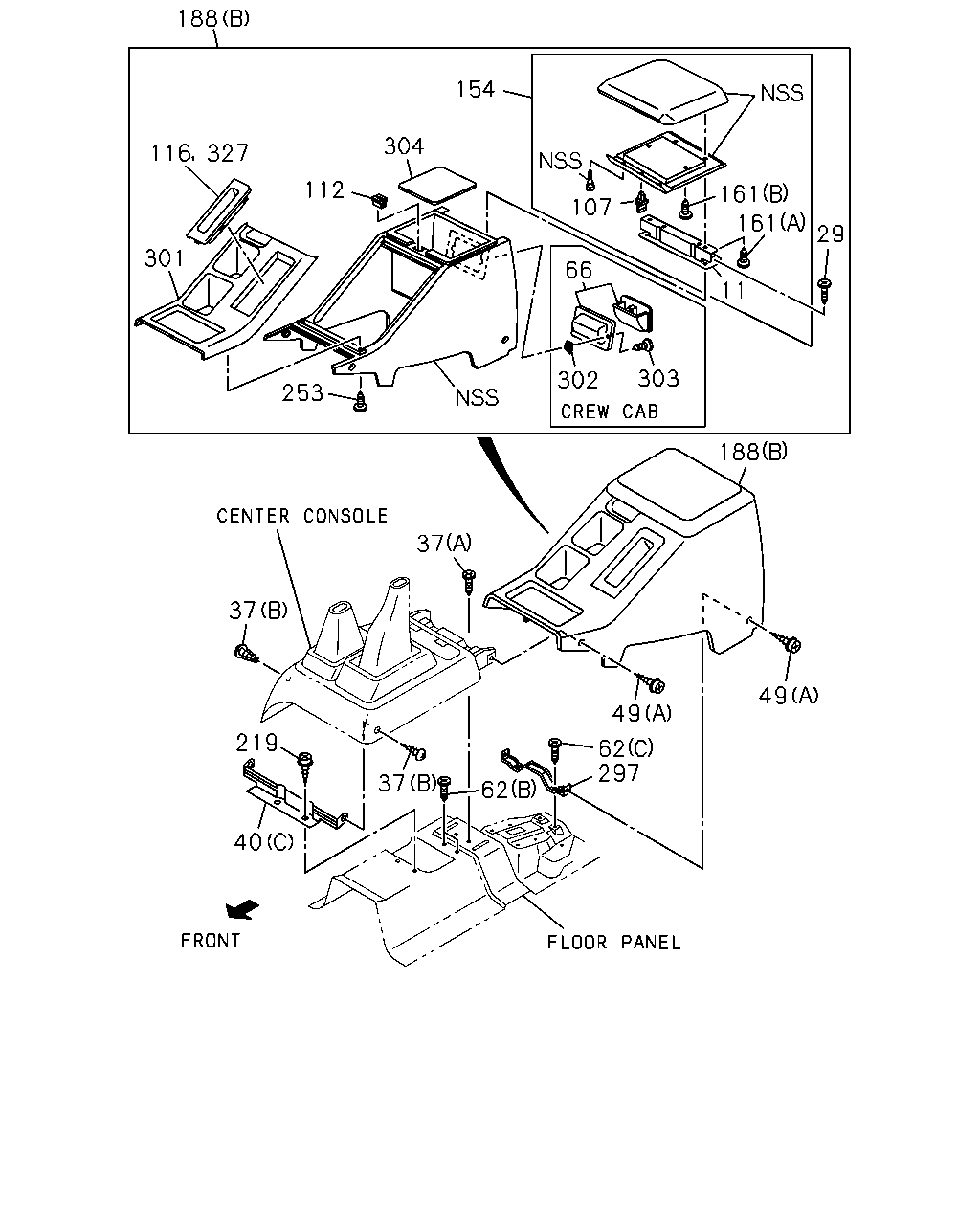

çizim 73598
188 154 161 161 29 304 107 112 301 11 66 253 188 37 37 49 62 297 49 219 37 62 40 302 303 116 327
BalonParca AdiParca NoAdetTipApplied Date A B
11 16.650 HINGE; CONSOLE LID
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 		8-97069-668-1 01 1 9804-9812 ● ●
11 16.650 HINGE; CONSOLE LID
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 		8-97069-668-1 01 1 9804-9812 ●
11 16.650 HINGE; CONSOLE LID
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 		8-97069-668-1 01 1 9804-9812 ●
11 16.650 HINGE; CONSOLE LID
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> 		8-97069-668-1 01 1 9901-9909 ● ●
11 16.650 HINGE; CONSOLE LID
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 		8-97069-668-1 01 1 9901-9909 ●
11 16.650 HINGE; CONSOLE LID
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 		8-97069-668-1 01 1 9901-9909 ●
11 16.650 HINGE; CONSOLE LID
4X2(TFB***) FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-97069-668-1 01 1 9910- ● ●
11 16.650 HINGE; CONSOLE LID
4X4(TFS***) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 		8-97069-668-1 01 1 9910- ● ●
29 16.650 SCREW; HINGE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9804-9812 ● ●
29 16.650 SCREW; HINGE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9804-9812 ●
29 16.650 SCREW; HINGE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9804-9812 ●
29 16.650 SCREW; HINGE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9901-9909 ● ●
29 16.650 SCREW; HINGE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9901-9909 ●
29 16.650 SCREW; HINGE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9901-9909 ●
29 16.650 SCREW; HINGE
4X2(TFB***) FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9910- ● ●
29 16.650 SCREW; HINGE
4X4(TFS***) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9910- ● ●
37 16.650 SCREW; CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9812 ● ●
37 16.650 SCREW; CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9812 ● ●
37 16.650 SCREW; CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9812 ● ●
37 16.650 SCREW; CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9901-9909 ● ●
37 16.650 SCREW; CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9901-9909 ●
37 16.650 SCREW; CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9901-9909 ●
37 16.650 SCREW; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9910- ● ●
37 16.650 SCREW; CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9804-9812 ● ●
37 16.650 SCREW; CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9804-9812 ● ●
37 16.650 SCREW; CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9804-9812 ● ●
37 16.650 SCREW; CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9901-9909 ● ●
37 16.650 SCREW; CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9901-9909 ●
37 16.650 SCREW; CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9901-9909 ●
37 16.650 SCREW; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9910- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (C) 		8-97072-944-0 01 1 9804-9812 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> (C) 		8-97072-944-0 01 1 9804-9812 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (C) 		8-97072-944-0 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> (C) 		8-97072-944-0 01 1 9901-9909 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> (C) 		8-97072-944-0 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (C) 		8-97072-944-0 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (C) 		8-97072-944-1 01 1 9910- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (A) 		8-94463-384-0 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> (A) 		8-94463-384-0 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (A) 		8-94463-384-0 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (A) 		8-94463-384-0 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> (A) 		8-94463-384-0 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (A) 		8-94463-384-0 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (A) 		8-94463-384-1 01 1 9910- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (B) 		8-94479-072-1 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> (B) 		8-94479-072-1 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (B) 		8-94479-072-1 01 1 9804-9812 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> (B) 		8-94479-072-1 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> (B) 		8-94479-072-1 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> (B) 		8-94479-072-1 01 1 9901-9909 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (B) 		8-94479-072-2 01 1 9910- ● ●
49 04.017 SCREW; CONSOLE
RR CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9909 ● ●
49 04.017 SCREW; CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9910- ● ●
49 04.017 SCREW; CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9804-9909 ● ●
49 04.017 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9804-9909 ● ●
49 04.017 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9910-0009 ● ●
49 04.017 SCREW; CONSOLE
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0010- ● ●
62 16.650 SCREW; BRKT
RR CONSOLE<D63> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9909 ● ●
62 16.650 SCREW; BRKT
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9910- ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (B) M8X14 		9-03900-814-0 02 1 9804-9812 ● ●
62 16.650 SCREW; BRKT
4X4(TFS***) UP GRADE PACKAGE<7MA> (B) M8X14 		9-03900-814-0 02 1 9804-9812 ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (B) M8X14 		9-03900-814-0 02 1 9804-9812 ●
62 16.650 SCREW; BRKT
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> (B) M8X14 		9-03900-814-0 02 1 9901-9909 ● ●
62 16.650 SCREW; BRKT
4X4(TFS***) UP GRADE PACKAGE<7MA> (B) M8X14 		9-03900-814-0 02 1 9901-9909 ●
62 16.650 SCREW; BRKT
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> (B) M8X14 		9-03900-814-0 02 1 9901-9909 ●
62 16.650 SCREW; BRKT
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) M8X14 		9-03900-814-0 02 1 9910- ● ●
62 16.650 SCREW; BRKT
4X4 SHORT(TFS**C) (B) M8X14 		9-03900-814-0 04 1 9804-9909 ● ●
62 16.650 SCREW; BRKT
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) EXC. FRONT CONSOLE<D55> (B) M8X14 		9-03900-814-0 04 1 9804-9909 ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9812 ●
62 16.650 SCREW; BRKT
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9812 ●
62 16.650 SCREW; BRKT
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9812 ●
62 16.650 SCREW; BRKT
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9901-9909 ●
62 16.650 SCREW; BRKT
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9901-9909 ●
62 16.650 SCREW; BRKT
4X2(TFB***) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9901-9909 ●
62 16.650 SCREW; BRKT
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9910-0012 ● ●
62 16.650 SCREW; BRKT
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0101- ● ●
62 16.650 SCREW; BRKT
A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0101- ● ●
66 16.120 TRAY ASM; ASH
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97150-683-1 01 1 9804-9808 ● ●
66 16.120 TRAY ASM; ASH
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97150-683-1 01 1 9804-9808 ● ●
66 16.120 TRAY ASM; ASH
CREW CAB(TF**W*) RR CONSOLE<D63> GRAY 		8-97150-683-1 01 1 9809-9909 ● ●
66 16.120 TRAY ASM; ASH
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97150-683-1 01 1 9910-0009 ● ●
66 16.120 TRAY ASM; ASH
4X4 CREW CAB(TFS*W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> GRAY 		8-97150-683-1 01 1 9910-0009 ● ●
66 16.120 TRAY ASM; ASH
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97150-683-1 01 1 0010- ● ●
66 16.120 TRAY ASM; ASH
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> GRAY 		8-97150-683-1 01 1 0010- ● ●
107 16.650 LOCK; LID,RR CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 		8-94110-961-1 01 1 9804-9812 ● ●
107 16.650 LOCK; LID,RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 		8-94110-961-1 01 1 9804-9812 ●
107 16.650 LOCK; LID,RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 		8-94110-961-1 01 1 9804-9812 ●
107 16.650 LOCK; LID,RR CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> 		8-94110-961-1 01 1 9901-9909 ● ●
107 16.650 LOCK; LID,RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 		8-94110-961-1 01 1 9901-9909 ●
107 16.650 LOCK; LID,RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 		8-94110-961-1 01 1 9901-9909 ●
107 16.650 LOCK; LID,RR CONSOLE
4X2(TFB***) FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-94110-961-1 01 1 9910- ● ●
107 16.650 LOCK; LID,RR CONSOLE
4X4(TFS***) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 		8-94110-961-1 01 1 9910- ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 		8-94110-962-1 01 1 9804-9812 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 		8-94110-962-1 01 1 9804-9812 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 		8-94110-962-1 01 1 9804-9812 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> 		8-94110-962-1 01 1 9901-9909 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 		8-94110-962-1 01 1 9901-9909 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 		8-94110-962-1 01 1 9901-9909 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X2(TFB***) FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-94110-962-1 01 1 9910- ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X4(TFS***) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 		8-94110-962-1 01 1 9910- ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> GRAY 		8-97199-099-0 01 1 9804-9812 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> GRAY 		8-97199-099-0 01 1 9901-9909 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
4X2(TFB***) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97199-099-0 01 1 9910- ● ●
154 16.650 LID ASM; RR CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> GRAY 		8-97152-895-1 01 1 9809-9812 ● ●
154 16.650 LID ASM; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> GRAY 		8-97152-895-1 01 1 9809-9812 ●
154 16.650 LID ASM; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> GRAY 		8-97152-895-1 01 1 9809-9812 ●
154 16.650 LID ASM; RR CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> GRAY 		8-97152-895-1 01 1 9901-9909 ● ●
154 16.650 LID ASM; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> GRAY 		8-97152-895-1 01 1 9901-9909 ●
154 16.650 LID ASM; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> GRAY 		8-97152-895-1 01 1 9901-9909 ●
154 16.650 LID ASM; RR CONSOLE
4X2(TFB***) FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97152-895-1 01 1 9910- ● ●
154 16.650 LID ASM; RR CONSOLE
4X4(TFS***) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> GRAY 		8-97152-895-1 01 1 9910- ● ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (A) 		0-70080-031-0 04 1 9804-9812 ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> (A) 		0-70080-031-0 04 1 9804-9812 ●
161 16.650 SCREW; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> (A) 		0-70080-031-0 04 1 9804-9812 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> (A) 		0-70080-031-0 04 1 9901-9909 ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> (A) 		0-70080-031-0 04 1 9901-9909 ●
161 16.650 SCREW; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> (A) 		0-70080-031-0 04 1 9901-9909 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) FLOOR CONSOLE ONE PIECE TYPE<7WG> (A) 		0-70080-031-0 04 1 9910- ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> (A) 		0-70080-031-0 04 1 9910- ● ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9804-9812 ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9804-9812 ●
161 16.650 SCREW; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9804-9812 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9901-9909 ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9901-9909 ●
161 16.650 SCREW; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9901-9909 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9910- ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9910- ● ●
161 16.650 SCREW; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9812 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9812 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9901-9909 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9901-9909 ●
161 16.650 SCREW; RR CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9910- ● ●
188 16.650 CONSOLE; RR
SINGLE CAB LONG(TF**SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-990-1 01 1 9910- ● ●
188 16.650 CONSOLE; RR
4X4 SPACE CAB(TFS*C*) FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) GRAY 		8-97159-990-1 01 1 9910- ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (B) GRAY 		8-97159-991-1 01 1 9804-9812 ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> (B) GRAY 		8-97159-991-1 01 1 9901-9909 ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-991-1 01 1 9910- ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> (B) GRAY 		8-97159-988-1 01 1 9804-9909 ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> (B) GRAY 		8-97159-988-1 01 1 9804-9909 ● ●
188 16.650 CONSOLE; RR
CREW CAB(TF**W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-988-1 01 1 9910- ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> (A) GRAY 		8-97154-600-3 01 1 9804-9909 ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> (A) GRAY 		8-97154-600-3 01 1 9804-9909 ● ●
188 16.650 CONSOLE; RR
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> (A) GRAY 		8-97154-600-3 01 1 9910- ● ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (B) GRAY 		8-97159-992-1 01 1 9804-9812 ● ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> (B) GRAY 		8-97159-992-1 01 1 9901-9909 ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-992-1 01 1 9910- ● ●
188 16.650 CONSOLE; RR
4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> (B) GRAY 		8-97159-990-1 01 1 9804-0012 ● ●
188 16.650 CONSOLE; RR
4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-990-1 01 1 0101- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> M8X14 		9-03900-814-0 02 1 9804-9812 ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 02 1 9804-9812 ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 02 1 9804-9812 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> M8X14 		9-03900-814-0 02 1 9901-9909 ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 02 1 9901-9909 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 02 1 9901-9909 ●
219 16.650 SCREW; BRKT TO CONSOLE
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> M8X14 		9-03900-814-0 02 1 9910- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> M8X14 		9-03900-814-0 04 1 9804-9812 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 04 1 9804-9812 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 04 1 9804-9812 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) FRONT CONSOLE<D55> EXC. RR CONSOLE<D63> M8X14 		9-03900-814-0 04 1 9901-9909 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 04 1 9901-9909 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 04 1 9901-9909 ●
219 16.650 SCREW; BRKT TO CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> M8X14 		9-03900-814-0 04 1 9910- ● ●
253 09.744 SCREW; BEZEL
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9804-9812 ● ●
253 09.744 SCREW; BEZEL
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9804-9812 ●
253 09.744 SCREW; BEZEL
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9804-9812 ●
253 09.744 SCREW; BEZEL
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9901-9909 ● ●
253 09.744 SCREW; BEZEL
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9901-9909 ●
253 09.744 SCREW; BEZEL
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9901-9909 ●
253 09.744 SCREW; BEZEL
4X2(TFB***) FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9910- ● ●
253 09.744 SCREW; BEZEL
4X4(TFS***) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9910- ● ●
297 16.650 BRACKET; RR CONSOLE
RR CONSOLE<D63> 		8-97069-670-0 01 1 9804-9909 ● ●
297 16.650 BRACKET; RR CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-97069-670-2 01 1 9910- ● ●
301 16.650 BEZEL; CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> GRAY 		8-97199-098-0 01 1 9809-9812 ● ●
301 16.650 BEZEL; CONSOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> GRAY 		8-97199-098-0 01 1 9901-9909 ● ●
301 16.650 BEZEL; CONSOLE
4X2(TFB***) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97199-098-0 01 1 9910- ● ●
301 16.650 BEZEL; CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> GRAY 		8-97199-096-0 01 1 9809-9909 ● ●
301 16.650 BEZEL; CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> GRAY 		8-97199-096-0 01 1 9809-9909 ●
301 16.650 BEZEL; CONSOLE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> GRAY 		8-97199-096-0 01 1 9910- ● ●
301 16.650 BEZEL; CONSOLE
4X4 SPACE CAB(TFS*C*) FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97199-096-0 01 1 9910- ● ●
302 16.650 RETAINER; ASH TRAY
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 		8-94123-300-5 02 1 9804-9808 ● ●
302 16.650 RETAINER; ASH TRAY
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE<7MA> 		8-94123-300-5 02 1 9804-9808 ● ●
302 16.650 RETAINER; ASH TRAY
CREW CAB(TF**W*) RR CONSOLE<D63> 		8-94123-300-5 02 1 9809-9909 ● ●
302 16.650 RETAINER; ASH TRAY
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-94123-300-5 02 1 9910-0009 ● ●
302 16.650 RETAINER; ASH TRAY
4X4 CREW CAB(TFS*W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 		8-94123-300-5 02 1 9910-0009 ● ●
302 16.650 RETAINER; ASH TRAY
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> 		8-94123-300-5 02 1 0010- ● ●
302 16.650 RETAINER; ASH TRAY
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 		8-94123-300-5 02 1 0010- ● ●
303 16.650 SCREW; ASH TRAY
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9804-9812 ● ●
303 16.650 SCREW; ASH TRAY
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9804-9812 ● ●
303 16.650 SCREW; ASH TRAY
4X2 CREW CAB(TFB*W*) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9804-9812 ● ●
303 16.650 SCREW; ASH TRAY
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9901-9909 ● ●
303 16.650 SCREW; ASH TRAY
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9901-9909 ● ●
303 16.650 SCREW; ASH TRAY
4X2 CREW CAB(TFB*W*) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) RR CONSOLE<D63> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9901-9909 ● ●
303 16.650 SCREW; ASH TRAY
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9910- ● ●
303 16.650 SCREW; ASH TRAY
4X4 CREW CAB(TFS*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9910- ● ●
304 16.650 PAD; CONSOLE BOX
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 		8-97088-559-0 01 1 9804-9805 ● ●
304 16.650 PAD; CONSOLE BOX
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 		8-97088-559-0 01 1 9804-9805 ●
304 16.650 PAD; CONSOLE BOX
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 		8-97088-559-0 01 1 9804-9805 ●
327 16.650 STRIPE; HAND BRAKE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 		8-97072-047-1 01 1 9804-9909 ● ●
327 16.650 STRIPE; HAND BRAKE
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE<7MA> 		8-97072-047-1 01 1 9804-9909 ● ●
327 16.650 STRIPE; HAND BRAKE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 		8-97072-047-1 01 1 9910- ● ●
327 16.650 STRIPE; HAND BRAKE
4X4 SPACE CAB(TFS*C*) FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-97072-047-1 01 1 9910- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
