7-40 — INSTRUMENT PANEL AND BOX (#43758) — 270 parça

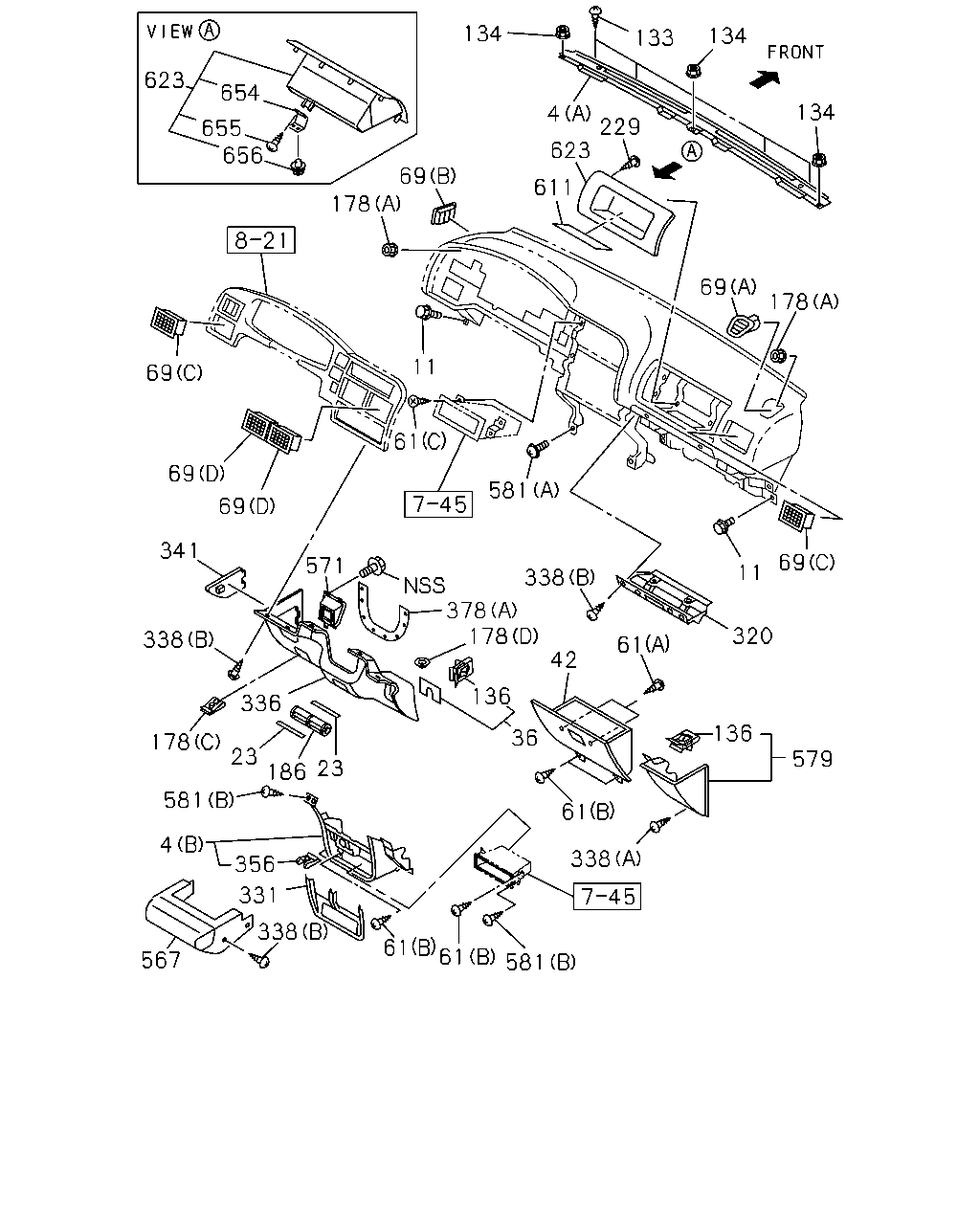

çizim 17107
134 134 133 623 654 134 4 229 623 655 656 69 611 178 69 178 11 69 61 69 581 69 341 69 571 11 338 378 178 320 338 61 42 336 136 136 36 178 23 579 23 186 581 61 4 338 356 331 338 61 61 567 581
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 16.080 COVER; INST PNL
(B) GRAY 		8-97154-483-2 01 1 9804- ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
VENTILATION RAM AIR(6TN) (A) 		8-97142-696-0 01 1 9804-9905 ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
M/T MSG 5 SPEED(M75) (A) 		8-97142-696-0 01 1 9906-9909 ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
M/T MSG 5 SPEED(M75) 22LE/C22NE ENG(RJT) (A) 		8-97142-696-0 01 1 9906-9909 ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
VENTILATION RAM AIR(6TN) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97142-696-0 01 1 9910-0009 ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
AIR CONDITIONER PREPARATORY PACK(S6D),VENTILATION RAM AIR(6TN) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97142-696-0 01 1 0010- ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
EXC. VENTILATION RAM AIR(6TN) (A) 		8-97101-621-3 01 1 9804-9905 ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
EXC. SAUDI ARABIA EQUIPMENT(EU2), VENTILATION RAM AIR(6TN) (A) 		8-97101-621-3 01 1 9906-0009 ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
EXC. SAUDI ARABIA EQUIPMENT(EU2), AIR CONDITIONER PREPARATORY PACK(S6D) ,VENTILATION RAM AIR(6TN) (A) 		8-97101-621-3 01 1 0010-0112 ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
EXC. SAUDI ARABIA EQUIPMENT(EU2), AIR CONDITIONER PREPARATORY PACK(S6D) ,VENTILATION RAM AIR(6TN) (A) 		8-97327-855-0 01 1 0201- ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
SAUDI ARABIA EQUIPMENT(EU2) VENTILATION RAM AIR(6TN) (A) 		8-97216-724-0 01 1 9906- ● ● ● ●
4 16.080 COVER; INST PNL
SAUDI ARABIA EQUIPMENT(EU2) EXC. VENTILATION RAM AIR(6TN) (A) 		8-97107-575-2 01 1 9906- ● ● ● ●
11 16.090 BOLT; INST PNL
08.015 M6X20 W/WASHER 		8-94112-987-1 08 1 9804-9910 ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
08.015 M6X20 W/WASHER 		8-94112-987-1 07 1 9911- ● ● ● ● ● ● ● ●
23 16.085 CUSHION; INST,PANEL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97185-832-0 02 1 9804-9812 ● ● ● ● ●
23 16.085 CUSHION; INST,PANEL
GRADE S(RBA) 		8-97185-832-0 02 1 9804-9812 ● ●
23 16.085 CUSHION; INST,PANEL
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97185-832-0 02 1 9804-9812 ●
23 16.085 CUSHION; INST,PANEL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97185-832-0 02 1 9901-9909 ● ● ● ● ●
23 16.085 CUSHION; INST,PANEL
GRADE S(RBA) 		8-97185-832-0 02 1 9901-9909 ● ●
23 16.085 CUSHION; INST,PANEL
EXC. PARKING BRAKE FLOOR<7XW> 		8-97185-832-0 02 1 9910-0010 ● ● ● ● ● ● ●
23 16.085 CUSHION; INST,PANEL 8-97185-832-0 02 1 0011- ● ● ● ● ● ● ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRAY 		8-97156-097-0 01 1 9804-9812 ● ● ● ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
GRADE S(RBA) GRAY 		8-97156-097-0 01 1 9804-9812 ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) GRAY 		8-97156-097-0 01 1 9901-9909 ● ● ● ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
GRADE S(RBA) GRAY 		8-97156-097-0 01 1 9901-9909 ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97156-097-0 01 1 9910- ● ● ● ● ● ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) GRAY 		8-97196-066-0 01 1 9804-9812 ●
42 16.100 BOX; GLOVE,INST PNL
GRAY 		8-97152-826-2 01 1 9804- ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0212- ● ● ● ●
61 16.100 SCREW; GLOVE BOX
22LE/C22NE ENG(RJT),20SE ENG(RND) FLOOR REMOTE SHIFT<M11> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0212- ● ● ● ●
61 16.100 SCREW; GLOVE BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0212- ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 9804-9812 ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 16.115 (B) M5X16 		8-94279-312-0 02 1 9804-9812 ● ● ● ●
61 16.100 SCREW; GLOVE BOX
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 16.115 (B) M5X16 		8-94279-312-0 02 1 9804-9812 ● ● ●
61 16.100 SCREW; GLOVE BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 16.115 (B) M5X16 		8-94279-312-0 02 1 9804-9812 ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 9804-9812 ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 9901-0009 ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 9901-0009 ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 16.115 (B) M5X16 		8-94279-312-0 02 1 9901-0009 ● ● ●
61 16.100 SCREW; GLOVE BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 16.115 (B) M5X16 		8-94279-312-0 02 1 9901-0009 ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 0010-0108 ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 0010-0108 ● ● ● ●
61 16.100 SCREW; GLOVE BOX
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 16.115 (B) M5X16 		8-94279-312-0 02 1 0010-0108 ● ● ● ●
61 16.100 SCREW; GLOVE BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 16.115 (B) M5X16 		8-94279-312-0 02 1 0010-0108 ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 0109-0211 ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 0109-0211 ● ● ● ●
61 16.100 SCREW; GLOVE BOX
22LE/C22NE ENG(RJT),20SE ENG(RND) FLOOR REMOTE SHIFT<M11> 16.115 (B) M5X16 		8-94279-312-0 02 1 0109-0211 ● ● ● ●
61 16.100 SCREW; GLOVE BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 16.115 (B) M5X16 		8-94279-312-0 02 1 0109-0211 ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 M5X16 		8-94279-312-0 02 1 0212- ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
(A) M4X14 TAPPING 		8-97111-555-0 02 1 9804- ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.085 (C) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9812 ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
EXC. INST PANEL FOR DIN E SIZE AUDI O(7QL) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9812 ● ●
61 16.100 SCREW; GLOVE BOX
16.085 (C) M5X16 TAPPING 		9-09829-323-1 04 1 9901- ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
EXC. INST PANEL FOR DIN E SIZE AUDI O(7QL) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 04 1 9901- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) GRAY 		8-97150-594-5 01 1 9804-0109 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) BLACK 		8-97154-869-5 01 1 0110- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) GRAY 		8-97150-595-1 01 1 9804-0109 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) BLACK 		8-97154-871-1 01 1 0110- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
VENTILATION RAM AIR(6TN) 16.070 (C) BLACK 		8-94388-772-3 02 1 9804- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
VENTILATION RAM AIR(6TN) (D) BLACK 		8-97152-701-1 02 1 9804- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. VENTILATION RAM AIR(6TN) (C),(D) BLACK 		8-97152-701-1 04 1 9804- ● ● ● ● ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
08.155 M6X16 		8-94479-534-0 05 1 9804- ● ● ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9804- ● ● ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9804- ● ● ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
16.100 		8-97148-012-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 16.100 		8-97148-012-0 01 1 9804-9812 ● ● ● ● ●
136 16.085 CLIP; INST COVER
GRADE S(RBA) 16.100 		8-97148-012-0 01 1 9804-9812 ● ●
136 16.085 CLIP; INST COVER
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) 16.100 		8-97148-012-0 01 1 9804-9812 ●
136 16.085 CLIP; INST COVER
16.100 		8-97148-012-0 01 1 9901-9909 ● ● ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 16.100 		8-97148-012-0 01 1 9901-9909 ● ● ● ●
136 16.085 CLIP; INST COVER
16.100 		8-97148-012-0 01 1 9901-9909 ●
136 16.085 CLIP; INST COVER
GRADE S(RBA) 16.100 		8-97148-012-0 01 1 9901-9909 ● ●
136 16.085 CLIP; INST COVER
16.100 		8-97148-012-0 01 1 9910- ● ● ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
EXC. PARKING BRAKE FLOOR<7XW> 16.100 		8-97148-012-0 01 1 9910- ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
07.833 (A) M6 W/DISHED WASHER 		8-94170-192-0 03 1 9804- ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
(B) 		8-97185-781-0 12 1 9804- ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9804-9812 ● ● ● ● ●
178 16.085 NUT; INST PANEL
GRADE S(RBA) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9804-9812 ● ●
178 16.085 NUT; INST PANEL
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9804-9812 ●
178 16.085 NUT; INST PANEL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9901-9909 ● ● ● ● ●
178 16.085 NUT; INST PANEL
GRADE S(RBA) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9901-9909 ● ●
178 16.085 NUT; INST PANEL
EXC. PARKING BRAKE FLOOR<7XW> 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9910-0010 ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 0011- ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (D) 		8-97185-780-0 08 1 9804-9807 ● ● ● ● ●
178 16.085 NUT; INST PANEL
GRADE S(RBA) (D) 		8-97185-780-0 08 1 9804-9807 ● ●
178 16.085 NUT; INST PANEL
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) (D) 		8-97185-780-0 08 1 9804-9807 ●
186 09.264 GRILLE; LAP VENTILATOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) BLACK 		8-97806-851-2 01 1 9804-9812 ● ● ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE S(RBA) BLACK 		8-97806-851-2 01 1 9804-9812 ● ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) BLACK 		8-97806-851-2 01 1 9804-9812 ●
186 09.264 GRILLE; LAP VENTILATOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BLACK 		8-97806-851-2 01 1 9901-9909 ● ● ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE S(RBA) BLACK 		8-97806-851-2 01 1 9901-9909 ● ●
186 09.264 GRILLE; LAP VENTILATOR
EXC. PARKING BRAKE FLOOR<7XW> BLACK 		8-97806-851-2 01 1 9910-0206 ● ● ● ● ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
EXC. PARKING BRAKE FLOOR<7XW> BLACK 		8-97394-945-0 01 1 0207- ● ● ● ● ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
6VD1 ENG(RLV) BLACK 		8-97123-442-0 01 1 9804-9812 ●
186 09.264 GRILLE; LAP VENTILATOR
BLACK 		8-97123-442-0 01 1 9804-9812 ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE LS(RBD) BLACK 		8-97123-442-0 01 1 9804-9812 ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) BLACK 		8-97123-442-0 01 1 9804-9812 ●
186 09.264 GRILLE; LAP VENTILATOR
6VD1 ENG(RLV) BLACK 		8-97123-442-0 01 1 9901-9909 ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE LS(RBD) BLACK 		8-97123-442-0 01 1 9901-9909 ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
PARKING BRAKE FLOOR<7XW> BLACK 		8-97123-442-0 01 1 9910-0109 ● ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
BLACK 		8-97123-442-0 01 1 9910-0109 ●
229 09.744 SCREW; BOX,INST
09.787 M5X14 TAPPING 		9-07066-514-0 06 1 9804- ● ● ● ● ● ● ● ●
320 16.081 COVER; GLOVE BOX
GRAY 		8-97150-599-4 01 1 9804- ● ● ● ● ● ● ● ●
331 09.743 CLUSTER; INST SIDE 8-97131-756-1 01 1 9804-9812 ● ● ● ● ●
331 09.743 CLUSTER; INST SIDE
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97131-756-1 01 1 9804-9812 ● ● ●
331 09.743 CLUSTER; INST SIDE
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 		8-97131-756-1 01 1 9804-9812 ● ● ●
331 09.743 CLUSTER; INST SIDE 8-97131-756-1 01 1 9901-0009 ● ● ● ● ●
331 09.743 CLUSTER; INST SIDE
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97131-756-1 01 1 9901-0009 ● ● ●
331 09.743 CLUSTER; INST SIDE
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 		8-97131-756-1 01 1 9901-0009 ● ● ●
331 09.743 CLUSTER; INST SIDE 8-97131-756-1 01 1 0010-0108 ● ● ● ●
331 09.743 CLUSTER; INST SIDE
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97131-756-1 01 1 0010-0108 ● ● ● ●
331 09.743 CLUSTER; INST SIDE
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 		8-97131-756-1 01 1 0010-0108 ● ● ● ●
331 09.743 CLUSTER; INST SIDE 8-97131-756-1 01 1 0109- ● ● ● ●
331 09.743 CLUSTER; INST SIDE
22LE/C22NE ENG(RJT),20SE ENG(RND) FLOOR REMOTE SHIFT<M11> 		8-97131-756-1 01 1 0109- ● ● ● ●
331 09.743 CLUSTER; INST SIDE
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 		8-97131-756-1 01 1 0109- ● ● ● ●
331 09.743 CLUSTER; INST SIDE
22LE/C22NE ENG(RJT) EXC. FLOOR REMOTE SHIFT<M11> 		8-97180-786-0 01 1 9804-0009 ● ● ●
331 09.743 CLUSTER; INST SIDE
22LE/C22NE ENG(RJT) EXC. FLOOR REMOTE SHIFT<M11> 		8-97180-786-0 01 1 0010-0108 ● ● ● ●
331 09.743 CLUSTER; INST SIDE
22LE/C22NE ENG(RJT),20SE ENG(RND) EXC. FLOOR REMOTE SHIFT<M11> 		8-97180-786-0 01 1 0109- ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRAY 		8-97156-095-1 01 1 9804-9812 ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
GRADE S(RBA) GRAY 		8-97156-095-1 01 1 9804-9812 ● ●
336 16.081 COVER; INST PANEL SIDE
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) GRAY 		8-97156-095-1 01 1 9804-9812 ●
336 16.081 COVER; INST PANEL SIDE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) GRAY 		8-97156-095-1 01 1 9901-9909 ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
GRADE S(RBA) GRAY 		8-97156-095-1 01 1 9901-9909 ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97156-095-1 01 1 9910- ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
6VD1 ENG(RLV) GRAY 		8-97153-209-4 01 1 9804-9812 ●
336 16.081 COVER; INST PANEL SIDE
GRAY 		8-97153-209-4 01 1 9804-9812 ●
336 16.081 COVER; INST PANEL SIDE
GRADE LS(RBD) GRAY 		8-97153-209-4 01 1 9804-9812 ●
336 16.081 COVER; INST PANEL SIDE
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) GRAY 		8-97153-209-4 01 1 9804-9812 ●
336 16.081 COVER; INST PANEL SIDE
6VD1 ENG(RLV) GRAY 		8-97153-209-4 01 1 9901-9909 ●
336 16.081 COVER; INST PANEL SIDE
GRADE LS(RBD) GRAY 		8-97153-209-4 01 1 9901-9909 ● ● ●
336 16.081 COVER; INST PANEL SIDE
PARKING BRAKE FLOOR<7XW> GRAY 		8-97153-209-4 01 1 9910- ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
GRAY 		8-97153-209-4 01 1 9910- ●
338 16.081 SCREW; COVER
16.115 (A) M5X16 		8-94279-312-0 01 1 9804-0211 ● ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
16.085 (B) M5X16 TAPPING 		9-09829-323-1 12 1 9804-0211 ● ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
16.085 M5X16 TAPPING 		9-09829-323-1 13 1 0212- ● ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 04 1 9804-0108 ● ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
22LE/C22NE ENG(RJT),20SE ENG(RND) FLOOR REMOTE SHIFT<M11> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 04 1 0109- ● ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97153-210-2 01 1 9804- ● ● ● ● ● ● ● ●
356 16.085 NUT; COVER
09.262 M5 SPIRE NUT 		8-94217-271-0 01 1 9804- ● ● ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
(B) 		8-97204-877-0 01 1 9804- ● ● ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
6VD1 ENG(RLV) (A) 		8-97120-129-0 01 1 9804-9812 ●
378 09.743 SEAL; INST PANEL
(A) 		8-97120-129-0 01 1 9804-9812 ●
378 09.743 SEAL; INST PANEL
GRADE LS(RBD) (A) 		8-97120-129-0 01 1 9804-9812 ●
378 09.743 SEAL; INST PANEL
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97120-129-0 01 1 9804-9812 ●
378 09.743 SEAL; INST PANEL
6VD1 ENG(RLV) (A) 		8-97120-129-0 01 1 9901-9909 ●
378 09.743 SEAL; INST PANEL
GRADE LS(RBD) (A) 		8-97120-129-0 01 1 9901-9909 ● ● ●
378 09.743 SEAL; INST PANEL
PARKING BRAKE FLOOR<7XW> (A) 		8-97120-129-0 01 1 9910-0010 ● ● ● ●
378 09.743 SEAL; INST PANEL
(A) 		8-97120-129-0 01 1 9910-0010 ●
567 16.081 COVER; CONT UNIT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> GRAY 		8-97150-597-6 01 1 9804-0108 ● ● ● ● ● ● ● ●
567 16.081 COVER; CONT UNIT
22LE/C22NE ENG(RJT),20SE ENG(RND) FLOOR REMOTE SHIFT<M11> GRAY 		8-97150-597-6 01 1 0109- ● ● ● ● ● ● ● ●
571 09.743 BEZEL; POCKET
6VD1 ENG(RLV) GRAY 		8-97153-211-0 01 1 9804-9812 ●
571 09.743 BEZEL; POCKET
GRAY 		8-97153-211-0 01 1 9804-9812 ●
571 09.743 BEZEL; POCKET
GRADE LS(RBD) GRAY 		8-97153-211-0 01 1 9804-9812 ●
571 09.743 BEZEL; POCKET
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) GRAY 		8-97153-211-0 01 1 9804-9812 ●
571 09.743 BEZEL; POCKET
6VD1 ENG(RLV) GRAY 		8-97153-211-0 01 1 9901-9909 ●
571 09.743 BEZEL; POCKET
GRADE LS(RBD) GRAY 		8-97153-211-0 01 1 9901-9909 ● ● ●
571 09.743 BEZEL; POCKET
PARKING BRAKE FLOOR<7XW> GRAY 		8-97153-211-0 01 1 9910- ● ● ● ●
571 09.743 BEZEL; POCKET
GRAY 		8-97153-211-0 01 1 9910- ●
579 16.080 COVER; INST PNL
GRAY 		8-97150-598-3 01 1 9804- ● ● ● ● ● ● ● ●
581 09.744 SCREW
15.100 (A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 02 1 9804- ● ● ● ● ● ● ● ●
581 09.744 SCREW
16.115 (B) M5X16 		8-94279-312-0 07 1 9804- ● ● ● ● ● ● ● ●
611 16.081 SHEET
GRAY 		8-97154-848-0 01 1 9804-9804 ● ●
611 16.081 SHEET
GRADE LS(RBD) GRAY 		8-97154-848-0 01 1 9804-9804 ● ● ● ● ●
611 16.081 SHEET
BLACK 		8-97198-544-0 01 1 9805- ● ●
611 16.081 SHEET
GRADE LS(RBD) BLACK 		8-97198-544-0 01 1 9805- ● ● ● ● ●
623 16.100 BOX; UTILITY
GRAY 		8-97154-858-0 01 1 9804-9902 ● ● ● ● ● ● ● ●
623 16.100 BOX; UTILITY
GRAY 		8-97199-868-1 01 1 9903- ● ● ● ● ● ● ● ●
654 16.100 BRACKET; UTILITY BOX 8-97218-109-0 01 1 9903- ● ● ● ● ● ● ● ●
655 16.100 SCREW; BRKT,UTILITY BOX
09.787 M5X14 TAPPING 		9-07066-514-0 02 1 9903- ● ● ● ● ● ● ● ●
656 16.100 CLIP; TRIM
16.165 H=16.7 		8-97022-017-0 01 1 9903- ● ● ● ● ● ● ● ●

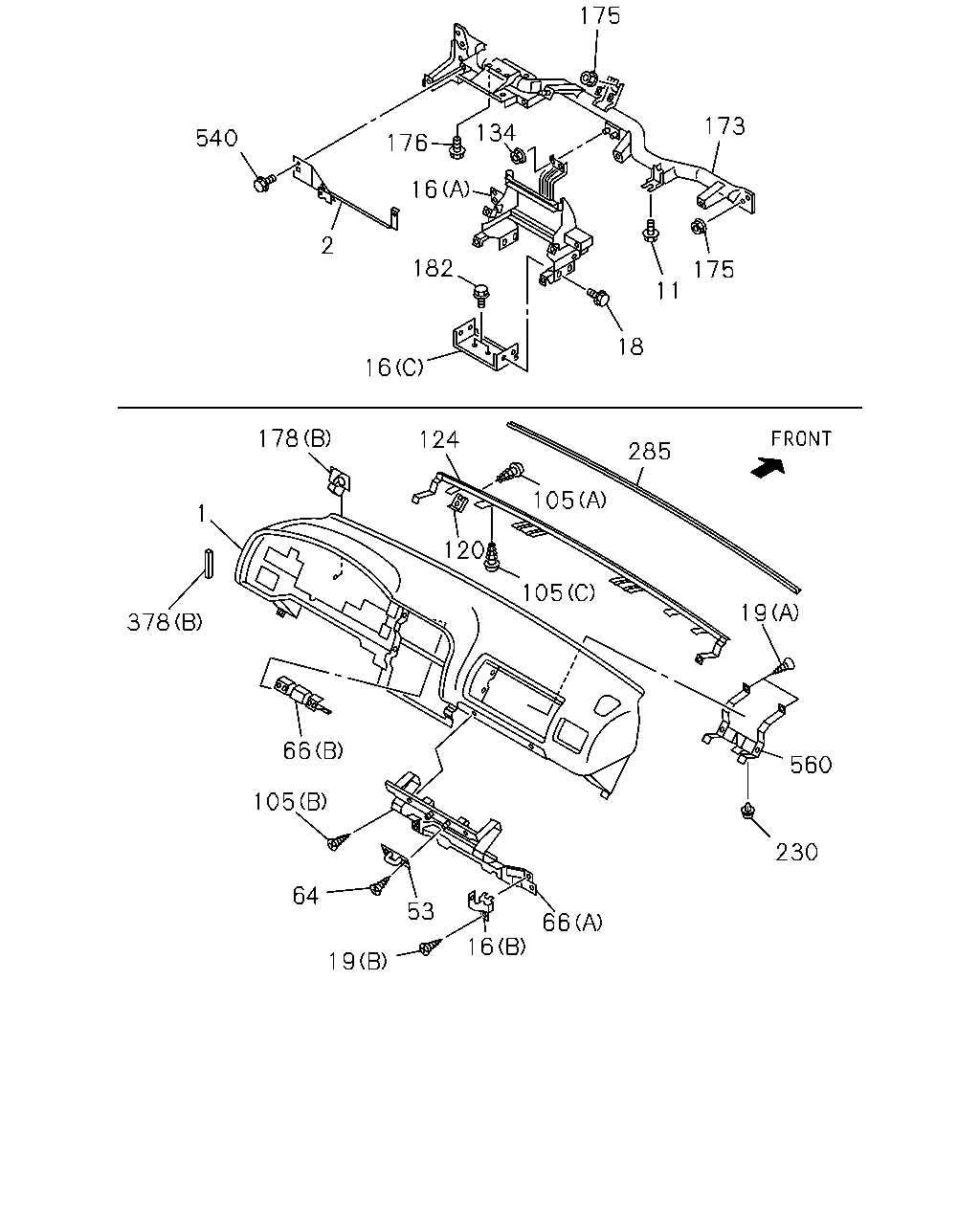

çizim 73638
175 173 134 540 176 16 2 182 175 11 18 16 178 124 285 105 1 120 105 19 378 66 560 105 230 64 53 66 16 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.080 PANEL; INST
GRAY 		8-97156-099-2 01 1 9804- ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ), 6VD1 ENG(RLV) 		8-97112-305-3 01 1 9804-9812 ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 		8-97112-305-4 01 1 9901-0009 ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 		8-97112-305-4 01 1 0010-0108 ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
4JA1 ENG(RLE),4JB1 ENG(RLF) A/T AISIN(RMD) 		8-97112-305-4 01 1 0010-0108 ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) 		8-97112-305-4 01 1 0109- ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
4JA1 ENG(RLE),4JB1 ENG(RLF) A/T AISIN(RMD) 		8-97112-305-4 01 1 0109- ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97187-497-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97187-497-1 01 1 9910- ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
08.015 M6X20 W/WASHER 		8-94112-987-1 08 1 9804-9910 ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
08.015 M6X20 W/WASHER 		8-94112-987-1 07 1 9911- ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97114-331-1 01 1 9804- ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> (A) 		8-97107-579-6 01 1 9804-0108 ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
22LE/C22NE ENG(RJT),20SE ENG(RND) FLOOR REMOTE SHIFT<M11> (A) 		8-97107-579-6 01 1 0109- ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) (A) 		8-97132-077-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) (A) 		8-97132-077-0 01 1 9901- ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-97112-446-1 01 1 9804-9909 ● ● ● ● ●
16 16.085 BRACKET; INST PNL
FLOOR REMOTE SHIFT<M11> (C) 		8-97112-446-1 01 1 9804-9909 ● ● ●
16 16.085 BRACKET; INST PNL
FLOOR REMOTE SHIFT<M11> EXC. PARKING BRAKE FLOOR<7XW> (C) 		8-97112-446-1 01 1 9910-0104 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
EXC. FLOOR REMOTE SHIFT<M11> (C) 		8-97180-785-0 01 1 9804-9909 ● ● ●
16 16.085 BRACKET; INST PNL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. FLOOR REMOTE SHIFT<M11> (C) 		8-97180-785-0 01 1 9910-0009 ● ● ●
16 16.085 BRACKET; INST PNL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. FLOOR REMOTE SHIFT<M11> (C) 		8-97180-785-0 01 1 0010-0103 ● ● ● ●
16 16.085 BRACKET; INST PNL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. FLOOR REMOTE SHIFT<M11> (C) 		8-97180-785-0 01 1 0104-0104 ● ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-97180-785-0 01 1 0105-0105 ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-97180-785-0 01 1 0106- ● ●
16 16.085 BRACKET; INST PNL
FLOOR REMOTE SHIFT<M11> EXC. PARKING BRAKE FLOOR<7XW> (C) 		8-97180-785-0 01 1 0106- ● ● ● ● ●
16 16.085 BRACKET; INST PNL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. FLOOR REMOTE SHIFT<M11> (C) 		8-97180-785-0 01 1 0106- ● ● ● ●
16 16.085 BRACKET; INST PNL
22LE/C22NE ENG(RJT) EXC. FLOOR REMOTE SHIFT<M11> (A) 		8-97180-784-1 01 1 9804-0009 ● ● ●
16 16.085 BRACKET; INST PNL
22LE/C22NE ENG(RJT) EXC. FLOOR REMOTE SHIFT<M11> (A) 		8-97180-784-1 01 1 0010-0108 ● ● ● ●
16 16.085 BRACKET; INST PNL
22LE/C22NE ENG(RJT),20SE ENG(RND) EXC. FLOOR REMOTE SHIFT<M11> (A) 		8-97180-784-1 01 1 0109- ● ● ● ●
18 16.085 BOLT; BRKT
08.080 M6X16 FLANGE 		8-97803-298-0 04 1 9804-0111 ● ● ● ● ● ● ● ●
18 16.085 BOLT; BRKT
16.325 M6X16 FLANGE 		8-97808-792-1 04 1 0112- ● ● ● ● ● ● ● ●
19 16.081 SCREW; BRKT
09.787 (A) M5X14 TAPPING 		9-07066-514-0 09 1 9804-9902 ● ● ● ● ● ● ● ●
19 16.081 SCREW; BRKT
09.787 (A) M5X14 TAPPING 		9-07066-514-0 05 1 9903- ● ● ● ● ● ● ● ●
19 16.081 SCREW; BRKT
06.514 (B) M5X14 TAPPING 		9-07076-514-0 01 1 9804- ● ● ● ● ● ● ● ●
53 16.115 STRIKER; GLOVE BOX 8-97125-756-0 01 1 9804- ● ● ● ● ● ● ● ●
64 16.085 SCREW; STRIKER
09.787 M5X14 TAPPING 		9-07066-514-0 02 1 9804- ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97114-725-0 01 1 9804- ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-97134-474-1 01 1 9804-9902 ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-97217-988-1 01 1 9903- ● ● ● ● ● ● ● ●
105 16.115 SCREW; REINF
16.175 (A) M4X12 TAPPING 		9-07066-412-0 16 1 9804-9807 ● ● ● ● ● ● ● ●
105 16.115 SCREW; REINF
16.650 (A) M4X12 		8-94279-351-0 16 1 9808-9902 ● ● ● ● ● ● ● ●
105 16.115 SCREW; REINF
16.650 (A) M4X12 		8-94279-351-0 11 1 9903- ● ● ● ● ● ● ● ●
105 16.115 SCREW; REINF
08.010 (C) M5X12 TAPPING 		9-07066-512-0 08 1 9804-9807 ● ● ● ● ● ● ● ●
105 16.115 SCREW; REINF
09.787 (B) M5X14 TAPPING 		9-07066-514-0 04 1 9804- ● ● ● ● ● ● ● ●
120 09.262 NUT; SPIRE,INST PNL
M5 SPIRE NUT 		8-94217-271-0 08 1 9804-9902 ● ● ● ● ● ● ● ●
120 09.262 NUT; SPIRE,INST PNL
M5 SPIRE NUT 		8-94217-271-0 06 1 9903- ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR 8-97134-514-0 01 1 9804-9902 ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR 8-97218-067-0 01 1 9903- ● ● ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9804- ● ● ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9804- ● ● ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97187-520-0 01 1 9804-9812 ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE S(RBA) 		8-97187-520-0 01 1 9804-9812 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97187-520-0 01 1 9901-9901 ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE S(RBA) 		8-97187-520-0 01 1 9901-9901 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97219-003-0 01 1 9902-9909 ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE S(RBA) 		8-97219-003-0 01 1 9902-9909 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97219-003-0 01 1 9910-0012 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
EXC. PARKING BRAKE FLOOR<7XW> 		8-97219-003-0 01 1 9910-0012 ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
EXC. PARKING BRAKE FLOOR<7XW> 		8-97256-737-0 01 1 0101-0102 ● ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
EXC. PARKING BRAKE FLOOR<7XW> 		8-97312-021-0 01 1 0103- ● ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
6VD1 ENG(RLV) 		8-97187-556-0 01 1 9804-9901 ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE LS(RBD) 		8-97187-556-0 01 1 9804-9901 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
6VD1 ENG(RLV) 		8-97218-271-0 01 1 9902-9909 ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE LS(RBD) 		8-97218-271-0 01 1 9902-9909 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
PARKING BRAKE FLOOR<7XW> 		8-97218-271-0 01 1 9910-0012 ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97218-271-0 01 1 9910-0012 ●
173 16.081 BEAM ASM; CROSS,INST PANEL
PARKING BRAKE FLOOR<7XW> 		8-97256-736-0 01 1 0101-0102 ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97256-736-0 01 1 0101-0102 ●
173 16.081 BEAM ASM; CROSS,INST PANEL
PARKING BRAKE FLOOR<7XW> 		8-97312-020-0 01 1 0103- ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97312-020-0 01 1 0103- ●
175 16.085 NUT; CROSS BEAM
09.011 M8 W/LK WASHER 		8-97065-435-0 04 1 9804- ● ● ● ● ● ● ● ●
176 16.085 BOLT; CROSS BEAM
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9804- ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
07.833 (A) M6 W/DISHED WASHER 		8-94170-192-0 03 1 9804- ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
(B) 		8-97185-781-0 12 1 9804- ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9804-9812 ● ● ● ● ●
178 16.085 NUT; INST PANEL
GRADE S(RBA) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9804-9812 ● ●
178 16.085 NUT; INST PANEL
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9804-9812 ●
178 16.085 NUT; INST PANEL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9901-9909 ● ● ● ● ●
178 16.085 NUT; INST PANEL
GRADE S(RBA) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9901-9909 ● ●
178 16.085 NUT; INST PANEL
EXC. PARKING BRAKE FLOOR<7XW> 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9910-0010 ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 0011- ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (D) 		8-97185-780-0 08 1 9804-9807 ● ● ● ● ●
178 16.085 NUT; INST PANEL
GRADE S(RBA) (D) 		8-97185-780-0 08 1 9804-9807 ● ●
178 16.085 NUT; INST PANEL
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) (D) 		8-97185-780-0 08 1 9804-9807 ●
182 16.085 BOLT; BRKT,INST PANEL
08.080 M6X16 FLANGE 		8-97803-298-0 02 1 9804-9909 ● ● ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
EXC. PARKING BRAKE FLOOR<7XW> 08.080 M6X16 FLANGE 		8-97803-298-0 02 1 9910- ● ● ● ● ● ● ●
230 09.744 CLIP; INST
16.165 H=16.7 		8-97022-017-0 01 1 9804-9902 ● ● ● ● ● ● ● ●
285 16.085 FINISHER; INST PANEL 8-97142-524-0 01 1 9804- ● ● ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
(B) 		8-97204-877-0 01 1 9804- ● ● ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
6VD1 ENG(RLV) (A) 		8-97120-129-0 01 1 9804-9812 ●
378 09.743 SEAL; INST PANEL
(A) 		8-97120-129-0 01 1 9804-9812 ●
378 09.743 SEAL; INST PANEL
GRADE LS(RBD) (A) 		8-97120-129-0 01 1 9804-9812 ●
378 09.743 SEAL; INST PANEL
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97120-129-0 01 1 9804-9812 ●
378 09.743 SEAL; INST PANEL
6VD1 ENG(RLV) (A) 		8-97120-129-0 01 1 9901-9909 ●
378 09.743 SEAL; INST PANEL
GRADE LS(RBD) (A) 		8-97120-129-0 01 1 9901-9909 ● ● ●
378 09.743 SEAL; INST PANEL
PARKING BRAKE FLOOR<7XW> (A) 		8-97120-129-0 01 1 9910-0010 ● ● ● ●
378 09.743 SEAL; INST PANEL
(A) 		8-97120-129-0 01 1 9910-0010 ●
540 16.085 BOLT; REINFORCEMENT
08.015 M6X20 W/WASHER 		8-94112-987-1 02 1 9804- ● ● ● ● ● ● ● ●
560 16.085 BRACKET 8-97166-913-0 01 1 9804-9902 ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
