◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#43754) — 113 parça

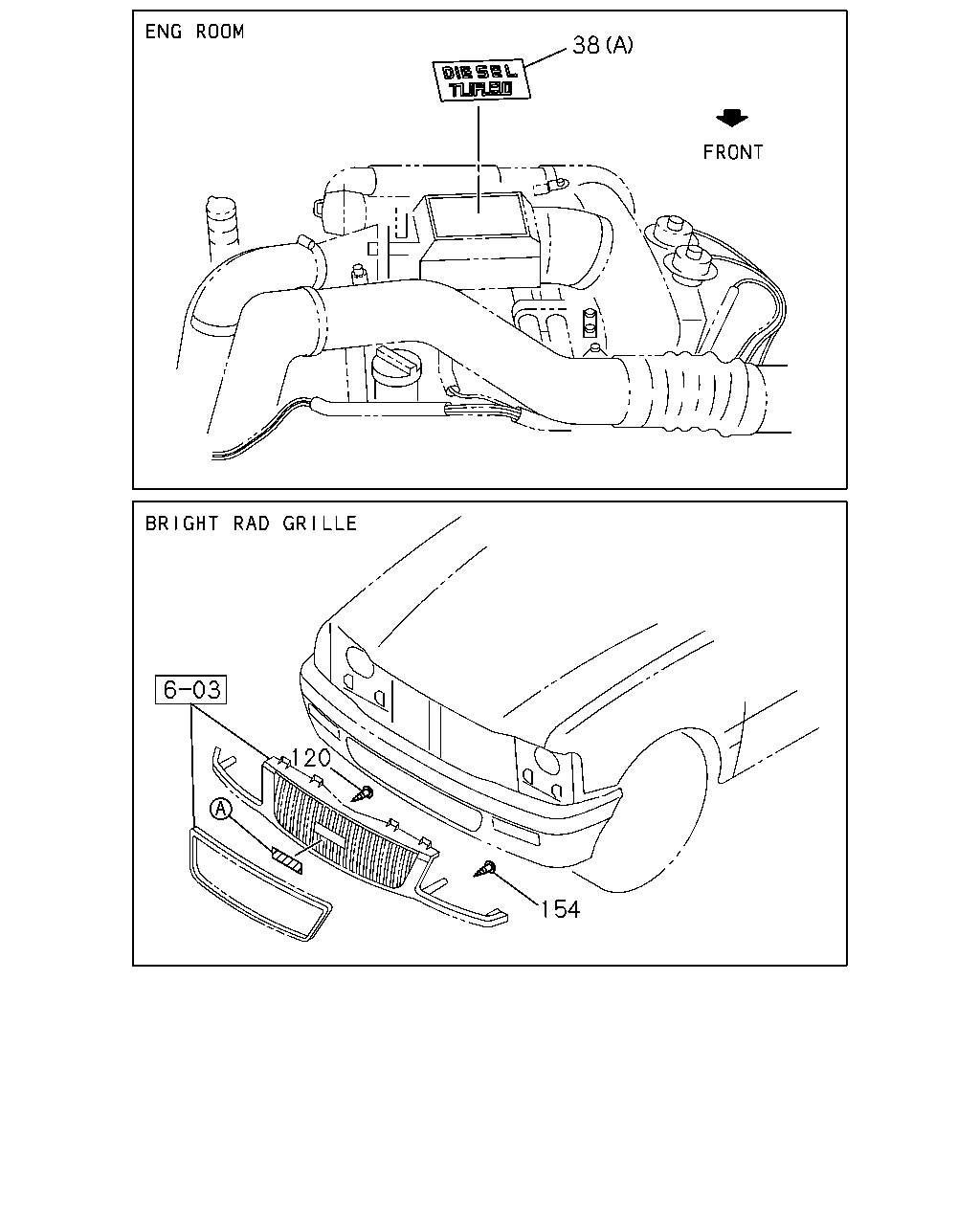

çizim 19434
38 120 154
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
38 01.303 PLATE; NAME
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) (A) 		8-97115-470-0 01 1 9804-9901 ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JB1 ENG(RLF) EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97115-470-0 01 1 9804-9901 ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-97115-470-0 01 1 9902- ● ● ● ● ● ●
38 01.303 PLATE; NAME
6VD1 ENG(RLV) (B) 		8-97179-790-0 02 1 9804-9812 ● ●
38 01.303 PLATE; NAME
6VD1 ENG(RLV) (B) 		8-97179-790-0 02 1 9901-9905 ● ● ● ●
38 01.303 PLATE; NAME
6VD1 ENG(RLV) EXC. NAME PLATE ISUZU KB<6PU> (B) 		8-97179-790-0 02 1 9906- ● ● ● ●
120 01.303 SCREW; MARK
08.900 M5X16 		8-94380-268-0 04 1 9804-0010 ● ● ● ● ● ● ● ●
120 01.303 SCREW; MARK
EXC. RADIATOR GRILLE NON PAINT MADE IN THAI<8FF> 08.900 M5X16 		8-94380-268-0 04 1 0011-0012 ● ● ● ● ● ● ● ●
120 01.303 SCREW; MARK
EXC. BRIGHT RAD GRILLE<V22>, RADIATOR GRILLE NON PAINT MADE IN THAI<8FF> 08.900 M5X16 		8-94380-268-0 04 1 0101- ● ● ● ● ● ● ● ●
120 01.303 SCREW; MARK
RADIATOR GRILLE NON PAINT MADE IN T HAI<8FF> 08.900 M5X16 		8-94380-268-0 02 1 0011-0012 ● ● ● ● ● ●
120 01.303 SCREW; MARK
BRIGHT RAD GRILLE<V22> 08.900 M5X16 		8-94380-268-0 02 1 0101- ● ●
120 01.303 SCREW; MARK
BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT MADE IN THAI<8FF> 08.900 M5X16 		8-94380-268-0 02 1 0101- ● ● ● ● ●
120 01.303 SCREW; MARK
RADIATOR GRILLE NON PAINT MADE IN T HAI<8FF> 08.900 M5X16 		8-94380-268-0 02 1 0101- ●
154 01.303 SCREW
HALOGEN HEAD LAMP RECTANGULAR<TR4> RADIATOR GRILLE NON PAINT MADE IN T HAI<8FF> 02.587 M4X14 TAPPING 		9-07066-414-0 13 1 0012-0012 ● ● ● ● ● ●
154 01.303 SCREW
BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT MADE IN THAI<8FF> 02.587 M4X14 TAPPING 		9-07066-414-0 13 1 0101- ● ● ● ● ● ● ● ●

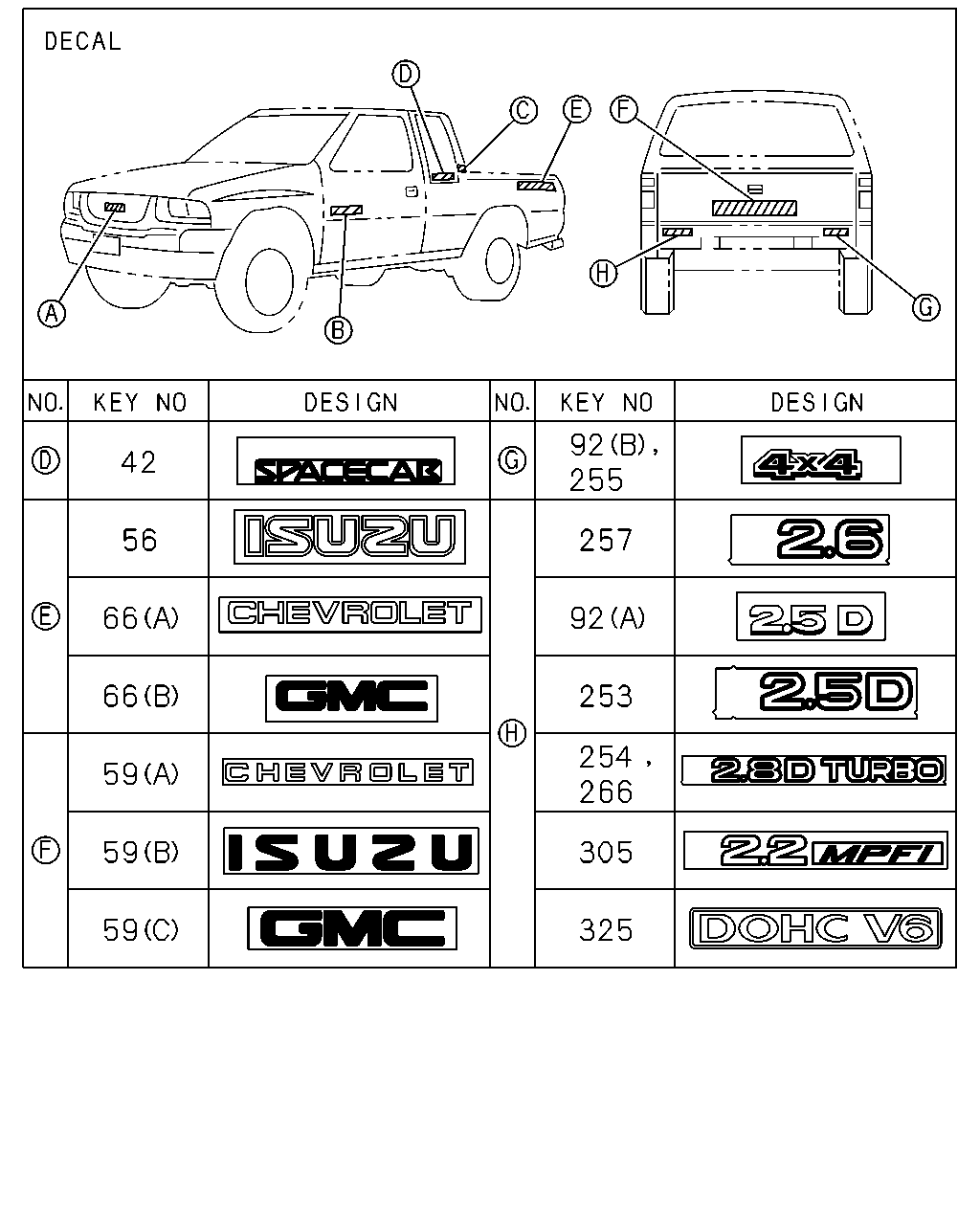

çizim 71628
92 255 42 56 257 66 92 66 253 254 266 59 59 305 59 325
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
42 16.507 DECAL; RR QUARTER 8-97135-089-0 02 1 9804- ● ●
56 08.147 DECAL; BODY SIDE
LETTERING ISUZU RED(6FS) 		8-97022-699-0 02 1 9804- ● ● ● ● ● ● ● ●
56 08.147 DECAL; BODY SIDE
LETTERING ISUZU WHITE(S5N) 		8-97022-698-0 02 1 9804- ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR ALPINE WHITE(877),BODY COLO R RANGER GREEN(880) DECAL-CHEVROLET TAIL GATE(X82) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) DARK SILVER 		8-94476-923-0 01 1 9804-9810 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR LT.SILVER MET(753),BODY COL OR FOREST GREEN MICA(863),BODY COLOR ALPINE WHITE(877),BODY COLOR RANG ER GREEN(880),BODY COLOR ALPINE WHITE/KAISER SILVER MET(887) DECAL-CHEVROLET TAIL GATE(X82) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) DARK SILVER 		8-94476-923-0 01 1 9811-9901 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR LT.SILVER MET(753),BODY COL OR ASTRAL SILVER/KAISER SILVER MET(778),BODY COLOR TRITON BLUE MICA/KA ISER SILVER MET(788),BODY COLOR RANGER GREEN/KAISER SILVER MET(792),BO DY COLOR FOREST GREEN MICA(863), BODY COLOR ALPINE WHITE(877),BODY COLO R RANGER GREEN(880),BODY COLOR ALPINE WHITE/KAISER SILVER MET(887) DECAL-CHEVROLET TAIL GATE(X82) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) DARK SILVER 		8-94476-923-0 01 1 9902-9909 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR ASTRAL SILVER/KAISER SILVER MET(778),BODY COLOR TRITON BLUE MI CA/KAISER SILVER MET(788),BODY COLOR RANGER GREEN/KAISER SILVER MET(792),BODY COLOR ALPINE WHITE(877),BOD Y COLOR RANGER GREEN(880),BODY COLOR ALPINE WHITE/KAISER SILVER MET(887) DECAL-CHEVROLET TAIL GATE(X82) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) DARK SILVER 		8-94476-923-0 01 1 9910-0012 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR SATIN GOLD MET(613), BODYCOLOR CYPRESS GREEN MICA/LT.SILVER MET(615),BODY COLOR SATIN GOLD MET /LIGHT SILVER MET(616),BODY COLOR ASTRAL SILVER MET(718),BODY COLOR AL PINE WHITE/LT.SILVER MET(740),BODY COLOR ASTRAL SILVER/KAISER SILVER M ET(778),BODY COLOR ALPINE WHITE(877) DECAL-CHEVROLET TAIL GATE(X82) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) DARK SILVER 		8-94476-923-0 01 1 0101- ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR ALPINE WHITE(877),BODY COLO R RANGER GREEN(880) DECAL-ISUZU TAIL GATE(EX9) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) DARK SILVER 		8-97001-858-1 01 1 9804-9810 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR LT.SILVER MET(753),BODY COL OR FOREST GREEN MICA(863),BODY COLOR ALPINE WHITE(877),BODY COLOR RANG ER GREEN(880),BODY COLOR ALPINE WHITE/KAISER SILVER MET(887) DECAL-ISUZU TAIL GATE(EX9) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) DARK SILVER 		8-97001-858-1 01 1 9811-9901 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR LT.SILVER MET(753),BODY COL OR ASTRAL SILVER/KAISER SILVER MET(778),BODY COLOR TRITON BLUE MICA/KA ISER SILVER MET(788),BODY COLOR RANGER GREEN/KAISER SILVER MET(792),BO DY COLOR FOREST GREEN MICA(863), BODY COLOR ALPINE WHITE(877),BODY COLO R RANGER GREEN(880),BODY COLOR ALPINE WHITE/KAISER SILVER MET(887) DECAL-ISUZU TAIL GATE(EX9) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) DARK SILVER 		8-97001-858-1 01 1 9902-9909 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR ASTRAL SILVER/KAISER SILVER MET(778),BODY COLOR TRITON BLUE MI CA/KAISER SILVER MET(788),BODY COLOR RANGER GREEN/KAISER SILVER MET(792),BODY COLOR ALPINE WHITE(877),BOD Y COLOR RANGER GREEN(880),BODY COLOR ALPINE WHITE/KAISER SILVER MET(887) DECAL-ISUZU TAIL GATE(EX9) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) DARK SILVER 		8-97001-858-1 01 1 9910-0012 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR SATIN GOLD MET(613), BODYCOLOR CYPRESS GREEN MICA/LT.SILVER MET(615),BODY COLOR SATIN GOLD MET /LIGHT SILVER MET(616),BODY COLOR ASTRAL SILVER MET(718),BODY COLOR AL PINE WHITE/LT.SILVER MET(740),BODY COLOR ASTRAL SILVER/KAISER SILVER M ET(778),BODY COLOR ALPINE WHITE(877) DECAL-ISUZU TAIL GATE(EX9) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) DARK SILVER 		8-97001-858-1 01 1 0101- ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINA BLUE(722),BODY COLOR RADIANT RED(756),BODY COLOR KAISER SILVER MET(878) DECAL-CHEVROLET TAIL GATE(X82) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) LIGHT SILVER 		8-94476-922-0 01 1 9804-9810 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR RADIANT RED(756) SAUDI ARABIA EQUIPMENT(EU2) DECAL-CHEVROLET TAIL GATE(X82) (A) LIGHT SILVER 		8-94476-922-0 01 1 9804-9810 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINA BLUE(722),BODY COLOR RADIANT RED(756),BODY COLOR REDROCK MICA(872),BODY COLOR KAISER S ILVER MET(878),BODY COLOR RADIANT RED/KAISER SILVER MET(888),BODY COLO R MARINA BLUE/KAISER SILVER MET(889) DECAL-CHEVROLET TAIL GATE(X82) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) LIGHT SILVER 		8-94476-922-0 01 1 9811-9909 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR RADIANT RED(756),BODY COLOR RED ROCK MICA(872),BODY COLOR RADIANT RED/KAISER SILVER MET(888) SAUDI ARABIA EQUIPMENT(EU2) DECAL-CHEVROLET TAIL GATE(X82) (A) LIGHT SILVER 		8-94476-922-0 01 1 9811-9909 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINA BLUE(722),BODY COLOR RADIANT RED(756),BODY COLOR KAISER SILVER MET(878),BODY COLOR RADI ANT RED/KAISER SILVER MET(888), BODYCOLOR MARINA BLUE/KAISER SILVER ME T(889) DECAL-CHEVROLET TAIL GATE(X82) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) LIGHT SILVER 		8-94476-922-0 01 1 9910-0012 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/KAISER SILVER MET(888) SAUDI ARABIA EQUIPMENT(EU2) DECAL-CHEVROLET TAIL GATE(X82) (A) LIGHT SILVER 		8-94476-922-0 01 1 9910-0012 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER M ET(614),BODY COLOR KAISER SILVER MET(878) DECAL-CHEVROLET TAIL GATE(X82) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) LIGHT SILVER 		8-94476-922-0 01 1 0101- ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/LT.SILVER MET(779) DECAL-CHEVROLET TAIL GATE(X82) (A) LIGHT SILVER 		8-94476-922-0 01 1 0101- ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINA BLUE(722),BODY COLOR RADIANT RED(756),BODY COLOR KAISER SILVER MET(878) DECAL-ISUZU TAIL GATE(EX9) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) LIGHT SILVER 		8-97001-857-1 01 1 9804-9810 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR RADIANT RED(756) SAUDI ARABIA EQUIPMENT(EU2) DECAL-ISUZU TAIL GATE(EX9) (B) LIGHT SILVER 		8-97001-857-1 01 1 9804-9810 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINA BLUE(722),BODY COLOR RADIANT RED(756),BODY COLOR REDROCK MICA(872),BODY COLOR KAISER S ILVER MET(878),BODY COLOR RADIANT RED/KAISER SILVER MET(888),BODY COLO R MARINA BLUE/KAISER SILVER MET(889) DECAL-ISUZU TAIL GATE(EX9) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) LIGHT SILVER 		8-97001-857-1 01 1 9811-9909 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR RADIANT RED(756),BODY COLOR RED ROCK MICA(872),BODY COLOR RADIANT RED/KAISER SILVER MET(888) SAUDI ARABIA EQUIPMENT(EU2) DECAL-ISUZU TAIL GATE(EX9) (B) LIGHT SILVER 		8-97001-857-1 01 1 9811-9909 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINA BLUE(722),BODY COLOR RADIANT RED(756),BODY COLOR KAISER SILVER MET(878),BODY COLOR RADI ANT RED/KAISER SILVER MET(888), BODYCOLOR MARINA BLUE/KAISER SILVER ME T(889) DECAL-ISUZU TAIL GATE(EX9) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) LIGHT SILVER 		8-97001-857-1 01 1 9910-0012 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/KAISER SILVER MET(888) SAUDI ARABIA EQUIPMENT(EU2) DECAL-ISUZU TAIL GATE(EX9) (B) LIGHT SILVER 		8-97001-857-1 01 1 9910-0012 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER M ET(614),BODY COLOR KAISER SILVER MET(878) DECAL-ISUZU TAIL GATE(EX9) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) LIGHT SILVER 		8-97001-857-1 01 1 0101- ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/LT.SILVER MET(779) DECAL-ISUZU TAIL GATE(EX9) (B) LIGHT SILVER 		8-97001-857-1 01 1 0101- ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR MARINA BLUE(722),BODY COLOR TRITON BLUE MICA(725),BODY COLOR ALPINE WHITE(877),BODY COLOR KAISE R SILVER MET(878),BODY COLOR RANGERGREEN(880) SAUDI ARABIA EQUIPMENT(EU2) DECAL-CHEVROLET TAIL GATE(X82) 03.459 (A) RED 		8-94476-924-0 01 1 9804-9810 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR MARINA BLUE(722),BODY COLOR TRITON BLUE MICA(725),BODY COLOR LT.SILVER MET(753),BODY COLOR FORE ST GREEN MICA(863),BODY COLOR ALPINE WHITE(877),BODY COLOR KAISER SILV ER MET(878),BODY COLOR RANGER GREEN(880),BODY COLOR ALPINE WHITE/KAISE R SILVER MET(887),BODY COLOR MARINABLUE/KAISER SILVER MET(889) SAUDI ARABIA EQUIPMENT(EU2) DECAL-ISUZU TAIL GATE(EX9) 03.459 (A) RED 		8-94476-924-0 01 1 9811-9901 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR MARINA BLUE(722),BODY COLOR TRITON BLUE MICA(725),BODY COLOR LT.SILVER MET(753),BODY COLOR ASTR AL SILVER/KAISER SILVER MET(778), BODY COLOR TRITON BLUE MICA/KAISER SI LVER MET(788),BODY COLOR RANGER GREEN/KAISER SILVER MET(792),BODY COLO R FOREST GREEN MICA(863),BODY COLORALPINE WHITE(877),BODY COLOR KAISE R SILVER MET(878),BODY COLOR RANGERGREEN(880),BODY COLOR ALPINE WHITE /KAISER SILVER MET(887),BODY COLOR MARINA BLUE/KAISER SILVER MET(889) SAUDI ARABIA EQUIPMENT(EU2) DECAL-CHEVROLET TAIL GATE(X82) 03.459 (A) RED 		8-94476-924-0 01 1 9902-9909 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR MARINA BLUE(722),BODY COLOR TRITON BLUE MICA(725),BODY COLOR ASTRAL SILVER/KAISER SILVER MET(778),BODY COLOR TRITON BLUE MICA/KAIS ER SILVER MET(788),BODY COLOR RANGER GREEN/KAISER SILVER MET(792),BODY COLOR ALPINE WHITE(877),BODY COLOR KAISER SILVER MET(878),BODY COLOR RANGER GREEN(880),BODY COLOR ALPINEWHITE/KAISER SILVER MET(887),BODY COLOR MARINA BLUE/KAISER SILVER MET (889) SAUDI ARABIA EQUIPMENT(EU2) DECAL-CHEVROLET TAIL GATE(X82) 03.459 (A) RED 		8-94476-924-0 01 1 9910-9910 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR MARINA BLUE(722),BODY COLOR TRITON BLUE MICA(725),BODY COLOR DARK REGATTA(759),BODY COLOR ASTRA L SILVER/KAISER SILVER MET(778), BODY COLOR TRITON BLUE MICA/KAISER SIL VER MET(788),BODY COLOR RANGER GREEN/KAISER SILVER MET(792),BODY COLOR ALPINE WHITE(877),BODY COLOR KAISE R SILVER MET(878),BODY COLOR RANGERGREEN(880),BODY COLOR ALPINE WHITE /KAISER SILVER MET(887),BODY COLOR MARINA BLUE/KAISER SILVER MET(889) SAUDI ARABIA EQUIPMENT(EU2) DECAL-CHEVROLET TAIL GATE(X82) 03.459 (A) RED 		8-94476-924-0 01 1 9911-0012 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR CAPE BLUE MET(612),BODY COLOR SATIN GOLD MET(613),BODY COLOR CAPE BLUE MET/KAISER SILVER MET(614),BODY COLOR CYPRESS GREEN MICA/L T.SILVER MET(615),BODY COLOR SATIN GOLD MET/LIGHT SILVER MET(616), BODYCOLOR ASTRAL SILVER MET(718),BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR DARK REGATTA(759),BOD Y COLOR ASTRAL SILVER/KAISER SILVER MET(778),BODY COLOR ALPINE WHITE(877),BODY COLOR KAISER SILVER MET(878) SAUDI ARABIA EQUIPMENT(EU2) DECAL-CHEVROLET TAIL GATE(X82) 03.459 (A) RED 		8-94476-924-0 01 1 0101- ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR MARINA BLUE(722),BODY COLOR TRITON BLUE MICA(725),BODY COLOR ALPINE WHITE(877),BODY COLOR KAISE R SILVER MET(878),BODY COLOR RANGERGREEN(880) SAUDI ARABIA EQUIPMENT(EU2) DECAL-ISUZU TAIL GATE(EX9) (B) RED 		8-97001-859-1 01 1 9804-9810 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR MARINA BLUE(722),BODY COLOR TRITON BLUE MICA(725),BODY COLOR LT.SILVER MET(753),BODY COLOR FORE ST GREEN MICA(863),BODY COLOR ALPINE WHITE(877),BODY COLOR KAISER SILV ER MET(878),BODY COLOR RANGER GREEN(880),BODY COLOR ALPINE WHITE/KAISE R SILVER MET(887),BODY COLOR MARINABLUE/KAISER SILVER MET(889) SAUDI ARABIA EQUIPMENT(EU2) DECAL-ISUZU TAIL GATE(EX9) (B) RED 		8-97001-859-1 01 1 9811-9901 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR MARINA BLUE(722),BODY COLOR TRITON BLUE MICA(725),BODY COLOR LT.SILVER MET(753),BODY COLOR ASTR AL SILVER/KAISER SILVER MET(778), BODY COLOR TRITON BLUE MICA/KAISER SI LVER MET(788),BODY COLOR RANGER GREEN/KAISER SILVER MET(792),BODY COLO R FOREST GREEN MICA(863),BODY COLORALPINE WHITE(877),BODY COLOR KAISE R SILVER MET(878),BODY COLOR RANGERGREEN(880),BODY COLOR ALPINE WHITE /KAISER SILVER MET(887),BODY COLOR MARINA BLUE/KAISER SILVER MET(889) SAUDI ARABIA EQUIPMENT(EU2) DECAL-ISUZU TAIL GATE(EX9) (B) RED 		8-97001-859-1 01 1 9902-9909 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR MARINA BLUE(722),BODY COLOR TRITON BLUE MICA(725),BODY COLOR ASTRAL SILVER/KAISER SILVER MET(778),BODY COLOR TRITON BLUE MICA/KAIS ER SILVER MET(788),BODY COLOR RANGER GREEN/KAISER SILVER MET(792),BODY COLOR ALPINE WHITE(877),BODY COLOR KAISER SILVER MET(878),BODY COLOR RANGER GREEN(880),BODY COLOR ALPINEWHITE/KAISER SILVER MET(887),BODY COLOR MARINA BLUE/KAISER SILVER MET (889) SAUDI ARABIA EQUIPMENT(EU2) DECAL-ISUZU TAIL GATE(EX9) (B) RED 		8-97001-859-1 01 1 9910-9910 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR MARINA BLUE(722),BODY COLOR TRITON BLUE MICA(725),BODY COLOR DARK REGATTA(759),BODY COLOR ASTRA L SILVER/KAISER SILVER MET(778), BODY COLOR TRITON BLUE MICA/KAISER SIL VER MET(788),BODY COLOR RANGER GREEN/KAISER SILVER MET(792),BODY COLOR ALPINE WHITE(877),BODY COLOR KAISE R SILVER MET(878),BODY COLOR RANGERGREEN(880),BODY COLOR ALPINE WHITE /KAISER SILVER MET(887),BODY COLOR MARINA BLUE/KAISER SILVER MET(889) SAUDI ARABIA EQUIPMENT(EU2) DECAL-ISUZU TAIL GATE(EX9) (B) RED 		8-97001-859-1 01 1 9911-0012 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR CAPE BLUE MET(612),BODY COLOR SATIN GOLD MET(613),BODY COLOR CAPE BLUE MET/KAISER SILVER MET(614),BODY COLOR CYPRESS GREEN MICA/L T.SILVER MET(615),BODY COLOR SATIN GOLD MET/LIGHT SILVER MET(616), BODYCOLOR ASTRAL SILVER MET(718),BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR DARK REGATTA(759),BOD Y COLOR ASTRAL SILVER/KAISER SILVER MET(778),BODY COLOR ALPINE WHITE(877),BODY COLOR KAISER SILVER MET(878) SAUDI ARABIA EQUIPMENT(EU2) DECAL-ISUZU TAIL GATE(EX9) (B) RED 		8-97001-859-1 01 1 0101- ● ● ● ●
59 01.303 DECAL; TAIL GATE
GMC BRAND<RWT> RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) (C) 		8-97249-738-0 01 1 0001- ● ● ● ●
66 17.505 DECAL; SIDE PANEL
LETTERING CHEVROLET WHITE(S7E) (A) 		8-94318-467-0 02 1 9804- ● ● ● ● ● ● ● ●
66 17.505 DECAL; SIDE PANEL
GMC BRAND<RWT> RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. BODY SIDE STRIPE TYPE C(7RC) (B) 		8-97249-737-0 02 1 0001- ● ● ● ●
92 08.147 DECAL; RR END
4JA1 ENG(RLE) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 01.303 (A) 		8-97139-234-1 01 1 9804-0009 ● ● ● ● ● ● ● ●
92 08.147 DECAL; RR END
4JA1 ENG(RLE) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),R R BODY DBL WALL CTR PULL INNER & OU TER HOOK(7TN) 01.303 (A) 		8-97139-234-1 01 1 0010- ● ● ● ● ● ● ● ●
92 08.147 DECAL; RR END
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 01.303 (B) 		8-97141-969-0 01 1 9804-0009 ● ● ● ●
92 08.147 DECAL; RR END
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PU LL INNER & OUTER HOOK(7TN) 01.303 (B) 		8-97141-969-0 01 1 0010- ● ● ● ●
253 01.303 DECAL; 2.5D
4JA1 ENG(RLE) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 		8-97139-234-1 01 1 9804-0010 ● ● ● ● ● ● ● ●
253 01.303 DECAL; 2.5D
4JA1 ENG(RLE) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BOD Y DBL WALL CTR PULL INNER & OUTER H OOK(7TN) 		8-97139-234-1 01 1 0011- ● ● ● ● ● ● ● ●
254 01.303 DECAL; 2.8D TURBO
4JB1 ENG(RLF) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 		8-97139-236-0 01 1 9804-0010 ● ● ● ● ● ●
254 01.303 DECAL; 2.8D TURBO
4JB1 ENG(RLF) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BOD Y DBL WALL CTR PULL INNER & OUTER H OOK(7TN) 		8-97139-236-0 01 1 0011- ● ● ● ● ● ●
255 01.303 DECAL; "4X4"
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97141-969-0 01 1 9804-0010 ● ● ● ●
255 01.303 DECAL; "4X4"
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97141-969-0 01 1 0011- ● ● ● ●
257 01.303 DECAL; "2.6"
4ZE1 ENG(RLJ) 		8-97139-235-0 01 1 9804-9812 ● ● ●
266 01.303 DECAL; "2.8D TURBO"
4JB1 ENG(RLF) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 		8-97139-236-0 01 1 9804-0009 ● ● ● ● ● ●
266 01.303 DECAL; "2.8D TURBO"
4JB1 ENG(RLF) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),R R BODY DBL WALL CTR PULL INNER & OU TER HOOK(7TN) 		8-97139-236-0 01 1 0010- ● ● ● ● ● ●
305 01.303 DECAL; 2.2L MPFI
22LE/C22NE ENG(RJT) 		8-97181-660-0 01 1 9804-0009 ● ● ● ● ● ● ● ●
305 01.303 DECAL; 2.2L MPFI
22LE/C22NE ENG(RJT) EXC. RR BODY DBL WALL CTR PULL INNE R & OUTER HOOK(7TN),LABEL DELETE<8EY> 		8-97181-660-0 01 1 0010-0109 ● ● ● ● ● ● ● ●
305 01.303 DECAL; 2.2L MPFI
22LE/C22NE ENG(RJT) EXC. LABEL DELETE<8EY> 		8-97181-660-0 01 1 0110- ● ● ● ● ● ● ● ●
325 17.215 PLATE; NAME,V6
6VD1 ENG(RLV) NAME PLATE ISUZU KB<6PU> 01.303 		8-97179-790-0 01 1 9906- ● ● ● ●

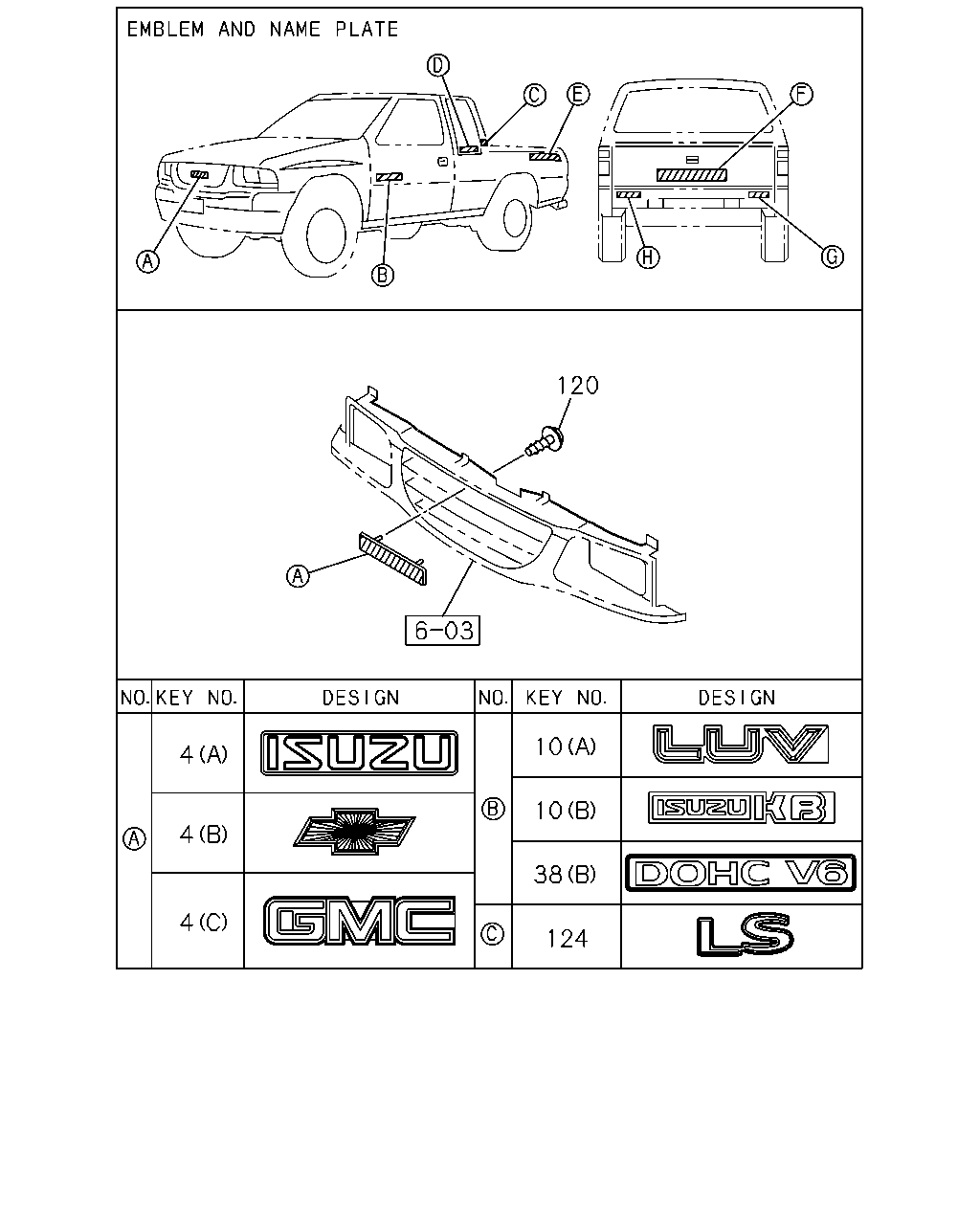

çizim 74106
120 10 4 10 4 38 4 124
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 01.303 EMBLEM; RAD GRILLE
BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT MADE IN THAI<8FF> EXC. CHEVROLET BRAND<RWE>,GMC BRAND<RWT> (A) 		8-97110-163-0 01 1 0101-0109 ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
BRIGHT RAD GRILLE<V22> EXC. CHEVROLET BRAND<RWE>,GMC BRAND<RWT> (A) 		8-97110-163-0 01 1 0110-0304 ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
BRIGHT RAD GRILLE<V22> EXC. CHEVROLET BRAND<RWE>,GMC BRAND<RWT> (A) 		8-97910-948-0 01 1 0305- ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
CHEVROLET MARK<YL6> (B) 		8-97177-255-1 01 1 9804-0010 ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
CHEVROLET MARK<YL6> EXC. RADIATOR GRILLE NON PAINT MADE IN THAI<8FF> (B) 		8-97177-255-1 01 1 0011-0012 ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
CHEVROLET BRAND<RWE> EXC. BRIGHT RAD GRILLE<V22>, RADIATOR GRILLE NON PAINT MADE IN THAI<8FF> (B) 		8-97177-255-1 01 1 0101- ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
EXC. CHEVROLET MARK<YL6> (A) 		8-97203-475-2 01 1 9804-9912 ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
EXC. GMC BRAND<RWT>,CHEVROLET MARK<YL6> (A) 		8-97203-475-2 01 1 0001-0010 ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
EXC. GMC BRAND<RWT>,CHEVROLET MARK<YL6>,RADIATOR GRILLE NON PAINT MADEIN THAI<8FF> (A) 		8-97203-475-2 01 1 0011-0012 ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
EXC. CHEVROLET BRAND<RWE>,GMC BRAND<RWT>,BRIGHT RAD GRILLE<V22>, RADIATOR GRILLE NON PAINT MADE IN THAI<8FF> (A) 		8-97203-475-2 01 1 0101- ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
CHEVROLET MARK<YL6> RADIATOR GRILLE NON PAINT MADE IN T HAI<8FF> (B) 		8-97176-327-0 01 1 0011-0012 ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
CHEVROLET BRAND<RWE> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT MADE IN THAI<8FF> (B) 		8-97176-327-0 01 1 0101-0109 ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
CHEVROLET BRAND<RWE> RADIATOR GRILLE NON PAINT MADE IN T HAI<8FF> (B) 		8-97176-327-0 01 1 0110- ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
GMC BRAND<RWT> (C) 		8-97248-936-0 01 1 0001-0010 ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
GMC BRAND<RWT> EXC. RADIATOR GRILLE NON PAINT MADE IN THAI<8FF> (C) 		8-97248-936-0 01 1 0011-0012 ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
GMC BRAND<RWT> EXC. BRIGHT RAD GRILLE<V22>, RADIATOR GRILLE NON PAINT MADE IN THAI<8FF> (C) 		8-97248-936-0 01 1 0101- ● ● ● ●
10 01.303 EMBLEM; DOOR
CHEVROLET MARK<YL6> 08.147 (A) 		8-94233-256-2 02 1 9804-0001 ● ● ● ● ● ● ● ●
10 01.303 EMBLEM; DOOR
CHEVROLET MARK<YL6> 08.147 (A) 		8-94233-256-2 02 1 0002-0012 ● ● ● ●
10 01.303 EMBLEM; DOOR
GMC BRAND<RWT>,CHEVROLET MARK<YL6> 08.147 (A) 		8-94233-256-2 02 1 0002-0012 ● ● ● ●
10 01.303 EMBLEM; DOOR
CHEVROLET BRAND<RWE> 08.147 (A) 		8-94233-256-2 02 1 0101- ● ● ● ●
10 01.303 EMBLEM; DOOR
CHEVROLET BRAND<RWE>,GMC BRAND<RWT> 08.147 (A) 		8-94233-256-2 02 1 0101- ● ● ● ●
10 01.303 EMBLEM; DOOR
NAME PLATE ISUZU KB<6PU> (B) 		8-97022-693-1 02 1 9804- ● ● ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) (A) 		8-97115-470-0 01 1 9804-9901 ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JB1 ENG(RLF) EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97115-470-0 01 1 9804-9901 ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-97115-470-0 01 1 9902- ● ● ● ● ● ●
38 01.303 PLATE; NAME
6VD1 ENG(RLV) (B) 		8-97179-790-0 02 1 9804-9812 ● ●
38 01.303 PLATE; NAME
6VD1 ENG(RLV) (B) 		8-97179-790-0 02 1 9901-9905 ● ● ● ●
38 01.303 PLATE; NAME
6VD1 ENG(RLV) EXC. NAME PLATE ISUZU KB<6PU> (B) 		8-97179-790-0 02 1 9906- ● ● ● ●
120 01.303 SCREW; MARK
08.900 M5X16 		8-94380-268-0 04 1 9804-0010 ● ● ● ● ● ● ● ●
120 01.303 SCREW; MARK
EXC. RADIATOR GRILLE NON PAINT MADE IN THAI<8FF> 08.900 M5X16 		8-94380-268-0 04 1 0011-0012 ● ● ● ● ● ● ● ●
120 01.303 SCREW; MARK
EXC. BRIGHT RAD GRILLE<V22>, RADIATOR GRILLE NON PAINT MADE IN THAI<8FF> 08.900 M5X16 		8-94380-268-0 04 1 0101- ● ● ● ● ● ● ● ●
120 01.303 SCREW; MARK
RADIATOR GRILLE NON PAINT MADE IN T HAI<8FF> 08.900 M5X16 		8-94380-268-0 02 1 0011-0012 ● ● ● ● ● ●
120 01.303 SCREW; MARK
BRIGHT RAD GRILLE<V22> 08.900 M5X16 		8-94380-268-0 02 1 0101- ● ●
120 01.303 SCREW; MARK
BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT MADE IN THAI<8FF> 08.900 M5X16 		8-94380-268-0 02 1 0101- ● ● ● ● ●
120 01.303 SCREW; MARK
RADIATOR GRILLE NON PAINT MADE IN T HAI<8FF> 08.900 M5X16 		8-94380-268-0 02 1 0101- ●
124 08.147 PLATE; NAME
16.507 		8-97805-215-2 02 1 9804- ● ●
124 08.147 PLATE; NAME
GRADE LS(RBD) 16.507 		8-97805-215-2 02 1 9804- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
