◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-84A - FEED PUMP; INJECTION PUMP ▶
0-84A — FEED PUMP; INJECTION PUMP (#4375) — 33 parça

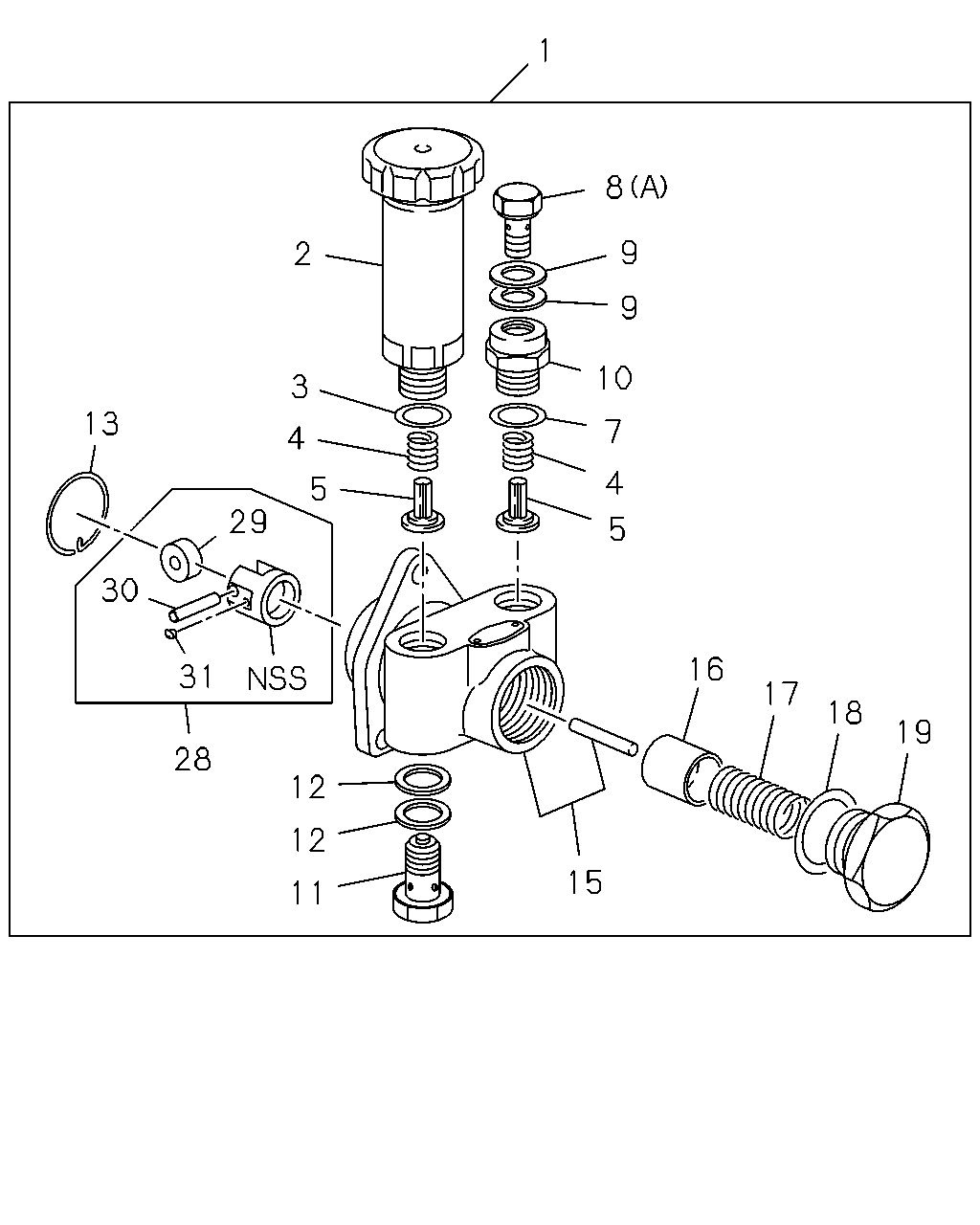

çizim 36472
1 8 9 2 9 10 3 13 7 4 4 5 29 5 30 16 31 17 18 19 28 12 12 15 11
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: B = 1-15601-529-4, D = 1-15601-539-4 		1-15750-048-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 1-15601-527-4, C = 1-15601-530-6, E = 1-15601-602-6, I = 1-15601-679-5 		1-15750-100-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: J = 1-15601-680-5, K = 1-15602-238-4 		1-15750-101-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: F = 1-15601-616-5, G = 1-15601-617-6, H = 1-15601-620-6, L = 1-15602-889-0, M = 1-15602-911-0 		1-15750-104-0 01 1 -
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 1-15601-527-4, C = 1-15601-530-6, E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, H = 1-15601-620-6, I = 1-15601-679-5, J = 1-15601-680-5, K = 1-15602-238-4, L = 1-15602-889-0, M = 1-15602-911-0 		1-15761-006-0 01 1 -
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: B = 1-15601-529-4, D = 1-15601-539-4 		8-94131-130-0 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: H = 1-15601-620-6, K = 1-15602-238-4, L = 1-15602-889-0 		1-09623-016-0 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 1-15601-527-4, B = 1-15601-529-4, C = 1-15601-530-6, D = 1-15601-539-4, E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, I = 1-15601-679-5, J = 1-15601-680-5, M = 1-15602-911-0 		1-19623-016-0 01 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: K = 1-15602-238-4 		9-81351-702-0 01 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 1-15601-527-4, B = 1-15601-529-4, C = 1-15601-530-6, D = 1-15601-539-4, E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, H = 1-15601-620-6, I = 1-15601-679-5, J = 1-15601-680-5, L = 1-15602-889-0, M = 1-15602-911-0 		9-81351-702-0 02 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: A = 1-15601-527-4, B = 1-15601-529-4, C = 1-15601-530-6, D = 1-15601-539-4, E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, H = 1-15601-620-6, I = 1-15601-679-5, J = 1-15601-680-5, K = 1-15602-238-4, L = 1-15602-889-0, M = 1-15602-911-0 		9-81351-602-0 02 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: H = 1-15601-620-6, K = 1-15602-238-4, L = 1-15602-889-0 		1-09623-016-0 01 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 1-15601-527-4, B = 1-15601-529-4, C = 1-15601-530-6, D = 1-15601-539-4, E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, I = 1-15601-679-5, J = 1-15601-680-5, M = 1-15602-911-0 		1-19623-016-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
(A) ASM PART: A = 1-15601-527-4, B = 1-15601-529-4, C = 1-15601-530-6, D = 1-15601-539-4, E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, H = 1-15601-620-6, I = 1-15601-679-5, J = 1-15601-680-5, K = 1-15602-238-4, L = 1-15602-889-0, M = 1-15602-911-0 		1-15759-011-0 01 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ASM PART: A = 1-15601-527-4, B = 1-15601-529-4, C = 1-15601-530-6, D = 1-15601-539-4, E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, H = 1-15601-620-6, I = 1-15601-679-5, J = 1-15601-680-5, K = 1-15602-238-4, L = 1-15602-889-0, M = 1-15602-911-0 		1-15759-012-0 02 1 -
10 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 1-15601-527-4, B = 1-15601-529-4, C = 1-15601-530-6, D = 1-15601-539-4, E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, H = 1-15601-620-6, I = 1-15601-679-5, J = 1-15601-680-5, K = 1-15602-238-4, L = 1-15602-889-0, M = 1-15602-911-0 		1-15759-003-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: B = 1-15601-529-4, D = 1-15601-539-4 		1-09675-063-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 1-15601-527-4, C = 1-15601-530-6, E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, H = 1-15601-620-6, I = 1-15601-679-5, J = 1-15601-680-5, K = 1-15602-238-4, L = 1-15602-889-0, M = 1-15602-911-0 		1-15759-029-0 01 1 -
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ASM PART: A = 1-15601-527-4, B = 1-15601-529-4, C = 1-15601-530-6, D = 1-15601-539-4, E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, H = 1-15601-620-6, I = 1-15601-679-5, J = 1-15601-680-5, K = 1-15602-238-4, L = 1-15602-889-0, M = 1-15602-911-0 		1-15759-012-0 02 1 -
13 RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15601-527-4, B = 1-15601-529-4, C = 1-15601-530-6, D = 1-15601-539-4, E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, H = 1-15601-620-6, I = 1-15601-679-5, J = 1-15601-680-5, K = 1-15602-238-4, L = 1-15602-889-0, M = 1-15602-911-0 		9-81355-025-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: D = 1-15601-539-4, K = 1-15602-238-4 		1-15751-012-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, H = 1-15601-620-6, L = 1-15602-889-0, M = 1-15602-911-0 		1-15751-013-1 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: A = 1-15601-527-4, B = 1-15601-529-4, C = 1-15601-530-6, I = 1-15601-679-5, J = 1-15601-680-5 		5-15751-012-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: A = 1-15601-527-4, B = 1-15601-529-4, C = 1-15601-530-6, D = 1-15601-539-4, E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, H = 1-15601-620-6, I = 1-15601-679-5, J = 1-15601-680-5, K = 1-15602-238-4, L = 1-15602-889-0, M = 1-15602-911-0 		9-81351-205-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 1-15601-527-4, B = 1-15601-529-4, C = 1-15601-530-6, D = 1-15601-539-4, E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, H = 1-15601-620-6, I = 1-15601-679-5, J = 1-15601-680-5, K = 1-15602-238-4, L = 1-15602-889-0, M = 1-15602-911-0 		9-81351-302-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 1-15601-527-4, C = 1-15601-530-6, E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, H = 1-15601-620-6, I = 1-15601-679-5, J = 1-15601-680-5, K = 1-15602-238-4, L = 1-15602-889-0, M = 1-15602-911-0 		1-15759-042-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: B = 1-15601-529-4, D = 1-15601-539-4 		9-81355-035-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 1-15601-527-4, B = 1-15601-529-4, D = 1-15601-539-4, E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, H = 1-15601-620-6, I = 1-15601-679-5, J = 1-15601-680-5, K = 1-15602-238-4, L = 1-15602-889-0, M = 1-15602-911-0 		8-94171-185-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: C = 1-15601-530-6 		9-84171-185-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: A = 1-15601-527-4, B = 1-15601-529-4, C = 1-15601-530-6, D = 1-15601-539-4, E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, H = 1-15601-620-6, I = 1-15601-679-5, J = 1-15601-680-5, K = 1-15602-238-4, L = 1-15602-889-0, M = 1-15602-911-0 		5-15754-001-0 01 1 -
29 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15601-527-4, B = 1-15601-529-4, C = 1-15601-530-6, D = 1-15601-539-4, E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, H = 1-15601-620-6, I = 1-15601-679-5, J = 1-15601-680-5, K = 1-15602-238-4, L = 1-15602-889-0, M = 1-15602-911-0 		9-81351-403-0 01 1 -
30 PIN; TAPPET ROLLER,FUEL FEED PUMP
ASM PART: A = 1-15601-527-4, B = 1-15601-529-4, C = 1-15601-530-6, D = 1-15601-539-4, E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, H = 1-15601-620-6, I = 1-15601-679-5, J = 1-15601-680-5, K = 1-15602-238-4, L = 1-15602-889-0, M = 1-15602-911-0 		9-81351-410-0 01 1 -
31 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15601-527-4, B = 1-15601-529-4, C = 1-15601-530-6, D = 1-15601-539-4, E = 1-15601-602-6, F = 1-15601-616-5, G = 1-15601-617-6, H = 1-15601-620-6, I = 1-15601-679-5, J = 1-15601-680-5, K = 1-15602-238-4, L = 1-15602-889-0, M = 1-15602-911-0 		1-15759-002-0 02 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
