6-70 — FLOOR PANEL (#43746) — 327 parça

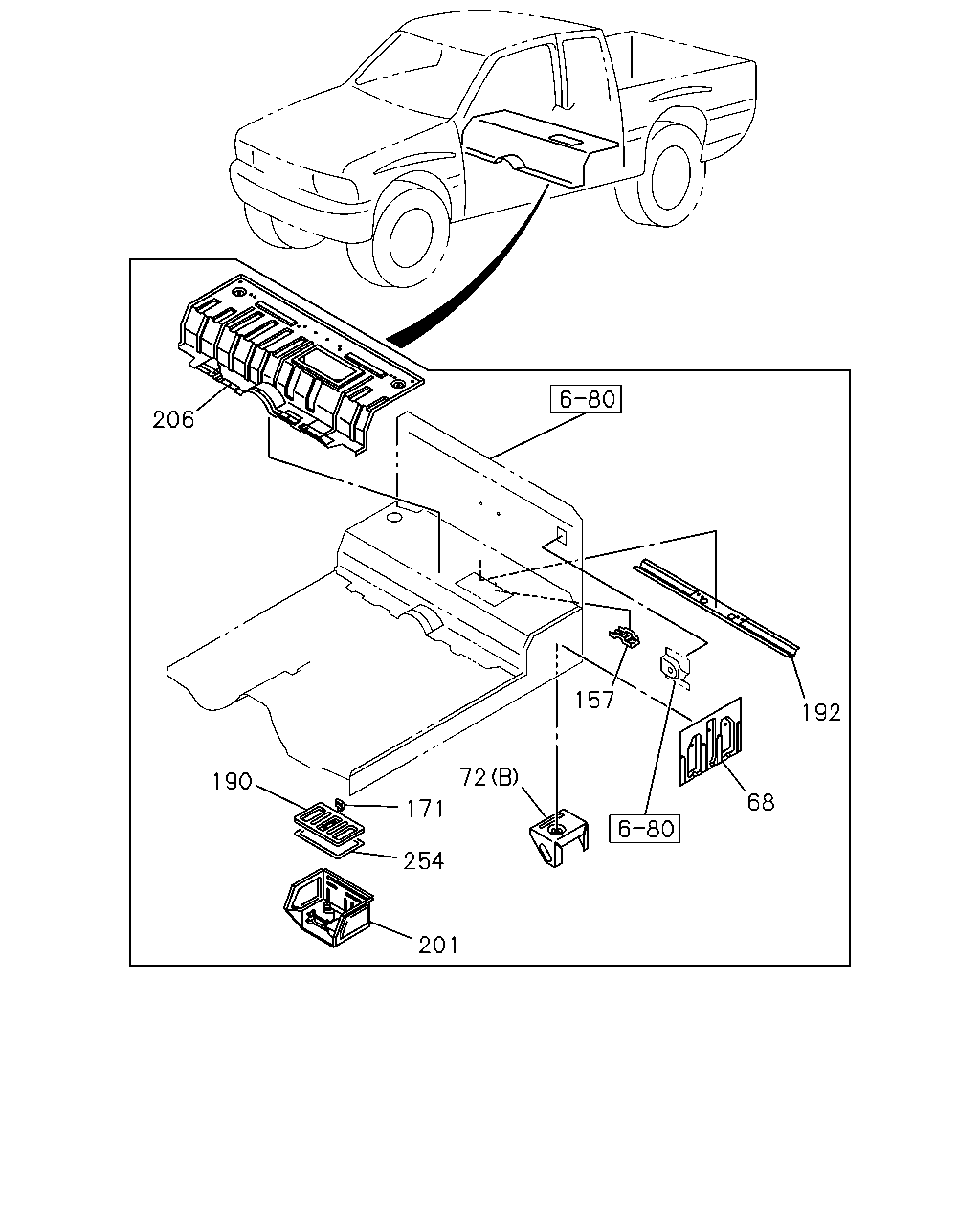

çizim 71221
206 157 192 72 190 68 171 254 201
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-055-3 02 1 9804- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-358-1 01 1 9804-0209 ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-358-1 01 1 0210- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-357-1 01 1 9804-0209 ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-357-1 01 1 0210- ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-497-0 01 1 9804-0209 ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR 8-97803-497-0 01 1 0210- ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-496-0 01 1 9804-0209 ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR 8-97803-496-0 01 1 0210- ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-047-0 01 1 9804- ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-046-0 01 1 9804- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-94455-757-0 01 1 9804- ● ●
171 16.520 FASTENER; TOOL BOX LID 8-94328-345-0 03 1 9804- ● ●
190 16.520 LID; TOOL BOX 8-94455-755-1 01 1 9804- ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-94454-041-0 01 1 9804- ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-94454-344-0 01 1 9804-9909 ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-97216-704-0 01 1 9910-0107 ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-97318-704-0 01 1 0108- ● ●
201 16.520 PANEL ASM; TOOL BOX 8-94454-049-2 01 1 9804- ● ●
206 16.545 PANEL; FLOOR BOARD RR 8-94454-040-3 01 1 9804-0012 ● ●
206 16.545 PANEL; FLOOR BOARD RR 8-97258-906-0 01 1 0101- ● ●
254 16.520 SEAL; TOOL BOX LID 8-94456-785-1 01 1 9804- ● ●

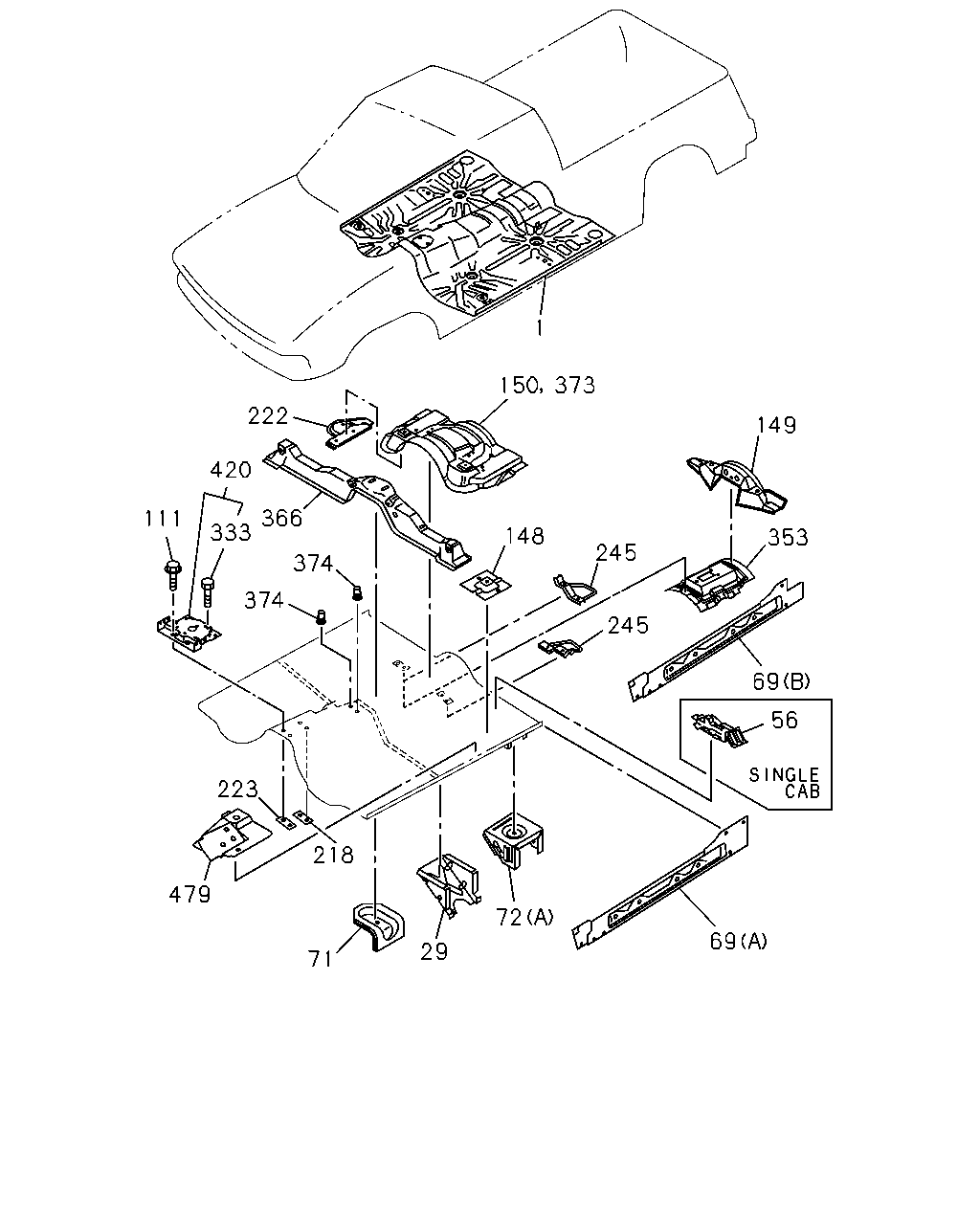

çizim 71656
1 222 149 420 366 333 111 148 353 245 374 374 245 69 56 223 218 479 72 69 29 71 150 373
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.545 PANEL; FLOOR
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) REAR AXLE LOW GEARED(6ST) EXC. SPEEDOMETER MILE<UC1>,CAUTION SPANISH<YN1> 		8-97180-820-0 01 1 9804-9812 ● ● ● ●
1 16.545 PANEL; FLOOR
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CAUTION SPANISH<YN1> 		8-97180-820-0 01 1 9804-9812 ● ● ●
1 16.545 PANEL; FLOOR
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT(R5B) 		8-97180-820-0 01 1 9804-9812 ● ●
1 16.545 PANEL; FLOOR
EXC. FLOOR REMOTE SHIFT<M11> 		8-97180-820-1 01 1 9901-0012 ● ● ●
1 16.545 PANEL; FLOOR
EXC. FLOOR REMOTE SHIFT<M11> 		8-97180-820-1 01 1 0101-0101 ● ●
1 16.545 PANEL; FLOOR
EXC. FLOOR REMOTE SHIFT<M11>, PHILIPPINE EQUIPMENT(S2U) 		8-97180-820-1 01 1 0101-0101 ●
1 16.545 PANEL; FLOOR
EXC. FLOOR REMOTE SHIFT<M11> 		8-97300-838-2 01 1 0102- ● ● ●
1 16.545 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97012-956-0 01 1 9804-9806 ● ● ● ●
1 16.545 PANEL; FLOOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 		8-97012-956-0 01 1 9804-9806 ● ●
1 16.545 PANEL; FLOOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) GRADE S(RBA) 		8-97012-956-0 01 1 9804-9806 ●
1 16.545 PANEL; FLOOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97012-956-0 01 1 9807-9812 ● ● ● ●
1 16.545 PANEL; FLOOR
GRADE S(RBA) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97012-956-0 01 1 9807-9812 ● ● ●
1 16.545 PANEL; FLOOR
22LE/C22NE ENG(RJT) GRADE S(RBA) 		8-97012-956-0 01 1 9807-9812 ●
1 16.545 PANEL; FLOOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 		8-97012-956-1 01 1 9901-0101 ● ● ● ●
1 16.545 PANEL; FLOOR
GRADE S(RBA) 		8-97012-956-1 01 1 9901-0101 ● ● ●
1 16.545 PANEL; FLOOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 		8-97300-837-2 01 1 0102-0108 ● ● ● ●
1 16.545 PANEL; FLOOR
GRADE S(RBA) 		8-97300-837-2 01 1 0102-0108 ● ● ●
1 16.545 PANEL; FLOOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) FLOOR REMOTE SHIFT<M11> 		8-97300-837-2 01 1 0109- ● ● ● ●
1 16.545 PANEL; FLOOR
GRADE S(RBA) 		8-97300-837-2 01 1 0109- ● ● ●
1 16.545 PANEL; FLOOR
6VD1 ENG(RLV) 		8-97214-390-0 01 1 9908-9909 ●
1 16.545 PANEL; FLOOR
GRADE LS(RBD) 		8-97214-390-0 01 1 9908-9909 ● ●
1 16.545 PANEL; FLOOR
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 		8-97214-390-0 01 1 9908-9909 ●
1 16.545 PANEL; FLOOR
6VD1 ENG(RLV) 		8-97214-390-0 01 1 9910-0101 ● ●
1 16.545 PANEL; FLOOR 8-97214-390-0 01 1 9910-0101 ●
1 16.545 PANEL; FLOOR
GRADE LS(RBD) 		8-97214-390-0 01 1 9910-0101 ● ●
1 16.545 PANEL; FLOOR
6VD1 ENG(RLV) 		8-97300-839-1 01 1 0102- ● ●
1 16.545 PANEL; FLOOR 8-97300-839-1 01 1 0102- ●
1 16.545 PANEL; FLOOR
GRADE LS(RBD) 		8-97300-839-1 01 1 0102- ● ●
1 16.545 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> CHINA CHONGQING EQUIPMENT(R5B) 		8-97180-848-0 01 1 9804-9812 ● ●
1 16.545 PANEL; FLOOR
GRADE S(RBA) CHINA CHONGQING EQUIPMENT(R5B) 		8-97180-848-0 01 1 9804-9812 ●
1 16.545 PANEL; FLOOR
4JA1 ENG(RLE),4JB1 ENG(RLF) PHILIPPINE EQUIPMENT(S2U) 		8-97264-094-1 01 1 0010-0101 ●
1 16.545 PANEL; FLOOR
4JA1 ENG(RLE),4JB1 ENG(RLF) PHILIPPINE EQUIPMENT(S2U) 		8-97300-841-2 01 1 0102- ●
1 16.545 PANEL; FLOOR
6VD1 ENG(RLV) 		8-94359-283-0 01 1 9804-9806 ●
1 16.545 PANEL; FLOOR
GRADE LS(RBD) 		8-94359-283-0 01 1 9804-9806 ● ●
1 16.545 PANEL; FLOOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) GRADE LS(RBD) 		8-94359-283-0 01 1 9804-9806 ●
1 16.545 PANEL; FLOOR
6VD1 ENG(RLV) ECUADOR EQUIPMENT(S6E),CHILE EQUIPMENT(6KB) 		8-94359-283-0 01 1 9807-9812 ●
1 16.545 PANEL; FLOOR
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94359-283-0 01 1 9807-9812 ● ● ●
1 16.545 PANEL; FLOOR
6VD1 ENG(RLV) 		8-94359-283-0 01 1 9901-9906 ● ●
1 16.545 PANEL; FLOOR 8-94359-283-0 01 1 9901-9906 ●
1 16.545 PANEL; FLOOR
GRADE LS(RBD) 		8-94359-283-0 01 1 9901-9906 ● ●
1 16.545 PANEL; FLOOR
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 		8-94359-283-0 01 1 9907-9907 ● ● ●
1 16.545 PANEL; FLOOR
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 		8-94359-283-0 01 1 9907-9907 ●
1 16.545 PANEL; FLOOR 8-94359-283-0 01 1 9907-9907 ●
1 16.545 PANEL; FLOOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) GRADE LS(RBD) 		8-94359-283-0 01 1 9907-9907 ●
1 16.545 PANEL; FLOOR
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 		8-94359-283-0 01 1 9908-9908 ●
1 16.545 PANEL; FLOOR
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 		8-94359-283-0 01 1 9908-9908 ●
1 16.545 PANEL; FLOOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) GRADE LS(RBD) 		8-94359-283-0 01 1 9908-9908 ●
1 16.545 PANEL; FLOOR
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-94359-283-0 01 1 9909-9909 ●
1 16.545 PANEL; FLOOR
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 		8-94359-283-0 01 1 9909-9909 ●
1 16.545 PANEL; FLOOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) GRADE LS(RBD) 		8-94359-283-0 01 1 9909-9909 ●
1 16.545 PANEL; FLOOR
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) 		8-97180-849-0 01 1 9804-9812 ●
29 16.545 GUSSET 8-94359-305-0 02 1 9804- ● ● ● ● ● ● ● ●
56 08.820 BRACKET; JACK 8-94473-876-1 01 1 9804- ● ● ● ●
69 16.545 PANEL; ROCKER INNER
(A) 		8-94455-733-4 01 1 9804-9812 ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER
EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-94455-733-4 01 1 9804-9812 ● ● ●
69 16.545 PANEL; ROCKER INNER
(A) 		8-94455-733-4 01 1 9901-0209 ● ● ● ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER 8-94455-733-4 01 1 0210- ● ● ● ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER
(A) 		8-94455-732-4 01 1 9804-9812 ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER
EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-94455-732-4 01 1 9804-9812 ● ● ●
69 16.545 PANEL; ROCKER INNER
(A) 		8-94455-732-4 01 1 9901-0209 ● ● ● ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER 8-94455-732-4 01 1 0210- ● ● ● ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER
CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97178-380-0 01 1 9804-9812 ● ● ●
69 16.545 PANEL; ROCKER INNER
CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97178-379-0 01 1 9804-9812 ● ● ●
69 16.545 PANEL; ROCKER INNER
CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97178-378-0 01 1 9804-9812 ● ●
69 16.545 PANEL; ROCKER INNER
CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97178-377-0 01 1 9804-9812 ● ●
69 16.545 PANEL; ROCKER INNER
EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-94343-385-0 01 1 9804-9812 ● ●
69 16.545 PANEL; ROCKER INNER
(B) 		8-94343-385-0 01 1 9901-0209 ● ●
69 16.545 PANEL; ROCKER INNER 8-94343-385-0 01 1 0210- ● ●
69 16.545 PANEL; ROCKER INNER
EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-94343-384-0 01 1 9804-9812 ● ●
69 16.545 PANEL; ROCKER INNER
(B) 		8-94343-384-0 01 1 9901-0209 ● ●
69 16.545 PANEL; ROCKER INNER 8-94343-384-0 01 1 0210- ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-94359-298-1 01 1 9804-9904 ● ● ● ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-614-1 01 1 9905-0209 ● ● ● ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-614-1 01 1 0210- ● ● ● ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-94359-297-1 01 1 9804-9904 ● ● ● ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-613-1 01 1 9905-0209 ● ● ● ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-613-1 01 1 0210- ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-497-0 01 1 9804-0209 ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR 8-97803-497-0 01 1 0210- ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-496-0 01 1 9804-0209 ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR 8-97803-496-0 01 1 0210- ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-047-0 01 1 9804- ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-046-0 01 1 9804- ● ●
111 16.549 BOLT; PANEL
6VD1 ENG(RLV) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 9910-0004 ● ●
111 16.549 BOLT; PANEL
16.505 M6X12 FLANGE 		0-28480-612-0 06 1 9910-0004 ●
111 16.549 BOLT; PANEL
GRADE LS(RBD) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 9910-0004 ●
111 16.549 BOLT; PANEL
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) GRADE LS(RBD) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GU ATEMALA/COSTA RICA EQUIPMENT(7LD) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 9910-0004 ●
111 16.549 BOLT; PANEL
6VD1 ENG(RLV) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0005- ● ●
111 16.549 BOLT; PANEL
16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0005- ●
111 16.549 BOLT; PANEL
GRADE LS(RBD) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0005- ● ●
148 16.674 BRACKET; SEAT 8-94435-642-0 02 1 9804- ● ● ● ● ● ● ● ●
149 16.545 BRACKET; SEAT BELT ROD
6VD1 ENG(RLV) 		8-97112-416-2 01 1 9804-9812 ●
149 16.545 BRACKET; SEAT BELT ROD
GRADE LS(RBD) 		8-97112-416-2 01 1 9804-9812 ● ● ●
149 16.545 BRACKET; SEAT BELT ROD
6VD1 ENG(RLV) 		8-97112-416-2 01 1 9901-9906 ● ●
149 16.545 BRACKET; SEAT BELT ROD 8-97112-416-2 01 1 9901-9906 ●
149 16.545 BRACKET; SEAT BELT ROD
GRADE LS(RBD) 		8-97112-416-2 01 1 9901-9906 ● ●
149 16.545 BRACKET; SEAT BELT ROD
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 		8-97112-416-2 01 1 9907-9908 ● ● ●
149 16.545 BRACKET; SEAT BELT ROD
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 		8-97112-416-2 01 1 9907-9908 ●
149 16.545 BRACKET; SEAT BELT ROD 8-97112-416-2 01 1 9907-9908 ●
149 16.545 BRACKET; SEAT BELT ROD
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) GRADE LS(RBD) 		8-97112-416-2 01 1 9907-9908 ●
149 16.545 BRACKET; SEAT BELT ROD
6VD1 ENG(RLV) 		8-97112-416-2 01 1 9909-9909 ● ●
149 16.545 BRACKET; SEAT BELT ROD 8-97112-416-2 01 1 9909-9909 ●
149 16.545 BRACKET; SEAT BELT ROD
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 		8-97112-416-2 01 1 9909-9909 ● ●
149 16.545 BRACKET; SEAT BELT ROD
GRADE LS(RBD) 		8-97112-416-2 01 1 9909-9909 ● ●
149 16.545 BRACKET; SEAT BELT ROD
6VD1 ENG(RLV) 		8-97112-416-2 01 1 9910-0009 ● ●
149 16.545 BRACKET; SEAT BELT ROD 8-97112-416-2 01 1 9910-0009 ●
149 16.545 BRACKET; SEAT BELT ROD
GRADE LS(RBD) 		8-97112-416-2 01 1 9910-0009 ● ●
149 16.545 BRACKET; SEAT BELT ROD
6VD1 ENG(RLV) 		8-97112-416-2 01 1 0010- ● ●
149 16.545 BRACKET; SEAT BELT ROD
4JA1 ENG(RLE),4JB1 ENG(RLF) PHILIPPINE EQUIPMENT(S2U) 		8-97112-416-2 01 1 0010- ●
149 16.545 BRACKET; SEAT BELT ROD 8-97112-416-2 01 1 0010- ●
149 16.545 BRACKET; SEAT BELT ROD
GRADE LS(RBD) 		8-97112-416-2 01 1 0010- ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR 8-97013-535-1 01 1 9804-9812 ● ● ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97013-535-1 01 1 9804-9812 ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
GRADE S(RBA) 		8-97013-535-1 01 1 9804-9812 ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR 8-97013-535-1 01 1 9901-0108 ● ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97013-535-1 01 1 9901-0108 ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
GRADE S(RBA) 		8-97013-535-1 01 1 9901-0108 ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR 8-97013-535-1 01 1 0109- ● ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 		8-97013-535-1 01 1 0109- ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
GRADE S(RBA) 		8-97013-535-1 01 1 0109- ● ●
218 04.008 PATCH; A/T CONT LEVER 8-97800-803-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
218 04.008 PATCH; A/T CONT LEVER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 		8-97800-803-1 01 1 9910-0009 ● ● ● ●
218 04.008 PATCH; A/T CONT LEVER
GRADE S(RBA) 		8-97800-803-1 01 1 9910-0009 ● ● ●
218 04.008 PATCH; A/T CONT LEVER 8-97800-803-1 01 1 0010-0108 ● ● ● ● ● ● ● ●
218 04.008 PATCH; A/T CONT LEVER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) FLOOR REMOTE SHIFT<M11> 		8-97800-803-1 01 1 0109- ● ● ● ●
218 04.008 PATCH; A/T CONT LEVER
GRADE S(RBA) 		8-97800-803-1 01 1 0109- ● ● ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) 		8-94199-260-2 01 1 9804-9812 ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) 		8-94199-260-2 01 1 9804-9812 ● ● ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) 		8-94199-260-2 01 1 9901-9906 ● ●
222 16.545 PATCH; BRKT 8-94199-260-2 01 1 9901-9906 ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) 		8-94199-260-2 01 1 9901-9906 ● ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 		8-94199-260-2 01 1 9907-9908 ● ● ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 		8-94199-260-2 01 1 9907-9908 ●
222 16.545 PATCH; BRKT 8-94199-260-2 01 1 9907-9908 ●
222 16.545 PATCH; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) GRADE LS(RBD) 		8-94199-260-2 01 1 9907-9908 ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) 		8-94199-260-2 01 1 9909-9909 ● ●
222 16.545 PATCH; BRKT 8-94199-260-2 01 1 9909-9909 ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 		8-94199-260-2 01 1 9909-9909 ● ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) 		8-94199-260-2 01 1 9909-9909 ● ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) 		8-94199-260-2 01 1 9910-0009 ● ●
222 16.545 PATCH; BRKT 8-94199-260-2 01 1 9910-0009 ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) 		8-94199-260-2 01 1 9910-0009 ● ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) 		8-94199-260-2 01 1 0010-0209 ● ●
222 16.545 PATCH; BRKT
4JA1 ENG(RLE),4JB1 ENG(RLF) PHILIPPINE EQUIPMENT(S2U) 		8-94199-260-2 01 1 0010-0209 ●
222 16.545 PATCH; BRKT 8-94199-260-2 01 1 0010-0209 ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) 		8-94199-260-2 01 1 0010-0209 ● ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) 		8-94199-260-2 01 1 0210- ● ●
222 16.545 PATCH; BRKT
4JA1 ENG(RLE),4JB1 ENG(RLF) PHILIPPINE EQUIPMENT(S2U) 		8-94199-260-2 01 1 0210- ●
222 16.545 PATCH; BRKT 8-94199-260-2 01 1 0210- ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) 		8-94199-260-2 01 1 0210- ● ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) 		8-94199-259-2 01 1 9804-9812 ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) 		8-94199-259-2 01 1 9804-9812 ● ● ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) 		8-94199-259-2 01 1 9901-9906 ● ●
222 16.545 PATCH; BRKT 8-94199-259-2 01 1 9901-9906 ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) 		8-94199-259-2 01 1 9901-9906 ● ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 		8-94199-259-2 01 1 9907-9908 ● ● ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 		8-94199-259-2 01 1 9907-9908 ●
222 16.545 PATCH; BRKT 8-94199-259-2 01 1 9907-9908 ●
222 16.545 PATCH; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) GRADE LS(RBD) 		8-94199-259-2 01 1 9907-9908 ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) 		8-94199-259-2 01 1 9909-9909 ● ●
222 16.545 PATCH; BRKT 8-94199-259-2 01 1 9909-9909 ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 		8-94199-259-2 01 1 9909-9909 ● ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) 		8-94199-259-2 01 1 9909-9909 ● ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) 		8-94199-259-2 01 1 9910-0009 ● ●
222 16.545 PATCH; BRKT 8-94199-259-2 01 1 9910-0009 ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) 		8-94199-259-2 01 1 9910-0009 ● ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) 		8-94199-259-2 01 1 0010-0209 ● ●
222 16.545 PATCH; BRKT
4JA1 ENG(RLE),4JB1 ENG(RLF) PHILIPPINE EQUIPMENT(S2U) 		8-94199-259-2 01 1 0010-0209 ●
222 16.545 PATCH; BRKT 8-94199-259-2 01 1 0010-0209 ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) 		8-94199-259-2 01 1 0010-0209 ● ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) 		8-94199-259-2 01 1 0210- ● ●
222 16.545 PATCH; BRKT
4JA1 ENG(RLE),4JB1 ENG(RLF) PHILIPPINE EQUIPMENT(S2U) 		8-94199-259-2 01 1 0210- ●
222 16.545 PATCH; BRKT 8-94199-259-2 01 1 0210- ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) 		8-94199-259-2 01 1 0210- ● ●
223 16.650 PATCH; CONSOLE BOX 8-94447-561-0 01 1 9804-9907 ● ● ● ● ● ● ● ●
223 16.650 PATCH; CONSOLE BOX 8-94447-561-0 01 1 9908-9909 ● ● ● ● ●
223 16.650 PATCH; CONSOLE BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94447-561-0 01 1 9908-9909 ●
223 16.650 PATCH; CONSOLE BOX
GRADE S(RBA) 		8-94447-561-0 01 1 9908-9909 ●
223 16.650 PATCH; CONSOLE BOX 8-94447-561-0 01 1 9910-0108 ● ● ●
223 16.650 PATCH; CONSOLE BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94447-561-0 01 1 9910-0108 ● ●
223 16.650 PATCH; CONSOLE BOX
GRADE S(RBA) 		8-94447-561-0 01 1 9910-0108 ● ●
223 16.650 PATCH; CONSOLE BOX 8-94447-561-0 01 1 0109- ● ● ●
223 16.650 PATCH; CONSOLE BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 		8-94447-561-0 01 1 0109- ● ●
223 16.650 PATCH; CONSOLE BOX
GRADE S(RBA) 		8-94447-561-0 01 1 0109- ● ●
223 16.650 PATCH; CONSOLE BOX
6VD1 ENG(RLV) 		8-94197-591-1 01 1 9908-9909 ●
223 16.650 PATCH; CONSOLE BOX
GRADE LS(RBD) 		8-94197-591-1 01 1 9908-9909 ● ●
223 16.650 PATCH; CONSOLE BOX
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 		8-94197-591-1 01 1 9908-9909 ●
223 16.650 PATCH; CONSOLE BOX
6VD1 ENG(RLV) 		8-94197-591-1 01 1 9910- ● ●
223 16.650 PATCH; CONSOLE BOX 8-94197-591-1 01 1 9910- ●
223 16.650 PATCH; CONSOLE BOX
GRADE LS(RBD) 		8-94197-591-1 01 1 9910- ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR 8-94471-128-3 01 1 9804-9812 ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94471-128-3 01 1 9804-9812 ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
GRADE S(RBA) 		8-94471-128-3 01 1 9804-9812 ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94471-128-3 01 1 9901-0108 ● ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
GRADE S(RBA) 		8-94471-128-3 01 1 9901-0108 ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 		8-94471-128-3 01 1 0109-0209 ● ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
GRADE S(RBA) 		8-94471-128-3 01 1 0109-0209 ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 		8-94471-128-3 01 1 0210- ● ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
GRADE S(RBA) 		8-94471-128-3 01 1 0210- ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR 8-94471-127-1 01 1 9804-9812 ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94471-127-1 01 1 9804-9812 ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
GRADE S(RBA) 		8-94471-127-1 01 1 9804-9812 ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94471-127-1 01 1 9901-0108 ● ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
GRADE S(RBA) 		8-94471-127-1 01 1 9901-0108 ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 		8-94471-127-1 01 1 0109-0209 ● ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
GRADE S(RBA) 		8-94471-127-1 01 1 0109-0209 ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 		8-94471-127-1 01 1 0210- ● ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
GRADE S(RBA) 		8-94471-127-1 01 1 0210- ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR 8-94471-132-1 01 1 9804- ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR 8-94471-131-1 01 1 9804- ●
333 16.545 BOLT; BRKT
6VD1 ENG(RLV) 02.812 M6X12 FLANGE 		0-28280-612-0 04 1 9908-9909 ●
333 16.545 BOLT; BRKT
GRADE LS(RBD) 02.812 M6X12 FLANGE 		0-28280-612-0 04 1 9908-9909 ● ●
333 16.545 BOLT; BRKT
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 02.812 M6X12 FLANGE 		0-28280-612-0 04 1 9908-9909 ●
333 16.545 BOLT; BRKT
6VD1 ENG(RLV) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9910- ● ●
333 16.545 BOLT; BRKT
02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9910- ●
333 16.545 BOLT; BRKT
GRADE LS(RBD) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9910- ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
6VD1 ENG(RLV) 		8-97801-237-2 01 1 9804-9812 ●
353 16.545 REINFORCEMENT; HAND BRAKE
GRADE LS(RBD) 		8-97801-237-2 01 1 9804-9812 ● ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
6VD1 ENG(RLV) 		8-97801-237-2 01 1 9901-9906 ● ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 9901-9906 ●
353 16.545 REINFORCEMENT; HAND BRAKE
GRADE LS(RBD) 		8-97801-237-2 01 1 9901-9906 ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 		8-97801-237-2 01 1 9907-9908 ● ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 		8-97801-237-2 01 1 9907-9908 ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 9907-9908 ●
353 16.545 REINFORCEMENT; HAND BRAKE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) GRADE LS(RBD) 		8-97801-237-2 01 1 9907-9908 ●
353 16.545 REINFORCEMENT; HAND BRAKE
6VD1 ENG(RLV) 		8-97801-237-2 01 1 9909-9909 ● ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 9909-9909 ●
353 16.545 REINFORCEMENT; HAND BRAKE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 		8-97801-237-2 01 1 9909-9909 ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
GRADE LS(RBD) 		8-97801-237-2 01 1 9909-9909 ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
6VD1 ENG(RLV) 		8-97801-237-2 01 1 9910-0009 ● ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 9910-0009 ●
353 16.545 REINFORCEMENT; HAND BRAKE
GRADE LS(RBD) 		8-97801-237-2 01 1 9910-0009 ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
6VD1 ENG(RLV) 		8-97801-237-2 01 1 0010- ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
4JA1 ENG(RLE),4JB1 ENG(RLF) PHILIPPINE EQUIPMENT(S2U) 		8-97801-237-2 01 1 0010- ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 0010- ●
353 16.545 REINFORCEMENT; HAND BRAKE
GRADE LS(RBD) 		8-97801-237-2 01 1 0010- ● ●
366 16.674 BAR ASM; FRT SEAT MTG 8-97079-422-0 01 1 9804- ● ● ● ● ● ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT
6VD1 ENG(RLV) 		8-97112-251-2 01 1 9804-9812 ●
373 16.545 REINFORCEMENT; SEAT BELT
GRADE LS(RBD) 		8-97112-251-2 01 1 9804-9812 ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT
6VD1 ENG(RLV) 		8-97112-251-2 01 1 9901-9906 ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-97112-251-2 01 1 9901-9906 ●
373 16.545 REINFORCEMENT; SEAT BELT
GRADE LS(RBD) 		8-97112-251-2 01 1 9901-9906 ● ●
373 16.545 REINFORCEMENT; SEAT BELT
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 		8-97112-251-2 01 1 9907-9908 ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 		8-97112-251-2 01 1 9907-9908 ●
373 16.545 REINFORCEMENT; SEAT BELT 8-97112-251-2 01 1 9907-9908 ●
373 16.545 REINFORCEMENT; SEAT BELT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) GRADE LS(RBD) 		8-97112-251-2 01 1 9907-9908 ●
373 16.545 REINFORCEMENT; SEAT BELT
6VD1 ENG(RLV) 		8-97112-251-2 01 1 9909-9909 ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-97112-251-2 01 1 9909-9909 ●
373 16.545 REINFORCEMENT; SEAT BELT
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 		8-97112-251-2 01 1 9909-9909 ● ●
373 16.545 REINFORCEMENT; SEAT BELT
GRADE LS(RBD) 		8-97112-251-2 01 1 9909-9909 ● ●
373 16.545 REINFORCEMENT; SEAT BELT
6VD1 ENG(RLV) 		8-97112-251-2 01 1 9910-0009 ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-97112-251-2 01 1 9910-0009 ●
373 16.545 REINFORCEMENT; SEAT BELT
GRADE LS(RBD) 		8-97112-251-2 01 1 9910-0009 ● ●
373 16.545 REINFORCEMENT; SEAT BELT
6VD1 ENG(RLV) 		8-97112-251-2 01 1 0010- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
4JA1 ENG(RLE),4JB1 ENG(RLF) PHILIPPINE EQUIPMENT(S2U) 		8-97112-251-2 01 1 0010- ●
373 16.545 REINFORCEMENT; SEAT BELT 8-97112-251-2 01 1 0010- ●
373 16.545 REINFORCEMENT; SEAT BELT
GRADE LS(RBD) 		8-97112-251-2 01 1 0010- ● ●
374 16.545 NUT; FLOOR
16.570 M8 POP NUT 		8-94279-538-0 02 1 9804- ● ● ● ● ● ● ● ●
420 16.545 BRACKET; SENSOR,SIR
6VD1 ENG(RLV) 		8-97209-628-1 01 1 9910- ● ●
420 16.545 BRACKET; SENSOR,SIR 8-97209-628-1 01 1 9910- ●
420 16.545 BRACKET; SENSOR,SIR
GRADE LS(RBD) 		8-97209-628-1 01 1 9910- ● ●
479 16.545 BRACKET; FLOOR,OPENER 8-97216-738-0 01 1 9910-0012 ● ●
479 16.545 BRACKET; FLOOR,OPENER 8-97216-738-0 01 1 0101-0112 ● ● ● ● ● ● ● ●
479 16.545 BRACKET; FLOOR,OPENER 8-97216-738-0 01 1 0201- ● ● ● ● ● ● ● ●
479 16.545 BRACKET; FLOOR,OPENER 8-94199-329-0 01 1 9910-0012 ● ●
479 16.545 BRACKET; FLOOR,OPENER 8-94199-329-0 01 1 0101-0112 ● ● ● ● ● ● ● ●
479 16.545 BRACKET; FLOOR,OPENER 8-94199-329-0 01 1 0201- ● ● ● ● ● ● ● ●

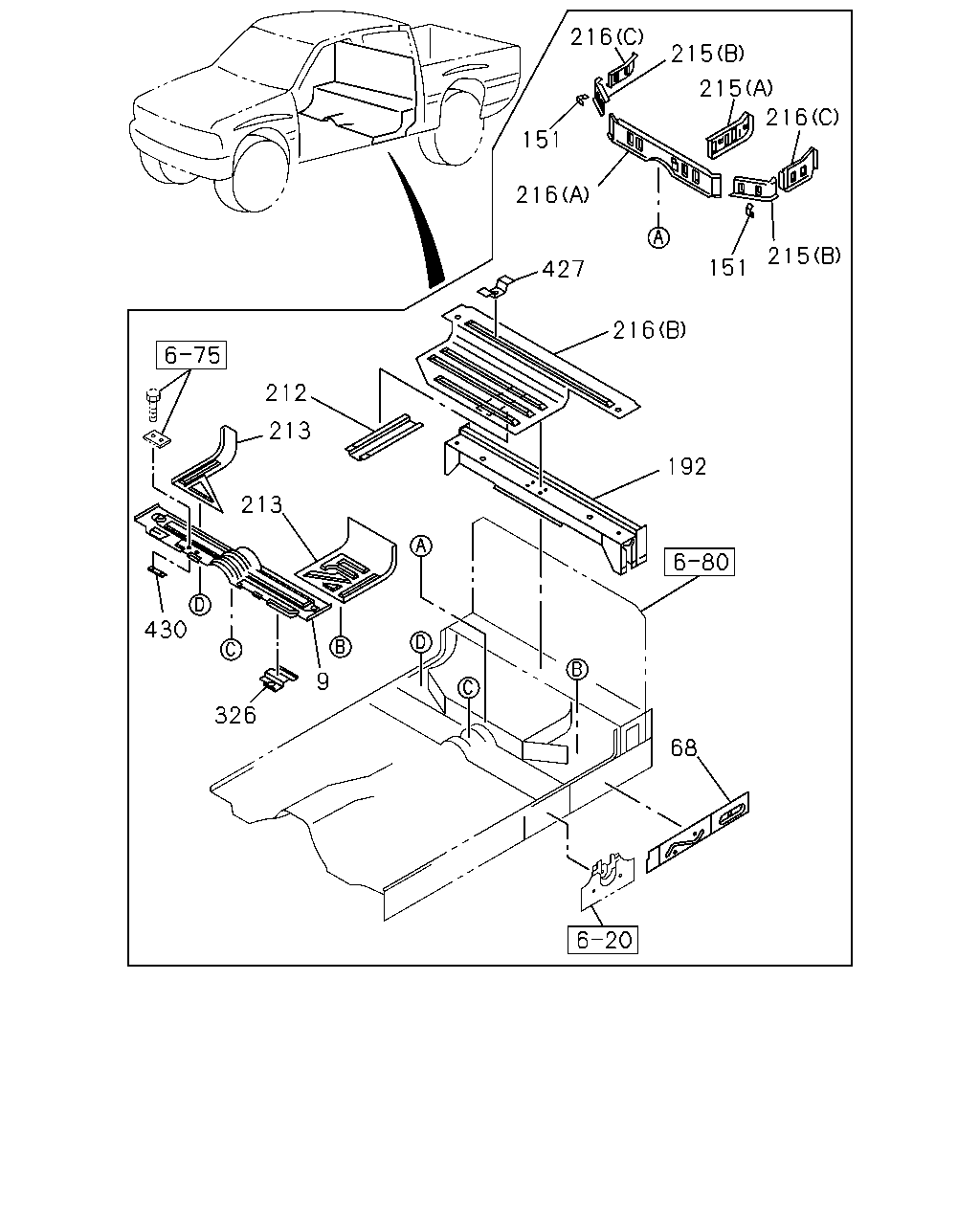

çizim 71942
216 215 215 216 151 216 215 151 427 216 212 213 192 213 430 9 326 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.545 PANEL; RR FLOOR,FRT
4JA1 ENG(RLE),4JB1 ENG(RLF) PHILIPPINE EQUIPMENT(S2U) 		8-97139-102-0 01 1 0010-0105 ●
9 16.545 PANEL; RR FLOOR,FRT 8-97139-102-0 01 1 9804-0007 ● ●
9 16.545 PANEL; RR FLOOR,FRT 8-97286-937-0 01 1 0008-0012 ● ●
9 16.545 PANEL; RR FLOOR,FRT
EXC. PHILIPPINE EQUIPMENT(S2U) 		8-97286-937-0 01 1 0101-0105 ●
9 16.545 PANEL; RR FLOOR,FRT 8-97286-937-0 01 1 0106- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-055-3 02 1 9804- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-358-1 01 1 9804-0209 ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-358-1 01 1 0210- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-357-1 01 1 9804-0209 ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-357-1 01 1 0210- ● ●
151 16.670 BRACKET; SEAT CUSHION STOPPER 8-94454-355-0 02 1 9804- ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-94454-041-0 01 1 9804- ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-94454-344-0 01 1 9804-9909 ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-97216-704-0 01 1 9910-0107 ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-97318-704-0 01 1 0108- ● ●
212 16.670 PANEL; REINF,SEAT RISER UPR 8-94473-966-0 01 1 9804- ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-97070-586-2 01 1 9804-9906 ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-97227-382-0 01 1 9907-0209 ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-97227-382-0 01 1 0210- ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-94454-325-0 01 1 9804-0209 ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-94454-325-0 01 1 0210- ● ●
215 16.670 PANEL; SEAT RISER,CENTER
(A) 		8-97070-581-1 01 1 9804- ● ●
215 16.670 PANEL; SEAT RISER,CENTER
(B) 		8-97070-585-0 01 1 9804-0209 ● ●
215 16.670 PANEL; SEAT RISER,CENTER 8-97070-585-0 01 1 0210- ● ●
215 16.670 PANEL; SEAT RISER,CENTER
(B) 		8-97070-584-0 01 1 9804-0209 ● ●
215 16.670 PANEL; SEAT RISER,CENTER 8-97070-584-0 01 1 0210- ● ●
216 16.670 PANEL; SEAT RISER
(A) 		8-94454-332-0 01 1 9804- ● ●
216 16.670 PANEL; SEAT RISER
(B) 		8-94454-338-1 01 1 9804-9909 ● ●
216 16.670 PANEL; SEAT RISER
(B) 		8-97216-703-1 01 1 9910- ● ●
216 16.670 PANEL; SEAT RISER
(C) 		8-97132-317-1 01 1 9804-0003 ● ●
216 16.670 PANEL; SEAT RISER
(C) 		8-97257-872-0 01 1 0004-0209 ● ●
216 16.670 PANEL; SEAT RISER 8-97257-872-0 01 1 0210- ● ●
216 16.670 PANEL; SEAT RISER
(C) 		8-97132-316-0 01 1 9804-0003 ● ●
216 16.670 PANEL; SEAT RISER
(C) 		8-97257-870-0 01 1 0004-0209 ● ●
216 16.670 PANEL; SEAT RISER 8-97257-870-0 01 1 0210- ● ●
326 16.545 PATCH; RR FLOOR 8-97226-254-0 01 1 9907- ● ●
427 16.545 BRACKET; CABLE 8-97212-925-0 01 1 9910- ● ●
430 16.545 PATCH; DUMPER 8-97139-101-0 01 1 9804- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
