6-30 — FRONT DOOR AND HINGE (#43732) — 37 parça

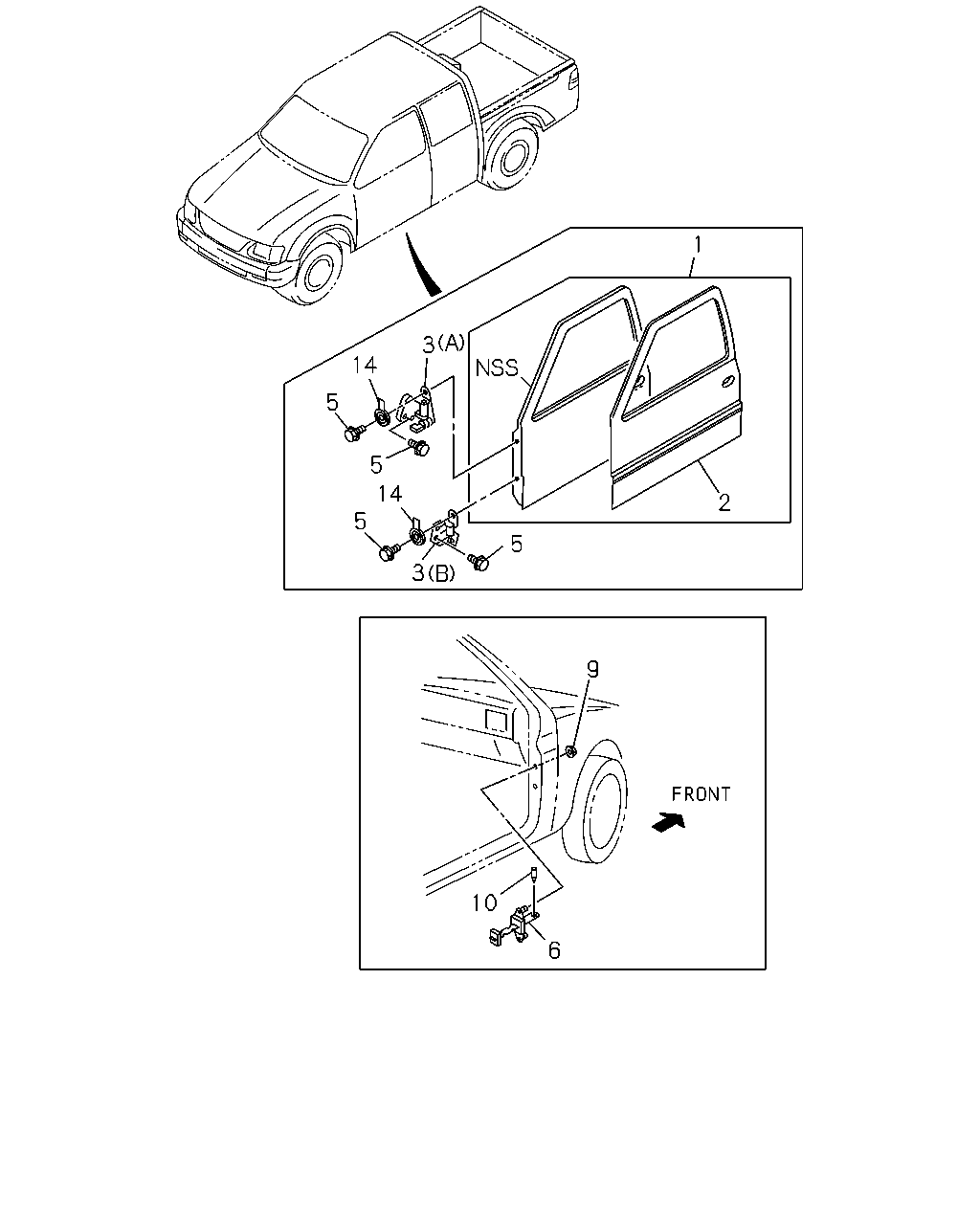

çizim 71536
1 14 5 5 14 2 5 5 9 10 6 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.150 DOOR ASM; FRT,WO/TRIM
KD PREPARATORY PACK<6HF> EXC. CHILE EQUIPMENT(6KB) 		8-97088-623-1 01 1 9804-9806 ● ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
KD PREPARATORY PACK<6HF> EXC. CHILE EQUIPMENT(6KB) 		8-97088-622-1 01 1 9804-9806 ● ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. KD PREPARATORY PACK<6HF>, CHILEEQUIPMENT(6KB) 		8-97115-884-0 01 1 9804-9806 ● ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. CHILE EQUIPMENT(6KB) 		8-97115-884-1 01 1 9807-9812 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97115-884-1 01 1 9807-9812 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. CHILE EQUIPMENT(6KB) 		8-97115-884-1 01 1 9901-9909 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97115-884-1 01 1 9901-9909 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR BEAM<7YD> 		8-97115-884-2 01 1 9910-0301 ● ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR BEAM<7YD> 		8-97364-849-0 01 1 0302- ● ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. KD PREPARATORY PACK<6HF>, CHILEEQUIPMENT(6KB) 		8-97115-883-0 01 1 9804-9806 ● ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. CHILE EQUIPMENT(6KB) 		8-97115-883-1 01 1 9807-9812 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97115-883-1 01 1 9807-9812 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. CHILE EQUIPMENT(6KB) 		8-97115-883-1 01 1 9901-9909 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97115-883-1 01 1 9901-9909 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR BEAM<7YD> 		8-97115-883-2 01 1 9910-0301 ● ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR BEAM<7YD> 		8-97364-848-0 01 1 0302- ● ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CHILE EQUIPMENT(6KB) 		8-97101-801-1 01 1 9804-9812 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CHILE EQUIPMENT(6KB) 		8-97101-801-1 01 1 9901-9909 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR BEAM<7YD> 		8-97101-801-2 01 1 9910-0301 ● ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR BEAM<7YD> 		8-97364-847-0 01 1 0302- ● ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CHILE EQUIPMENT(6KB) 		8-97101-797-1 01 1 9804-9812 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CHILE EQUIPMENT(6KB) 		8-97101-797-1 01 1 9901-9909 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR BEAM<7YD> 		8-97101-797-2 01 1 9910-0301 ● ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR BEAM<7YD> 		8-97364-846-0 01 1 0302- ● ● ● ● ● ● ● ●
2 16.152 PANEL; FRT DOOR OUTER 8-94449-356-5 01 1 9804- ● ● ● ● ● ● ● ●
2 16.152 PANEL; FRT DOOR OUTER 8-94449-355-5 01 1 9804- ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
10.454 (B) 		8-94155-314-2 01 1 9804- ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(A) 		8-94230-392-4 01 1 9804- ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
10.454 (B) 		8-94155-315-2 01 1 9804- ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(A) 		8-94230-393-4 01 1 9804- ● ● ● ● ● ● ● ●
5 16.320 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 08 1 9804- ● ● ● ● ● ● ● ●
5 16.320 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 16 1 9804- ● ● ● ● ● ● ● ●
6 16.320 ARM; CHECK,FRT DOOR 8-94370-880-1 02 1 9804- ● ● ● ● ● ● ● ●
9 16.320 NUT; CHECK ARM
07.829 M6 FLANGE 		5-09440-004-0 04 1 9804- ● ● ● ● ● ● ● ●
10 16.320 PIN; CHECK ARM
10.455 		8-94111-468-0 02 1 9804- ● ● ● ● ● ● ● ●
14 16.320 WASHER; PL,HINGE
EXC. KD PREPARATORY PACK<6HF> ID=8.1 W/PL WASHER 		8-97173-691-0 04 1 9804-0106 ● ● ● ● ● ● ● ●
14 16.320 WASHER; PL,HINGE
EXC. KD PREPARATORY PACK<6HF> 		8-97308-583-0 04 1 0107- ● ● ● ● ● ● ● ●
