◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-14 - DASH PANEL AND FENDER SKIRT ▶
6-14 — DASH PANEL AND FENDER SKIRT (#43730) — 14 parça

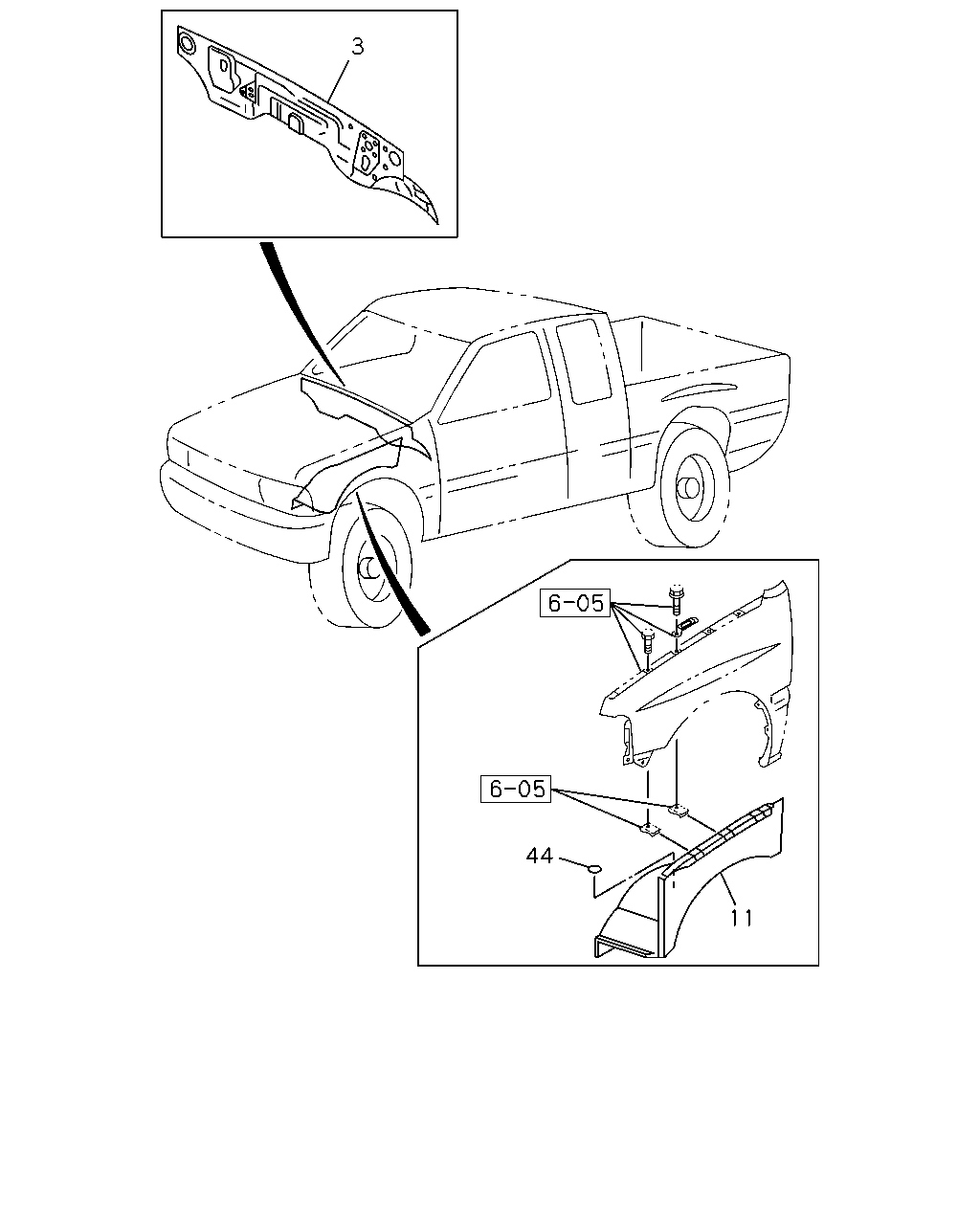

çizim 17826
3 44 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 16.550 PANEL; SUB,DASH LWR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) NOISE INSULATION PACK 2<7MW> 		8-97065-582-8 01 1 9804-9812 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JB1 ENG(RLF) EXC. NOISE INSULATION PACK 2<7MW> 		8-97065-582-8 01 1 9804-9812 ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) NOISE INSULATION PACK 2<7MW> 		8-97065-582-8 01 1 9901-0108 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JB1 ENG(RLF) 		8-97065-582-8 01 1 9901-0108 ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 20SE ENG(RND) NOISE INSULATION PACK 2<7MW> 		8-97065-582-8 01 1 0109- ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JB1 ENG(RLF) 		8-97065-582-8 01 1 0109- ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4ZE1 ENG(RLJ) EXC. NOISE INSULATION PACK 2<7MW> 		8-97065-580-5 01 1 9804-9812 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. NOISE INSULATION PACK 2<7MW> 		8-97065-580-5 01 1 9901-0108 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 20SE ENG(RND) EXC. NOISE INSULATION PACK 2<7MW> 		8-97065-580-5 01 1 0109- ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
6VD1 ENG(RLV) 		8-97180-681-0 01 1 9804-9812 ● ●
3 16.550 PANEL; SUB,DASH LWR
6VD1 ENG(RLV) 		8-97180-681-0 01 1 9901- ● ● ● ●
11 08.153 SKIRT; FRT FENDER PNL 8-97038-160-0 01 1 9804- ● ● ● ● ● ● ● ●
11 08.153 SKIRT; FRT FENDER PNL 8-97130-526-0 01 1 9804- ● ● ● ● ● ● ● ●
44 08.154 SEAL; HOLE,FENDER SKIRT
15.222 OD=16 		8-94111-207-1 01 1 9811- ● ● ● ● ● ● ● ●
