6-03 — RADIATOR GRILLE (#43726) — 234 parça

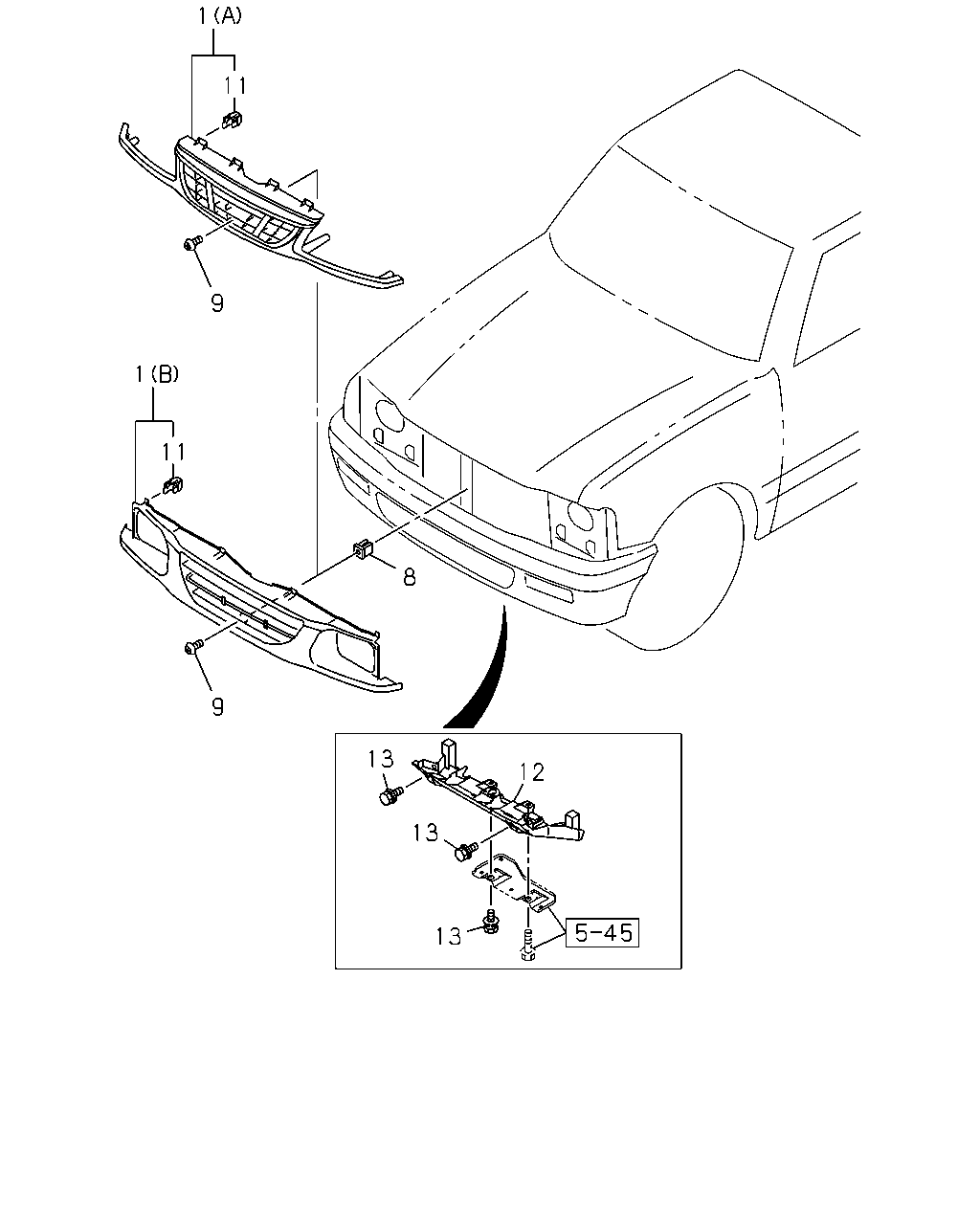

çizim 73904
1 11 9 1 11 8 9 13 12 13 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,HALOGEN HEAD LAMP RECTANGULAR<TR4>,BRIGHT HEAVY DUTY RAD GRILLE<6QR> (B) 		8-97180-143-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97180-143-1 01 1 9910-0012 ● ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT HEAVY DUTY RAD GRILLE<6QR>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-97180-143-1 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (B) 		8-97180-143-1 01 1 0101- ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT HEAVY DUTY RAD GRILLE<6QR>,RADIATOR GRILLE NON PAINT VAR 2<7UH> (A) 		8-97177-216-4 01 1 9804-9909 ● ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT HEAVY DUTY RAD GRILLE<6QR>,RADIATOR GRILLE NON PAINT MADE INJAPAN<7LB> (A) 		8-97177-216-4 01 1 9910-0010 ● ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT HEAVY DUTY RAD GRILLE<6QR>,RADIATOR GRILLE NON PAINT MADE INJAPAN<7LB>,RADIATOR GRILLE NON PAI NT MADE IN THAI<8FF> (A) 		8-97177-216-4 01 1 0011-0012 ● ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22>,BRIGHT HEAVY DUTY RAD GRILLE<6QR>,RADIATOR G RILLE NON PAINT MADE IN JAPAN<7LB>, RADIATOR GRILLE NON PAINT MADE IN T HAI<8FF> (A) 		8-97177-216-4 01 1 0101- ● ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE(877),BODY COLOR ALPINE WHITE/KAISER SILVER MET (887) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) WHITE 		8-97195-391-0 01 1 9804-9901 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE(877),BODY COLOR ALPINE WHITE/KAISER SILVER MET (887) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) WHITE 		8-97195-398-3 01 1 9804-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE/LT.SILVER M ET(740),BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) WHITE 		8-97297-549-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE(877),BODY COLOR ALPINE WHITE/KAISER SILVER MET (887) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) WHITE 		8-97195-391-1 01 1 9902-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE/LT.SILVER M ET(740),BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (B) WHITE 		8-97195-391-1 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE/LT.SILVER M ET(740),BODY COLOR ALPINE WHITE(877) BRIGHT RAD GRILLE<V22> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) WHITE 		8-97296-692-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) LIGHT SILVER 		8-97195-401-3 01 1 9804-9901 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR ASTRAL SILVER/KAISER SILV ER MET(778) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) LIGHT SILVER 		8-97195-401-3 01 1 9902-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR ASTRAL SILVER/KAISER SILV ER MET(778) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) LIGHT SILVER 		8-97297-551-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) LIGHT SILVER 		8-97195-394-0 01 1 9804-9901 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR ASTRAL SILVER/KAISER SILV ER MET(778) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) LIGHT SILVER 		8-97195-394-1 01 1 9902-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR ASTRAL SILVER/KAISER SILV ER MET(778) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (B) LIGHT SILVER 		8-97195-394-1 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR ASTRAL SILVER/KAISER SILV ER MET(778) BRIGHT RAD GRILLE<V22> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) LIGHT SILVER 		8-97296-695-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER M ET(614) BRIGHT RAD GRILLE<V22> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) BLUE 		8-97296-694-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR CYPRESS GREEN MICA/LT.SI LVER MET(615) BRIGHT RAD GRILLE<V22> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) DARK GREEN 		8-97296-698-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR FOREST GREEN MICA(863) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) DARK GREEN 		8-97199-855-3 01 1 9811-9909 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KAISER SILVER MET(878) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) SILVER 		8-97195-402-3 01 1 9804-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KAISER SILVER MET(878) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) SILVER 		8-97297-552-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KAISER SILVER MET(878) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) SILVER 		8-97195-395-1 01 1 9804-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KAISER SILVER MET(878) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (B) SILVER 		8-97195-395-1 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KAISER SILVER MET(878) BRIGHT RAD GRILLE<V22> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) SILVER 		8-97296-696-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR LT.SILVER MET(753) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) LIGHT SILVER 		8-97199-854-3 01 1 9811-9909 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINA BLUE(722),BODY COLOR MARINA BLUE/KAISER SILVER MET(889) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) BLUE 		8-97195-393-1 01 1 9804-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER M ET(614) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (B) BLUE 		8-97296-686-1 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINA BLUE(722),BODY COLOR MARINA BLUE/KAISER SILVER MET(889) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) BLUE 		8-97195-400-3 01 1 9804-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER M ET(614) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) BLUE 		8-97297-553-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/KAISER SILVER MET(888) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) RED 		8-97195-392-1 01 1 9804-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (B) RED 		8-97195-392-1 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/KAISER SILVER MET(888) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) RED 		8-97195-399-3 01 1 9804-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) RED 		8-97297-550-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/LT.SILVER MET(779) BRIGHT RAD GRILLE<V22> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) RED 		8-97296-693-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RANGER GREEN(880) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) GREEN 		8-97195-404-3 01 1 9804-9901 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RANGER GREEN/KAISER SILV ER MET(792),BODY COLOR RANGER GREEN(880) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) GREEN 		8-97195-404-3 01 1 9902-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SATIN GOLD MET(613), BODYCOLOR SATIN GOLD MET/LIGHT SILVER MET(616) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (B) GOLD 		8-97296-687-1 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RANGER GREEN(880) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) GREEN 		8-97195-397-0 01 1 9804-9901 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RANGER GREEN/KAISER SILV ER MET(792),BODY COLOR RANGER GREEN(880) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) GREEN 		8-97195-397-1 01 1 9902-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR CYPRESS GREEN MICA/LT.SI LVER MET(615) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (B) DARK GREEN 		8-97296-688-1 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RED ROCK MICA(872) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) RED 		8-97199-856-3 01 1 9811-9909 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SATIN GOLD MET(613), BODYCOLOR SATIN GOLD MET/LIGHT SILVER MET(616) BRIGHT RAD GRILLE<V22> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) GOLD 		8-97296-697-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRITON BLUE MICA(725) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) LIGHT BLUE 		8-97195-403-3 01 1 9804-9901 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRITON BLUE MICA(725), BODY COLOR TRITON BLUE MICA/KAISER SI LVER MET(788) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) LIGHT BLUE 		8-97195-403-3 01 1 9902-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SATIN GOLD MET(613), BODYCOLOR SATIN GOLD MET/LIGHT SILVER MET(616) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) GOLD 		8-97297-554-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRITON BLUE MICA(725) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) LIGHT BLUE 		8-97195-396-0 01 1 9804-9901 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRITON BLUE MICA(725), BODY COLOR TRITON BLUE MICA/KAISER SI LVER MET(788) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) LIGHT BLUE 		8-97195-396-1 01 1 9902-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR CYPRESS GREEN MICA/LT.SI LVER MET(615) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) DARK GREEN 		8-97297-555-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT HEAVY DUTY RAD GRILLE<6QR> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (B) 		8-97180-144-1 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> BRIGHT HEAVY DUTY RAD GRILLE<6QR> (A) 		8-97177-946-4 01 1 9804-9812 ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> BRIGHT HEAVY DUTY RAD GRILLE<6QR> (A) 		8-97177-946-4 01 1 9901-0012 ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT HEAVY DUTY RAD GRILLE<6QR> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) 		8-97177-946-4 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> RADIATOR GRILLE NON PAINT MADE IN T HAI<8FF> (C) 		8-97289-524-0 01 1 0011-0012 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> RADIATOR GRILLE NON PAINT MADE IN T HAI<8FF> (C) 		8-97289-524-0 01 1 0101- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> RADIATOR GRILLE NON PAINT VAR 2<7UH> (A) 		8-97177-217-3 01 1 9804-9908 ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> RADIATOR GRILLE NON PAINT VAR 2<7UH> (A) 		8-97177-217-3 01 1 9909-9909 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> RADIATOR GRILLE NON PAINT MADE IN J APAN<7LB> (A) 		8-97177-217-3 01 1 9910-0012 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT MADE IN J APAN<7LB> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) 		8-97177-217-3 01 1 0101- ● ● ● ● ● ●
8 01.269 GROMMET; SCREW,RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 9804-0010 ● ● ● ● ● ● ● ●
8 01.269 GROMMET; SCREW,RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 0011-0012 ● ●
8 01.269 GROMMET; SCREW,RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT MADE IN THAI<8FF> 02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 0011-0012 ● ● ● ● ● ●
8 01.269 GROMMET; SCREW,RAD GRILLE
EXC. BRIGHT RAD GRILLE<V22> 02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 0101- ● ●
8 01.269 GROMMET; SCREW,RAD GRILLE
EXC. BRIGHT RAD GRILLE<V22>, RADIATOR GRILLE NON PAINT MADE IN THAI<8FF> 02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 0101- ● ● ● ● ●
8 01.269 GROMMET; SCREW,RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT MADE IN THAI<8FF> 02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 0101- ●
9 01.269 SCREW; RAD GRILLE
08.900 M5X16 		8-94380-268-0 01 1 9804- ● ● ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
BLACK 		8-94218-027-0 08 1 9804- ● ● ● ● ● ● ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) 		8-97072-508-1 01 1 9804-9812 ●
12 01.274 PLATE; SKID,RAD
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 		8-97072-508-1 01 1 9804-9812 ● ● ● ●
12 01.274 PLATE; SKID,RAD
UNDER GUARD<ES7> 		8-97072-508-1 01 1 9804-9812 ● ● ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 		8-97072-508-1 01 1 9804-9812 ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) 		8-97072-508-1 01 1 9901-9901 ● ●
12 01.274 PLATE; SKID,RAD
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 		8-97072-508-1 01 1 9901-9901 ● ● ● ●
12 01.274 PLATE; SKID,RAD
UNDER GUARD<ES7> 		8-97072-508-1 01 1 9901-9901 ● ● ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 		8-97072-508-1 01 1 9901-9901 ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) 		8-97220-747-0 01 1 9902-9902 ● ●
12 01.274 PLATE; SKID,RAD
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 		8-97220-747-0 01 1 9902-9902 ● ● ● ●
12 01.274 PLATE; SKID,RAD
UNDER GUARD<ES7> 		8-97220-747-0 01 1 9902-9902 ● ● ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 		8-97220-747-0 01 1 9902-9902 ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) 		8-97223-858-0 01 1 9903-9907 ● ●
12 01.274 PLATE; SKID,RAD
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 		8-97223-858-0 01 1 9903-9907 ● ● ● ●
12 01.274 PLATE; SKID,RAD
UNDER GUARD<ES7> 		8-97223-858-0 01 1 9903-9907 ● ● ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 		8-97223-858-0 01 1 9903-9907 ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) 		8-97223-858-0 01 1 9908-9908 ● ●
12 01.274 PLATE; SKID,RAD
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 		8-97223-858-0 01 1 9908-9908 ● ● ● ●
12 01.274 PLATE; SKID,RAD
UNDER GUARD<ES7> 		8-97223-858-0 01 1 9908-9908 ● ● ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 		8-97223-858-0 01 1 9908-9908 ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) 		8-97223-858-0 01 1 9909-9909 ● ●
12 01.274 PLATE; SKID,RAD
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 		8-97223-858-0 01 1 9909-9909 ● ● ● ●
12 01.274 PLATE; SKID,RAD
UNDER GUARD<ES7> 		8-97223-858-0 01 1 9909-9909 ● ● ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 		8-97223-858-0 01 1 9909-9909 ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) SKID PLATE<7WE> 		8-97223-858-0 01 1 9910-0012 ● ●
12 01.274 PLATE; SKID,RAD
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR CONSOLE SEPARATE TYPE<7WF> 		8-97223-858-0 01 1 9910-0012 ● ● ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> 		8-97223-858-2 01 1 0101- ● ● ● ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9804-9812 ●
13 01.267 BOLT; RAD SKID PLATE
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9804-9812 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9804-9812 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9804-9812 ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9901-9907 ● ●
13 01.267 BOLT; RAD SKID PLATE
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9901-9907 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9901-9907 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9901-9907 ● ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9908-9908 ● ●
13 01.267 BOLT; RAD SKID PLATE
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9908-9908 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9908-9908 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9908-9908 ● ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9909-9909 ● ●
13 01.267 BOLT; RAD SKID PLATE
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9909-9909 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9909-9909 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9909-9909 ● ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) SKID PLATE<7WE> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9910-0012 ● ●
13 01.267 BOLT; RAD SKID PLATE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR CONSOLE SEPARATE TYPE<7WF> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9910-0012 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-1 03 1 0101- ● ● ● ● ● ● ●

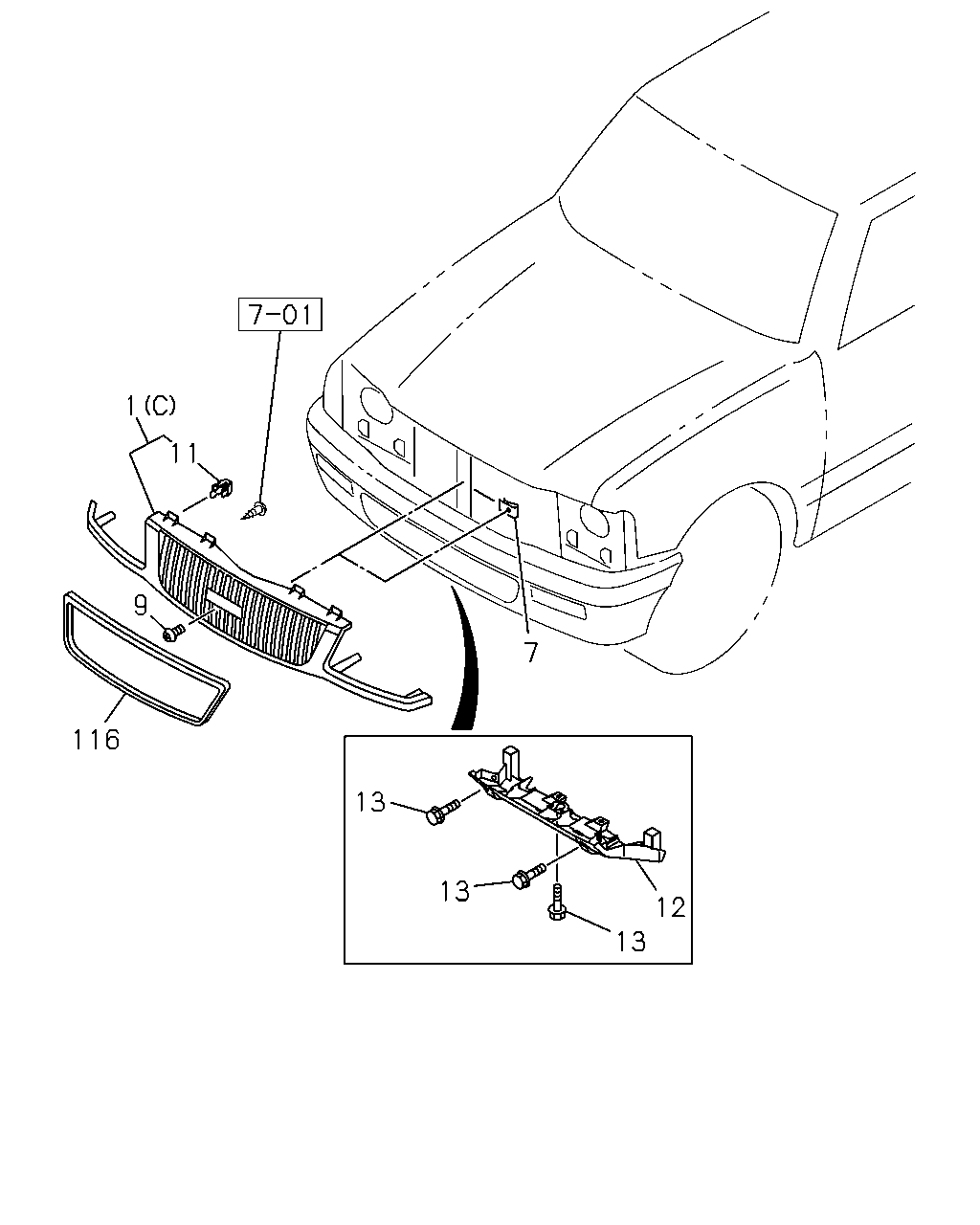

çizim 74200
1 11 9 7 116 13 13 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,HALOGEN HEAD LAMP RECTANGULAR<TR4>,BRIGHT HEAVY DUTY RAD GRILLE<6QR> (B) 		8-97180-143-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97180-143-1 01 1 9910-0012 ● ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT HEAVY DUTY RAD GRILLE<6QR>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-97180-143-1 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (B) 		8-97180-143-1 01 1 0101- ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT HEAVY DUTY RAD GRILLE<6QR>,RADIATOR GRILLE NON PAINT VAR 2<7UH> (A) 		8-97177-216-4 01 1 9804-9909 ● ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT HEAVY DUTY RAD GRILLE<6QR>,RADIATOR GRILLE NON PAINT MADE INJAPAN<7LB> (A) 		8-97177-216-4 01 1 9910-0010 ● ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT HEAVY DUTY RAD GRILLE<6QR>,RADIATOR GRILLE NON PAINT MADE INJAPAN<7LB>,RADIATOR GRILLE NON PAI NT MADE IN THAI<8FF> (A) 		8-97177-216-4 01 1 0011-0012 ● ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22>,BRIGHT HEAVY DUTY RAD GRILLE<6QR>,RADIATOR G RILLE NON PAINT MADE IN JAPAN<7LB>, RADIATOR GRILLE NON PAINT MADE IN T HAI<8FF> (A) 		8-97177-216-4 01 1 0101- ● ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE(877),BODY COLOR ALPINE WHITE/KAISER SILVER MET (887) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) WHITE 		8-97195-391-0 01 1 9804-9901 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE(877),BODY COLOR ALPINE WHITE/KAISER SILVER MET (887) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) WHITE 		8-97195-398-3 01 1 9804-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE/LT.SILVER M ET(740),BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) WHITE 		8-97297-549-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE(877),BODY COLOR ALPINE WHITE/KAISER SILVER MET (887) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) WHITE 		8-97195-391-1 01 1 9902-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE/LT.SILVER M ET(740),BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (B) WHITE 		8-97195-391-1 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE/LT.SILVER M ET(740),BODY COLOR ALPINE WHITE(877) BRIGHT RAD GRILLE<V22> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) WHITE 		8-97296-692-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) LIGHT SILVER 		8-97195-401-3 01 1 9804-9901 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR ASTRAL SILVER/KAISER SILV ER MET(778) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) LIGHT SILVER 		8-97195-401-3 01 1 9902-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR ASTRAL SILVER/KAISER SILV ER MET(778) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) LIGHT SILVER 		8-97297-551-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) LIGHT SILVER 		8-97195-394-0 01 1 9804-9901 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR ASTRAL SILVER/KAISER SILV ER MET(778) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) LIGHT SILVER 		8-97195-394-1 01 1 9902-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR ASTRAL SILVER/KAISER SILV ER MET(778) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (B) LIGHT SILVER 		8-97195-394-1 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR ASTRAL SILVER/KAISER SILV ER MET(778) BRIGHT RAD GRILLE<V22> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) LIGHT SILVER 		8-97296-695-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER M ET(614) BRIGHT RAD GRILLE<V22> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) BLUE 		8-97296-694-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR CYPRESS GREEN MICA/LT.SI LVER MET(615) BRIGHT RAD GRILLE<V22> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) DARK GREEN 		8-97296-698-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR FOREST GREEN MICA(863) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) DARK GREEN 		8-97199-855-3 01 1 9811-9909 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KAISER SILVER MET(878) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) SILVER 		8-97195-402-3 01 1 9804-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KAISER SILVER MET(878) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) SILVER 		8-97297-552-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KAISER SILVER MET(878) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) SILVER 		8-97195-395-1 01 1 9804-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KAISER SILVER MET(878) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (B) SILVER 		8-97195-395-1 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KAISER SILVER MET(878) BRIGHT RAD GRILLE<V22> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) SILVER 		8-97296-696-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR LT.SILVER MET(753) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) LIGHT SILVER 		8-97199-854-3 01 1 9811-9909 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINA BLUE(722),BODY COLOR MARINA BLUE/KAISER SILVER MET(889) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) BLUE 		8-97195-393-1 01 1 9804-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER M ET(614) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (B) BLUE 		8-97296-686-1 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINA BLUE(722),BODY COLOR MARINA BLUE/KAISER SILVER MET(889) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) BLUE 		8-97195-400-3 01 1 9804-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER M ET(614) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) BLUE 		8-97297-553-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/KAISER SILVER MET(888) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) RED 		8-97195-392-1 01 1 9804-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (B) RED 		8-97195-392-1 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/KAISER SILVER MET(888) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) RED 		8-97195-399-3 01 1 9804-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) RED 		8-97297-550-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/LT.SILVER MET(779) BRIGHT RAD GRILLE<V22> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) RED 		8-97296-693-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RANGER GREEN(880) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) GREEN 		8-97195-404-3 01 1 9804-9901 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RANGER GREEN/KAISER SILV ER MET(792),BODY COLOR RANGER GREEN(880) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) GREEN 		8-97195-404-3 01 1 9902-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SATIN GOLD MET(613), BODYCOLOR SATIN GOLD MET/LIGHT SILVER MET(616) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (B) GOLD 		8-97296-687-1 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RANGER GREEN(880) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) GREEN 		8-97195-397-0 01 1 9804-9901 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RANGER GREEN/KAISER SILV ER MET(792),BODY COLOR RANGER GREEN(880) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) GREEN 		8-97195-397-1 01 1 9902-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR CYPRESS GREEN MICA/LT.SI LVER MET(615) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (B) DARK GREEN 		8-97296-688-1 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RED ROCK MICA(872) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) RED 		8-97199-856-3 01 1 9811-9909 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SATIN GOLD MET(613), BODYCOLOR SATIN GOLD MET/LIGHT SILVER MET(616) BRIGHT RAD GRILLE<V22> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) GOLD 		8-97296-697-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRITON BLUE MICA(725) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) LIGHT BLUE 		8-97195-403-3 01 1 9804-9901 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRITON BLUE MICA(725), BODY COLOR TRITON BLUE MICA/KAISER SI LVER MET(788) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) LIGHT BLUE 		8-97195-403-3 01 1 9902-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SATIN GOLD MET(613), BODYCOLOR SATIN GOLD MET/LIGHT SILVER MET(616) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) GOLD 		8-97297-554-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRITON BLUE MICA(725) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) LIGHT BLUE 		8-97195-396-0 01 1 9804-9901 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRITON BLUE MICA(725), BODY COLOR TRITON BLUE MICA/KAISER SI LVER MET(788) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) LIGHT BLUE 		8-97195-396-1 01 1 9902-0012 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR CYPRESS GREEN MICA/LT.SI LVER MET(615) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) DARK GREEN 		8-97297-555-0 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT HEAVY DUTY RAD GRILLE<6QR> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (B) 		8-97180-144-1 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> BRIGHT HEAVY DUTY RAD GRILLE<6QR> (A) 		8-97177-946-4 01 1 9804-9812 ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> BRIGHT HEAVY DUTY RAD GRILLE<6QR> (A) 		8-97177-946-4 01 1 9901-0012 ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT HEAVY DUTY RAD GRILLE<6QR> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) 		8-97177-946-4 01 1 0101- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> RADIATOR GRILLE NON PAINT MADE IN T HAI<8FF> (C) 		8-97289-524-0 01 1 0011-0012 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> RADIATOR GRILLE NON PAINT MADE IN T HAI<8FF> (C) 		8-97289-524-0 01 1 0101- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> RADIATOR GRILLE NON PAINT VAR 2<7UH> (A) 		8-97177-217-3 01 1 9804-9908 ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> RADIATOR GRILLE NON PAINT VAR 2<7UH> (A) 		8-97177-217-3 01 1 9909-9909 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> RADIATOR GRILLE NON PAINT MADE IN J APAN<7LB> (A) 		8-97177-217-3 01 1 9910-0012 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT MADE IN J APAN<7LB> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) 		8-97177-217-3 01 1 0101- ● ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
RADIATOR GRILLE NON PAINT MADE IN T HAI<8FF> M5 SPIRE 		8-94146-492-1 01 1 0011-0012 ● ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
BRIGHT RAD GRILLE<V22> M5 SPIRE 		8-94146-492-1 01 1 0101- ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT MADE IN THAI<8FF> M5 SPIRE 		8-94146-492-1 01 1 0101- ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
RADIATOR GRILLE NON PAINT MADE IN T HAI<8FF> M5 SPIRE 		8-94146-492-1 01 1 0101- ●
9 01.269 SCREW; RAD GRILLE
08.900 M5X16 		8-94380-268-0 01 1 9804- ● ● ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
BLACK 		8-94218-027-0 08 1 9804- ● ● ● ● ● ● ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) 		8-97072-508-1 01 1 9804-9812 ●
12 01.274 PLATE; SKID,RAD
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 		8-97072-508-1 01 1 9804-9812 ● ● ● ●
12 01.274 PLATE; SKID,RAD
UNDER GUARD<ES7> 		8-97072-508-1 01 1 9804-9812 ● ● ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 		8-97072-508-1 01 1 9804-9812 ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) 		8-97072-508-1 01 1 9901-9901 ● ●
12 01.274 PLATE; SKID,RAD
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 		8-97072-508-1 01 1 9901-9901 ● ● ● ●
12 01.274 PLATE; SKID,RAD
UNDER GUARD<ES7> 		8-97072-508-1 01 1 9901-9901 ● ● ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 		8-97072-508-1 01 1 9901-9901 ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) 		8-97220-747-0 01 1 9902-9902 ● ●
12 01.274 PLATE; SKID,RAD
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 		8-97220-747-0 01 1 9902-9902 ● ● ● ●
12 01.274 PLATE; SKID,RAD
UNDER GUARD<ES7> 		8-97220-747-0 01 1 9902-9902 ● ● ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 		8-97220-747-0 01 1 9902-9902 ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) 		8-97223-858-0 01 1 9903-9907 ● ●
12 01.274 PLATE; SKID,RAD
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 		8-97223-858-0 01 1 9903-9907 ● ● ● ●
12 01.274 PLATE; SKID,RAD
UNDER GUARD<ES7> 		8-97223-858-0 01 1 9903-9907 ● ● ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 		8-97223-858-0 01 1 9903-9907 ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) 		8-97223-858-0 01 1 9908-9908 ● ●
12 01.274 PLATE; SKID,RAD
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 		8-97223-858-0 01 1 9908-9908 ● ● ● ●
12 01.274 PLATE; SKID,RAD
UNDER GUARD<ES7> 		8-97223-858-0 01 1 9908-9908 ● ● ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 		8-97223-858-0 01 1 9908-9908 ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) 		8-97223-858-0 01 1 9909-9909 ● ●
12 01.274 PLATE; SKID,RAD
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 		8-97223-858-0 01 1 9909-9909 ● ● ● ●
12 01.274 PLATE; SKID,RAD
UNDER GUARD<ES7> 		8-97223-858-0 01 1 9909-9909 ● ● ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 		8-97223-858-0 01 1 9909-9909 ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) SKID PLATE<7WE> 		8-97223-858-0 01 1 9910-0012 ● ●
12 01.274 PLATE; SKID,RAD
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR CONSOLE SEPARATE TYPE<7WF> 		8-97223-858-0 01 1 9910-0012 ● ● ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> 		8-97223-858-2 01 1 0101- ● ● ● ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9804-9812 ●
13 01.267 BOLT; RAD SKID PLATE
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9804-9812 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9804-9812 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9804-9812 ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9901-9907 ● ●
13 01.267 BOLT; RAD SKID PLATE
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9901-9907 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9901-9907 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9901-9907 ● ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9908-9908 ● ●
13 01.267 BOLT; RAD SKID PLATE
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9908-9908 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9908-9908 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9908-9908 ● ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9909-9909 ● ●
13 01.267 BOLT; RAD SKID PLATE
22LE/C22NE ENG(RJT) EXC. UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9909-9909 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9909-9909 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9909-9909 ● ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) SKID PLATE<7WE> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9910-0012 ● ●
13 01.267 BOLT; RAD SKID PLATE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR CONSOLE SEPARATE TYPE<7WF> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9910-0012 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-1 03 1 0101- ● ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
RADIATOR GRILLE NON PAINT MADE IN T HAI<8FF> 01.303 		8-97940-909-0 01 1 0012-0012 ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT MADE IN THAI<8FF> 01.303 		8-97940-909-0 01 1 0101- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
