1 |

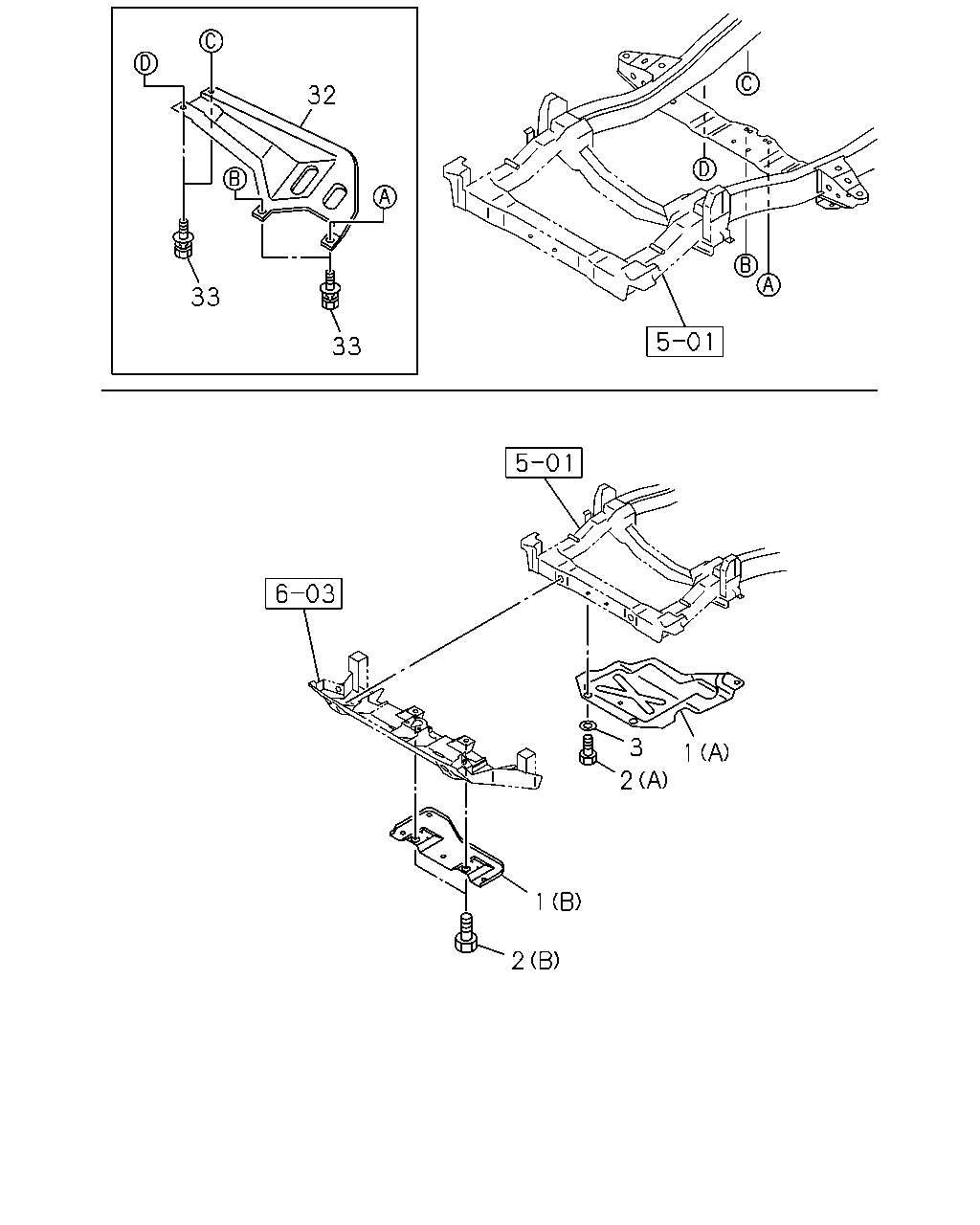

08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT)
(A)
|
8-97203-918-0 |
01 |
1 |
9804-0001 |
● |
● |
● |
● |
|
|
|
|
| |
1 |
08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT),4JA1 ENG(RLE),
4JB1 ENG(RLF)
(A)
|
8-97203-918-0 |
01 |
1 |
0002-0012 |
● |
● |
● |
● |
|
|
|
|
| |
1 |
08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT),4JA1 ENG(RLE),
4JB1 ENG(RLF)
EXC. 4X2 HIGH RIDE SUSPENSION(7YC)
(A)
|
8-97203-918-0 |
01 |
1 |
0101-0108 |
● |
● |
● |
● |
|
|
|
|
| |
1 |
08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT),4JA1 ENG(RLE),
4JB1 ENG(RLF),20SE ENG(RND)
EXC. 4X2 HIGH RIDE SUSPENSION(7YC)
(A)
|
8-97203-918-0 |
01 |
1 |
0109- |
● |
● |
● |
● |
|
|
|
|
| |
1 |
08.153 COVER; MUD,ENG
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1
ENG(RLJ)
(A)
|
8-94389-359-0 |
01 |
1 |
9804-9812 |
● |
● |
● |
● |
|
|
|
|
| |
1 |
08.153 COVER; MUD,ENG
4JA1 ENG(RLE),4JB1 ENG(RLF)
(A)
|
8-94389-359-0 |
01 |
1 |
9901-0001 |
● |
● |
● |
● |
|
|
|
|
| |
1 |
08.153 COVER; MUD,ENG
6VD1 ENG(RLV)
(B)
|
8-97132-305-0 |
01 |
1 |
9804-9812 |
|
|
|
● |
|
|
|
|
| |
1 |
08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT)
(B)
|
8-97132-305-0 |
01 |
1 |
9804-9812 |
|
|
|
|
● |
● |
● |
|
| |
1 |
08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT),6VD1 ENG(RLV)
(B)
|
8-97132-305-0 |
01 |
1 |
9804-9812 |
|
|
|
|
|
|
|
● |
| |
1 |
08.153 COVER; MUD,ENG
6VD1 ENG(RLV)
(B)
|
8-97132-305-0 |
01 |
1 |
9901-9909 |
|
|
● |
● |
|
|
|
|
| |
1 |
08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT)
(B)
|
8-97132-305-0 |
01 |
1 |
9901-9909 |
|
|
|
|
● |
● |
|
|
| |
1 |
08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT),6VD1 ENG(RLV)
(B)
|
8-97132-305-0 |
01 |
1 |
9901-9909 |
|
|
|
|
|
|
● |
● |
| |
1 |
08.153 COVER; MUD,ENG
6VD1 ENG(RLV)
FLOOR CONSOLE SEPARATE TYPE<7WF>
(B)
|
8-97132-305-0 |
01 |
1 |
9910-0012 |
|
|
● |
● |
|
|
|
|
| |
1 |
08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT),6VD1 ENG(RLV)
SKID PLATE<7WE>
(B)
|
8-97132-305-0 |
01 |
1 |
9910-0012 |
|
|
|
|
● |
● |
● |
● |
| |
1 |
08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT)
4X2 HIGH RIDE SUSPENSION(7YC)
(B)
|
8-97132-305-0 |
01 |
1 |
0101-0108 |
● |
|
● |
● |
|
|
|
|
| |
1 |
08.153 COVER; MUD,ENG
6VD1 ENG(RLV)
(B)
|
8-97132-305-0 |
01 |
1 |
0101-0108 |
|
|
● |
● |
|
|
|
|
| |
1 |
08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT)
(B)
|
8-97132-305-0 |
01 |
1 |
0101-0108 |
|
|
|
|
● |
● |
|
|
| |
1 |
08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT),6VD1 ENG(RLV)
(B)
|
8-97132-305-0 |
01 |
1 |
0101-0108 |
|
|
|
|
|
|
● |
● |
| |
1 |
08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT),20SE ENG(RND)
4X2 HIGH RIDE SUSPENSION(7YC)
(B)
|
8-97132-305-0 |
01 |
1 |
0109- |
● |
|
● |
● |
|
|
|
|
| |
1 |
08.153 COVER; MUD,ENG
6VD1 ENG(RLV)
(B)
|
8-97132-305-0 |
01 |
1 |
0109- |
|
|
● |
● |
|
|
|
|
| |
1 |
08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT)
(B)
|
8-97132-305-0 |
01 |
1 |
0109- |
|
|
|
|
● |
● |
|
|
| |
1 |
08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT),6VD1 ENG(RLV)
(B)
|
8-97132-305-0 |
01 |
1 |
0109- |
|
|
|
|
|
|
● |
● |
| |
1 |
08.153 COVER; MUD,ENG
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1
ENG(RLJ)
(A)
|
8-97131-925-0 |
01 |
1 |
9804-9812 |
|
|
|
|
● |
● |
● |
● |
| |
1 |
08.153 COVER; MUD,ENG
4JA1 ENG(RLE),4JB1 ENG(RLF)
(A)
|
8-97131-925-0 |
01 |
1 |
9901-9903 |
|
|
|
|
● |
● |
● |
● |
| |
1 |
08.153 COVER; MUD,ENG
4JA1 ENG(RLE),4JB1 ENG(RLF)
(A)
|
8-97221-537-2 |
01 |
1 |
9904-0012 |
|
|
|
|
● |
● |
● |
● |
| |
1 |
08.153 COVER; MUD,ENG
4JA1 ENG(RLE),4JB1 ENG(RLF)
4X2 HIGH RIDE SUSPENSION(7YC)
(A)
|
8-97221-537-2 |
01 |
1 |
0101- |
● |
|
● |
● |
|
|
|
|
| |
1 |
08.153 COVER; MUD,ENG
4JA1 ENG(RLE),4JB1 ENG(RLF)
(A)
|
8-97221-537-2 |
01 |
1 |
0101- |
|
|
|
|
● |
● |
● |
● |
| |
2 |
08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE),
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
04.439
(A)
M6X16 FLANGE
|
0-28680-616-0 |
03 |
1 |
9804-9812 |
● |
● |
● |
● |
|
|
|
|
| |
2 |
08.154 BOLT; MUD COVER
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1
ENG(RLJ)
04.439
(A)
M6X16 FLANGE
|
0-28680-616-0 |
03 |
1 |
9804-9812 |
|
|
|
|
● |
● |
● |
● |
| |
2 |
08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE),
4JB1 ENG(RLF)
04.439
(A)
M6X16 FLANGE
|
0-28680-616-0 |
03 |
1 |
9901-9909 |
● |
● |
● |
● |
|
|
|
|
| |
2 |
08.154 BOLT; MUD COVER
4JA1 ENG(RLE),4JB1 ENG(RLF)
04.439
(A)
M6X16 FLANGE
|
0-28680-616-0 |
03 |
1 |
9901-9909 |
|
|
|
|
● |
● |
● |
● |
| |
2 |
08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE),
4JB1 ENG(RLF)
04.439
(A)
M6X16 FLANGE
|
0-28680-616-0 |
03 |
1 |
9910-0012 |
● |
● |
● |
● |
|
|
|
|
| |
2 |
08.154 BOLT; MUD COVER
4JA1 ENG(RLE),4JB1 ENG(RLF)
EXC. SHIFT ON THE FLY(7EX)
04.439
(A)
M6X16 FLANGE
|
0-28680-616-0 |
03 |
1 |
9910-0012 |
|
|
|
|
● |
● |
● |
● |
| |
2 |
08.154 BOLT; MUD COVER
4JA1 ENG(RLE),4JB1 ENG(RLF)
EXC. SHIFT ON THE FLY(7EX)
04.439
(A)
M6X16 FLANGE
|
0-28680-616-0 |
03 |
1 |
0101-0108 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT)
EXC. 4X2 HIGH RIDE SUSPENSION(7YC)
04.439
(A)
M6X16 FLANGE
|
0-28680-616-0 |
03 |
1 |
0101-0108 |
● |
● |
● |
● |
|
|
|
|
| |
2 |
08.154 BOLT; MUD COVER
4JA1 ENG(RLE),4JB1 ENG(RLF)
EXC. SHIFT ON THE FLY(7EX)
04.439
(A)
M6X16 FLANGE
|
0-28680-616-0 |
03 |
1 |
0109- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT),20SE ENG(RND)
EXC. 4X2 HIGH RIDE SUSPENSION(7YC)
04.439
(A)
M6X16 FLANGE
|
0-28680-616-0 |
03 |
1 |
0109- |
● |
● |
● |
● |
|
|
|
|
| |
2 |
08.154 BOLT; MUD COVER
6VD1 ENG(RLV)
16.320
(B)
M8X22 W/LK&PL WASHER
|
8-94279-148-1 |
02 |
1 |
9804-9812 |
|
|
|
● |
|
|
|
|
| |
2 |
08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT)
16.320
(B)
M8X22 W/LK&PL WASHER
|
8-94279-148-1 |
02 |
1 |
9804-9812 |
|
|
|
|
● |
● |
● |
|
| |
2 |
08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT),6VD1 ENG(RLV)
16.320
(B)
M8X22 W/LK&PL WASHER
|
8-94279-148-1 |
02 |
1 |
9804-9812 |
|
|
|
|
|
|
|
● |
| |
2 |
08.154 BOLT; MUD COVER
6VD1 ENG(RLV)
16.320
(B)
M8X22 W/LK&PL WASHER
|
8-94279-148-1 |
02 |
1 |
9901-0010 |
|
|
● |
● |
|
|
|
|
| |
2 |
08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT)
16.320
(B)
M8X22 W/LK&PL WASHER
|
8-94279-148-1 |
02 |
1 |
9901-0010 |
|
|
|
|
● |
● |
|
|
| |
2 |
08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT),6VD1 ENG(RLV)
16.320
(B)
M8X22 W/LK&PL WASHER
|
8-94279-148-1 |
02 |
1 |
9901-0010 |
|
|
|
|
|
|
● |
● |
| |
2 |
08.154 BOLT; MUD COVER
6VD1 ENG(RLV)
16.320
(B)
M8X22 W/LK&PL WASHER
|
8-94279-148-1 |
02 |
1 |
0011-0012 |
|
|
● |
● |
|
|
|
|
| |
2 |
08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT),6VD1 ENG(RLV)
SKID PLATE<7WE>
16.320
(B)
M8X22 W/LK&PL WASHER
|
8-94279-148-1 |
02 |
1 |
0011-0012 |
|
|
|
|
● |
● |
● |
● |
| |
2 |
08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT)
4X2 HIGH RIDE SUSPENSION(7YC)
16.320
(B)
M8X22 W/LK&PL WASHER
|
8-94279-148-1 |
02 |
1 |
0101-0108 |
● |
|
● |
● |
|
|
|
|
| |
2 |
08.154 BOLT; MUD COVER
6VD1 ENG(RLV)
16.320
(B)
M8X22 W/LK&PL WASHER
|
8-94279-148-1 |
02 |
1 |
0101-0108 |
|
|
● |
● |
|
|
|
|
| |
2 |
08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT),6VD1 ENG(RLV)
SKID PLATE<7WE>
16.320
(B)
M8X22 W/LK&PL WASHER
|
8-94279-148-1 |
02 |
1 |
0101-0108 |
|
|
|
|
● |
● |
● |
● |
| |
2 |
08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT),20SE ENG(RND)
4X2 HIGH RIDE SUSPENSION(7YC)
16.320
(B)
M8X22 W/LK&PL WASHER
|
8-94279-148-1 |
02 |
1 |
0109-0109 |
● |
|
● |
● |
|
|
|
|
| |
2 |
08.154 BOLT; MUD COVER
6VD1 ENG(RLV)
16.320
(B)
M8X22 W/LK&PL WASHER
|
8-94279-148-1 |
02 |
1 |
0109-0109 |
|
|
● |
● |
|
|
|
|
| |
2 |
08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT),6VD1 ENG(RLV)
SKID PLATE<7WE>
16.320
(B)
M8X22 W/LK&PL WASHER
|
8-94279-148-1 |
02 |
1 |
0109-0109 |
|
|
|
|
● |
● |
● |
● |
| |
2 |
08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT),20SE ENG(RND)
4X2 HIGH RIDE SUSPENSION(7YC)
SKID PLATE<7WE>
16.320
(B)
M8X22 W/LK&PL WASHER
|
8-94279-148-1 |
02 |
1 |
0110- |
● |
|
● |
● |
|
|
|
|
| |
2 |
08.154 BOLT; MUD COVER
6VD1 ENG(RLV)
SKID PLATE<7WE>
16.320
(B)
M8X22 W/LK&PL WASHER
|
8-94279-148-1 |
02 |
1 |
0110- |
|
|
● |
● |
|
|
|
|
| |
2 |
08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT),6VD1 ENG(RLV)
SKID PLATE<7WE>
16.320
(B)
M8X22 W/LK&PL WASHER
|
8-94279-148-1 |
02 |
1 |
0110- |
|
|
|
|
● |
● |
● |
● |
| |
2 |
08.154 BOLT; MUD COVER
4JB1 ENG(RLF)
SHIFT ON THE FLY(7EX)
04.439
(A)
M6X16 FLANGE
|
0-28680-616-0 |
02 |
1 |
9910- |
|
|
|
|
● |
|
● |
● |
| |
3 |
08.154 WASHER; PL,MUD COVER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE),
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
02.334
ID=6.4 OD=22
|
9-09164-806-0 |
03 |
1 |
9804-9812 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
3 |
08.154 WASHER; PL,MUD COVER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE),
4JB1 ENG(RLF)
02.334
ID=6.4 OD=22
|
9-09164-806-0 |
03 |
1 |
9901-9902 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
3 |
08.154 WASHER; PL,MUD COVER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE),
4JB1 ENG(RLF)
02.334
ID=6.4 OD=22
|
9-09164-806-0 |
03 |
1 |
9903-0012 |
● |
● |
● |
● |
|
|
|
|
| |
3 |
08.154 WASHER; PL,MUD COVER
4JA1 ENG(RLE),4JB1 ENG(RLF)
02.334
ID=6.4 OD=22
|
9-09164-806-0 |
03 |
1 |
9903-0012 |
|
|
|
|
● |
● |
● |
● |
| |
3 |
08.154 WASHER; PL,MUD COVER
4JA1 ENG(RLE),4JB1 ENG(RLF)
02.334
ID=6.4 OD=22
|
9-09164-806-0 |
03 |
1 |
0101-0108 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
3 |
08.154 WASHER; PL,MUD COVER
22LE/C22NE ENG(RJT)
EXC. 4X2 HIGH RIDE SUSPENSION(7YC)
02.334
ID=6.4 OD=22
|
9-09164-806-0 |
03 |
1 |
0101-0108 |
● |
● |
● |
● |
|
|
|
|
| |
3 |
08.154 WASHER; PL,MUD COVER
4JA1 ENG(RLE),4JB1 ENG(RLF)
02.334
ID=6.4 OD=22
|
9-09164-806-0 |
03 |
1 |
0109- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
3 |
08.154 WASHER; PL,MUD COVER
22LE/C22NE ENG(RJT),20SE ENG(RND)
EXC. 4X2 HIGH RIDE SUSPENSION(7YC)
02.334
ID=6.4 OD=22
|
9-09164-806-0 |
03 |
1 |
0109- |
● |
● |
● |
● |
|
|
|
|
| |
32 |
04.510 PROTECTOR; TRANSFER
4JA1 ENG(RLE),4JB1 ENG(RLF)
|
8-97019-355-1 |
01 |
1 |
9804-9812 |
|
|
|
|
● |
● |
● |
● |
| |
32 |
04.510 PROTECTOR; TRANSFER
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ)
UNDER GUARD<ES7>
|
8-97019-355-1 |
01 |
1 |
9804-9812 |
|
|
|
|
● |
● |
● |
● |
| |
32 |
04.510 PROTECTOR; TRANSFER
4JA1 ENG(RLE),4JB1 ENG(RLF)
|
8-97019-355-1 |
01 |
1 |
9901-9909 |
|
|
|
|
● |
● |
● |
● |
| |
32 |
04.510 PROTECTOR; TRANSFER
22LE/C22NE ENG(RJT)
UNDER GUARD<ES7>
|
8-97019-355-1 |
01 |
1 |
9901-9909 |
|
|
|
|
● |
● |
● |
● |
| |
32 |
04.510 PROTECTOR; TRANSFER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE),
4JB1 ENG(RLF)
M/T MSG 5 SPEED(M75)
GUARD TRANSFER<7EH>
|
8-97019-355-2 |
01 |
1 |
9910- |
|
|
|
|
● |
● |
● |
● |
| |
32 |
04.510 PROTECTOR; TRANSFER
6VD1 ENG(RLV)
M/T MUA 5 SPEED(RMN)
|
8-94375-527-2 |
01 |
1 |
9804-9812 |
|
|
|
|
|
|
|
● |
| |
32 |
04.510 PROTECTOR; TRANSFER
6VD1 ENG(RLV)
M/T MUA 5 SPEED(RMN)
|
8-94375-527-2 |
01 |
1 |
9901-9909 |
|
|
|
|
|
|
● |
● |
| |
33 |
04.510 BOLT; PROTECTOR
4JA1 ENG(RLE),4JB1 ENG(RLF)
03.706
M10X20 W/LK&PL WASHER
|
0-50141-020-0 |
02 |
1 |
9804-9812 |
|
|
|
|
● |
● |
● |
● |
| |
33 |
04.510 BOLT; PROTECTOR
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ)
UNDER GUARD<ES7>
03.706
M10X20 W/LK&PL WASHER
|
0-50141-020-0 |
02 |
1 |
9804-9812 |
|
|
|
|
● |
● |
● |
● |
| |
33 |
04.510 BOLT; PROTECTOR
4JA1 ENG(RLE),4JB1 ENG(RLF)
03.706
M10X20 W/LK&PL WASHER
|
0-50141-020-0 |
02 |
1 |
9901-9909 |
|
|
|
|
● |
● |
● |
● |
| |
33 |
04.510 BOLT; PROTECTOR
22LE/C22NE ENG(RJT)
UNDER GUARD<ES7>
03.706
M10X20 W/LK&PL WASHER
|
0-50141-020-0 |
02 |
1 |
9901-9909 |
|
|
|
|
● |
● |
● |
● |
| |
33 |
04.510 BOLT; PROTECTOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE),
4JB1 ENG(RLF)
M/T MSG 5 SPEED(M75)
GUARD TRANSFER<7EH>
03.706
M10X20 W/LK&PL WASHER
|
0-50141-020-0 |
02 |
1 |
9910- |
|
|
|
|
● |
● |
● |
● |
| |
33 |
04.510 BOLT; PROTECTOR
4JA1 ENG(RLE),4JB1 ENG(RLF)
03.690
M10X28 W/LK&PL WASHER
|
8-97104-788-0 |
02 |
1 |
9804-9812 |
|
|
|
|
● |
● |
● |
● |
| |
33 |
04.510 BOLT; PROTECTOR
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ)
UNDER GUARD<ES7>
03.690
M10X28 W/LK&PL WASHER
|
8-97104-788-0 |
02 |
1 |
9804-9812 |
|
|
|
|
● |
● |
● |
● |
| |
33 |
04.510 BOLT; PROTECTOR
4JA1 ENG(RLE),4JB1 ENG(RLF)
03.690
M10X28 W/LK&PL WASHER
|
8-97104-788-0 |
02 |
1 |
9901-9909 |
|
|
|
|
● |
● |
● |
● |
| |
33 |
04.510 BOLT; PROTECTOR
22LE/C22NE ENG(RJT)
UNDER GUARD<ES7>
03.690
M10X28 W/LK&PL WASHER
|
8-97104-788-0 |
02 |
1 |
9901-9909 |
|
|
|
|
● |
● |
● |
● |
| |
33 |
04.510 BOLT; PROTECTOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE),
4JB1 ENG(RLF)
M/T MSG 5 SPEED(M75)
GUARD TRANSFER<7EH>
03.690
M10X28 W/LK&PL WASHER
|
8-97104-788-1 |
02 |
1 |
9910- |
|
|
|
|
● |
● |
● |
● |
| |
33 |
04.510 BOLT; PROTECTOR
6VD1 ENG(RLV)
03.690
M10X28 W/LK&PL WASHER
|
8-97104-788-0 |
03 |
1 |
9804-9812 |
|
|
|
|
|
|
|
● |
| |
33 |
04.510 BOLT; PROTECTOR
6VD1 ENG(RLV)
03.690
M10X28 W/LK&PL WASHER
|
8-97104-788-0 |
03 |
1 |
9901-9909 |
|
|
|
|
|
|
● |
● |
