5-40 — ENGINE ROOM INSULATOR (#43723) — 30 parça

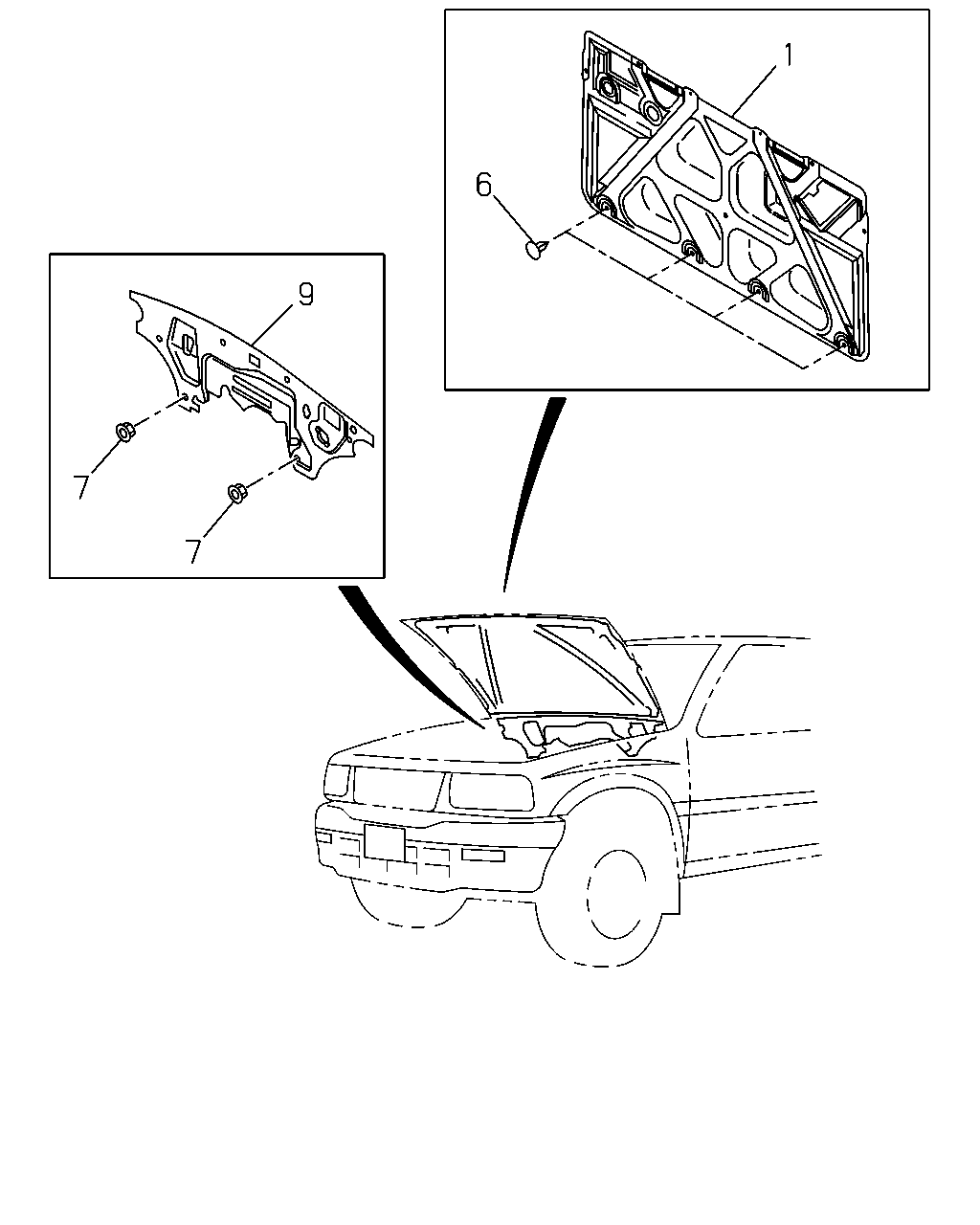

çizim 19667
1 6 9 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.021 INSULATION; ENG HOOD
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97111-847-0 01 1 9804-9807 ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ), 6VD1 ENG(RLV) NOISE INSULATION PACK 2<7MW> 		8-97111-847-0 01 1 9804-9807 ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97213-768-0 01 1 9808-9812 ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ), 6VD1 ENG(RLV) NOISE INSULATION PACK 2<7MW> 		8-97213-768-0 01 1 9808-9812 ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97213-768-0 01 1 9901-0108 ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) NOISE INSULATION PACK 2<7MW> 		8-97213-768-0 01 1 9901-0108 ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97213-768-0 01 1 0109- ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) NOISE INSULATION PACK 2<7MW> 		8-97213-768-0 01 1 0109- ● ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
4JA1 ENG(RLE),4JB1 ENG(RLF) ID=6.2 L=11.4 		8-97808-623-0 13 1 9804-9812 ● ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ), 6VD1 ENG(RLV) NOISE INSULATION PACK 2<7MW> ID=6.2 L=11.4 		8-97808-623-0 13 1 9804-9812 ● ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
4JA1 ENG(RLE),4JB1 ENG(RLF) ID=6.2 L=11.4 		8-97808-623-0 13 1 9901-0108 ● ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) NOISE INSULATION PACK 2<7MW> ID=6.2 L=11.4 		8-97808-623-0 13 1 9901-0108 ● ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
4JA1 ENG(RLE),4JB1 ENG(RLF) ID=6.2 L=11.4 		8-97808-623-0 13 1 0109- ● ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) NOISE INSULATION PACK 2<7MW> ID=6.2 L=11.4 		8-97808-623-0 13 1 0109- ● ● ● ● ● ● ● ●
7 08.021 CLIP; INSULATION
NOISE INSULATION PACK 2<7MW> 16.550 H=10.5 		8-94441-810-0 06 1 9804-9812 ● ● ● ● ● ● ● ●
7 08.021 CLIP; INSULATION
6VD1 ENG(RLV) EXC. NOISE INSULATION PACK 2<7MW> 16.550 H=10.5 		8-94441-810-0 06 1 9804-9812 ● ●
7 08.021 CLIP; INSULATION
NOISE INSULATION PACK 2<7MW> 16.550 H=10.5 		8-94441-810-0 06 1 9901-0004 ● ● ● ● ● ● ● ●
7 08.021 CLIP; INSULATION
6VD1 ENG(RLV) EXC. NOISE INSULATION PACK 2<7MW> 16.550 H=10.5 		8-94441-810-0 06 1 9901-0004 ● ● ● ●
7 08.021 CLIP; INSULATION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) NOISE INSULATION PACK 2<7MW> 16.550 H=10.5 		8-94441-810-0 06 1 0005- ● ● ● ● ● ● ● ●
7 08.021 CLIP; INSULATION
6VD1 ENG(RLV) 16.550 H=10.5 		8-94441-810-0 04 1 0005- ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
NOISE INSULATION PACK 2<7MW> 		8-97147-025-2 01 1 9804-9812 ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
6VD1 ENG(RLV) EXC. NOISE INSULATION PACK 2<7MW> 		8-97147-025-2 01 1 9804-9812 ● ●
9 08.021 INSULATION; DASH ENG ROOM
NOISE INSULATION PACK 2<7MW> 		8-97147-025-2 01 1 9901-0004 ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
6VD1 ENG(RLV) EXC. NOISE INSULATION PACK 2<7MW> 		8-97147-025-2 01 1 9901-0004 ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) NOISE INSULATION PACK 2<7MW> 		8-97147-025-2 01 1 0005-0109 ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) KD PREPARATORY PACK<6HF> NOISE INSULATION PACK 2<7MW> 		8-97147-025-2 01 1 0110-0211 ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) KD PREPARATORY PACK<6HF> NOISE INSULATION PACK 2<7MW> 		8-97361-159-0 01 1 0212- ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) NOISE INSULATION PACK 2<7MW> EXC. KD PREPARATORY PACK<6HF> 		8-97311-548-1 01 1 0110-0211 ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) NOISE INSULATION PACK 2<7MW> EXC. KD PREPARATORY PACK<6HF> 		8-97361-160-0 01 1 0212- ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
6VD1 ENG(RLV) 		8-97260-512-1 01 1 0005- ● ● ● ●
