5-10 — CAB MOUNTING; FRAME SIDE (#43720) — 69 parça

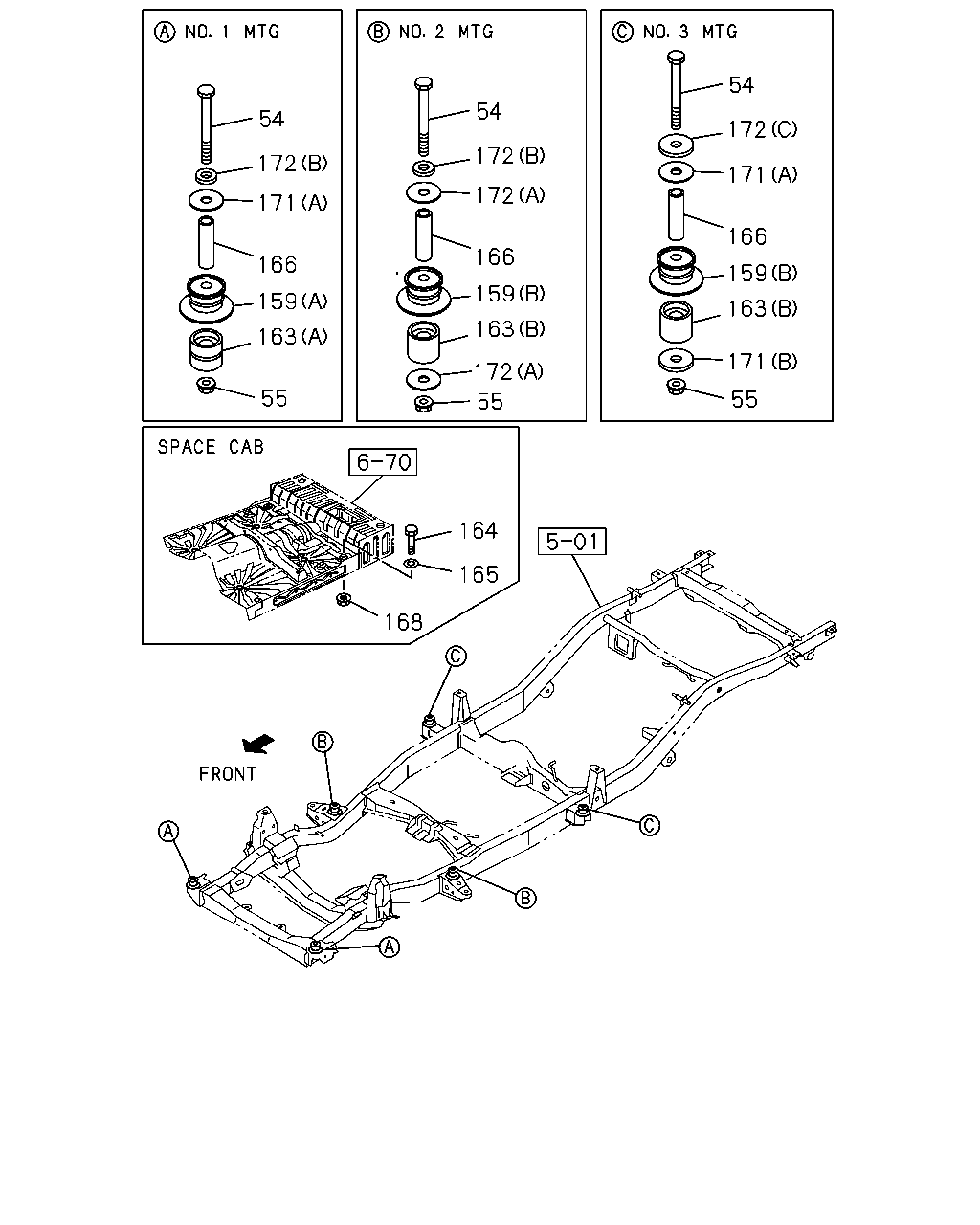

54 54 54 54 172 172 171 172 172 171 171 171 166 166 166 166 159 159 159 159 163 163 163 163 172 172 171 55 55 55 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
54	09.008 BOLT; RUBBER M10X120	8-97134-968-0	06	1	9804-	●	●	●	●	●	●	●	●
54	09.008 BOLT; RUBBER M10X120	8-97134-968-0	02	1	9804-				●				●
55	09.008 NUT; RUBBER 08.917 M10 FLANGE	0-91150-210-0	06	1	9804-	●	●	●	●	●	●	●	●
55	09.008 NUT; RUBBER 08.917 M10 FLANGE	0-91150-210-0	02	1	9804-				●				●
159	09.023 RUBBER; CUSHION,CAB MTG (A)	8-94325-155-2	02	1	9804-	●	●	●	●	●	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (A)	8-94325-155-2	02	1	9804-				●				●
159	09.023 RUBBER; CUSHION,CAB MTG (B)	8-94325-158-2	04	1	9804-	●	●	●	●	●	●	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (A)	8-94325-156-0	02	1	9804-	●	●	●	●	●	●	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (B)	8-94325-157-1	04	1	9804-	●	●	●	●	●	●	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (C)	8-97035-572-1	02	1	9804-				●				●
166	09.009 PIECE; DIST,BODY MTG RUBBER L=70	8-97148-478-0	06	1	9804-	●	●	●	●	●	●	●	●
166	09.009 PIECE; DIST,BODY MTG RUBBER L=70	8-97148-478-0	02	1	9804-				●				●
171	09.011 WASHER; BODY MTG RUBBER (A) ID=11 OD=48 T=2.9	8-94223-170-0	04	1	9804-9906	●	●	●	●	●	●	●	●
171	09.011 WASHER; BODY MTG RUBBER (A) ID=11 OD=48 T=2.9	8-94223-170-0	04	1	9804-9906				●				●
171	09.011 WASHER; BODY MTG RUBBER (A) NO.1 MTG ID=11 OD=48 T=2.9	8-94223-170-0	02	1	9907-	●	●	●	●	●	●	●	●
171	09.011 WASHER; BODY MTG RUBBER (A) NO.3 MTG OD=48 T=2.9	8-97077-386-1	02	1	9907-	●	●	●	●	●	●	●	●
171	09.011 WASHER; BODY MTG RUBBER (B) OD=48 T=6.0	8-94416-694-0	02	1	9804-	●	●	●		●	●	●
171	09.011 WASHER; BODY MTG RUBBER (C) OD=32 T=6.0	8-94416-693-0	02	1	9804-				●				●
171	09.011 WASHER; BODY MTG RUBBER (A) ID=11 OD=48 T=2.9	8-94223-170-0	04	1	9907-				●				●
172	09.011 WASHER; BODY MTG RUBBER (A) ID=11 OD=48 T=2.9	8-94223-170-0	04	1	9804-	●	●	●	●	●	●	●	●
172	09.011 WASHER; BODY MTG RUBBER (B) OD=32 T=6.0	8-94416-693-0	04	1	9804-	●	●	●	●	●	●	●	●
172	09.011 WASHER; BODY MTG RUBBER (C) OD=48 T=6.0	8-94416-694-0	02	1	9804-	●	●	●	●	●	●	●	●
172	09.011 WASHER; BODY MTG RUBBER (D) ID=11 OD=48 T=2.9	8-94223-170-0	02	1	9804-				●				●

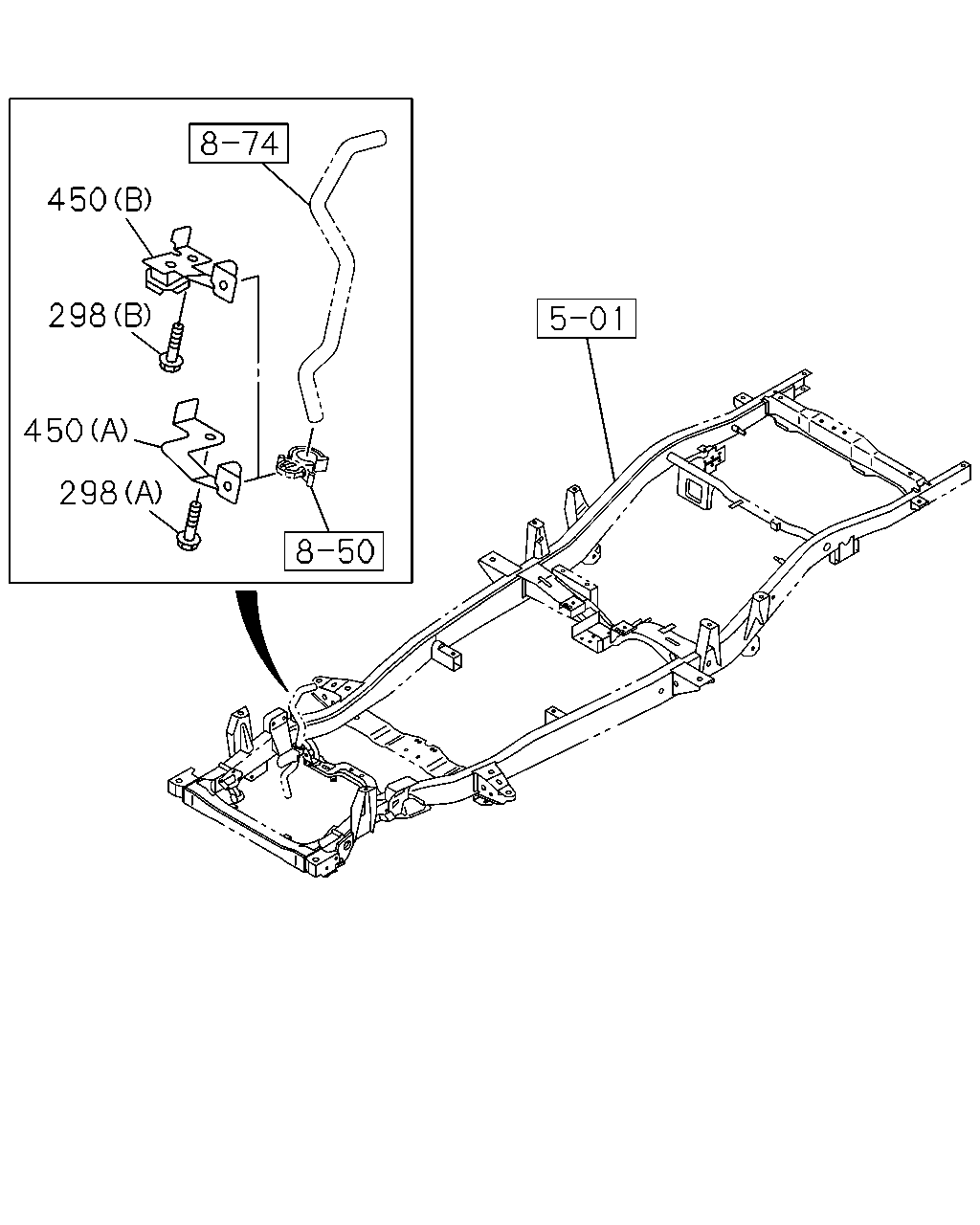

450 298 450 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	G	H
298	09.003 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) 03.405 (A) M10X25 FLANGE	0-28681-025-0	01	1	0012-0109			●	●	●	●
298	09.003 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) 03.405 (A) M10X25 FLANGE	0-28681-025-0	01	1	0110-0112			●	●	●	●
298	09.003 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) 4X2 HIGH RIDE SUSPENSION(7YC) 03.405 (A) M10X25 FLANGE	0-28681-025-0	01	1	0201-0201			●	●
298	09.003 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) 03.405 (A) M10X25 FLANGE	0-28681-025-0	01	1	0201-0201					●	●
298	09.003 BOLT; BRKT 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5 .5JJ-20(ANL),FRT&RR 185R14-8 5.5JJX14 ADR P/SILVER SASO(BPF),FRT&RR 18 5R14-8 5.5JJX14(9PE) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER<K51>,PHILIPPINE EQUIPMENT(S2U),REAR AXLE LOW GEARED(6ST),M/T LOW GEARED(6WF),4X2 HIGH R IDE SUSPENSION(7YC) (B) M10X20 FLANGE	0-28691-020-0	01	1	0201-0201	●	●	●	●
298	09.003 BOLT; BRKT 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) FRT&RR 205/80R16 104Q (AVA),FRT&RR 205/80R16 104Q ALUMI WHL(BSA), FRT&RR 205/80R16 6JJX16 STYLED(BXY),FRT& RR 205/80R16 6JJX16 ALUMI(BYB), FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> 4X2 HIGH RIDE SUSPENSION(7YC) EXC. TURBOCHARGER<K51>,PHILIPPINE EQUIPMENT(S2U),M/T LOW GEARED(6WF) (B) M10X20 FLANGE	0-28691-020-0	01	1	0201-0201	●	●	●	●
298	09.003 BOLT; BRKT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) EXC. PARKING BRAKE FLOOR<7XW>,4X2 HIGH RIDE SUSPENSION(7YC) (B) M10X20 FLANGE	0-28691-020-0	01	1	0202-0212			●	●
298	09.003 BOLT; BRKT 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5 .5JJ-20(ANL),FRT&RR 185R14-8 5.5JJX14 ADR P/SILVER SASO(BPF),FRT&RR 18 5R14-8 5.5JJX14(9PE) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER<K51>,PHILIPPINE EQUIPMENT(S2U),REAR AXLE LOW GEARED(6ST),M/T LOW GEARED(6WF),4X2 HIGH R IDE SUSPENSION(7YC) 03.611 (B) M10X20 FLANGE	0-28681-020-0	01	1	0301-	●	●	●	●
298	09.003 BOLT; BRKT 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) FRT&RR 205/80R16 104Q (AVA),FRT&RR 205/80R16 104Q ALUMI WHL(BSA), FRT&RR 205/80R16 6JJX16 STYLED(BXY),FRT& RR 205/80R16 6JJX16 ALUMI(BYB), FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> 4X2 HIGH RIDE SUSPENSION(7YC) EXC. TURBOCHARGER<K51>,PHILIPPINE EQUIPMENT(S2U),M/T LOW GEARED(6WF) 03.611 (B) M10X20 FLANGE	0-28681-020-0	01	1	0301-	●	●	●	●
298	09.003 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) 4X2 HIGH RIDE SUSPENSION(7YC) 03.405 (A) M10X25 FLANGE	0-28681-025-0	01	1	0202-0212			●	●
298	09.003 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) 03.405 (A) M10X25 FLANGE	0-28681-025-0	01	1	0202-0212					●	●
450	09.003 BRACKET; JACK POINT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) 09.211 (A)	8-97254-385-1	01	1	0012-0109			●	●	●	●
450	09.003 BRACKET; JACK POINT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) 09.211 (A)	8-97254-385-1	01	1	0110-0112			●	●	●	●
450	09.003 BRACKET; JACK POINT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) 4X2 HIGH RIDE SUSPENSION(7YC) 09.211 (A)	8-97254-385-1	01	1	0201-0201			●	●
450	09.003 BRACKET; JACK POINT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) 09.211 (A)	8-97254-385-1	01	1	0201-0201					●	●
450	09.003 BRACKET; JACK POINT 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5 .5JJ-20(ANL),FRT&RR 185R14-8 5.5JJX14 ADR P/SILVER SASO(BPF),FRT&RR 18 5R14-8 5.5JJX14(9PE) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER<K51>,PHILIPPINE EQUIPMENT(S2U),REAR AXLE LOW GEARED(6ST),M/T LOW GEARED(6WF),4X2 HIGH R IDE SUSPENSION(7YC) (B)	8-97314-132-1	01	1	0201-0201	●	●	●	●
450	09.003 BRACKET; JACK POINT 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) FRT&RR 205/80R16 104Q (AVA),FRT&RR 205/80R16 104Q ALUMI WHL(BSA), FRT&RR 205/80R16 6JJX16 STYLED(BXY),FRT& RR 205/80R16 6JJX16 ALUMI(BYB), FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> 4X2 HIGH RIDE SUSPENSION(7YC) EXC. TURBOCHARGER<K51>,PHILIPPINE EQUIPMENT(S2U),M/T LOW GEARED(6WF) (B)	8-97314-132-1	01	1	0201-0201	●	●	●	●
450	09.003 BRACKET; JACK POINT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) EXC. PARKING BRAKE FLOOR<7XW>,4X2 HIGH RIDE SUSPENSION(7YC) (B)	8-97314-132-1	01	1	0202-			●	●
450	09.003 BRACKET; JACK POINT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) 4X2 HIGH RIDE SUSPENSION(7YC) 09.211 (A)	8-97254-385-1	01	1	0202-			●	●
450	09.003 BRACKET; JACK POINT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) 09.211 (A)	8-97254-385-1	01	1	0202-					●	●

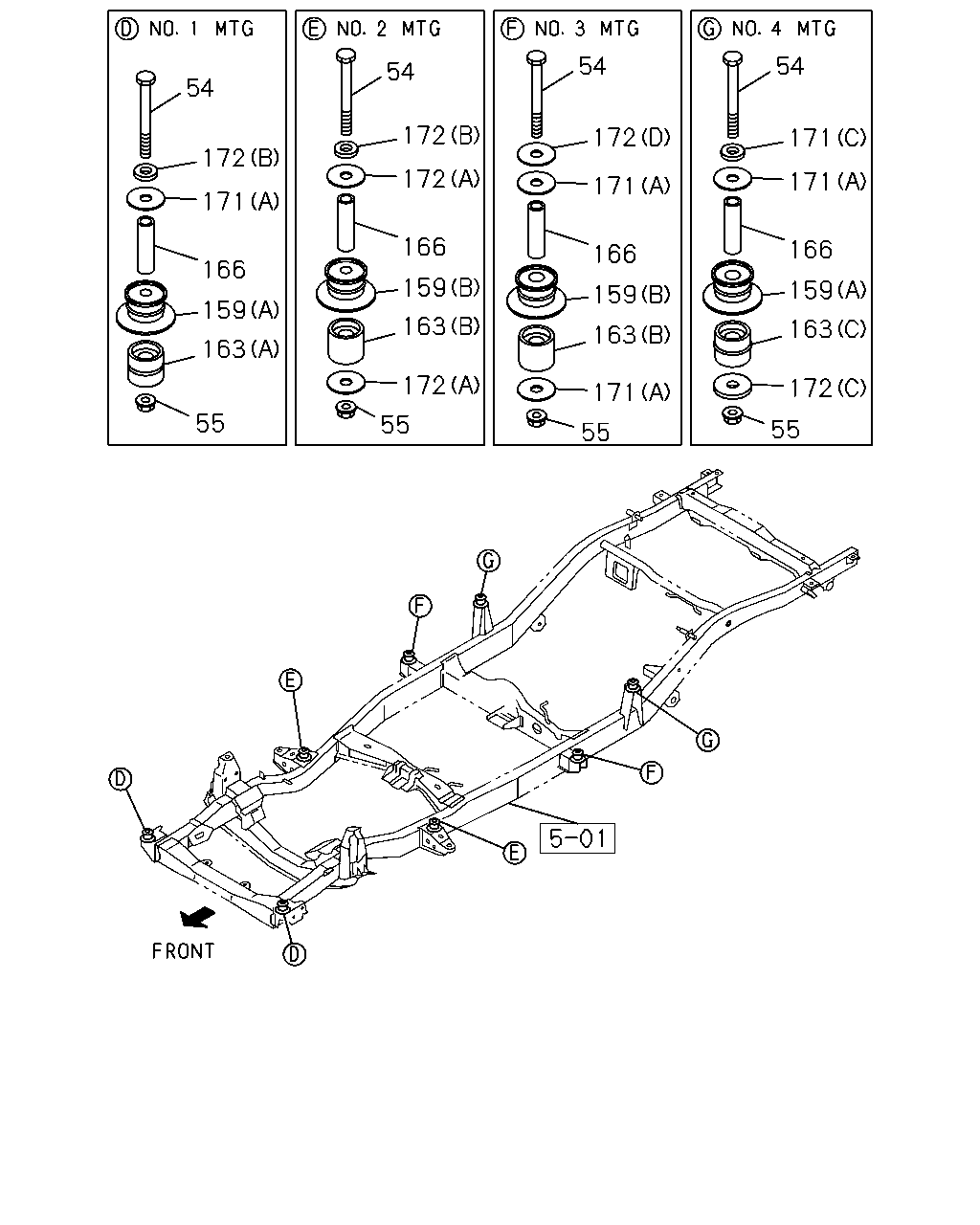

54 54 54 172 172 172 171 172 171 166 166 166 159 159 159 163 163 163 171 172 55 55 55 164 165 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
54	09.008 BOLT; RUBBER M10X120	8-97134-968-0	06	1	9804-	●	●	●	●	●	●	●	●
54	09.008 BOLT; RUBBER M10X120	8-97134-968-0	02	1	9804-				●				●
55	09.008 NUT; RUBBER 08.917 M10 FLANGE	0-91150-210-0	06	1	9804-	●	●	●	●	●	●	●	●
55	09.008 NUT; RUBBER 08.917 M10 FLANGE	0-91150-210-0	02	1	9804-				●				●
159	09.023 RUBBER; CUSHION,CAB MTG (A)	8-94325-155-2	02	1	9804-	●	●	●	●	●	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (A)	8-94325-155-2	02	1	9804-				●				●
159	09.023 RUBBER; CUSHION,CAB MTG (B)	8-94325-158-2	04	1	9804-	●	●	●	●	●	●	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (A)	8-94325-156-0	02	1	9804-	●	●	●	●	●	●	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (B)	8-94325-157-1	04	1	9804-	●	●	●	●	●	●	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (C)	8-97035-572-1	02	1	9804-				●				●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG 06.056 M12X25	0-20801-225-0	02	1	9804-	●				●
165	09.011 WASHER; PL,CAB MTG 00.793 ID=12.5 OD=26	9-09160-612-0	02	1	9804-	●				●
166	09.009 PIECE; DIST,BODY MTG RUBBER L=70	8-97148-478-0	06	1	9804-	●	●	●	●	●	●	●	●
166	09.009 PIECE; DIST,BODY MTG RUBBER L=70	8-97148-478-0	02	1	9804-				●				●
168	09.011 NUT; CUSHION RUBBER,BODY MTG 05.586 M12 FLANGE	0-91150-112-0	02	1	9804-	●				●
171	09.011 WASHER; BODY MTG RUBBER (A) ID=11 OD=48 T=2.9	8-94223-170-0	04	1	9804-9906	●	●	●	●	●	●	●	●
171	09.011 WASHER; BODY MTG RUBBER (A) ID=11 OD=48 T=2.9	8-94223-170-0	04	1	9804-9906				●				●
171	09.011 WASHER; BODY MTG RUBBER (A) NO.1 MTG ID=11 OD=48 T=2.9	8-94223-170-0	02	1	9907-	●	●	●	●	●	●	●	●
171	09.011 WASHER; BODY MTG RUBBER (A) NO.3 MTG OD=48 T=2.9	8-97077-386-1	02	1	9907-	●	●	●	●	●	●	●	●
171	09.011 WASHER; BODY MTG RUBBER (B) OD=48 T=6.0	8-94416-694-0	02	1	9804-	●	●	●		●	●	●
171	09.011 WASHER; BODY MTG RUBBER (C) OD=32 T=6.0	8-94416-693-0	02	1	9804-				●				●
171	09.011 WASHER; BODY MTG RUBBER (A) ID=11 OD=48 T=2.9	8-94223-170-0	04	1	9907-				●				●
172	09.011 WASHER; BODY MTG RUBBER (A) ID=11 OD=48 T=2.9	8-94223-170-0	04	1	9804-	●	●	●	●	●	●	●	●
172	09.011 WASHER; BODY MTG RUBBER (B) OD=32 T=6.0	8-94416-693-0	04	1	9804-	●	●	●	●	●	●	●	●
172	09.011 WASHER; BODY MTG RUBBER (C) OD=48 T=6.0	8-94416-694-0	02	1	9804-	●	●	●	●	●	●	●	●
172	09.011 WASHER; BODY MTG RUBBER (D) ID=11 OD=48 T=2.9	8-94223-170-0	02	1	9804-				●				●
