Sayfa 0-82B - Isuzu EPC

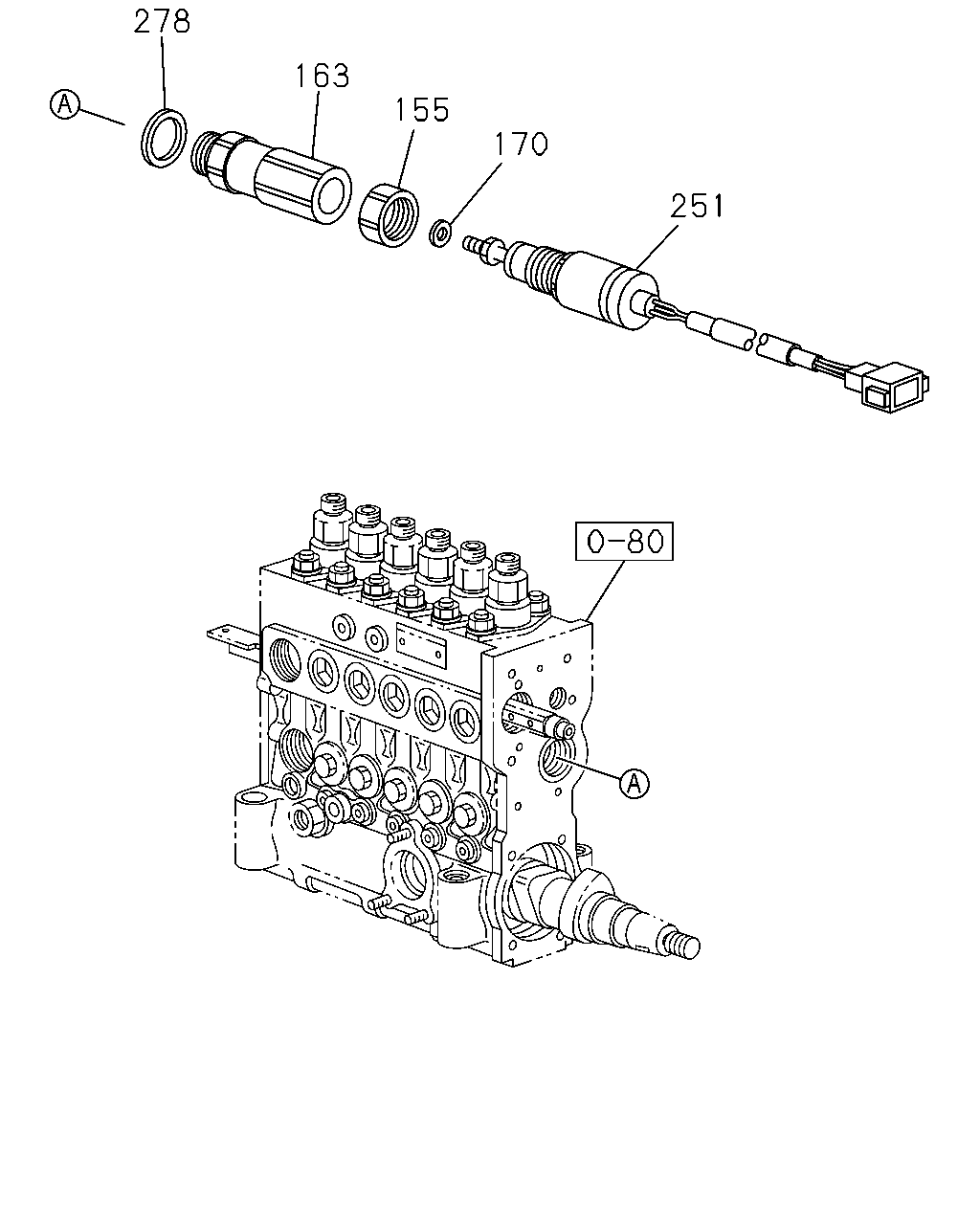

0-82B — BOOST COMPENSATOR; INJECTION GOVERNOR (#4372) — 5 parça

278 163 155 170 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	NUT; SENSOR ASM PART: A = 8-94391-531-1, B = 8-94392-007-0, C = 8-94392-439-0	1-15779-179-0	01	1	-
163	JOINT; LOAD SENSOR,SENSOR SIDE ASM PART: A = 8-94391-531-1, B = 8-94392-007-0, C = 8-94392-439-0	1-15779-551-0	01	1	-
170	SHIM; CONN PIN,LOAD SENSOR,GOV ASM PART: A = 8-94391-531-1, B = 8-94392-007-0, C = 8-94392-439-0	1-15729-673-0	01	1	-
251	SENSOR; RACK,GOV ASM PART: A = 8-94391-531-1, B = 8-94392-007-0, C = 8-94392-439-0	1-15637-039-1	01	1	-
278	GASKET; SENSOR ASM PART: A = 8-94391-531-1, B = 8-94392-007-0, C = 8-94392-439-0	9-81325-528-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
