4-33 — STEERING LINKAGE (#43709) — 96 parça

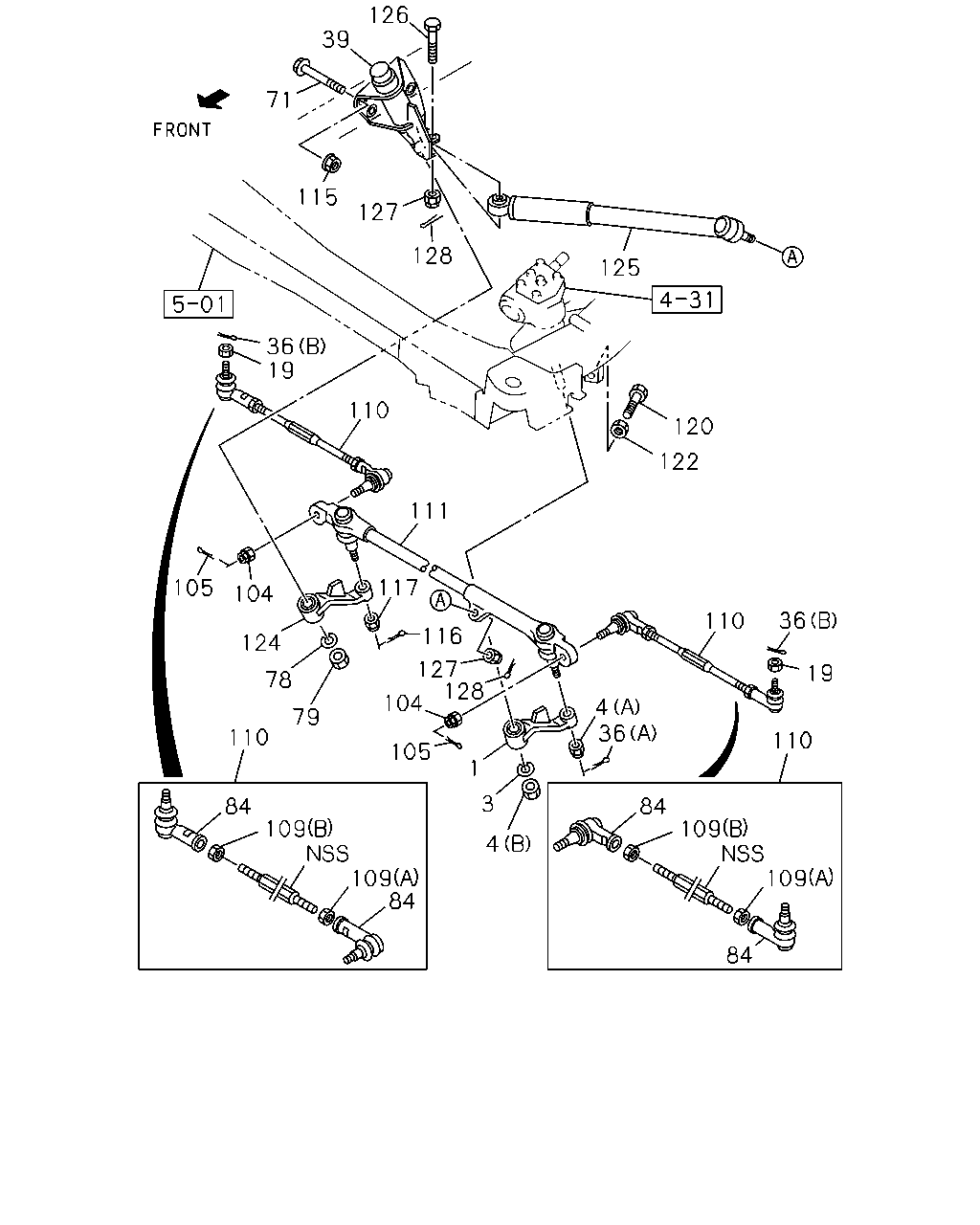

çizim 19306
126 39 71 115 127 128 125 36 19 110 120 122 111 105 117 104 116 36 110 124 127 128 19 78 104 4 36 79 105 110 110 1 3 84 84 109 109 84 109 109 4 84
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 06.859 ARM; PITMAN,STRG
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94440-892-3 01 1 9804-9812 ● ● ● ●
1 06.859 ARM; PITMAN,STRG
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94440-892-3 01 1 9901-0012 ● ● ● ●
1 06.859 ARM; PITMAN,STRG
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94440-892-3 01 1 0101-0105 ● ● ●
1 06.859 ARM; PITMAN,STRG 8-94440-892-3 01 1 0101-0105 ●
1 06.859 ARM; PITMAN,STRG
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97315-931-0 01 1 0106- ● ● ●
1 06.859 ARM; PITMAN,STRG 8-97315-931-0 01 1 0106- ●
1 06.859 ARM; PITMAN,STRG
6VD1 ENG(RLV) 		8-97026-252-0 01 1 9804-9812 ●
1 06.859 ARM; PITMAN,STRG 8-97026-252-0 01 1 9804-9812 ● ● ● ●
1 06.859 ARM; PITMAN,STRG
6VD1 ENG(RLV) 		8-97026-252-0 01 1 9901-0012 ● ●
1 06.859 ARM; PITMAN,STRG 8-97026-252-0 01 1 9901-0012 ● ● ● ●
1 06.859 ARM; PITMAN,STRG
4X2 HIGH RIDE SUSPENSION(7YC) 		8-97026-252-0 01 1 0101-0105 ● ● ●
1 06.859 ARM; PITMAN,STRG 8-97026-252-0 01 1 0101-0105 ● ● ● ●
1 06.859 ARM; PITMAN,STRG
4X2 HIGH RIDE SUSPENSION(7YC) 		8-97315-932-0 01 1 0106- ● ● ●
1 06.859 ARM; PITMAN,STRG 8-97315-932-0 01 1 0106- ● ● ● ●
3 06.861 WASHER; LK,PITMAN ARM
ID=22.5 		9-09150-522-0 01 1 9804- ● ● ● ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
06.865 (A) M14 		8-94465-411-0 01 1 9804- ● ● ● ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
08.915 (B) M22 		9-09111-522-0 01 1 9804- ● ● ● ● ● ● ● ●
19 06.865 NUT; PITMAN ARM,STOPPER
M14 		8-94465-411-0 02 1 9804- ● ● ● ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
06.865 (A) OD=2.8 L=25 		9-08113-025-0 01 1 9804-9808 ● ● ● ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
06.865 (A) OD=2.7 L=17 		8-97171-453-0 01 1 9809- ● ● ● ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
06.865 (B) OD=2.8 L=25 		9-08113-025-0 02 1 9804- ● ● ● ● ● ● ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE 8-97102-823-0 01 1 9804-0108 ● ● ● ● ● ● ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
FRT&RR 185R14-8 5.5JJX14 ADR P/SILV ER SASO(BPG),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14 (9NY),FRT 6.5-15-6 RR 6.5-15-8 5.5KX15(9PA) POWER STEERING<N40> EXC. ECUADOR EQUIPMENT(S6E), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97102-823-0 01 1 0109-0109 ● ● ● ● ● ● ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), REEXPORT FROM CHILE EQUIPMENT(7KS),GU ATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-97102-823-0 01 1 0109-0109 ● ● ● ● ● ● ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
EXC. POWER STEERING<N40>,ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),GUATEMALA/CO STA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97102-823-0 01 1 0109-0109 ● ● ● ● ● ● ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
FRT&RR 185R14-8 5.5JJX14 ADR P/SILV ER SASO(BPG),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT 6.0-14-6 RR 6 .5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY),FRT 6.5-15-6 RR 6.5-15-85.5KX15(9PA) POWER STEERING<N40> EXC. ECUADOR EQUIPMENT(S6E), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97102-823-0 01 1 0110-0110 ● ● ● ● ● ● ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), REEXPORT FROM CHILE EQUIPMENT(7KS),GU ATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-97102-823-0 01 1 0110-0110 ● ● ● ● ● ● ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
EXC. POWER STEERING<N40>,ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),GUATEMALA/CO STA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97102-823-0 01 1 0110-0110 ● ● ● ● ● ● ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
FRT&RR 185R14-8 5.5JJX14 ADR P/SILV ER SASO(BPG),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14 (9NY),FRT 6.5-15-6 RR 6.5-15-8 5.5KX15(9PA),FRT&RR 6.50-15-8 5.5KX15 S TYLED WHL(9RE) POWER STEERING<N40> EXC. ECUADOR EQUIPMENT(S6E), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97102-823-0 01 1 0111- ● ● ● ● ● ● ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), REEXPORT FROM CHILE EQUIPMENT(7KS),GU ATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-97102-823-0 01 1 0111- ● ● ● ● ● ● ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
EXC. POWER STEERING<N40>,ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),GUATEMALA/CO STA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97102-823-0 01 1 0111- ● ● ● ● ● ● ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
FRT 185R14-6 5.5JJ-20 RR 185R14-8 5 .5JJ-20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT&RR 205/8 0R16 104Q (AVA),FRT&RR 215R15 5.5KX15 STYLED(AVY),FRT&RR 185R14-8 5.5J JX14 ADR P/SILVER SASO(BPF),FRT&RR 205/80R16 104Q ALUMI WHL(BSA), FRT&RR 205/80R16 6JJX16 STYLED(BXY),FRT& RR 185R14-8 5.5JJX14(9PE) POWER STEERING<N40> EXC. ECUADOR EQUIPMENT(S6E), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97039-326-1 01 1 0109-0109 ● ● ● ● ● ● ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
FRT 185R14-6 5.5JJ-20 RR 185R14-8 5 .5JJ-20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT&RR 205/8 0R16 104Q (AVA),FRT&RR 185R14-8 5.5JJX14 ADR P/SILVER SASO(BPF),FRT&RR 205/80R16 104Q ALUMI WHL(BSA),FRT& RR 205/80R16 6JJX16 STYLED(BXY), FRT&RR 205/80R16 6JJX16 ALUMI(BYB),FRT &RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT&RR 185R14-8 5.5JJX14(9PE) POWER STEERING<N40> EXC. ECUADOR EQUIPMENT(S6E), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97039-326-1 01 1 0110- ● ● ● ● ● ● ● ●
71 06.896 BOLT; RELAY LEVER BRKT
06.509 M10X92 FLANGE 		8-94313-798-1 04 1 9804- ● ● ● ● ● ● ● ●
78 06.897 WASHER; LINK,RELAY LEVER
07.247 ID=16.2 		9-09150-816-0 01 1 9804- ● ● ● ● ● ● ● ●
79 06.897 NUT; RELAY LEVER
04.681 M16 		9-99111-516-0 01 1 9804- ● ● ● ● ● ● ● ●
84 06.874 ROD END; TRACK ROD
RH THREAD 		8-97020-953-1 02 1 9804- ● ● ● ● ● ● ● ●
84 06.874 ROD END; TRACK ROD
LH THREAD 		8-97020-954-2 02 1 9804- ● ● ● ● ● ● ● ●
104 06.233 NUT; ROD END
06.865 M14 		8-94465-411-0 02 1 9804- ● ● ● ● ● ● ● ●
105 06.865 PIN; SPLIT,ROD END
OD=2.8 L=25 		9-08113-025-0 02 1 9804-9808 ● ● ● ● ● ● ● ●
105 06.865 PIN; SPLIT,ROD END
OD=2.7 L=17 		8-97171-453-0 02 1 9809- ● ● ● ● ● ● ● ●
109 06.897 NUT; ROD
(A) M14 LH THREAD 		5-09400-010-0 02 1 9804- ● ● ● ● ● ● ● ●
109 06.897 NUT; ROD
06.232 (B) M14 		9-99110-414-0 02 1 9804- ● ● ● ● ● ● ● ●
110 06.870 ROD; TRACK,OUTER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) L=306.9 		8-94459-478-2 02 1 9804-9812 ● ● ● ●
110 06.870 ROD; TRACK,OUTER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) L=306.9 		8-94459-478-2 02 1 9901-0012 ● ● ● ●
110 06.870 ROD; TRACK,OUTER
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) L=306.9 		8-94459-478-2 02 1 0101- ● ● ●
110 06.870 ROD; TRACK,OUTER
L=306.9 		8-94459-478-2 02 1 0101- ●
110 06.870 ROD; TRACK,OUTER
6VD1 ENG(RLV) L=262 		8-94459-493-2 02 1 9804-9812 ●
110 06.870 ROD; TRACK,OUTER
L=262 		8-94459-493-2 02 1 9804-9812 ● ● ● ●
110 06.870 ROD; TRACK,OUTER
6VD1 ENG(RLV) L=262 		8-94459-493-2 02 1 9901-0012 ● ●
110 06.870 ROD; TRACK,OUTER
L=262 		8-94459-493-2 02 1 9901-0012 ● ● ● ●
110 06.870 ROD; TRACK,OUTER
4X2 HIGH RIDE SUSPENSION(7YC) L=262 		8-94459-493-2 02 1 0101- ● ● ●
110 06.870 ROD; TRACK,OUTER
L=262 		8-94459-493-2 02 1 0101- ● ● ● ●
111 06.870 ROD; TRACK,CENTER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94389-210-2 01 1 9804-9812 ● ● ● ●
111 06.870 ROD; TRACK,CENTER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94389-210-2 01 1 9901-0012 ● ● ● ●
111 06.870 ROD; TRACK,CENTER
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94389-210-2 01 1 0101-0203 ● ● ●
111 06.870 ROD; TRACK,CENTER 8-94389-210-2 01 1 0101-0203 ●
111 06.870 ROD; TRACK,CENTER
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97316-967-1 01 1 0204- ● ● ●
111 06.870 ROD; TRACK,CENTER 8-97316-967-1 01 1 0204- ●
111 06.870 ROD; TRACK,CENTER
6VD1 ENG(RLV) 		8-94389-222-2 01 1 9804-9812 ●
111 06.870 ROD; TRACK,CENTER 8-94389-222-2 01 1 9804-9812 ● ● ● ●
111 06.870 ROD; TRACK,CENTER
6VD1 ENG(RLV) 		8-94389-222-2 01 1 9901-0012 ● ●
111 06.870 ROD; TRACK,CENTER 8-94389-222-2 01 1 9901-0012 ● ● ● ●
111 06.870 ROD; TRACK,CENTER
4X2 HIGH RIDE SUSPENSION(7YC) 		8-94389-222-2 01 1 0101-0203 ● ● ●
111 06.870 ROD; TRACK,CENTER 8-94389-222-2 01 1 0101-0203 ● ● ● ●
111 06.870 ROD; TRACK,CENTER
4X2 HIGH RIDE SUSPENSION(7YC) 		8-97102-701-2 01 1 0204- ● ● ●
111 06.870 ROD; TRACK,CENTER 8-97102-701-2 01 1 0204- ● ● ● ●
115 06.896 NUT; RELAY LEVER BRKT
06.509 M10 FLANGE 		8-94313-797-0 04 1 9804- ● ● ● ● ● ● ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.870 OD=2.8 L=20 		9-08113-020-0 01 1 9804-9808 ● ● ● ● ● ● ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
OD=2.7 L=15 		8-97171-452-0 01 1 9809- ● ● ● ● ● ● ● ●
117 06.233 NUT; DRAG LINK
M12 SLOTTED 		9-99117-512-0 01 1 9804- ● ● ● ● ● ● ● ●
120 06.897 BOLT; RELAY LEVER STOPPER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 06.861 L=35 		9-09802-280-0 02 1 9804-9812 ● ● ● ●
120 06.897 BOLT; RELAY LEVER STOPPER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 06.861 L=35 		9-09802-280-0 02 1 9901-0012 ● ● ● ●
120 06.897 BOLT; RELAY LEVER STOPPER
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 06.861 L=35 		9-09802-280-0 02 1 0101- ● ● ●
120 06.897 BOLT; RELAY LEVER STOPPER
06.861 L=35 		9-09802-280-0 02 1 0101- ●
120 06.897 BOLT; RELAY LEVER STOPPER
6VD1 ENG(RLV) L=57 		8-94403-347-1 02 1 9804-9812 ●
120 06.897 BOLT; RELAY LEVER STOPPER
L=57 		8-94403-347-1 02 1 9804-9812 ● ● ● ●
120 06.897 BOLT; RELAY LEVER STOPPER
6VD1 ENG(RLV) L=57 		8-94403-347-1 02 1 9901-0012 ● ●
120 06.897 BOLT; RELAY LEVER STOPPER
L=57 		8-94403-347-1 02 1 9901-0012 ● ● ● ●
120 06.897 BOLT; RELAY LEVER STOPPER
4X2 HIGH RIDE SUSPENSION(7YC) L=57 		8-94403-347-1 02 1 0101- ● ● ●
120 06.897 BOLT; RELAY LEVER STOPPER
L=57 		8-94403-347-1 02 1 0101- ● ● ● ●
122 06.896 NUT; RELAY LEVER STOPPER
06.822 M10 		9-09111-410-0 02 1 9804- ● ● ● ● ● ● ● ●
124 06.859 LEVER; RELAY,STRG LINKAGE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94440-893-3 01 1 9804-9812 ● ● ● ●
124 06.859 LEVER; RELAY,STRG LINKAGE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94440-893-3 01 1 9901-0012 ● ● ● ●
124 06.859 LEVER; RELAY,STRG LINKAGE
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94440-893-3 01 1 0101- ● ● ●
124 06.859 LEVER; RELAY,STRG LINKAGE 8-94440-893-3 01 1 0101- ●
124 06.859 LEVER; RELAY,STRG LINKAGE
6VD1 ENG(RLV) 		8-94404-000-5 01 1 9804-9812 ●
124 06.859 LEVER; RELAY,STRG LINKAGE 8-94404-000-5 01 1 9804-9812 ● ● ● ●
124 06.859 LEVER; RELAY,STRG LINKAGE
6VD1 ENG(RLV) 		8-94404-000-6 01 1 9901-0012 ● ●
124 06.859 LEVER; RELAY,STRG LINKAGE 8-94404-000-6 01 1 9901-0012 ● ● ● ●
124 06.859 LEVER; RELAY,STRG LINKAGE
4X2 HIGH RIDE SUSPENSION(7YC) 		8-94404-000-6 01 1 0101- ● ● ●
124 06.859 LEVER; RELAY,STRG LINKAGE 8-94404-000-6 01 1 0101- ● ● ● ●
125 06.865 DAMPER; STEERING 8-97161-106-1 01 1 9804- ● ● ● ● ● ● ● ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER 8-94241-456-0 01 1 9804- ● ● ● ● ● ● ● ●
127 06.865 NUT; STRG DAMPER
05.511 M10 		9-09116-510-0 02 1 9804- ● ● ● ● ● ● ● ●
128 06.865 PIN; SPLIT,STRG DAMPER
00.793 OD=1.8 L=15 		9-08112-015-0 02 1 9804- ● ● ● ● ● ● ● ●
