4-31 — STEERING COLUMN AND SHAFT (#43708) — 48 parça

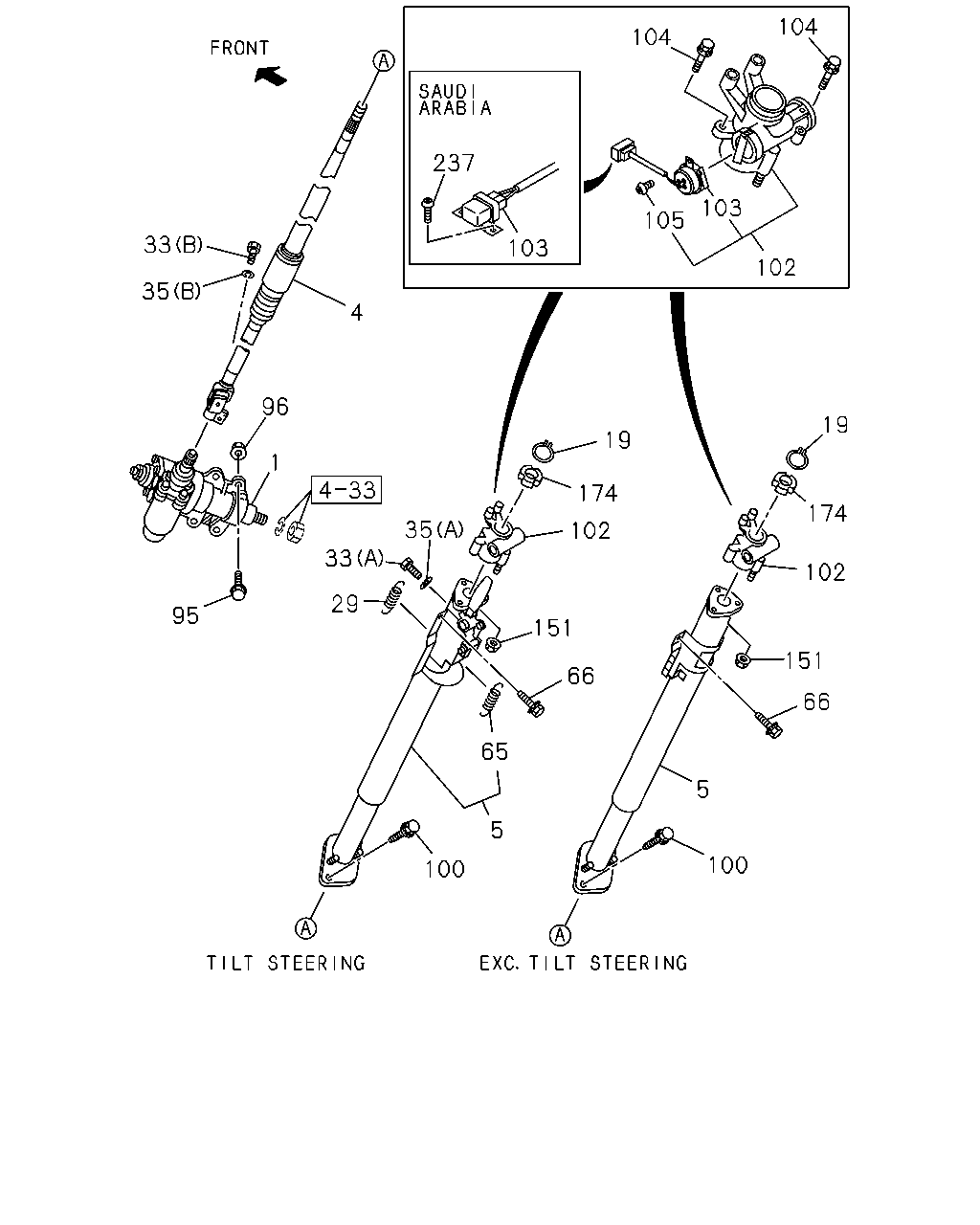

çizim 69298
104 104 237 103 105 33 103 102 35 4 96 19 19 1 174 174 35 102 33 102 29 95 151 151 66 66 65 5 5 100 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> 		8-97045-345-1 01 1 9804- ● ● ● ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 		8-97101-354-2 01 1 9804-9812 ● ● ● ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) POWER STEERING<N40> 		8-97101-354-3 01 1 9901-0108 ● ● ● ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) POWER STEERING<N40> 		8-97101-354-4 01 1 0109-0202 ● ● ● ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 6VD1 ENG(RLV) POWER STEERING<N40> 		8-97101-355-2 01 1 9804-9812 ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 6VD1 ENG(RLV) POWER STEERING<N40> 		8-97101-355-4 01 1 9901-0202 ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97101-355-6 01 1 0203- ● ● ● ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> 		8-97112-174-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> 		8-97112-174-0 01 1 9910-0210 ● ● ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97203-778-0 01 1 9804-9804 ● ● ● ● ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97207-518-0 01 1 9805-9909 ● ● ● ● ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97207-518-0 01 1 9910-0304 ● ● ● ● ● ●
4 06.524 SHAFT; STRG 8-97207-518-0 01 1 9910-0304 ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> 		8-97289-286-0 01 1 0211- ● ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> 		8-97203-777-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> 		8-97203-777-0 01 1 9910-0210 ● ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> 		8-97203-776-2 01 1 0211- ● ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97112-183-0 01 1 9804-9804 ● ● ● ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97207-516-0 01 1 9805-9909 ● ● ● ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97207-516-0 01 1 9910-0304 ● ● ● ● ● ●
5 06.518 COLUMN; STRG 8-97207-516-0 01 1 9910-0304 ● ●
19 06.515 RING; SNAP,STRG SHAFT
06.525 ID=20.5 		9-09180-022-0 01 1 9804- ● ● ● ● ● ● ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> 		8-97069-501-0 02 1 9804-9909 ● ● ● ● ● ● ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> 		8-97069-501-1 02 1 9910-0210 ● ● ● ● ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> 		8-97069-501-1 01 1 0211- ● ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
(B) M8X30 		8-94247-692-0 01 1 9804- ● ● ● ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> (A) 		8-94477-976-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> (A) 		8-94477-976-1 01 1 9910- ● ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
00.002 (B) ID=8.2 		9-09150-508-0 01 1 9804- ● ● ● ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
TILT STEERING<N33> (A) 		8-94477-979-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
TILT STEERING<N33> (A) 		8-94477-979-0 01 1 9910- ● ● ● ● ● ●
65 06.521 SPRING; STRG COLUMN
TILT STEERING<N33> 		8-97078-241-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
65 06.521 SPRING; STRG COLUMN
TILT STEERING<N33> 		8-97078-241-0 01 1 9910- ● ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
03.417 M8X35 		8-97100-457-0 02 1 9804- ● ● ● ● ● ● ● ●
95 06.509 BOLT; STRG UNIT
M10X92 FLANGE 		8-94313-798-1 04 1 9804- ● ● ● ● ● ● ● ●
96 06.509 NUT; STRG UNIT
M10 FLANGE 		8-94313-797-0 04 1 9804- ● ● ● ● ● ● ● ●
100 03.670 BOLT; COLUMN TO FLOOR
10.455 M8X25 		8-94152-496-1 02 1 9804- ● ● ● ● ● ● ● ●
102 06.500 LOCK ASM; STRG 8-97170-877-0 01 1 9804- ● ● ● ●
102 06.500 LOCK ASM; STRG
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97170-877-0 01 1 9804- ● ● ● ●
102 06.500 LOCK ASM; STRG
SAUDI ARABIA EQUIPMENT(EU2) 		8-97170-876-0 01 1 9804- ● ● ● ●
103 02.188 SWITCH; IGNITION 8-97145-348-0 01 1 9804- ● ● ● ●
103 02.188 SWITCH; IGNITION
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97145-348-0 01 1 9804- ● ● ● ●
103 02.188 SWITCH; IGNITION
SAUDI ARABIA EQUIPMENT(EU2) 		8-97145-347-0 01 1 9804- ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
M6X25 W/LK&PL WASHER 		8-97122-790-0 02 1 9804- ● ● ● ● ● ● ● ●
105 06.500 SCREW; IGN SW
M4X12 		9-03465-412-0 01 1 9804- ● ● ● ● ● ● ● ●
151 06.521 NUT; FLANGE
04.594 M6 FLANGE 		0-91150-106-0 01 1 9804- ● ● ● ● ● ● ● ●
174 06.521 RUBBER; CUSHION,STRG COLUMN 8-97170-762-0 01 1 9804- ● ● ● ● ● ● ● ●
237 02.195 SCREW; DOOR WARNING SW
SAUDI ARABIA EQUIPMENT(EU2) 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 9804- ● ● ● ●
