◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#43703) — 117 parça

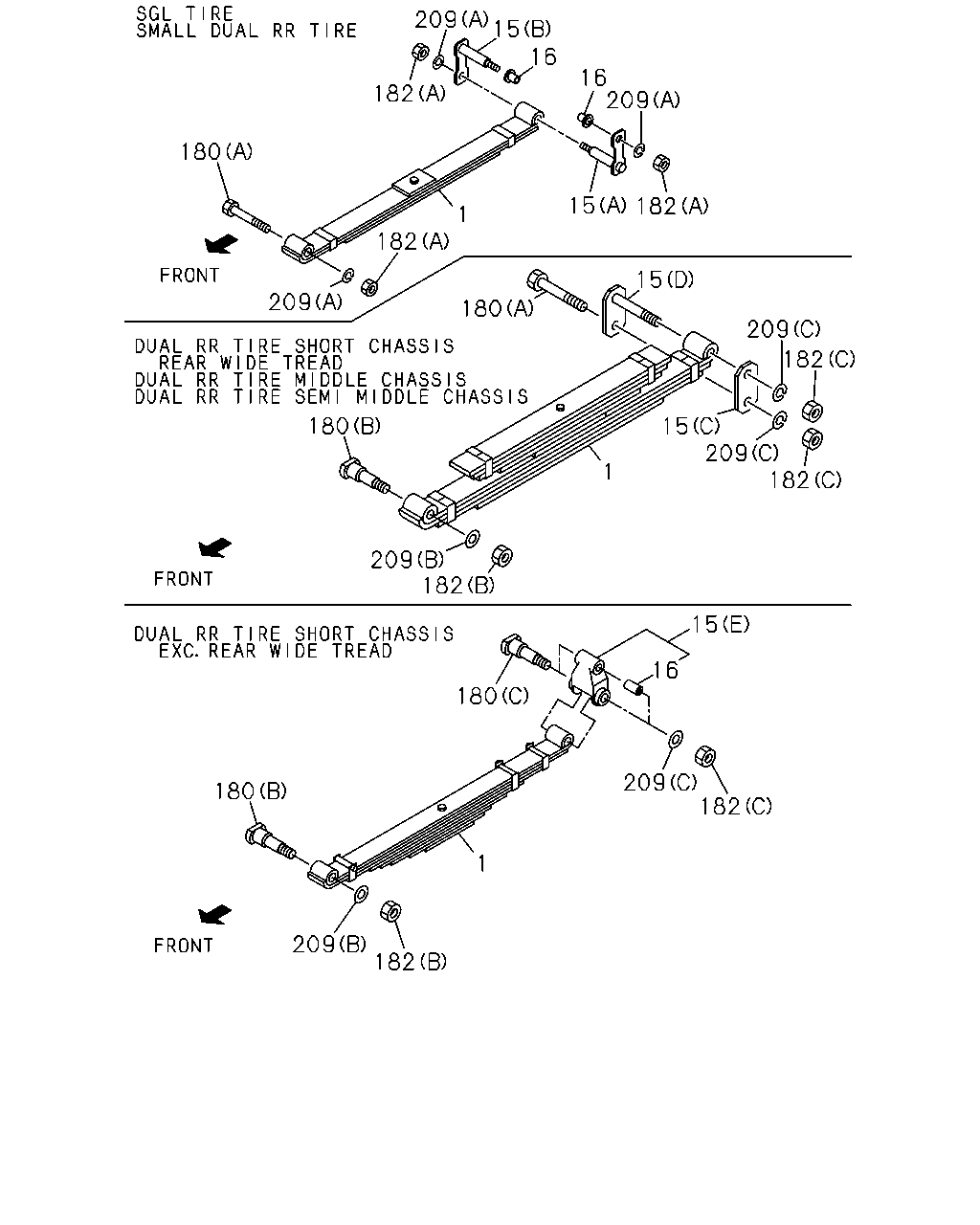

çizim 44248
209 15 16 16 209 182 180 15 182 1 182 15 209 180 209 182 180 15 209 182 1 182 15 16 180 209 182 180 1 209 182 209
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-97033-505-1 02 1 9811-0105 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) 5-LEAF 		8-97033-505-1 02 1 0106- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-97033-505-1 02 1 0106- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP CHASSIS(V4D) 4-LEAF 		8-97033-490-4 02 1 9811-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 4-LEAF 		8-97033-490-4 02 1 0106- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(RWV) FIRE TRUCK CHASSIS(V4F) 11-LEAF 		8-97033-518-1 02 1 9811-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97033-500-1 02 1 0106- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) 10-LEAF 		8-97070-508-1 02 1 9811-0012 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) 10-LEAF 		8-97070-508-1 02 1 0101-0105 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) 10-LEAF 		8-97070-508-1 02 1 0106-0209 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) 10-LEAF 		8-97073-224-1 02 1 0210- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) 6-LEAF 		8-97033-513-2 02 1 9811- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) CHINA EQUIPMENT(YT2) 8-LEAF 		8-97173-336-0 02 1 9811-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF 		8-97033-488-1 02 1 9811- ●
15 07.523 SHACKLE; RR SPR
(A) OUTSIDE 		8-94113-322-3 02 1 9811- ● ● ●
15 07.523 SHACKLE; RR SPR
(B) INSIDE 		8-97033-966-1 02 1 9811- ● ● ●
15 07.523 SHACKLE; RR SPR
REAR WIDE TREAD(V4T) (C) 		8-94118-511-3 02 1 9811-0012 ●
15 07.523 SHACKLE; RR SPR
(C) 		8-94118-511-3 02 1 9811-0012 ● ● ●
15 07.523 SHACKLE; RR SPR
REAR WIDE TREAD(V4T) (C) 		8-94118-511-3 02 1 0101- ● ●
15 07.523 SHACKLE; RR SPR
(C) 		8-94118-511-3 02 1 0101- ● ●
15 07.523 SHACKLE; RR SPR
REAR WIDE TREAD(V4T) (D) W/PIN 		8-94118-512-4 02 1 9811-0012 ●
15 07.523 SHACKLE; RR SPR
(D) W/PIN 		8-94118-512-4 02 1 9811-0012 ● ● ●
15 07.523 SHACKLE; RR SPR
REAR WIDE TREAD(V4T) (D) 		8-94118-512-4 02 1 0101- ● ●
15 07.523 SHACKLE; RR SPR
(D) 		8-94118-512-4 02 1 0101- ● ●
15 07.523 SHACKLE; RR SPR
EXC. REAR WIDE TREAD(V4T) (E) 		8-97034-298-1 02 1 9811-9904 ●
15 07.523 SHACKLE; RR SPR
EXC. REAR WIDE TREAD(V4T) (E) 		8-97227-997-0 02 1 9905- ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94113-323-2 04 1 9811- ● ● ●
16 07.524 BUSHING; SHACKLE,RR SPR
EXC. REAR WIDE TREAD(V4T) 07.105 OD=42 L=81 		8-94130-354-0 02 1 9811-9904 ●
16 07.524 BUSHING; SHACKLE,RR SPR
EXC. REAR WIDE TREAD(V4T) 		8-97227-996-0 02 1 9905- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9811-0012 ● ● ● ● ● ●
180 07.529 PIN; RR SPR
REAR WIDE TREAD(V4T) KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9811-0012 ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 0101- ● ● ● ● ●
180 07.529 PIN; RR SPR
REAR WIDE TREAD(V4T) KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 0101- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 9811-0012 ● ● ● ● ● ●
180 07.529 PIN; RR SPR
REAR WIDE TREAD(V4T) EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 9811-0012 ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 0101- ● ● ● ● ●
180 07.529 PIN; RR SPR
REAR WIDE TREAD(V4T) EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 0101- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> EXC. REAR WIDE TREAD(V4T) (B) L=138 		8-97035-877-0 04 1 9811- ●
180 07.529 PIN; RR SPR
EXC. REAR WIDE TREAD(V4T),KD PREPARATORY PACK<6HF> (B) M16X128 FLANGE 		8-97076-849-2 04 1 9811- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (C) M18X130 		8-97033-967-0 02 1 9811- ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (C) M18X130 FLANGE 		8-97076-848-0 02 1 9811- ● ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (C) M16 		9-99110-516-0 04 1 9811- ● ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (C) M16 FLANGE 		8-97147-389-0 04 1 9811- ● ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (A) M16 		9-99110-516-0 02 1 9811- ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97147-389-0 02 1 9811- ● ● ●
182 07.529 NUT; PIN,RR SPR
06.216 (B) M18 		9-99110-518-0 02 1 9811- ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (C) ID=16.5 		8-97070-925-1 04 1 9811- ● ● ● ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5 		8-97070-925-1 02 1 9811- ● ● ●
209 07.529 WASHER; PL
(B) ID=19 		8-97073-435-1 02 1 9811- ● ● ● ●
çizim 45951
4 157 1 465 6 5 4 157 1 465 155 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-97033-505-1 02 1 9811-0105 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) 5-LEAF 		8-97033-505-1 02 1 0106- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-97033-505-1 02 1 0106- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP CHASSIS(V4D) 4-LEAF 		8-97033-490-4 02 1 9811-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 4-LEAF 		8-97033-490-4 02 1 0106- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(RWV) FIRE TRUCK CHASSIS(V4F) 11-LEAF 		8-97033-518-1 02 1 9811-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97033-500-1 02 1 0106- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) 10-LEAF 		8-97070-508-1 02 1 9811-0012 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) 10-LEAF 		8-97070-508-1 02 1 0101-0105 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) 10-LEAF 		8-97070-508-1 02 1 0106-0209 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) 10-LEAF 		8-97073-224-1 02 1 0210- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) 6-LEAF 		8-97033-513-2 02 1 9811- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) CHINA EQUIPMENT(YT2) 8-LEAF 		8-97173-336-0 02 1 9811-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF 		8-97033-488-1 02 1 9811- ●
4 07.516 U-BOLT; RR SPR
L=235 		8-94127-920-2 04 1 9811- ● ●
4 07.516 U-BOLT; RR SPR
EXC. REAR WIDE TREAD(V4T) L=235 		8-94127-920-2 04 1 9811- ●
4 07.516 U-BOLT; RR SPR
TAIWAN EQUIPMENT(RWV) FIRE TRUCK CHASSIS(V4F) L=275 		8-94127-924-1 04 1 9811-0105 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU), G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) L=265 		8-94127-923-1 04 1 9811-0105 ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU), G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) L=265 		8-94127-923-2 04 1 0106- ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) L=245 		8-94127-921-1 04 1 9811-0105 ●
4 07.516 U-BOLT; RR SPR
L=215 		8-94127-918-2 04 1 9811- ●
5 07.529 NUT; U-BOLT,RR SPR
07.516 M16 		8-94107-767-0 08 1 9811- ● ● ● ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 9811- ● ● ● ● ● ● ●
155 07.380 BRACKET; S/ABS
DUMP CHASSIS(V4D) 		8-94128-363-3 01 1 9811-0105 ●
155 07.380 BRACKET; S/ABS
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-94128-363-3 01 1 0106- ●
155 07.380 BRACKET; S/ABS
DUMP CHASSIS(V4D) 		8-94128-362-3 01 1 9811-0105 ●
155 07.380 BRACKET; S/ABS
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-94128-362-3 01 1 0106- ●
155 07.380 BRACKET; S/ABS 8-94128-361-4 01 1 9811- ●
155 07.380 BRACKET; S/ABS 8-94128-360-4 01 1 9811- ●
157 07.518 CLAMP; UPR,RR SPR
L=130 T=4.5 		8-94119-069-2 02 1 9811-0012 ● ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT), G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) L=130 T=4.5 		8-94119-069-2 02 1 9811-0012 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT), G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) L=130 T=4.5 		8-94119-069-2 02 1 0101-0105 ● ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) EXC. DUMP CHASSIS(V4D) L=130 T=4.5 		8-94119-069-2 02 1 0106- ● ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
DUMP CHASSIS(V4D) L=168 T=8 		8-94118-111-3 02 1 9811-0105 ●
157 07.518 CLAMP; UPR,RR SPR
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> L=168 T=8 		8-94118-111-3 02 1 0106- ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9811- ● ●
157 07.518 CLAMP; UPR,RR SPR
L=130 T=8 		8-94128-484-3 02 1 9811- ●
465 07.518 SHIM; ADJ
RR BODY FLAT BED<RS6> 		8-97072-589-0 AR 1 9811-0105 ● ● ● ●
465 07.518 SHIM; ADJ
RR BODY NON FLAT BED(RS5) 		8-97072-589-0 AR 1 9811-0105 ●
465 07.518 SHIM; ADJ
RR BODY FLAT BED<RS6> 		8-97072-589-0 AR 1 0106- ● ● ●
465 07.518 SHIM; ADJ
RR BODY NON FLAT BED(RS5) 		8-97072-589-0 AR 1 0106- ●
çizim 46747
317 323 62 25 318 435 314 294 308 285 274 320 387 285 308 330 330
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-97043-370-1 01 1 9811- ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-94331-581-0 02 1 9811-9910 ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-97239-911-0 02 1 9911- ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94433-867-0 02 1 9811- ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=18 		8-97089-556-0 02 1 9811- ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=29 		8-97089-557-0 02 1 9811- ●
294 07.242 BOLT; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> 04.686 		8-94342-082-0 02 1 9811- ●
308 07.243 PLATE; END,RUBBER BUSHING
STABILIZER REAR<GN1> 07.242 		8-94342-084-0 04 1 9811- ●
314 07.242 WASHER; LK,STAB TO BRKT
STABILIZER REAR<GN1> 00.796 ID=14.2 		9-09150-514-0 02 1 9811- ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-94441-472-3 02 1 9811-9910 ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-97239-907-0 02 1 9911- ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> M14X70 FLANGE 		0-28881-470-0 02 1 9811- ●
320 07.242 CAP; LINK ROD
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 9811- ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 03.613 M14 FLANGE 		0-91150-114-0 02 1 9811- ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> 08.917 M12 LOCK NUT 		9-09131-512-0 02 1 9811- ●
387 07.242 BOLT; CAP FIX,STAB BAR
STABILIZER REAR<GN1> 03.405 M10X25 FLANGE 		0-28681-025-0 04 1 9811- ●
435 07.242 NUT; CAP
STABILIZER REAR<GN1> 08.917 M10 FLANGE 		0-91150-210-0 04 1 9811- ●
çizim 49619
227 225 264 225
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-94142-044-3 02 1 9811- ● ●
225 07.535 RUBBER; CUSHION,RR SPR
DUMP CHASSIS(V4D) (B) 		8-97035-815-0 02 1 9811-0105 ●
225 07.535 RUBBER; CUSHION,RR SPR
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97035-815-0 02 1 0106- ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. DUMP CHASSIS(V4D) (A) 		8-94118-510-4 02 1 9811- ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-94118-510-4 02 1 9811- ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-94258-734-1 02 1 9811- ●
227 07.535 NUT; CUSHION RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9811- ● ● ● ● ● ●
227 07.535 NUT; CUSHION RUBBER
EXC. DUMP CHASSIS(V4D) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9811- ●
264 07.529 BOLT; CUSHION RUBBER TO BRKT
DUMP CHASSIS(V4D) 03.405 M10X25 FLANGE 		0-28681-025-0 04 1 9811-0105 ●
264 07.529 BOLT; CUSHION RUBBER TO BRKT
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE 		0-28681-025-0 04 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
