Sayfa 4-42 - Isuzu EPC

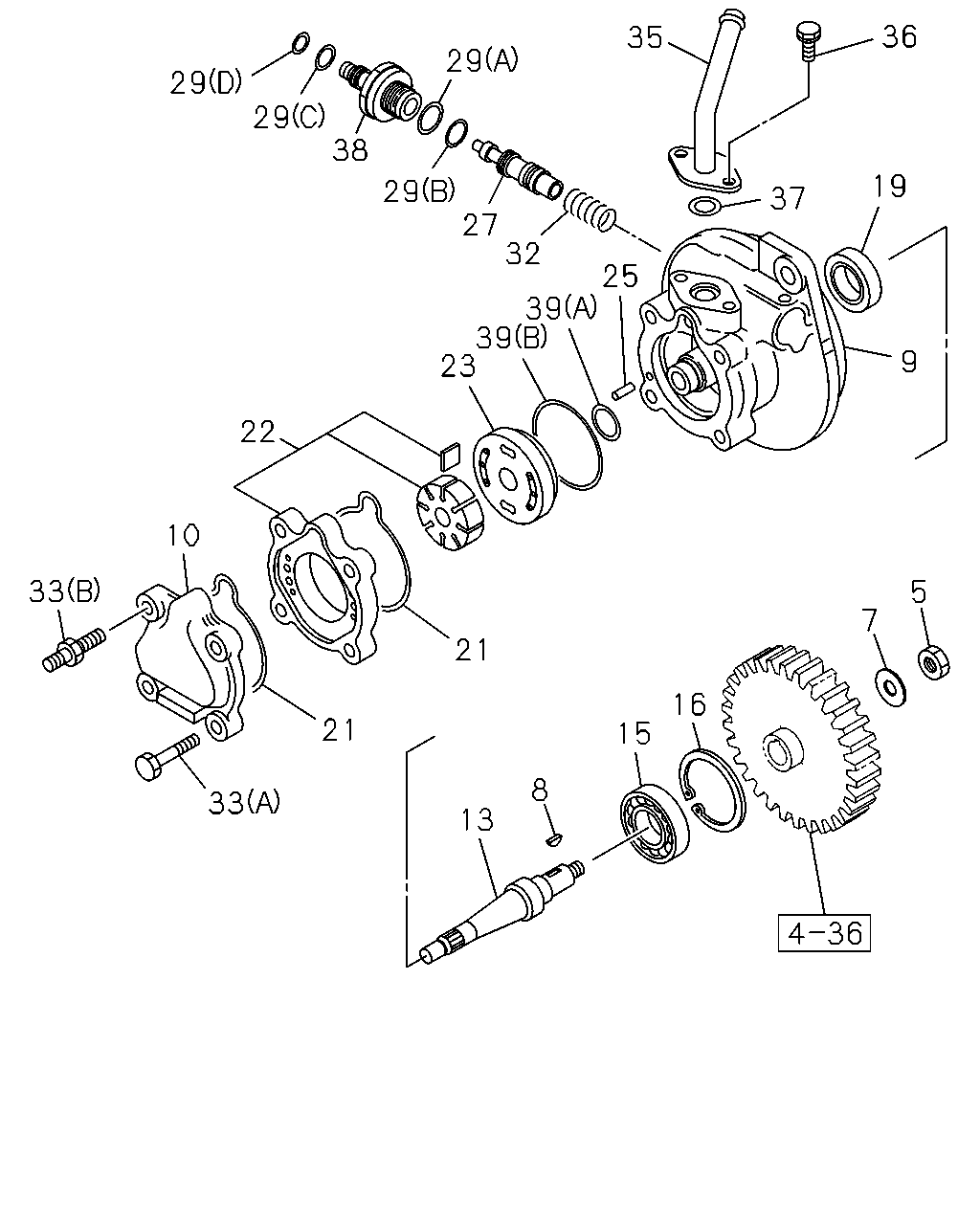

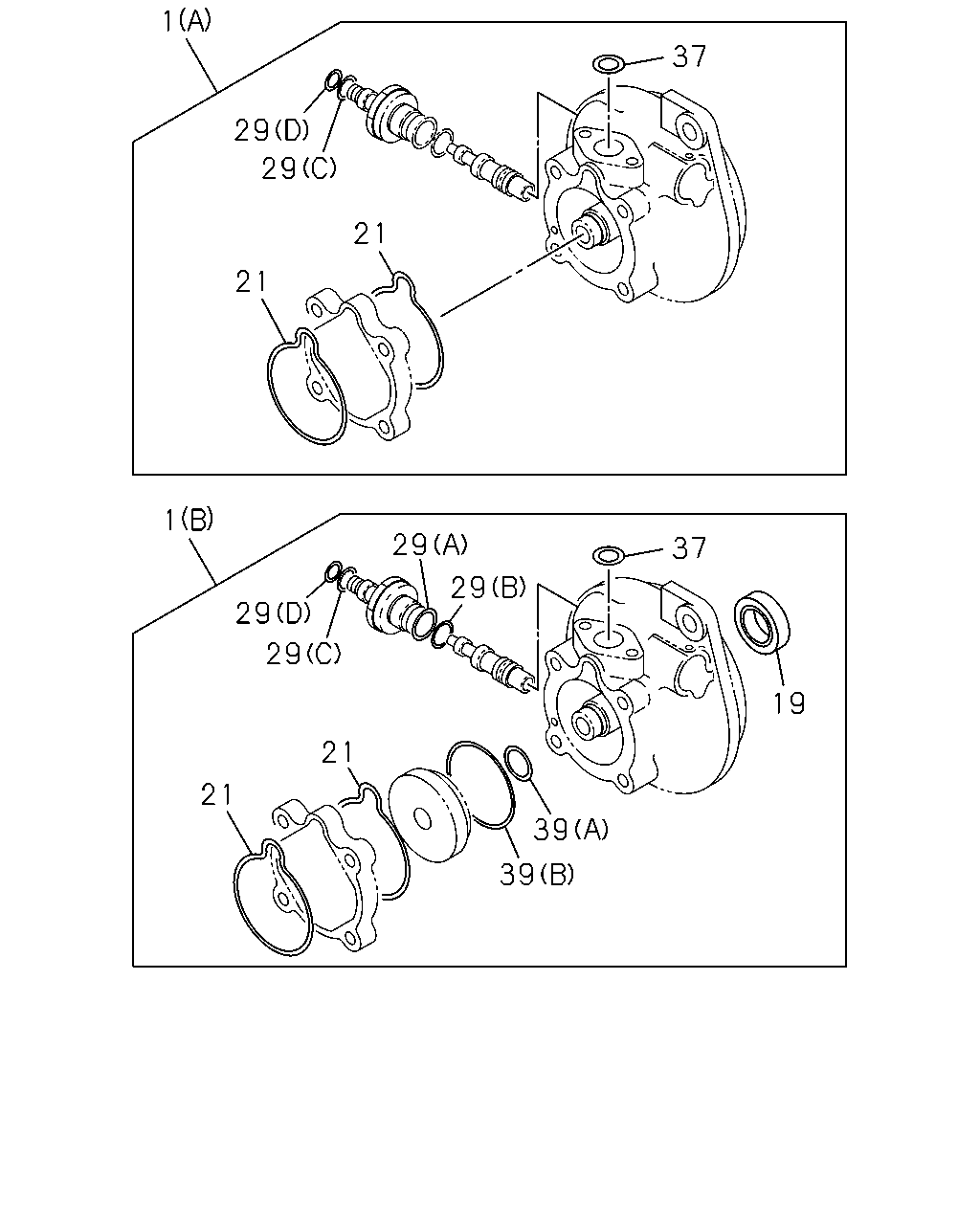

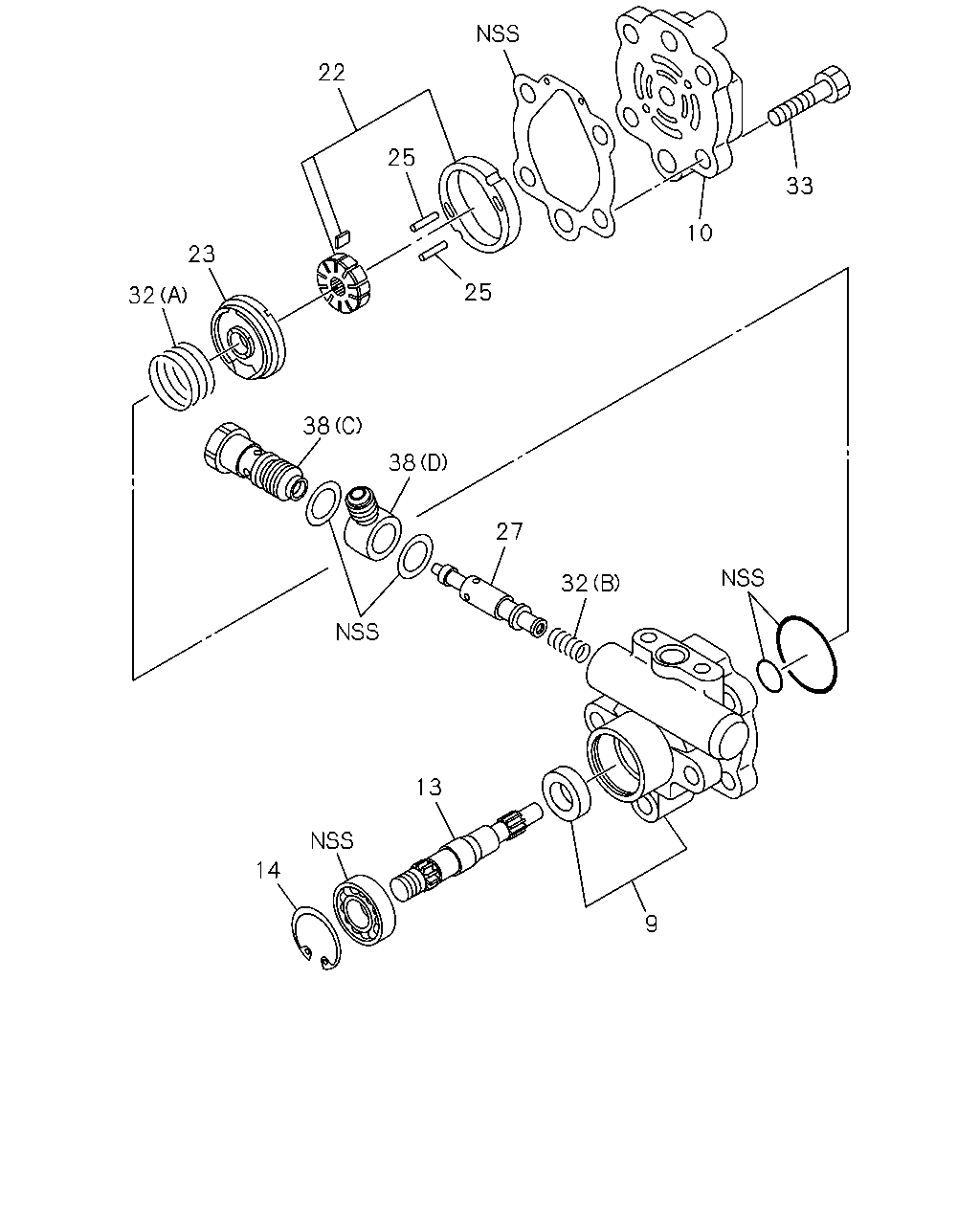

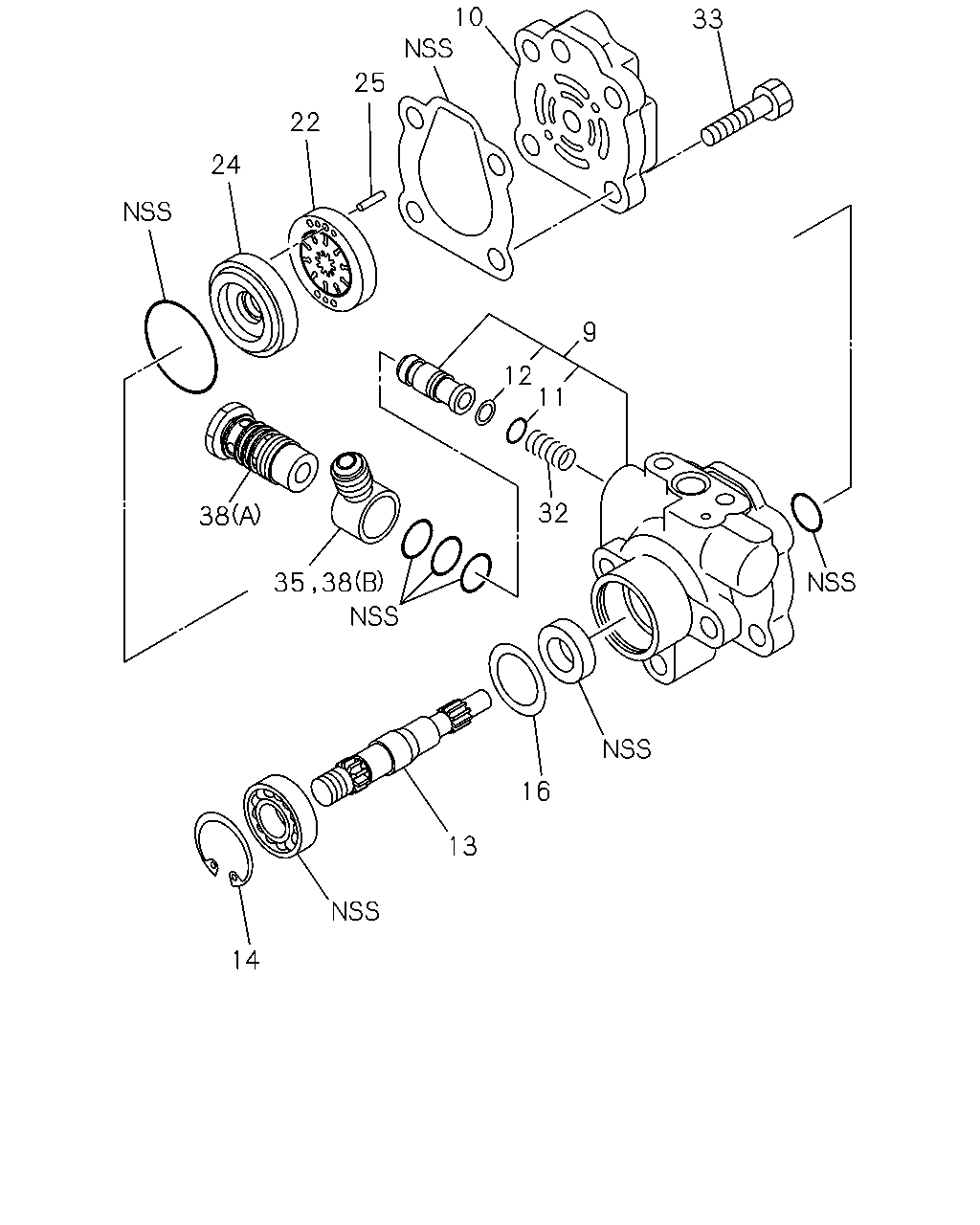

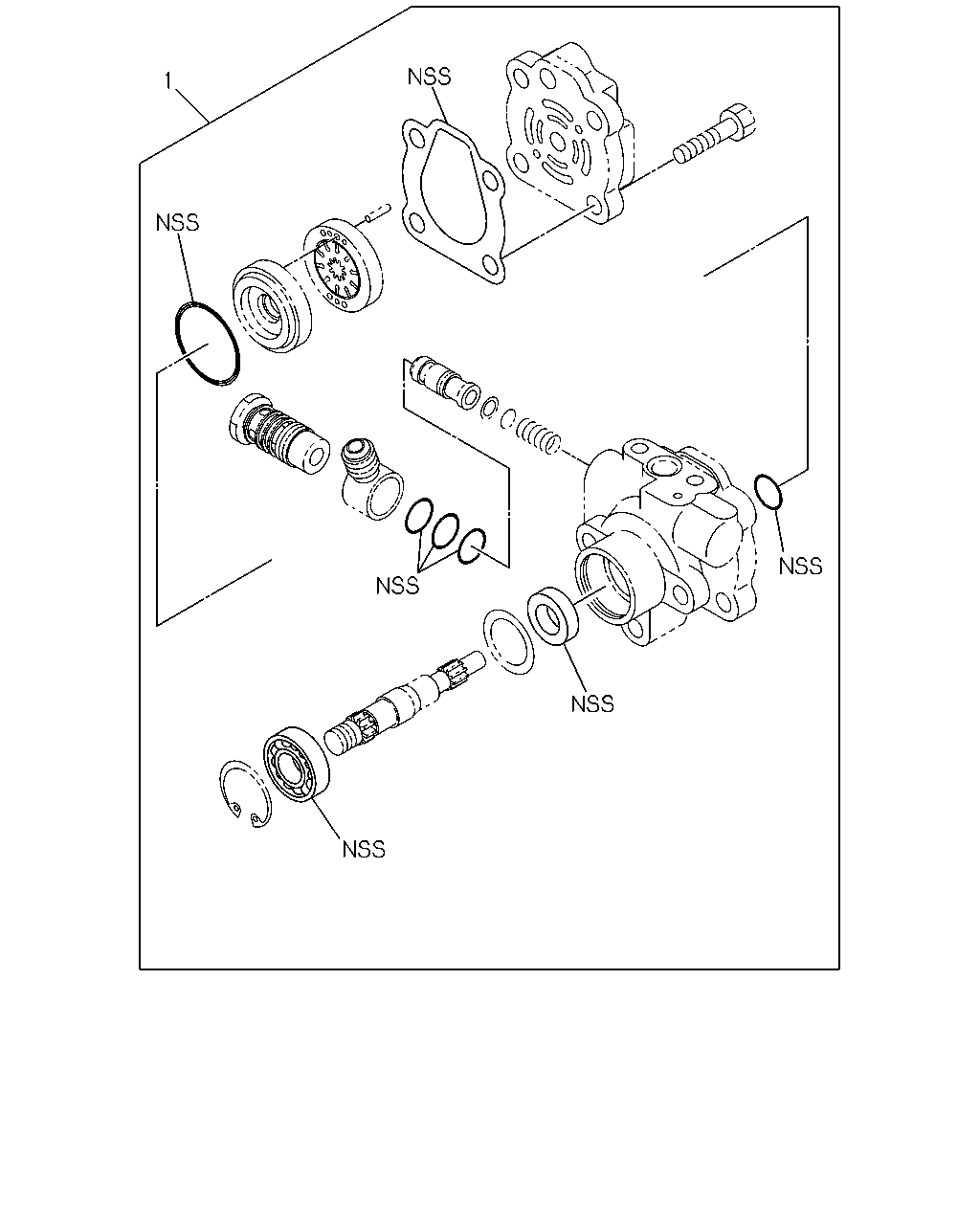

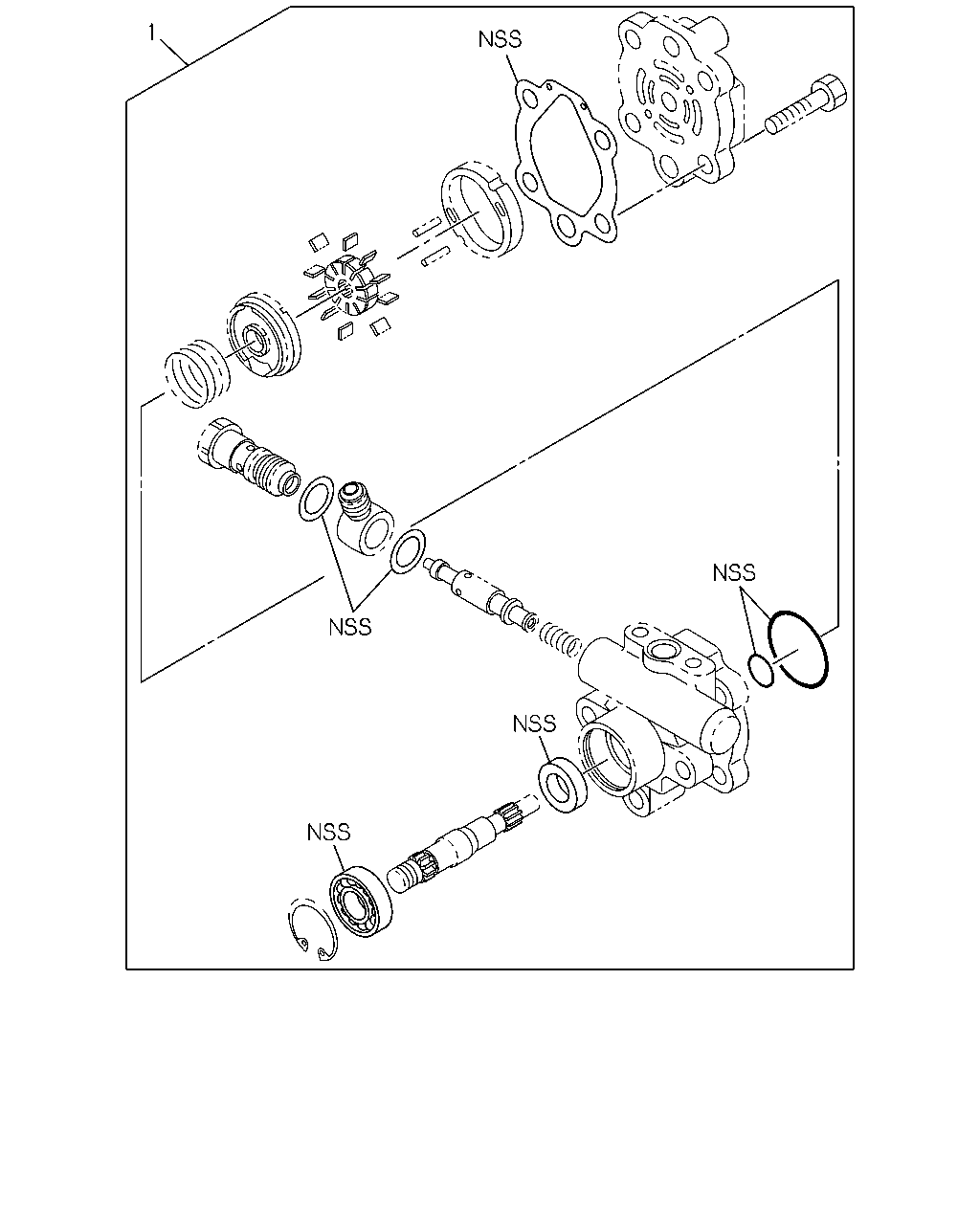

4-42 — POWER STEERING OIL PUMP (#43698) — 153 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: B = 8-97136-573-1, 97136573	8-97075-583-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: B = 8-97136-573-1, 97136573	8-97075-584-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344	8-97084-209-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: D = 8-97247-061-2, 97247061	8-97247-588-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: E = 8-97354-730-0, 97354730	8-97354-944-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: B = 8-97136-573-1, 97136573	8-97075-583-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: B = 8-97136-573-1, 97136573	8-97075-584-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344	8-97084-209-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: D = 8-97247-061-2, 97247061	8-97247-588-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: E = 8-97354-730-0, 97354730	8-97354-944-0	01	1	-

22 25 33 10 23 25 32 38 38 27 32 13 14 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97029-764-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344	8-97084-333-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97247-061-2, 97247061	8-97246-980-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: E = 8-97354-730-0, 97354730	8-97354-933-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97029-772-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344	8-97076-460-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: E = 8-97354-730-0, 97354730	8-97102-294-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: D = 8-97247-061-2, 97247061	8-97247-586-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: B = 8-97136-573-1, 97136573	8-97029-766-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	8-97047-208-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: E = 8-97354-730-0, 97354730	8-97354-935-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: E = 8-97354-730-0, 97354730	8-97064-620-0	01	1	-
14	06.616 RING; RET,OIL PUMP 06.840, OD=37.8 ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	9-09180-135-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344	8-94475-369-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97148-690-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-97247-061-2, 97247061	8-97247-585-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: E = 8-97354-730-0, 97354730	8-97313-095-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97147-453-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: E = 8-97354-730-0, 97354730	8-97354-679-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-97136-573-1, 97136573	8-94379-646-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	8-94475-371-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: E = 8-97354-730-0, 97354730	8-97081-859-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97075-586-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: E = 8-97354-730-0, 97354730	8-97094-142-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: B = 8-97136-573-1, 97136573	8-94379-654-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	8-94475-376-0	01	1	-
32	06.606 SPRING; OIL PUMP (A) ASM PART: E = 8-97354-730-0, 97354730	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: E = 8-97354-730-0, 97354730	8-97064-987-0	01	1	-
33	06.606 BOLT; COVER 06.608 ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	8-94475-381-1	04	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: B = 8-97136-573-1, 97136573	8-97029-773-0	03	1	-
33	06.606 BOLT; COVER ASM PART: E = 8-97354-730-0, 97354730	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: B = 8-97136-573-1, 97136573	8-97075-585-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	8-94475-377-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344	8-94475-382-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97029-775-1	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: E = 8-97354-730-0, 97354730	8-97354-941-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: E = 8-97354-730-0, 97354730	8-97354-943-0	01	1	-

36 35 29 29 29 38 19 29 37 27 32 25 39 39 23 9 22 10 33 5 7 21 16 21 15 8 33 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	06.635 NUT; SHAFT,P/S PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97029-780-0	01	1	-
7	06.635 WASHER; SHAFT ASM PART: B = 8-97136-573-1, 97136573	8-97029-779-0	01	1	-
8	06.616 KEY; SHAFT,OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97029-778-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97029-764-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344	8-97084-333-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97247-061-2, 97247061	8-97246-980-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: E = 8-97354-730-0, 97354730	8-97354-933-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97029-772-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344	8-97076-460-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: E = 8-97354-730-0, 97354730	8-97102-294-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: D = 8-97247-061-2, 97247061	8-97247-586-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: B = 8-97136-573-1, 97136573	8-97029-766-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	8-97047-208-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: E = 8-97354-730-0, 97354730	8-97354-935-0	01	1	-
15	06.616 BEARING; BALL,OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97075-578-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	8-94475-374-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97029-768-0	01	1	-
19	06.617 SEAL; OIL,OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97075-577-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: B = 8-97136-573-1, 97136573	8-97062-329-0	02	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344	8-94475-369-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97148-690-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-97247-061-2, 97247061	8-97247-585-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: E = 8-97354-730-0, 97354730	8-97313-095-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97147-453-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: E = 8-97354-730-0, 97354730	8-97354-679-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-97136-573-1, 97136573	8-94379-646-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	8-94475-371-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: E = 8-97354-730-0, 97354730	8-97081-859-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97075-586-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: E = 8-97354-730-0, 97354730	8-97094-142-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: B = 8-97136-573-1, 97136573	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: B = 8-97136-573-1, 97136573	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: B = 8-97136-573-1, 97136573	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: B = 8-97136-573-1, 97136573	8-97075-581-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: B = 8-97136-573-1, 97136573	8-94379-654-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	8-94475-376-0	01	1	-
32	06.606 SPRING; OIL PUMP (A) ASM PART: E = 8-97354-730-0, 97354730	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: E = 8-97354-730-0, 97354730	8-97064-987-0	01	1	-
33	06.606 BOLT; COVER 06.608 ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	8-94475-381-1	04	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: B = 8-97136-573-1, 97136573	8-97029-773-0	03	1	-
33	06.606 BOLT; COVER ASM PART: E = 8-97354-730-0, 97354730	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: B = 8-97136-573-1, 97136573	8-97075-585-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP 06.624 ASM PART: D = 8-97247-061-2, 97247061	8-94475-382-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97091-932-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: B = 8-97136-573-1, 97136573	8-94379-664-0	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97029-777-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	8-94475-377-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344	8-94475-382-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97029-775-1	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: E = 8-97354-730-0, 97354730	8-97354-941-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: E = 8-97354-730-0, 97354730	8-97354-943-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: B = 8-97136-573-1, 97136573	8-97147-441-0	01	1	-

10 33 25 22 24 9 12 11 32 38 16 13 14 35 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97029-764-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344	8-97084-333-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97247-061-2, 97247061	8-97246-980-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: E = 8-97354-730-0, 97354730	8-97354-933-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97029-772-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344	8-97076-460-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: E = 8-97354-730-0, 97354730	8-97102-294-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: D = 8-97247-061-2, 97247061	8-97247-586-0	01	1	-
11	06.616 RING; RET,OIL TANK ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	8-94175-185-0	01	1	-
12	06.616 FILTER; OIL PUMP 06.630 ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	8-94175-184-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: B = 8-97136-573-1, 97136573	8-97029-766-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	8-97047-208-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: E = 8-97354-730-0, 97354730	8-97354-935-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: E = 8-97354-730-0, 97354730	8-97064-620-0	01	1	-
14	06.616 RING; RET,OIL PUMP 06.840, OD=37.8 ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	9-09180-135-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	8-94475-374-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97029-768-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344	8-94475-369-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97148-690-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-97247-061-2, 97247061	8-97247-585-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: E = 8-97354-730-0, 97354730	8-97313-095-0	01	1	-
24	06.612 PLATE ASM; THRUST 06.609 ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344	8-97063-133-0	01	1	-
24	06.612 PLATE ASM; THRUST ASM PART: D = 8-97247-061-2, 97247061	8-97217-284-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-97136-573-1, 97136573	8-94379-646-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	8-94475-371-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: E = 8-97354-730-0, 97354730	8-97081-859-0	02	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: B = 8-97136-573-1, 97136573	8-94379-654-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	8-94475-376-0	01	1	-
32	06.606 SPRING; OIL PUMP (A) ASM PART: E = 8-97354-730-0, 97354730	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: E = 8-97354-730-0, 97354730	8-97064-987-0	01	1	-
33	06.606 BOLT; COVER 06.608 ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	8-94475-381-1	04	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: B = 8-97136-573-1, 97136573	8-97029-773-0	03	1	-
33	06.606 BOLT; COVER ASM PART: E = 8-97354-730-0, 97354730	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: B = 8-97136-573-1, 97136573	8-97075-585-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP 06.624 ASM PART: D = 8-97247-061-2, 97247061	8-94475-382-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97091-932-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344, D = 8-97247-061-2, 97247061	8-94475-377-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344	8-94475-382-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97029-775-1	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: E = 8-97354-730-0, 97354730	8-97354-941-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: E = 8-97354-730-0, 97354730	8-97354-943-0	01	1	-

1 37 29 29 21 21 1 29 37 29 29 29 19 21 21 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: B = 8-97136-573-1, 97136573	8-97075-583-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: B = 8-97136-573-1, 97136573	8-97075-584-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97084-207-0, 97084207, C = 8-97226-344-0, 97226344	8-97084-209-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: D = 8-97247-061-2, 97247061	8-97247-588-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: E = 8-97354-730-0, 97354730	8-97354-944-0	01	1	-
19	06.617 SEAL; OIL,OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97075-577-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: B = 8-97136-573-1, 97136573	8-97062-329-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: B = 8-97136-573-1, 97136573	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: B = 8-97136-573-1, 97136573	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: B = 8-97136-573-1, 97136573	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: B = 8-97136-573-1, 97136573	8-97075-581-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-97136-573-1, 97136573	8-97029-777-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: B = 8-97136-573-1, 97136573	8-97147-441-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
