4-40A — STEERING UNIT (#43696) — 15 parça

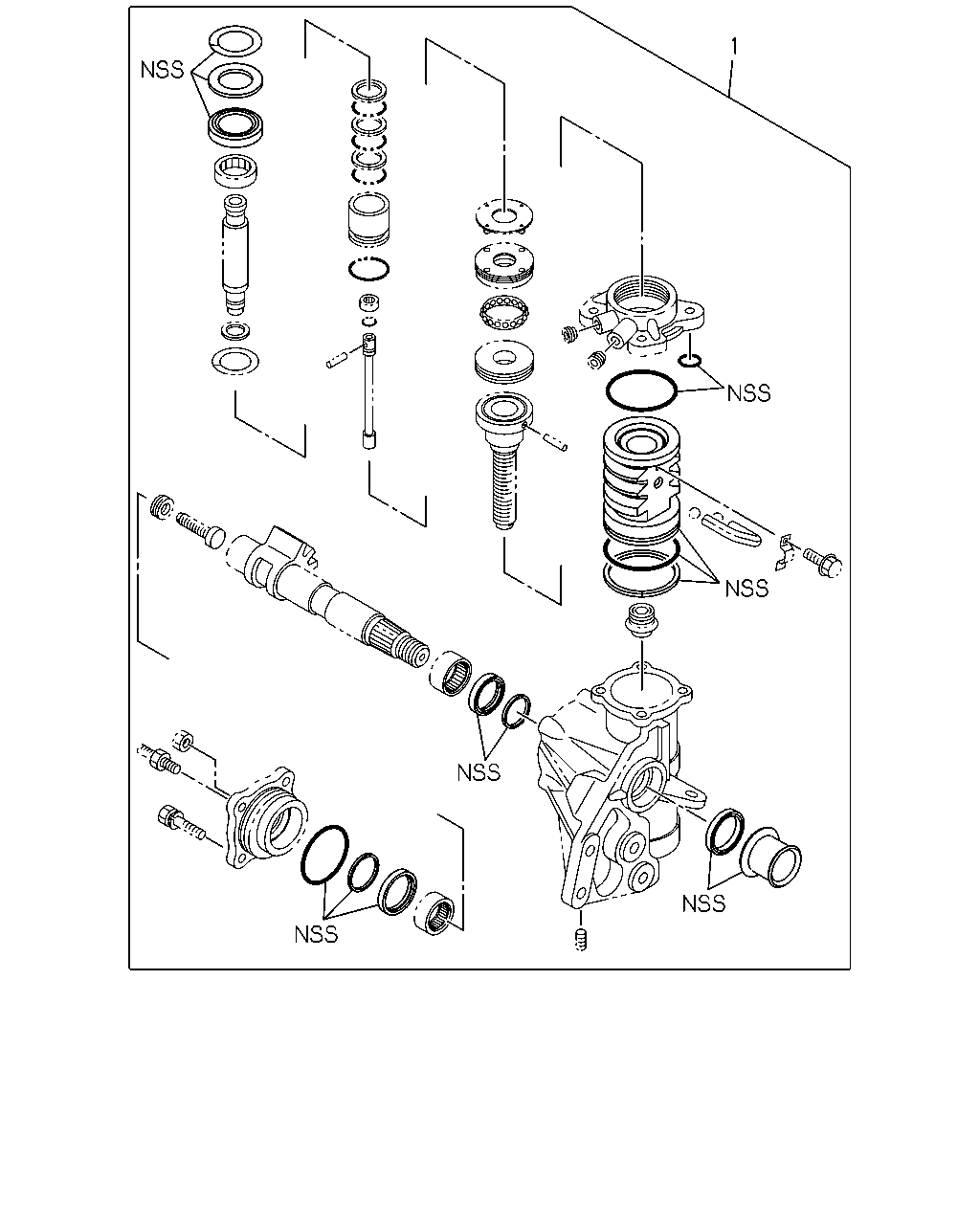

çizim 8896
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97251-843-1, 97251843 		8-97264-465-0 01 1 -

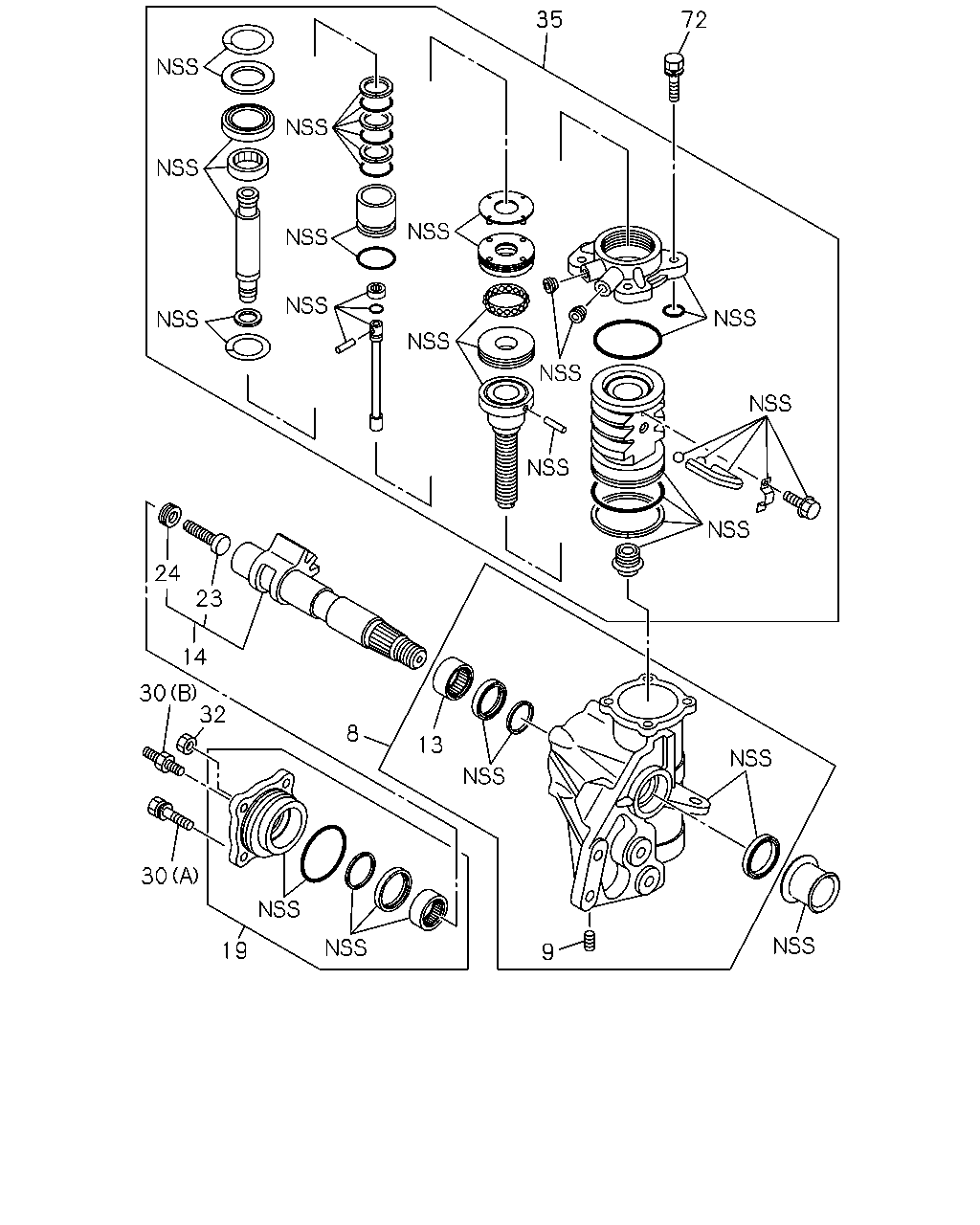

çizim 45700
35 72 24 23 14 30 32 8 13 30 19 9
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97251-843-1, 97251843 		8-97202-845-1 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97251-843-1, 97251843 		8-97014-820-0 02 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: A = 8-97251-843-1, 97251843 		8-97014-828-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97251-843-1, 97251843 		8-97202-843-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97251-843-1, 97251843 		8-97014-933-1 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97251-843-1, 97251843 		8-97014-842-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: A = 8-97251-843-1, 97251843 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
(A) ASM PART: A = 8-97251-843-1, 97251843 		8-97014-836-0 03 1 -0212
30 06.809 BOLT; COVER STRG UNIT
(A) ASM PART: A = 8-97251-843-1, 97251843 		8-97014-836-0 04 1 0301-
30 06.809 BOLT; COVER STRG UNIT
(B) ASM PART: A = 8-97251-843-1, 97251843 		8-97209-716-0 01 1 -0212
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97251-843-1, 97251843 		8-97014-834-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97251-843-1, 97251843 		8-97264-470-0 01 1 -0212
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97251-843-1, 97251843 		8-97287-220-0 01 1 0301-
72 06.550 BOLT; HSG FIX STRG UNIT
ASM PART: A = 8-97251-843-1, 97251843 		1-44519-110-0 04 1 -
