◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#43695) — 86 parça
çizim 7437
23 1 7 42 29 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97084-207-0 01 1 9811-9903 ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97226-344-0 01 1 9904-0001 ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97247-061-1 01 1 0002-0012 ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97247-061-1 01 1 0101-0105 ● ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97247-061-2 01 1 0106-0112 ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97247-061-2 01 1 0201-0206 ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97354-730-0 01 1 0207- ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40> 		8-97136-573-1 01 1 9811- ● ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HF1 ENG(RLS) POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 9811- ● ● ● ● ●
23 06.660 GEAR; OIL PUMP
4HF1 ENG(RLS) POWER STEERING<N40> 		8-97114-550-0 01 1 9811-0103 ● ● ● ● ●
23 06.660 GEAR; OIL PUMP
4HF1 ENG(RLS) POWER STEERING<N40> 		8-97262-856-0 01 1 0104-0104 ● ● ● ● ●
23 06.660 GEAR; OIL PUMP
4HF1 ENG(RLS) POWER STEERING<N40> 		8-97114-550-0 01 1 0105- ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 9811-0105 ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 0106-0112 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 0201- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9811-0105 ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0106-0112 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0201- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 9811-0105 ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 0106-0112 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 0201- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 9811-0105 ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 0106-0112 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 0201- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 9811-0105 ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 0106-0112 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 0201- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HF1 ENG(RLS) POWER STEERING<N40> M14X20 FLANGE 		0-28881-420-0 01 1 9811- ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HF1 ENG(RLS) POWER STEERING<N40> 		8-97209-356-0 01 1 9811-0006 ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HF1 ENG(RLS) POWER STEERING<N40> 		8-97112-866-0 01 1 0007- ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0106-0112 ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0201- ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811- ● ● ● ● ●

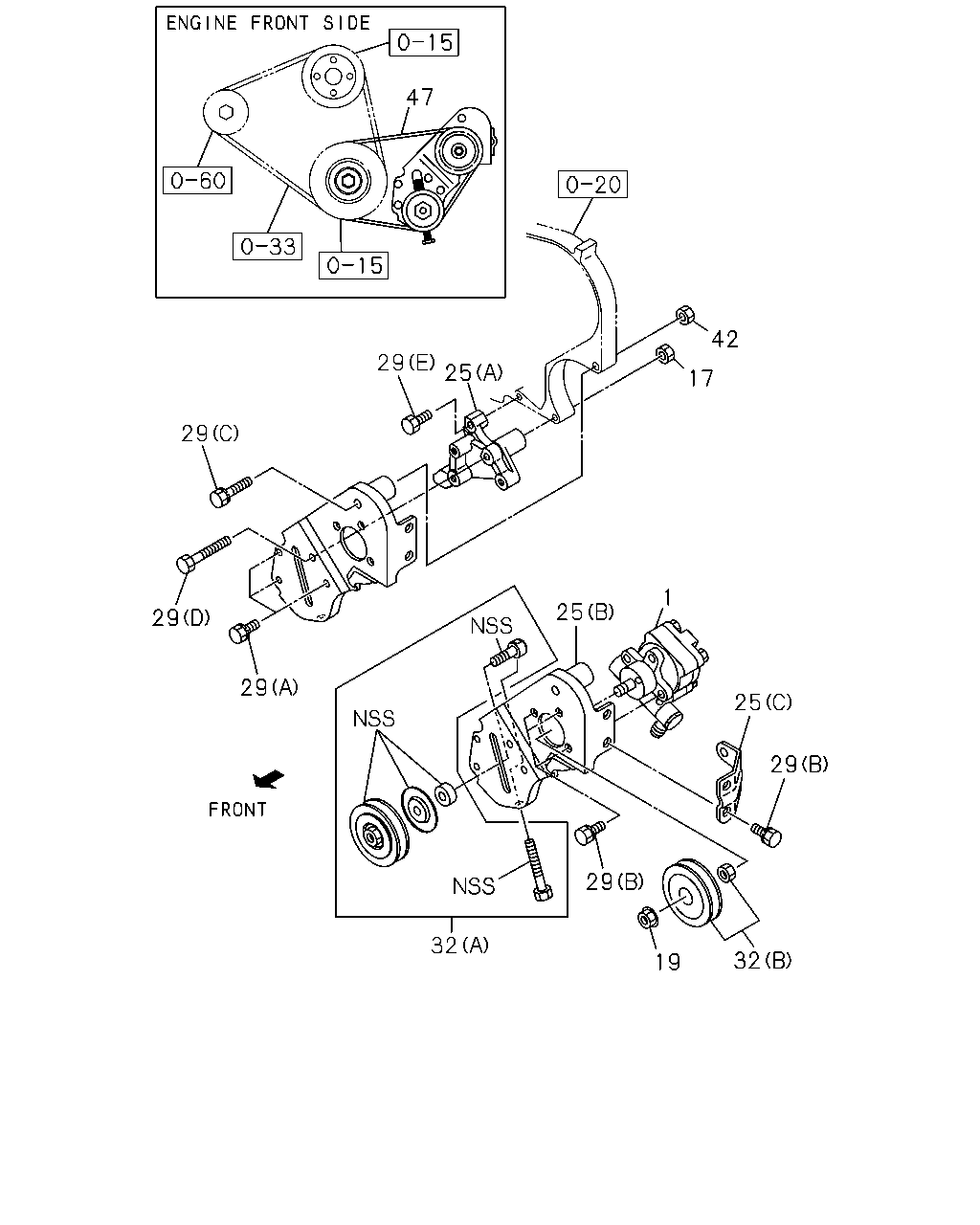

çizim 7782
47 42 29 25 17 29 1 25 29 29 25 29 29 32 32 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97084-207-0 01 1 9811-9903 ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97226-344-0 01 1 9904-0001 ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97247-061-1 01 1 0002-0012 ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97247-061-1 01 1 0101-0105 ● ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97247-061-2 01 1 0106-0112 ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97247-061-2 01 1 0201-0206 ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97354-730-0 01 1 0207- ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40> 		8-97136-573-1 01 1 9811- ● ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106-0112 ● ● ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0201- ● ● ● ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 06.606 M12 		8-94139-015-0 01 1 9811-0105 ● ● ● ● ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 06.606 M12 		8-94139-015-0 01 1 0106-0112 ● ● ● ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 06.606 M12 		8-94139-015-0 01 1 0201- ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (B) 		8-97065-974-0 01 1 9811-0105 ● ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (B) 		8-97065-974-0 01 1 0106-0112 ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> (B) 		8-97065-974-0 01 1 0201- ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (A) 		8-97107-869-0 01 1 9811-0105 ● ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (A) 		8-97107-869-0 01 1 0106-0112 ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> (A) 		8-97107-869-0 01 1 0201- ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-97107-872-0 01 1 9811-0105 ● ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-97107-872-0 01 1 0106-0112 ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-97107-872-0 01 1 0201- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 9811-0105 ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 0106-0112 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 0201- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9811-0105 ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0106-0112 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0201- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 9811-0105 ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 0106-0112 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 0201- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 9811-0105 ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 0106-0112 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 0201- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 9811-0105 ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 0106-0112 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 0201- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HF1 ENG(RLS) POWER STEERING<N40> M14X20 FLANGE 		0-28881-420-0 01 1 9811- ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 06.655 (A) 		8-94128-866-0 01 1 9811-0105 ● ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 06.655 (A) 		8-94128-866-0 01 1 0106-0112 ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 06.655 (A) 		8-94128-866-0 01 1 0201- ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (B) 		8-97084-332-0 01 1 9811-0105 ● ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (B) 		8-97084-332-2 01 1 0106-0112 ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> (B) 		8-97084-332-2 01 1 0201- ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0106-0112 ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0201- ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811- ● ● ● ● ●
47 01.066 BELT; P/S PUMP
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97085-131-0 01 1 9811-0105 ● ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97085-131-0 01 1 0106-0112 ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97085-131-0 01 1 0201- ● ● ● ● ● ●
