◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#43689) — 292 parça
çizim 10231
67 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39) M10X40 W/LK WASHER 		0-50061-040-0 08 1 9811- ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 08 1 9811- ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73) M10X40 W/LK WASHER 		0-50061-040-0 11 1 9811- ● ● ● ● ●
96 04.730 BRACKET; LSPV,AXLE CASE
REAR AXLE STANDARD 244MM(R39) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 		8-94368-449-2 01 1 0106- ●
96 04.730 BRACKET; LSPV,AXLE CASE
BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97011-997-3 01 1 0106-0112 ●
96 04.730 BRACKET; LSPV,AXLE CASE
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) G.V.W. 3.5-4.0TON(RPQ) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 		8-97011-997-3 01 1 0201- ●
96 04.730 BRACKET; LSPV,AXLE CASE
REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/8(R40) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97011-997-3 01 1 0201- ●
96 04.730 BRACKET; LSPV,AXLE CASE
BRK WHL LK CONT LSPV<6PH> 		8-97161-213-1 01 1 0101- ● ●

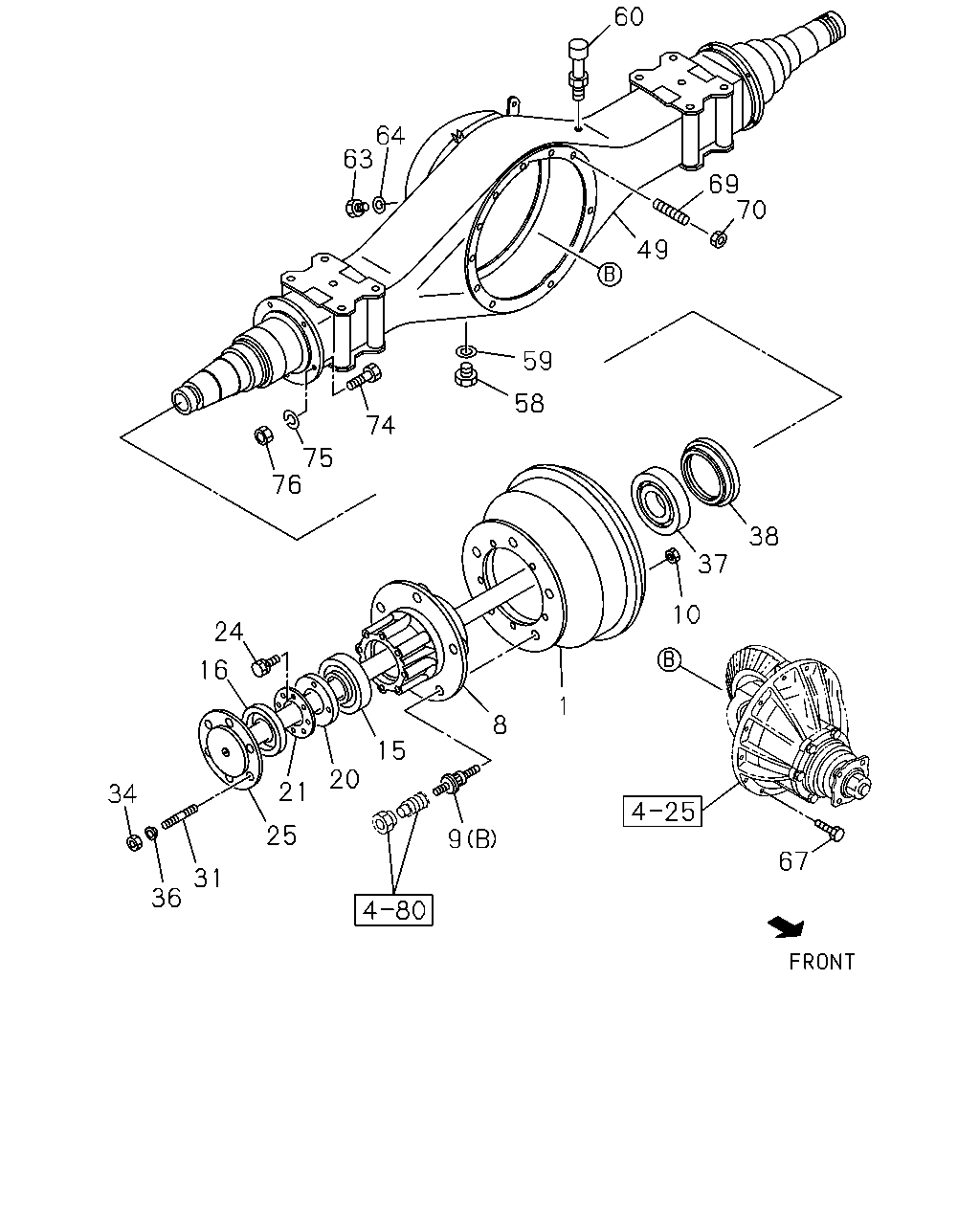

çizim 47132
60 64 63 69 70 49 59 58 74 75 76 38 37 10 24 16 1 8 15 20 21 34 25 9 67 31 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 05.809 DRUM; BRK,RR
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) G.V.W. 3.5-4.0TON(RPQ) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 		8-97192-097-1 02 1 0201- ●
1 05.809 DRUM; BRK,RR
REAR AXLE STANDARD 244MM(R39) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-891-3 02 1 0106- ●
1 05.809 DRUM; BRK,RR 8-94455-285-1 02 1 9811-0105 ● ●
1 05.809 DRUM; BRK,RR
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94455-285-2 02 1 0106- ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),ENGINE POWER N-SPEC(7QV) 		8-97034-770-2 02 1 9811-0012 ● ● ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) 		8-97034-770-2 02 1 9811-0012 ● ● ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4 3/7(R42),FINAL GEAR RATIO 39/6(R43) G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),ENGINE POWER N-SPEC(7QV) 		8-97034-770-2 02 1 0101-0105 ● ● ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4 3/7(R42) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-97034-770-2 02 1 0101-0105 ● ●
1 05.809 DRUM; BRK,RR
4JG2 ENG(RJC) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) BRAZIL EQUIPMENT(RWF) BRK WHL LK CONT LSPV<6PH> 		8-97034-770-2 02 1 0101-0105 ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4 3/7(R42) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 		8-97034-770-3 02 1 0106- ● ● ●
1 05.809 DRUM; BRK,RR
4JG2 ENG(RJC) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) BRAZIL EQUIPMENT(RWF) BRK WHL LK CONT LSPV<6PH> 		8-97034-770-3 02 1 0106- ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4 3/7(R42) G.V.W. 6.0-6.5TON(RPV) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97034-770-3 02 1 0106- ● ●
1 05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94382-884-3 02 1 9811-0105 ● ● ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D) 		8-94382-884-3 02 1 9811-0105 ● ● ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 		8-94382-884-3 02 1 9811-0105 ●
1 05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 3 9/6(R43) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0106-0112 ● ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4 3/7(R42) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0106-0112 ● ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) DUMP CHASSIS(V4D) EXC. BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0106-0112 ●
1 05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 3 9/6(R43) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0201- ● ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4 3/7(R42) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0201- ● ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) DUMP CHASSIS(V4D) EXC. BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0201- ●
1 05.809 DRUM; BRK,RR
4JH1 ENG(RJX) G.V.W. 5.0-5.5TON(RPT) EXC. BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0201- ●
1 05.809 DRUM; BRK,RR 5-42315-041-4 02 1 9811- ●
8 05.809 HUB; RR AXLE
REAR AXLE STANDARD 244MM(R39) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 		8-94335-927-3 02 1 0106-0112 ●
8 05.809 HUB; RR AXLE
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) G.V.W. 3.5-4.0TON(RPQ) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 		8-94335-927-4 02 1 0201- ●
8 05.809 HUB; RR AXLE
REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 		8-94335-927-4 02 1 0201- ●
8 05.809 HUB; RR AXLE 5-42311-009-2 02 1 9811-0105 ● ●
8 05.809 HUB; RR AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		5-42311-009-3 02 1 0106- ● ●
8 05.809 HUB; RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT), G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) 		8-97026-139-2 02 1 9811-0012 ● ● ● ●
8 05.809 HUB; RR AXLE
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 		8-97026-139-2 02 1 9811-0012 ●
8 05.809 HUB; RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) 		8-97026-139-3 02 1 0101-0112 ● ● ● ●
8 05.809 HUB; RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT), G.V.W. 5.5-6.0TON(RPU) 		8-97026-139-3 02 1 0201- ● ● ● ●
8 05.809 HUB; RR AXLE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) 		8-94382-893-3 02 1 9811-0012 ● ● ● ●
8 05.809 HUB; RR AXLE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) 		8-94382-893-4 02 1 0101- ● ●
8 05.809 HUB; RR AXLE 8-97032-606-3 02 1 9811- ●
9 05.812 PIN; WHEEL,RR AXLE
(A) M14X50 RH THREAD 		9-42331-605-4 06 1 9811- ● ●
9 05.812 PIN; WHEEL,RR AXLE
(A) M14X50 LH THREAD 		9-42332-605-4 06 1 9811- ● ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 9811- ● ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 9811- ● ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M16X35,M16X26 RH THREAD 		8-94365-254-0 06 1 9811- ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M16X35,M16X26 LH THREAD 		8-94365-255-0 06 1 9811- ●
10 05.813 NUT; WHEEL PIN,RR AXLE
00.050 M20 		9-99110-520-0 10 1 9811- ● ● ● ●
10 05.813 NUT; WHEEL PIN,RR AXLE
M16 LH THREAD 		8-94161-997-0 06 1 9811- ●
10 05.813 NUT; WHEEL PIN,RR AXLE
08.915 M16 		9-99110-516-0 06 1 9811- ●
15 05.855 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-082-0 02 1 9811-0012 ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF) NSK 		9-00093-082-0 02 1 9811-0012 ● ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) NSK 		9-00093-082-0 02 1 9811-0012 ● ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-082-0 02 1 0101- ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) NSK 		9-00093-082-0 02 1 0101- ● ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) NSK 		9-00093-607-0 02 1 9811-0012 ● ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) NSK 		9-00093-607-0 02 1 0101- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-315-2 02 1 9811-0012 ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TKK 		8-94336-315-2 02 1 9811-0012 ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) TKK 		8-94336-315-2 02 1 9811-0012 ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-315-2 02 1 0101- ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) TKK 		8-94336-315-2 02 1 0101- ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-961-1 02 1 9811-0012 ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF) NOK 		8-94367-961-1 02 1 9811-0012 ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) NOK 		8-94367-961-1 02 1 9811-0012 ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-961-1 02 1 0101- ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) NOK 		8-94367-961-1 02 1 0101- ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) TKK 		8-94336-317-2 02 1 9811-0012 ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) TKK 		8-94336-317-2 02 1 0101- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) NOK 		8-94367-960-1 02 1 9811-0012 ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) NOK 		8-94367-960-1 02 1 0101- ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-97137-092-0 02 1 9811-0012 ● ● ●
20 05.830 NUT; BRG,RR HUB
4JG2 ENG(RJC),4JB1 ENG(RLF) M52 		8-97137-092-0 02 1 9811-0012 ● ● ● ●
20 05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) M52 		8-97137-092-0 02 1 9811-0012 ● ● ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-97137-092-0 02 1 0101- ● ● ●
20 05.830 NUT; BRG,RR HUB
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) M52 		8-97137-092-0 02 1 0101- ● ● ● ●
20 05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) M55 		8-97137-094-0 02 1 9811-0012 ● ● ● ●
20 05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) M55 		8-97137-094-0 02 1 0101- ● ●
21 05.830 WASHER; LK,BRG NUT
ID=52 		9-09853-214-0 02 1 9811-0012 ● ● ●
21 05.830 WASHER; LK,BRG NUT
4JG2 ENG(RJC),4JB1 ENG(RLF) ID=52 		9-09853-214-0 02 1 9811-0012 ● ● ● ●
21 05.830 WASHER; LK,BRG NUT
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) ID=52 		9-09853-214-0 02 1 9811-0012 ● ● ● ●
21 05.830 WASHER; LK,BRG NUT
ID=52 		9-09853-214-0 02 1 0101- ● ● ●
21 05.830 WASHER; LK,BRG NUT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) ID=52 		9-09853-214-0 02 1 0101- ● ● ● ●
21 05.830 WASHER; LK,BRG NUT
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) ID=55 		9-09653-002-0 02 1 9811-0012 ● ● ● ●
21 05.830 WASHER; LK,BRG NUT
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) ID=55 		9-09653-002-0 02 1 0101- ● ●
24 05.830 BOLT; LK WASHER
00.685 M6X12 W/LK WASHER 		0-50040-612-0 04 1 9811- ● ● ● ● ● ● ●
25 05.420 SHAFT; AXLE,RR 8-94366-192-0 02 1 9811- ● ●
25 05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 		8-97032-495-0 02 1 9811- ●
25 05.420 SHAFT; AXLE,RR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT), G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) 		8-97032-496-0 02 1 9811- ● ● ● ●
25 05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) L=780 		8-94366-190-1 02 1 9811-0012 ● ● ● ●
25 05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) L=780 		8-94366-190-1 02 1 0101- ● ●
25 05.420 SHAFT; AXLE,RR 8-94341-978-0 02 1 9811- ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 12 1 9811- ● ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 16 1 9811- ● ● ● ●
34 05.387 NUT; AXLE SHAFT
08.917 M10 FLANGE 		0-91150-210-0 12 1 9811- ● ● ●
34 05.387 NUT; AXLE SHAFT
08.917 M10 FLANGE 		0-91150-210-0 16 1 9811- ● ● ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 12 1 9811- ● ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 16 1 9811- ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-081-0 02 1 9811-0012 ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF) NSK 		9-00093-081-0 02 1 9811-0012 ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) NSK 		9-00093-081-0 02 1 9811-0012 ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-081-0 02 1 0101- ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) NSK 		9-00093-081-0 02 1 0101- ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) NSK 		9-00093-624-0 02 1 9811-0012 ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) NSK 		9-00093-624-0 02 1 0101- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
TKK 		8-94336-314-1 02 1 9811-0012 ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF) TKK 		8-94336-314-1 02 1 9811-0012 ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) TKK 		8-94336-314-1 02 1 9811-0012 ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
TKK 		8-94336-314-1 02 1 0101- ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) TKK 		8-94336-314-1 02 1 0101- ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
NOK 		8-94367-959-0 02 1 9811-0012 ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF) NOK 		8-94367-959-0 02 1 9811-0012 ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) NOK 		8-94367-959-0 02 1 9811-0012 ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
NOK 		8-94367-959-0 02 1 0101- ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) NOK 		8-94367-959-0 02 1 0101- ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) TKK 		8-94336-316-1 02 1 9811-0012 ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) TKK 		8-94336-316-1 02 1 0101- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) NOK 		8-94367-958-0 02 1 9811-0012 ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) NOK 		8-94367-958-0 02 1 0101- ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) 		8-97032-768-2 01 1 9811-0105 ● ●
49 05.387 CASE; RR AXLE
REAR AXLE STANDARD 244MM(R39) 		8-97032-768-2 01 1 0106- ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 43/8(R40) 		8-97032-769-1 01 1 9811-0102 ● ●
49 05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97032-769-1 01 1 0103-0105 ●
49 05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97304-377-1 01 1 0106- ●
49 05.387 CASE; RR AXLE
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 		8-97032-772-2 01 1 9811- ●
49 05.387 CASE; RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT), G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) 		8-97032-861-2 01 1 9811- ● ● ● ●
49 05.387 CASE; RR AXLE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) 		8-97070-484-3 01 1 9811-0012 ● ● ● ●
49 05.387 CASE; RR AXLE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) 		8-97070-484-3 01 1 0101- ● ●
49 05.387 CASE; RR AXLE 8-97032-770-2 01 1 9811- ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 9811- ● ● ● ● ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 9811- ● ● ● ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=30 		8-94416-611-1 01 1 9811- ● ● ● ● ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
04.103 M20X10.5 		9-09662-005-0 01 1 9811- ● ● ● ● ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 9811- ● ● ● ● ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39) M10X40 W/LK WASHER 		0-50061-040-0 08 1 9811- ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 08 1 9811- ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73) M10X40 W/LK WASHER 		0-50061-040-0 11 1 9811- ● ● ● ● ●
69 05.387 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 9811- ● ● ● ● ● ● ●
70 05.387 NUT; CARRIER
08.917 M10 FLANGE 		0-91150-210-0 02 1 9811- ● ● ● ● ● ● ●
74 05.002 BOLT; RR BRK ASM SETTING
M10X25 		9-09800-768-1 12 1 9811-0007 ● ●
74 05.002 BOLT; RR BRK ASM SETTING 8-97259-178-0 12 1 0008- ● ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		5-09000-078-0 12 1 9811- ● ● ● ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		5-09000-078-0 08 1 9811- ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
00.002 ID=10.2 		9-09150-610-0 12 1 9811- ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
06.515 ID=12.2 		9-09150-612-0 12 1 9811- ● ● ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
06.515 ID=12.2 		9-09150-612-0 08 1 9811- ●
76 05.002 NUT; RR BRK ASM SETTING
00.002 M10 		9-09110-510-0 12 1 9811- ● ●
76 05.002 NUT; RR BRK ASM SETTING
04.634 M12 		9-99110-512-0 12 1 9811- ● ● ● ●
76 05.002 NUT; RR BRK ASM SETTING
04.634 M12 		9-99110-512-0 08 1 9811- ●

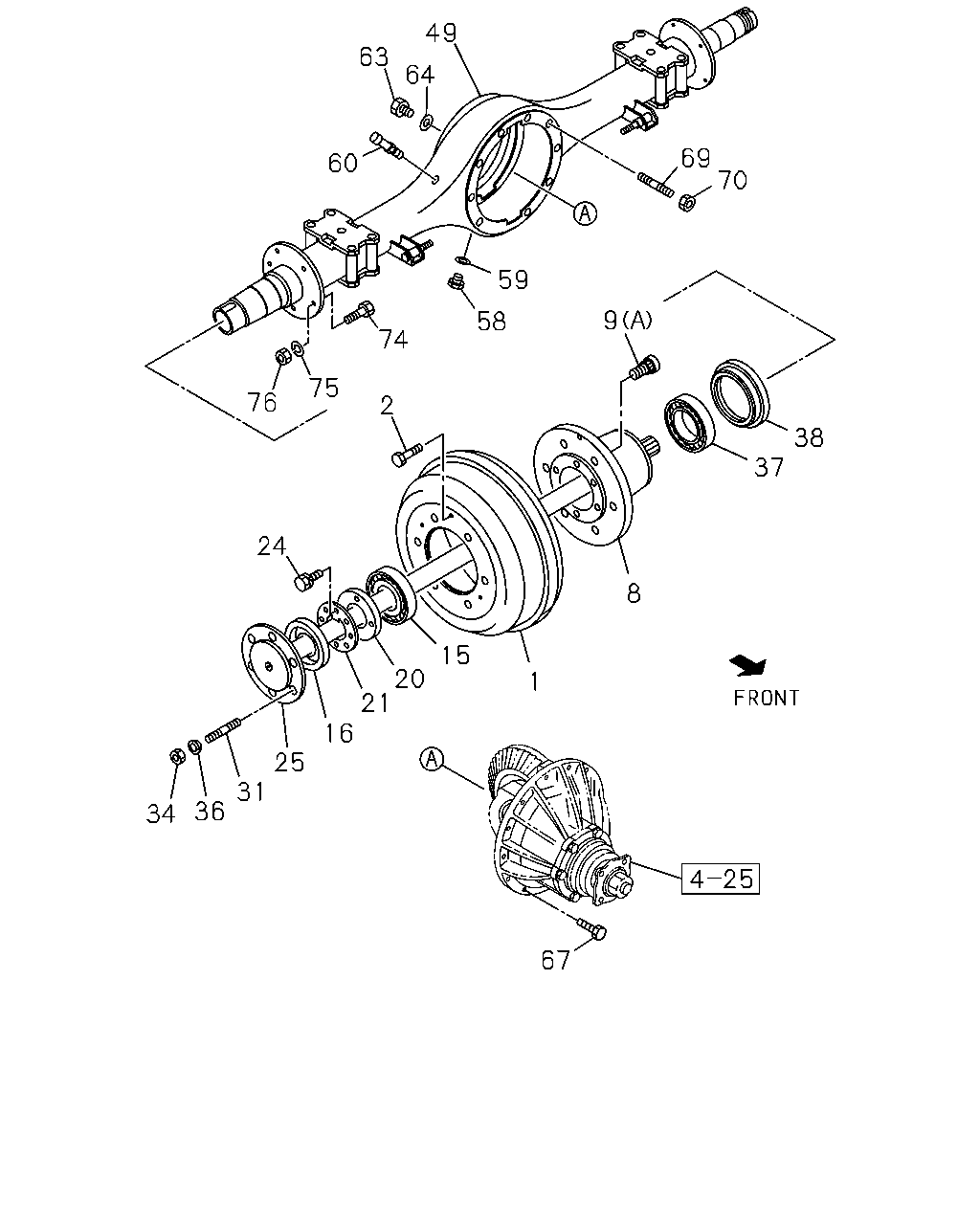

çizim 48595
49 63 64 69 70 60 59 9 58 74 75 76 2 38 37 24 8 15 20 21 16 1 25 31 36 34 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 05.809 DRUM; BRK,RR
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) G.V.W. 3.5-4.0TON(RPQ) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 		8-97192-097-1 02 1 0201- ●
1 05.809 DRUM; BRK,RR
REAR AXLE STANDARD 244MM(R39) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-891-3 02 1 0106- ●
1 05.809 DRUM; BRK,RR 8-94455-285-1 02 1 9811-0105 ● ●
1 05.809 DRUM; BRK,RR
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94455-285-2 02 1 0106- ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),ENGINE POWER N-SPEC(7QV) 		8-97034-770-2 02 1 9811-0012 ● ● ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) 		8-97034-770-2 02 1 9811-0012 ● ● ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4 3/7(R42),FINAL GEAR RATIO 39/6(R43) G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),ENGINE POWER N-SPEC(7QV) 		8-97034-770-2 02 1 0101-0105 ● ● ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4 3/7(R42) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-97034-770-2 02 1 0101-0105 ● ●
1 05.809 DRUM; BRK,RR
4JG2 ENG(RJC) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) BRAZIL EQUIPMENT(RWF) BRK WHL LK CONT LSPV<6PH> 		8-97034-770-2 02 1 0101-0105 ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4 3/7(R42) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 		8-97034-770-3 02 1 0106- ● ● ●
1 05.809 DRUM; BRK,RR
4JG2 ENG(RJC) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) BRAZIL EQUIPMENT(RWF) BRK WHL LK CONT LSPV<6PH> 		8-97034-770-3 02 1 0106- ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4 3/7(R42) G.V.W. 6.0-6.5TON(RPV) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97034-770-3 02 1 0106- ● ●
1 05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94382-884-3 02 1 9811-0105 ● ● ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D) 		8-94382-884-3 02 1 9811-0105 ● ● ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 		8-94382-884-3 02 1 9811-0105 ●
1 05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 3 9/6(R43) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0106-0112 ● ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4 3/7(R42) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0106-0112 ● ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) DUMP CHASSIS(V4D) EXC. BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0106-0112 ●
1 05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 3 9/6(R43) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0201- ● ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4 3/7(R42) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0201- ● ● ●
1 05.809 DRUM; BRK,RR
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) DUMP CHASSIS(V4D) EXC. BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0201- ●
1 05.809 DRUM; BRK,RR
4JH1 ENG(RJX) G.V.W. 5.0-5.5TON(RPT) EXC. BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0201- ●
1 05.809 DRUM; BRK,RR 5-42315-041-4 02 1 9811- ●
2 05.812 BOLT; BRK DRUM
04.012 M6X18 		0-20800-618-0 02 1 9811- ● ●
8 05.809 HUB; RR AXLE
REAR AXLE STANDARD 244MM(R39) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 		8-94335-927-3 02 1 0106-0112 ●
8 05.809 HUB; RR AXLE
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) G.V.W. 3.5-4.0TON(RPQ) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 		8-94335-927-4 02 1 0201- ●
8 05.809 HUB; RR AXLE
REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 		8-94335-927-4 02 1 0201- ●
8 05.809 HUB; RR AXLE 5-42311-009-2 02 1 9811-0105 ● ●
8 05.809 HUB; RR AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		5-42311-009-3 02 1 0106- ● ●
8 05.809 HUB; RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT), G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) 		8-97026-139-2 02 1 9811-0012 ● ● ● ●
8 05.809 HUB; RR AXLE
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 		8-97026-139-2 02 1 9811-0012 ●
8 05.809 HUB; RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) 		8-97026-139-3 02 1 0101-0112 ● ● ● ●
8 05.809 HUB; RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT), G.V.W. 5.5-6.0TON(RPU) 		8-97026-139-3 02 1 0201- ● ● ● ●
8 05.809 HUB; RR AXLE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) 		8-94382-893-3 02 1 9811-0012 ● ● ● ●
8 05.809 HUB; RR AXLE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) 		8-94382-893-4 02 1 0101- ● ●
8 05.809 HUB; RR AXLE 8-97032-606-3 02 1 9811- ●
9 05.812 PIN; WHEEL,RR AXLE
(A) M14X50 RH THREAD 		9-42331-605-4 06 1 9811- ● ●
9 05.812 PIN; WHEEL,RR AXLE
(A) M14X50 LH THREAD 		9-42332-605-4 06 1 9811- ● ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 9811- ● ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 9811- ● ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M16X35,M16X26 RH THREAD 		8-94365-254-0 06 1 9811- ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M16X35,M16X26 LH THREAD 		8-94365-255-0 06 1 9811- ●
15 05.855 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-082-0 02 1 9811-0012 ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF) NSK 		9-00093-082-0 02 1 9811-0012 ● ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) NSK 		9-00093-082-0 02 1 9811-0012 ● ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-082-0 02 1 0101- ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) NSK 		9-00093-082-0 02 1 0101- ● ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) NSK 		9-00093-607-0 02 1 9811-0012 ● ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) NSK 		9-00093-607-0 02 1 0101- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-315-2 02 1 9811-0012 ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TKK 		8-94336-315-2 02 1 9811-0012 ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) TKK 		8-94336-315-2 02 1 9811-0012 ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-315-2 02 1 0101- ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) TKK 		8-94336-315-2 02 1 0101- ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-961-1 02 1 9811-0012 ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF) NOK 		8-94367-961-1 02 1 9811-0012 ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) NOK 		8-94367-961-1 02 1 9811-0012 ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-961-1 02 1 0101- ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) NOK 		8-94367-961-1 02 1 0101- ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) TKK 		8-94336-317-2 02 1 9811-0012 ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) TKK 		8-94336-317-2 02 1 0101- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) NOK 		8-94367-960-1 02 1 9811-0012 ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) NOK 		8-94367-960-1 02 1 0101- ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-97137-092-0 02 1 9811-0012 ● ● ●
20 05.830 NUT; BRG,RR HUB
4JG2 ENG(RJC),4JB1 ENG(RLF) M52 		8-97137-092-0 02 1 9811-0012 ● ● ● ●
20 05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) M52 		8-97137-092-0 02 1 9811-0012 ● ● ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-97137-092-0 02 1 0101- ● ● ●
20 05.830 NUT; BRG,RR HUB
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) M52 		8-97137-092-0 02 1 0101- ● ● ● ●
20 05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) M55 		8-97137-094-0 02 1 9811-0012 ● ● ● ●
20 05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) M55 		8-97137-094-0 02 1 0101- ● ●
21 05.830 WASHER; LK,BRG NUT
ID=52 		9-09853-214-0 02 1 9811-0012 ● ● ●
21 05.830 WASHER; LK,BRG NUT
4JG2 ENG(RJC),4JB1 ENG(RLF) ID=52 		9-09853-214-0 02 1 9811-0012 ● ● ● ●
21 05.830 WASHER; LK,BRG NUT
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) ID=52 		9-09853-214-0 02 1 9811-0012 ● ● ● ●
21 05.830 WASHER; LK,BRG NUT
ID=52 		9-09853-214-0 02 1 0101- ● ● ●
21 05.830 WASHER; LK,BRG NUT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) ID=52 		9-09853-214-0 02 1 0101- ● ● ● ●
21 05.830 WASHER; LK,BRG NUT
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) ID=55 		9-09653-002-0 02 1 9811-0012 ● ● ● ●
21 05.830 WASHER; LK,BRG NUT
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) ID=55 		9-09653-002-0 02 1 0101- ● ●
24 05.830 BOLT; LK WASHER
00.685 M6X12 W/LK WASHER 		0-50040-612-0 04 1 9811- ● ● ● ● ● ● ●
25 05.420 SHAFT; AXLE,RR 8-94366-192-0 02 1 9811- ● ●
25 05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 		8-97032-495-0 02 1 9811- ●
25 05.420 SHAFT; AXLE,RR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT), G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) 		8-97032-496-0 02 1 9811- ● ● ● ●
25 05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) L=780 		8-94366-190-1 02 1 9811-0012 ● ● ● ●
25 05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) L=780 		8-94366-190-1 02 1 0101- ● ●
25 05.420 SHAFT; AXLE,RR 8-94341-978-0 02 1 9811- ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 12 1 9811- ● ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 16 1 9811- ● ● ● ●
34 05.387 NUT; AXLE SHAFT
08.917 M10 FLANGE 		0-91150-210-0 12 1 9811- ● ● ●
34 05.387 NUT; AXLE SHAFT
08.917 M10 FLANGE 		0-91150-210-0 16 1 9811- ● ● ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 12 1 9811- ● ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 16 1 9811- ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-081-0 02 1 9811-0012 ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF) NSK 		9-00093-081-0 02 1 9811-0012 ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) NSK 		9-00093-081-0 02 1 9811-0012 ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-081-0 02 1 0101- ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) NSK 		9-00093-081-0 02 1 0101- ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) NSK 		9-00093-624-0 02 1 9811-0012 ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) NSK 		9-00093-624-0 02 1 0101- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
TKK 		8-94336-314-1 02 1 9811-0012 ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF) TKK 		8-94336-314-1 02 1 9811-0012 ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) TKK 		8-94336-314-1 02 1 9811-0012 ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
TKK 		8-94336-314-1 02 1 0101- ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) TKK 		8-94336-314-1 02 1 0101- ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
NOK 		8-94367-959-0 02 1 9811-0012 ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF) NOK 		8-94367-959-0 02 1 9811-0012 ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) NOK 		8-94367-959-0 02 1 9811-0012 ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
NOK 		8-94367-959-0 02 1 0101- ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) NOK 		8-94367-959-0 02 1 0101- ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) TKK 		8-94336-316-1 02 1 9811-0012 ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) TKK 		8-94336-316-1 02 1 0101- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) NOK 		8-94367-958-0 02 1 9811-0012 ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) NOK 		8-94367-958-0 02 1 0101- ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) 		8-97032-768-2 01 1 9811-0105 ● ●
49 05.387 CASE; RR AXLE
REAR AXLE STANDARD 244MM(R39) 		8-97032-768-2 01 1 0106- ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 43/8(R40) 		8-97032-769-1 01 1 9811-0102 ● ●
49 05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97032-769-1 01 1 0103-0105 ●
49 05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97304-377-1 01 1 0106- ●
49 05.387 CASE; RR AXLE
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 		8-97032-772-2 01 1 9811- ●
49 05.387 CASE; RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT), G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) 		8-97032-861-2 01 1 9811- ● ● ● ●
49 05.387 CASE; RR AXLE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) 		8-97070-484-3 01 1 9811-0012 ● ● ● ●
49 05.387 CASE; RR AXLE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) 		8-97070-484-3 01 1 0101- ● ●
49 05.387 CASE; RR AXLE 8-97032-770-2 01 1 9811- ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 9811- ● ● ● ● ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 9811- ● ● ● ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=30 		8-94416-611-1 01 1 9811- ● ● ● ● ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
04.103 M20X10.5 		9-09662-005-0 01 1 9811- ● ● ● ● ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 9811- ● ● ● ● ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39) M10X40 W/LK WASHER 		0-50061-040-0 08 1 9811- ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 08 1 9811- ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73) M10X40 W/LK WASHER 		0-50061-040-0 11 1 9811- ● ● ● ● ●
69 05.387 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 9811- ● ● ● ● ● ● ●
70 05.387 NUT; CARRIER
08.917 M10 FLANGE 		0-91150-210-0 02 1 9811- ● ● ● ● ● ● ●
74 05.002 BOLT; RR BRK ASM SETTING
M10X25 		9-09800-768-1 12 1 9811-0007 ● ●
74 05.002 BOLT; RR BRK ASM SETTING 8-97259-178-0 12 1 0008- ● ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		5-09000-078-0 12 1 9811- ● ● ● ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		5-09000-078-0 08 1 9811- ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
00.002 ID=10.2 		9-09150-610-0 12 1 9811- ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
06.515 ID=12.2 		9-09150-612-0 12 1 9811- ● ● ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
06.515 ID=12.2 		9-09150-612-0 08 1 9811- ●
76 05.002 NUT; RR BRK ASM SETTING
00.002 M10 		9-09110-510-0 12 1 9811- ● ●
76 05.002 NUT; RR BRK ASM SETTING
04.634 M12 		9-99110-512-0 12 1 9811- ● ● ● ●
76 05.002 NUT; RR BRK ASM SETTING
04.634 M12 		9-99110-512-0 08 1 9811- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
