◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#43688) — 103 parça

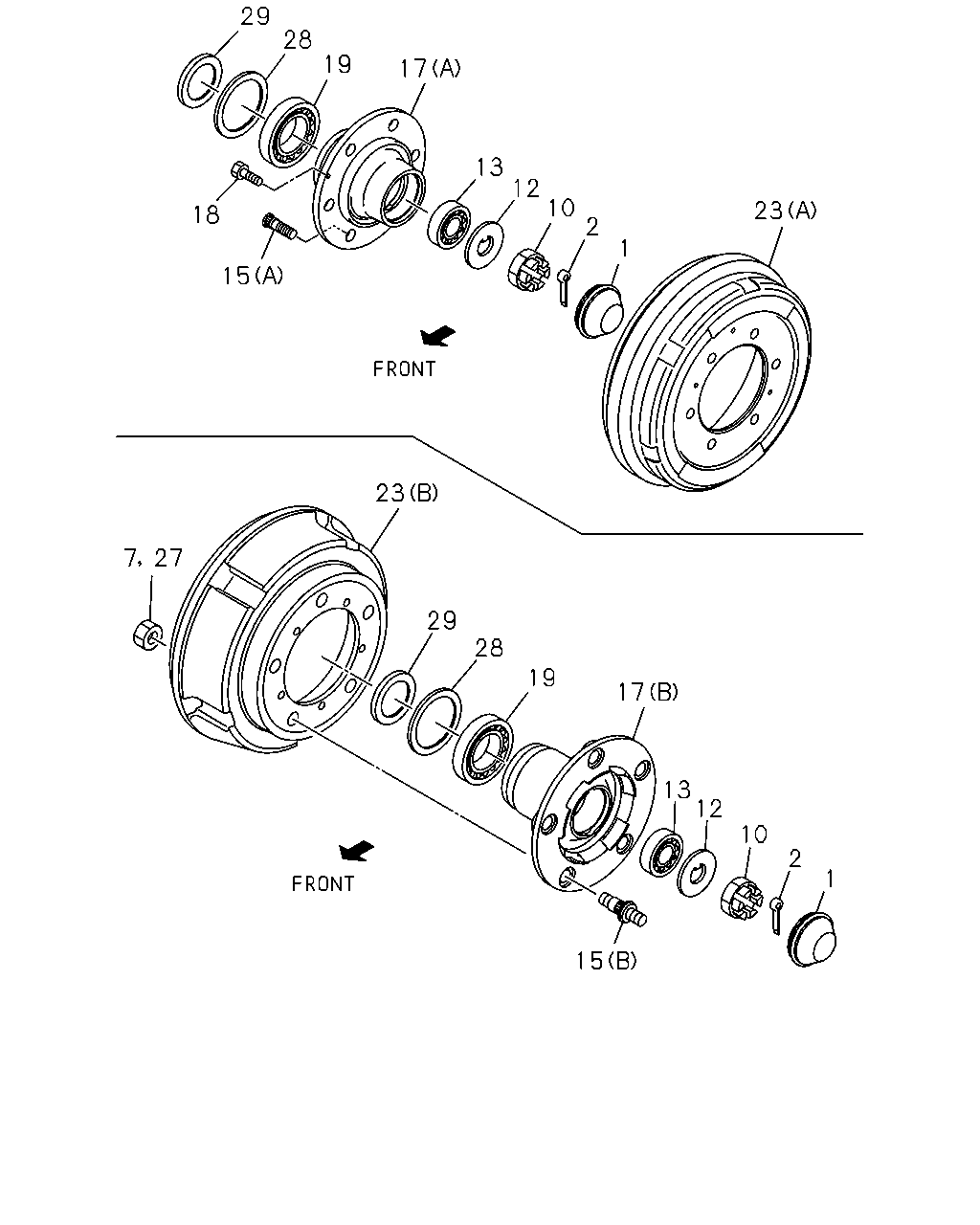

çizim 47096
29 28 19 17 13 12 10 2 23 18 1 15 23 7 27 29 28 19 17 13 12 10 2 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 9811- ● ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 9811- ● ● ● ● ● ● ●
7 05.812 NUT; FRT HUB
00.050 M20 		9-99110-520-0 10 1 9910- ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 9811- ● ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 9811-0105 ● ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94247-356-1 02 1 0106- ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0106- ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 9811- ● ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X39 LH THREAD 		8-97126-491-0 06 1 0106- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X39 RH THREAD 		8-97126-490-0 06 1 0106- ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 LH THREAD 		9-42332-605-4 06 1 9811-0105 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 LH THREAD 		9-42332-605-4 06 1 0106- ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 LH THREAD 		9-42332-605-4 06 1 0106- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 RH THREAD 		9-42331-605-4 06 1 9811-0105 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 RH THREAD 		9-42331-605-4 06 1 0106- ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 RH THREAD 		9-42331-605-4 06 1 0106- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 9811- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 9811- ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97090-751-0 02 1 0106- ●
17 06.307 HUB; FRT AXLE
(A) 		8-94420-597-1 02 1 9811-0105 ● ● ●
17 06.307 HUB; FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94420-597-1 02 1 0106- ●
17 06.307 HUB; FRT AXLE
(A) 		8-94420-597-1 02 1 0106- ● ●
17 06.307 HUB; FRT AXLE
(B) 		8-94365-459-0 02 1 9811- ● ● ● ●
18 06.022 BOLT; DRUM TO HUB
04.012 M6X18 		0-20800-618-0 02 1 9811-0105 ● ● ●
18 06.022 BOLT; DRUM TO HUB
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.012 M6X18 		0-20800-618-0 02 1 0106- ●
18 06.022 BOLT; DRUM TO HUB
04.012 M6X18 		0-20800-618-0 02 1 0106- ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) JTEKT 		8-94248-088-2 02 1 0209- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0209- ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) NSK 		8-94336-289-0 02 1 0106- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 9811-0105 ● ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) NSK 		9-00093-149-0 02 1 0106- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0106- ● ● ● ● ● ●
23 05.809 DRUM; BRK,FRT
(A) 		8-97085-071-1 02 1 9811-0105 ● ● ●
23 05.809 DRUM; BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-071-1 02 1 0106- ●
23 05.809 DRUM; BRK,FRT
(A) 		8-97085-071-1 02 1 0106- ● ●
23 05.809 DRUM; BRK,FRT
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-94385-650-3 02 1 9811-9907 ● ● ● ●
23 05.809 DRUM; BRK,FRT
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) (B) 		8-94385-650-3 02 1 9811-9907 ● ● ● ●
23 05.809 DRUM; BRK,FRT
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-94385-650-3 02 1 9908-0012 ● ● ●
23 05.809 DRUM; BRK,FRT
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) (B) 		8-94385-650-3 02 1 9908-0012 ● ●
23 05.809 DRUM; BRK,FRT
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-94385-650-3 02 1 0101-0105 ● ●
23 05.809 DRUM; BRK,FRT
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) (B) 		8-94385-650-3 02 1 0101-0105 ● ●
23 05.809 DRUM; BRK,FRT
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) (B) 		8-94385-650-3 02 1 0101-0105 ●
23 05.809 DRUM; BRK,FRT
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-94385-650-3 02 1 0106-0106 ● ●
23 05.809 DRUM; BRK,FRT
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) (B) 		8-94385-650-3 02 1 0106-0106 ● ●
23 05.809 DRUM; BRK,FRT
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) (B) 		8-94385-650-3 02 1 0106-0106 ● ●
23 05.809 DRUM; BRK,FRT
4HF1 ENG(RLS) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-94385-650-3 02 1 0107- ● ● ● ●
23 05.809 DRUM; BRK,FRT
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) (B) 		8-94385-650-3 02 1 0107- ● ●
23 05.809 DRUM; BRK,FRT
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) (B) 		8-94385-650-3 02 1 0107- ● ●
23 05.809 DRUM; BRK,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97094-434-2 02 1 9811-0106 ● ● ● ●
23 05.809 DRUM; BRK,FRT
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) (B) 		8-97094-434-2 02 1 9811-0106 ● ● ● ●
23 05.809 DRUM; BRK,FRT
4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) (B) 		8-97094-434-2 02 1 0107-0112 ● ● ● ●
23 05.809 DRUM; BRK,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97094-434-2 02 1 0107-0112 ● ● ●
23 05.809 DRUM; BRK,FRT
4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) (B) 		8-97094-434-2 02 1 0201- ● ● ● ●
23 05.809 DRUM; BRK,FRT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) (B) 		8-97094-434-2 02 1 0201- ● ● ●
27 05.813 NUT; WHEEL PIN,FRT AXLE
00.050 M20 		9-99110-520-0 10 1 9811-9902 ● ● ● ●
27 05.813 NUT; WHEEL PIN,FRT AXLE
EXC. AXLE ISUZU PRODUCTION<8BF> 00.050 M20 		9-99110-520-0 10 1 9903-9909 ● ● ● ●
27 05.813 NUT; WHEEL PIN,FRT AXLE
AXLE ISUZU PRODUCTION<8BF> 00.050 M20 		9-99110-520-0 10 1 9909- ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-97211-082-0 02 1 0106- ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 9811-0105 ● ● ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94248-117-1 02 1 0106- ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0106- ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
JBK 		8-94246-302-0 02 1 9811-0105 ● ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
AXLE ISUZU PRODUCTION<8BF> NTN 		8-97234-513-0 02 1 9909-9909 ● ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 9910-0105 ● ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) NTN 		8-97234-513-0 02 1 0106- ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0106- ● ● ● ● ● ●

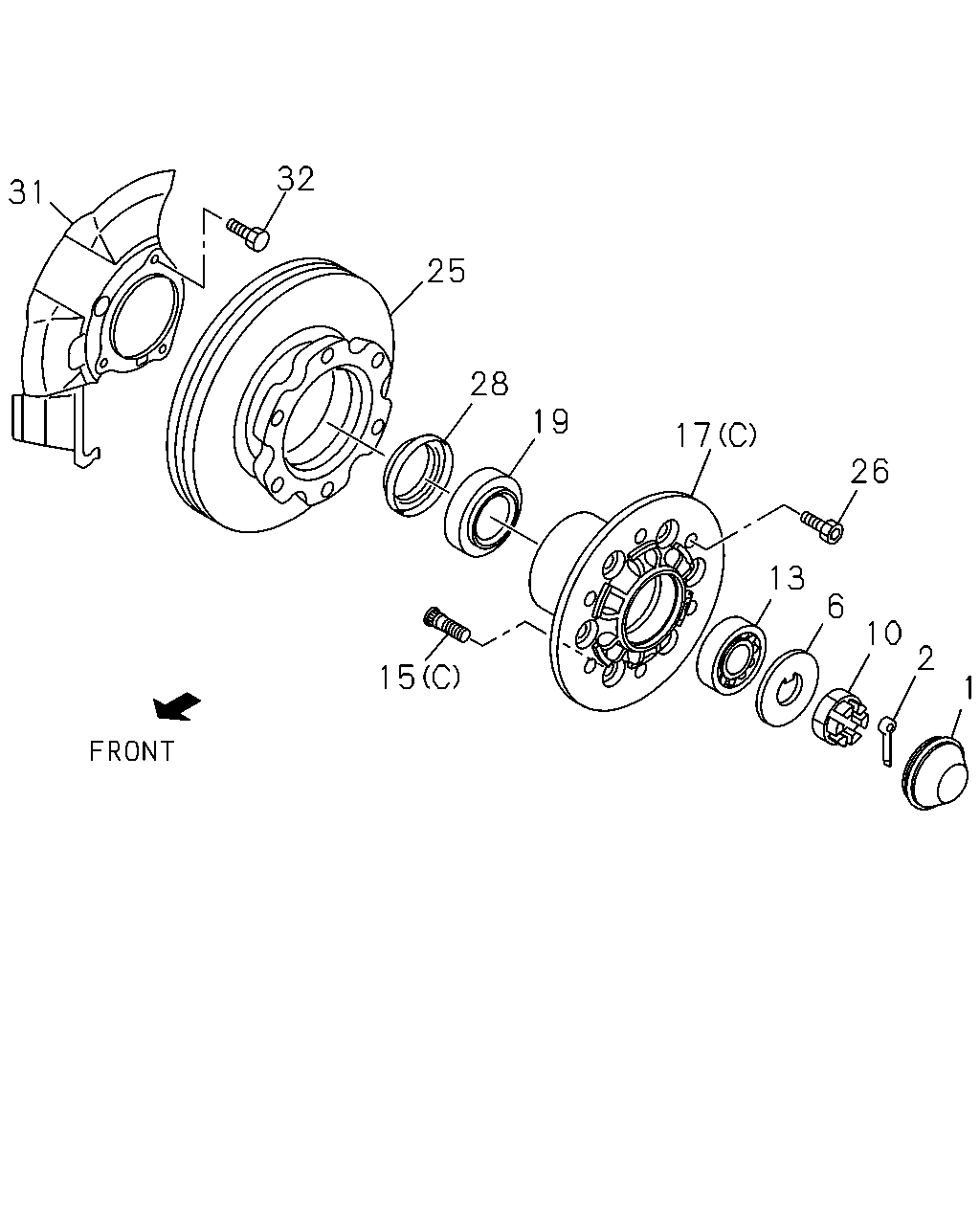

çizim 48875
32 31 25 28 19 17 26 13 6 10 2 15 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 9811- ● ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 9811- ● ● ● ● ● ● ●
6 05.812 WASHER; LK,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 06.321 		8-94247-356-1 02 1 0106- ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 9811- ● ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 9811- ● ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X39 LH THREAD 		8-97126-491-0 06 1 0106- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X39 RH THREAD 		8-97126-490-0 06 1 0106- ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 LH THREAD 		9-42332-605-4 06 1 9811-0105 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 LH THREAD 		9-42332-605-4 06 1 0106- ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 LH THREAD 		9-42332-605-4 06 1 0106- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 RH THREAD 		9-42331-605-4 06 1 9811-0105 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 RH THREAD 		9-42331-605-4 06 1 0106- ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 RH THREAD 		9-42331-605-4 06 1 0106- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 9811- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 9811- ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97090-751-0 02 1 0106- ●
17 06.307 HUB; FRT AXLE
(A) 		8-94420-597-1 02 1 9811-0105 ● ● ●
17 06.307 HUB; FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94420-597-1 02 1 0106- ●
17 06.307 HUB; FRT AXLE
(A) 		8-94420-597-1 02 1 0106- ● ●
17 06.307 HUB; FRT AXLE
(B) 		8-94365-459-0 02 1 9811- ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) JTEKT 		8-94248-088-2 02 1 0209- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0209- ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) NSK 		8-94336-289-0 02 1 0106- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 9811-0105 ● ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) NSK 		9-00093-149-0 02 1 0106- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0106- ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97031-007-1 02 1 0106- ●
26 05.812 BOLT; BRK,DISC TO HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-913-0 12 1 0106- ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-97211-082-0 02 1 0106- ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 9811-0105 ● ● ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94248-117-1 02 1 0106- ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0106- ● ● ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97034-265-0 01 1 0106-0203 ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97332-208-0 01 1 0204- ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97034-264-0 01 1 0106-0203 ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97332-207-0 01 1 0204- ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
FRT INDEPENDENT SUSPENSION(6PP) M8X10 W/LK WASHER 		8-97025-916-0 06 1 0106- ●
