◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#43682) — 59 parça

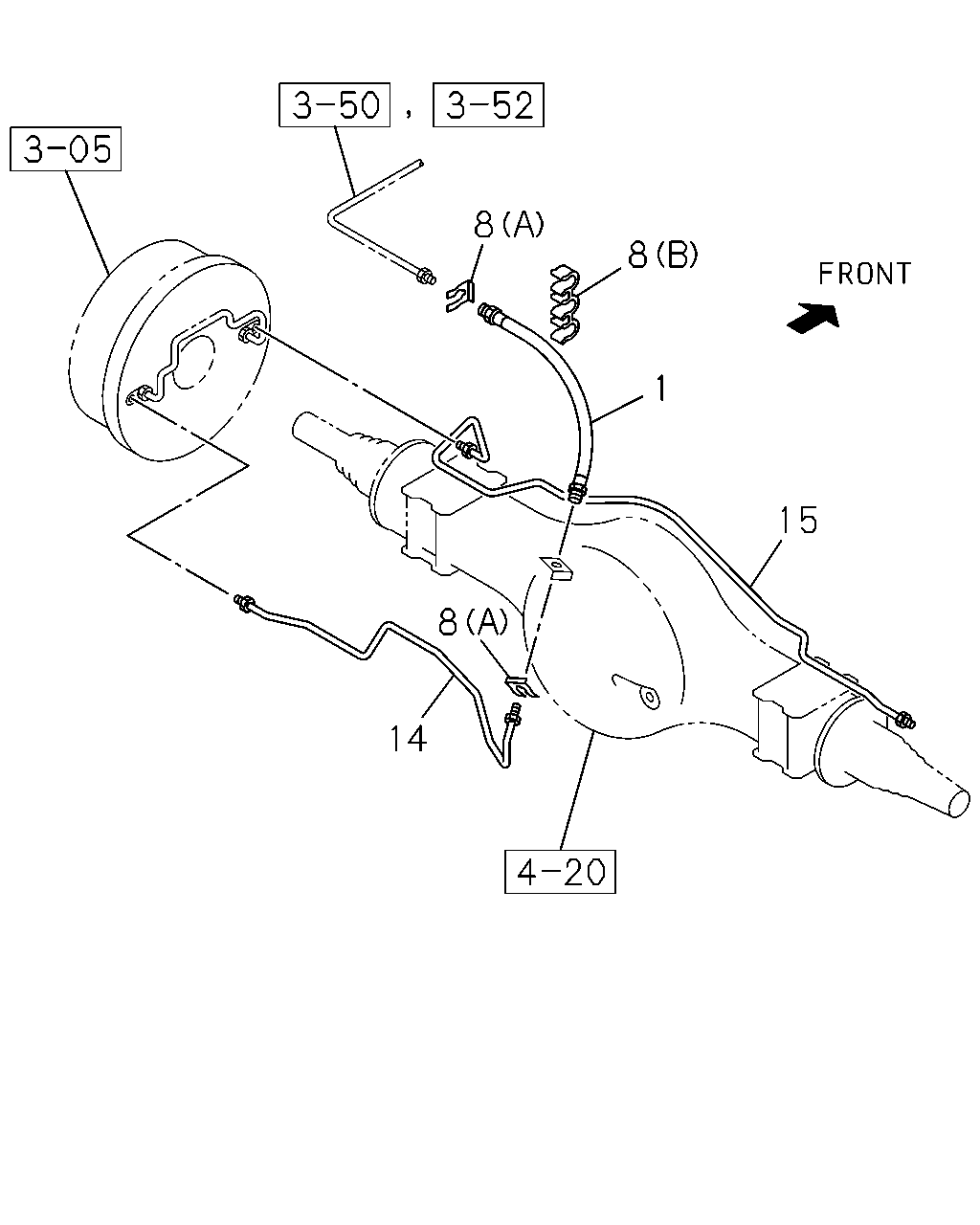

çizim 9932
8 8 1 15 8 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.680 HOSE; FLEX,RR BRK
4HF1 ENG(RLS) L=405 		8-97089-061-0 01 1 0106-0112 ●
1 04.680 HOSE; FLEX,RR BRK
4JH1 ENG(RJX),4HF1 ENG(RLS) L=405 		8-97089-061-0 01 1 0201- ●
1 04.680 HOSE; FLEX,RR BRK
L=370 		8-97035-574-0 01 1 9811-0105 ● ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) L=370 		8-97035-574-0 01 1 0106- ●
1 04.680 HOSE; FLEX,RR BRK
L=370 		8-97035-574-0 01 1 0106- ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
04.681 (A) 		8-94137-662-0 02 1 9811- ● ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
(B) 		8-97076-471-0 01 1 9811- ● ● ● ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97047-812-0 01 1 9811-0105 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> 		8-97304-924-0 01 1 0106- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) EXC. DISC BRAKE FRT<J52> 		8-97306-902-0 01 1 0106- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) 		8-97076-838-2 01 1 9811- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97076-838-2 01 1 9811- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-97070-590-0 01 1 9811-0012 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97070-590-0 01 1 9811-0012 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-97070-590-0 01 1 0101- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97070-590-0 01 1 0101- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. REAR WIDE TREAD(V4T) 		8-97034-528-1 01 1 9811-0012 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. REAR WIDE TREAD(V4T) 		8-97034-528-1 01 1 0101-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) 		8-97034-528-1 01 1 0106- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97034-532-1 01 1 9811- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97047-813-2 01 1 9811-0105 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) EXC. DISC BRAKE FRT<J52> 		8-97047-813-2 01 1 0106- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> 		8-97162-846-0 01 1 0106- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) 		8-97089-922-0 01 1 9811- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97089-922-0 01 1 9811- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
EXC. REAR WIDE TREAD(V4T) 		8-97034-531-0 01 1 9811-0012 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
EXC. REAR WIDE TREAD(V4T) 		8-97034-531-0 01 1 0101-0105 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) 		8-97034-531-0 01 1 0106- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. ENGINE POWER N-SPEC(7QV) 		8-97070-591-0 01 1 9811-0012 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97070-591-0 01 1 9811-0012 ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) 		8-97070-591-0 01 1 9811-0012 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. ENGINE POWER N-SPEC(7QV) 		8-97070-591-0 01 1 0101-0105 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) REAR WIDE TREAD(V4T) 		8-97070-591-0 01 1 0101-0105 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) ENGINE POWER N-SPEC(7QV) 		8-97070-591-0 01 1 0101-0105 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97070-591-0 01 1 0101-0105 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) 		8-97070-591-0 01 1 0101-0105 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. ENGINE POWER N-SPEC(7QV) 		8-97070-591-0 01 1 0106- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 		8-97070-591-0 01 1 0106- ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) 		8-97070-591-0 01 1 0106- ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97070-591-0 01 1 0106- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
EXC. ENGINE POWER N-SPEC(7QV) 		8-97070-591-0 01 1 0106- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) ENGINE POWER N-SPEC(7QV) 		8-97034-530-0 01 1 9811-9812 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JB1 ENG(RLF) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 		8-97034-530-0 01 1 9811-9812 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) 		8-97034-530-0 01 1 9811-9812 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97034-530-0 01 1 9811-9812 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V .W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 		8-97034-530-0 01 1 9901-0105 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) ENGINE POWER N-SPEC(7QV) 		8-97034-530-0 01 1 9901-0105 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97034-530-0 01 1 9901-0105 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) 		8-97034-530-0 01 1 9901-0105 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JB1 ENG(RLF) 		8-97034-530-0 01 1 0106-0112 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) ENGINE POWER N-SPEC(7QV) 		8-97034-530-0 01 1 0106-0112 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) 		8-97034-530-0 01 1 0106-0112 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) 		8-97034-530-0 01 1 0106-0112 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) 		8-97034-530-0 01 1 0106-0112 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. DISC BRAKE FRT<J52> 		8-97034-530-0 01 1 0201- ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) ENGINE POWER N-SPEC(7QV) 		8-97034-530-0 01 1 0201- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) 		8-97034-530-0 01 1 0201- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) 		8-97034-530-0 01 1 0201- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97089-923-0 01 1 9811- ●
