Sayfa 3-52 - Isuzu EPC

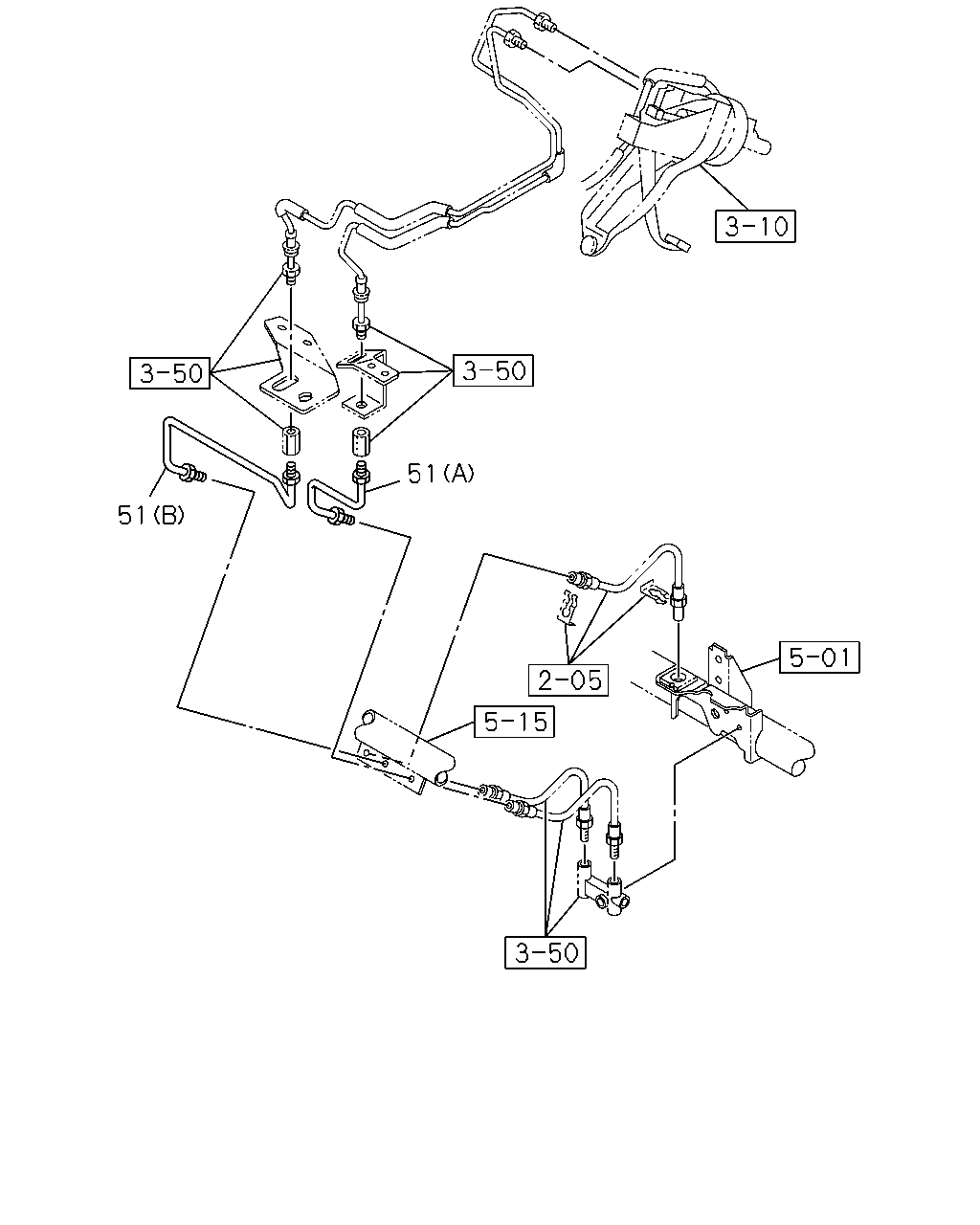

3-52 — BRAKE PIPING; OIL,FRONT (#43681) — 313 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
13	04.685 PIPE; OIL,UNION TO UNION 4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>	8-97288-014-2	01	1	0201-	●
13	04.685 PIPE; OIL,UNION TO UNION 4JH1 ENG(RJX) EXC. BRK WHL LK CONT LSPV<6PH>	8-97287-443-0	01	1	0201-		●
13	04.685 PIPE; OIL,UNION TO UNION REAR AXLE HEAVY DUTY 292MM(G73) EXC. BRK WHL LK CONT DSPV<JL8>	8-97078-164-2	01	1	9811-0105	●
13	04.685 PIPE; OIL,UNION TO UNION 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>	8-97310-662-0	01	1	0106-	●
13	04.685 PIPE; OIL,UNION TO UNION REAR AXLE STANDARD 244MM(R39) TURBOCHARGER<K51> EXC. BRK WHL LK CONT DSPV<JL8>	8-97300-213-0	01	1	0010-0105	●
13	04.685 PIPE; OIL,UNION TO UNION REAR AXLE STANDARD 244MM(R39) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>	8-97300-213-0	01	1	0106-	●		●	●
13	04.685 PIPE; OIL,UNION TO UNION REAR AXLE STANDARD 244MM(R39) EXC. BRK WHL LK CONT DSPV<JL8>	8-97041-000-3	01	1	9811-0009	●		●
13	04.685 PIPE; OIL,UNION TO UNION	8-97041-000-3	01	1	9811-0009				●
13	04.685 PIPE; OIL,UNION TO UNION REAR AXLE STANDARD 244MM(R39) EXC. BRK WHL LK CONT DSPV<JL8>, TURBOCHARGER<K51>	8-97041-000-3	01	1	0010-0105	●
13	04.685 PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT DSPV<JL8>	8-97041-000-3	01	1	0010-0105			●
13	04.685 PIPE; OIL,UNION TO UNION	8-97041-000-3	01	1	0010-0105				●
13	04.685 PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT DSPV<JL8>, FRAME-KICK UP<7EW>	8-97166-500-0	01	1	9811-0002					●
13	04.685 PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT DSPV<JL8>, CHARGE AIR COOLER<6PL>,FRAME-KICK UP<7EW>	8-97166-500-0	01	1	0003-0105					●
13	04.685 PIPE; OIL,UNION TO UNION 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT DSPV<JL8>, CHARGE AIR COOLER<6PL>,FRAME-KICK UP<7EW>	8-97166-500-0	01	1	0106-					●
13	04.685 PIPE; OIL,UNION TO UNION CHARGE AIR COOLER<6PL> EXC. BRK WHL LK CONT DSPV<JL8>, FRAME-KICK UP<7EW>	8-97255-086-0	01	1	0003-0105					●
13	04.685 PIPE; OIL,UNION TO UNION 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> EXC. BRK WHL LK CONT DSPV<JL8>, FRAME-KICK UP<7EW>	8-97255-086-0	01	1	0106-					●
13	04.685 PIPE; OIL,UNION TO UNION FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT DSPV<JL8>	8-97202-128-0	01	1	9811-					●
13	04.685 PIPE; OIL,UNION TO UNION	8-97042-208-5	01	1	9811-0012						●
13	04.685 PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT LSPV<6PH>	8-97042-208-5	01	1	0101-						●
13	04.685 PIPE; OIL,UNION TO UNION	8-97178-897-0	01	1	9811-0105		●					●
13	04.685 PIPE; OIL,UNION TO UNION 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>	8-97178-897-0	01	1	0106-		●
13	04.685 PIPE; OIL,UNION TO UNION	8-97178-897-0	01	1	0106-							●

48 26 95 99 46 95 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
26	05.476 PIPE; BRK,JOINT TO 2 WAY TURBOCHARGER<K51> (A)	8-97300-283-0	01	1	0010-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (A)	8-97089-975-2	01	1	9811-0009	●		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. TURBOCHARGER<K51> (A)	8-97089-975-2	01	1	0010-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (A)	8-97089-975-2	01	1	0010-0105			●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY FRAME-KICK UP<7EW> (A)	8-97142-368-1	01	1	9811-0105					●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. FRAME-KICK UP<7EW> (A)	8-97070-368-3	01	1	9811-0012					●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (A)	8-97070-368-3	01	1	9811-0012		●				●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A)	8-97070-368-3	01	1	0101-0105		●			●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY BRK WHL LK CONT LSPV<6PH> (B)	8-97200-660-0	01	1	0101-0105						●
46	04.685 PIPE; BRK,JOINT TO VLV 4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-532-2	01	1	0201-	●
46	04.685 PIPE; BRK,JOINT TO VLV 4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL>	8-97259-522-1	01	1	0201-		●
46	04.685 PIPE; BRK,JOINT TO VLV 4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH>	8-97106-528-1	01	1	0106-	●
46	04.685 PIPE; BRK,JOINT TO VLV 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH>	8-97208-981-1	01	1	0106-	●
46	04.685 PIPE; BRK,JOINT TO VLV 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH>	8-97093-658-3	01	1	0106-	●
46	04.685 PIPE; BRK,JOINT TO VLV 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH>	8-97307-984-0	01	1	0101-						●
46	04.685 PIPE; BRK,JOINT TO VLV 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH>	8-97148-829-1	01	1	0106-		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-360-2	01	1	0201-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL>	8-97247-853-2	01	1	0201-		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH>	8-97106-529-1	01	1	0106-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH>	8-97208-980-1	01	1	0106-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH>	8-97093-659-3	01	1	0106-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH>	8-97307-985-0	01	1	0101-						●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH>	8-97148-830-2	01	1	0106-		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> (A)	8-97122-631-0	01	1	0101-0105						●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> (B)	8-97225-305-0	01	1	0101-0105						●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97259-356-2	01	1	0201-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97259-358-2	01	1	0201-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> (B)	8-97259-508-0	01	1	0201-		●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (A)	8-97259-509-1	01	1	0201-		●
99	04.686 PIPE ASM; 4/5/6 WAY 4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (A)	8-97089-975-2	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97206-419-0	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97206-420-0	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97122-632-2	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97122-636-1	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (A)	8-97300-283-0	01	1	0106-	●		●	●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME-KICK UP<7EW> 05.476 (A)	8-97142-368-1	01	1	0106-					●
99	04.686 PIPE ASM; 4/5/6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KIC K UP<7EW> 05.476 (A)	8-97070-368-3	01	1	0106-		●			●	●	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A)	8-97122-631-0	01	1	0106-		●				●
99	04.686 PIPE ASM; 4/5/6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B)	8-97225-305-0	01	1	0106-		●				●

31 28 31 31 29 27 27 27 27 48 99 26 95 46 5 9 9 8 24 8 94 1 9 1 95 99 71 87 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.680 HOSE; FLEX,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97035-064-0	02	1	0106-	●
1	04.680 HOSE; FLEX,FRT BRK (A) L=310	8-97035-063-0	02	1	9811-0105	●	●	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) L=310	8-97035-063-0	02	1	0106-	●
1	04.680 HOSE; FLEX,FRT BRK (A) L=310	8-97035-063-0	02	1	0106-		●	●	●	●	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22	5-09675-017-0	02	1	0106-	●
8	04.681 GASKET; FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	0106-	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	9811-0105	●	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	9811-0105	●	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0106-	●	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.681	8-94137-662-0	02	1	0106-	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0106-		●	●	●	●	●	●
24	04.686 NUT; UNION,OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 08.963	9-09217-625-0	04	1	9811-9902	●	●	●	●	●		●
24	04.686 NUT; UNION,OIL PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.963	9-09217-625-0	04	1	9811-9902	●	●			●	●	●
24	04.686 NUT; UNION,OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AXLE ISUZU PRODUCTION<8BF> 08.963	9-09217-625-0	02	1	9903-9909	●	●	●	●	●		●
24	04.686 NUT; UNION,OIL PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) AXLE ISUZU PRODUCTION<8BF> 08.963	9-09217-625-0	02	1	9903-9909	●	●			●	●	●
24	04.686 NUT; UNION,OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 08.963	9-09217-625-0	02	1	9910-0012	●	●	●	●	●		●
24	04.686 NUT; UNION,OIL PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.963	9-09217-625-0	02	1	9910-0012	●	●			●	●	●
24	04.686 NUT; UNION,OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 08.963	9-09217-625-0	02	1	0101-0105	●	●	●	●	●	●	●
24	04.686 NUT; UNION,OIL PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.963	9-09217-625-0	02	1	0101-0105	●	●			●	●	●
24	04.686 NUT; UNION,OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.963	9-09217-625-0	02	1	0106-0112	●	●	●	●	●	●
24	04.686 NUT; UNION,OIL PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.963	9-09217-625-0	02	1	0106-0112	●	●			●	●	●
24	04.686 NUT; UNION,OIL PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.963	9-09217-625-0	02	1	0201-	●	●	●	●	●	●
24	04.686 NUT; UNION,OIL PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.963	9-09217-625-0	02	1	0201-	●	●			●	●	●
24	04.686 NUT; UNION,OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AXLE ISUZU PRODUCTION<8BF> 08.963	9-09217-625-0	04	1	9903-9909	●	●	●	●	●		●
24	04.686 NUT; UNION,OIL PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. AXLE ISUZU PRODUCTION<8BF> 08.963	9-09217-625-0	04	1	9903-9909	●	●			●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY TURBOCHARGER<K51> (A)	8-97300-283-0	01	1	0010-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (A)	8-97089-975-2	01	1	9811-0009	●		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. TURBOCHARGER<K51> (A)	8-97089-975-2	01	1	0010-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (A)	8-97089-975-2	01	1	0010-0105			●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY FRAME-KICK UP<7EW> (A)	8-97142-368-1	01	1	9811-0105					●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. FRAME-KICK UP<7EW> (A)	8-97070-368-3	01	1	9811-0012					●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (A)	8-97070-368-3	01	1	9811-0012		●				●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A)	8-97070-368-3	01	1	0101-0105		●			●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY BRK WHL LK CONT LSPV<6PH> (B)	8-97200-660-0	01	1	0101-0105						●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97259-943-0	01	1	0201-	●	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97259-369-0	01	1	0201-	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97287-444-0	01	1	0201-	●	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. BRK WHL LK CONT LSPV<6PH> (B)	8-97288-260-0	01	1	0201-	●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	9811-0012	●	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0101-0105	●	●	●	●	●		●
27	04.686 UNION; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0101-0105						●
27	04.686 UNION; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0106-	●	●				●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0101-0105						●
27	04.686 UNION; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0106-	●	●				●
27	04.686 UNION; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0106-			●	●	●		●
28	04.686 BOLT; UNION CLIP 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9811-0105	●	●	●	●	●	●	●
28	04.686 BOLT; UNION CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0106-	●	●	●	●	●	●	●
29	04.686 CLIP; UNION 03.162 (A) ID=16 L=20	9-09525-532-0	01	1	9811-0012	●	●	●	●	●	●	●
29	04.686 CLIP; UNION 03.162 (A) ID=16 L=20	9-09525-532-0	01	1	0101-0105	●	●	●	●	●		●
29	04.686 CLIP; UNION EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (A) ID=16 L=20	9-09525-532-0	01	1	0101-0105						●
29	04.686 CLIP; UNION 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (A) ID=16 L=20	9-09525-532-0	01	1	0106-	●	●				●
29	04.686 CLIP; UNION 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.162 (A) ID=16 L=20	9-09525-532-0	01	1	0106-			●	●	●		●
29	04.686 CLIP; UNION BRK WHL LK CONT LSPV<6PH> (B) ID=16X2 L=20	9-09535-533-0	01	1	0101-0105						●
29	04.686 CLIP; UNION 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> (B) ID=16X2 L=20	9-09535-533-0	01	1	0106-	●	●				●
31	04.686 NUT; UNION CLIP 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-	●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	9811-0105	●	●	●	●	●	●	●
31	04.686 NUT; UNION CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	01	1	0106-0112	●	●	●	●	●	●	●
31	04.686 NUT; UNION CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	01	1	0201-	●	●	●	●	●	●	●
31	04.686 NUT; UNION CLIP 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE	0-91150-106-0	01	1	0201-	●
46	04.685 PIPE; BRK,JOINT TO VLV 4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-532-2	01	1	0201-	●
46	04.685 PIPE; BRK,JOINT TO VLV 4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL>	8-97259-522-1	01	1	0201-		●
46	04.685 PIPE; BRK,JOINT TO VLV 4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH>	8-97106-528-1	01	1	0106-	●
46	04.685 PIPE; BRK,JOINT TO VLV 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH>	8-97208-981-1	01	1	0106-	●
46	04.685 PIPE; BRK,JOINT TO VLV 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH>	8-97093-658-3	01	1	0106-	●
46	04.685 PIPE; BRK,JOINT TO VLV 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH>	8-97307-984-0	01	1	0101-						●
46	04.685 PIPE; BRK,JOINT TO VLV 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH>	8-97148-829-1	01	1	0106-		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-360-2	01	1	0201-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL>	8-97247-853-2	01	1	0201-		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH>	8-97106-529-1	01	1	0106-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH>	8-97208-980-1	01	1	0106-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH>	8-97093-659-3	01	1	0106-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH>	8-97307-985-0	01	1	0101-						●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH>	8-97148-830-2	01	1	0106-		●
71	04.686 GROMMET; OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AXLE ISUZU PRODUCTION<8BF> 05.002	9-09756-034-0	02	1	9903-0012	●	●	●	●	●	●	●
71	04.686 GROMMET; OIL PIPE 05.002	9-09756-034-0	02	1	0101-0105	●	●	●	●	●	●	●
71	04.686 GROMMET; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.002	9-09756-034-0	02	1	0106-	●
71	04.686 GROMMET; OIL PIPE 05.002	9-09756-034-0	02	1	0106-		●	●	●	●	●	●
87	04.685 PIPE; BRK,5 WAY TO UNION	8-97077-519-3	01	1	9811-0105	●	●	●	●		●	●
87	04.685 PIPE; BRK,5 WAY TO UNION EXC. FRAME-KICK UP<7EW>	8-97077-519-3	01	1	9811-0105					●
87	04.685 PIPE; BRK,5 WAY TO UNION	8-97091-666-3	01	1	9811-0012	●	●	●	●		●	●
87	04.685 PIPE; BRK,5 WAY TO UNION EXC. FRAME-KICK UP<7EW>	8-97091-666-3	01	1	9811-0012					●
87	04.685 PIPE; BRK,5 WAY TO UNION	8-97091-666-3	01	1	0101-0105	●	●	●	●			●
87	04.685 PIPE; BRK,5 WAY TO UNION EXC. FRAME-KICK UP<7EW>	8-97091-666-3	01	1	0101-0105					●
87	04.685 PIPE; BRK,5 WAY TO UNION EXC. BRK WHL LK CONT LSPV<6PH>	8-97091-666-3	01	1	0101-0105						●
87	04.685 PIPE; BRK,5 WAY TO UNION FRAME-KICK UP<7EW>	8-97108-750-1	01	1	9811-0105					●
87	04.685 PIPE; BRK,5 WAY TO UNION FRAME-KICK UP<7EW>	8-97139-860-3	01	1	9811-0105					●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97019-223-0	01	1	9811-0012	●	●	●	●	●		●
94	04.685 PIPE; BRK,W/C TO W/C 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97019-223-0	01	1	9811-0012	●	●			●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97019-223-0	01	1	0101-0105	●	●	●	●	●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97019-223-0	01	1	0101-0105	●	●			●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97019-223-0	01	1	0106-0112	●	●	●	●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97019-223-0	01	1	0106-0112	●	●			●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97019-223-0	01	1	0201-	●	●	●	●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97019-223-0	01	1	0201-	●	●			●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97019-222-0	01	1	9811-0012	●	●	●	●	●		●
94	04.685 PIPE; BRK,W/C TO W/C 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97019-222-0	01	1	9811-0012	●	●			●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97019-222-0	01	1	0101-0105	●	●	●	●	●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97019-222-0	01	1	0101-0105	●	●			●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97019-222-0	01	1	0106-0112	●	●	●	●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97019-222-0	01	1	0106-0112	●	●			●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97019-222-0	01	1	0201-	●	●	●	●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97019-222-0	01	1	0201-	●	●			●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> (A)	8-97122-631-0	01	1	0101-0105						●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> (B)	8-97225-305-0	01	1	0101-0105						●
96	04.686 PIPE ASM; 6 WAY 4JB1 ENG(RLF) DISC BRAKE FRT<J52> FRT INDEPENDENT SUSPENSION(6PP) 05.476	8-97208-514-1	01	1	0106-0112	●
96	04.686 PIPE ASM; 6 WAY 4JH1 ENG(RJX),4JB1 ENG(RLF) DISC BRAKE FRT<J52> FRT INDEPENDENT SUSPENSION(6PP) 05.476	8-97208-514-1	01	1	0201-	●
96	04.686 PIPE ASM; 6 WAY 4JB1 ENG(RLF) DISC BRAKE FRT<J52> FRT INDEPENDENT SUSPENSION(6PP) 05.476	8-97225-632-0	01	1	0106-0112	●
96	04.686 PIPE ASM; 6 WAY 4JH1 ENG(RJX),4JB1 ENG(RLF) DISC BRAKE FRT<J52> FRT INDEPENDENT SUSPENSION(6PP) 05.476	8-97225-632-0	01	1	0201-	●
96	04.686 PIPE ASM; 6 WAY 4JG2 ENG(RJC) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 05.476	8-97075-570-3	01	1	0106-	●
96	04.686 PIPE ASM; 6 WAY 4JG2 ENG(RJC) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 04.685	8-97146-895-0	01	1	0106-	●
96	04.686 PIPE ASM; 6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 04.685	8-97091-666-3	01	1	0106-	●	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 04.685	8-97077-519-3	01	1	0106-0112	●	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 04.685	8-97077-519-3	01	1	0201-	●	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY FRAME-KICK UP<7EW> 04.685	8-97108-750-1	01	1	0106-					●
96	04.686 PIPE ASM; 6 WAY FRAME-KICK UP<7EW> 04.685	8-97139-860-3	01	1	0106-					●
96	04.686 PIPE ASM; 6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 05.476	8-97200-660-0	01	1	0106-0112		●				●
96	04.686 PIPE ASM; 6 WAY 4JG2 ENG(RJC),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 05.476	8-97200-660-0	01	1	0201-						●
96	04.686 PIPE ASM; 6 WAY 4JH1 ENG(RJX) 05.476	8-97200-660-0	01	1	0201-		●
96	04.686 PIPE ASM; 6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 05.476	8-97200-660-0	01	1	0201-		●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97259-356-2	01	1	0201-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97259-358-2	01	1	0201-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> (B)	8-97259-508-0	01	1	0201-		●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (A)	8-97259-509-1	01	1	0201-		●
99	04.686 PIPE ASM; 4/5/6 WAY 4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (A)	8-97089-975-2	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97206-419-0	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97206-420-0	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97122-632-2	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97122-636-1	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (A)	8-97300-283-0	01	1	0106-	●		●	●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME-KICK UP<7EW> 05.476 (A)	8-97142-368-1	01	1	0106-					●
99	04.686 PIPE ASM; 4/5/6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KIC K UP<7EW> 05.476 (A)	8-97070-368-3	01	1	0106-		●			●	●	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A)	8-97122-631-0	01	1	0106-		●				●
99	04.686 PIPE ASM; 4/5/6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B)	8-97225-305-0	01	1	0106-		●				●

51 51

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
	51	04.685 PIPE; BRK (B)	5-47411-763-0	01	1	9811-	●	●	●	●	●	●	●
	51	04.685 PIPE; BRK (A)	8-97070-296-2	01	1	9811-	●	●	●	●	●	●	●

31 28 31 31 29 27 27 27 26 99 5 9 9 8 24 71 8 94 1 9 1 87 96 87 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.680 HOSE; FLEX,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97035-064-0	02	1	0106-	●
1	04.680 HOSE; FLEX,FRT BRK (A) L=310	8-97035-063-0	02	1	9811-0105	●	●	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) L=310	8-97035-063-0	02	1	0106-	●
1	04.680 HOSE; FLEX,FRT BRK (A) L=310	8-97035-063-0	02	1	0106-		●	●	●	●	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22	5-09675-017-0	02	1	0106-	●
8	04.681 GASKET; FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	0106-	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	9811-0105	●	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	9811-0105	●	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0106-	●	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.681	8-94137-662-0	02	1	0106-	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0106-		●	●	●	●	●	●
24	04.686 NUT; UNION,OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 08.963	9-09217-625-0	04	1	9811-9902	●	●	●	●	●		●
24	04.686 NUT; UNION,OIL PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.963	9-09217-625-0	04	1	9811-9902	●	●			●	●	●
24	04.686 NUT; UNION,OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AXLE ISUZU PRODUCTION<8BF> 08.963	9-09217-625-0	02	1	9903-9909	●	●	●	●	●		●
24	04.686 NUT; UNION,OIL PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) AXLE ISUZU PRODUCTION<8BF> 08.963	9-09217-625-0	02	1	9903-9909	●	●			●	●	●
24	04.686 NUT; UNION,OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 08.963	9-09217-625-0	02	1	9910-0012	●	●	●	●	●		●
24	04.686 NUT; UNION,OIL PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.963	9-09217-625-0	02	1	9910-0012	●	●			●	●	●
24	04.686 NUT; UNION,OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 08.963	9-09217-625-0	02	1	0101-0105	●	●	●	●	●	●	●
24	04.686 NUT; UNION,OIL PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.963	9-09217-625-0	02	1	0101-0105	●	●			●	●	●
24	04.686 NUT; UNION,OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.963	9-09217-625-0	02	1	0106-0112	●	●	●	●	●	●
24	04.686 NUT; UNION,OIL PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.963	9-09217-625-0	02	1	0106-0112	●	●			●	●	●
24	04.686 NUT; UNION,OIL PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.963	9-09217-625-0	02	1	0201-	●	●	●	●	●	●
24	04.686 NUT; UNION,OIL PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.963	9-09217-625-0	02	1	0201-	●	●			●	●	●
24	04.686 NUT; UNION,OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AXLE ISUZU PRODUCTION<8BF> 08.963	9-09217-625-0	04	1	9903-9909	●	●	●	●	●		●
24	04.686 NUT; UNION,OIL PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. AXLE ISUZU PRODUCTION<8BF> 08.963	9-09217-625-0	04	1	9903-9909	●	●			●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY TURBOCHARGER<K51> (A)	8-97300-283-0	01	1	0010-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (A)	8-97089-975-2	01	1	9811-0009	●		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. TURBOCHARGER<K51> (A)	8-97089-975-2	01	1	0010-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (A)	8-97089-975-2	01	1	0010-0105			●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY FRAME-KICK UP<7EW> (A)	8-97142-368-1	01	1	9811-0105					●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. FRAME-KICK UP<7EW> (A)	8-97070-368-3	01	1	9811-0012					●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (A)	8-97070-368-3	01	1	9811-0012		●				●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A)	8-97070-368-3	01	1	0101-0105		●			●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY BRK WHL LK CONT LSPV<6PH> (B)	8-97200-660-0	01	1	0101-0105						●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97259-943-0	01	1	0201-	●	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97259-369-0	01	1	0201-	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97287-444-0	01	1	0201-	●	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. BRK WHL LK CONT LSPV<6PH> (B)	8-97288-260-0	01	1	0201-	●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	9811-0012	●	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0101-0105	●	●	●	●	●		●
27	04.686 UNION; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0101-0105						●
27	04.686 UNION; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0106-	●	●				●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0101-0105						●
27	04.686 UNION; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0106-	●	●				●
27	04.686 UNION; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0106-			●	●	●		●
28	04.686 BOLT; UNION CLIP 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9811-0105	●	●	●	●	●	●	●
28	04.686 BOLT; UNION CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0106-	●	●	●	●	●	●	●
29	04.686 CLIP; UNION 03.162 (A) ID=16 L=20	9-09525-532-0	01	1	9811-0012	●	●	●	●	●	●	●
29	04.686 CLIP; UNION 03.162 (A) ID=16 L=20	9-09525-532-0	01	1	0101-0105	●	●	●	●	●		●
29	04.686 CLIP; UNION EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (A) ID=16 L=20	9-09525-532-0	01	1	0101-0105						●
29	04.686 CLIP; UNION 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (A) ID=16 L=20	9-09525-532-0	01	1	0106-	●	●				●
29	04.686 CLIP; UNION 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.162 (A) ID=16 L=20	9-09525-532-0	01	1	0106-			●	●	●		●
29	04.686 CLIP; UNION BRK WHL LK CONT LSPV<6PH> (B) ID=16X2 L=20	9-09535-533-0	01	1	0101-0105						●
29	04.686 CLIP; UNION 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> (B) ID=16X2 L=20	9-09535-533-0	01	1	0106-	●	●				●
31	04.686 NUT; UNION CLIP 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-	●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	9811-0105	●	●	●	●	●	●	●
31	04.686 NUT; UNION CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	01	1	0106-0112	●	●	●	●	●	●	●
31	04.686 NUT; UNION CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	01	1	0201-	●	●	●	●	●	●	●
31	04.686 NUT; UNION CLIP 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE	0-91150-106-0	01	1	0201-	●
71	04.686 GROMMET; OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AXLE ISUZU PRODUCTION<8BF> 05.002	9-09756-034-0	02	1	9903-0012	●	●	●	●	●	●	●
71	04.686 GROMMET; OIL PIPE 05.002	9-09756-034-0	02	1	0101-0105	●	●	●	●	●	●	●
71	04.686 GROMMET; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.002	9-09756-034-0	02	1	0106-	●
71	04.686 GROMMET; OIL PIPE 05.002	9-09756-034-0	02	1	0106-		●	●	●	●	●	●
87	04.685 PIPE; BRK,5 WAY TO UNION	8-97077-519-3	01	1	9811-0105	●	●	●	●		●	●
87	04.685 PIPE; BRK,5 WAY TO UNION EXC. FRAME-KICK UP<7EW>	8-97077-519-3	01	1	9811-0105					●
87	04.685 PIPE; BRK,5 WAY TO UNION	8-97091-666-3	01	1	9811-0012	●	●	●	●		●	●
87	04.685 PIPE; BRK,5 WAY TO UNION EXC. FRAME-KICK UP<7EW>	8-97091-666-3	01	1	9811-0012					●
87	04.685 PIPE; BRK,5 WAY TO UNION	8-97091-666-3	01	1	0101-0105	●	●	●	●			●
87	04.685 PIPE; BRK,5 WAY TO UNION EXC. FRAME-KICK UP<7EW>	8-97091-666-3	01	1	0101-0105					●
87	04.685 PIPE; BRK,5 WAY TO UNION EXC. BRK WHL LK CONT LSPV<6PH>	8-97091-666-3	01	1	0101-0105						●
87	04.685 PIPE; BRK,5 WAY TO UNION FRAME-KICK UP<7EW>	8-97108-750-1	01	1	9811-0105					●
87	04.685 PIPE; BRK,5 WAY TO UNION FRAME-KICK UP<7EW>	8-97139-860-3	01	1	9811-0105					●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97019-223-0	01	1	9811-0012	●	●	●	●	●		●
94	04.685 PIPE; BRK,W/C TO W/C 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97019-223-0	01	1	9811-0012	●	●			●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97019-223-0	01	1	0101-0105	●	●	●	●	●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97019-223-0	01	1	0101-0105	●	●			●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97019-223-0	01	1	0106-0112	●	●	●	●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97019-223-0	01	1	0106-0112	●	●			●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97019-223-0	01	1	0201-	●	●	●	●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97019-223-0	01	1	0201-	●	●			●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97019-222-0	01	1	9811-0012	●	●	●	●	●		●
94	04.685 PIPE; BRK,W/C TO W/C 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97019-222-0	01	1	9811-0012	●	●			●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97019-222-0	01	1	0101-0105	●	●	●	●	●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97019-222-0	01	1	0101-0105	●	●			●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97019-222-0	01	1	0106-0112	●	●	●	●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97019-222-0	01	1	0106-0112	●	●			●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97019-222-0	01	1	0201-	●	●	●	●	●	●
94	04.685 PIPE; BRK,W/C TO W/C 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97019-222-0	01	1	0201-	●	●			●	●	●
96	04.686 PIPE ASM; 6 WAY 4JB1 ENG(RLF) DISC BRAKE FRT<J52> FRT INDEPENDENT SUSPENSION(6PP) 05.476	8-97208-514-1	01	1	0106-0112	●
96	04.686 PIPE ASM; 6 WAY 4JH1 ENG(RJX),4JB1 ENG(RLF) DISC BRAKE FRT<J52> FRT INDEPENDENT SUSPENSION(6PP) 05.476	8-97208-514-1	01	1	0201-	●
96	04.686 PIPE ASM; 6 WAY 4JB1 ENG(RLF) DISC BRAKE FRT<J52> FRT INDEPENDENT SUSPENSION(6PP) 05.476	8-97225-632-0	01	1	0106-0112	●
96	04.686 PIPE ASM; 6 WAY 4JH1 ENG(RJX),4JB1 ENG(RLF) DISC BRAKE FRT<J52> FRT INDEPENDENT SUSPENSION(6PP) 05.476	8-97225-632-0	01	1	0201-	●
96	04.686 PIPE ASM; 6 WAY 4JG2 ENG(RJC) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 05.476	8-97075-570-3	01	1	0106-	●
96	04.686 PIPE ASM; 6 WAY 4JG2 ENG(RJC) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 04.685	8-97146-895-0	01	1	0106-	●
96	04.686 PIPE ASM; 6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 04.685	8-97091-666-3	01	1	0106-	●	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 04.685	8-97077-519-3	01	1	0106-0112	●	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 04.685	8-97077-519-3	01	1	0201-	●	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY FRAME-KICK UP<7EW> 04.685	8-97108-750-1	01	1	0106-					●
96	04.686 PIPE ASM; 6 WAY FRAME-KICK UP<7EW> 04.685	8-97139-860-3	01	1	0106-					●
96	04.686 PIPE ASM; 6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 05.476	8-97200-660-0	01	1	0106-0112		●				●
96	04.686 PIPE ASM; 6 WAY 4JG2 ENG(RJC),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 05.476	8-97200-660-0	01	1	0201-						●
96	04.686 PIPE ASM; 6 WAY 4JH1 ENG(RJX) 05.476	8-97200-660-0	01	1	0201-		●
96	04.686 PIPE ASM; 6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 05.476	8-97200-660-0	01	1	0201-		●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97259-356-2	01	1	0201-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97259-358-2	01	1	0201-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> (B)	8-97259-508-0	01	1	0201-		●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (A)	8-97259-509-1	01	1	0201-		●
99	04.686 PIPE ASM; 4/5/6 WAY 4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (A)	8-97089-975-2	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97206-419-0	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97206-420-0	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97122-632-2	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97122-636-1	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (A)	8-97300-283-0	01	1	0106-	●		●	●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME-KICK UP<7EW> 05.476 (A)	8-97142-368-1	01	1	0106-					●
99	04.686 PIPE ASM; 4/5/6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KIC K UP<7EW> 05.476 (A)	8-97070-368-3	01	1	0106-		●			●	●	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A)	8-97122-631-0	01	1	0106-		●				●
99	04.686 PIPE ASM; 4/5/6 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B)	8-97225-305-0	01	1	0106-		●				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
