3-11 — PARKING BRAKE CONTROL (#43675) — 231 parça
çizim 7907
49 49 225 89 224 91 181 236 324
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
49 04.779 CABLE; PARKING BRK
4JH1 ENG(RJX) 		8-97260-321-1 01 1 0201- ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97215-427-0 01 1 9811-0012 ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) 		8-97215-427-0 01 1 0101-0105 ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97215-427-0 01 1 0101-0105 ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) 		8-97215-427-0 01 1 0106- ● ● ● ●
49 04.779 CABLE; PARKING BRK 8-97215-427-0 01 1 0106- ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97184-272-0 01 1 9811-0012 ● ● ● ● ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 9811-0012 ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97184-272-0 01 1 0101-0105 ● ● ● ● ● ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 0101-0105 ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97184-272-0 01 1 0106- ● ● ● ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 0106- ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97215-428-0 01 1 9811-0105 ●
89 04.785 BRACKET; CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97113-984-1 01 1 9811-0012 ● ● ● ● ● ●
89 04.785 BRACKET; CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97113-984-1 01 1 0101-0105 ● ● ● ● ● ● ●
89 04.785 BRACKET; CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97113-984-1 01 1 0106- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) ID=13 L=50 		9-09525-286-0 01 1 9811-0012 ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) ID=13 L=50 		9-09525-286-0 01 1 0101-0105 ● ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) ID=13 L=50 		9-09525-286-0 01 1 0106- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HF1 ENG(RLS) 00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 9811-0105 ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HF1 ENG(RLS) 00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0106-0112 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0106-0112 ●
91 04.785 CLIP; PARKING BRK CABLE
4JH1 ENG(RJX),4HF1 ENG(RLS) 00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0201- ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HF1 ENG(RLS) 00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0201- ● ●
91 04.785 CLIP; PARKING BRK CABLE
00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0201- ●
181 04.785 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ● ● ● ● ● ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ● ● ● ● ● ●
181 04.785 BOLT; BRKT
REAR WIDE TREAD(V4T) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ●
181 04.785 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ● ● ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ●
181 04.785 BOLT; BRKT
REAR WIDE TREAD(V4T) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ●
181 04.785 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ●
181 04.785 BOLT; BRKT
REAR WIDE TREAD(V4T) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9811-0012 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9811-0012 ●
224 04.785 BOLT; CABLE CLIP
4HF1 ENG(RLS) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0101-0105 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0101-0105 ●
224 04.785 BOLT; CABLE CLIP
4HF1 ENG(RLS) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0106-0112 ● ● ●
224 04.785 BOLT; CABLE CLIP
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0106-0112 ●
224 04.785 BOLT; CABLE CLIP
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0106-0112 ●
224 04.785 BOLT; CABLE CLIP
4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0201- ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HF1 ENG(RLS) M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HF1 ENG(RLS) M10 FLANGE 		0-91150-110-0 01 1 0106-0112 ● ● ● ●
225 04.785 NUT; CABLE CLIP
M10 FLANGE 		0-91150-110-0 01 1 0106-0112 ●
225 04.785 NUT; CABLE CLIP
4JH1 ENG(RJX),4HF1 ENG(RLS) M10 FLANGE 		0-91150-110-0 01 1 0201- ● ●
225 04.785 NUT; CABLE CLIP
4HF1 ENG(RLS) M10 FLANGE 		0-91150-110-0 01 1 0201- ● ●
225 04.785 NUT; CABLE CLIP
M10 FLANGE 		0-91150-110-0 01 1 0201- ●
236 04.785 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-0012 ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-0012 ●
236 04.785 BOLT; BRKT TO FRAME
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-0012 ●
236 04.785 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0101-0112 ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0101-0112 ●
236 04.785 BOLT; BRKT TO FRAME
4JH1 ENG(RJX),4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0201- ● ●
236 04.785 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0201- ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0201- ●
236 04.785 BOLT; BRKT TO FRAME
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0201- ●
324 04.785 BRACKET
4JH1 ENG(RJX) (E) 		8-97289-364-0 01 1 0201- ● ●
324 04.785 BRACKET
(B) 		8-97101-815-2 01 1 9811-0012 ● ● ● ● ● ●
324 04.785 BRACKET
REAR WIDE TREAD(V4T) (B) 		8-97101-815-2 01 1 9811-0012 ●
324 04.785 BRACKET
(B) 		8-97101-815-2 01 1 0101-0105 ● ● ● ● ●
324 04.785 BRACKET
REAR WIDE TREAD(V4T) (B) 		8-97101-815-2 01 1 0101-0105 ● ●
324 04.785 BRACKET
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97101-815-2 01 1 0106- ●
324 04.785 BRACKET
(B) 		8-97101-815-2 01 1 0106- ● ● ● ●
324 04.785 BRACKET
REAR WIDE TREAD(V4T) (B) 		8-97101-815-2 01 1 0106- ● ●
324 04.785 BRACKET
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (A) 		8-97140-998-2 01 1 9811-0012 ● ● ● ●
324 04.785 BRACKET
(A) 		8-97140-998-2 01 1 9811-0012 ●
324 04.785 BRACKET
4HF1 ENG(RLS) (A) 		8-97140-998-2 01 1 0101-0105 ● ● ● ●
324 04.785 BRACKET
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (A) 		8-97140-998-2 01 1 0101-0105 ●
324 04.785 BRACKET
4HF1 ENG(RLS) (A) 		8-97140-998-2 01 1 0106- ● ● ● ● ●
324 04.785 BRACKET
EXC. REAR WIDE TREAD(V4T) (D) 		8-97101-814-2 01 1 9811-0012 ●
324 04.785 BRACKET
EXC. REAR WIDE TREAD(V4T) (D) 		8-97101-814-2 01 1 0101-0105 ● ●
324 04.785 BRACKET
FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97101-814-2 01 1 0106- ●
324 04.785 BRACKET
EXC. REAR WIDE TREAD(V4T) (D) 		8-97101-814-2 01 1 0106- ● ●
324 04.785 BRACKET
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (C) 		8-97177-371-2 01 1 9811-0105 ●

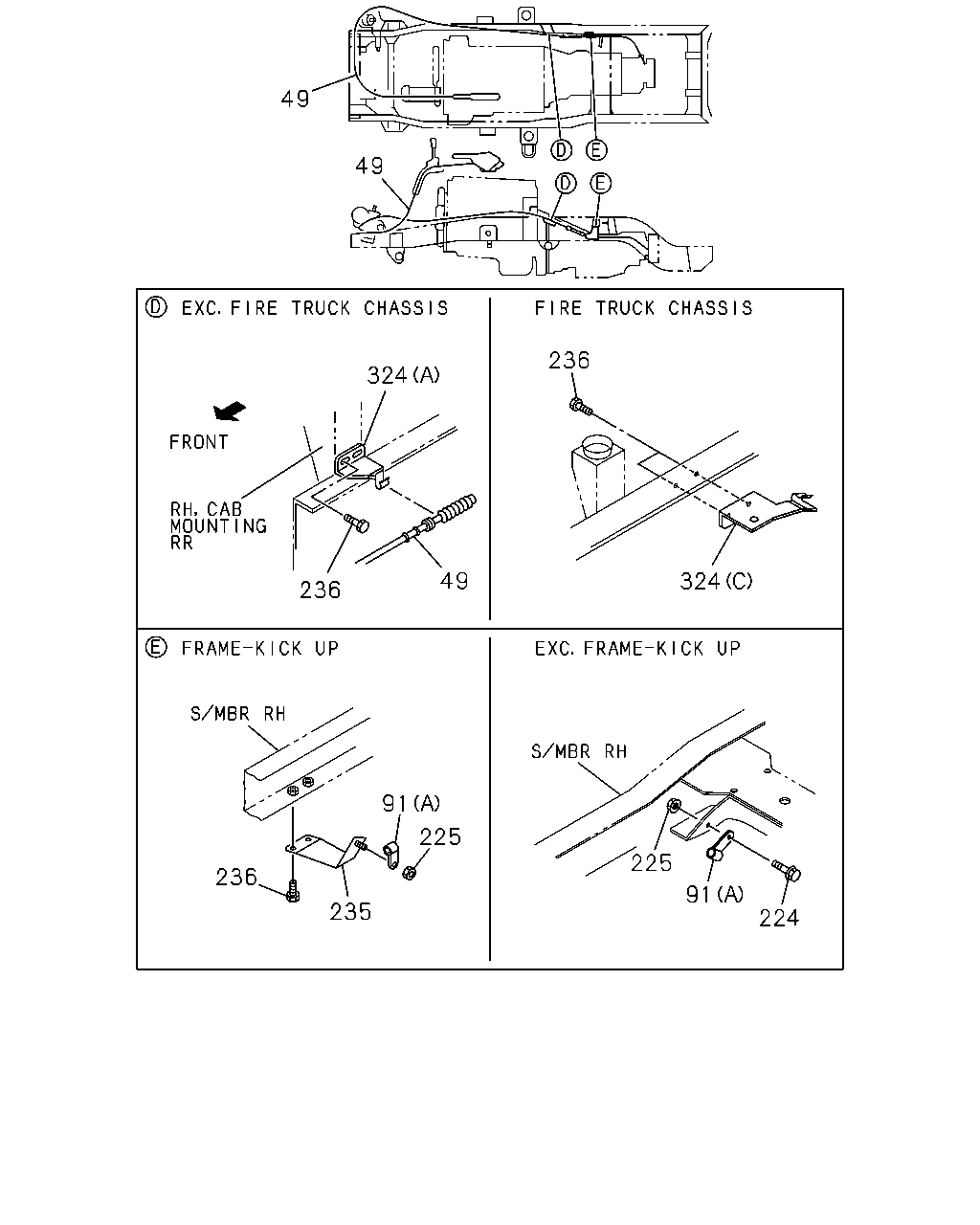

çizim 46632
49 49 236 324 49 324 236 91 225 225 236 91 235 224
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
49 04.779 CABLE; PARKING BRK
4JH1 ENG(RJX) 		8-97260-321-1 01 1 0201- ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97215-427-0 01 1 9811-0012 ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) 		8-97215-427-0 01 1 0101-0105 ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97215-427-0 01 1 0101-0105 ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) 		8-97215-427-0 01 1 0106- ● ● ● ●
49 04.779 CABLE; PARKING BRK 8-97215-427-0 01 1 0106- ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97184-272-0 01 1 9811-0012 ● ● ● ● ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 9811-0012 ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97184-272-0 01 1 0101-0105 ● ● ● ● ● ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 0101-0105 ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97184-272-0 01 1 0106- ● ● ● ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 0106- ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97215-428-0 01 1 9811-0105 ●
91 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) ID=13 L=50 		9-09525-286-0 01 1 9811-0012 ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) ID=13 L=50 		9-09525-286-0 01 1 0101-0105 ● ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) ID=13 L=50 		9-09525-286-0 01 1 0106- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HF1 ENG(RLS) 00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 9811-0105 ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HF1 ENG(RLS) 00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0106-0112 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0106-0112 ●
91 04.785 CLIP; PARKING BRK CABLE
4JH1 ENG(RJX),4HF1 ENG(RLS) 00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0201- ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HF1 ENG(RLS) 00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0201- ● ●
91 04.785 CLIP; PARKING BRK CABLE
00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0201- ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9811-0012 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9811-0012 ●
224 04.785 BOLT; CABLE CLIP
4HF1 ENG(RLS) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0101-0105 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0101-0105 ●
224 04.785 BOLT; CABLE CLIP
4HF1 ENG(RLS) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0106-0112 ● ● ●
224 04.785 BOLT; CABLE CLIP
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0106-0112 ●
224 04.785 BOLT; CABLE CLIP
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0106-0112 ●
224 04.785 BOLT; CABLE CLIP
4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0201- ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HF1 ENG(RLS) M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HF1 ENG(RLS) M10 FLANGE 		0-91150-110-0 01 1 0106-0112 ● ● ● ●
225 04.785 NUT; CABLE CLIP
M10 FLANGE 		0-91150-110-0 01 1 0106-0112 ●
225 04.785 NUT; CABLE CLIP
4JH1 ENG(RJX),4HF1 ENG(RLS) M10 FLANGE 		0-91150-110-0 01 1 0201- ● ●
225 04.785 NUT; CABLE CLIP
4HF1 ENG(RLS) M10 FLANGE 		0-91150-110-0 01 1 0201- ● ●
225 04.785 NUT; CABLE CLIP
M10 FLANGE 		0-91150-110-0 01 1 0201- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME-KICK UP<7EW> 		8-97176-465-1 01 1 9811- ●
236 04.785 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-0012 ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-0012 ●
236 04.785 BOLT; BRKT TO FRAME
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-0012 ●
236 04.785 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0101-0112 ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0101-0112 ●
236 04.785 BOLT; BRKT TO FRAME
4JH1 ENG(RJX),4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0201- ● ●
236 04.785 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0201- ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0201- ●
236 04.785 BOLT; BRKT TO FRAME
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0201- ●
324 04.785 BRACKET
4JH1 ENG(RJX) (E) 		8-97289-364-0 01 1 0201- ● ●
324 04.785 BRACKET
(B) 		8-97101-815-2 01 1 9811-0012 ● ● ● ● ● ●
324 04.785 BRACKET
REAR WIDE TREAD(V4T) (B) 		8-97101-815-2 01 1 9811-0012 ●
324 04.785 BRACKET
(B) 		8-97101-815-2 01 1 0101-0105 ● ● ● ● ●
324 04.785 BRACKET
REAR WIDE TREAD(V4T) (B) 		8-97101-815-2 01 1 0101-0105 ● ●
324 04.785 BRACKET
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97101-815-2 01 1 0106- ●
324 04.785 BRACKET
(B) 		8-97101-815-2 01 1 0106- ● ● ● ●
324 04.785 BRACKET
REAR WIDE TREAD(V4T) (B) 		8-97101-815-2 01 1 0106- ● ●
324 04.785 BRACKET
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (A) 		8-97140-998-2 01 1 9811-0012 ● ● ● ●
324 04.785 BRACKET
(A) 		8-97140-998-2 01 1 9811-0012 ●
324 04.785 BRACKET
4HF1 ENG(RLS) (A) 		8-97140-998-2 01 1 0101-0105 ● ● ● ●
324 04.785 BRACKET
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (A) 		8-97140-998-2 01 1 0101-0105 ●
324 04.785 BRACKET
4HF1 ENG(RLS) (A) 		8-97140-998-2 01 1 0106- ● ● ● ● ●
324 04.785 BRACKET
EXC. REAR WIDE TREAD(V4T) (D) 		8-97101-814-2 01 1 9811-0012 ●
324 04.785 BRACKET
EXC. REAR WIDE TREAD(V4T) (D) 		8-97101-814-2 01 1 0101-0105 ● ●
324 04.785 BRACKET
FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97101-814-2 01 1 0106- ●
324 04.785 BRACKET
EXC. REAR WIDE TREAD(V4T) (D) 		8-97101-814-2 01 1 0106- ● ●
324 04.785 BRACKET
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (C) 		8-97177-371-2 01 1 9811-0105 ●
çizim 49439
49 49 324 241 241 324 101 198 181 236 181 236
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
49 04.779 CABLE; PARKING BRK
4JH1 ENG(RJX) 		8-97260-321-1 01 1 0201- ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97215-427-0 01 1 9811-0012 ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) 		8-97215-427-0 01 1 0101-0105 ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97215-427-0 01 1 0101-0105 ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) 		8-97215-427-0 01 1 0106- ● ● ● ●
49 04.779 CABLE; PARKING BRK 8-97215-427-0 01 1 0106- ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97184-272-0 01 1 9811-0012 ● ● ● ● ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 9811-0012 ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97184-272-0 01 1 0101-0105 ● ● ● ● ● ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 0101-0105 ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97184-272-0 01 1 0106- ● ● ● ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 0106- ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97215-428-0 01 1 9811-0105 ●
101 04.785 NUT; CABLE TO LEVER
FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
181 04.785 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ● ● ● ● ● ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ● ● ● ● ● ●
181 04.785 BOLT; BRKT
REAR WIDE TREAD(V4T) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ●
181 04.785 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ● ● ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ●
181 04.785 BOLT; BRKT
REAR WIDE TREAD(V4T) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ●
181 04.785 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ●
181 04.785 BOLT; BRKT
REAR WIDE TREAD(V4T) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
198 04.785 BRACKET; CABLE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97109-818-0 01 1 0106- ●
236 04.785 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-0012 ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-0012 ●
236 04.785 BOLT; BRKT TO FRAME
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-0012 ●
236 04.785 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0101-0112 ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0101-0112 ●
236 04.785 BOLT; BRKT TO FRAME
4JH1 ENG(RJX),4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0201- ● ●
236 04.785 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0201- ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0201- ●
236 04.785 BOLT; BRKT TO FRAME
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0201- ●
241 04.785 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ● ● ●
241 04.785 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
241 04.785 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ●
324 04.785 BRACKET
4JH1 ENG(RJX) (E) 		8-97289-364-0 01 1 0201- ● ●
324 04.785 BRACKET
(B) 		8-97101-815-2 01 1 9811-0012 ● ● ● ● ● ●
324 04.785 BRACKET
REAR WIDE TREAD(V4T) (B) 		8-97101-815-2 01 1 9811-0012 ●
324 04.785 BRACKET
(B) 		8-97101-815-2 01 1 0101-0105 ● ● ● ● ●
324 04.785 BRACKET
REAR WIDE TREAD(V4T) (B) 		8-97101-815-2 01 1 0101-0105 ● ●
324 04.785 BRACKET
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97101-815-2 01 1 0106- ●
324 04.785 BRACKET
(B) 		8-97101-815-2 01 1 0106- ● ● ● ●
324 04.785 BRACKET
REAR WIDE TREAD(V4T) (B) 		8-97101-815-2 01 1 0106- ● ●
324 04.785 BRACKET
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (A) 		8-97140-998-2 01 1 9811-0012 ● ● ● ●
324 04.785 BRACKET
(A) 		8-97140-998-2 01 1 9811-0012 ●
324 04.785 BRACKET
4HF1 ENG(RLS) (A) 		8-97140-998-2 01 1 0101-0105 ● ● ● ●
324 04.785 BRACKET
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (A) 		8-97140-998-2 01 1 0101-0105 ●
324 04.785 BRACKET
4HF1 ENG(RLS) (A) 		8-97140-998-2 01 1 0106- ● ● ● ● ●
324 04.785 BRACKET
EXC. REAR WIDE TREAD(V4T) (D) 		8-97101-814-2 01 1 9811-0012 ●
324 04.785 BRACKET
EXC. REAR WIDE TREAD(V4T) (D) 		8-97101-814-2 01 1 0101-0105 ● ●
324 04.785 BRACKET
FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97101-814-2 01 1 0106- ●
324 04.785 BRACKET
EXC. REAR WIDE TREAD(V4T) (D) 		8-97101-814-2 01 1 0106- ● ●
324 04.785 BRACKET
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (C) 		8-97177-371-2 01 1 9811-0105 ●

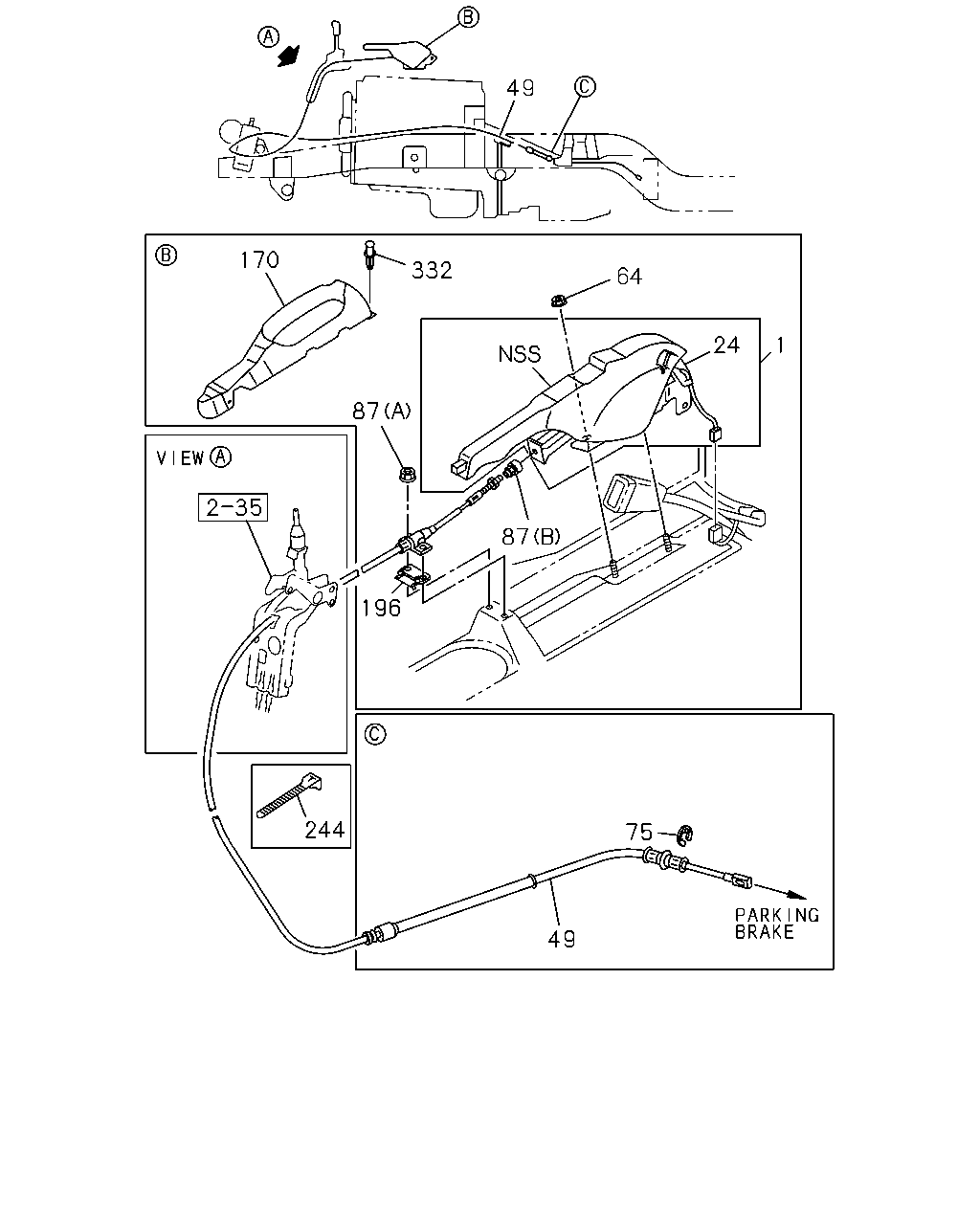

çizim 49618
49 170 332 64 24 1 87 87 196 244 75 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-439-1 01 1 9811-0108 ● ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97995-930-0 01 1 0109-0110 ● ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-543-1 01 1 0111- ● ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 9811-0108 ● ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0109- ● ● ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4JH1 ENG(RJX) 		8-97260-321-1 01 1 0201- ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97215-427-0 01 1 9811-0012 ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) 		8-97215-427-0 01 1 0101-0105 ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97215-427-0 01 1 0101-0105 ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) 		8-97215-427-0 01 1 0106- ● ● ● ●
49 04.779 CABLE; PARKING BRK 8-97215-427-0 01 1 0106- ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97184-272-0 01 1 9811-0012 ● ● ● ● ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 9811-0012 ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97184-272-0 01 1 0101-0105 ● ● ● ● ● ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 0101-0105 ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97184-272-0 01 1 0106- ● ● ● ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 0106- ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97215-428-0 01 1 9811-0105 ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9811- ● ● ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
04.681 ID=12 		9-09185-412-0 01 1 9811- ● ● ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 9811- ● ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 9811- ● ● ● ● ● ● ●
170 04.595 COVER; PARKING BRK LEVER
DARK GRAY 		8-97158-915-0 01 1 9811- ● ● ● ● ● ● ●
196 04.784 SPACER; CABLE TO LEVER 8-97095-464-2 01 1 9811- ● ● ● ● ● ● ●
244 04.785 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 9811- ● ● ● ● ● ● ●
332 04.785 CLIP; COVER
03.602 D6X12.5 		8-94146-425-0 01 1 9811- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
