Sayfa 3-08 - Isuzu EPC

3-08 — PARKING BRAKE (#43673) — 232 parça

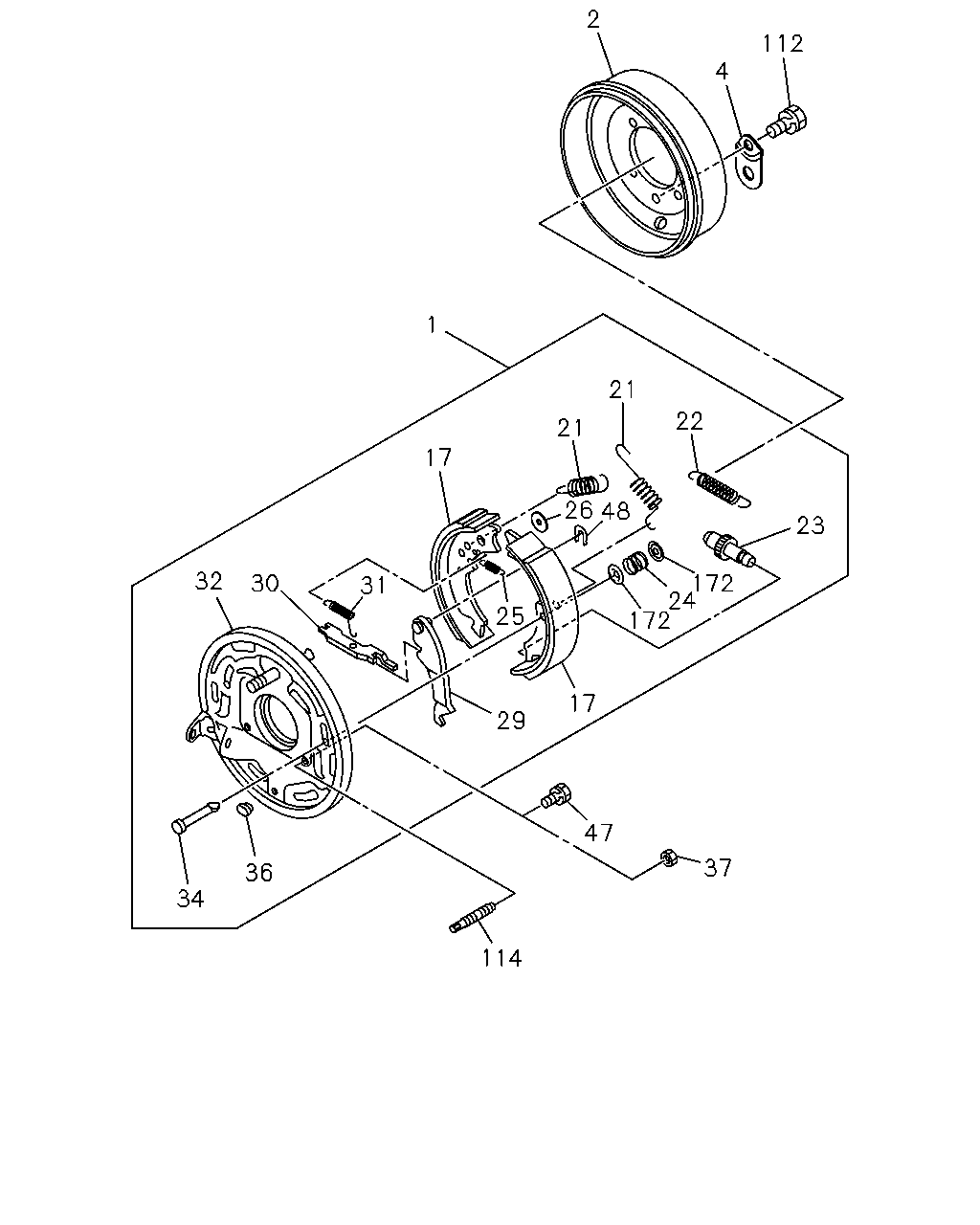

2 112 4 1 21 22 21 17 23 32 31 30 172 24 172 25 17 29 47 37 36 34 114 26 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	05.610 BRAKE ASM; CENTER,PARKING 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97034-553-2	01	1	9811-0012	●	●	●	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97034-553-2	01	1	0101-0105	●	●	●	●	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97034-553-2	01	1	0106-	●	●	●	●		●	●
1	05.610 BRAKE ASM; CENTER,PARKING 4HF1 ENG(RLS)	8-97100-212-2	01	1	9811-0105	●		●	●	●		●
1	05.610 BRAKE ASM; CENTER,PARKING 4HF1 ENG(RLS)	8-97100-212-2	01	1	0106-0112	●		●	●			●
1	05.610 BRAKE ASM; CENTER,PARKING	8-97100-212-2	01	1	0106-0112					●
1	05.610 BRAKE ASM; CENTER,PARKING 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97100-212-2	01	1	0201-	●		●	●	●		●
2	05.605 DRUM; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-46210-005-3	01	1	9811-0012	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-46210-005-3	01	1	0101-0105	●	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-46210-005-3	01	1	0106-	●	●	●	●		●	●
2	05.605 DRUM; PARKING BRK 4HF1 ENG(RLS)	8-97033-989-1	01	1	9811-0105	●		●	●	●		●
2	05.605 DRUM; PARKING BRK 4HF1 ENG(RLS)	8-97033-989-1	01	1	0106-0112	●		●	●			●
2	05.605 DRUM; PARKING BRK	8-97033-989-1	01	1	0106-0112					●
2	05.605 DRUM; PARKING BRK 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97033-989-1	01	1	0201-	●		●	●	●		●
4	05.606 COVER; ADJ HOLE 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-42319-003-0	01	1	9811-0012	●	●	●	●	●	●
4	05.606 COVER; ADJ HOLE 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-42319-003-0	01	1	0101-0105	●	●	●	●	●	●	●
4	05.606 COVER; ADJ HOLE 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-42319-003-0	01	1	0106-	●	●	●	●		●	●
4	05.606 COVER; ADJ HOLE 4HF1 ENG(RLS)	5-46219-001-0	01	1	9811-0105	●		●	●	●		●
4	05.606 COVER; ADJ HOLE 4HF1 ENG(RLS)	5-46219-001-0	01	1	0106-0112	●		●	●			●
4	05.606 COVER; ADJ HOLE	5-46219-001-0	01	1	0106-0112					●
4	05.606 COVER; ADJ HOLE 4JH1 ENG(RJX),4HF1 ENG(RLS)	5-46219-001-0	01	1	0201-	●		●	●	●		●
17	05.606 SHOE; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97042-933-1	02	1	9811-0012	●	●	●	●	●	●
17	05.606 SHOE; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97042-933-1	02	1	0101-0105	●	●	●	●	●	●	●
17	05.606 SHOE; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97042-933-1	02	1	0106-	●	●	●	●		●	●
17	05.606 SHOE; PARKING BRK 4HF1 ENG(RLS)	8-97020-250-2	02	1	9811-0105	●		●	●	●		●
17	05.606 SHOE; PARKING BRK 4HF1 ENG(RLS)	8-97020-250-2	02	1	0106-0112	●		●	●			●
17	05.606 SHOE; PARKING BRK	8-97020-250-2	02	1	0106-0112					●
17	05.606 SHOE; PARKING BRK 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97020-250-2	02	1	0201-	●		●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09942-552-1	01	1	9811-0012	●	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09942-552-1	01	1	0101-0105	●	●	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09942-552-1	01	1	0106-	●	●	●	●		●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HF1 ENG(RLS) 05.605	8-94132-157-0	02	1	9811-0105	●		●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HF1 ENG(RLS) 05.605	8-94132-157-0	02	1	0106-0112	●		●	●			●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 05.605	8-94132-157-0	02	1	0106-0112					●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4JH1 ENG(RJX),4HF1 ENG(RLS) 05.605	8-94132-157-0	02	1	0201-	●		●	●	●		●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09942-340-1	01	1	9811-0012	●	●	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09942-340-1	01	1	0101-0105	●	●	●	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09942-340-1	01	1	0106-	●	●	●	●		●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4HF1 ENG(RLS) 05.605	8-94107-618-0	01	1	9811-0105	●		●	●	●		●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4HF1 ENG(RLS) 05.605	8-94107-618-0	01	1	0106-0112	●		●	●			●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 05.605	8-94107-618-0	01	1	0106-0112					●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4JH1 ENG(RJX),4HF1 ENG(RLS) 05.605	8-94107-618-0	01	1	0201-	●		●	●	●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE	5-47165-025-0	01	1	9811-	●	●	●	●	●	●	●
24	05.605 SPRING; BRK SHOE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09941-062-1	02	1	9811-0012	●	●	●	●	●	●
24	05.605 SPRING; BRK SHOE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09941-062-1	02	1	0101-0105	●	●	●	●	●	●	●
24	05.605 SPRING; BRK SHOE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09941-062-1	02	1	0106-	●	●	●	●		●	●
24	05.605 SPRING; BRK SHOE 4HF1 ENG(RLS)	8-94132-155-0	02	1	9811-0105	●		●	●	●		●
24	05.605 SPRING; BRK SHOE 4HF1 ENG(RLS)	8-94132-155-0	02	1	0106-0112	●		●	●			●
24	05.605 SPRING; BRK SHOE	8-94132-155-0	02	1	0106-0112					●
24	05.605 SPRING; BRK SHOE 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-94132-155-0	02	1	0201-	●		●	●	●		●
25	05.605 SPRING; SHOE ALIGNMENT 4HF1 ENG(RLS)	8-94132-156-0	01	1	9811-0105	●		●	●	●		●
25	05.605 SPRING; SHOE ALIGNMENT 4HF1 ENG(RLS)	8-94132-156-0	01	1	0106-0112	●		●	●			●
25	05.605 SPRING; SHOE ALIGNMENT	8-94132-156-0	01	1	0106-0112					●
25	05.605 SPRING; SHOE ALIGNMENT 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-94132-156-0	01	1	0201-	●		●	●	●		●
26	05.605 PLATE; SHOE GUIDE 4HF1 ENG(RLS)	9-09851-986-0	01	1	9811-0105	●		●	●	●		●
26	05.605 PLATE; SHOE GUIDE 4HF1 ENG(RLS)	9-09851-986-0	01	1	0106-0112	●		●	●			●
26	05.605 PLATE; SHOE GUIDE	9-09851-986-0	01	1	0106-0112					●
26	05.605 PLATE; SHOE GUIDE 4JH1 ENG(RJX),4HF1 ENG(RLS)	9-09851-986-0	01	1	0201-	●		●	●	●		●
29	04.591 LEVER; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94128-765-0	01	1	9811-0012	●	●	●	●	●	●
29	04.591 LEVER; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94128-765-0	01	1	0101-0105	●	●	●	●	●	●	●
29	04.591 LEVER; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94128-765-0	01	1	0106-	●	●	●	●		●	●
29	04.591 LEVER; PARKING BRK 4HF1 ENG(RLS) 05.605	8-97027-125-0	01	1	9811-0105	●		●	●	●		●
29	04.591 LEVER; PARKING BRK 4HF1 ENG(RLS) 05.605	8-97027-125-0	01	1	0106-0112	●		●	●			●
29	04.591 LEVER; PARKING BRK 05.605	8-97027-125-0	01	1	0106-0112					●
29	04.591 LEVER; PARKING BRK 4JH1 ENG(RJX),4HF1 ENG(RLS) 05.605	8-97027-125-0	01	1	0201-	●		●	●	●		●
30	05.605 STRUT; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-46251-007-0	01	1	9811-0012	●	●	●	●	●	●
30	05.605 STRUT; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-46251-007-0	01	1	0101-0105	●	●	●	●	●	●	●
30	05.605 STRUT; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-46251-007-0	01	1	0106-	●	●	●	●		●	●
30	05.605 STRUT; PARKING BRK 4HF1 ENG(RLS)	8-94311-779-0	01	1	9811-0105	●		●	●	●		●
30	05.605 STRUT; PARKING BRK 4HF1 ENG(RLS)	8-94311-779-0	01	1	0106-0112	●		●	●			●
30	05.605 STRUT; PARKING BRK	8-94311-779-0	01	1	0106-0112					●
30	05.605 STRUT; PARKING BRK 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-94311-779-0	01	1	0201-	●		●	●	●		●
31	05.605 SPRING; SHOE TO STRUT 4JG2 ENG(RJC),4JB1 ENG(RLF) 05.606	9-09942-521-1	01	1	9811-0012	●	●	●	●	●	●
31	05.605 SPRING; SHOE TO STRUT 4JG2 ENG(RJC),4JB1 ENG(RLF) 05.606	9-09942-521-1	01	1	0101-0105	●	●	●	●	●	●	●
31	05.605 SPRING; SHOE TO STRUT 4JG2 ENG(RJC),4JB1 ENG(RLF) 05.606	9-09942-521-1	01	1	0106-	●	●	●	●		●	●
31	05.605 SPRING; SHOE TO STRUT 4HF1 ENG(RLS)	8-94132-158-0	01	1	9811-0105	●		●	●	●		●
31	05.605 SPRING; SHOE TO STRUT 4HF1 ENG(RLS)	8-94132-158-0	01	1	0106-0112	●		●	●			●
31	05.605 SPRING; SHOE TO STRUT	8-94132-158-0	01	1	0106-0112					●
31	05.605 SPRING; SHOE TO STRUT 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-94132-158-0	01	1	0201-	●		●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-46213-601-2	01	1	9811-0012	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-46213-601-2	01	1	0101-0105	●	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-46213-601-2	01	1	0106-	●	●	●	●		●	●
32	05.610 PLATE; SUPPORT,PARKING BRK 4HF1 ENG(RLS)	8-94311-780-1	01	1	9811-0105	●		●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK 4HF1 ENG(RLS)	8-94311-780-1	01	1	0106-0112	●		●	●			●
32	05.610 PLATE; SUPPORT,PARKING BRK	8-94311-780-1	01	1	0106-0112					●
32	05.610 PLATE; SUPPORT,PARKING BRK 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-94311-780-1	01	1	0201-	●		●	●	●		●
34	05.605 PIN; BRK SHOE 4JG2 ENG(RJC),4JB1 ENG(RLF) 05.043	9-47162-034-0	02	1	9811-0012	●	●	●	●	●	●
34	05.605 PIN; BRK SHOE 4JG2 ENG(RJC),4JB1 ENG(RLF) 05.043	9-47162-034-0	02	1	0101-0105	●	●	●	●	●	●	●
34	05.605 PIN; BRK SHOE 4JG2 ENG(RJC),4JB1 ENG(RLF) 05.043	9-47162-034-0	02	1	0106-	●	●	●	●		●	●
34	05.605 PIN; BRK SHOE 4HF1 ENG(RLS)	8-94132-159-0	02	1	9811-0105	●		●	●	●		●
34	05.605 PIN; BRK SHOE 4HF1 ENG(RLS)	8-94132-159-0	02	1	0106-0112	●		●	●			●
34	05.605 PIN; BRK SHOE	8-94132-159-0	02	1	0106-0112					●
34	05.605 PIN; BRK SHOE 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-94132-159-0	02	1	0201-	●		●	●	●		●
36	05.606 GROMMET; ADJ HOLE 4HF1 ENG(RLS) 05.117	5-47169-002-0	01	1	9811-0105	●		●	●	●		●
36	05.606 GROMMET; ADJ HOLE 4HF1 ENG(RLS) 05.117	5-47169-002-0	01	1	0106-0112	●		●	●			●
36	05.606 GROMMET; ADJ HOLE 05.117	5-47169-002-0	01	1	0106-0112					●
36	05.606 GROMMET; ADJ HOLE 4JH1 ENG(RJX),4HF1 ENG(RLS) 05.117	5-47169-002-0	01	1	0201-	●		●	●	●		●
37	05.610 NUT; SUPPORT PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF) M12	8-97033-122-0	01	1	9811-0012	●	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF) M12	8-97033-122-0	01	1	0101-0105	●	●	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF) M12	8-97033-122-0	01	1	0106-	●	●	●	●		●	●
37	05.610 NUT; SUPPORT PLATE 4HF1 ENG(RLS) M12 LOCK NUT	8-97248-173-0	04	1	0010-0105	●		●	●	●		●
37	05.610 NUT; SUPPORT PLATE 4HF1 ENG(RLS) M12 LOCK NUT	8-97248-173-0	04	1	0106-0112	●		●	●			●
37	05.610 NUT; SUPPORT PLATE M12 LOCK NUT	8-97248-173-0	04	1	0106-0112					●
37	05.610 NUT; SUPPORT PLATE 4JH1 ENG(RJX),4HF1 ENG(RLS) M12 LOCK NUT	8-97248-173-0	04	1	0201-	●		●	●	●		●
47	05.610 BOLT; SUPPORT PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-02060-814-0	02	1	9811-0012	●	●	●	●	●	●
47	05.610 BOLT; SUPPORT PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-02060-814-0	02	1	0101-0105	●	●	●	●	●	●	●
47	05.610 BOLT; SUPPORT PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-02060-814-0	02	1	0106-	●	●	●	●		●	●
47	05.610 BOLT; SUPPORT PLATE 4HF1 ENG(RLS) M12X20 FLANGE	8-97213-401-0	04	1	9811-0009	●		●	●	●		●
48	05.605 RETAINER; PIN,PARKING BRK 05.158	9-46349-005-1	01	1	9811-	●	●	●	●	●	●	●
112	05.606 BOLT; COVER TO BRK DRUM 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9811-	●	●	●	●	●	●	●
114	05.605 STUD; SUPPORT PLATE 4HF1 ENG(RLS)	8-97289-002-0	04	1	0010-0105	●		●	●	●		●
114	05.605 STUD; SUPPORT PLATE 4HF1 ENG(RLS)	8-97289-002-0	04	1	0106-0112	●		●	●			●
114	05.605 STUD; SUPPORT PLATE	8-97289-002-0	04	1	0106-0112					●
114	05.605 STUD; SUPPORT PLATE 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97289-002-0	04	1	0201-	●		●	●	●		●
172	05.605 CUP; SHOE HOLD 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94378-404-0	04	1	9811-0012	●	●	●	●	●	●
172	05.605 CUP; SHOE HOLD 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94378-404-0	04	1	0101-0105	●	●	●	●	●	●	●
172	05.605 CUP; SHOE HOLD 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94378-404-0	04	1	0106-	●	●	●	●		●	●
172	05.605 CUP; SHOE HOLD 4HF1 ENG(RLS) 05.043	9-47162-033-0	04	1	9811-0105	●		●	●	●		●
172	05.605 CUP; SHOE HOLD 4HF1 ENG(RLS) 05.043	9-47162-033-0	04	1	0106-0112	●		●	●			●
172	05.605 CUP; SHOE HOLD 05.043	9-47162-033-0	04	1	0106-0112					●
172	05.605 CUP; SHOE HOLD 4JH1 ENG(RJX),4HF1 ENG(RLS) 05.043	9-47162-033-0	04	1	0201-	●		●	●	●		●

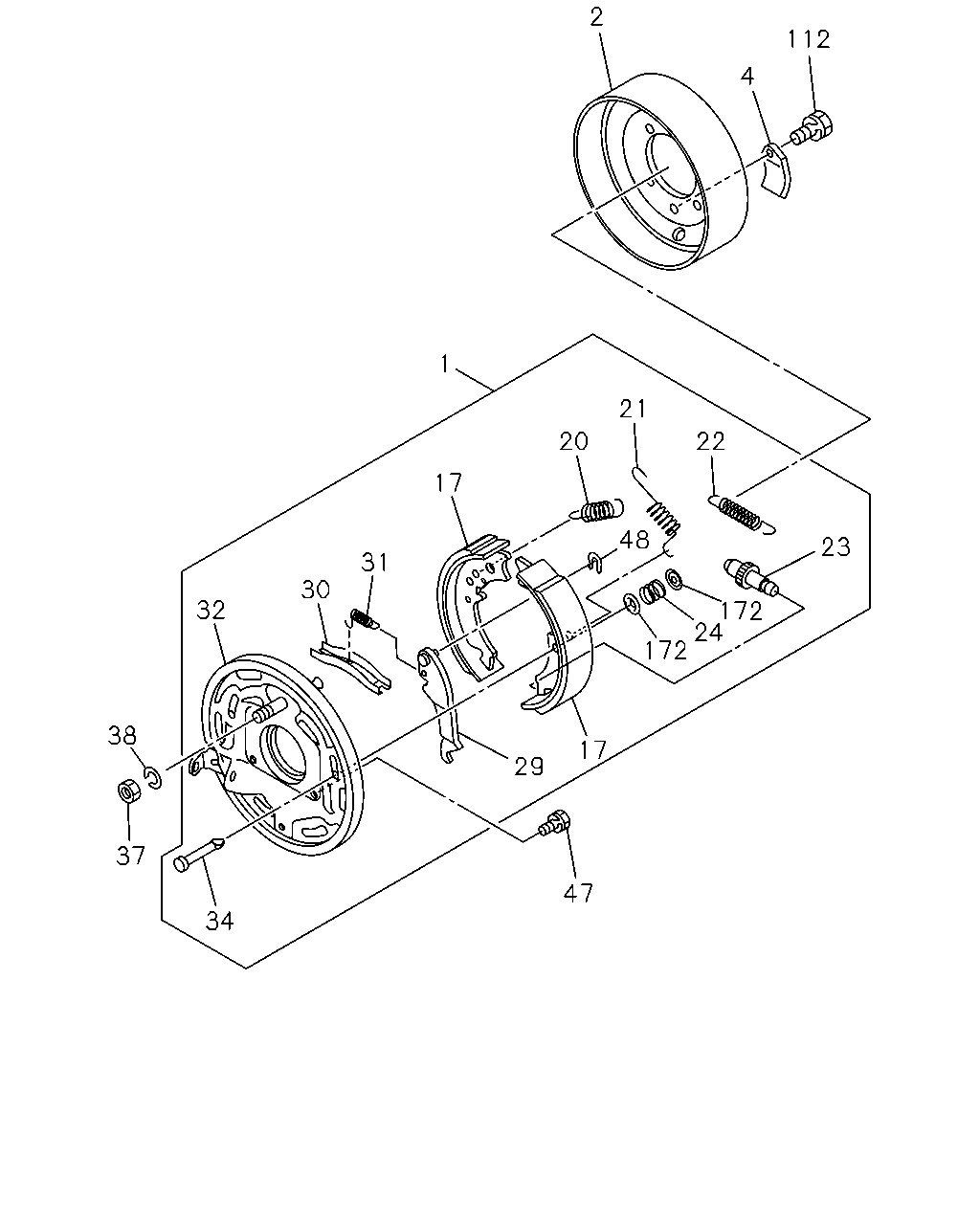

2 112 4 1 21 20 22 17 48 23 31 30 32 172 24 172 38 17 29 37 47 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	05.610 BRAKE ASM; CENTER,PARKING 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97034-553-2	01	1	9811-0012	●	●	●	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97034-553-2	01	1	0101-0105	●	●	●	●	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97034-553-2	01	1	0106-	●	●	●	●		●	●
1	05.610 BRAKE ASM; CENTER,PARKING 4HF1 ENG(RLS)	8-97100-212-2	01	1	9811-0105	●		●	●	●		●
1	05.610 BRAKE ASM; CENTER,PARKING 4HF1 ENG(RLS)	8-97100-212-2	01	1	0106-0112	●		●	●			●
1	05.610 BRAKE ASM; CENTER,PARKING	8-97100-212-2	01	1	0106-0112					●
1	05.610 BRAKE ASM; CENTER,PARKING 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97100-212-2	01	1	0201-	●		●	●	●		●
2	05.605 DRUM; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-46210-005-3	01	1	9811-0012	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-46210-005-3	01	1	0101-0105	●	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-46210-005-3	01	1	0106-	●	●	●	●		●	●
2	05.605 DRUM; PARKING BRK 4HF1 ENG(RLS)	8-97033-989-1	01	1	9811-0105	●		●	●	●		●
2	05.605 DRUM; PARKING BRK 4HF1 ENG(RLS)	8-97033-989-1	01	1	0106-0112	●		●	●			●
2	05.605 DRUM; PARKING BRK	8-97033-989-1	01	1	0106-0112					●
2	05.605 DRUM; PARKING BRK 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97033-989-1	01	1	0201-	●		●	●	●		●
4	05.606 COVER; ADJ HOLE 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-42319-003-0	01	1	9811-0012	●	●	●	●	●	●
4	05.606 COVER; ADJ HOLE 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-42319-003-0	01	1	0101-0105	●	●	●	●	●	●	●
4	05.606 COVER; ADJ HOLE 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-42319-003-0	01	1	0106-	●	●	●	●		●	●
4	05.606 COVER; ADJ HOLE 4HF1 ENG(RLS)	5-46219-001-0	01	1	9811-0105	●		●	●	●		●
4	05.606 COVER; ADJ HOLE 4HF1 ENG(RLS)	5-46219-001-0	01	1	0106-0112	●		●	●			●
4	05.606 COVER; ADJ HOLE	5-46219-001-0	01	1	0106-0112					●
4	05.606 COVER; ADJ HOLE 4JH1 ENG(RJX),4HF1 ENG(RLS)	5-46219-001-0	01	1	0201-	●		●	●	●		●
17	05.606 SHOE; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97042-933-1	02	1	9811-0012	●	●	●	●	●	●
17	05.606 SHOE; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97042-933-1	02	1	0101-0105	●	●	●	●	●	●	●
17	05.606 SHOE; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97042-933-1	02	1	0106-	●	●	●	●		●	●
17	05.606 SHOE; PARKING BRK 4HF1 ENG(RLS)	8-97020-250-2	02	1	9811-0105	●		●	●	●		●
17	05.606 SHOE; PARKING BRK 4HF1 ENG(RLS)	8-97020-250-2	02	1	0106-0112	●		●	●			●
17	05.606 SHOE; PARKING BRK	8-97020-250-2	02	1	0106-0112					●
17	05.606 SHOE; PARKING BRK 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97020-250-2	02	1	0201-	●		●	●	●		●
20	05.606 SPRING; RETURN,SECONDARY,PARKING 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09942-553-1	01	1	9811-0012	●	●	●	●	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09942-553-1	01	1	0101-0105	●	●	●	●	●	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09942-553-1	01	1	0106-	●	●	●	●		●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09942-552-1	01	1	9811-0012	●	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09942-552-1	01	1	0101-0105	●	●	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09942-552-1	01	1	0106-	●	●	●	●		●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HF1 ENG(RLS) 05.605	8-94132-157-0	02	1	9811-0105	●		●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HF1 ENG(RLS) 05.605	8-94132-157-0	02	1	0106-0112	●		●	●			●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 05.605	8-94132-157-0	02	1	0106-0112					●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4JH1 ENG(RJX),4HF1 ENG(RLS) 05.605	8-94132-157-0	02	1	0201-	●		●	●	●		●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09942-340-1	01	1	9811-0012	●	●	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09942-340-1	01	1	0101-0105	●	●	●	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09942-340-1	01	1	0106-	●	●	●	●		●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4HF1 ENG(RLS) 05.605	8-94107-618-0	01	1	9811-0105	●		●	●	●		●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4HF1 ENG(RLS) 05.605	8-94107-618-0	01	1	0106-0112	●		●	●			●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 05.605	8-94107-618-0	01	1	0106-0112					●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4JH1 ENG(RJX),4HF1 ENG(RLS) 05.605	8-94107-618-0	01	1	0201-	●		●	●	●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE	5-47165-025-0	01	1	9811-	●	●	●	●	●	●	●
24	05.605 SPRING; BRK SHOE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09941-062-1	02	1	9811-0012	●	●	●	●	●	●
24	05.605 SPRING; BRK SHOE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09941-062-1	02	1	0101-0105	●	●	●	●	●	●	●
24	05.605 SPRING; BRK SHOE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09941-062-1	02	1	0106-	●	●	●	●		●	●
24	05.605 SPRING; BRK SHOE 4HF1 ENG(RLS)	8-94132-155-0	02	1	9811-0105	●		●	●	●		●
24	05.605 SPRING; BRK SHOE 4HF1 ENG(RLS)	8-94132-155-0	02	1	0106-0112	●		●	●			●
24	05.605 SPRING; BRK SHOE	8-94132-155-0	02	1	0106-0112					●
24	05.605 SPRING; BRK SHOE 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-94132-155-0	02	1	0201-	●		●	●	●		●
29	04.591 LEVER; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94128-765-0	01	1	9811-0012	●	●	●	●	●	●
29	04.591 LEVER; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94128-765-0	01	1	0101-0105	●	●	●	●	●	●	●
29	04.591 LEVER; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94128-765-0	01	1	0106-	●	●	●	●		●	●
29	04.591 LEVER; PARKING BRK 4HF1 ENG(RLS) 05.605	8-97027-125-0	01	1	9811-0105	●		●	●	●		●
29	04.591 LEVER; PARKING BRK 4HF1 ENG(RLS) 05.605	8-97027-125-0	01	1	0106-0112	●		●	●			●
29	04.591 LEVER; PARKING BRK 05.605	8-97027-125-0	01	1	0106-0112					●
29	04.591 LEVER; PARKING BRK 4JH1 ENG(RJX),4HF1 ENG(RLS) 05.605	8-97027-125-0	01	1	0201-	●		●	●	●		●
30	05.605 STRUT; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-46251-007-0	01	1	9811-0012	●	●	●	●	●	●
30	05.605 STRUT; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-46251-007-0	01	1	0101-0105	●	●	●	●	●	●	●
30	05.605 STRUT; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-46251-007-0	01	1	0106-	●	●	●	●		●	●
30	05.605 STRUT; PARKING BRK 4HF1 ENG(RLS)	8-94311-779-0	01	1	9811-0105	●		●	●	●		●
30	05.605 STRUT; PARKING BRK 4HF1 ENG(RLS)	8-94311-779-0	01	1	0106-0112	●		●	●			●
30	05.605 STRUT; PARKING BRK	8-94311-779-0	01	1	0106-0112					●
30	05.605 STRUT; PARKING BRK 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-94311-779-0	01	1	0201-	●		●	●	●		●
31	05.605 SPRING; SHOE TO STRUT 4JG2 ENG(RJC),4JB1 ENG(RLF) 05.606	9-09942-521-1	01	1	9811-0012	●	●	●	●	●	●
31	05.605 SPRING; SHOE TO STRUT 4JG2 ENG(RJC),4JB1 ENG(RLF) 05.606	9-09942-521-1	01	1	0101-0105	●	●	●	●	●	●	●
31	05.605 SPRING; SHOE TO STRUT 4JG2 ENG(RJC),4JB1 ENG(RLF) 05.606	9-09942-521-1	01	1	0106-	●	●	●	●		●	●
31	05.605 SPRING; SHOE TO STRUT 4HF1 ENG(RLS)	8-94132-158-0	01	1	9811-0105	●		●	●	●		●
31	05.605 SPRING; SHOE TO STRUT 4HF1 ENG(RLS)	8-94132-158-0	01	1	0106-0112	●		●	●			●
31	05.605 SPRING; SHOE TO STRUT	8-94132-158-0	01	1	0106-0112					●
31	05.605 SPRING; SHOE TO STRUT 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-94132-158-0	01	1	0201-	●		●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-46213-601-2	01	1	9811-0012	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-46213-601-2	01	1	0101-0105	●	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-46213-601-2	01	1	0106-	●	●	●	●		●	●
32	05.610 PLATE; SUPPORT,PARKING BRK 4HF1 ENG(RLS)	8-94311-780-1	01	1	9811-0105	●		●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK 4HF1 ENG(RLS)	8-94311-780-1	01	1	0106-0112	●		●	●			●
32	05.610 PLATE; SUPPORT,PARKING BRK	8-94311-780-1	01	1	0106-0112					●
32	05.610 PLATE; SUPPORT,PARKING BRK 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-94311-780-1	01	1	0201-	●		●	●	●		●
34	05.605 PIN; BRK SHOE 4JG2 ENG(RJC),4JB1 ENG(RLF) 05.043	9-47162-034-0	02	1	9811-0012	●	●	●	●	●	●
34	05.605 PIN; BRK SHOE 4JG2 ENG(RJC),4JB1 ENG(RLF) 05.043	9-47162-034-0	02	1	0101-0105	●	●	●	●	●	●	●
34	05.605 PIN; BRK SHOE 4JG2 ENG(RJC),4JB1 ENG(RLF) 05.043	9-47162-034-0	02	1	0106-	●	●	●	●		●	●
34	05.605 PIN; BRK SHOE 4HF1 ENG(RLS)	8-94132-159-0	02	1	9811-0105	●		●	●	●		●
34	05.605 PIN; BRK SHOE 4HF1 ENG(RLS)	8-94132-159-0	02	1	0106-0112	●		●	●			●
34	05.605 PIN; BRK SHOE	8-94132-159-0	02	1	0106-0112					●
34	05.605 PIN; BRK SHOE 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-94132-159-0	02	1	0201-	●		●	●	●		●
37	05.610 NUT; SUPPORT PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF) M12	8-97033-122-0	01	1	9811-0012	●	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF) M12	8-97033-122-0	01	1	0101-0105	●	●	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF) M12	8-97033-122-0	01	1	0106-	●	●	●	●		●	●
37	05.610 NUT; SUPPORT PLATE 4HF1 ENG(RLS) M12 LOCK NUT	8-97248-173-0	04	1	0010-0105	●		●	●	●		●
37	05.610 NUT; SUPPORT PLATE 4HF1 ENG(RLS) M12 LOCK NUT	8-97248-173-0	04	1	0106-0112	●		●	●			●
37	05.610 NUT; SUPPORT PLATE M12 LOCK NUT	8-97248-173-0	04	1	0106-0112					●
37	05.610 NUT; SUPPORT PLATE 4JH1 ENG(RJX),4HF1 ENG(RLS) M12 LOCK NUT	8-97248-173-0	04	1	0201-	●		●	●	●		●
38	05.610 WASHER; LK,SUPPORT PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.046 ID=8.2	9-09150-808-0	02	1	9811-0012	●	●	●	●	●	●
38	05.610 WASHER; LK,SUPPORT PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.046 ID=8.2	9-09150-808-0	02	1	0101-0105	●	●	●	●	●	●	●
38	05.610 WASHER; LK,SUPPORT PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.046 ID=8.2	9-09150-808-0	02	1	0106-	●	●	●	●		●	●
47	05.610 BOLT; SUPPORT PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-02060-814-0	02	1	9811-0012	●	●	●	●	●	●
47	05.610 BOLT; SUPPORT PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-02060-814-0	02	1	0101-0105	●	●	●	●	●	●	●
47	05.610 BOLT; SUPPORT PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-02060-814-0	02	1	0106-	●	●	●	●		●	●
47	05.610 BOLT; SUPPORT PLATE 4HF1 ENG(RLS) M12X20 FLANGE	8-97213-401-0	04	1	9811-0009	●		●	●	●		●
48	05.605 RETAINER; PIN,PARKING BRK 05.158	9-46349-005-1	01	1	9811-	●	●	●	●	●	●	●
112	05.606 BOLT; COVER TO BRK DRUM 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9811-	●	●	●	●	●	●	●
172	05.605 CUP; SHOE HOLD 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94378-404-0	04	1	9811-0012	●	●	●	●	●	●
172	05.605 CUP; SHOE HOLD 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94378-404-0	04	1	0101-0105	●	●	●	●	●	●	●
172	05.605 CUP; SHOE HOLD 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94378-404-0	04	1	0106-	●	●	●	●		●	●
172	05.605 CUP; SHOE HOLD 4HF1 ENG(RLS) 05.043	9-47162-033-0	04	1	9811-0105	●		●	●	●		●
172	05.605 CUP; SHOE HOLD 4HF1 ENG(RLS) 05.043	9-47162-033-0	04	1	0106-0112	●		●	●			●
172	05.605 CUP; SHOE HOLD 05.043	9-47162-033-0	04	1	0106-0112					●
172	05.605 CUP; SHOE HOLD 4JH1 ENG(RJX),4HF1 ENG(RLS) 05.043	9-47162-033-0	04	1	0201-	●		●	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
