7 |
05.019 RIVET; LINING,RR BRK
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
1-09732-029-0 |
40 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
7 |
05.019 RIVET; LINING,RR BRK
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
|
1-09732-029-0 |
40 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
7 |
05.019 RIVET; LINING,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
1-09732-029-0 |
40 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
7 |
05.019 RIVET; LINING,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
1-09732-029-0 |
40 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
7 |
05.019 RIVET; LINING,RR BRK
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
1-09732-029-0 |
40 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
7 |
05.019 RIVET; LINING,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
|
1-09732-029-0 |
40 |
1 |
0106- |
● |
|
● |
● |
|
|
|
| |
7 |
05.019 RIVET; LINING,RR BRK
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
1-09732-029-0 |
40 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
7 |
05.019 RIVET; LINING,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
|
1-09732-029-0 |
40 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-707-0 |
04 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97095-330-0 |
04 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
|
8-97078-739-0 |
04 |
1 |
9811-0012 |
|
|
|
|
● |
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-97078-739-0 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
|
8-97078-739-0 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97078-739-0 |
04 |
1 |
9811-0012 |
● |
|
|
|
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
|
8-97078-739-0 |
04 |
1 |
0101-0105 |
|
|
|
|
● |
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
|
8-97078-739-0 |
04 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97078-739-0 |
04 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97078-739-0 |
04 |
1 |
0101-0105 |
● |
|
|
|
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97078-739-0 |
04 |
1 |
0106-0112 |
|
|
|
|
● |
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97078-739-0 |
04 |
1 |
0106-0112 |
● |
● |
● |
|
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4HF1 ENG(RLS)
ENGINE POWER N-SPEC(7QV)
|
8-97078-739-0 |
04 |
1 |
0106-0112 |
● |
|
|
● |
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97078-739-0 |
04 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97078-739-0 |
04 |
1 |
0106-0112 |
|
|
● |
|
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97078-739-0 |
04 |
1 |
0201- |
|
|
|
|
● |
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97078-739-0 |
04 |
1 |
0201- |
● |
● |
● |
|
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4HF1 ENG(RLS)
ENGINE POWER N-SPEC(7QV)
|
8-97078-739-0 |
04 |
1 |
0201- |
● |
|
|
● |
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97078-739-0 |
04 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97078-739-0 |
04 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4JH1 ENG(RJX)
G.V.W. 5.0-5.5TON(RPT)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97078-739-0 |
04 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
5-09583-118-0 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
|
5-09583-118-0 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
5-09583-118-0 |
04 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
5-09583-118-0 |
04 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
5-09583-118-0 |
04 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
|
5-09583-118-0 |
04 |
1 |
0106- |
● |
|
● |
● |
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
5-09583-118-0 |
04 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
|
5-09583-118-0 |
04 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
|
5-47629-026-0 |
04 |
1 |
9811- |
|
|
|
|
|
|
● |
| |
16 |
05.043 CUP; SHOE HOLDING
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-712-0 |
08 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
|
9-47162-033-0 |
08 |
1 |
9811-0012 |
|
|
|
|
● |
● |
● |
| |
16 |
05.043 CUP; SHOE HOLDING
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
9-47162-033-0 |
08 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
|
9-47162-033-0 |
08 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
9-47162-033-0 |
08 |
1 |
9811-0012 |
● |
|
|
|
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
|
9-47162-033-0 |
08 |
1 |
0101-0105 |
|
|
|
|
● |
● |
● |
| |
16 |
05.043 CUP; SHOE HOLDING
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
|
9-47162-033-0 |
08 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
9-47162-033-0 |
08 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
9-47162-033-0 |
08 |
1 |
0101-0105 |
● |
|
|
|
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
|
9-47162-033-0 |
08 |
1 |
0106-0112 |
|
|
|
|
● |
● |
● |
| |
16 |
05.043 CUP; SHOE HOLDING
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
9-47162-033-0 |
08 |
1 |
0106-0112 |
● |
● |
● |
|
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
4HF1 ENG(RLS)
ENGINE POWER N-SPEC(7QV)
|
9-47162-033-0 |
08 |
1 |
0106-0112 |
● |
|
|
● |
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
9-47162-033-0 |
08 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
EXC. BRK WHL LK CONT LSPV<6PH>
|
9-47162-033-0 |
08 |
1 |
0106-0112 |
|
|
● |
|
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
REAR AXLE STANDARD 244MM(R39)
|
9-47162-033-0 |
08 |
1 |
0201- |
|
|
|
|
● |
● |
● |
| |
16 |
05.043 CUP; SHOE HOLDING
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
9-47162-033-0 |
08 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
9-47162-033-0 |
08 |
1 |
0201- |
● |
● |
● |
● |
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
9-47162-033-0 |
08 |
1 |
0201- |
● |
● |
● |
|
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
9-47162-033-0 |
08 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
4JH1 ENG(RJX)
G.V.W. 5.0-5.5TON(RPT)
EXC. BRK WHL LK CONT LSPV<6PH>
|
9-47162-033-0 |
08 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
9-47165-096-0 |
08 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
|
9-47165-096-0 |
08 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
9-47165-096-0 |
08 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
9-47165-096-0 |
08 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
9-47165-096-0 |
08 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
|
9-47165-096-0 |
08 |
1 |
0106- |
● |
|
● |
● |
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
9-47165-096-0 |
08 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
|
9-47165-096-0 |
08 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-708-0 |
04 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
05.043
|
9-09940-989-1 |
04 |
1 |
9811-0012 |
|
|
|
|
● |
● |
● |
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4JG2 ENG(RJC),4JB1 ENG(RLF)
05.043
|
9-09940-989-1 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
05.043
|
9-09940-989-1 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
05.043
|
9-09940-989-1 |
04 |
1 |
9811-0012 |
● |
|
|
|
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
05.043
|
9-09940-989-1 |
04 |
1 |
0101-0105 |
|
|
|
|
● |
● |
● |
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
05.043
|
9-09940-989-1 |
04 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
05.043
|
9-09940-989-1 |
04 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
05.043
|
9-09940-989-1 |
04 |
1 |
0101-0105 |
● |
|
|
|
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
05.043
|
9-09940-989-1 |
04 |
1 |
0106-0112 |
|
|
|
|
● |
● |
● |
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
05.043
|
9-09940-989-1 |
04 |
1 |
0106-0112 |
● |
● |
● |
|
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4HF1 ENG(RLS)
ENGINE POWER N-SPEC(7QV)
05.043
|
9-09940-989-1 |
04 |
1 |
0106-0112 |
● |
|
|
● |
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
05.043
|
9-09940-989-1 |
04 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
EXC. BRK WHL LK CONT LSPV<6PH>
05.043
|
9-09940-989-1 |
04 |
1 |
0106-0112 |
|
|
● |
|
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
REAR AXLE STANDARD 244MM(R39)
05.043
|
9-09940-989-1 |
04 |
1 |
0201- |
|
|
|
|
● |
● |
● |
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
05.043
|
9-09940-989-1 |
04 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
05.043
|
9-09940-989-1 |
04 |
1 |
0201- |
● |
● |
● |
● |
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
05.043
|
9-09940-989-1 |
04 |
1 |
0201- |
● |
● |
● |
|
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
05.043
|
9-09940-989-1 |
04 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4JH1 ENG(RJX)
G.V.W. 5.0-5.5TON(RPT)
EXC. BRK WHL LK CONT LSPV<6PH>
05.043
|
9-09940-989-1 |
04 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
05.043
|
5-09580-101-1 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
05.043
|
5-09580-101-1 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
05.043
|
5-09580-101-1 |
04 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
05.043
|
5-09580-101-1 |
04 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
05.043
|
5-09580-101-1 |
04 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
05.043
|
5-09580-101-1 |
04 |
1 |
0106- |
● |
|
● |
● |
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
05.043
|
5-09580-101-1 |
04 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
05.043
|
5-09580-101-1 |
04 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-495-0 |
01 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-496-0 |
01 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97078-674-0 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97078-673-0 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97093-935-0 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97093-935-0 |
01 |
1 |
0106- |
|
|
|
|
● |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97093-934-0 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97093-934-0 |
01 |
1 |
0106- |
|
|
|
|
● |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
8-97078-606-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
|
8-97078-606-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
8-97078-606-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-97078-606-0 |
01 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
8-97078-606-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
|
8-97078-606-0 |
01 |
1 |
0106- |
● |
|
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
8-97078-606-0 |
01 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97078-606-0 |
01 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
8-97078-605-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
|
8-97078-605-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
8-97078-605-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-97078-605-0 |
01 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
26 |

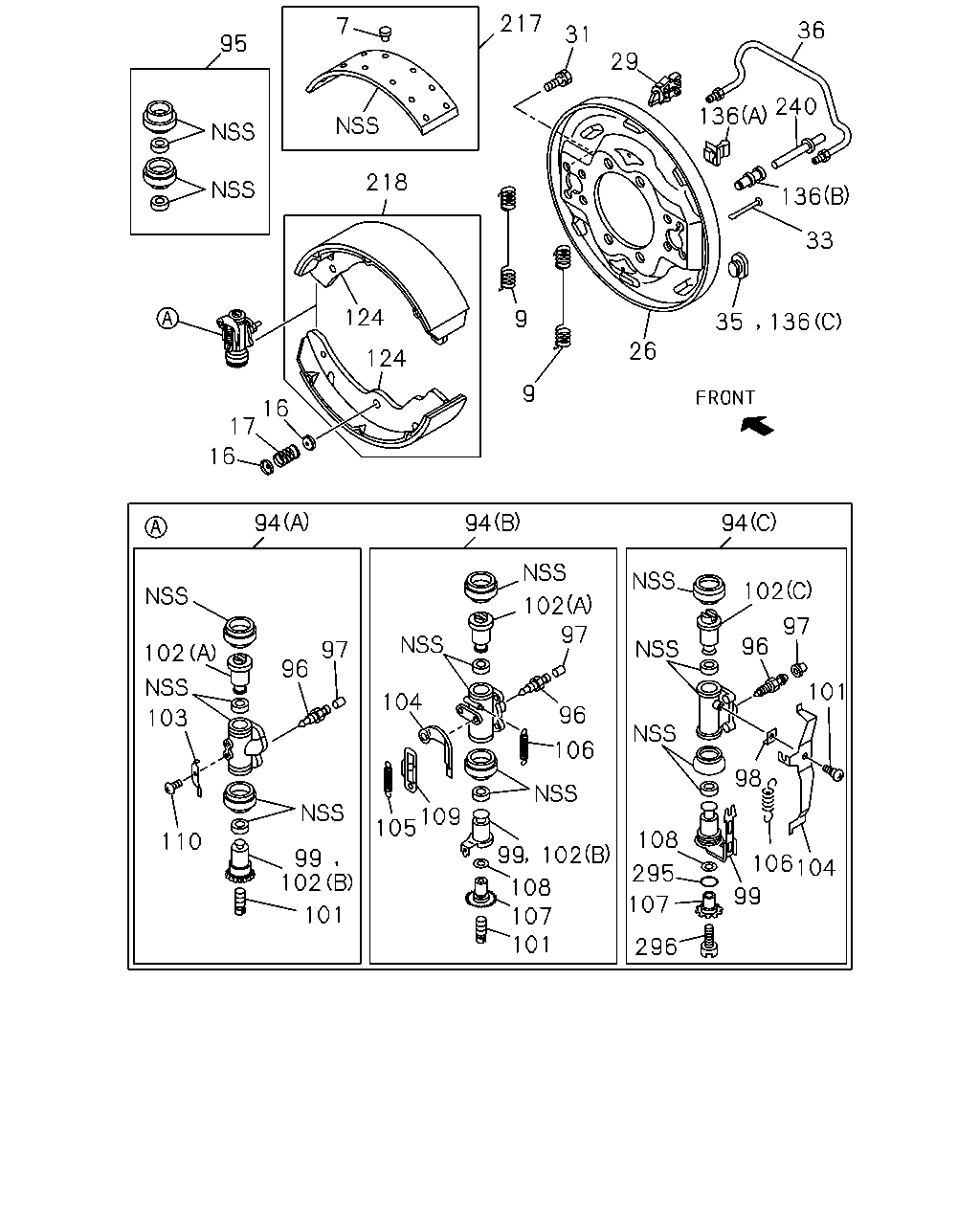

05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
8-97078-605-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
|
8-97078-605-0 |
01 |
1 |
0106- |
● |
|
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
8-97078-605-0 |
01 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97078-605-0 |
01 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-97078-680-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
|
8-97078-680-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97078-680-0 |
01 |
1 |
9811-0105 |
● |
|
|
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 3
9/6(R43)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-97078-680-0 |
01 |
1 |
0106-0112 |
● |
● |
● |
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-97078-680-0 |
01 |
1 |
0106-0112 |
● |
|
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
DUMP CHASSIS(V4D)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97078-680-0 |
01 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 3
9/6(R43)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-97078-680-0 |
01 |
1 |
0201- |
● |
● |
● |
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-97078-680-0 |
01 |
1 |
0201- |
● |
|
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
DUMP CHASSIS(V4D)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97078-680-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX)
G.V.W. 5.0-5.5TON(RPT)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97078-680-0 |
01 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-97078-679-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
|
8-97078-679-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97078-679-0 |
01 |
1 |
9811-0105 |
● |
|
|
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 3
9/6(R43)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-97078-679-0 |
01 |
1 |
0106-0112 |
● |
● |
● |
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-97078-679-0 |
01 |
1 |
0106-0112 |
● |
|
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
DUMP CHASSIS(V4D)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97078-679-0 |
01 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 3
9/6(R43)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-97078-679-0 |
01 |
1 |
0201- |
● |
● |
● |
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-97078-679-0 |
01 |
1 |
0201- |
● |
|
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
DUMP CHASSIS(V4D)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97078-679-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX)
G.V.W. 5.0-5.5TON(RPT)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97078-679-0 |
01 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97080-787-0 |
01 |
1 |
9811- |
|
|
|
|
|
|
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97080-786-0 |
01 |
1 |
9811- |
|
|
|
|
|
|
● |
| |
29 |
04.685 CLIP; PIPE,BRK
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-703-0 |
02 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
|
8-94128-307-0 |
02 |
1 |
9811-0012 |
|
|
|
|
● |
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-94128-307-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
|
8-94128-307-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-94128-307-0 |
02 |
1 |
9811-0012 |
● |
|
|
|
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
|
8-94128-307-0 |
02 |
1 |
0101-0112 |
|
|
|
|
● |
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
|
8-94128-307-0 |
02 |
1 |
0101-0112 |
● |
● |
● |
● |
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-94128-307-0 |
02 |
1 |
0101-0112 |
● |
● |
● |
● |
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-94128-307-0 |
02 |
1 |
0101-0112 |
● |
|
|
|
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
REAR AXLE STANDARD 244MM(R39)
|
8-94128-307-0 |
02 |
1 |
0201- |
|
|
|
|
● |
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94128-307-0 |
02 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-94128-307-0 |
02 |
1 |
0201- |
● |
● |
● |
● |
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-94128-307-0 |
02 |
1 |
0201- |
● |
● |
● |
|
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-94128-307-0 |
02 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
4JH1 ENG(RJX)
G.V.W. 5.0-5.5TON(RPT)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-94128-307-0 |
02 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
8-94128-306-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
|
8-94128-306-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
8-94128-306-0 |
02 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-94128-306-0 |
02 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
8-94128-306-0 |
02 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
|
8-94128-306-0 |
02 |
1 |
0106- |
● |
|
● |
● |
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
8-94128-306-0 |
02 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-94128-306-0 |
02 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-714-0 |
16 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
|
5-09030-036-1 |
16 |
1 |
9811-0012 |
|
|
|
|
● |
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
5-09030-036-1 |
16 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
|
5-09030-036-1 |
16 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
5-09030-036-1 |
16 |
1 |
9811-0012 |
● |
|
|
|
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
|
5-09030-036-1 |
16 |
1 |
0101-0112 |
|
|
|
|
● |
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
|
5-09030-036-1 |
16 |
1 |
0101-0112 |
● |
● |
● |
● |
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
5-09030-036-1 |
16 |
1 |
0101-0112 |
● |
● |
● |
● |
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
5-09030-036-1 |
16 |
1 |
0101-0112 |
● |
|
|
|
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
REAR AXLE STANDARD 244MM(R39)
|
5-09030-036-1 |
16 |
1 |
0201- |
|
|
|
|
● |
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
5-09030-036-1 |
16 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
5-09030-036-1 |
16 |
1 |
0201- |
● |
● |
● |
● |
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
5-09030-036-1 |
16 |
1 |
0201- |
● |
● |
● |
|
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
5-09030-036-1 |
16 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
4JH1 ENG(RJX)
G.V.W. 5.0-5.5TON(RPT)
EXC. BRK WHL LK CONT LSPV<6PH>
|
5-09030-036-1 |
16 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
5-09030-016-1 |
16 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
|
5-09030-016-1 |
16 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
|
5-09030-016-1 |
16 |
1 |
9811-0012 |
|
|
|
|
|
|
● |
| |
31 |
04.665 BOLT; RR WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
5-09030-016-1 |
16 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
|
5-09030-016-1 |
16 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
4JG2 ENG(RJC)
BRK WHL LK CONT LSPV<6PH>
|
5-09030-016-1 |
16 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
|
5-09030-016-1 |
16 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
31 |
04.665 BOLT; RR WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
|
5-09030-016-1 |
16 |
1 |
0106- |
● |
|
● |
● |
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
4JG2 ENG(RJC)
BRK WHL LK CONT LSPV<6PH>
|
5-09030-016-1 |
16 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
|
5-09030-016-1 |
16 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
|
5-09030-016-1 |
16 |
1 |
0106- |
|
|
|
|
|
|
● |
| |
33 |
05.043 PIN; SHOE HOLD DOWN
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-711-0 |
04 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
|
9-47162-607-0 |
04 |
1 |
9811-0012 |
|
|
|
|
● |
● |
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
9-47162-607-0 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
|
9-47162-607-0 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
9-47162-607-0 |
04 |
1 |
9811-0012 |
● |
|
|
|
|
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
|
9-47162-607-0 |
04 |
1 |
0101-0112 |
|
|
|
|
● |
● |
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
|
9-47162-607-0 |
04 |
1 |
0101-0112 |
● |
● |
● |
● |
|
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
9-47162-607-0 |
04 |
1 |
0101-0112 |
● |
● |
● |
● |
|
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
9-47162-607-0 |
04 |
1 |
0101-0112 |
● |
|
|
|
|
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
REAR AXLE STANDARD 244MM(R39)
|
9-47162-607-0 |
04 |
1 |
0201- |
|
|
|
|
● |
● |
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
9-47162-607-0 |
04 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
9-47162-607-0 |
04 |
1 |
0201- |
● |
● |
● |
● |
|
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
9-47162-607-0 |
04 |
1 |
0201- |
● |
● |
● |
|
|
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
9-47162-607-0 |
04 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
4JH1 ENG(RJX)
G.V.W. 5.0-5.5TON(RPT)
EXC. BRK WHL LK CONT LSPV<6PH>
|
9-47162-607-0 |
04 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
5-47162-001-0 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
|
5-47162-001-0 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
5-47162-001-0 |
04 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
5-47162-001-0 |
04 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
5-47162-001-0 |
04 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
|
5-47162-001-0 |
04 |
1 |
0106- |
● |
|
● |
● |
|
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
5-47162-001-0 |
04 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
|
5-47162-001-0 |
04 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
L=52
|
9-47162-045-0 |
04 |
1 |
9811- |
|
|
|
|
|
|
● |
| |
35 |
05.002 GROMMET; CHECK HOLE
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-720-0 |
02 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
|
8-94344-919-0 |
02 |
1 |
9811-0012 |
|
|
|
|
● |
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-94344-919-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
|
8-94344-919-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-94344-919-0 |
02 |
1 |
9811-0012 |
● |
|
|
|
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
|
8-94344-919-0 |
02 |
1 |
0101-0112 |
|
|
|
|
● |
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
|
8-94344-919-0 |
02 |
1 |
0101-0112 |
● |
● |
● |
● |
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-94344-919-0 |
02 |
1 |
0101-0112 |
● |
● |
● |
● |
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-94344-919-0 |
02 |
1 |
0101-0112 |
● |
|
|
|
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
REAR AXLE STANDARD 244MM(R39)
|
8-94344-919-0 |
02 |
1 |
0201- |
|
|
|
|
● |
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94344-919-0 |
02 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-94344-919-0 |
02 |
1 |
0201- |
● |
● |
● |
● |
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-94344-919-0 |
02 |
1 |
0201- |
● |
● |
● |
|
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-94344-919-0 |
02 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
4JH1 ENG(RJX)
G.V.W. 5.0-5.5TON(RPT)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-94344-919-0 |
02 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
8-94171-287-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
|
8-94171-287-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
|
8-94171-287-0 |
02 |
1 |
9811-0012 |
|
|
|
|
|
|
● |
| |
35 |
05.002 GROMMET; CHECK HOLE
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
8-94171-287-0 |
02 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-94171-287-0 |
02 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
4JG2 ENG(RJC)
BRK WHL LK CONT LSPV<6PH>
|
8-94171-287-0 |
02 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
|
8-94171-287-0 |
02 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
35 |
05.002 GROMMET; CHECK HOLE
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
|
8-94171-287-0 |
02 |
1 |
0106- |
● |
|
● |
● |
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
4JG2 ENG(RJC)
BRK WHL LK CONT LSPV<6PH>
|
8-94171-287-0 |
02 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-94171-287-0 |
02 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
|
8-94171-287-0 |
02 |
1 |
0106- |
|
|
|
|
|
|
● |
| |
36 |
04.685 PIPE; OIL,RR BRK
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-702-0 |
02 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
|
8-94128-192-0 |
02 |
1 |
9811-0012 |
|
|
|
|
● |
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-94128-192-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
|
8-94128-192-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-94128-192-0 |
02 |
1 |
9811-0012 |
● |
|
|
|
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
|
8-94128-192-0 |
02 |
1 |
0101-0112 |
|
|
|
|
● |
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
|
8-94128-192-0 |
02 |
1 |
0101-0112 |
● |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-94128-192-0 |
02 |
1 |
0101-0112 |
● |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-94128-192-0 |
02 |
1 |
0101-0112 |
● |
|
|
|
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
REAR AXLE STANDARD 244MM(R39)
|
8-94128-192-0 |
02 |
1 |
0201- |
|
|
|
|
● |
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94128-192-0 |
02 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-94128-192-0 |
02 |
1 |
0201- |
● |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-94128-192-0 |
02 |
1 |
0201- |
● |
● |
● |
|
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-94128-192-0 |
02 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
4JH1 ENG(RJX)
G.V.W. 5.0-5.5TON(RPT)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-94128-192-0 |
02 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
8-94154-916-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
|
8-94154-916-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
8-94154-916-0 |
02 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-94154-916-0 |
02 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
8-94154-916-0 |
02 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
|
8-94154-916-0 |
02 |
1 |
0106- |
● |
|
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
8-94154-916-0 |
02 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-94154-916-0 |
02 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
|
8-94128-191-3 |
01 |
1 |
9811- |
|
|
|
|
|
|
● |
| |
36 |
04.685 PIPE; OIL,RR BRK
|
8-94128-190-3 |
01 |
1 |
9811- |
|
|
|
|
|
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
(C) FRONT
|
8-97191-497-0 |
01 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
(C) REAR
|
8-97191-499-0 |
01 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
(C)
|
8-97191-502-0 |
02 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97139-839-0 |
02 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
(B) FRONT
|
8-97139-836-0 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
(B) REAR
|
8-97139-838-0 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT DSPV<JL8>
(A)
|
8-97139-842-0 |
02 |
1 |
9811-0105 |
|
|
|
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
(A)
|
8-97139-842-0 |
02 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
(A)
|
8-97139-842-0 |
02 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
(A)
|
8-97139-842-0 |
02 |
1 |
9811-0105 |
● |
|
|
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT DSPV<JL8>,BRK WHL
LKCONT LSPV<6PH>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97139-842-0 |
02 |
1 |
0106-0112 |
|
|
|
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97139-842-0 |
02 |
1 |
0106-0112 |
● |
● |
● |
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
(A)
|
8-97139-842-0 |
02 |
1 |
0106-0112 |
● |
|
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
(A)
|
8-97139-842-0 |
02 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT DSPV<JL8>,BRK WHL
LKCONT LSPV<6PH>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97139-842-0 |
02 |
1 |
0201- |
|
|
|
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97139-842-0 |
02 |
1 |
0201- |
● |
● |
● |
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
(A)
|
8-97139-842-0 |
02 |
1 |
0201- |
● |
|
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
(A)
|
8-97139-842-0 |
02 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX)
G.V.W. 5.0-5.5TON(RPT)
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97139-842-0 |
02 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT DSPV<JL8>
(A) FRONT
|
8-97139-840-0 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
(A) FRONT
|
8-97139-840-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
(A) FRONT
|
8-97139-840-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
(A) FRONT
|
8-97139-840-0 |
01 |
1 |
9811-0105 |
● |
|
|
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT DSPV<JL8>,BRK WHL
LKCONT LSPV<6PH>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(A) FRONT
|
8-97139-840-0 |
01 |
1 |
0106-0112 |
|
|
|
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
(A) FRONT
|
8-97139-840-0 |
01 |
1 |
0106-0112 |
● |
● |
● |
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
(A) FRONT
|
8-97139-840-0 |
01 |
1 |
0106-0112 |
● |
|
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
(A) FRONT
|
8-97139-840-0 |
01 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT DSPV<JL8>,BRK WHL
LKCONT LSPV<6PH>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(A) FRONT
|
8-97139-840-0 |
01 |
1 |
0201- |
|
|
|
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
(A) FRONT
|
8-97139-840-0 |
01 |
1 |
0201- |
● |
● |
● |
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
(A) FRONT
|
8-97139-840-0 |
01 |
1 |
0201- |
● |
|
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
(A) FRONT
|
8-97139-840-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX)
G.V.W. 5.0-5.5TON(RPT)
EXC. BRK WHL LK CONT LSPV<6PH>
(A) FRONT
|
8-97139-840-0 |
01 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT DSPV<JL8>
(A) REAR
|
8-97139-841-0 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
(A) REAR
|
8-97139-841-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
(A) REAR
|
8-97139-841-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
(A) REAR
|
8-97139-841-0 |
01 |
1 |
9811-0105 |
● |
|
|
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT DSPV<JL8>,BRK WHL
LKCONT LSPV<6PH>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(A) REAR
|
8-97139-841-0 |
01 |
1 |
0106-0112 |
|
|
|
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
(A) REAR
|
8-97139-841-0 |
01 |
1 |
0106-0112 |
● |
● |
● |
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
(A) REAR
|
8-97139-841-0 |
01 |
1 |
0106-0112 |
● |
|
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
(A) REAR
|
8-97139-841-0 |
01 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT DSPV<JL8>,BRK WHL
LKCONT LSPV<6PH>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(A) REAR
|
8-97139-841-0 |
01 |
1 |
0201- |
|
|
|
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
(A) REAR
|
8-97139-841-0 |
01 |
1 |
0201- |
● |
● |
● |
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
(A) REAR
|
8-97139-841-0 |
01 |
1 |
0201- |
● |
|
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
(A) REAR
|
8-97139-841-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX)
G.V.W. 5.0-5.5TON(RPT)
EXC. BRK WHL LK CONT LSPV<6PH>
(A) REAR
|
8-97139-841-0 |
01 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT DSPV<JL8>
(A)
|
8-97179-337-0 |
02 |
1 |
9811-0105 |
|
|
|
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT DSPV<JL8>,BRK
WHL LK CONT LSPV<6PH>,FRT
INDEPENDENTSUSPENSION(6PP)
(A)
|
8-97179-337-0 |
02 |
1 |
0106- |
|
|
|
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT DSPV<JL8>
(A) FRONT
|
8-97179-335-0 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT DSPV<JL8>,BRK
WHL LK CONT LSPV<6PH>,FRT
INDEPENDENTSUSPENSION(6PP)
(A) FRONT
|
8-97179-335-0 |
01 |
1 |
0106- |
|
|
|
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT DSPV<JL8>
(A) REAR
|
8-97179-336-0 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT DSPV<JL8>,BRK
WHL LK CONT LSPV<6PH>,FRT
INDEPENDENTSUSPENSION(6PP)
(A) REAR
|
8-97179-336-0 |
01 |
1 |
0106- |
|
|
|
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
(A)
|
8-97179-352-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
(A)
|
8-97179-352-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
(A)
|
8-97179-352-0 |
02 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
(A)
|
8-97179-352-0 |
02 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97179-352-0 |
02 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
(A)
|
8-97179-352-0 |
02 |
1 |
0106- |
● |
|
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97179-352-0 |
02 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97179-352-0 |
02 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
(A) FRONT
|
8-97179-350-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
(A) FRONT
|
8-97179-350-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
(A) FRONT
|
8-97179-350-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
(A) FRONT
|
8-97179-350-0 |
01 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
(A) FRONT
|
8-97179-350-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
(A) FRONT
|
8-97179-350-0 |
01 |
1 |
0106- |
● |
|
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
(A) FRONT
|
8-97179-350-0 |
01 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
(A) FRONT
|
8-97179-350-0 |
01 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
(A) REAR
|
8-97179-351-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
(A) REAR
|
8-97179-351-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
(A) REAR
|
8-97179-351-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
(A) REAR
|
8-97179-351-0 |
01 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
(A) REAR
|
8-97179-351-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
(A) REAR
|
8-97179-351-0 |
01 |
1 |
0106- |
● |
|
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
(A) REAR
|
8-97179-351-0 |
01 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
(A) REAR
|
8-97179-351-0 |
01 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
(A)
|
8-97179-349-0 |
02 |
1 |
9811- |
|
|
|
|
|
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
(A) FRONT
|
8-97179-347-0 |
01 |
1 |
9811- |
|
|
|
|
|
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
(A) REAR
|
8-97179-348-0 |
01 |
1 |
9811- |
|
|
|
|
|
|
● |
| |
95 |
04.665 CUP SET; RR WHEEL CYL
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
5-87831-781-0 |
01 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
5-87831-622-0 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
BRK WHL LK CONT DSPV<JL8>
|
5-87831-621-0 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
|
5-87831-621-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
● |
| |
95 |
04.665 CUP SET; RR WHEEL CYL
BRK WHL LK CONT DSPV<JL8>,BRK WHL
LKCONT LSPV<6PH>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
5-87831-621-0 |
01 |
1 |
0106- |
|
|
|
|
● |
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
|
5-87831-621-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
|
● |
| |
95 |
04.665 CUP SET; RR WHEEL CYL
EXC. BRK WHL LK CONT DSPV<JL8>
|
5-87831-625-0 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
EXC. BRK WHL LK CONT DSPV<JL8>,BRK
WHL LK CONT LSPV<6PH>,FRT
INDEPENDENTSUSPENSION(6PP)
|
5-87831-625-0 |
01 |
1 |
0106- |
|
|
|
|
● |
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-759-0 |
01 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
|
9-47615-027-0 |
01 |
1 |
9811-0112 |
● |
● |
● |
● |
● |
● |
● |
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
REAR AXLE STANDARD 244MM(R39)
|
9-47615-027-0 |
01 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
9-47615-027-0 |
01 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
|
9-47615-027-0 |
01 |
1 |
0201- |
● |
● |
● |
● |
|
● |
● |
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-774-0 |
01 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
|
1-47619-009-0 |
01 |
1 |
9811-0112 |
● |
● |
● |
● |
● |
● |
● |
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
REAR AXLE STANDARD 244MM(R39)
|
1-47619-009-0 |
01 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
1-47619-009-0 |
01 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
|
1-47619-009-0 |
01 |
1 |
0201- |
● |
● |
● |
● |
|
● |
● |
| |
98 |
04.669 SPRING; RR WHEEL CYL
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-768-0 |
04 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-731-0 |
02 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-732-0 |
02 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
D=25.4
|
8-94129-015-1 |
02 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
D=25.4
|
8-94128-538-1 |
02 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
BRK WHL LK CONT DSPV<JL8>
|
8-97078-698-0 |
02 |
1 |
9811-0105 |
|
|
|
|
● |
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-97078-698-0 |
02 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
|
8-97078-698-0 |
02 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97078-698-0 |
02 |
1 |
9811-0105 |
● |
|
|
|
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
BRK WHL LK CONT DSPV<JL8>,BRK WHL
LKCONT LSPV<6PH>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97078-698-0 |
02 |
1 |
0106-0112 |
|
|
|
|
● |
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97078-698-0 |
02 |
1 |
0106-0112 |
● |
● |
● |
|
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-97078-698-0 |
02 |
1 |
0106-0112 |
● |
|
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97078-698-0 |
02 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
BRK WHL LK CONT DSPV<JL8>,BRK WHL
LKCONT LSPV<6PH>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97078-698-0 |
02 |
1 |
0201- |
|
|
|
|
● |
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97078-698-0 |
02 |
1 |
0201- |
● |
● |
● |
|
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-97078-698-0 |
02 |
1 |
0201- |
● |
|
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97078-698-0 |
02 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4JH1 ENG(RJX)
G.V.W. 5.0-5.5TON(RPT)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97078-698-0 |
02 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
EXC. BRK WHL LK CONT DSPV<JL8>
|
8-97081-149-0 |
02 |
1 |
9811-0105 |
|
|
|
|
● |
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
EXC. BRK WHL LK CONT DSPV<JL8>,BRK
WHL LK CONT LSPV<6PH>,FRT
INDEPENDENTSUSPENSION(6PP)
|
8-97081-149-0 |
02 |
1 |
0106- |
|
|
|
|
● |
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
8-97078-622-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
|
8-97078-622-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
8-97078-622-0 |
02 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-97078-622-0 |
02 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
8-97078-622-0 |
02 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
|
8-97078-622-0 |
02 |
1 |
0106- |
● |
|
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
8-97078-622-0 |
02 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97078-622-0 |
02 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
D=25.4
|
8-94128-536-1 |
02 |
1 |
9811- |
|
|
|
|
|
|
● |
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-770-0 |
04 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
M12X30.2 LH THREAD
|
5-47622-004-1 |
02 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
M12X30.2 RH THREAD
|
5-47622-003-1 |
02 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
05.110
|
8-97078-623-0 |
04 |
1 |
9811-0105 |
● |
● |
● |
● |
● |
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP)
05.110
|
8-97078-623-0 |
04 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
05.110
|
5-47629-027-1 |
04 |
1 |
9811- |
|
|
|
|
|
|
● |
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
(C)
|
8-97191-755-0 |
04 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
BRK WHL LK CONT DSPV<JL8>
(A)
D=25.4
|
8-94128-531-1 |
04 |
1 |
9811-0105 |
|
|
|
|
● |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
(A)
D=25.4
|
8-94128-531-1 |
04 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
BRK WHL LK CONT DSPV<JL8>,BRK WHL
LKCONT LSPV<6PH>
(A)
D=25.4
|
8-94128-531-1 |
04 |
1 |
0106-0112 |
|
|
|
|
● |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
(A)
D=25.4
|
8-94128-531-1 |
04 |
1 |
0106-0112 |
● |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
BRK WHL LK CONT DSPV<JL8>,BRK WHL
LKCONT LSPV<6PH>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(A)
D=25.4
|
8-94128-531-1 |
04 |
1 |
0201- |
|
|
|
|
● |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
(A)
D=25.4
|
8-94128-531-1 |
04 |
1 |
0201- |
● |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
BRK WHL LK CONT DSPV<JL8>
(B)
|
8-97078-698-0 |
02 |
1 |
9811-0105 |
|
|
|
|
● |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF)
(B)
|
8-97078-698-0 |
02 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
(B)
|
8-97078-698-0 |
02 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
(B)
|
8-97078-698-0 |
02 |
1 |
9811-0105 |
● |
|
|
|
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
BRK WHL LK CONT DSPV<JL8>,BRK WHL
LKCONT LSPV<6PH>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97078-698-0 |
02 |
1 |
0106-0112 |
|
|
|
|
● |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
(B)
|
8-97078-698-0 |
02 |
1 |
0106-0112 |
● |
● |
● |
|
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
(B)
|
8-97078-698-0 |
02 |
1 |
0106-0112 |
● |
|
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
(B)
|
8-97078-698-0 |
02 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
BRK WHL LK CONT DSPV<JL8>,BRK WHL
LKCONT LSPV<6PH>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97078-698-0 |
02 |
1 |
0201- |
|
|
|
|
● |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
(B)
|
8-97078-698-0 |
02 |
1 |
0201- |
● |
● |
● |
|
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
(B)
|
8-97078-698-0 |
02 |
1 |
0201- |
● |
|
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
(B)
|
8-97078-698-0 |
02 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4JH1 ENG(RJX)
G.V.W. 5.0-5.5TON(RPT)
EXC. BRK WHL LK CONT LSPV<6PH>
(B)
|
8-97078-698-0 |
02 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
EXC. BRK WHL LK CONT DSPV<JL8>
(A)
D=22.22
|
8-94128-533-1 |
04 |
1 |
9811-0105 |
|
|
|
|
● |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
EXC. BRK WHL LK CONT DSPV<JL8>,BRK
WHL LK CONT LSPV<6PH>,FRT
INDEPENDENTSUSPENSION(6PP)
(A)
D=22.22
|
8-94128-533-1 |
04 |
1 |
0106- |
|
|
|
|
● |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
EXC. BRK WHL LK CONT DSPV<JL8>
(B)
|
8-97081-149-0 |
02 |
1 |
9811-0105 |
|
|
|
|
● |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
EXC. BRK WHL LK CONT DSPV<JL8>,BRK
WHL LK CONT LSPV<6PH>,FRT
INDEPENDENTSUSPENSION(6PP)
(B)
|
8-97081-149-0 |
02 |
1 |
0106- |
|
|
|
|
● |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
(B)
|
8-97078-622-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
(B)
|
8-97078-622-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
(B)
|
8-97078-622-0 |
02 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
(B)
|
8-97078-622-0 |
02 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
(B)
|
8-97078-622-0 |
02 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
(B)
|
8-97078-622-0 |
02 |
1 |
0106- |
● |
|
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
(B)
|
8-97078-622-0 |
02 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
(B)
|
8-97078-622-0 |
02 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
(B)
D=25.4
|
8-94128-536-1 |
02 |
1 |
9811- |
|
|
|
|
|
|
● |
| |
102 |
04.668 PISTON; REAR WHEEL CYL
(A)
D=25.4
|
8-94128-537-1 |
04 |
1 |
9811- |
|
|
|
|
|
|
● |
| |
103 |
05.107 SPRING; LK,RR WHEEL CYL,ADJ
|
8-94128-486-0 |
04 |
1 |
9811-0105 |
● |
● |
● |
● |
● |
● |
|
| |
103 |
05.107 SPRING; LK,RR WHEEL CYL,ADJ
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94128-486-0 |
04 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
|
| |
103 |
05.107 SPRING; LK,RR WHEEL CYL,ADJ
|
8-94128-487-0 |
04 |
1 |
9811- |
|
|
|
|
|
|
● |
| |
104 |
05.103 LEVER; ADJ
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-739-0 |
02 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
104 |
05.103 LEVER; ADJ
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-740-0 |
02 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
104 |
05.103 LEVER; ADJ
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94366-174-0 |
02 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
104 |
05.103 LEVER; ADJ
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94366-173-0 |
02 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
105 |
05.107 SPRING; OVER TRAVEL,ADJ
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
5-09583-110-0 |
04 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-744-0 |
02 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-745-0 |
02 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
5-09585-045-0 |
04 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-747-0 |
02 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-748-0 |
02 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94479-589-0 |
02 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94479-588-0 |
02 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
108 |
05.110 WASHER; THRUST,GEAR ADJ
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-762-0 |
04 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
108 |
05.110 WASHER; THRUST,GEAR ADJ
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97029-304-0 |
04 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
109 |
04.665 FITTING; AUTO ADJ
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
5-47619-042-0 |
04 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
110 |
05.107 SCREW; LOCK SPRING,RR WHEEL CYL
|
8-94128-727-0 |
04 |
1 |
9811-0105 |
● |
● |
● |
● |
● |
● |
● |
| |
110 |
05.107 SCREW; LOCK SPRING,RR WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94128-727-0 |
04 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
● |
| |
124 |
05.017 SHOE ASM; BRK,RR
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-716-1 |
04 |
1 |
0201-0206 |
|
|
|
|
● |
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97331-932-0 |
04 |
1 |
0207- |
|
|
|
|
● |
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
|
8-97035-085-1 |
04 |
1 |
9811-0012 |
|
|
|
|
● |
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-97035-085-1 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
|
8-97035-085-1 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97035-085-1 |
04 |
1 |
9811-0012 |
● |
|
|
|
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
|
8-97035-085-1 |
04 |
1 |
0101-0112 |
|
|
|
|
● |
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
|
8-97035-085-1 |
04 |
1 |
0101-0112 |
● |
● |
● |
● |
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97035-085-1 |
04 |
1 |
0101-0112 |
● |
● |
● |
● |
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97035-085-1 |
04 |
1 |
0101-0112 |
● |
|
|
|
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE STANDARD 244MM(R39)
|
8-97035-085-1 |
04 |
1 |
0201- |
|
|
|
|
● |
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97035-085-1 |
04 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-97035-085-1 |
04 |
1 |
0201- |
● |
● |
● |
● |
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97035-085-1 |
04 |
1 |
0201- |
● |
● |
● |
|
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97035-085-1 |
04 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4JH1 ENG(RJX)
G.V.W. 5.0-5.5TON(RPT)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97035-085-1 |
04 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
8-97066-695-0 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
|
8-97066-695-0 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
8-97066-695-0 |
04 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
8-97066-695-0 |
04 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
8-97066-695-0 |
04 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
|
8-97066-695-0 |
04 |
1 |
0106- |
● |
|
● |
● |
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
8-97066-695-0 |
04 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97066-695-0 |
04 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
|
8-97035-083-1 |
04 |
1 |
9811- |
|
|
|
|
|
|
● |
| |
136 |
05.002 GROMMET
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
(C)
|
8-97191-718-0 |
08 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
136 |
05.002 GROMMET
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-94366-295-0 |
04 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
136 |
05.002 GROMMET
(A)
|
9-09956-640-0 |
04 |
1 |
9811-0012 |
|
|
|
|
● |
● |
|
| |
136 |
05.002 GROMMET
4JG2 ENG(RJC),4JB1 ENG(RLF)
(A)
|
9-09956-640-0 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
136 |
05.002 GROMMET
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
(A)
|
9-09956-640-0 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
136 |
05.002 GROMMET
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
(A)
|
9-09956-640-0 |
04 |
1 |
9811-0012 |
● |
|
|
|
|
|
|
| |
136 |
05.002 GROMMET
(A)
|
9-09956-640-0 |
04 |
1 |
0101-0112 |
|
|
|
|
● |
● |
|
| |
136 |
05.002 GROMMET
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D)
(A)
|
9-09956-640-0 |
04 |
1 |
0101-0112 |
● |
● |
● |
● |
|
|
|
| |
136 |
05.002 GROMMET
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
9-09956-640-0 |
04 |
1 |
0101-0112 |
● |
● |
● |
● |
|
|
|
| |
136 |
05.002 GROMMET
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
(A)
|
9-09956-640-0 |
04 |
1 |
0101-0112 |
● |
|
|
|
|
|
|
| |
136 |
05.002 GROMMET
REAR AXLE STANDARD 244MM(R39)
(A)
|
9-09956-640-0 |
04 |
1 |
0201- |
|
|
|
|
● |
● |
|
| |
136 |
05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
9-09956-640-0 |
04 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
136 |
05.002 GROMMET
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
(A)
|
9-09956-640-0 |
04 |
1 |
0201- |
● |
● |
● |
● |
|
|
|
| |
136 |
05.002 GROMMET
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
9-09956-640-0 |
04 |
1 |
0201- |
● |
● |
● |
|
|
|
|
| |
136 |
05.002 GROMMET
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
(A)
|
9-09956-640-0 |
04 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
136 |
05.002 GROMMET
4JH1 ENG(RJX)
G.V.W. 5.0-5.5TON(RPT)
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
9-09956-640-0 |
04 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
136 |
05.002 GROMMET
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
(A)
|
9-09756-034-0 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
136 |
05.002 GROMMET
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
(A)
|
9-09756-034-0 |
04 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
136 |
05.002 GROMMET
(A)
|
9-09756-034-0 |
04 |
1 |
9811-0012 |
|
|
|
|
|
|
● |
| |
136 |
05.002 GROMMET
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
(A)
|
9-09756-034-0 |
04 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
136 |
05.002 GROMMET
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
9-09756-034-0 |
04 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
136 |
05.002 GROMMET
4JG2 ENG(RJC)
BRK WHL LK CONT LSPV<6PH>
(A)
|
9-09756-034-0 |
04 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
136 |
05.002 GROMMET
(A)
|
9-09756-034-0 |
04 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
136 |
05.002 GROMMET
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
(A)
|
9-09756-034-0 |
04 |
1 |
0106- |
● |
|
● |
● |
|
|
|
| |
136 |
05.002 GROMMET
4JG2 ENG(RJC)
BRK WHL LK CONT LSPV<6PH>
(A)
|
9-09756-034-0 |
04 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
136 |
05.002 GROMMET
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
9-09756-034-0 |
04 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
136 |
05.002 GROMMET
(A)
|
9-09756-034-0 |
04 |
1 |
0106- |
|
|
|
|
|
|
● |
| |
217 |
05.018 LINING KIT; RR BRK
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
5-88300-002-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
|
5-88300-002-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),ENGINE POWER
N-SPEC(7QV)
|
5-88300-002-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
5-88300-002-0 |
01 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
5-88300-002-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
|
5-88300-002-0 |
01 |
1 |
0106- |
● |
|
● |
● |
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
5-88300-002-0 |
01 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
|
5-88300-002-0 |
01 |
1 |
0106- |
|
● |
● |
|
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
5-87832-044-0 |
01 |
1 |
0204- |
|
|
|
|
● |
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>,ENGINE POWER
N-SPEC(7QV)
|
5-87832-046-0 |
01 |
1 |
0204- |
● |
|
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
BRAZIL EQUIPMENT(RWF)
BRK WHL LK CONT LSPV<6PH>
|
5-87832-046-0 |
01 |
1 |
0204- |
|
● |
● |
|
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
|
5-87832-046-0 |
01 |
1 |
0204- |
|
● |
● |
|
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
|
5-87832-087-0 |
01 |
1 |
0204- |
|
|
|
|
|
|
● |
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE STANDARD 244MM(R39)
|
5-87832-045-0 |
01 |
1 |
0204- |
|
|
|
|
● |
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
5-87832-045-0 |
01 |
1 |
0204- |
|
|
|
|
● |
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
4HF1 ENG(RLS)
G.V.W. 5.5-6.0TON(RPU)
ENGINE POWER N-SPEC(7QV)
EXC. DUMP CHASSIS(V4D),BRK WHL LK
CONT LSPV<6PH>
|
5-87832-045-0 |
01 |
1 |
0204- |
● |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
5-87832-045-0 |
01 |
1 |
0204- |
● |
● |
● |
|
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
5-87832-045-0 |
01 |
1 |
0204- |
● |
|
|
|
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
4JH1 ENG(RJX)
G.V.W. 5.0-5.5TON(RPT)
EXC. BRK WHL LK CONT LSPV<6PH>
|
5-87832-045-0 |
01 |
1 |
0204- |
|
|
● |
|
|
|
|
| |
240 |
05.020 PIN; AUTO ADJ
REAR AXLE STANDARD 244MM(R39)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97078-700-0 |
04 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
295 |
05.110 SEAL; DUST
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-751-0 |
04 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
296 |
05.125 BOLT; ADJ,RR WHEEL CYL
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-764-0 |
02 |
1 |
0201- |
|
|
|
|
● |
|
|
| |
296 |
05.125 BOLT; ADJ,RR WHEEL CYL
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97191-765-0 |
02 |
1 |
0201- |
|
|
|
|
● |
|
|
