Isuzu WW
▶
TRUCKS
▶
NKR
▶
50809 - NKR-LHD
▶
3 - Brakes, Brake System
▶

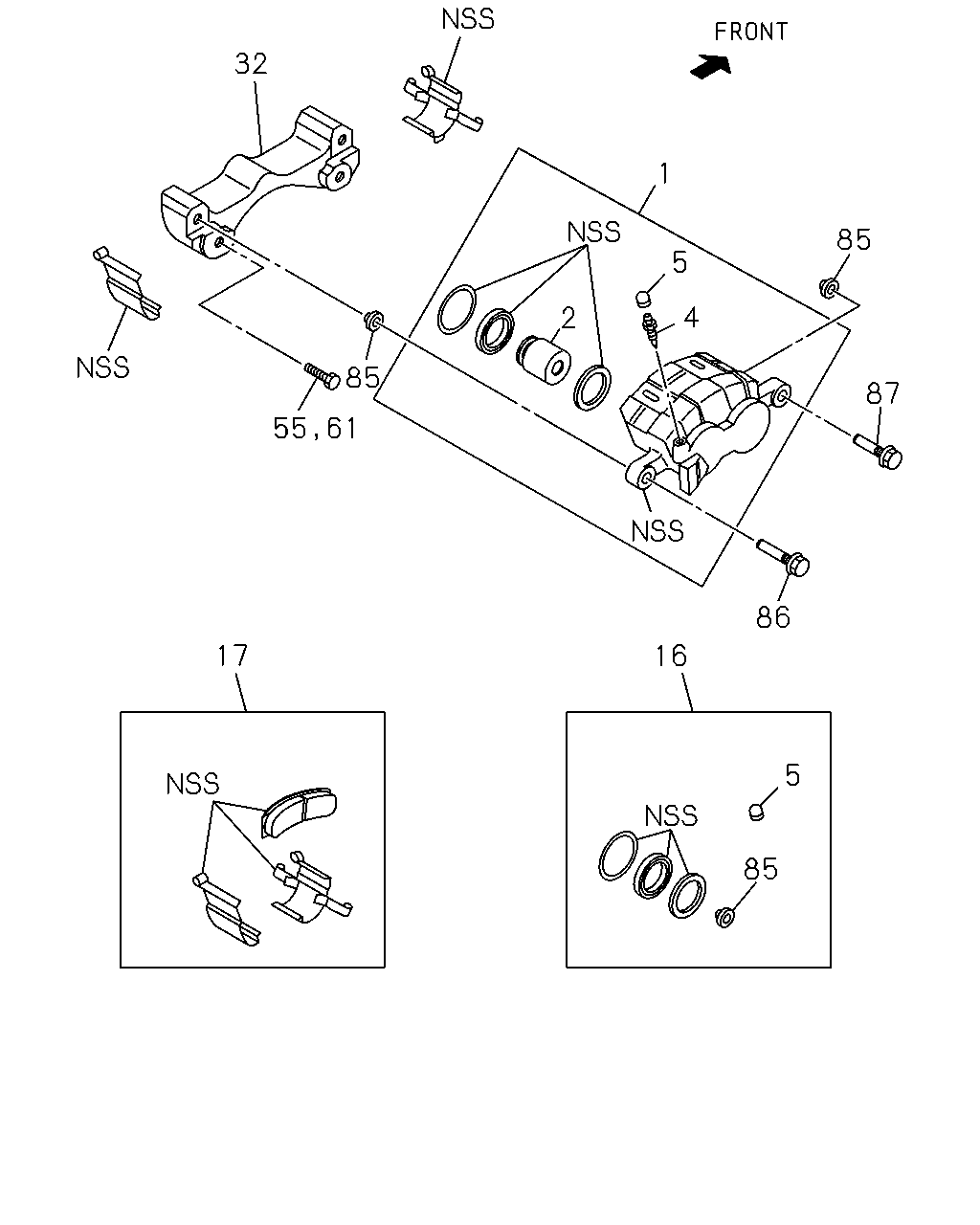

3-02 - FRONT DISC BRAKE CALIPER
▶
3-02 — FRONT DISC BRAKE CALIPER
(#43671) — 14 parça
32
1
85
5
4
2
85
87
86
17
16
5
85
55
61
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP)
8-97078-399-1
01
1
0106-
1
04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP)
8-97078-398-1
01
1
0106-
2
04.668 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP)
8-97078-402-0
04
1
0106-
4
04.666 SCREW; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP)
9-47615-027-0
02
1
0106-
5
04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP)
1-47619-009-0
02
1
0106-
16
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP)
8-97078-410-2
01
1
0106-
17
05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP)
8-97226-103-0
01
1
0106-0203
17
05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP)
8-97329-265-0
01
1
0204-
32
04.665 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP)
8-97078-404-1
02
1
0106-
55
04.681 BOLT; SUPPORT BRKT TO DISC BRK
FRT INDEPENDENT SUSPENSION(6PP)
8-97042-716-1
02
1
0106-
61
04.665 BOLT; SUPPORT BRKT TO KNUCKLE
FRT INDEPENDENT SUSPENSION(6PP) 04.681
8-97042-716-1
02
1
0106-
85
04.665 BOOT; PIN
FRT INDEPENDENT SUSPENSION(6PP)
8-97029-977-0
04
1
0106-
86
04.665 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(6PP)
8-97029-999-0
02
1
0106-
87
04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(6PP)
8-97029-998-0
02
1
0106-
