Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#43669) — 174 parça

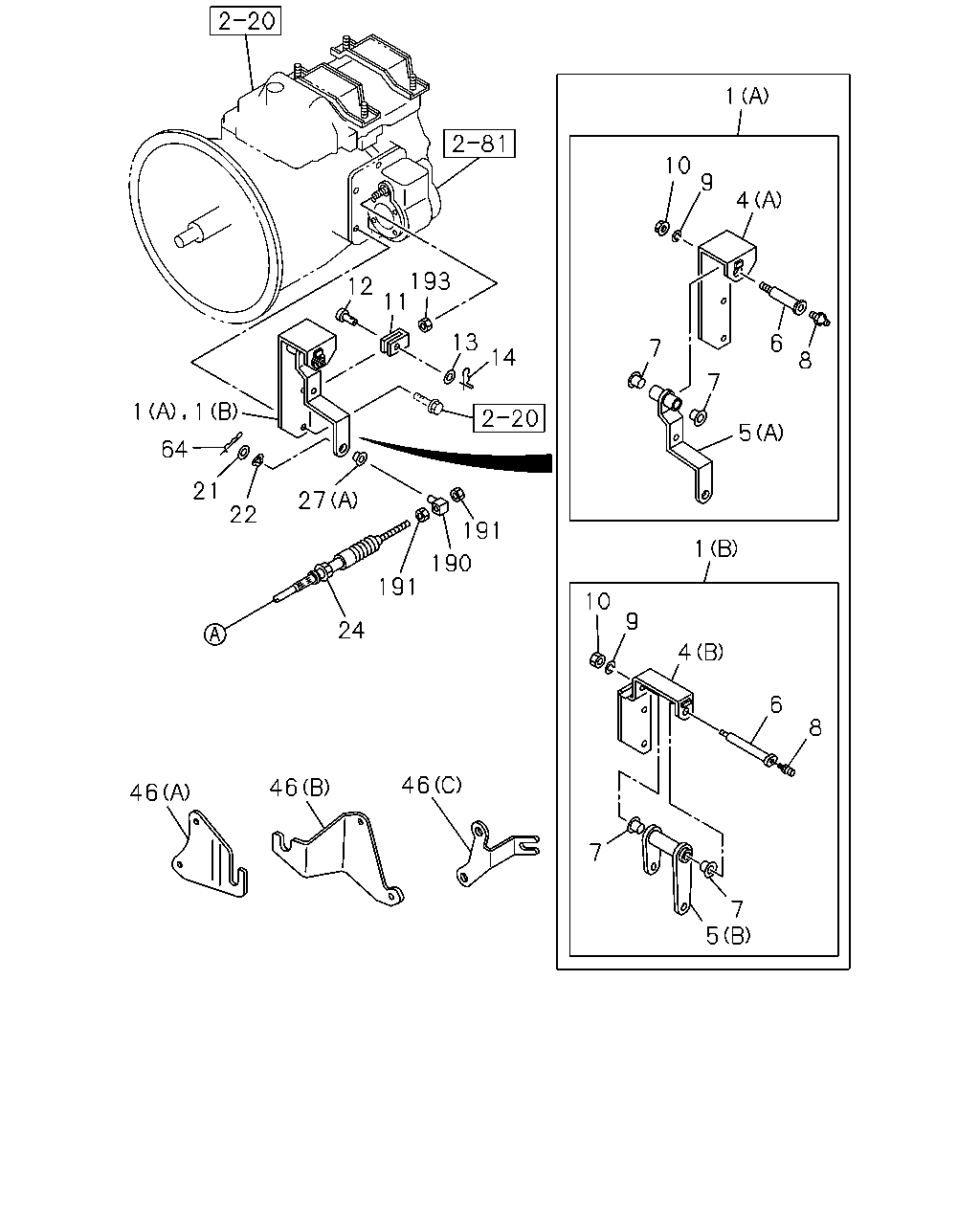

1 10 9 4 12 193 11 13 6 7 14 8 7 1 1 5 64 21 27 22 191 1 190 191 10 9 24 4 6 8 46 46 46 7 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-114-1	01	1	9811-	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (B)	8-94169-638-3	01	1	9811-0105			●	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (B)	8-94169-638-3	01	1	0106-			●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-97019-744-0	01	1	9811-	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (B)	8-94169-639-0	01	1	9811-0105			●	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (B)	8-94169-639-0	01	1	0106-			●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-115-0	01	1	9811-	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (B)	8-94147-828-0	01	1	9811-0105			●	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (B)	8-94147-828-0	01	1	0106-			●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94419-941-1	01	1	9811-	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94147-829-1	01	1	9811-0105			●	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94147-829-1	01	1	0106-			●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	9811-0105	●		●	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0106-	●	●	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	9811-0105	●		●	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0106-	●	●	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	9811-0105	●		●	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	0106-	●	●	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	9811-0105	●		●	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	0106-	●	●	●	●
11	04.439 JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66)	8-94342-085-0	01	1	9811-0105	●		●	●	●
11	04.439 JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66)	8-94342-085-0	01	1	0106-	●	●	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	9811-0105	●		●	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0106-	●	●	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	9811-0105	●		●	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	0106-	●	●	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	9811-0105	●		●	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	0106-	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER SGL CAB(NK*S) 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9811-0112	●
21	04.439 WASHER; PL,CONT LEVER 4JH1 ENG(RJX),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	0201-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9811-0105	●		●	●	●
21	04.439 WASHER; PL,CONT LEVER SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0106-	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER SGL CAB(NK*S) 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 16.674 ID=8.4	9-09160-508-0	01	1	9811-0105			●	●	●
21	04.439 WASHER; PL,CONT LEVER SGL CAB(NK*S) 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 16.674 ID=8.4	9-09160-508-0	01	1	0106-			●	●
22	04.439 WASHER; LK,LEVER SGL CAB(NK*S) 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	9811-0112	●
22	04.439 WASHER; LK,LEVER 4JH1 ENG(RJX),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	0201-	●	●
24	04.439 CABLE; PTO CONT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) L=2810	8-97260-319-1	01	1	0201-	●	●
24	04.439 CABLE; PTO CONT PTO FRT RATIO 1.195(6ZH) L=2838	8-97142-494-0	01	1	9811-0105	●
24	04.439 CABLE; PTO CONT SGL CAB(NK*S) 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) L=2810	8-97185-425-1	01	1	9811-	●
24	04.439 CABLE; PTO CONT SGL CAB(NK*S) 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) L=2690	8-97142-482-0	01	1	9811-0105			●	●	●
24	04.439 CABLE; PTO CONT SGL CAB(NK*S) 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) L=2690	8-97142-482-0	01	1	0106-			●	●
27	04.439 BUSHING; LEVER,PTO PTO FRT RATIO 1.195(6ZH) 04.032 (B)	5-33659-011-0	02	1	9811-0105	●
27	04.439 BUSHING; LEVER,PTO SGL CAB(NK*S) 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.042 (A)	8-94367-367-0	01	1	9811-0112	●
27	04.439 BUSHING; LEVER,PTO 4JH1 ENG(RJX),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.042 (A)	8-94367-367-0	01	1	0201-	●	●
46	04.439 BRACKET; PTO,TRANS SIDE 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) (C)	8-97260-329-0	01	1	0201-0204	●	●
46	04.439 BRACKET; PTO,TRANS SIDE 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) (C)	8-97351-069-0	01	1	0205-	●	●
46	04.439 BRACKET; PTO,TRANS SIDE SGL CAB(NK*S) 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (B)	8-97022-848-1	01	1	9811-9812	●
46	04.439 BRACKET; PTO,TRANS SIDE SGL CAB(NK*S) 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (B)	8-97219-994-0	01	1	9901-9910	●
46	04.439 BRACKET; PTO,TRANS SIDE SGL CAB(NK*S) 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (B)	8-97240-638-0	01	1	9911-	●
46	04.439 BRACKET; PTO,TRANS SIDE SGL CAB(NK*S) 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) (A)	8-94157-541-0	01	1	9811-0105			●	●	●
46	04.439 BRACKET; PTO,TRANS SIDE SGL CAB(NK*S) 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) (A)	8-94157-541-0	01	1	0106-			●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT DUAL RR TIRE&SHORT(NKC**C) PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 00.833 L=27.7	8-94111-137-0	01	1	9811-0105	●	●	●	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0106-	●	●	●	●
190	04.439 BOSS; LEVER,PTO SGL CAB(NK*S) 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-1	01	1	9811-0112	●
190	04.439 BOSS; LEVER,PTO 4JH1 ENG(RJX),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-1	01	1	0201-	●	●
191	04.439 NUT; BOSS SGL CAB(NK*S) 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 00.413 M6	9-09110-506-0	02	1	9811-0112	●
191	04.439 NUT; BOSS 4JH1 ENG(RJX),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 00.413 M6	9-09110-506-0	02	1	0201-	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	9811-0105	●		●	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	0106-	●	●	●	●

70 15 71 222 79 245 256 79 121 18 19 83 16 173 172 256 192 24 195 31 16 38 22 193 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH)	8-97143-217-0	01	1	9811-0105	●		●	●	●
15	04.439 LEVER ASM; PTO CONT SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66)	8-97143-217-1	01	1	0106-	●	●	●	●
16	04.439 CLIP; CABLE,PTO PTO FRT RATIO 1.195(6ZH) 02.559 (B)	8-94165-399-0	01	1	9811-0105	●
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 04.027 (A)	8-94152-900-0	01	1	9811-0105	●		●	●	●
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) 04.027 (A)	8-94152-900-0	01	1	0106-	●	●	●	●
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 00.833 L=27.7	8-94111-137-0	01	1	9811-0105	●		●	●	●
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0106-	●	●	●	●
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 16.674 ID=8.4	9-09160-508-0	01	1	9811-0105	●		●	●	●
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 16.674 ID=8.4	9-09160-508-0	01	1	0106-	●	●	●	●
22	04.439 WASHER; LK,LEVER SGL CAB(NK*S) 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	9811-0112	●
22	04.439 WASHER; LK,LEVER 4JH1 ENG(RJX),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	0201-	●	●
24	04.439 CABLE; PTO CONT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) L=2810	8-97260-319-1	01	1	0201-	●	●
24	04.439 CABLE; PTO CONT PTO FRT RATIO 1.195(6ZH) L=2838	8-97142-494-0	01	1	9811-0105	●
24	04.439 CABLE; PTO CONT SGL CAB(NK*S) 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) L=2810	8-97185-425-1	01	1	9811-	●
24	04.439 CABLE; PTO CONT SGL CAB(NK*S) 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) L=2690	8-97142-482-0	01	1	9811-0105			●	●	●
24	04.439 CABLE; PTO CONT SGL CAB(NK*S) 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) L=2690	8-97142-482-0	01	1	0106-			●	●
31	04.439 CLIP; BAND,CABLE SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66) 02.559 L=300	1-09707-001-1	01	1	9811-0105	●		●	●	●
31	04.439 CLIP; BAND,CABLE SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66) 02.559 L=300	1-09707-001-1	01	1	0106-	●	●	●	●
38	04.439 PIN; JOINT,CABLE TO LEVER SGL CAB(NK*S) 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 04.047	8-94153-035-0	01	1	9811-0012			●	●	●
38	04.439 PIN; JOINT,CABLE TO LEVER SGL CAB(NK*S) PTO FRT RATIO 1.195(6ZH) 04.047	8-94153-035-0	01	1	0101-0105	●
38	04.439 PIN; JOINT,CABLE TO LEVER SGL CAB(NK*S) 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 04.047	8-94153-035-0	01	1	0101-0105			●	●	●
38	04.439 PIN; JOINT,CABLE TO LEVER SGL CAB(NK*S) 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 04.047	8-94153-035-0	01	1	0106-			●	●
70	04.439 KNOB; DUMP CONT PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH)	8-94147-332-1	01	1	9811-0105	●		●	●	●
70	04.439 KNOB; DUMP CONT SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66)	8-94147-332-1	01	1	0106-	●	●	●	●
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH)	8-97143-218-0	01	1	9811-0105	●		●	●	●
71	04.439 LEVER; PTO CONT SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66)	8-97143-218-0	01	1	0106-	●	●	●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 04.008 ID=14 OD=16	8-94252-671-0	02	1	9811-0105	●		●	●	●
79	04.439 BUSHING; CONT LEVER SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66) 04.008 ID=14 OD=16	8-94252-671-0	02	1	0106-0204	●	●	●	●
79	04.439 BUSHING; CONT LEVER SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66) 04.792	8-94238-596-0	02	1	0205-	●	●	●	●
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH)	8-97118-977-0	01	1	9811-0105	●		●	●	●
83	04.439 BRACKET; CONT LEVER SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66)	8-97118-977-0	01	1	0106-	●	●	●	●
121	04.439 RING; SNAP PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 08.934 ID=10	9-09185-410-0	01	1	9811-0105	●		●	●	●
121	04.439 RING; SNAP SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66) 08.934 ID=10	9-09185-410-0	01	1	0106-	●	●	●	●
172	04.439 BOLT; BRKT PTO FRT RATIO 1.195(6ZH) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0105	●
172	04.439 BOLT; BRKT PTO FRT RATIO 1.195(6ZH) 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9811-0105	●
172	04.439 BOLT; BRKT SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●		●	●	●
172	04.439 BOLT; BRKT SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●	●
172	04.439 BOLT; BRKT SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. FIRE TRUCK CHASSIS(V4F) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-0105	●		●	●	●
172	04.439 BOLT; BRKT SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-	●	●	●	●
173	04.439 NUT; BRKT PTO FRT RATIO 1.195(6ZH) 08.917 M10 FLANGE	0-91150-210-0	01	1	9811-0105	●
173	04.439 NUT; BRKT SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012	●		●	●	●
173	04.439 NUT; BRKT DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012	●			●
173	04.439 NUT; BRKT DUAL RR TIRE&SHORT(NKC**C) PTO FRT RATIO 1.195(6ZH) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012	●			●
173	04.439 NUT; BRKT SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0101-0105	●		●	●	●
173	04.439 NUT; BRKT DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0101-0105	●			●
173	04.439 NUT; BRKT DUAL RR TIRE&SHORT(NKC**C) PTO FRT RATIO 1.195(6ZH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0101-0105	●			●
173	04.439 NUT; BRKT SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●	●
173	04.439 NUT; BRKT DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●			●
192	04.439 BOLT; PTO BRKT PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) M6X16 FLANGE	0-28680-616-0	01	1	9811-0105	●		●	●	●
192	04.439 BOLT; PTO BRKT SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66) M6X16 FLANGE	0-28680-616-0	01	1	0106-	●	●	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	9811-0105	●		●	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	0106-	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO FRT RATIO 1.195(6ZH) (D)	8-97106-210-0	01	1	9811-0105	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. REAR WIDE TREAD(V4T) (C)	8-97076-428-6	01	1	9811-9904	●			●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. REAR WIDE TREAD(V4T) (C)	8-97229-563-0	01	1	9905-	●			●
195	04.439 BRACKET; CONT CABLE SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. FIRE TRUCK CHASSIS(V4F) (B)	8-97085-695-3	01	1	9811-0105	●		●	●	●
195	04.439 BRACKET; CONT CABLE SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) (B)	8-97085-695-3	01	1	0106-	●	●	●	●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	9811-0012	●		●	●	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	9811-0012	●			●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) PTO FRT RATIO 1.195(6ZH) (A)	8-97076-429-6	01	1	9811-0012	●			●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0101-0105	●		●	●	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0101-0105	●			●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) PTO FRT RATIO 1.195(6ZH) (A)	8-97076-429-6	01	1	0101-0105	●			●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0106-	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0106-	●			●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 00.662 M8X14 FLANGE	0-28080-814-0	02	1	9811-0105	●		●	●	●
222	04.439 BOLT; LEVER SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	02	1	0106-	●	●	●	●
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	9811-0105	●		●	●	●
245	04.439 SCREW; COVER,CONT LEVER BRKT SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0106-	●	●	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) (B)	8-97118-983-0	01	1	9811-0105	●		●	●	●
256	04.439 PLATE; LOCK SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66) (B)	8-97118-983-0	01	1	0106-	●	●	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) (A)	8-97142-947-0	01	1	9811-0105	●		●	●	●
256	04.439 PLATE; LOCK SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66) (A)	8-97142-947-0	01	1	0106-	●	●	●	●
264	04.439 PROTECTOR; EDGE PTO FRT RATIO 1.195(6ZH) 03.485 W/SPRING CLIP	8-94400-156-0	01	1	9811-0105	●

45 36 25 43 29 27 42 42 36 28 30 41 26 27 173 172 195 172 195 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
25	04.439 LEVER ASM; PTO CONT PTO FRT RATIO 1.195(6ZH)	8-97062-284-0	01	1	9811-0105	●
26	04.439 LEVER ASM; PTO PTO FRT RATIO 1.195(6ZH)	8-97062-285-0	01	1	9811-0105	●
27	04.439 BUSHING; LEVER,PTO PTO FRT RATIO 1.195(6ZH) 04.032 (B)	5-33659-011-0	02	1	9811-0105	●
27	04.439 BUSHING; LEVER,PTO SGL CAB(NK*S) 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.042 (A)	8-94367-367-0	01	1	9811-0112	●
27	04.439 BUSHING; LEVER,PTO 4JH1 ENG(RJX),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.042 (A)	8-94367-367-0	01	1	0201-	●	●
28	04.439 BRACKET; CONT LEVER PTO FRT RATIO 1.195(6ZH)	8-97062-286-0	01	1	9811-0105	●
29	04.439 PIN; PTO LEVER PTO FRT RATIO 1.195(6ZH)	9-08234-262-0	01	1	9811-0105	●
30	04.439 PIN; SPLIT,PTO LEVER PTO FRT RATIO 1.195(6ZH) 01.271 OD=3.7 L=20	9-08114-020-0	01	1	9811-0105	●
36	04.439 BOLT; PTO BRKT PTO FRT RATIO 1.195(6ZH) 03.604 M10X16 FLANGE	0-28181-016-0	04	1	9811-0105	●
41	04.439 PIN; SPLIT,SHIFT ROD TO LEVER PTO FRT RATIO 1.195(6ZH) 04.662 L=27.7	1-09747-005-0	01	1	9811-0105	●
42	04.439 WASHER; PL,SHIFT ROD TO LEVER PTO FRT RATIO 1.195(6ZH) 00.206 ID=8.4	9-09164-508-0	02	1	9811-0105	●
43	04.439 PIN; JOINT,SHIFT ROD TO LEVER PTO FRT RATIO 1.195(6ZH)	9-08230-827-0	01	1	9811-0105	●
45	04.439 PIPE ASM; WATER,PTO DUAL RR TIRE&SHORT(NKC**C) 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	5-09659-006-0	02	1	9811-0105	●
172	04.439 BOLT; BRKT PTO FRT RATIO 1.195(6ZH) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0105	●
172	04.439 BOLT; BRKT PTO FRT RATIO 1.195(6ZH) 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9811-0105	●
172	04.439 BOLT; BRKT SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●		●	●	●
172	04.439 BOLT; BRKT SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●	●
172	04.439 BOLT; BRKT SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. FIRE TRUCK CHASSIS(V4F) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-0105	●		●	●	●
172	04.439 BOLT; BRKT SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-	●	●	●	●
173	04.439 NUT; BRKT PTO FRT RATIO 1.195(6ZH) 08.917 M10 FLANGE	0-91150-210-0	01	1	9811-0105	●
173	04.439 NUT; BRKT SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012	●		●	●	●
173	04.439 NUT; BRKT DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012	●			●
173	04.439 NUT; BRKT DUAL RR TIRE&SHORT(NKC**C) PTO FRT RATIO 1.195(6ZH) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012	●			●
173	04.439 NUT; BRKT SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0101-0105	●		●	●	●
173	04.439 NUT; BRKT DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0101-0105	●			●
173	04.439 NUT; BRKT DUAL RR TIRE&SHORT(NKC**C) PTO FRT RATIO 1.195(6ZH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0101-0105	●			●
173	04.439 NUT; BRKT SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●	●
173	04.439 NUT; BRKT DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●			●
195	04.439 BRACKET; CONT CABLE PTO FRT RATIO 1.195(6ZH) (D)	8-97106-210-0	01	1	9811-0105	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. REAR WIDE TREAD(V4T) (C)	8-97076-428-6	01	1	9811-9904	●			●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. REAR WIDE TREAD(V4T) (C)	8-97229-563-0	01	1	9905-	●			●
195	04.439 BRACKET; CONT CABLE SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. FIRE TRUCK CHASSIS(V4F) (B)	8-97085-695-3	01	1	9811-0105	●		●	●	●
195	04.439 BRACKET; CONT CABLE SGL CAB(NK*S) PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) (B)	8-97085-695-3	01	1	0106-	●	●	●	●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	9811-0012	●		●	●	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	9811-0012	●			●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) PTO FRT RATIO 1.195(6ZH) (A)	8-97076-429-6	01	1	9811-0012	●			●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0101-0105	●		●	●	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0101-0105	●			●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) PTO FRT RATIO 1.195(6ZH) (A)	8-97076-429-6	01	1	0101-0105	●			●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0106-	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0106-	●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
