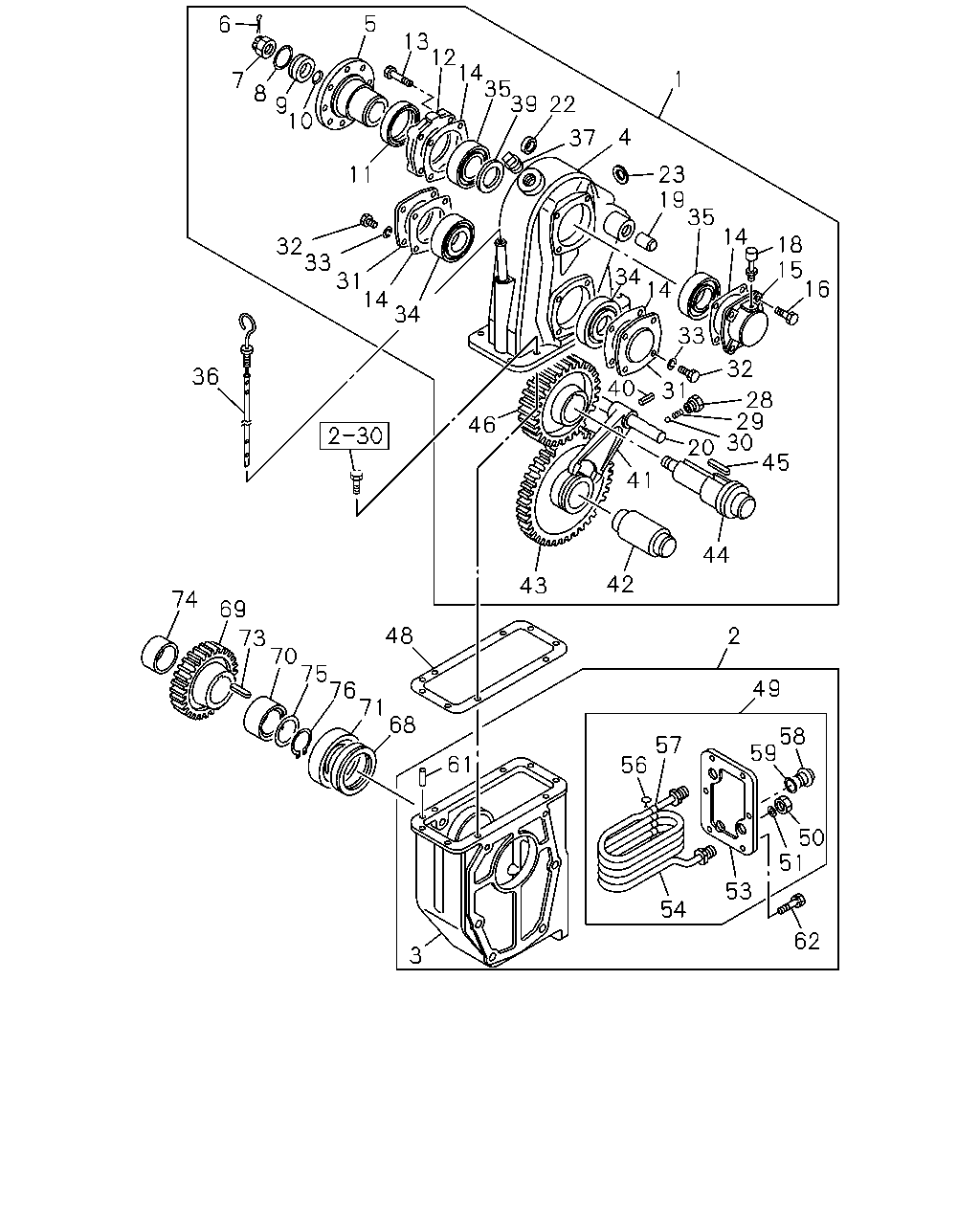

2-80 — POWER TAKE OFF; TRANSMISSION FRONT (#43667) — 61 parça

5 6 13 12 14 35 39 1 7 8 9 10 22 4 37 23 19 35 11 14 18 15 16 32 33 31 14 34 34 14 33 32 40 36 31 28 29 30 45 46 20 41 44 42 43 74 69 48 2 73 70 75 76 71 68 49 58 59 57 56 61 50 51 53 54 62 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.439 CASE ASM; GEAR 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	8-97042-457-0	01	1	9811-0105
2	04.439 CASE ASM; GEAR LWR 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	8-97075-980-1	01	1	9811-0105
3	04.439 CASE; GEAR 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	8-97075-981-1	01	1	9811-0105
4	04.439 CASE; GEAR,UPR,FRT PTO 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	8-97042-458-0	01	1	9811-0105
5	04.439 FLANGE; OUTPUT SHAFT,PTO 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	1-38512-014-0	01	1	9811-0105
6	04.439 PIN; SPLIT,OUTPUT SHAFT 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9811-0105
7	04.439 NUT; FLANGE FIX 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) 06.174 M18 SLOTTED	9-99116-418-0	01	1	9811-0105
8	04.439 GASKET; WASHER 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) ID=39.7	9-09561-240-0	01	1	9811-0105
9	04.439 WASHER; OUTPUT,FLANGE 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	1-38229-004-0	01	1	9811-0105
10	04.439 GASKET; OUTPUT SHAFT,FRT PTO 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) ID=17.8	9-09561-318-0	01	1	9811-0105
11	04.439 SEAL; OIL,OUTPUT SHAFT 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	1-09625-159-0	01	1	9811-0105
12	04.439 RETAINER; UPR CASE 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	1-38175-002-0	01	1	9811-0105
13	04.439 BOLT; RET FIX 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) 04.525 M10X40 W/LK WASHER	0-50051-040-0	04	1	9811-0105
14	04.439 GASKET; BRG COVER 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	1-38176-001-0	04	1	9811-0105
15	04.439 COVER; BRG,UPR CASE 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	1-38151-011-0	01	1	9811-0105
16	04.439 BOLT; BRG COVER FIX 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) 04.665 M10X22 W/LK WASHER	0-50051-022-0	04	1	9811-0105
18	04.439 BREATHER 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) 04.104	8-97165-939-0	01	1	9811-0105
19	04.439 COVER; SHIFT ROD 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	9-33545-001-0	01	1	9811-0105
20	04.439 ROD; GEAR SHIFTER 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	5-38371-001-2	01	1	9811-0105
22	04.439 SEAL; OIL,SHIFT ROD 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	1-09625-158-0	01	1	9811-0105
23	04.439 PLUG; PLATE 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	9-09201-328-0	01	1	9811-0105
28	04.439 HOLDER; SPR,SHIFT ROD 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	1-38379-003-0	01	1	9811-0105
29	04.439 SPRING; SHIFTER ROD 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	9-09940-402-0	01	1	9811-0105
30	04.439 BALL; SHIFTER ROD 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) 04.311	9-00097-009-0	01	1	9811-0105
31	04.439 COVER; IDLE SHAFT 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	1-38151-006-0	02	1	9811-0105
32	04.439 BOLT; COVER,IDLE 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) M10X18	0-23801-018-0	08	1	9811-0105
33	04.439 WASHER; LK,COVER 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) 00.002 ID=10.2	9-09150-510-0	08	1	9811-0105
34	04.439 BEARING; IDLE GEAR SHAFT,FRT PTO 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) NSK	8-97043-415-0	02	1	9811-0105
34	04.439 BEARING; IDLE GEAR SHAFT,FRT PTO 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) JTEKT	8-97043-416-0	02	1	9811-0105
35	04.439 BEARING; OUTPUT SHAFT 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) JTEKT	5-09800-057-0	02	1	9811-0105
35	04.439 BEARING; OUTPUT SHAFT 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) NSK	5-09800-058-0	02	1	9811-0105
36	04.439 GAUGE; OIL LEVEL 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	5-38129-004-0	01	1	9811-0105
37	04.439 PLUG; OIL FILLER 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	9-09204-326-0	01	1	9811-0105
39	04.439 WASHER; THRUST,OUTPUT GEAR 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	1-38226-038-0	01	1	9811-0105
40	04.439 PIN; SPR,SHIFTER ROD 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	9-09878-614-0	01	1	9811-0105
41	04.439 ARM; SHIFT,FRT PTO 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	5-38361-001-0	01	1	9811-0105
42	04.439 SPINDLE; IDLE GEAR 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	5-38211-001-1	01	1	9811-0105
43	04.439 GEAR; IDLE SHAFT,FRT PTO 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	5-38241-010-1	01	1	9811-0105
44	04.439 SHAFT; OUTPUT,FRT PTO 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	5-38221-001-0	01	1	9811-0105
45	04.439 KEY; FEATHER 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	9-08031-040-0	02	1	9811-0105
46	04.439 GEAR; OUTPUT,FRT PTO 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	8-97042-459-0	01	1	9811-0105
48	04.439 GASKET; GEAR CASE,UPR TO LWR 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	5-38113-003-0	01	1	9811-0105
49	04.439 PIPE ASM; WATER 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	8-94456-964-0	01	1	9811-0105
50	04.439 NUT; WATER PIPE CONN,FRT PTO 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	5-09409-017-0	02	1	9811-0105
51	04.439 GASKET; WATER PIPE 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	9-09561-117-0	02	1	9811-0105
53	04.439 COVER; SIDE,FRT PTO 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	5-38182-002-1	01	1	9811-0105
54	04.439 PIPE; WATER,OIL COOLING 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	8-94456-965-0	01	1	9811-0105
56	04.439 WIRE; PIPE HOLDER FIX 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	5-09780-010-0	01	1	9811-0105
57	04.439 CLIP 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	8-94456-967-0	02	1	9811-0105
58	04.439 PLUG; DRAIN,FRT PTO 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) 05.400 M24X17 FLANGE	1-09604-022-0	01	1	9811-0105
59	04.439 GASKET; DRAIN PLUG 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) 04.109 ID=26.8	9-09920-605-0	01	1	9811-0105
61	04.439 PIN; KNOCK 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) 04.510 OD=10 L=20	8-97135-423-0	02	1	9811-0105
62	04.439 BOLT; COOLER COVER 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9811-0105
68	04.439 SEAL; OIL 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) NOK	8-97088-172-0	01	1	9811-0105
69	04.439 GEAR; DRIVE,TRANS SHAFT,FRT PTO 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) Z=49	8-97042-463-0	01	1	9811-0105
70	04.439 COLLAR; TOP GEAR SHAFT,FRT PTO 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	8-97096-930-0	01	1	9811-0105
71	04.439 BEARING; PTO,GEAR CASE,FRT 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	8-94433-719-0	01	1	9811-0105
73	04.439 KEY; FEATHER 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	9-08031-040-0	01	1	9811-0105
74	04.439 COLLAR; FRT PTO 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) 57X22.5	8-94404-492-0	01	1	9811-0105
75	04.439 GASKET; DIST COLLAR,RR 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH)	9-09561-339-0	01	1	9811-0105
76	04.439 RING; SNAP,FRT BRG,TOP SHAFT 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) PTO FRT RATIO 1.195(6ZH) 04.353 ID=41.5	5-09589-009-0	02	1	9811-0105
