2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#43665) — 359 parça

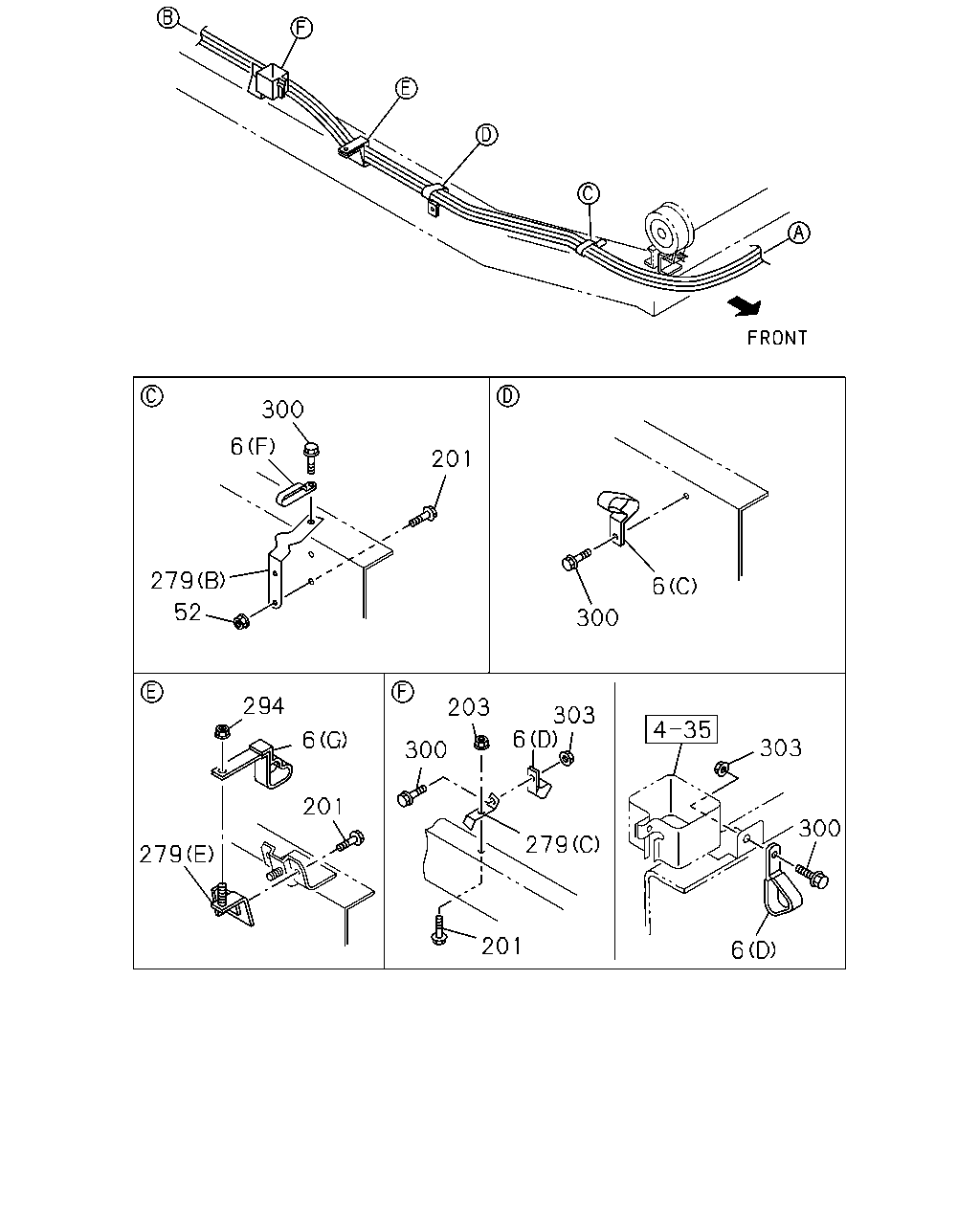

çizim 46623
300 6 201 279 6 52 300 294 203 303 6 6 303 300 201 300 279 279 201 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.686 (H) ID=21 L=24 		8-94176-807-1 01 1 0201- ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.785 (I) 		8-94458-385-1 01 1 0201- ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) (C) 		8-97036-331-1 01 1 9811-9903 ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97036-331-1 01 1 9904-0105 ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97036-331-1 01 1 0106- ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) (E) 		8-97039-295-0 01 1 9811- ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 00.854 (A) ID=22.2 		1-09701-209-1 01 1 9811-0105 ●
6 04.047 CLIP; CABLE
FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97036-330-1 01 1 0106-0112 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97036-330-1 01 1 0201- ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (A) ID=19.2 		8-97211-011-0 01 1 9811-0105 ●
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 9811-0105 ● ● ● ●
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0106- ● ● ● ●
6 04.047 CLIP; CABLE
(F) 		8-97137-589-0 01 1 9811-0105 ● ● ● ●
6 04.047 CLIP; CABLE
(F) 		8-97137-589-0 01 1 0106- ● ● ● ●
6 04.047 CLIP; CABLE
EXC. FIRE TRUCK CHASSIS(V4F) (A) ID=19.2 		8-97211-011-0 02 1 9811-0105 ● ● ● ●
6 04.047 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 0106- ● ● ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (C) 		8-97036-329-2 01 1 9811-9903 ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97036-329-2 01 1 9904-0105 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (C) 		8-97036-329-2 01 1 9904-0105 ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97036-329-2 01 1 0106- ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97036-329-2 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97036-332-1 01 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97036-332-1 01 1 0106- ● ●
52 04.047 NUT; BRKT
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) SMALL DUAL RR TIRE&SHORT(NKN6SC) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0012 ● ● ● ●
52 04.047 NUT; BRKT
DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0012 ● ●
52 04.047 NUT; BRKT
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) SMALL DUAL RR TIRE&SHORT(NKN6SC) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0101-0105 ● ● ● ●
52 04.047 NUT; BRKT
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) REAR WIDE TREAD(V4T) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0101-0105 ● ●
52 04.047 NUT; BRKT
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0106- ● ● ●
52 04.047 NUT; BRKT
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) REAR WIDE TREAD(V4T) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0106- ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0112 ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0112 ● ●
201 04.032 BOLT; BRKT
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201- ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201- ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201- ● ●
201 04.032 BOLT; BRKT
AIR INTAKE REAR VERTICAL<KJ3> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9811-0105 ● ● ● ●
201 04.032 BOLT; BRKT
AIR INTAKE REAR VERTICAL<KJ3> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0106- ● ● ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0106- ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0106- ●
203 04.032 NUT; BRKT FIX
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ●
203 04.032 NUT; BRKT FIX
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,DUMP CHASSIS(V4D) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ●
203 04.032 NUT; BRKT FIX
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
203 04.032 NUT; BRKT FIX
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97289-620-0 01 1 0201- ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HF1 ENG(RLS) (A) 		8-97028-496-1 01 1 9811- ●
279 04.047 BRACKET; CABLE TO FRAME
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) EXC. REAR WIDE TREAD(V4T) (B) 		8-97106-662-0 01 1 9811- ● ●
279 04.047 BRACKET; CABLE TO FRAME
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) SMALL DUAL RR TIRE&SHORT(NKN6SC) (B) 		8-97101-709-1 01 1 9811-0105 ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) REAR WIDE TREAD(V4T) (B) 		8-97101-709-1 01 1 9811-0105 ● ●
279 04.047 BRACKET; CABLE TO FRAME
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) SMALL DUAL RR TIRE&SHORT(NKN6SC) (B) 		8-97101-709-1 01 1 0106- ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) REAR WIDE TREAD(V4T) (B) 		8-97101-709-1 01 1 0106- ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (C) 		8-97103-234-0 01 1 9811-0105 ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (C) 		8-97103-234-0 01 1 0106- ● ●
279 04.047 BRACKET; CABLE TO FRAME
FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97066-629-5 01 1 0106- ●
294 00.854 NUT; CLIP
FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106-0112 ●
294 00.854 NUT; CLIP
FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0201- ● ●
294 00.854 NUT; CLIP
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0201- ● ●
300 00.854 BOLT; CLIP
4JH1 ENG(RJX) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0201- ● ●
300 00.854 BOLT; CLIP
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9811-0105 ● ● ● ●
300 00.854 BOLT; CLIP
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0106- ● ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ●
300 00.854 BOLT; CLIP
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0112 ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0112 ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0112 ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201- ● ● ● ●
300 00.854 BOLT; CLIP
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201- ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201- ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106-0112 ● ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0201- ● ● ● ●
303 00.855 NUT; CLIP
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0201- ● ●

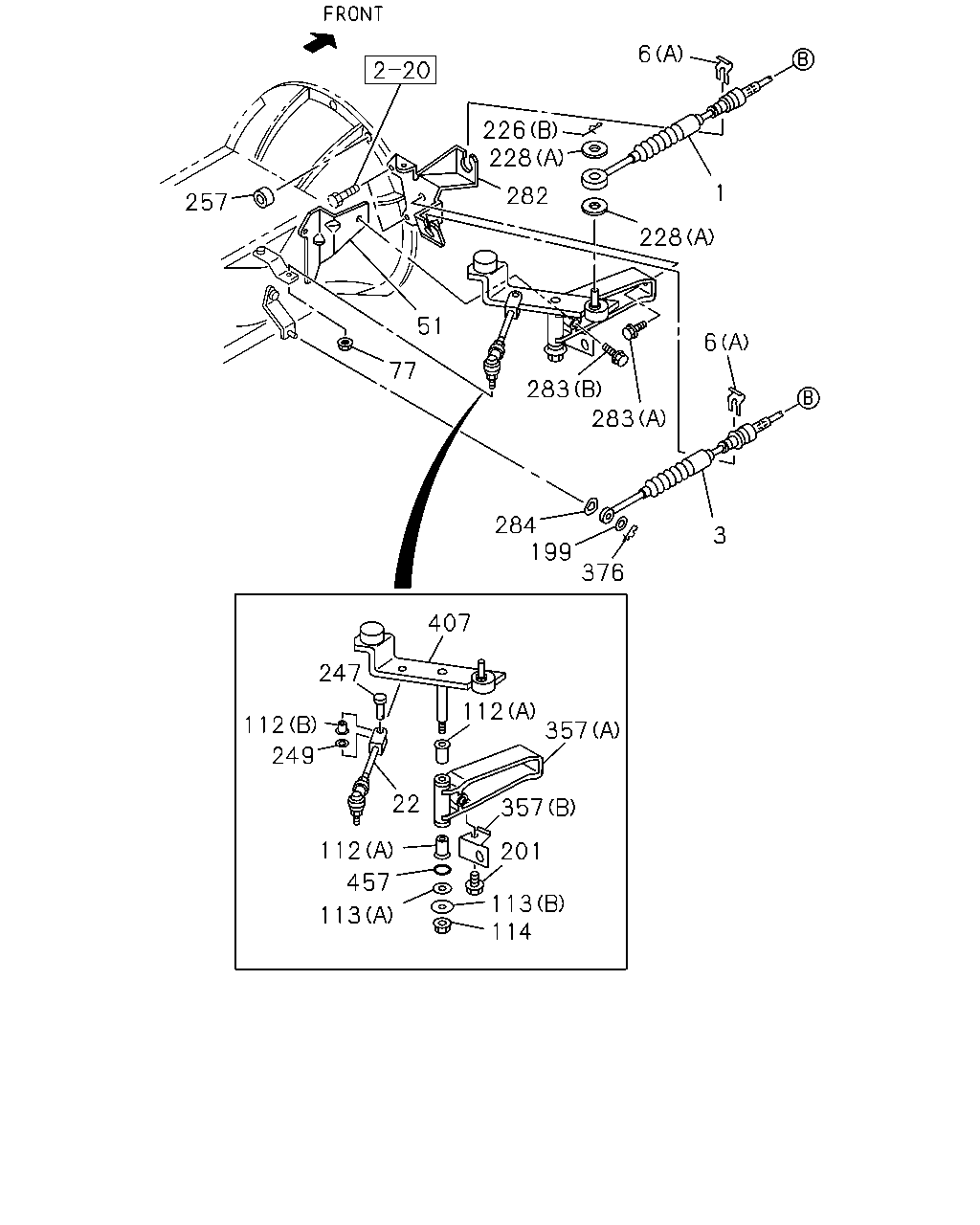

çizim 46710
6 226 228 1 282 257 228 51 6 77 283 283 284 199 3 376 407 247 112 357 112 249 22 357 112 201 457 113 114 113
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.854 CABLE; SHIFT,TRANS CONT
4JH1 ENG(RJX) 		8-97305-499-0 01 1 0201- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> FIRE TRUCK CHASSIS(V4F) 		8-97119-038-1 01 1 9811-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> EXC. FIRE TRUCK CHASSIS(V4F) 		8-97082-943-2 01 1 9811-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS) 		8-97082-943-2 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2540 		8-97089-986-3 01 1 9811-0105 ● ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
L=2540 		8-97089-986-3 01 1 0106- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4JH1 ENG(RJX) 		8-97289-615-1 01 1 0201- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> FIRE TRUCK CHASSIS(V4F) 		8-97119-040-1 01 1 9811-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> EXC. FIRE TRUCK CHASSIS(V4F) L=2714 		8-97082-947-1 01 1 9811-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS) L=2714 		8-97082-947-2 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2684 		8-97089-987-2 01 1 9811-0105 ● ● ●
3 00.852 CABLE; SELECT,TRANS CONT
L=2684 		8-97089-987-3 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.686 (H) ID=21 L=24 		8-94176-807-1 01 1 0201- ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.785 (I) 		8-94458-385-1 01 1 0201- ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) (C) 		8-97036-331-1 01 1 9811-9903 ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97036-331-1 01 1 9904-0105 ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97036-331-1 01 1 0106- ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) (E) 		8-97039-295-0 01 1 9811- ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 00.854 (A) ID=22.2 		1-09701-209-1 01 1 9811-0105 ●
6 04.047 CLIP; CABLE
FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97036-330-1 01 1 0106-0112 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97036-330-1 01 1 0201- ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (A) ID=19.2 		8-97211-011-0 01 1 9811-0105 ●
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 9811-0105 ● ● ● ●
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0106- ● ● ● ●
6 04.047 CLIP; CABLE
(F) 		8-97137-589-0 01 1 9811-0105 ● ● ● ●
6 04.047 CLIP; CABLE
(F) 		8-97137-589-0 01 1 0106- ● ● ● ●
6 04.047 CLIP; CABLE
EXC. FIRE TRUCK CHASSIS(V4F) (A) ID=19.2 		8-97211-011-0 02 1 9811-0105 ● ● ● ●
6 04.047 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 0106- ● ● ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (C) 		8-97036-329-2 01 1 9811-9903 ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97036-329-2 01 1 9904-0105 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (C) 		8-97036-329-2 01 1 9904-0105 ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97036-329-2 01 1 0106- ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97036-329-2 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97036-332-1 01 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97036-332-1 01 1 0106- ● ●
22 04.035 ROD; CONT,SHIFT 8-97174-058-0 01 1 9811-0105 ● ● ●
22 04.035 ROD; CONT,SHIFT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97174-058-0 01 1 0106- ● ●
22 04.035 ROD; CONT,SHIFT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97134-286-0 01 1 0106- ●
51 04.010 BRACKET; GEAR CONT
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97029-286-0 01 1 9811-0105 ● ● ●
51 04.010 BRACKET; GEAR CONT
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97029-286-0 01 1 0106- ● ●
77 04.037 NUT; LK,BALL JOINT,CONT ROD
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-9905 ● ● ●
77 04.037 NUT; LK,BALL JOINT,CONT ROD
M8 T=8.0 		8-94363-045-0 01 1 9906-0105 ● ● ●
77 04.037 NUT; LK,BALL JOINT,CONT ROD
M8 T=8.0 		8-94363-045-0 01 1 0106- ● ●
112 04.046 BUSHING; RELAY LEVER
(A) 		8-97174-057-0 02 1 9811-0105 ● ● ●
112 04.046 BUSHING; RELAY LEVER
(A) 		8-97174-057-0 02 1 0106- ● ●
112 04.046 BUSHING; RELAY LEVER
(B) 		8-97174-060-0 01 1 9811-0105 ● ● ●
112 04.046 BUSHING; RELAY LEVER
(B) 		8-97174-060-0 01 1 0106- ● ●
113 04.046 WASHER; RELAY LEVER
16.682 (A) ID=10.5 OD=22 		9-09160-610-0 02 1 9811-0105 ● ● ●
113 04.046 WASHER; RELAY LEVER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 16.682 (A) ID=10.5 OD=22 		9-09160-610-0 02 1 0106- ● ●
113 04.046 WASHER; RELAY LEVER
08.929 (B) ID=15 OD=36 		9-09164-714-0 01 1 9811-0105 ● ● ●
113 04.046 WASHER; RELAY LEVER
08.929 (B) ID=15 OD=36 		9-09164-714-0 01 1 0106- ● ●
113 04.046 WASHER; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) 16.682 (A) ID=10.5 OD=22 		9-09160-610-0 01 1 0106- ●
114 04.037 NUT; RELAY LEVER
04.785 M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ● ●
114 04.037 NUT; RELAY LEVER
04.785 M10 FLANGE 		0-91150-110-0 01 1 0106- ● ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 9811-0105 ● ● ● ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 0106- ● ● ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0112 ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0112 ● ●
201 04.032 BOLT; BRKT
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201- ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201- ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201- ● ●
201 04.032 BOLT; BRKT
AIR INTAKE REAR VERTICAL<KJ3> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9811-0105 ● ● ● ●
201 04.032 BOLT; BRKT
AIR INTAKE REAR VERTICAL<KJ3> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0106- ● ● ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0106- ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0106- ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 9811-0105 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 0106- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9811-0105 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0106- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9811-0105 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0106- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 9811-0105 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 0106- ● ● ● ●
247 04.010 PIN; CONT ROD TO LEVER
04.037 		9-09876-059-1 01 1 9811-0105 ● ● ●
247 04.010 PIN; CONT ROD TO LEVER
04.037 		9-09876-059-1 01 1 0106- ● ●
249 04.010 WASHER; RUBBER,CONT ROD TO LEVER
04.037 ID=8.5 T=1.5 		9-09851-889-0 01 1 9811-0105 ● ● ●
249 04.010 WASHER; RUBBER,CONT ROD TO LEVER
04.037 ID=8.5 T=1.5 		9-09851-889-0 01 1 0106- ● ●
257 00.851 PIECE; DIST,RELAY LEVER
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94369-173-0 01 1 9811-0105 ● ● ● ●
257 00.851 PIECE; DIST,RELAY LEVER
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94369-173-0 01 1 0106-0112 ● ● ●
257 00.851 PIECE; DIST,RELAY LEVER
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94369-173-0 01 1 0201- ● ●
282 04.010 BRACKET; TRANS SIDE
4JH1 ENG(RJX) 		8-97260-120-0 01 1 0201- ● ●
282 04.010 BRACKET; TRANS SIDE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97043-131-1 01 1 9811-0105 ●
282 04.010 BRACKET; TRANS SIDE
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97182-260-0 01 1 9811-0105 ●
282 04.010 BRACKET; TRANS SIDE
4HF1 ENG(RLS) 		8-97182-260-0 01 1 0106- ●
282 04.010 BRACKET; TRANS SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97034-142-1 01 1 9811-0105 ● ● ●
282 04.010 BRACKET; TRANS SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97034-142-1 01 1 0106- ● ●
283 04.037 BOLT; RELAY LEVER
03.405 (A) M10X25 FLANGE 		0-28681-025-0 01 1 9811-0105 ● ● ●
283 04.037 BOLT; RELAY LEVER
03.405 (A) M10X25 FLANGE 		0-28681-025-0 01 1 0106- ● ●
283 04.037 BOLT; RELAY LEVER
03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 9811-0105 ● ● ●
283 04.037 BOLT; RELAY LEVER
03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0106- ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 9811-0105 ● ● ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0106- ● ● ● ●
357 04.010 BRACKET; RELAY LEVER
(A) 		8-97182-166-0 01 1 9811-0105 ● ● ●
357 04.010 BRACKET; RELAY LEVER
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97182-166-0 01 1 0106- ● ●
357 04.010 BRACKET; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97089-692-0 01 1 0106- ●
357 04.010 BRACKET; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97174-056-0 01 1 0106- ●
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 9811-0105 ● ● ● ●
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 0106- ● ● ● ●
407 04.030 LEVER; RELAY,SHIFT 8-97174-055-1 01 1 9811-0105 ● ● ●
407 04.030 LEVER; RELAY,SHIFT 8-97174-055-2 01 1 0106- ● ●
457 04.010 GASKET
ID=13.8 		9-09561-114-0 02 1 9811-0105 ● ● ●
457 04.010 GASKET
ID=13.8 		9-09561-114-0 02 1 0106- ● ●

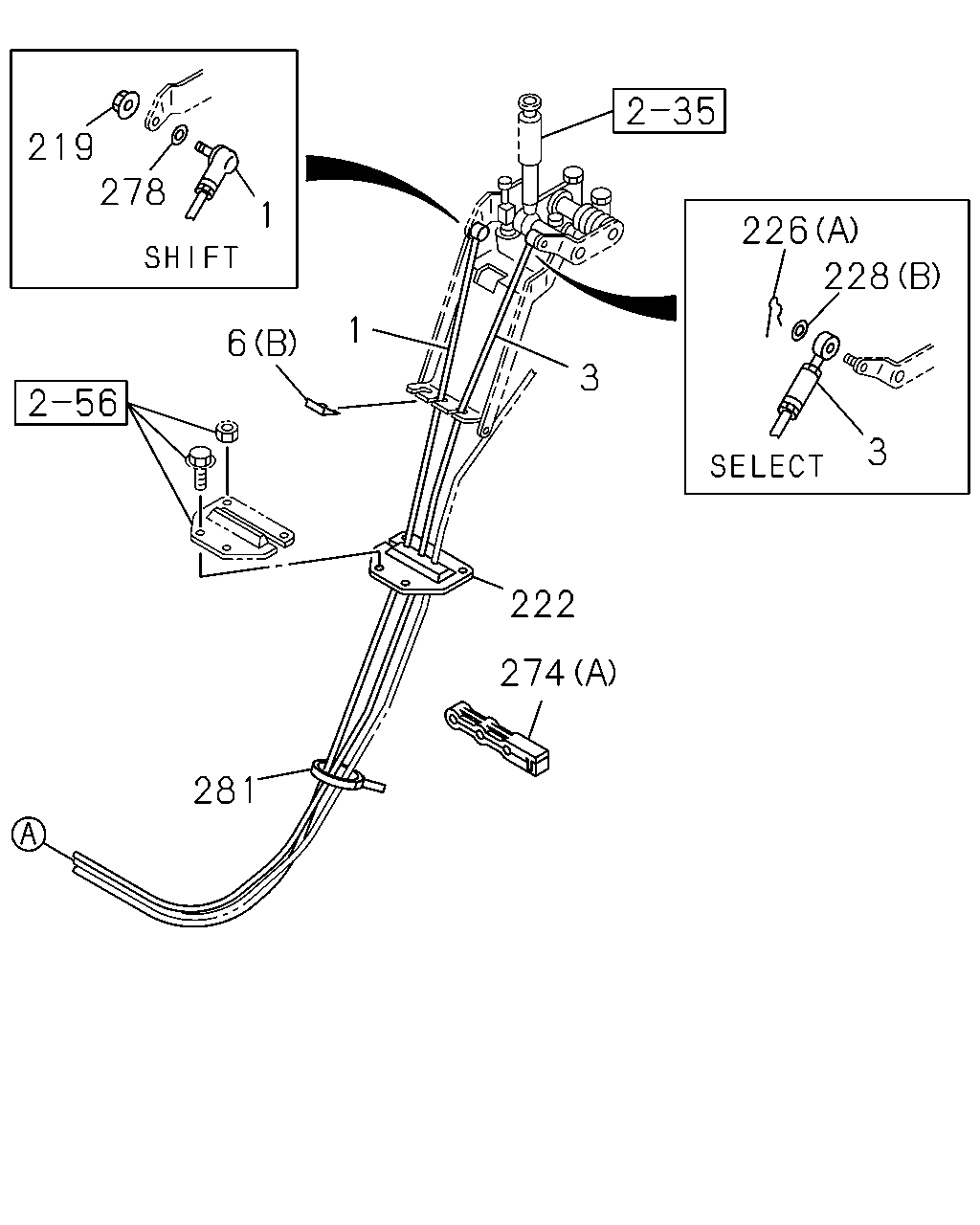

çizim 46749
219 278 1 226 228 1 6 3 3 222 274 281
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.854 CABLE; SHIFT,TRANS CONT
4JH1 ENG(RJX) 		8-97305-499-0 01 1 0201- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> FIRE TRUCK CHASSIS(V4F) 		8-97119-038-1 01 1 9811-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> EXC. FIRE TRUCK CHASSIS(V4F) 		8-97082-943-2 01 1 9811-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS) 		8-97082-943-2 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2540 		8-97089-986-3 01 1 9811-0105 ● ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
L=2540 		8-97089-986-3 01 1 0106- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4JH1 ENG(RJX) 		8-97289-615-1 01 1 0201- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> FIRE TRUCK CHASSIS(V4F) 		8-97119-040-1 01 1 9811-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> EXC. FIRE TRUCK CHASSIS(V4F) L=2714 		8-97082-947-1 01 1 9811-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS) L=2714 		8-97082-947-2 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2684 		8-97089-987-2 01 1 9811-0105 ● ● ●
3 00.852 CABLE; SELECT,TRANS CONT
L=2684 		8-97089-987-3 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.686 (H) ID=21 L=24 		8-94176-807-1 01 1 0201- ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.785 (I) 		8-94458-385-1 01 1 0201- ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) (C) 		8-97036-331-1 01 1 9811-9903 ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97036-331-1 01 1 9904-0105 ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97036-331-1 01 1 0106- ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) (E) 		8-97039-295-0 01 1 9811- ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 00.854 (A) ID=22.2 		1-09701-209-1 01 1 9811-0105 ●
6 04.047 CLIP; CABLE
FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97036-330-1 01 1 0106-0112 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97036-330-1 01 1 0201- ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (A) ID=19.2 		8-97211-011-0 01 1 9811-0105 ●
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 9811-0105 ● ● ● ●
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0106- ● ● ● ●
6 04.047 CLIP; CABLE
(F) 		8-97137-589-0 01 1 9811-0105 ● ● ● ●
6 04.047 CLIP; CABLE
(F) 		8-97137-589-0 01 1 0106- ● ● ● ●
6 04.047 CLIP; CABLE
EXC. FIRE TRUCK CHASSIS(V4F) (A) ID=19.2 		8-97211-011-0 02 1 9811-0105 ● ● ● ●
6 04.047 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 0106- ● ● ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (C) 		8-97036-329-2 01 1 9811-9903 ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97036-329-2 01 1 9904-0105 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (C) 		8-97036-329-2 01 1 9904-0105 ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97036-329-2 01 1 0106- ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97036-329-2 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97036-332-1 01 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97036-332-1 01 1 0106- ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-9905 ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 9906-0105 ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 0106- ● ● ● ●
222 04.010 GROMMET; CABLE 8-97089-851-0 01 1 9811-0105 ● ● ● ●
222 04.010 GROMMET; CABLE 8-97089-851-0 01 1 0106- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 9811-0105 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 0106- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9811-0105 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0106- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9811-0105 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0106- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 9811-0105 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 0106- ● ● ● ●
274 04.008 CLIP; CONT CABLE
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.047 (B) 		8-97036-333-1 01 1 0201- ● ●
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97093-491-1 01 1 9811-0105 ● ● ● ●
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97093-491-1 01 1 0106- ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9811-0105 ● ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 0106- ● ● ● ●
281 04.042 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 9811-0105 ● ● ● ●
281 04.042 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 0106- ● ● ● ●

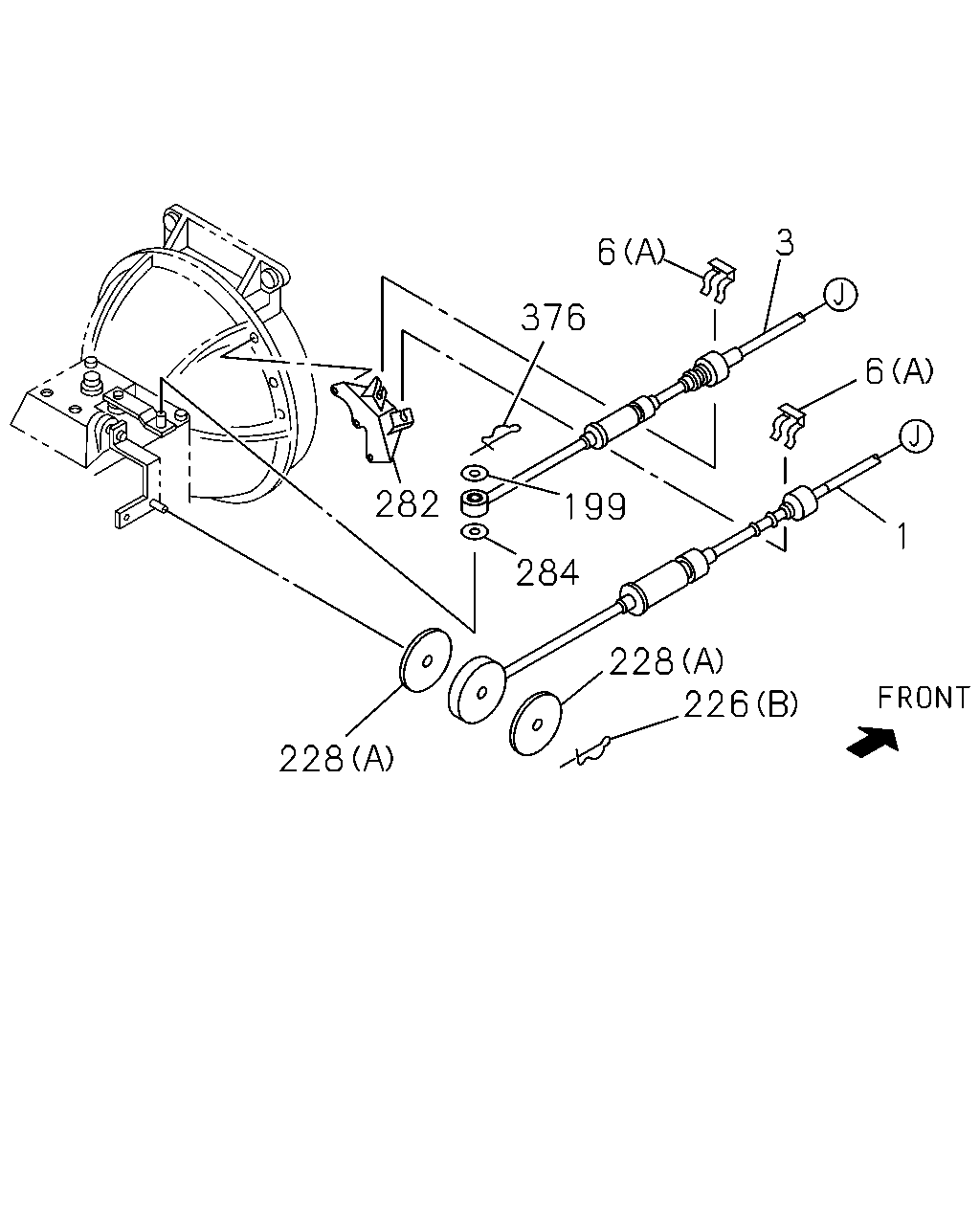

çizim 48836
3 6 376 6 282 199 1 284 228 226 228
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.854 CABLE; SHIFT,TRANS CONT
4JH1 ENG(RJX) 		8-97305-499-0 01 1 0201- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> FIRE TRUCK CHASSIS(V4F) 		8-97119-038-1 01 1 9811-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> EXC. FIRE TRUCK CHASSIS(V4F) 		8-97082-943-2 01 1 9811-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS) 		8-97082-943-2 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2540 		8-97089-986-3 01 1 9811-0105 ● ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
L=2540 		8-97089-986-3 01 1 0106- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4JH1 ENG(RJX) 		8-97289-615-1 01 1 0201- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> FIRE TRUCK CHASSIS(V4F) 		8-97119-040-1 01 1 9811-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> EXC. FIRE TRUCK CHASSIS(V4F) L=2714 		8-97082-947-1 01 1 9811-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS) L=2714 		8-97082-947-2 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2684 		8-97089-987-2 01 1 9811-0105 ● ● ●
3 00.852 CABLE; SELECT,TRANS CONT
L=2684 		8-97089-987-3 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.686 (H) ID=21 L=24 		8-94176-807-1 01 1 0201- ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.785 (I) 		8-94458-385-1 01 1 0201- ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) (C) 		8-97036-331-1 01 1 9811-9903 ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97036-331-1 01 1 9904-0105 ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97036-331-1 01 1 0106- ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) (E) 		8-97039-295-0 01 1 9811- ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 00.854 (A) ID=22.2 		1-09701-209-1 01 1 9811-0105 ●
6 04.047 CLIP; CABLE
FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97036-330-1 01 1 0106-0112 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97036-330-1 01 1 0201- ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (A) ID=19.2 		8-97211-011-0 01 1 9811-0105 ●
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 9811-0105 ● ● ● ●
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0106- ● ● ● ●
6 04.047 CLIP; CABLE
(F) 		8-97137-589-0 01 1 9811-0105 ● ● ● ●
6 04.047 CLIP; CABLE
(F) 		8-97137-589-0 01 1 0106- ● ● ● ●
6 04.047 CLIP; CABLE
EXC. FIRE TRUCK CHASSIS(V4F) (A) ID=19.2 		8-97211-011-0 02 1 9811-0105 ● ● ● ●
6 04.047 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 0106- ● ● ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (C) 		8-97036-329-2 01 1 9811-9903 ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97036-329-2 01 1 9904-0105 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (C) 		8-97036-329-2 01 1 9904-0105 ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97036-329-2 01 1 0106- ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97036-329-2 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97036-332-1 01 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97036-332-1 01 1 0106- ● ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 9811-0105 ● ● ● ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 0106- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 9811-0105 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 0106- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9811-0105 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0106- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9811-0105 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0106- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 9811-0105 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 0106- ● ● ● ●
282 04.010 BRACKET; TRANS SIDE
4JH1 ENG(RJX) 		8-97260-120-0 01 1 0201- ● ●
282 04.010 BRACKET; TRANS SIDE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97043-131-1 01 1 9811-0105 ●
282 04.010 BRACKET; TRANS SIDE
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97182-260-0 01 1 9811-0105 ●
282 04.010 BRACKET; TRANS SIDE
4HF1 ENG(RLS) 		8-97182-260-0 01 1 0106- ●
282 04.010 BRACKET; TRANS SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97034-142-1 01 1 9811-0105 ● ● ●
282 04.010 BRACKET; TRANS SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97034-142-1 01 1 0106- ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 9811-0105 ● ● ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0106- ● ● ● ●
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 9811-0105 ● ● ● ●
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 0106- ● ● ● ●

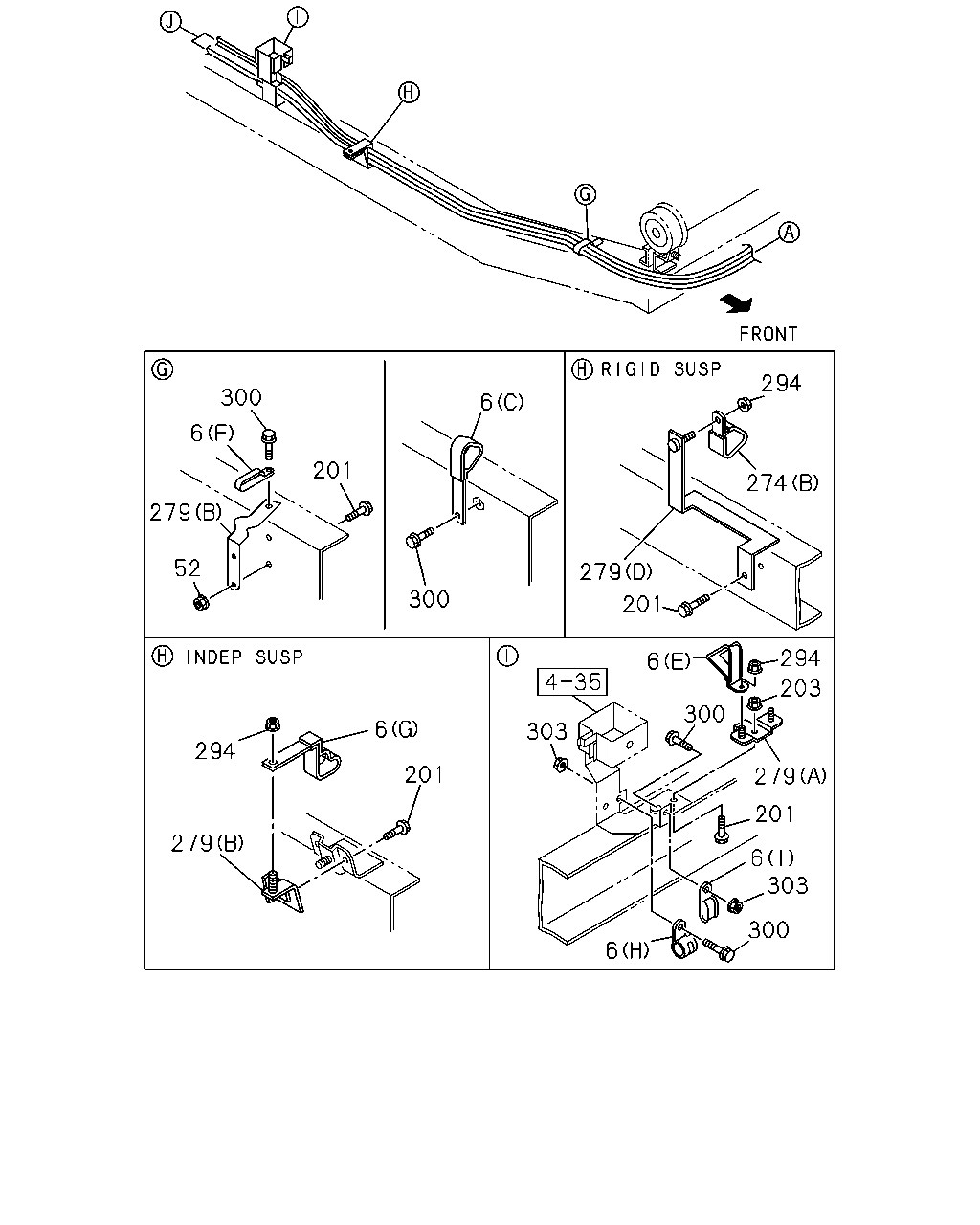

çizim 48876
294 300 6 6 201 274 279 52 279 300 201 294 6 203 300 6 303 294 201 279 201 279 6 303 300 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.686 (H) ID=21 L=24 		8-94176-807-1 01 1 0201- ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.785 (I) 		8-94458-385-1 01 1 0201- ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) (C) 		8-97036-331-1 01 1 9811-9903 ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97036-331-1 01 1 9904-0105 ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97036-331-1 01 1 0106- ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) (E) 		8-97039-295-0 01 1 9811- ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 00.854 (A) ID=22.2 		1-09701-209-1 01 1 9811-0105 ●
6 04.047 CLIP; CABLE
FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97036-330-1 01 1 0106-0112 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97036-330-1 01 1 0201- ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (A) ID=19.2 		8-97211-011-0 01 1 9811-0105 ●
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 9811-0105 ● ● ● ●
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0106- ● ● ● ●
6 04.047 CLIP; CABLE
(F) 		8-97137-589-0 01 1 9811-0105 ● ● ● ●
6 04.047 CLIP; CABLE
(F) 		8-97137-589-0 01 1 0106- ● ● ● ●
6 04.047 CLIP; CABLE
EXC. FIRE TRUCK CHASSIS(V4F) (A) ID=19.2 		8-97211-011-0 02 1 9811-0105 ● ● ● ●
6 04.047 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 0106- ● ● ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (C) 		8-97036-329-2 01 1 9811-9903 ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97036-329-2 01 1 9904-0105 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (C) 		8-97036-329-2 01 1 9904-0105 ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97036-329-2 01 1 0106- ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97036-329-2 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97036-332-1 01 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97036-332-1 01 1 0106- ● ●
52 04.047 NUT; BRKT
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) SMALL DUAL RR TIRE&SHORT(NKN6SC) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0012 ● ● ● ●
52 04.047 NUT; BRKT
DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0012 ● ●
52 04.047 NUT; BRKT
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) SMALL DUAL RR TIRE&SHORT(NKN6SC) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0101-0105 ● ● ● ●
52 04.047 NUT; BRKT
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) REAR WIDE TREAD(V4T) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0101-0105 ● ●
52 04.047 NUT; BRKT
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0106- ● ● ●
52 04.047 NUT; BRKT
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) REAR WIDE TREAD(V4T) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0106- ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0112 ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0112 ● ●
201 04.032 BOLT; BRKT
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201- ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201- ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201- ● ●
201 04.032 BOLT; BRKT
AIR INTAKE REAR VERTICAL<KJ3> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9811-0105 ● ● ● ●
201 04.032 BOLT; BRKT
AIR INTAKE REAR VERTICAL<KJ3> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0106- ● ● ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0106- ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0106- ●
203 04.032 NUT; BRKT FIX
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ●
203 04.032 NUT; BRKT FIX
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,DUMP CHASSIS(V4D) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ●
203 04.032 NUT; BRKT FIX
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
203 04.032 NUT; BRKT FIX
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
274 04.008 CLIP; CONT CABLE
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.047 (B) 		8-97036-333-1 01 1 0201- ● ●
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97093-491-1 01 1 9811-0105 ● ● ● ●
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97093-491-1 01 1 0106- ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97289-620-0 01 1 0201- ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HF1 ENG(RLS) (A) 		8-97028-496-1 01 1 9811- ●
279 04.047 BRACKET; CABLE TO FRAME
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) EXC. REAR WIDE TREAD(V4T) (B) 		8-97106-662-0 01 1 9811- ● ●
279 04.047 BRACKET; CABLE TO FRAME
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) SMALL DUAL RR TIRE&SHORT(NKN6SC) (B) 		8-97101-709-1 01 1 9811-0105 ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) REAR WIDE TREAD(V4T) (B) 		8-97101-709-1 01 1 9811-0105 ● ●
279 04.047 BRACKET; CABLE TO FRAME
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) SMALL DUAL RR TIRE&SHORT(NKN6SC) (B) 		8-97101-709-1 01 1 0106- ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) REAR WIDE TREAD(V4T) (B) 		8-97101-709-1 01 1 0106- ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (C) 		8-97103-234-0 01 1 9811-0105 ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (C) 		8-97103-234-0 01 1 0106- ● ●
279 04.047 BRACKET; CABLE TO FRAME
FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97066-629-5 01 1 0106- ●
294 00.854 NUT; CLIP
FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106-0112 ●
294 00.854 NUT; CLIP
FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0201- ● ●
294 00.854 NUT; CLIP
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0201- ● ●
300 00.854 BOLT; CLIP
4JH1 ENG(RJX) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0201- ● ●
300 00.854 BOLT; CLIP
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9811-0105 ● ● ● ●
300 00.854 BOLT; CLIP
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0106- ● ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ●
300 00.854 BOLT; CLIP
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0112 ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0112 ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0112 ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201- ● ● ● ●
300 00.854 BOLT; CLIP
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201- ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201- ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106-0112 ● ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0201- ● ● ● ●
303 00.855 NUT; CLIP
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0201- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
