Sayfa 0-65 - Isuzu EPC

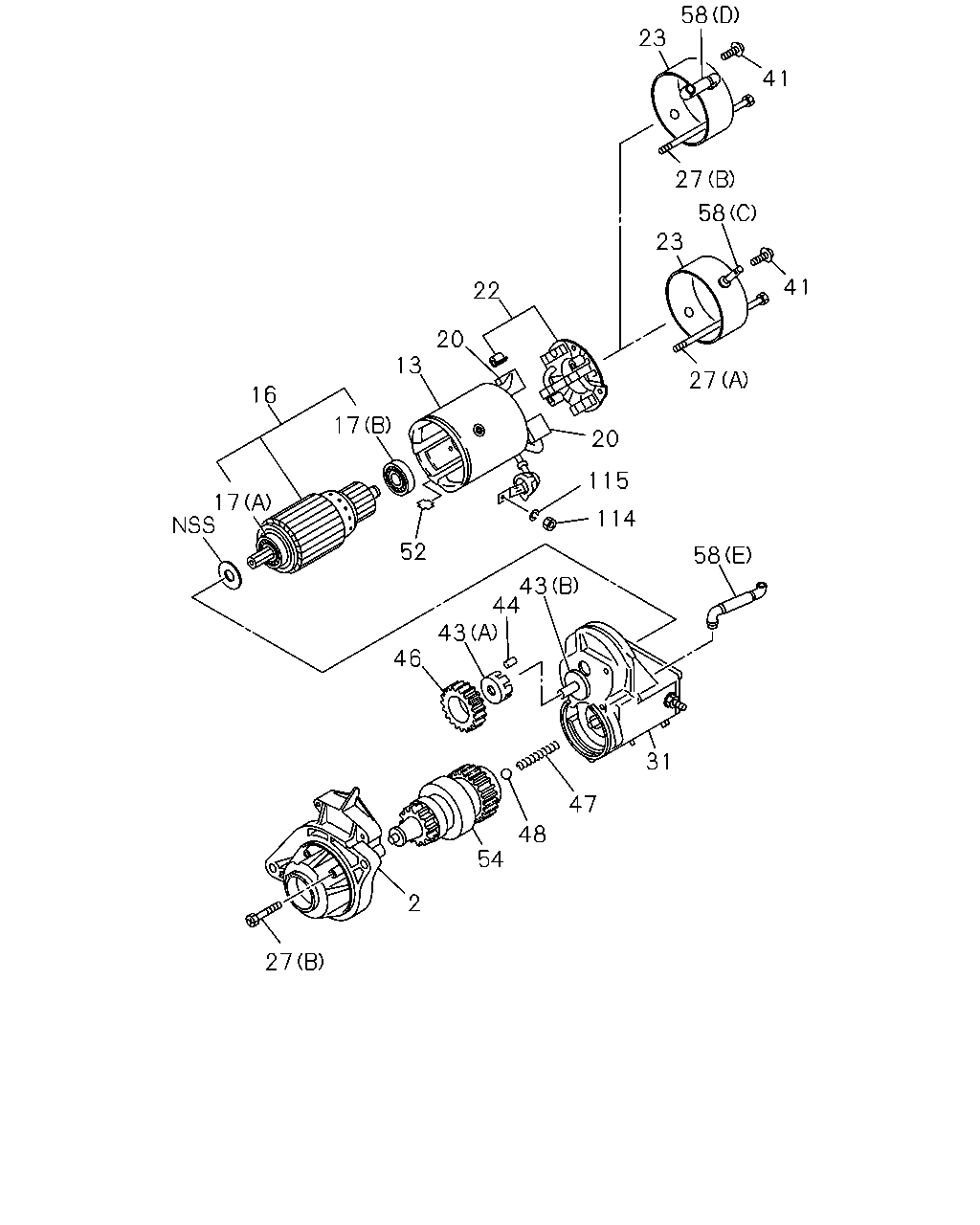

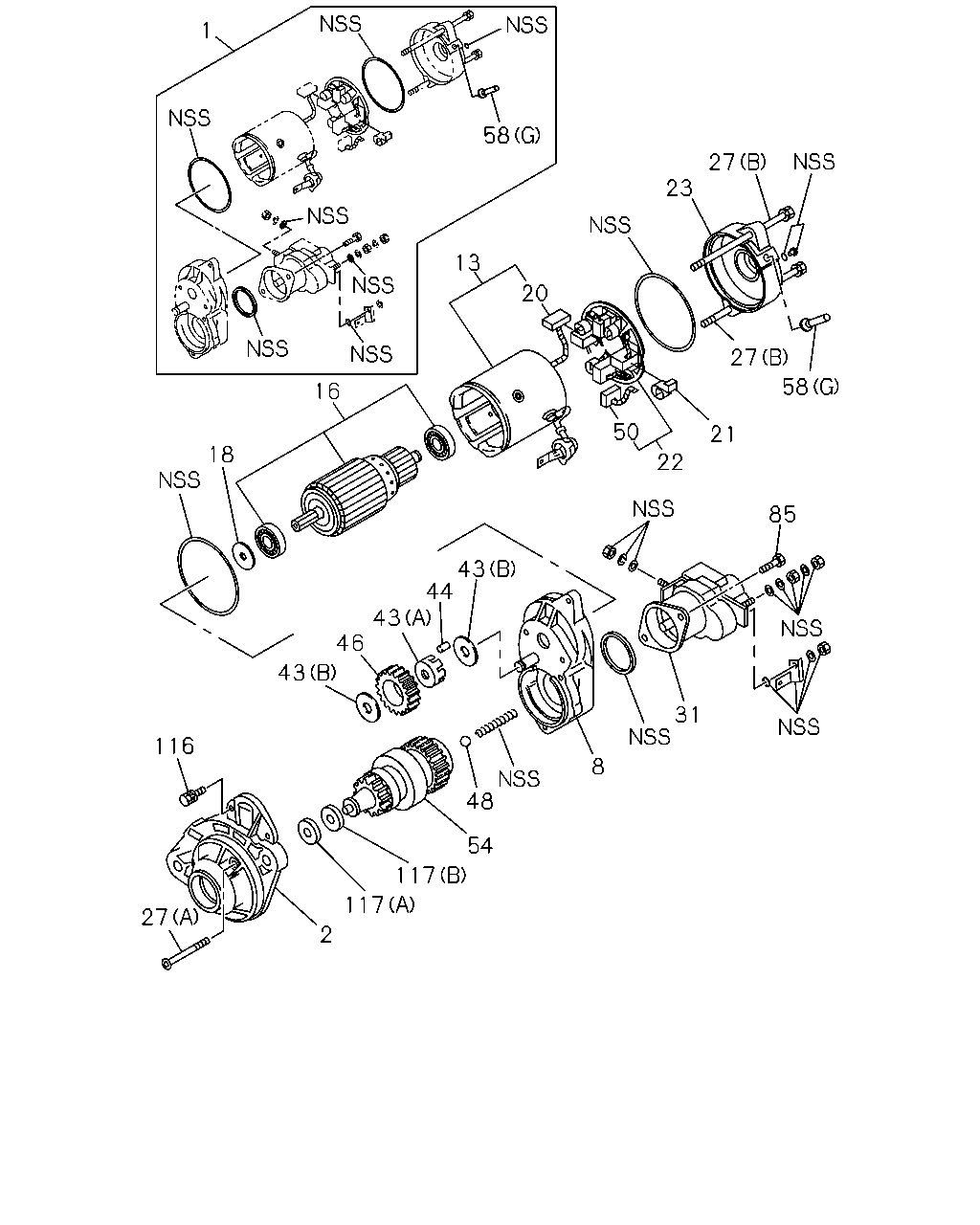

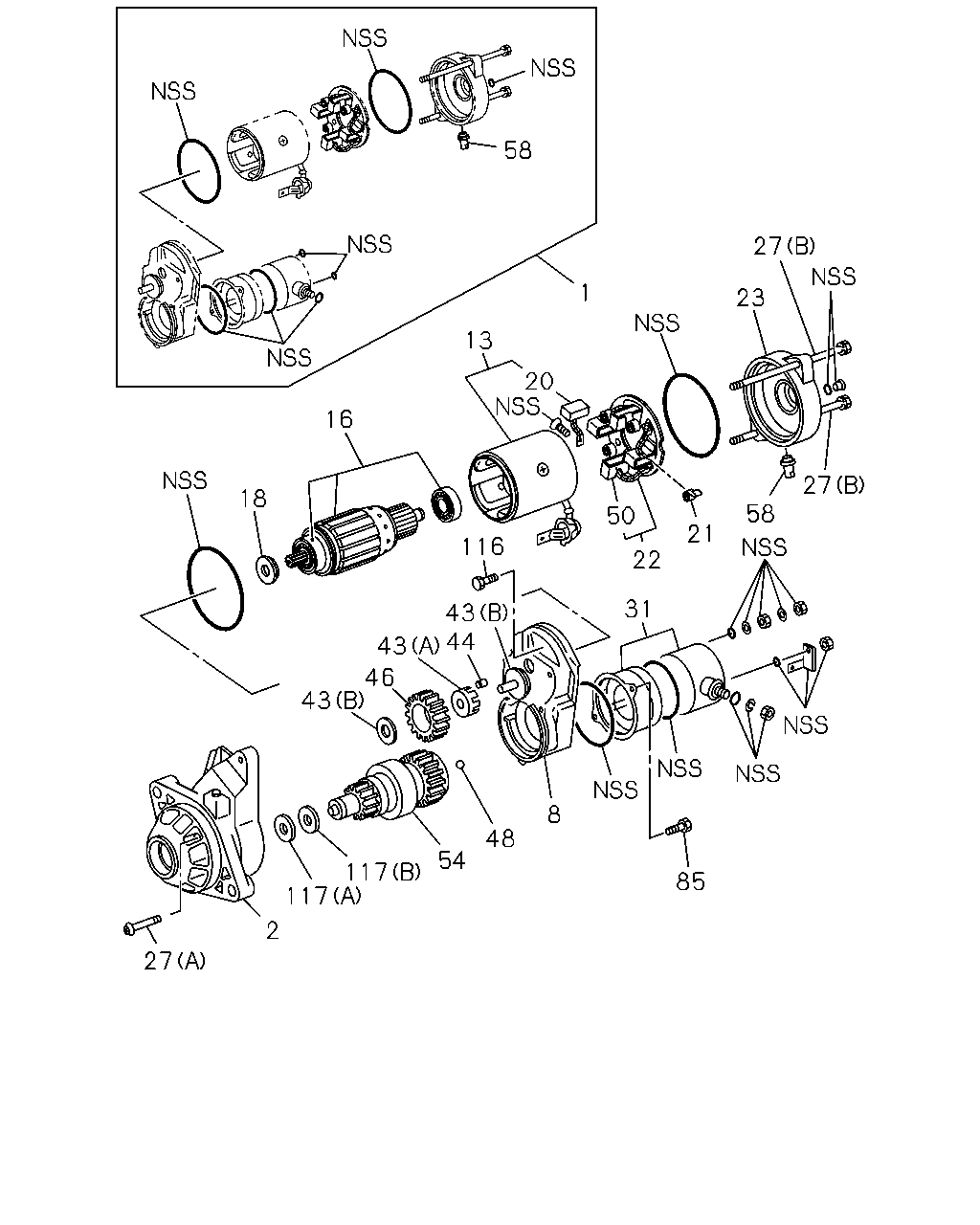

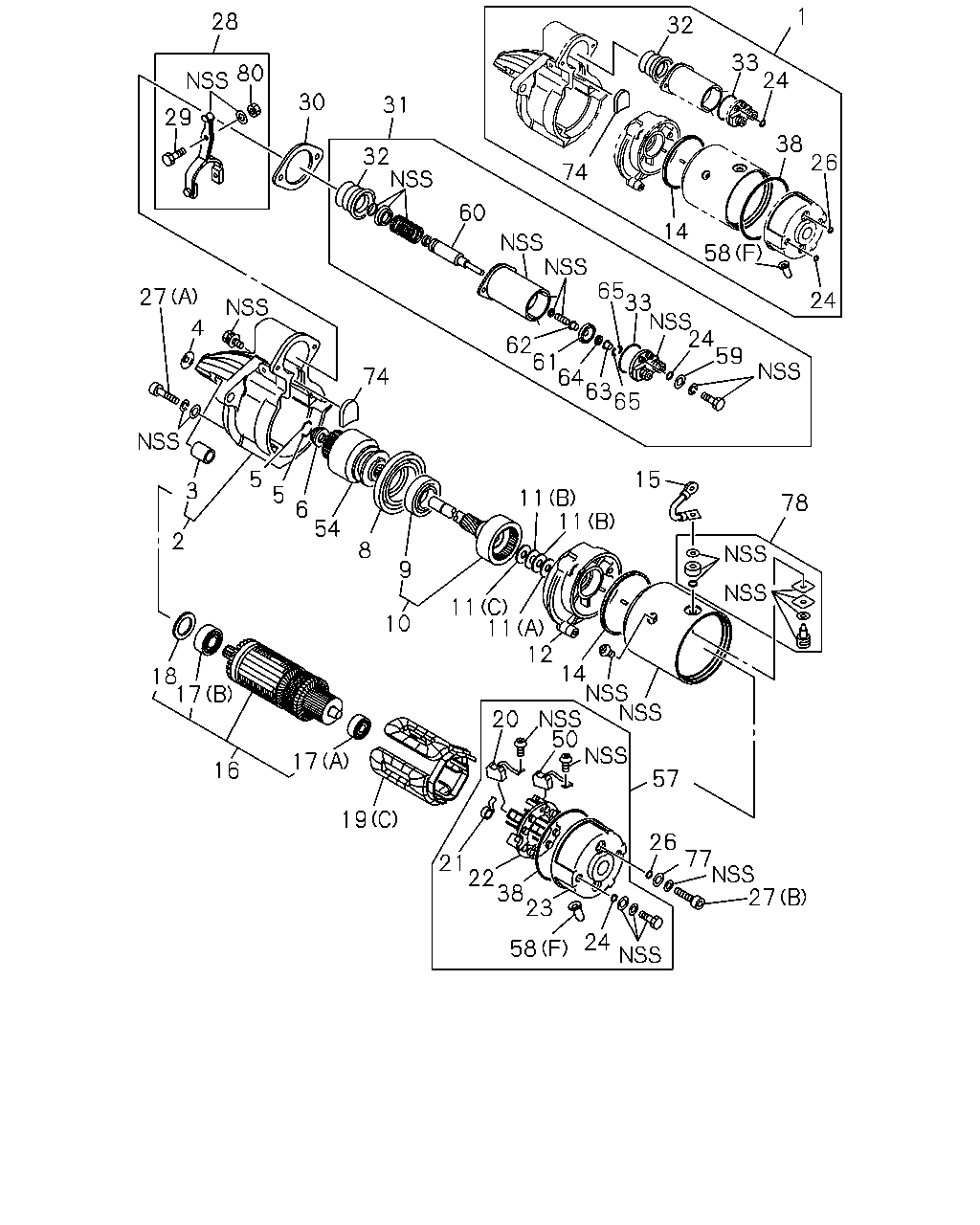

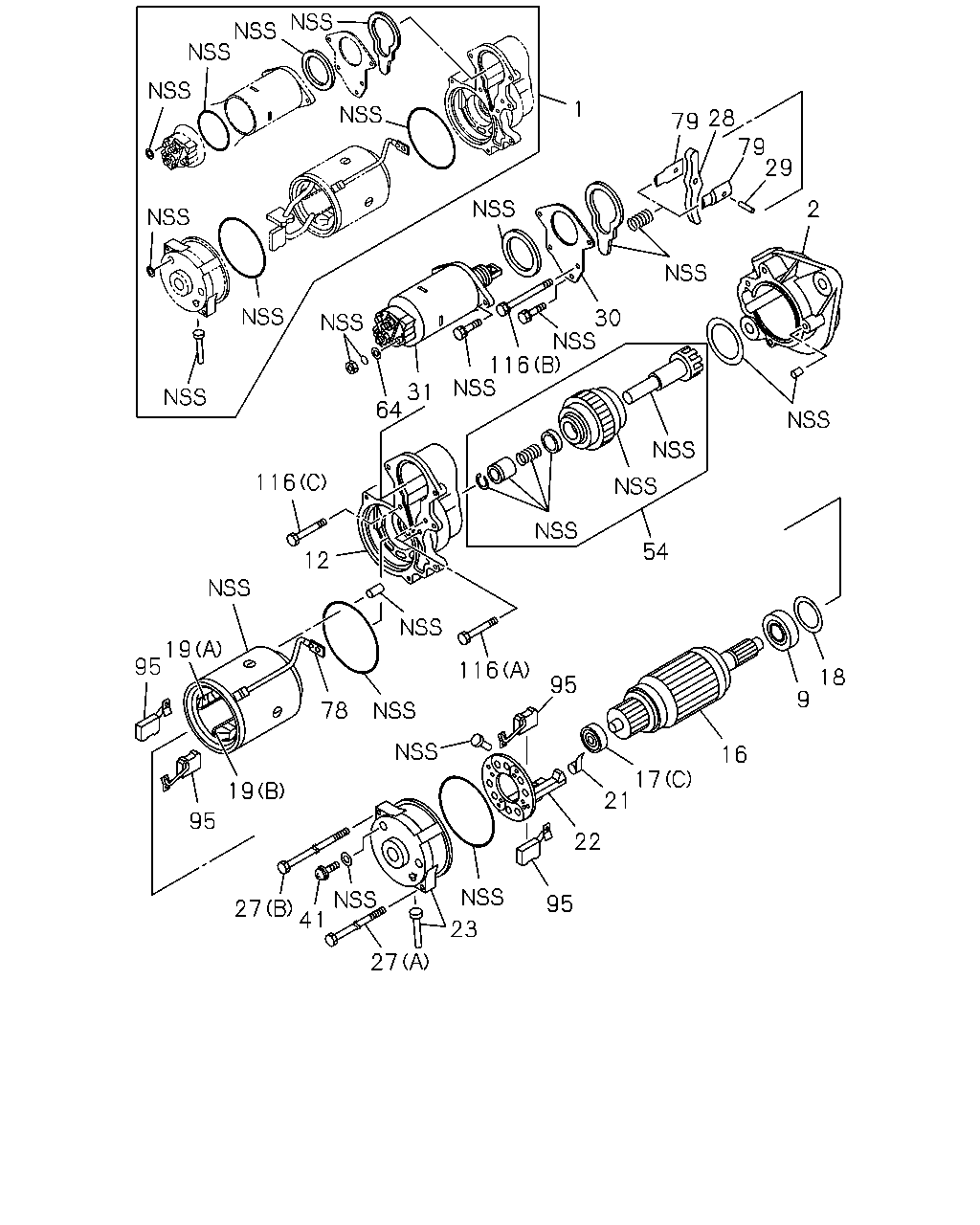

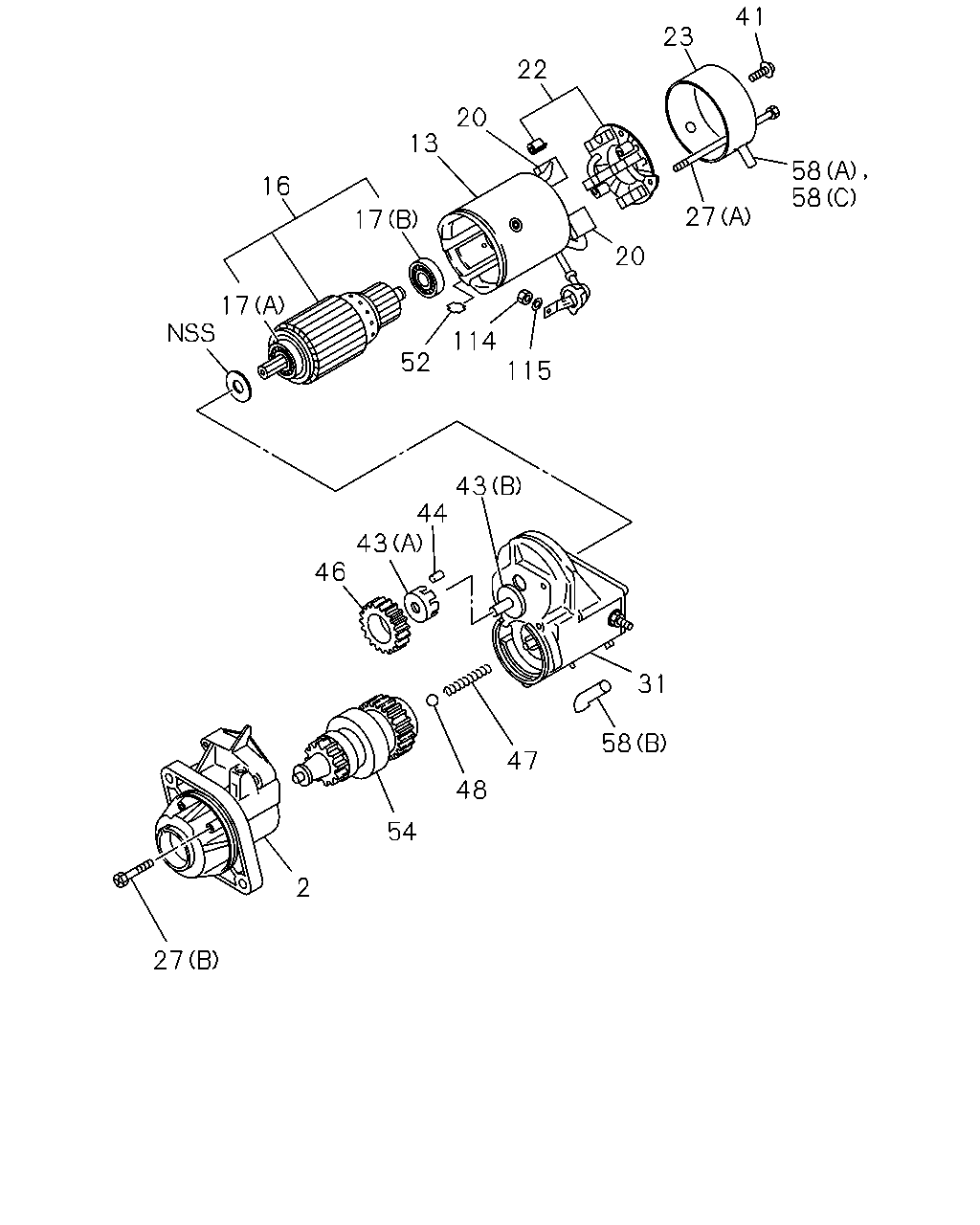

0-65 — STARTER (#4366) — 631 parça

1 28 32 33 24 80 30 31 29 38 26 32 74 60 14 58 65 33 24 59 27 24 4 62 61 64 63 65 74 5 15 3 5 11 11 78 6 54 2 8 9 11 11 12 10 14 50 18 17 20 17 16 57 19 26 77 27 21 22 38 23 24 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81129-569-0	01	1	-
1	SEAL KIT; STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81129-642-0	01	1	-
1	SEAL KIT; STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-716-0	01	1	-
2	CASE; PINION,STARTER DENSO ASM PART: G = 8-94399-159-4, I = 8-97602-167-1	1-81114-036-2	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81123-025-0	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81123-044-1	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: B = 1-81100-307-0, D = 1-81100-323-1	1-81123-049-0	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: C = 1-81100-308-0, E = 1-81100-324-1	1-81123-050-0	01	1	-
2	CASE; PINION,STARTER DENSO ASM PART: F = 8-94394-151-2, J = 8-97602-169-1	1-81129-697-0	01	1	-
3	METAL; PINION CASE STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81129-397-0	01	1	-
4	COVER; PINION CASE STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81129-142-0	01	1	-
5	CLIP; PINION STOPPER STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81129-144-0	02	1	-
6	STOPPER; PINION STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81129-145-0	01	1	-
8	BRACKET; CENTER STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81113-081-0	01	1	-
8	BRACKET; CENTER STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81118-059-0	01	1	-
9	BEARING; GEAR SHAFT STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81129-386-0	01	1	-
9	BEARING; GEAR SHAFT STARTER NIKKO ASM PART: H = 8-94399-896-3	5-81129-161-0	01	1	-
10	SHAFT; GEAR STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81123-024-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (A) NIKKO ASM PART: A = 1-81100-264-1	5-81129-158-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (B) NIKKO ASM PART: A = 1-81100-264-1	5-81129-159-0	02	1	-
11	WASHER; GEAR SHAFT STARTER (C) NIKKO ASM PART: A = 1-81100-264-1	5-81129-160-0	01	1	-
12	BRACKET; CENTER RR STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81113-082-0	01	1	-
12	BRACKET; CENTER RR STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81118-055-0	01	1	-
14	GASKET; YOKE,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81129-389-0	01	1	-
15	WIRE; LEAD STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81116-044-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81121-037-0	01	1	-
16	ARMATURE; STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	1-81121-055-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81121-058-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81121-062-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) REAR NIKKO ASM PART: A = 1-81100-264-1	1-81129-385-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) FRONT NIKKO ASM PART: A = 1-81100-264-1	1-81129-395-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) NIKKO ASM PART: H = 8-94399-896-3	1-81129-609-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	1-81129-626-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-09800-081-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	5-81129-156-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81129-156-0	02	1	-
18	WASHER; THRUST,ARMATURE,STARTER NIKKO ASM PART: H = 8-94399-896-3	9-82215-101-0	01	1	-
19	COIL; FIELD,STARTER (C) NIKKO ASM PART: A = 1-81100-264-1	1-81129-396-0	01	1	-
19	COIL; FIELD,STARTER (A) NIKKO ASM PART: H = 8-94399-896-3	1-81129-633-0	01	1	-0004
19	COIL; FIELD,STARTER (B) NIKKO ASM PART: H = 8-94399-896-3	1-81129-643-0	01	1	-0004
19	COIL; FIELD,STARTER (A) NIKKO ASM PART: H = 8-94399-896-3	8-98207-841-0	01	1	0005-
19	COIL; FIELD,STARTER (B) NIKKO ASM PART: H = 8-94399-896-3	8-98207-842-0	01	1	0005-
20	BRUSH; (+),STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81116-042-0	02	1	-
20	BRUSH; (+),STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81116-060-0	02	1	-1105
20	BRUSH; (+),STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81116-060-0	02	1	-
20	BRUSH; (+),STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	8-94171-853-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	8-98197-175-0	02	1	1106-
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81117-014-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81117-016-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	5-81117-019-0	04	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81118-036-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81118-056-0	01	1	-0004
22	HOLDER; BRUSH STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81118-061-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81118-061-0	01	1	-1105
22	HOLDER; BRUSH STARTER DENSO, DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81118-013-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	8-98155-174-0	01	1	1106-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: H = 8-94399-896-3	8-98207-839-0	01	1	0005-
23	COVER; RR COVER STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81115-203-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81115-215-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: F = 8-94394-151-2, J = 8-97602-169-1	1-81115-220-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: B = 1-81100-307-0, D = 1-81100-323-1	1-81115-221-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: C = 1-81100-308-0, E = 1-81100-324-1	1-81115-222-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: G = 8-94399-159-4, I = 8-97602-167-1	1-81129-701-0	01	1	-
24	SEAL; HOLDER STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81129-391-0	04	1	-
26	SEAL; THROUGH BOLT STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81129-393-0	02	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: A = 1-81100-264-1	1-81129-387-0	03	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: G = 8-94399-159-4, I = 8-97602-167-1	1-81129-625-0	03	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: H = 8-94399-896-3	1-81129-639-0	01	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: H = 8-94399-896-3	1-81129-640-0	01	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: F = 8-94394-151-2, I = 8-97602-167-1, J = 8-97602-169-1	1-81129-698-0	02	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: G = 8-94399-159-4	1-81129-698-0	02	1	9810-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: G = 8-94399-159-4	1-81129-702-0	02	1	-9809
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-706-0	04	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-708-0	02	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: A = 1-81100-264-1	5-81129-214-0	02	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: F = 8-94394-151-2, J = 8-97602-169-1	8-94167-434-0	03	1	-
28	LEVER; SHIFT,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81127-031-0	01	1	-
28	LEVER; SHIFT,STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81127-038-0	01	1	-
29	PIN; SHIFT LEVER STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81129-185-0	01	1	-
29	PIN; SHIFT LEVER STARTER NIKKO ASM PART: H = 8-94399-896-3	8-94340-471-0	01	1	-
30	PLATE; ENGAGE SW STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81129-637-0	01	1	-
30	PLATE; ENGAGE SW STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81129-147-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: E = 1-81100-324-1	1-81100-133-0	01	1	0307-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: G = 8-94399-159-4	1-81151-088-2	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: H = 8-94399-896-3	1-81151-093-1	01	1	-9809
31	SWITCH; ENGAGE STARTER DENSO ASM PART: F = 8-94394-151-2	1-81151-099-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: D = 1-81100-323-1	1-81151-102-1	01	1	-0203
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: B = 1-81100-307-0	1-81151-102-1	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: C = 1-81100-308-0	1-81151-103-1	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: E = 1-81100-324-1	1-81151-103-1	01	1	-0306
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81151-109-1	01	1	9810-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: I = 8-97602-167-1	1-81151-125-0	01	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: J = 8-97602-169-1	1-81151-126-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: D = 1-81100-323-1	1-81151-132-0	01	1	0204-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81151-036-0	01	1	-
32	COVER; RUBBER,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81129-388-0	01	1	-
33	GASKET; ENGAGE SW STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81129-390-0	01	1	-
38	GASKET; RR COVER,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81129-392-0	01	1	-
50	BRUSH; (-),STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81116-043-0	02	1	-
50	BRUSH; (-),STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81116-061-0	02	1	-1105
50	BRUSH; (-),STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81116-061-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	8-98197-176-0	02	1	1106-
54	CLUTCH; PINION,STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81122-056-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: H = 8-94399-896-3	1-81129-636-0	01	1	-0004
54	CLUTCH; PINION,STARTER NIKKO ASM PART: D = 1-81100-323-1	1-81129-712-0	01	1	-0203
54	CLUTCH; PINION,STARTER NIKKO ASM PART: E = 1-81100-324-1	1-81129-712-0	01	1	-0306
54	CLUTCH; PINION,STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81129-712-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: E = 1-81100-324-1	8-98146-940-0	01	1	0307-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: D = 1-81100-323-1	8-98146-940-0	01	1	0204-
54	CLUTCH; PINION,STARTER ASM PART: H = 8-94399-896-3	8-98146-946-0	01	1	0005-
57	COVER ASM; RR,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81115-202-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (F) NIKKO ASM PART: A = 1-81100-264-1	1-81129-568-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (C) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4	1-81129-677-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (G) NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81129-757-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (D) DENSO ASM PART: J = 8-97602-169-1	1-81129-924-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (E) DENSO ASM PART: J = 8-97602-169-1	1-81129-925-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (A) DENSO ASM PART: I = 8-97602-167-1	8-97184-640-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (B) DENSO ASM PART: I = 8-97602-167-1	8-97184-641-0	01	1	-
59	TERMINAL; ENGAGE SW STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81129-150-0	01	1	-
60	PLUNGER; ENGAGE SW STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81129-146-0	01	1	-
61	CONTACT; ENGAGE SW STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81129-148-0	01	1	-
62	BUSHING; ENGAGE SW STARTER NIKKO ASM PART: A = 1-81100-264-1	9-82116-140-0	01	1	-
63	HOLDER; ENGAGE SW STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81118-019-0	01	1	-
64	WASHER; INSULATION ENGAGE SW STARTER NIKKO ASM PART: H = 8-94399-896-3	5-81129-151-0	02	1	-
64	WASHER; INSULATION ENGAGE SW STARTER NIKKO ASM PART: A = 1-81100-264-1	9-82116-142-0	01	1	-
65	RING; CLIP ENGAGE SW STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81129-149-0	02	1	-
74	GASKET; PINION CASE,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81129-299-0	01	1	-
77	WASHER; THROUGH BOLT,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81229-114-0	02	1	-
78	TERMINAL; LEAD WIRE STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81129-384-0	01	1	-
78	TERMINAL; LEAD WIRE STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81129-634-0	01	1	-
80	NUT; SHIFT LEVER PIN STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81129-184-0	01	1	-

58 27 1 23 13 20 16 27 18 58 50 21 116 22 31 43 44 43 46 43 8 48 54 117 117 85 2 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81129-569-0	01	1	-
1	SEAL KIT; STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81129-642-0	01	1	-
1	SEAL KIT; STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-716-0	01	1	-
2	CASE; PINION,STARTER DENSO ASM PART: G = 8-94399-159-4, I = 8-97602-167-1	1-81114-036-2	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81123-025-0	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81123-044-1	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: B = 1-81100-307-0, D = 1-81100-323-1	1-81123-049-0	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: C = 1-81100-308-0, E = 1-81100-324-1	1-81123-050-0	01	1	-
2	CASE; PINION,STARTER DENSO ASM PART: F = 8-94394-151-2, J = 8-97602-169-1	1-81129-697-0	01	1	-
8	BRACKET; CENTER STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81113-081-0	01	1	-
8	BRACKET; CENTER STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81118-059-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: G = 8-94399-159-4	1-81111-009-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: F = 8-94394-151-2, I = 8-97602-167-1, J = 8-97602-169-1	1-81129-696-0	01	1	-
13	YOKE; STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81129-705-0	01	1	-1105
13	YOKE; STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81129-705-0	01	1	-
13	YOKE; STARTER ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	8-98197-520-0	01	1	1106-
16	ARMATURE; STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81121-037-0	01	1	-
16	ARMATURE; STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	1-81121-055-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81121-058-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81121-062-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	5-81129-156-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81129-156-0	02	1	-
18	WASHER; THRUST,ARMATURE,STARTER NIKKO ASM PART: H = 8-94399-896-3	9-82215-101-0	01	1	-
20	BRUSH; (+),STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81116-042-0	02	1	-
20	BRUSH; (+),STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81116-060-0	02	1	-1105
20	BRUSH; (+),STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81116-060-0	02	1	-
20	BRUSH; (+),STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	8-94171-853-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	8-98197-175-0	02	1	1106-
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81117-014-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81117-016-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	5-81117-019-0	04	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81118-036-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81118-056-0	01	1	-0004
22	HOLDER; BRUSH STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81118-061-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81118-061-0	01	1	-1105
22	HOLDER; BRUSH STARTER DENSO, DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81118-013-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	8-98155-174-0	01	1	1106-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: H = 8-94399-896-3	8-98207-839-0	01	1	0005-
23	COVER; RR COVER STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81115-203-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81115-215-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: F = 8-94394-151-2, J = 8-97602-169-1	1-81115-220-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: B = 1-81100-307-0, D = 1-81100-323-1	1-81115-221-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: C = 1-81100-308-0, E = 1-81100-324-1	1-81115-222-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: G = 8-94399-159-4, I = 8-97602-167-1	1-81129-701-0	01	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: A = 1-81100-264-1	1-81129-387-0	03	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: G = 8-94399-159-4, I = 8-97602-167-1	1-81129-625-0	03	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: H = 8-94399-896-3	1-81129-639-0	01	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: H = 8-94399-896-3	1-81129-640-0	01	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: F = 8-94394-151-2, I = 8-97602-167-1, J = 8-97602-169-1	1-81129-698-0	02	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: G = 8-94399-159-4	1-81129-698-0	02	1	9810-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: G = 8-94399-159-4	1-81129-702-0	02	1	-9809
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-706-0	04	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-708-0	02	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: A = 1-81100-264-1	5-81129-214-0	02	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: F = 8-94394-151-2, J = 8-97602-169-1	8-94167-434-0	03	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: E = 1-81100-324-1	1-81100-133-0	01	1	0307-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: G = 8-94399-159-4	1-81151-088-2	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: H = 8-94399-896-3	1-81151-093-1	01	1	-9809
31	SWITCH; ENGAGE STARTER DENSO ASM PART: F = 8-94394-151-2	1-81151-099-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: D = 1-81100-323-1	1-81151-102-1	01	1	-0203
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: B = 1-81100-307-0	1-81151-102-1	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: C = 1-81100-308-0	1-81151-103-1	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: E = 1-81100-324-1	1-81151-103-1	01	1	-0306
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81151-109-1	01	1	9810-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: I = 8-97602-167-1	1-81151-125-0	01	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: J = 8-97602-169-1	1-81151-126-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: D = 1-81100-323-1	1-81151-132-0	01	1	0204-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81151-036-0	01	1	-
43	RETAINER; PINION STARTER (A) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81118-060-0	01	1	-
43	RETAINER; PINION STARTER (B) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-709-0	02	1	-
43	RETAINER; PINION STARTER (A) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER (B) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-127-0	01	1	-
44	ROLLER; PINION STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-715-0	05	1	-
44	ROLLER; PINION STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-120-0	05	1	-
46	GEAR; CLU STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-714-0	01	1	-
46	GEAR; CLU STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81123-018-0	01	1	-
48	BALL; PINION,STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-713-0	01	1	-
48	BALL; PINION,STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-092-0	01	1	-
50	BRUSH; (-),STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81116-043-0	02	1	-
50	BRUSH; (-),STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81116-061-0	02	1	-1105
50	BRUSH; (-),STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81116-061-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	8-98197-176-0	02	1	1106-
54	CLUTCH; PINION,STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81122-056-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: H = 8-94399-896-3	1-81129-636-0	01	1	-0004
54	CLUTCH; PINION,STARTER NIKKO ASM PART: D = 1-81100-323-1	1-81129-712-0	01	1	-0203
54	CLUTCH; PINION,STARTER NIKKO ASM PART: E = 1-81100-324-1	1-81129-712-0	01	1	-0306
54	CLUTCH; PINION,STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81129-712-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: E = 1-81100-324-1	8-98146-940-0	01	1	0307-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: D = 1-81100-323-1	8-98146-940-0	01	1	0204-
54	CLUTCH; PINION,STARTER ASM PART: H = 8-94399-896-3	8-98146-946-0	01	1	0005-
58	PIPE; DRAIN RR COVER STARTER (F) NIKKO ASM PART: A = 1-81100-264-1	1-81129-568-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (C) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4	1-81129-677-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (G) NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81129-757-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (D) DENSO ASM PART: J = 8-97602-169-1	1-81129-924-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (E) DENSO ASM PART: J = 8-97602-169-1	1-81129-925-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (A) DENSO ASM PART: I = 8-97602-167-1	8-97184-640-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (B) DENSO ASM PART: I = 8-97602-167-1	8-97184-641-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-722-0	02	1	-
116	BOLT; BRKT (A) NIKKO ASM PART: H = 8-94399-896-3	1-81129-603-0	02	1	-
116	BOLT; BRKT (B) NIKKO ASM PART: H = 8-94399-896-3	1-81129-604-0	01	1	-
116	BOLT; BRKT (C) NIKKO ASM PART: H = 8-94399-896-3	1-81129-605-0	01	1	-
116	BOLT; BRKT (D) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-722-0	02	1	-
117	WASHER; CLUTCH (A) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-710-0	01	1	-
117	WASHER; CLUTCH (B) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-711-0	01	1	-

1 58 27 23 13 20 27 58 16 50 21 18 22 85 43 44 43 46 43 31 116 8 48 54 117 117 27 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81129-569-0	01	1	-
1	SEAL KIT; STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81129-642-0	01	1	-
1	SEAL KIT; STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-716-0	01	1	-
2	CASE; PINION,STARTER DENSO ASM PART: G = 8-94399-159-4, I = 8-97602-167-1	1-81114-036-2	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81123-025-0	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81123-044-1	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: B = 1-81100-307-0, D = 1-81100-323-1	1-81123-049-0	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: C = 1-81100-308-0, E = 1-81100-324-1	1-81123-050-0	01	1	-
2	CASE; PINION,STARTER DENSO ASM PART: F = 8-94394-151-2, J = 8-97602-169-1	1-81129-697-0	01	1	-
8	BRACKET; CENTER STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81113-081-0	01	1	-
8	BRACKET; CENTER STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81118-059-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: G = 8-94399-159-4	1-81111-009-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: F = 8-94394-151-2, I = 8-97602-167-1, J = 8-97602-169-1	1-81129-696-0	01	1	-
13	YOKE; STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81129-705-0	01	1	-1105
13	YOKE; STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81129-705-0	01	1	-
13	YOKE; STARTER ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	8-98197-520-0	01	1	1106-
16	ARMATURE; STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81121-037-0	01	1	-
16	ARMATURE; STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	1-81121-055-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81121-058-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81121-062-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	5-81129-156-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81129-156-0	02	1	-
18	WASHER; THRUST,ARMATURE,STARTER NIKKO ASM PART: H = 8-94399-896-3	9-82215-101-0	01	1	-
20	BRUSH; (+),STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81116-042-0	02	1	-
20	BRUSH; (+),STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81116-060-0	02	1	-1105
20	BRUSH; (+),STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81116-060-0	02	1	-
20	BRUSH; (+),STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	8-94171-853-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	8-98197-175-0	02	1	1106-
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81117-014-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81117-016-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	5-81117-019-0	04	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81118-036-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81118-056-0	01	1	-0004
22	HOLDER; BRUSH STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81118-061-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81118-061-0	01	1	-1105
22	HOLDER; BRUSH STARTER DENSO, DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81118-013-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	8-98155-174-0	01	1	1106-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: H = 8-94399-896-3	8-98207-839-0	01	1	0005-
23	COVER; RR COVER STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81115-203-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81115-215-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: F = 8-94394-151-2, J = 8-97602-169-1	1-81115-220-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: B = 1-81100-307-0, D = 1-81100-323-1	1-81115-221-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: C = 1-81100-308-0, E = 1-81100-324-1	1-81115-222-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: G = 8-94399-159-4, I = 8-97602-167-1	1-81129-701-0	01	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: A = 1-81100-264-1	1-81129-387-0	03	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: G = 8-94399-159-4, I = 8-97602-167-1	1-81129-625-0	03	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: H = 8-94399-896-3	1-81129-639-0	01	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: H = 8-94399-896-3	1-81129-640-0	01	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: F = 8-94394-151-2, I = 8-97602-167-1, J = 8-97602-169-1	1-81129-698-0	02	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: G = 8-94399-159-4	1-81129-698-0	02	1	9810-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: G = 8-94399-159-4	1-81129-702-0	02	1	-9809
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-706-0	04	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-708-0	02	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: A = 1-81100-264-1	5-81129-214-0	02	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: F = 8-94394-151-2, J = 8-97602-169-1	8-94167-434-0	03	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: E = 1-81100-324-1	1-81100-133-0	01	1	0307-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: G = 8-94399-159-4	1-81151-088-2	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: H = 8-94399-896-3	1-81151-093-1	01	1	-9809
31	SWITCH; ENGAGE STARTER DENSO ASM PART: F = 8-94394-151-2	1-81151-099-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: D = 1-81100-323-1	1-81151-102-1	01	1	-0203
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: B = 1-81100-307-0	1-81151-102-1	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: C = 1-81100-308-0	1-81151-103-1	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: E = 1-81100-324-1	1-81151-103-1	01	1	-0306
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81151-109-1	01	1	9810-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: I = 8-97602-167-1	1-81151-125-0	01	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: J = 8-97602-169-1	1-81151-126-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: D = 1-81100-323-1	1-81151-132-0	01	1	0204-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81151-036-0	01	1	-
43	RETAINER; PINION STARTER (A) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81118-060-0	01	1	-
43	RETAINER; PINION STARTER (B) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-709-0	02	1	-
43	RETAINER; PINION STARTER (A) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER (B) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-127-0	01	1	-
44	ROLLER; PINION STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-715-0	05	1	-
44	ROLLER; PINION STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-120-0	05	1	-
46	GEAR; CLU STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-714-0	01	1	-
46	GEAR; CLU STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81123-018-0	01	1	-
48	BALL; PINION,STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-713-0	01	1	-
48	BALL; PINION,STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-092-0	01	1	-
50	BRUSH; (-),STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81116-043-0	02	1	-
50	BRUSH; (-),STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81116-061-0	02	1	-1105
50	BRUSH; (-),STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81116-061-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	8-98197-176-0	02	1	1106-
54	CLUTCH; PINION,STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81122-056-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: H = 8-94399-896-3	1-81129-636-0	01	1	-0004
54	CLUTCH; PINION,STARTER NIKKO ASM PART: D = 1-81100-323-1	1-81129-712-0	01	1	-0203
54	CLUTCH; PINION,STARTER NIKKO ASM PART: E = 1-81100-324-1	1-81129-712-0	01	1	-0306
54	CLUTCH; PINION,STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81129-712-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: E = 1-81100-324-1	8-98146-940-0	01	1	0307-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: D = 1-81100-323-1	8-98146-940-0	01	1	0204-
54	CLUTCH; PINION,STARTER ASM PART: H = 8-94399-896-3	8-98146-946-0	01	1	0005-
58	PIPE; DRAIN RR COVER STARTER (F) NIKKO ASM PART: A = 1-81100-264-1	1-81129-568-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (C) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4	1-81129-677-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (G) NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81129-757-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (D) DENSO ASM PART: J = 8-97602-169-1	1-81129-924-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (E) DENSO ASM PART: J = 8-97602-169-1	1-81129-925-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (A) DENSO ASM PART: I = 8-97602-167-1	8-97184-640-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (B) DENSO ASM PART: I = 8-97602-167-1	8-97184-641-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-722-0	02	1	-
116	BOLT; BRKT (A) NIKKO ASM PART: H = 8-94399-896-3	1-81129-603-0	02	1	-
116	BOLT; BRKT (B) NIKKO ASM PART: H = 8-94399-896-3	1-81129-604-0	01	1	-
116	BOLT; BRKT (C) NIKKO ASM PART: H = 8-94399-896-3	1-81129-605-0	01	1	-
116	BOLT; BRKT (D) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-722-0	02	1	-
117	WASHER; CLUTCH (A) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-710-0	01	1	-
117	WASHER; CLUTCH (B) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-711-0	01	1	-

1 79 28 79 29 2 30 116 31 64 116 54 12 19 95 116 18 95 9 78 16 17 19 21 95 22 95 27 41 23 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81129-569-0	01	1	-
1	SEAL KIT; STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81129-642-0	01	1	-
1	SEAL KIT; STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-716-0	01	1	-
2	CASE; PINION,STARTER DENSO ASM PART: G = 8-94399-159-4, I = 8-97602-167-1	1-81114-036-2	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81123-025-0	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81123-044-1	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: B = 1-81100-307-0, D = 1-81100-323-1	1-81123-049-0	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: C = 1-81100-308-0, E = 1-81100-324-1	1-81123-050-0	01	1	-
2	CASE; PINION,STARTER DENSO ASM PART: F = 8-94394-151-2, J = 8-97602-169-1	1-81129-697-0	01	1	-
9	BEARING; GEAR SHAFT STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81129-386-0	01	1	-
9	BEARING; GEAR SHAFT STARTER NIKKO ASM PART: H = 8-94399-896-3	5-81129-161-0	01	1	-
12	BRACKET; CENTER RR STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81113-082-0	01	1	-
12	BRACKET; CENTER RR STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81118-055-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81121-037-0	01	1	-
16	ARMATURE; STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	1-81121-055-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81121-058-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81121-062-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) REAR NIKKO ASM PART: A = 1-81100-264-1	1-81129-385-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) FRONT NIKKO ASM PART: A = 1-81100-264-1	1-81129-395-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) NIKKO ASM PART: H = 8-94399-896-3	1-81129-609-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	1-81129-626-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-09800-081-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	5-81129-156-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81129-156-0	02	1	-
18	WASHER; THRUST,ARMATURE,STARTER NIKKO ASM PART: H = 8-94399-896-3	9-82215-101-0	01	1	-
19	COIL; FIELD,STARTER (C) NIKKO ASM PART: A = 1-81100-264-1	1-81129-396-0	01	1	-
19	COIL; FIELD,STARTER (A) NIKKO ASM PART: H = 8-94399-896-3	1-81129-633-0	01	1	-0004
19	COIL; FIELD,STARTER (B) NIKKO ASM PART: H = 8-94399-896-3	1-81129-643-0	01	1	-0004
19	COIL; FIELD,STARTER (A) NIKKO ASM PART: H = 8-94399-896-3	8-98207-841-0	01	1	0005-
19	COIL; FIELD,STARTER (B) NIKKO ASM PART: H = 8-94399-896-3	8-98207-842-0	01	1	0005-
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81117-014-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81117-016-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	5-81117-019-0	04	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81118-036-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81118-056-0	01	1	-0004
22	HOLDER; BRUSH STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81118-061-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81118-061-0	01	1	-1105
22	HOLDER; BRUSH STARTER DENSO, DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81118-013-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	8-98155-174-0	01	1	1106-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: H = 8-94399-896-3	8-98207-839-0	01	1	0005-
23	COVER; RR COVER STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81115-203-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81115-215-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: F = 8-94394-151-2, J = 8-97602-169-1	1-81115-220-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: B = 1-81100-307-0, D = 1-81100-323-1	1-81115-221-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: C = 1-81100-308-0, E = 1-81100-324-1	1-81115-222-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: G = 8-94399-159-4, I = 8-97602-167-1	1-81129-701-0	01	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: A = 1-81100-264-1	1-81129-387-0	03	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: G = 8-94399-159-4, I = 8-97602-167-1	1-81129-625-0	03	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: H = 8-94399-896-3	1-81129-639-0	01	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: H = 8-94399-896-3	1-81129-640-0	01	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: F = 8-94394-151-2, I = 8-97602-167-1, J = 8-97602-169-1	1-81129-698-0	02	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: G = 8-94399-159-4	1-81129-698-0	02	1	9810-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: G = 8-94399-159-4	1-81129-702-0	02	1	-9809
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-706-0	04	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-708-0	02	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: A = 1-81100-264-1	5-81129-214-0	02	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: F = 8-94394-151-2, J = 8-97602-169-1	8-94167-434-0	03	1	-
28	LEVER; SHIFT,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81127-031-0	01	1	-
28	LEVER; SHIFT,STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81127-038-0	01	1	-
29	PIN; SHIFT LEVER STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81129-185-0	01	1	-
29	PIN; SHIFT LEVER STARTER NIKKO ASM PART: H = 8-94399-896-3	8-94340-471-0	01	1	-
30	PLATE; ENGAGE SW STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81129-637-0	01	1	-
30	PLATE; ENGAGE SW STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81129-147-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: E = 1-81100-324-1	1-81100-133-0	01	1	0307-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: G = 8-94399-159-4	1-81151-088-2	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: H = 8-94399-896-3	1-81151-093-1	01	1	-9809
31	SWITCH; ENGAGE STARTER DENSO ASM PART: F = 8-94394-151-2	1-81151-099-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: D = 1-81100-323-1	1-81151-102-1	01	1	-0203
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: B = 1-81100-307-0	1-81151-102-1	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: C = 1-81100-308-0	1-81151-103-1	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: E = 1-81100-324-1	1-81151-103-1	01	1	-0306
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81151-109-1	01	1	9810-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: I = 8-97602-167-1	1-81151-125-0	01	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: J = 8-97602-169-1	1-81151-126-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: D = 1-81100-323-1	1-81151-132-0	01	1	0204-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81151-036-0	01	1	-
41	SCREW; RR COVER,STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81129-641-0	02	1	-
41	SCREW; RR COVER,STARTER DENSO ASM PART: G = 8-94399-159-4	1-81129-703-0	02	1	-
41	SCREW; RR COVER,STARTER DENSO ASM PART: F = 8-94394-151-2, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-130-0	02	1	-
54	CLUTCH; PINION,STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81122-056-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: H = 8-94399-896-3	1-81129-636-0	01	1	-0004
54	CLUTCH; PINION,STARTER NIKKO ASM PART: D = 1-81100-323-1	1-81129-712-0	01	1	-0203
54	CLUTCH; PINION,STARTER NIKKO ASM PART: E = 1-81100-324-1	1-81129-712-0	01	1	-0306
54	CLUTCH; PINION,STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81129-712-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: E = 1-81100-324-1	8-98146-940-0	01	1	0307-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: D = 1-81100-323-1	8-98146-940-0	01	1	0204-
54	CLUTCH; PINION,STARTER ASM PART: H = 8-94399-896-3	8-98146-946-0	01	1	0005-
64	WASHER; INSULATION ENGAGE SW STARTER NIKKO ASM PART: H = 8-94399-896-3	5-81129-151-0	02	1	-
64	WASHER; INSULATION ENGAGE SW STARTER NIKKO ASM PART: A = 1-81100-264-1	9-82116-142-0	01	1	-
78	TERMINAL; LEAD WIRE STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81129-384-0	01	1	-
78	TERMINAL; LEAD WIRE STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81129-634-0	01	1	-
79	HOLDER; SHIFT LEVER NIKKO ASM PART: H = 8-94399-896-3	1-81118-051-0	02	1	-
95	BRUSH ASM; STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81116-059-0	04	1	-0004
95	BRUSH ASM; STARTER NIKKO ASM PART: H = 8-94399-896-3	8-98207-840-0	04	1	0005-
116	BOLT; BRKT (A) NIKKO ASM PART: H = 8-94399-896-3	1-81129-603-0	02	1	-
116	BOLT; BRKT (B) NIKKO ASM PART: H = 8-94399-896-3	1-81129-604-0	01	1	-
116	BOLT; BRKT (C) NIKKO ASM PART: H = 8-94399-896-3	1-81129-605-0	01	1	-
116	BOLT; BRKT (D) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-722-0	02	1	-

41 23 22 20 13 58 58 16 27 17 20 17 114 52 115 43 44 43 46 31 58 47 48 54 2 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER DENSO ASM PART: G = 8-94399-159-4, I = 8-97602-167-1	1-81114-036-2	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81123-025-0	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81123-044-1	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: B = 1-81100-307-0, D = 1-81100-323-1	1-81123-049-0	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: C = 1-81100-308-0, E = 1-81100-324-1	1-81123-050-0	01	1	-
2	CASE; PINION,STARTER DENSO ASM PART: F = 8-94394-151-2, J = 8-97602-169-1	1-81129-697-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: G = 8-94399-159-4	1-81111-009-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: F = 8-94394-151-2, I = 8-97602-167-1, J = 8-97602-169-1	1-81129-696-0	01	1	-
13	YOKE; STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81129-705-0	01	1	-1105
13	YOKE; STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81129-705-0	01	1	-
13	YOKE; STARTER ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	8-98197-520-0	01	1	1106-
16	ARMATURE; STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81121-037-0	01	1	-
16	ARMATURE; STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	1-81121-055-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81121-058-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81121-062-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) REAR NIKKO ASM PART: A = 1-81100-264-1	1-81129-385-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) FRONT NIKKO ASM PART: A = 1-81100-264-1	1-81129-395-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) NIKKO ASM PART: H = 8-94399-896-3	1-81129-609-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	1-81129-626-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-09800-081-0	01	1	-
20	BRUSH; (+),STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81116-042-0	02	1	-
20	BRUSH; (+),STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81116-060-0	02	1	-1105
20	BRUSH; (+),STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81116-060-0	02	1	-
20	BRUSH; (+),STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	8-94171-853-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	8-98197-175-0	02	1	1106-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81118-036-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81118-056-0	01	1	-0004
22	HOLDER; BRUSH STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81118-061-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81118-061-0	01	1	-1105
22	HOLDER; BRUSH STARTER DENSO, DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81118-013-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	8-98155-174-0	01	1	1106-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: H = 8-94399-896-3	8-98207-839-0	01	1	0005-
23	COVER; RR COVER STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81115-203-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81115-215-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: F = 8-94394-151-2, J = 8-97602-169-1	1-81115-220-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: B = 1-81100-307-0, D = 1-81100-323-1	1-81115-221-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: C = 1-81100-308-0, E = 1-81100-324-1	1-81115-222-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: G = 8-94399-159-4, I = 8-97602-167-1	1-81129-701-0	01	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: A = 1-81100-264-1	1-81129-387-0	03	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: G = 8-94399-159-4, I = 8-97602-167-1	1-81129-625-0	03	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: H = 8-94399-896-3	1-81129-639-0	01	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: H = 8-94399-896-3	1-81129-640-0	01	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: F = 8-94394-151-2, I = 8-97602-167-1, J = 8-97602-169-1	1-81129-698-0	02	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: G = 8-94399-159-4	1-81129-698-0	02	1	9810-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: G = 8-94399-159-4	1-81129-702-0	02	1	-9809
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-706-0	04	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-708-0	02	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: A = 1-81100-264-1	5-81129-214-0	02	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: F = 8-94394-151-2, J = 8-97602-169-1	8-94167-434-0	03	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: E = 1-81100-324-1	1-81100-133-0	01	1	0307-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: G = 8-94399-159-4	1-81151-088-2	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: H = 8-94399-896-3	1-81151-093-1	01	1	-9809
31	SWITCH; ENGAGE STARTER DENSO ASM PART: F = 8-94394-151-2	1-81151-099-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: D = 1-81100-323-1	1-81151-102-1	01	1	-0203
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: B = 1-81100-307-0	1-81151-102-1	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: C = 1-81100-308-0	1-81151-103-1	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: E = 1-81100-324-1	1-81151-103-1	01	1	-0306
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81151-109-1	01	1	9810-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: I = 8-97602-167-1	1-81151-125-0	01	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: J = 8-97602-169-1	1-81151-126-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: D = 1-81100-323-1	1-81151-132-0	01	1	0204-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81151-036-0	01	1	-
41	SCREW; RR COVER,STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81129-641-0	02	1	-
41	SCREW; RR COVER,STARTER DENSO ASM PART: G = 8-94399-159-4	1-81129-703-0	02	1	-
41	SCREW; RR COVER,STARTER DENSO ASM PART: F = 8-94394-151-2, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-130-0	02	1	-
43	RETAINER; PINION STARTER (A) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81118-060-0	01	1	-
43	RETAINER; PINION STARTER (B) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-709-0	02	1	-
43	RETAINER; PINION STARTER (A) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER (B) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-127-0	01	1	-
44	ROLLER; PINION STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-715-0	05	1	-
44	ROLLER; PINION STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-120-0	05	1	-
46	GEAR; CLU STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-714-0	01	1	-
46	GEAR; CLU STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81123-018-0	01	1	-
47	SPRING; PINION STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-119-0	01	1	-
48	BALL; PINION,STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-713-0	01	1	-
48	BALL; PINION,STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-092-0	01	1	-
52	PLATE; LK,STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-136-0	01	1	-
54	CLUTCH; PINION,STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81122-056-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: H = 8-94399-896-3	1-81129-636-0	01	1	-0004
54	CLUTCH; PINION,STARTER NIKKO ASM PART: D = 1-81100-323-1	1-81129-712-0	01	1	-0203
54	CLUTCH; PINION,STARTER NIKKO ASM PART: E = 1-81100-324-1	1-81129-712-0	01	1	-0306
54	CLUTCH; PINION,STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81129-712-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: E = 1-81100-324-1	8-98146-940-0	01	1	0307-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: D = 1-81100-323-1	8-98146-940-0	01	1	0204-
54	CLUTCH; PINION,STARTER ASM PART: H = 8-94399-896-3	8-98146-946-0	01	1	0005-
58	PIPE; DRAIN RR COVER STARTER (F) NIKKO ASM PART: A = 1-81100-264-1	1-81129-568-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (C) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4	1-81129-677-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (G) NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81129-757-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (D) DENSO ASM PART: J = 8-97602-169-1	1-81129-924-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (E) DENSO ASM PART: J = 8-97602-169-1	1-81129-925-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (A) DENSO ASM PART: I = 8-97602-167-1	8-97184-640-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (B) DENSO ASM PART: I = 8-97602-167-1	8-97184-641-0	01	1	-
114	NUT; TERMINAL DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-126-0	01	1	-
115	WASHER; TERMINAL DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-134-0	01	1	-

58 23 41 27 58 23 41 22 20 13 27 16 17 20 115 17 114 52 58 43 44 43 46 31 47 48 54 2 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER DENSO ASM PART: G = 8-94399-159-4, I = 8-97602-167-1	1-81114-036-2	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81123-025-0	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81123-044-1	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: B = 1-81100-307-0, D = 1-81100-323-1	1-81123-049-0	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: C = 1-81100-308-0, E = 1-81100-324-1	1-81123-050-0	01	1	-
2	CASE; PINION,STARTER DENSO ASM PART: F = 8-94394-151-2, J = 8-97602-169-1	1-81129-697-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: G = 8-94399-159-4	1-81111-009-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: F = 8-94394-151-2, I = 8-97602-167-1, J = 8-97602-169-1	1-81129-696-0	01	1	-
13	YOKE; STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81129-705-0	01	1	-1105
13	YOKE; STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81129-705-0	01	1	-
13	YOKE; STARTER ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	8-98197-520-0	01	1	1106-
16	ARMATURE; STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81121-037-0	01	1	-
16	ARMATURE; STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	1-81121-055-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81121-058-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81121-062-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) REAR NIKKO ASM PART: A = 1-81100-264-1	1-81129-385-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) FRONT NIKKO ASM PART: A = 1-81100-264-1	1-81129-395-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) NIKKO ASM PART: H = 8-94399-896-3	1-81129-609-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	1-81129-626-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-09800-081-0	01	1	-
20	BRUSH; (+),STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81116-042-0	02	1	-
20	BRUSH; (+),STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81116-060-0	02	1	-1105
20	BRUSH; (+),STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81116-060-0	02	1	-
20	BRUSH; (+),STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	8-94171-853-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	8-98197-175-0	02	1	1106-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81118-036-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81118-056-0	01	1	-0004
22	HOLDER; BRUSH STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81118-061-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81118-061-0	01	1	-1105
22	HOLDER; BRUSH STARTER DENSO, DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81118-013-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	8-98155-174-0	01	1	1106-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: H = 8-94399-896-3	8-98207-839-0	01	1	0005-
23	COVER; RR COVER STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81115-203-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81115-215-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: F = 8-94394-151-2, J = 8-97602-169-1	1-81115-220-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: B = 1-81100-307-0, D = 1-81100-323-1	1-81115-221-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: C = 1-81100-308-0, E = 1-81100-324-1	1-81115-222-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: G = 8-94399-159-4, I = 8-97602-167-1	1-81129-701-0	01	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: A = 1-81100-264-1	1-81129-387-0	03	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: G = 8-94399-159-4, I = 8-97602-167-1	1-81129-625-0	03	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: H = 8-94399-896-3	1-81129-639-0	01	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: H = 8-94399-896-3	1-81129-640-0	01	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: F = 8-94394-151-2, I = 8-97602-167-1, J = 8-97602-169-1	1-81129-698-0	02	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: G = 8-94399-159-4	1-81129-698-0	02	1	9810-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: G = 8-94399-159-4	1-81129-702-0	02	1	-9809
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-706-0	04	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-708-0	02	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: A = 1-81100-264-1	5-81129-214-0	02	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: F = 8-94394-151-2, J = 8-97602-169-1	8-94167-434-0	03	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: E = 1-81100-324-1	1-81100-133-0	01	1	0307-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: G = 8-94399-159-4	1-81151-088-2	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: H = 8-94399-896-3	1-81151-093-1	01	1	-9809
31	SWITCH; ENGAGE STARTER DENSO ASM PART: F = 8-94394-151-2	1-81151-099-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: D = 1-81100-323-1	1-81151-102-1	01	1	-0203
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: B = 1-81100-307-0	1-81151-102-1	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: C = 1-81100-308-0	1-81151-103-1	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: E = 1-81100-324-1	1-81151-103-1	01	1	-0306
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81151-109-1	01	1	9810-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: I = 8-97602-167-1	1-81151-125-0	01	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: J = 8-97602-169-1	1-81151-126-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: D = 1-81100-323-1	1-81151-132-0	01	1	0204-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: A = 1-81100-264-1	5-81151-036-0	01	1	-
41	SCREW; RR COVER,STARTER NIKKO ASM PART: H = 8-94399-896-3	1-81129-641-0	02	1	-
41	SCREW; RR COVER,STARTER DENSO ASM PART: G = 8-94399-159-4	1-81129-703-0	02	1	-
41	SCREW; RR COVER,STARTER DENSO ASM PART: F = 8-94394-151-2, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-130-0	02	1	-
43	RETAINER; PINION STARTER (A) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81118-060-0	01	1	-
43	RETAINER; PINION STARTER (B) NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-709-0	02	1	-
43	RETAINER; PINION STARTER (A) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER (B) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-127-0	01	1	-
44	ROLLER; PINION STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-715-0	05	1	-
44	ROLLER; PINION STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-120-0	05	1	-
46	GEAR; CLU STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-714-0	01	1	-
46	GEAR; CLU STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81123-018-0	01	1	-
47	SPRING; PINION STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-119-0	01	1	-
48	BALL; PINION,STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0, D = 1-81100-323-1, E = 1-81100-324-1	1-81129-713-0	01	1	-
48	BALL; PINION,STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-092-0	01	1	-
52	PLATE; LK,STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-136-0	01	1	-
54	CLUTCH; PINION,STARTER DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: A = 1-81100-264-1	1-81122-056-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: H = 8-94399-896-3	1-81129-636-0	01	1	-0004
54	CLUTCH; PINION,STARTER NIKKO ASM PART: D = 1-81100-323-1	1-81129-712-0	01	1	-0203
54	CLUTCH; PINION,STARTER NIKKO ASM PART: E = 1-81100-324-1	1-81129-712-0	01	1	-0306
54	CLUTCH; PINION,STARTER NIKKO ASM PART: B = 1-81100-307-0, C = 1-81100-308-0	1-81129-712-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: E = 1-81100-324-1	8-98146-940-0	01	1	0307-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: D = 1-81100-323-1	8-98146-940-0	01	1	0204-
54	CLUTCH; PINION,STARTER ASM PART: H = 8-94399-896-3	8-98146-946-0	01	1	0005-
58	PIPE; DRAIN RR COVER STARTER (F) NIKKO ASM PART: A = 1-81100-264-1	1-81129-568-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (C) DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4	1-81129-677-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (G) NIKKO ASM PART: D = 1-81100-323-1, E = 1-81100-324-1	1-81129-757-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (D) DENSO ASM PART: J = 8-97602-169-1	1-81129-924-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (E) DENSO ASM PART: J = 8-97602-169-1	1-81129-925-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (A) DENSO ASM PART: I = 8-97602-167-1	8-97184-640-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (B) DENSO ASM PART: I = 8-97602-167-1	8-97184-641-0	01	1	-
114	NUT; TERMINAL DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-126-0	01	1	-
115	WASHER; TERMINAL DENSO ASM PART: F = 8-94394-151-2, G = 8-94399-159-4, I = 8-97602-167-1, J = 8-97602-169-1	5-81129-134-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
