◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#43658) — 101 parça

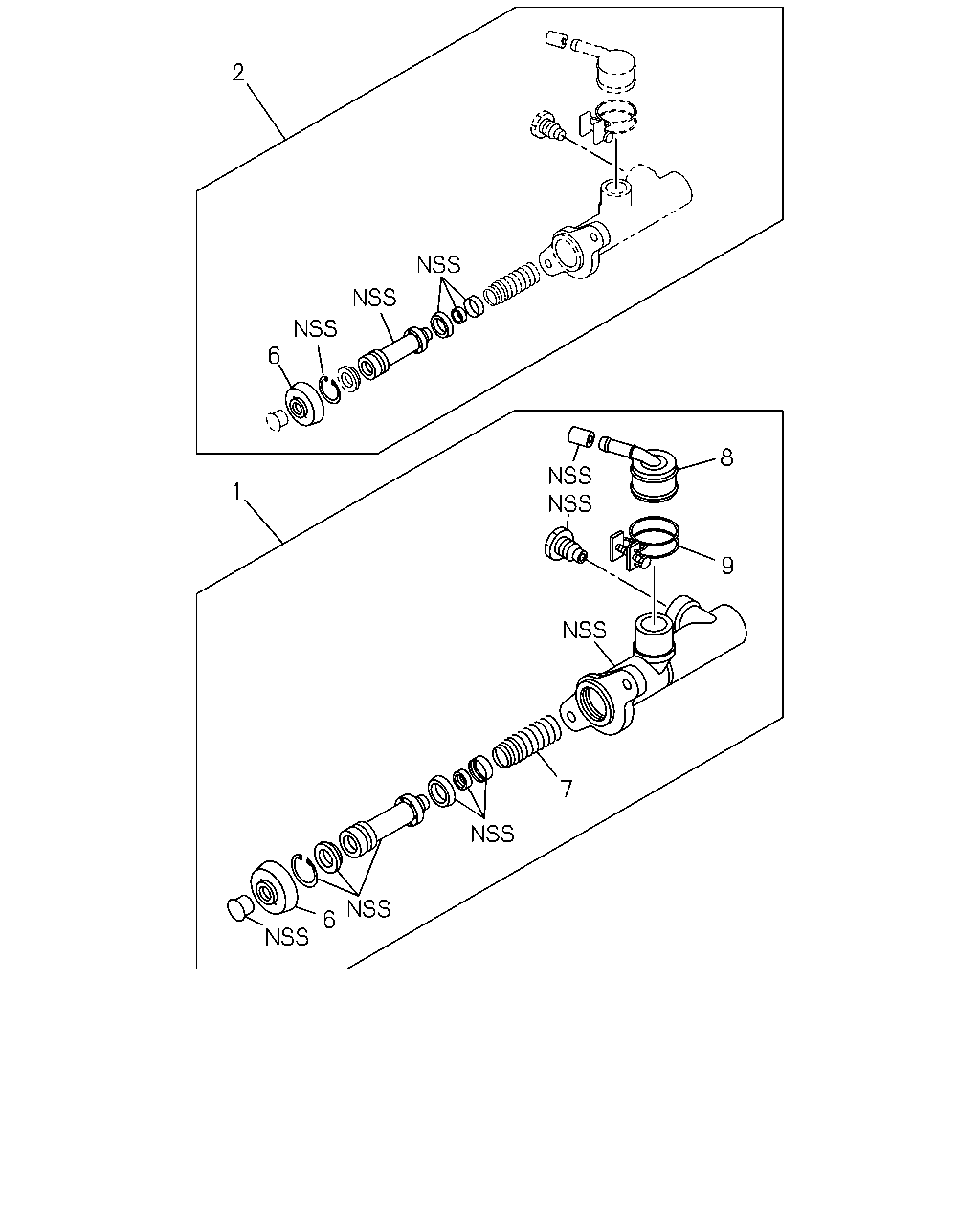

çizim 9064
2 6 8 1 9 7 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1 ENG(RJX) EXC. POWER ASSIST CLUTCH<S2T> 		8-97300-211-0 01 1 0201- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-406-0 01 1 9811-0105 ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-406-0 01 1 0106- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97167-404-0 01 1 9811-9902 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97210-748-1 01 1 9903- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 9811-0105 ● ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0106-0112 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0201- ● ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 9811- ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 9811-0105 ● ● ● ●
6 00.775 BOOT; CLU M/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0106-0112 ● ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0201- ● ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-153-0 01 1 9811- ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 9811-0105 ● ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0106-0112 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0201- ● ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 9811- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 9811-0105 ● ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 0106-0112 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 0201- ● ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-190-0 01 1 9811- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 9811-0105 ● ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0106-0112 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0201- ● ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-143-0 01 1 9811- ● ●

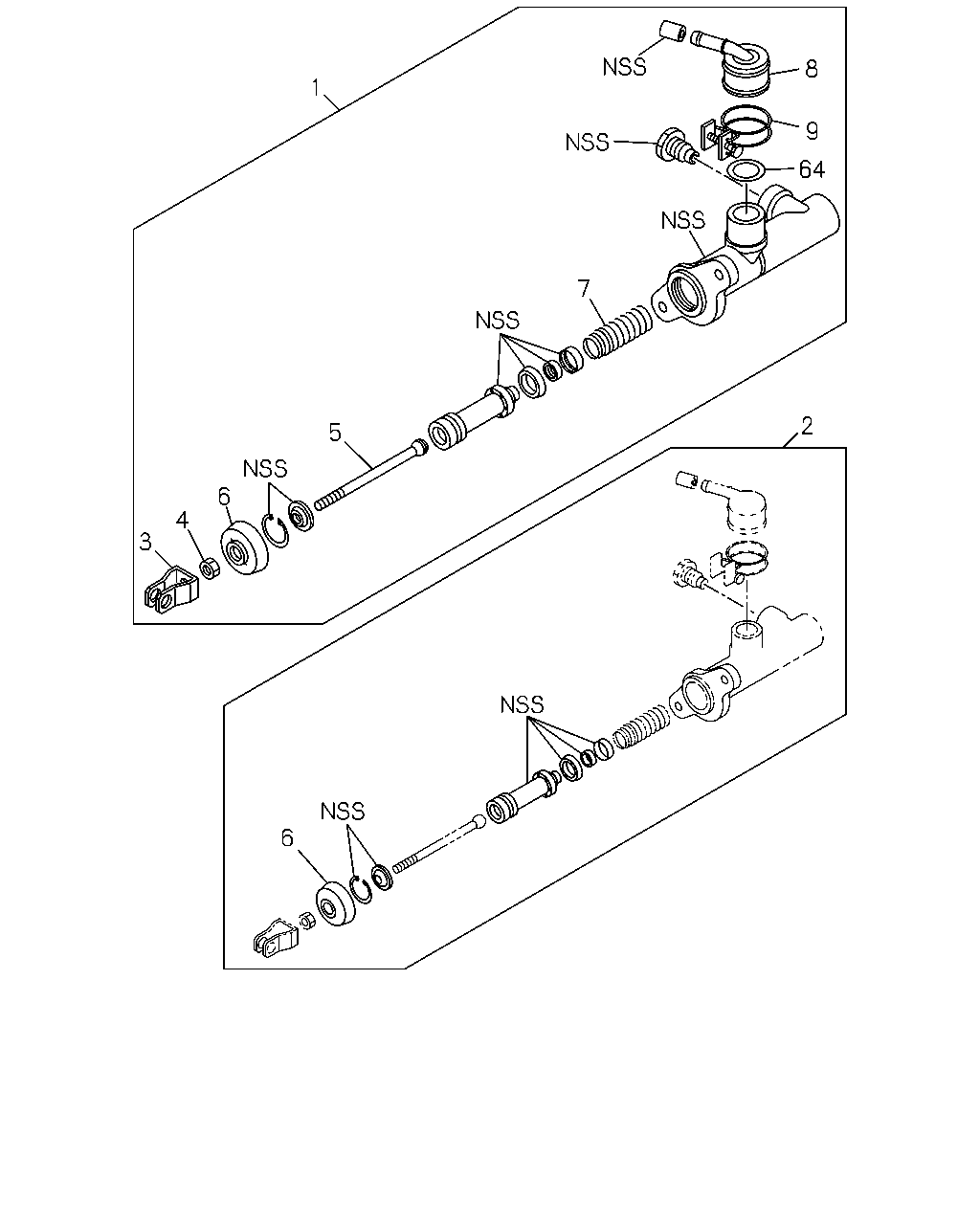

çizim 45990
8 1 9 64 7 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1 ENG(RJX) EXC. POWER ASSIST CLUTCH<S2T> 		8-97300-211-0 01 1 0201- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-406-0 01 1 9811-0105 ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-406-0 01 1 0106- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97167-404-0 01 1 9811-9902 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97210-748-1 01 1 9903- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 9811-0105 ● ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0106-0112 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0201- ● ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 9811- ● ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-770-0 01 1 9811-0105 ● ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-770-0 01 1 0106-0112 ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-770-0 01 1 0201- ● ● ● ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH<S2T> 00.787 M8 		9-09111-408-0 01 1 9811-0105 ● ● ● ●
4 00.777 NUT; JAW JOINT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 00.787 M8 		9-09111-408-0 01 1 0106-0112 ● ● ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH<S2T> 00.787 M8 		9-09111-408-0 01 1 0201- ● ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-768-0 01 1 9811-0105 ● ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-768-0 01 1 0106-0112 ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-768-0 01 1 0201- ● ● ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 9811-0105 ● ● ● ●
6 00.775 BOOT; CLU M/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0106-0112 ● ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0201- ● ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-153-0 01 1 9811- ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 9811-0105 ● ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0106-0112 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0201- ● ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 9811- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 9811-0105 ● ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 0106-0112 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 0201- ● ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-190-0 01 1 9811- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 9811-0105 ● ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0106-0112 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0201- ● ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-143-0 01 1 9811- ● ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 9811-0105 ● ● ● ●
64 00.777 GASKET; CONNECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 0106-0112 ● ● ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 0201- ● ● ● ●

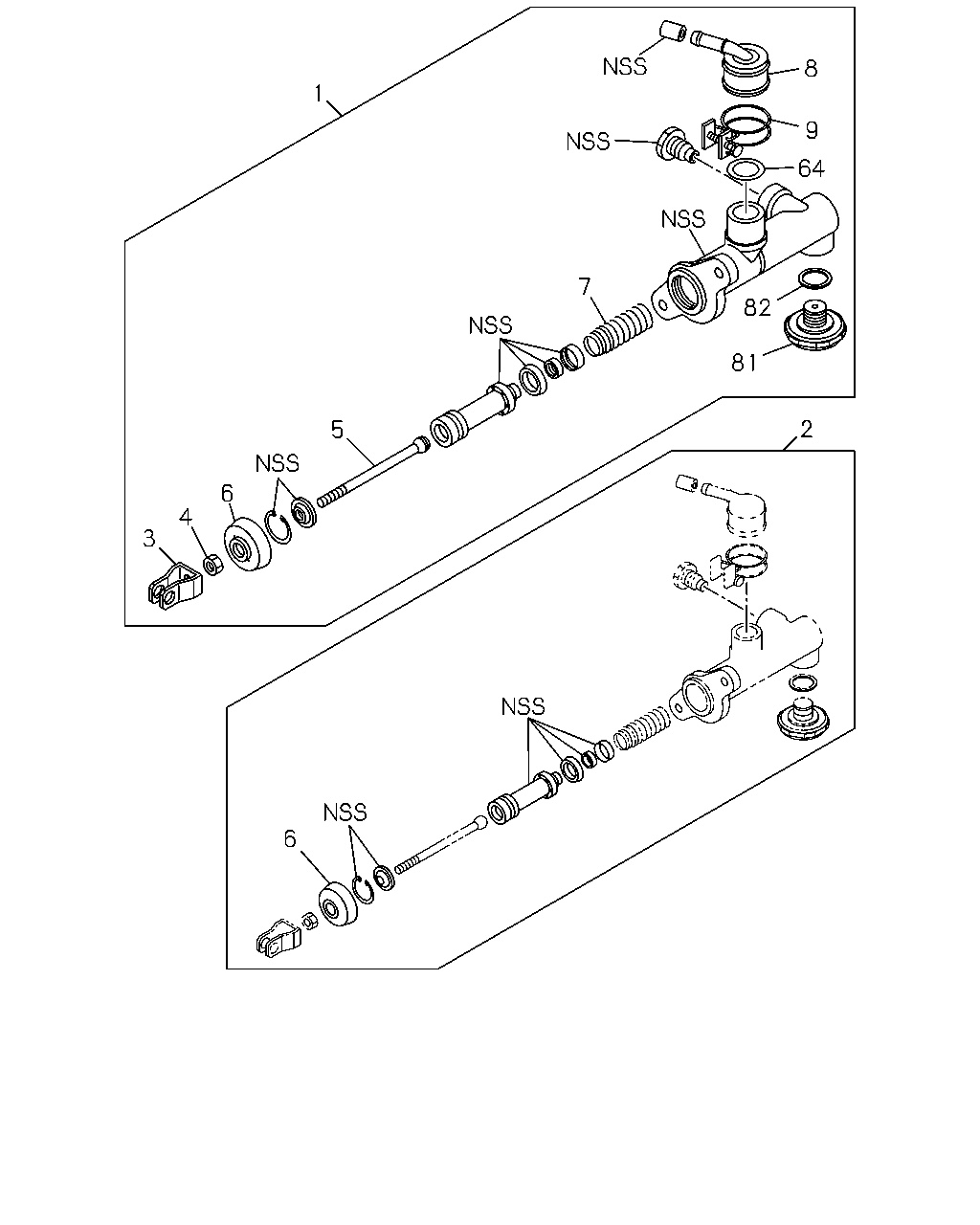

çizim 48874
8 1 9 64 7 82 81 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1 ENG(RJX) EXC. POWER ASSIST CLUTCH<S2T> 		8-97300-211-0 01 1 0201- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-406-0 01 1 9811-0105 ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-406-0 01 1 0106- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97167-404-0 01 1 9811-9902 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97210-748-1 01 1 9903- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 9811-0105 ● ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0106-0112 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0201- ● ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 9811- ● ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-770-0 01 1 9811-0105 ● ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-770-0 01 1 0106-0112 ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-770-0 01 1 0201- ● ● ● ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH<S2T> 00.787 M8 		9-09111-408-0 01 1 9811-0105 ● ● ● ●
4 00.777 NUT; JAW JOINT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 00.787 M8 		9-09111-408-0 01 1 0106-0112 ● ● ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH<S2T> 00.787 M8 		9-09111-408-0 01 1 0201- ● ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-768-0 01 1 9811-0105 ● ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-768-0 01 1 0106-0112 ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-768-0 01 1 0201- ● ● ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 9811-0105 ● ● ● ●
6 00.775 BOOT; CLU M/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0106-0112 ● ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0201- ● ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-153-0 01 1 9811- ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 9811-0105 ● ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0106-0112 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0201- ● ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 9811- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 9811-0105 ● ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 0106-0112 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 0201- ● ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-190-0 01 1 9811- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 9811-0105 ● ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0106-0112 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0201- ● ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-143-0 01 1 9811- ● ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 9811-0105 ● ● ● ●
64 00.777 GASKET; CONNECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 0106-0112 ● ● ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 0201- ● ● ● ●
81 00.777 DAMPER; MASTER CYL
4JH1 ENG(RJX) EXC. POWER ASSIST CLUTCH<S2T> 		8-97190-913-0 01 1 0201- ● ●
82 00.777 GASKET; DAMPER
4JH1 ENG(RJX) EXC. POWER ASSIST CLUTCH<S2T> 		8-97191-396-0 01 1 0201- ● ●
