◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#43655) — 263 parça

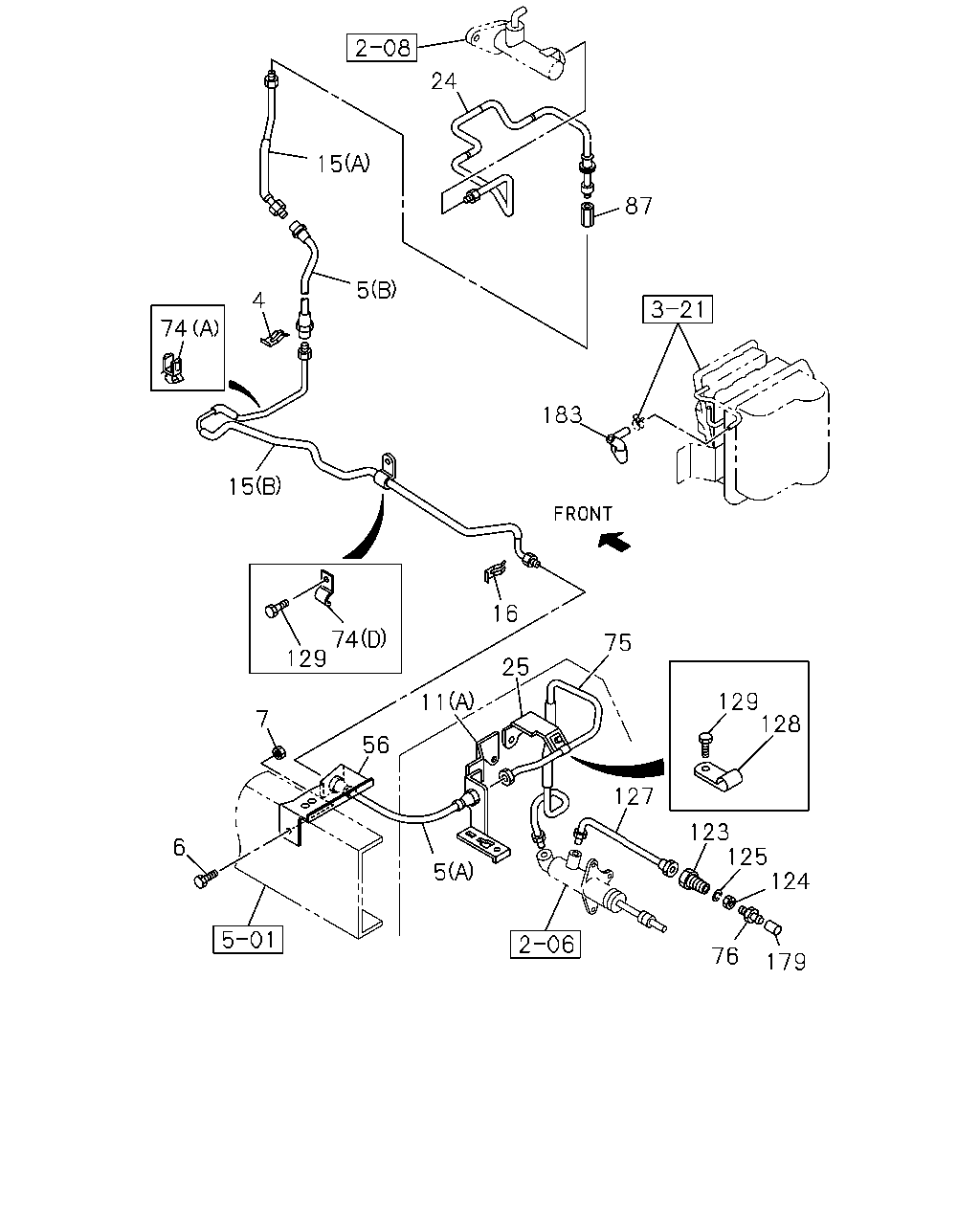

çizim 48552
24 15 87 5 4 74 183 15 16 74 129 75 25 129 128 11 7 56 127 123 125 124 6 5 76 179
BalonParca AdiParca NoAdetTipApplied Date A B C D E
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9811-0105 ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0106- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JH1 ENG(RJX) (C) 		8-97304-979-0 01 1 0201- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HF1 ENG(RLS) (A) 		8-94482-265-1 01 1 9811- ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9811-0105 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0106- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> (A) 		8-94374-552-1 01 1 9811-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JG2 ENG(RJC) (A) 		8-94374-552-1 01 1 9811-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JG2 ENG(RJC) (A) 		8-94374-552-1 01 1 0106- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> (A) 		8-94374-552-1 01 1 0106- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A) 		8-97064-108-1 01 1 9811-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A) 		8-97064-108-1 01 1 0106- ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811-0105 ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JG2 ENG(RJC) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811-0105 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JG2 ENG(RJC) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0106- ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0106- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HF1 ENG(RLS) (B) 		8-97063-755-0 01 1 9811- ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 ENG(RLF) TURBOCHARGER<K51> (A) 		8-97091-929-0 01 1 9811-0105 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JG2 ENG(RJC) (A) 		8-97091-929-0 01 1 9811-0105 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JG2 ENG(RJC) (A) 		8-97091-929-0 01 1 0106- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 ENG(RLF) TURBOCHARGER<K51> (A) 		8-97091-929-0 01 1 0106- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (B) 		8-94411-135-0 01 1 9811-0105 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (B) 		8-94411-135-0 01 1 0106- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97259-375-2 01 1 0201- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97259-517-1 01 1 0201- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97170-183-0 01 1 9811-0105 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1 ENG(RLS) FRAME-KICK UP<7EW> (B) 		8-97170-183-0 01 1 0106- ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97077-645-3 01 1 9811- ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97070-300-2 01 1 9811-0105 ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97070-300-2 01 1 0106-0111 ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97328-481-0 01 1 0112- ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 9811-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC) (B) 		8-97122-637-0 01 1 9811-0105 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97122-637-0 01 1 0106- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 0106- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (B) 		8-97070-380-4 01 1 9811-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (B) 		8-97070-380-4 01 1 0106- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL TIRE&SGL CAB(NKB*S*) 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97208-515-1 01 1 0106- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL TIRE&SGL CAB(NKB*S*) 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97185-250-1 01 1 0106- ● ●
16 00.785 CLIP; FLEX HOSE
4HF1 ENG(RLS) 		8-94167-006-0 01 1 9811-0105 ●
16 00.785 CLIP; FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-94167-006-0 01 1 9811-0105 ● ● ●
16 00.785 CLIP; FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-94167-006-0 02 1 9811-0105 ● ● ●
16 00.785 CLIP; FLEX HOSE
4JG2 ENG(RJC) 		8-94167-006-0 02 1 9811-0105 ● ●
16 00.785 CLIP; FLEX HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-94167-006-0 01 1 0106- ● ● ●
16 00.785 CLIP; FLEX HOSE
4JG2 ENG(RJC) 		8-94167-006-0 01 1 0106- ● ●
16 00.785 CLIP; FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-94167-006-0 01 1 0106- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> 		8-97094-343-2 01 1 9811-0105 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> 		8-97094-343-2 01 1 0106- ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97118-568-0 01 1 9811- ● ●
25 00.785 BRACKET; OIL PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97013-211-1 01 1 9811-0105 ● ● ●
25 00.785 BRACKET; OIL PIPE
4JG2 ENG(RJC) 		8-97013-211-1 01 1 9811-0105 ● ●
25 00.785 BRACKET; OIL PIPE
4JG2 ENG(RJC) 		8-97013-211-1 01 1 0106- ● ●
25 00.785 BRACKET; OIL PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97013-211-1 01 1 0106- ● ●
56 00.785 BRACKET; FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97090-299-0 01 1 9811-0105 ● ● ●
56 00.785 BRACKET; FLEX HOSE
4JG2 ENG(RJC) 		8-97090-299-0 01 1 9811-0105 ● ●
56 00.785 BRACKET; FLEX HOSE
4JG2 ENG(RJC) 		8-97090-299-0 01 1 0106- ● ●
56 00.785 BRACKET; FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97090-299-0 01 1 0106- ● ●
74 00.785 CLIP; CLU OIL PIPE
4JH1 ENG(RJX) 03.162 (A) H=28.5 		8-94486-808-0 01 1 0201- ● ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) 03.162 (C) ID=5 & 6.5 & 8.2 		8-94128-316-1 01 1 9811-0105 ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.162 (C) ID=5 & 6.5 & 8.2 		8-94128-316-1 01 1 0106- ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) 04.686 (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9811-0105 ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.686 (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0106- ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.686 (F) ID=9 L=20 		9-09545-108-0 01 1 0104- ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 03.483 (E) ID=9 & 7 L=15 & 15 		1-09700-060-0 01 1 0106- ●
74 00.785 CLIP; CLU OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 06.672 (D) 		8-94363-358-0 01 1 0106-0112 ●
74 00.785 CLIP; CLU OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 06.672 (D) 		8-94363-358-0 01 1 0201- ● ●
74 00.785 CLIP; CLU OIL PIPE
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 06.672 (D) 		8-94363-358-0 01 1 0201- ●
74 00.785 CLIP; CLU OIL PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> 03.162 (A) H=28.5 		8-94486-808-0 02 1 9811-0012 ● ● ●
74 00.785 CLIP; CLU OIL PIPE
4JG2 ENG(RJC) 03.162 (A) H=28.5 		8-94486-808-0 02 1 9811-0012 ● ●
74 00.785 CLIP; CLU OIL PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> 03.162 (A) H=28.5 		8-94486-808-0 02 1 0101-0105 ● ● ●
74 00.785 CLIP; CLU OIL PIPE
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 02 1 0101-0105 ● ●
74 00.785 CLIP; CLU OIL PIPE
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 02 1 0106- ● ●
74 00.785 CLIP; CLU OIL PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> 03.162 (A) H=28.5 		8-94486-808-0 02 1 0106- ● ●
75 00.785 PIPE ASM; CLU,HSG
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97063-756-2 01 1 9811-0105 ● ● ●
75 00.785 PIPE ASM; CLU,HSG
4JG2 ENG(RJC) 		8-97063-756-2 01 1 9811-0105 ● ●
75 00.785 PIPE ASM; CLU,HSG
4JG2 ENG(RJC) 		8-97063-756-2 01 1 0106- ● ●
75 00.785 PIPE ASM; CLU,HSG
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97063-756-2 01 1 0106- ● ●
76 00.785 SCREW; BREATHER
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 00.780 M8X16.5 		8-94115-113-0 01 1 0106- ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 9811-0105 ● ● ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0106- ● ● ● ●
123 00.785 UNION; AIR PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97013-854-0 01 1 0106- ●
124 00.785 NUT; PIPE UNION
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 04.681 M16 		9-99111-416-0 01 1 0106- ●
125 00.785 WASHER; LK,PIPE UNION
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 06.897 ID=16.2 		9-09150-516-0 01 1 0106- ●
127 00.785 PIPE; AIR,UNION TO MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97062-512-1 01 1 0106- ●
128 00.785 CLIP; AIR PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> 03.145 ID=7 L=16 		9-09524-622-0 02 1 9811-0105 ● ● ●
128 00.785 CLIP; AIR PIPE
4JG2 ENG(RJC) 03.145 ID=7 L=16 		9-09524-622-0 02 1 9811-0105 ● ●
128 00.785 CLIP; AIR PIPE
4JG2 ENG(RJC) 03.145 ID=7 L=16 		9-09524-622-0 02 1 0106- ● ●
128 00.785 CLIP; AIR PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> 03.145 ID=7 L=16 		9-09524-622-0 02 1 0106- ● ●
129 00.785 BOLT; PIPE CLIP
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0104- ●
129 00.785 BOLT; PIPE CLIP
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0106-0112 ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0106-0112 ●
129 00.785 BOLT; PIPE CLIP
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0201- ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0201- ●
129 00.785 BOLT; PIPE CLIP
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0201- ●
129 00.785 BOLT; PIPE CLIP
4JB1 ENG(RLF) TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9811-0105 ● ● ●
129 00.785 BOLT; PIPE CLIP
4JG2 ENG(RJC) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9811-0105 ● ●
129 00.785 BOLT; PIPE CLIP
4JG2 ENG(RJC) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0106- ● ●
129 00.785 BOLT; PIPE CLIP
4JB1 ENG(RLF) TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0106- ● ●
179 00.785 CAP; BREATHER
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 00.780 OD=9.5 		9-47619-005-0 01 1 0106- ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> 		8-97093-993-1 01 1 9811- ● ●

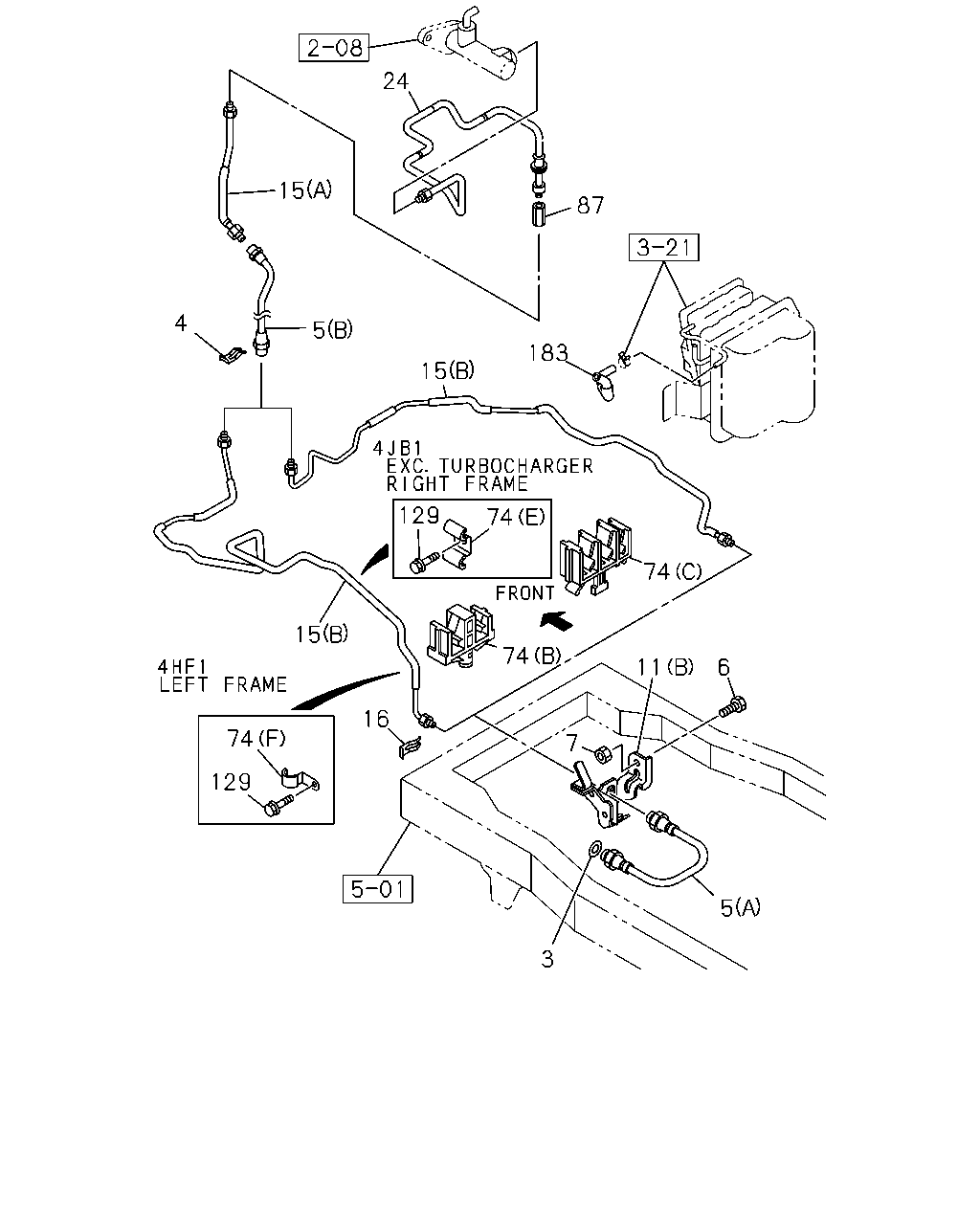

çizim 49174
24 15 87 4 5 183 15 129 74 74 15 74 11 6 16 7 74 129 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 00.785 GASKET; FLEX HOSE,CLU
4JH1 ENG(RJX) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0201- ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HF1 ENG(RLS) 		9-09920-873-1 01 1 9811-0105 ●
3 00.785 GASKET; FLEX HOSE,CLU
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		9-09920-873-1 01 1 9811-0105 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HF1 ENG(RLS) 		9-09920-873-1 01 1 0106- ●
3 00.785 GASKET; FLEX HOSE,CLU
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		9-09920-873-1 01 1 0106- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9811-0105 ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0106- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JH1 ENG(RJX) (C) 		8-97304-979-0 01 1 0201- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HF1 ENG(RLS) (A) 		8-94482-265-1 01 1 9811- ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9811-0105 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0106- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> (A) 		8-94374-552-1 01 1 9811-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JG2 ENG(RJC) (A) 		8-94374-552-1 01 1 9811-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JG2 ENG(RJC) (A) 		8-94374-552-1 01 1 0106- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> (A) 		8-94374-552-1 01 1 0106- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A) 		8-97064-108-1 01 1 9811-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A) 		8-97064-108-1 01 1 0106- ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811-0105 ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JG2 ENG(RJC) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811-0105 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JG2 ENG(RJC) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0106- ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0106- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HF1 ENG(RLS) (B) 		8-97063-755-0 01 1 9811- ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 ENG(RLF) TURBOCHARGER<K51> (A) 		8-97091-929-0 01 1 9811-0105 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JG2 ENG(RJC) (A) 		8-97091-929-0 01 1 9811-0105 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JG2 ENG(RJC) (A) 		8-97091-929-0 01 1 0106- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 ENG(RLF) TURBOCHARGER<K51> (A) 		8-97091-929-0 01 1 0106- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (B) 		8-94411-135-0 01 1 9811-0105 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (B) 		8-94411-135-0 01 1 0106- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97259-375-2 01 1 0201- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97259-517-1 01 1 0201- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97170-183-0 01 1 9811-0105 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1 ENG(RLS) FRAME-KICK UP<7EW> (B) 		8-97170-183-0 01 1 0106- ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97077-645-3 01 1 9811- ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97070-300-2 01 1 9811-0105 ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97070-300-2 01 1 0106-0111 ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97328-481-0 01 1 0112- ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 9811-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC) (B) 		8-97122-637-0 01 1 9811-0105 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97122-637-0 01 1 0106- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 0106- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (B) 		8-97070-380-4 01 1 9811-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (B) 		8-97070-380-4 01 1 0106- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL TIRE&SGL CAB(NKB*S*) 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97208-515-1 01 1 0106- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL TIRE&SGL CAB(NKB*S*) 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97185-250-1 01 1 0106- ● ●
16 00.785 CLIP; FLEX HOSE
4HF1 ENG(RLS) 		8-94167-006-0 01 1 9811-0105 ●
16 00.785 CLIP; FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-94167-006-0 01 1 9811-0105 ● ● ●
16 00.785 CLIP; FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-94167-006-0 02 1 9811-0105 ● ● ●
16 00.785 CLIP; FLEX HOSE
4JG2 ENG(RJC) 		8-94167-006-0 02 1 9811-0105 ● ●
16 00.785 CLIP; FLEX HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-94167-006-0 01 1 0106- ● ● ●
16 00.785 CLIP; FLEX HOSE
4JG2 ENG(RJC) 		8-94167-006-0 01 1 0106- ● ●
16 00.785 CLIP; FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-94167-006-0 01 1 0106- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> 		8-97094-343-2 01 1 9811-0105 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> 		8-97094-343-2 01 1 0106- ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97118-568-0 01 1 9811- ● ●
74 00.785 CLIP; CLU OIL PIPE
4JH1 ENG(RJX) 03.162 (A) H=28.5 		8-94486-808-0 01 1 0201- ● ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) 03.162 (C) ID=5 & 6.5 & 8.2 		8-94128-316-1 01 1 9811-0105 ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.162 (C) ID=5 & 6.5 & 8.2 		8-94128-316-1 01 1 0106- ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) 04.686 (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9811-0105 ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.686 (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0106- ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.686 (F) ID=9 L=20 		9-09545-108-0 01 1 0104- ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 03.483 (E) ID=9 & 7 L=15 & 15 		1-09700-060-0 01 1 0106- ●
74 00.785 CLIP; CLU OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 06.672 (D) 		8-94363-358-0 01 1 0106-0112 ●
74 00.785 CLIP; CLU OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 06.672 (D) 		8-94363-358-0 01 1 0201- ● ●
74 00.785 CLIP; CLU OIL PIPE
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 06.672 (D) 		8-94363-358-0 01 1 0201- ●
74 00.785 CLIP; CLU OIL PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> 03.162 (A) H=28.5 		8-94486-808-0 02 1 9811-0012 ● ● ●
74 00.785 CLIP; CLU OIL PIPE
4JG2 ENG(RJC) 03.162 (A) H=28.5 		8-94486-808-0 02 1 9811-0012 ● ●
74 00.785 CLIP; CLU OIL PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> 03.162 (A) H=28.5 		8-94486-808-0 02 1 0101-0105 ● ● ●
74 00.785 CLIP; CLU OIL PIPE
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 02 1 0101-0105 ● ●
74 00.785 CLIP; CLU OIL PIPE
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 02 1 0106- ● ●
74 00.785 CLIP; CLU OIL PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> 03.162 (A) H=28.5 		8-94486-808-0 02 1 0106- ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 9811-0105 ● ● ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0106- ● ● ● ●
129 00.785 BOLT; PIPE CLIP
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0104- ●
129 00.785 BOLT; PIPE CLIP
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0106-0112 ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0106-0112 ●
129 00.785 BOLT; PIPE CLIP
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0201- ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0201- ●
129 00.785 BOLT; PIPE CLIP
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0201- ●
129 00.785 BOLT; PIPE CLIP
4JB1 ENG(RLF) TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9811-0105 ● ● ●
129 00.785 BOLT; PIPE CLIP
4JG2 ENG(RJC) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9811-0105 ● ●
129 00.785 BOLT; PIPE CLIP
4JG2 ENG(RJC) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0106- ● ●
129 00.785 BOLT; PIPE CLIP
4JB1 ENG(RLF) TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0106- ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> 		8-97093-993-1 01 1 9811- ● ●
çizim 49478
15 24 4 5 87 15 129 74 74 19 18 5 19 177 3 3 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 00.785 GASKET; FLEX HOSE,CLU
4JH1 ENG(RJX) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0201- ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HF1 ENG(RLS) 		9-09920-873-1 01 1 9811-0105 ●
3 00.785 GASKET; FLEX HOSE,CLU
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		9-09920-873-1 01 1 9811-0105 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HF1 ENG(RLS) 		9-09920-873-1 01 1 0106- ●
3 00.785 GASKET; FLEX HOSE,CLU
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		9-09920-873-1 01 1 0106- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9811-0105 ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0106- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JH1 ENG(RJX) (C) 		8-97304-979-0 01 1 0201- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HF1 ENG(RLS) (A) 		8-94482-265-1 01 1 9811- ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9811-0105 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0106- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> (A) 		8-94374-552-1 01 1 9811-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JG2 ENG(RJC) (A) 		8-94374-552-1 01 1 9811-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JG2 ENG(RJC) (A) 		8-94374-552-1 01 1 0106- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> (A) 		8-94374-552-1 01 1 0106- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A) 		8-97064-108-1 01 1 9811-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A) 		8-97064-108-1 01 1 0106- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97259-375-2 01 1 0201- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97259-517-1 01 1 0201- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97170-183-0 01 1 9811-0105 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1 ENG(RLS) FRAME-KICK UP<7EW> (B) 		8-97170-183-0 01 1 0106- ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97077-645-3 01 1 9811- ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97070-300-2 01 1 9811-0105 ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97070-300-2 01 1 0106-0111 ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97328-481-0 01 1 0112- ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 9811-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC) (B) 		8-97122-637-0 01 1 9811-0105 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97122-637-0 01 1 0106- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 0106- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (B) 		8-97070-380-4 01 1 9811-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (B) 		8-97070-380-4 01 1 0106- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL TIRE&SGL CAB(NKB*S*) 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97208-515-1 01 1 0106- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL TIRE&SGL CAB(NKB*S*) 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97185-250-1 01 1 0106- ● ●
18 00.830 DAMPER ASM; CLU OIL
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97304-971-0 01 1 0201- ●
18 00.830 DAMPER ASM; CLU OIL
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97304-970-0 01 1 0201- ● ●
19 00.837 BOLT; CLU DAMPER
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0201- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> 		8-97094-343-2 01 1 9811-0105 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> 		8-97094-343-2 01 1 0106- ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97118-568-0 01 1 9811- ● ●
74 00.785 CLIP; CLU OIL PIPE
4JH1 ENG(RJX) 03.162 (A) H=28.5 		8-94486-808-0 01 1 0201- ● ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) 03.162 (C) ID=5 & 6.5 & 8.2 		8-94128-316-1 01 1 9811-0105 ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.162 (C) ID=5 & 6.5 & 8.2 		8-94128-316-1 01 1 0106- ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) 04.686 (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9811-0105 ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.686 (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0106- ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.686 (F) ID=9 L=20 		9-09545-108-0 01 1 0104- ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 03.483 (E) ID=9 & 7 L=15 & 15 		1-09700-060-0 01 1 0106- ●
74 00.785 CLIP; CLU OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 06.672 (D) 		8-94363-358-0 01 1 0106-0112 ●
74 00.785 CLIP; CLU OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 06.672 (D) 		8-94363-358-0 01 1 0201- ● ●
74 00.785 CLIP; CLU OIL PIPE
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 06.672 (D) 		8-94363-358-0 01 1 0201- ●
74 00.785 CLIP; CLU OIL PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> 03.162 (A) H=28.5 		8-94486-808-0 02 1 9811-0012 ● ● ●
74 00.785 CLIP; CLU OIL PIPE
4JG2 ENG(RJC) 03.162 (A) H=28.5 		8-94486-808-0 02 1 9811-0012 ● ●
74 00.785 CLIP; CLU OIL PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> 03.162 (A) H=28.5 		8-94486-808-0 02 1 0101-0105 ● ● ●
74 00.785 CLIP; CLU OIL PIPE
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 02 1 0101-0105 ● ●
74 00.785 CLIP; CLU OIL PIPE
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 02 1 0106- ● ●
74 00.785 CLIP; CLU OIL PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> 03.162 (A) H=28.5 		8-94486-808-0 02 1 0106- ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 9811-0105 ● ● ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0106- ● ● ● ●
129 00.785 BOLT; PIPE CLIP
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0104- ●
129 00.785 BOLT; PIPE CLIP
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0106-0112 ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0106-0112 ●
129 00.785 BOLT; PIPE CLIP
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0201- ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0201- ●
129 00.785 BOLT; PIPE CLIP
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0201- ●
129 00.785 BOLT; PIPE CLIP
4JB1 ENG(RLF) TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9811-0105 ● ● ●
129 00.785 BOLT; PIPE CLIP
4JG2 ENG(RJC) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9811-0105 ● ●
129 00.785 BOLT; PIPE CLIP
4JG2 ENG(RJC) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0106- ● ●
129 00.785 BOLT; PIPE CLIP
4JB1 ENG(RLF) TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0106- ● ●
177 00.777 BOLT; EYE,FLEX HOSE TO M/CYL
4JH1 ENG(RJX) 04.665 M10X22 		5-09675-017-0 01 1 0201- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
