◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#43654) — 41 parça

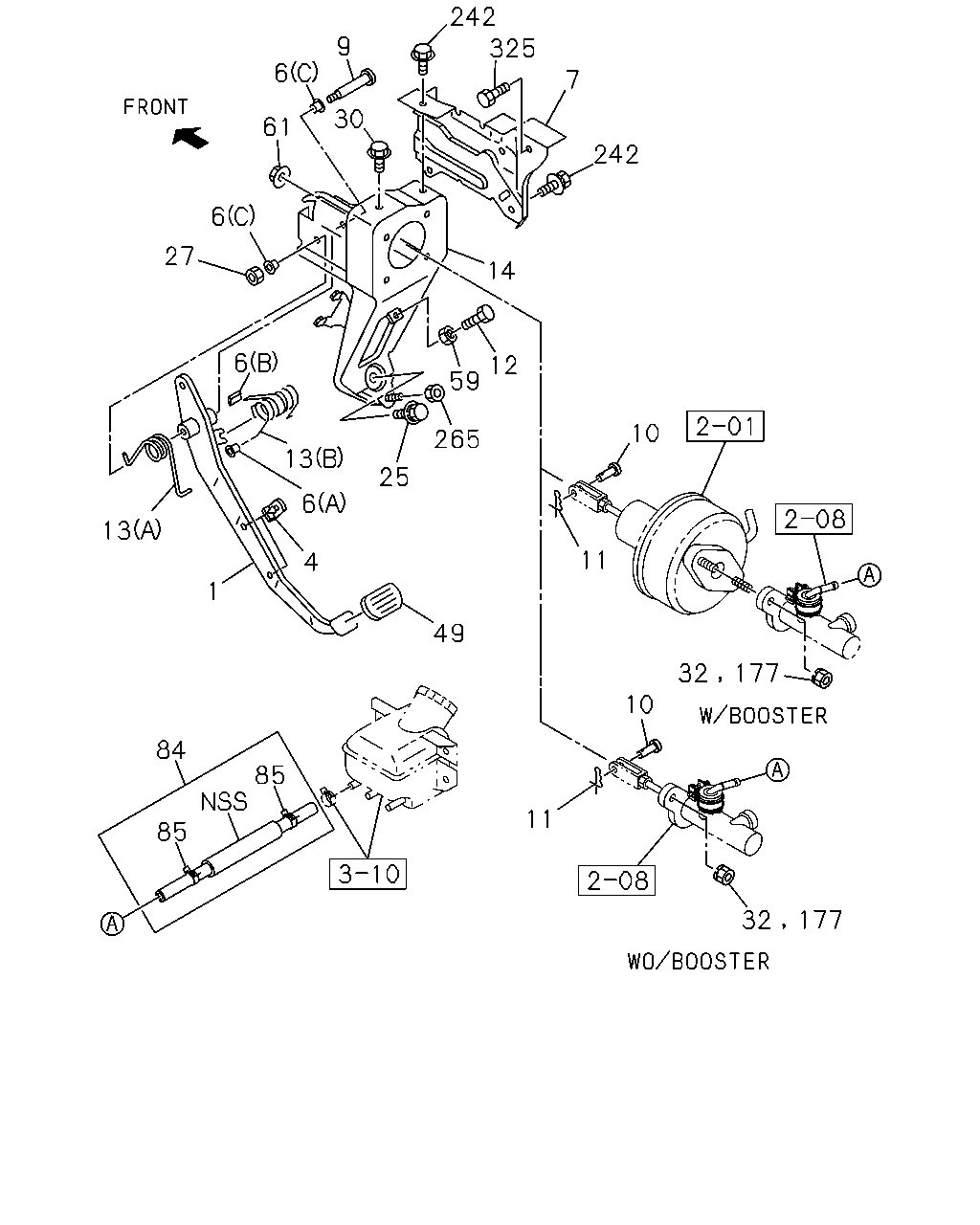

çizim 45702
242 9 325 6 7 30 61 242 6 27 14 6 12 59 10 265 13 25 6 13 11 4 1 49 32 177 10 84 85 11 85 32 177
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.830 PEDAL; CLU
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97857-984-1 01 1 9811-0012 ● ● ● ● ● ● ●
1 00.830 PEDAL; CLU
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97857-984-2 01 1 0101- ● ● ● ● ●
1 00.830 PEDAL; CLU
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97853-219-1 01 1 9811-0105 ● ● ● ● ● ● ●
1 00.830 PEDAL; CLU
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97853-219-2 01 1 0106-0112 ● ● ● ● ● ●
1 00.830 PEDAL; CLU
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97853-219-2 01 1 0201- ● ● ● ● ● ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH<S2T> 		8-97853-220-2 01 1 9811- ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-1 02 1 9811- ● ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 9811- ● ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97853-619-0 02 1 9811- ● ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH<S2T> (B) 		8-97853-620-0 01 1 9811- ● ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL 8-97856-307-2 01 1 9811- ● ● ● ● ● ● ●
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 9811- ● ● ● ● ● ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 9811- ● ● ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 9811- ● ● ● ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> 00.805 M10X35 		0-20801-035-0 01 1 9811- ● ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH<S2T> (B) 		8-97853-221-1 01 1 9811- ● ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH<S2T> (A) 		8-97853-535-1 01 1 9811- ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH<S2T> 		8-97868-003-0 01 1 9811-9903 ● ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH<S2T> 		8-97892-851-2 01 1 9904- ● ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH<S2T> 		8-97868-002-0 01 1 9811-9903 ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH<S2T> 		8-97892-852-2 01 1 9904- ● ● ● ● ●
25 00.833 BOLT; PEDAL
04.634 M10X22 W/WASHER 		8-94279-099-0 01 1 9811-0110 ● ● ● ● ● ● ●
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0111- ● ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 9811- ● ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 9811- ● ● ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 9811- ● ● ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 9811- ● ● ● ● ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> 09.011 M10 		9-09110-410-0 01 1 9811- ● ● ● ● ● ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH<S2T> M8 W/LK WASHER 		8-94279-050-0 04 1 9811- ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH<S2T>,PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 		8-97135-021-0 01 1 9811-9912 ● ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH<S2T>,PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 		8-97965-371-0 01 1 0001-0105 ● ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH<S2T>,PTO TRANSMISSION SIDE(V66) 		8-97965-371-0 01 1 0106-0112 ● ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH<S2T>,PTO TRANSMISSION SIDE(V66) 		8-97135-021-0 01 1 0201- ● ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) EXC. POWER ASSIST CLUTCH<S2T> 		8-97135-026-1 01 1 9811-0105 ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
PTO TRANSMISSION SIDE(V66) EXC. POWER ASSIST CLUTCH<S2T> 		8-97135-026-1 01 1 0106- ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH<S2T> 		8-97135-020-0 01 1 9811- ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97130-480-0 02 1 9811- ● ● ● ● ● ● ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 9811- ● ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9811- ● ● ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 9811- ● ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
