◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#43653) — 64 parça

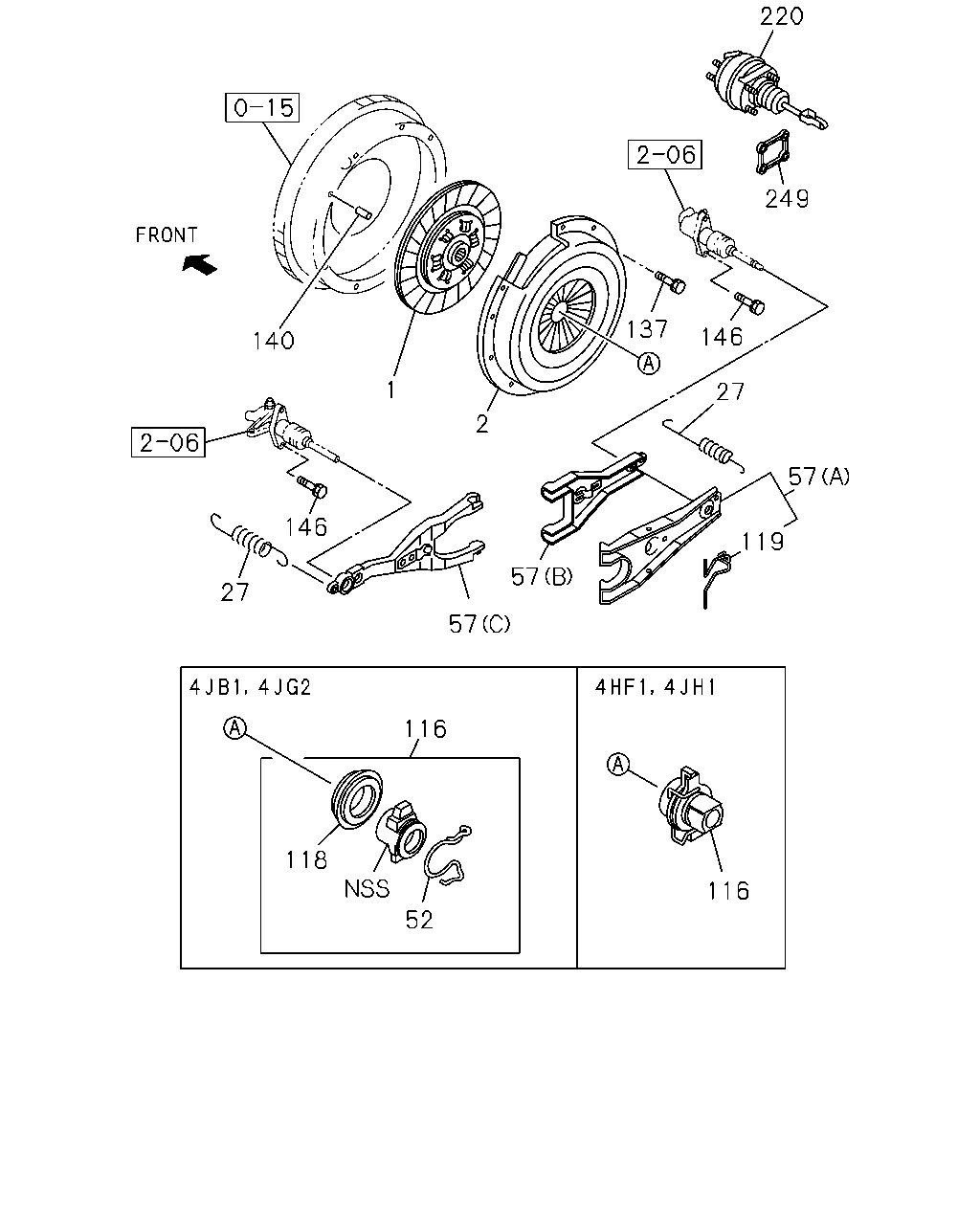

çizim 45231
220 249 137 146 140 1 27 2 57 146 119 57 27 57 116 118 116 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.886 DISC; CLUTCH
4JH1 ENG(RJX) 		8-97166-390-1 01 1 0201- ● ●
1 00.886 DISC; CLUTCH
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97076-700-0 01 1 9811-0105 ●
1 00.886 DISC; CLUTCH
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97162-966-1 01 1 9811-0105 ●
1 00.886 DISC; CLUTCH
4HF1 ENG(RLS) 		8-97162-966-1 01 1 0106- ●
1 00.886 DISC; CLUTCH
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97217-985-0 01 1 9811-0008 ● ● ●
1 00.886 DISC; CLUTCH
4JG2 ENG(RJC) 		8-97217-985-0 01 1 9811-0008 ● ●
1 00.886 DISC; CLUTCH
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97257-124-0 01 1 0009-0112 ● ● ●
1 00.886 DISC; CLUTCH
4JG2 ENG(RJC) 		8-97257-124-0 01 1 0009-0112 ● ●
1 00.886 DISC; CLUTCH
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97257-124-0 01 1 0201- ● ●
1 00.886 DISC; CLUTCH
4JG2 ENG(RJC) 		8-97257-124-0 01 1 0201- ● ●
1 00.886 DISC; CLUTCH
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 9.5" 		8-97013-548-0 01 1 9811- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JH1 ENG(RJX) 		8-97259-693-0 01 1 0201- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HF1 ENG(RLS) 		8-97031-757-2 01 1 9811-0103 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HF1 ENG(RLS) 		8-97310-796-0 01 1 0104- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97109-246-0 01 1 9811-0112 ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JG2 ENG(RJC) 		8-97109-246-0 01 1 9811-0112 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97109-246-0 01 1 0201- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JG2 ENG(RJC) 		8-97109-246-0 01 1 0201- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-94259-132-1 01 1 9811- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JH1 ENG(RJX),4HF1 ENG(RLS) 		8-97184-359-0 01 1 9811- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97184-358-0 01 1 9811-0105 ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97184-358-0 01 1 0106- ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97017-094-0 01 1 9811-0105 ● ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
4JG2 ENG(RJC) 		8-97017-094-0 01 1 9811-0105 ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97017-094-0 01 1 0106-0201 ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
4JG2 ENG(RJC) 		8-97017-094-0 01 1 0106-0201 ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-94460-893-0 01 1 9811-0105 ● ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-94460-893-0 01 1 0106- ● ●
57 00.795 FORK; SHIFT,CLU
4JH1 ENG(RJX),4HF1 ENG(RLS) (C) 		8-97187-936-0 01 1 9811- ● ●
57 00.795 FORK; SHIFT,CLU
4JB1 ENG(RLF) TURBOCHARGER<K51> (B) 		8-97033-701-0 01 1 9811-0105 ● ● ●
57 00.795 FORK; SHIFT,CLU
4JG2 ENG(RJC) (B) 		8-97033-701-0 01 1 9811-0105 ● ●
57 00.795 FORK; SHIFT,CLU
4JB1 ENG(RLF) TURBOCHARGER<K51> (B) 		8-97033-701-0 01 1 0106- ● ●
57 00.795 FORK; SHIFT,CLU
4JG2 ENG(RJC) (B) 		8-97033-701-0 01 1 0106- ● ●
57 00.795 FORK; SHIFT,CLU
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A) 		8-97024-528-0 01 1 9811-0105 ● ● ●
57 00.795 FORK; SHIFT,CLU
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A) 		8-97024-528-0 01 1 0106- ● ●
116 00.799 BLOCK; SHIFT,CLU
4JH1 ENG(RJX),4HF1 ENG(RLS) 		8-97089-652-0 01 1 9811- ● ●
116 00.799 BLOCK; SHIFT,CLU
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97033-699-0 01 1 9811-0105 ● ● ●
116 00.799 BLOCK; SHIFT,CLU
4JG2 ENG(RJC) 		8-97033-699-0 01 1 9811-0105 ● ●
116 00.799 BLOCK; SHIFT,CLU
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97033-699-0 01 1 0106-0201 ● ●
116 00.799 BLOCK; SHIFT,CLU
4JG2 ENG(RJC) 		8-97033-699-0 01 1 0106-0201 ● ●
116 00.799 BLOCK; SHIFT,CLU
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97316-602-0 01 1 0202- ● ●
116 00.799 BLOCK; SHIFT,CLU
4JG2 ENG(RJC) 		8-97316-602-0 01 1 0202- ● ●
116 00.799 BLOCK; SHIFT,CLU
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-94313-167-0 01 1 9811-0006 ● ● ●
116 00.799 BLOCK; SHIFT,CLU
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97258-191-0 01 1 0007-0105 ● ● ●
116 00.799 BLOCK; SHIFT,CLU
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97258-191-0 01 1 0106- ● ●
118 00.799 BEARING; CLU RELEASE
4JB1 ENG(RLF) TURBOCHARGER<K51> JTEKT 		8-94379-499-0 01 1 9811-0105 ● ● ●
118 00.799 BEARING; CLU RELEASE
4JG2 ENG(RJC) JTEKT 		8-94379-499-0 01 1 9811-0105 ● ●
118 00.799 BEARING; CLU RELEASE
4JB1 ENG(RLF) TURBOCHARGER<K51> JTEKT 		8-94379-499-0 01 1 0106-0201 ● ●
118 00.799 BEARING; CLU RELEASE
4JG2 ENG(RJC) JTEKT 		8-94379-499-0 01 1 0106-0201 ● ●
118 00.799 BEARING; CLU RELEASE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		5-31314-001-1 01 1 9811-0006 ● ● ●
118 00.799 BEARING; CLU RELEASE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97258-195-0 01 1 0007-0105 ● ● ●
118 00.799 BEARING; CLU RELEASE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97258-195-0 01 1 0106- ● ●
119 00.797 SPRING; SHIFT FORK
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		5-31349-004-0 01 1 9811-0105 ● ● ●
119 00.797 SPRING; SHIFT FORK
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		5-31349-004-0 01 1 0106- ● ●
137 00.862 BOLT; CLU COVER
4JH1 ENG(RJX),4HF1 ENG(RLS) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9811- ● ●
137 00.862 BOLT; CLU COVER
4JG2 ENG(RJC),4JB1 ENG(RLF) 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9811-0105 ● ● ●
137 00.862 BOLT; CLU COVER
4JG2 ENG(RJC),4JB1 ENG(RLF) 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 0106- ● ●
140 00.862 PIN; STRAIGHT
4JH1 ENG(RJX),4HF1 ENG(RLS) L=25 		8-94410-361-0 02 1 9811- ● ●
140 00.862 PIN; STRAIGHT
4JG2 ENG(RJC),4JB1 ENG(RLF) OD=6 L=24 		9-09878-532-0 02 1 9811-0105 ● ● ●
140 00.862 PIN; STRAIGHT
4JG2 ENG(RJC),4JB1 ENG(RLF) OD=6 L=24 		9-09878-532-0 02 1 0106- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9811-0105 ● ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0106- ● ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH<S2T> 		8-97162-962-1 01 1 9811- ● ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 		8-97167-489-0 01 1 9811- ● ●
