1 |

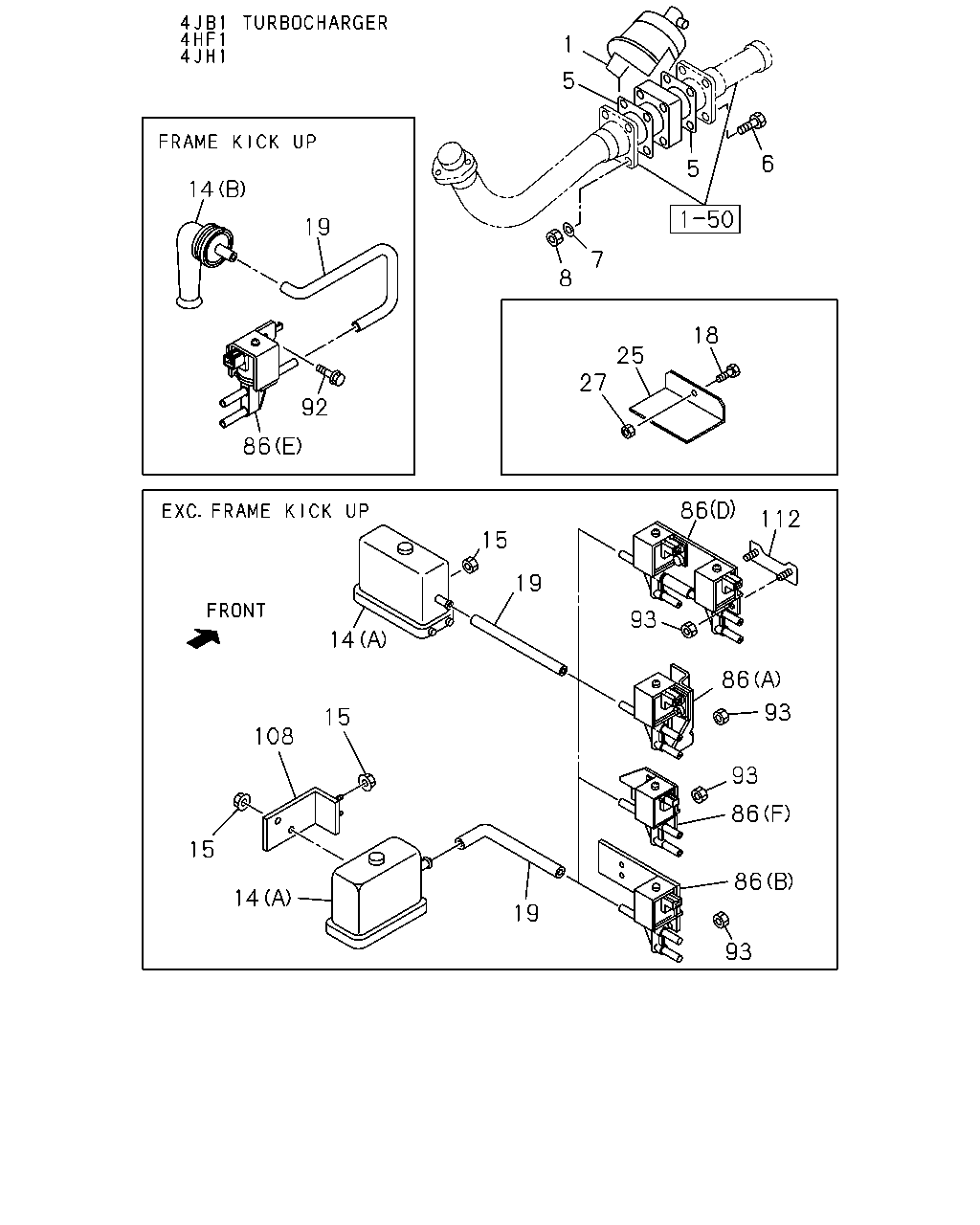

03.632 BRAKE UNIT; EXH
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
|
8-97034-024-3 |
01 |
1 |
9811-0002 |
● |
● |
● |
● |
● |
● |
|
| |
1 |
03.632 BRAKE UNIT; EXH
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. CHARGE AIR COOLER<6PL>
|
8-97034-024-3 |
01 |
1 |
0003-0012 |
● |
|
● |
● |
● |
● |
|
| |
1 |
03.632 BRAKE UNIT; EXH
|
8-97034-024-3 |
01 |
1 |
0003-0012 |
|
● |
|
|
|
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
|
8-97034-024-3 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
● |
● |
| |
1 |
03.632 BRAKE UNIT; EXH
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
|
8-97034-024-4 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
● |
● |
| |
1 |
03.632 BRAKE UNIT; EXH
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97135-833-1 |
01 |
1 |
9811-0010 |
● |
|
● |
● |
● |
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
EXHAUST BRAKE<NF8>
|
8-97135-833-1 |
01 |
1 |
9811-0010 |
|
|
|
|
|
|
● |
| |
1 |
03.632 BRAKE UNIT; EXH
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97287-193-0 |
01 |
1 |
0011-0012 |
● |
|
● |
● |
● |
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
EXHAUST BRAKE<NF8>
|
8-97287-193-0 |
01 |
1 |
0011-0012 |
|
|
|
|
|
|
● |
| |
1 |
03.632 BRAKE UNIT; EXH
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97287-193-1 |
01 |
1 |
0101- |
● |
|
● |
● |
● |
|
● |
| |
1 |
03.632 BRAKE UNIT; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
|
8-97102-372-2 |
01 |
1 |
9811-0002 |
● |
|
|
● |
|
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
|
8-97102-372-3 |
01 |
1 |
0003-0112 |
● |
|
|
● |
|
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. REAR WIDE TREAD(V4T)
|
8-97102-372-3 |
01 |
1 |
0003-0112 |
|
|
● |
|
|
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
|
8-97102-372-3 |
01 |
1 |
0201- |
● |
|
|
● |
|
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
|
8-97102-372-3 |
01 |
1 |
0201- |
● |
|
|
● |
|
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. REAR WIDE TREAD(V4T)
|
8-97102-372-3 |
01 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
REAR WIDE TREAD(V4T)
COLOMBIA EQUIPMENT(X74)
|
8-97254-977-1 |
01 |
1 |
0003- |
|
|
● |
|
|
|
|
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
ID=54
|
8-94328-354-0 |
02 |
1 |
9811-0012 |
● |
|
● |
● |
● |
|
● |
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
ID=54
|
8-94328-354-0 |
02 |
1 |
9811-0012 |
● |
|
|
● |
|
|
|
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
ID=54
|
8-94328-354-0 |
02 |
1 |
0101-0112 |
● |
|
● |
● |
● |
|
● |
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
ID=54
|
8-94328-354-0 |
02 |
1 |
0101-0112 |
● |
|
● |
● |
|
|
|
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
ID=54
|
8-94328-354-0 |
02 |
1 |
0201- |
● |
|
● |
● |
|
|
|
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
4JH1 ENG(RJX),4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
ID=54
|
8-94328-354-0 |
02 |
1 |
0201- |
● |
|
|
● |
|
|
|
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
ID=54
|
8-94328-354-0 |
02 |
1 |
0201- |
|
|
● |
|
● |
|
● |
| |
6 |
03.632 BOLT; EXH BRAKE UNIT FIX
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
03.708
M8X70
|
0-10805-870-0 |
04 |
1 |
9811-0002 |
● |
|
● |
● |
● |
|
● |
| |
6 |
03.632 BOLT; EXH BRAKE UNIT FIX
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
03.708
M8X70
|
0-10805-870-0 |
04 |
1 |
9811-0002 |
● |
|
|
● |
|
|
|
| |
6 |
03.632 BOLT; EXH BRAKE UNIT FIX
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
03.708
M8X70
|
0-10805-870-0 |
04 |
1 |
0003-0012 |
● |
|
● |
● |
● |
|
|
| |
6 |
03.632 BOLT; EXH BRAKE UNIT FIX
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
03.708
M8X70
|
0-10805-870-0 |
04 |
1 |
0003-0012 |
● |
|
● |
● |
|
|
|
| |
6 |
03.632 BOLT; EXH BRAKE UNIT FIX
EXHAUST BRAKE<NF8>
03.708
M8X70
|
0-10805-870-0 |
04 |
1 |
0003-0012 |
|
|
|
|
|
|
● |
| |
6 |
03.632 BOLT; EXH BRAKE UNIT FIX
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
03.708
M8X70
|
0-10805-870-0 |
04 |
1 |
0101-0112 |
● |
|
● |
● |
● |
|
● |
| |
6 |
03.632 BOLT; EXH BRAKE UNIT FIX
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
03.708
M8X70
|
0-10805-870-0 |
04 |
1 |
0101-0112 |
● |
|
● |
● |
|
|
|
| |
6 |
03.632 BOLT; EXH BRAKE UNIT FIX
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
03.708
M8X70
|
0-10805-870-0 |
04 |
1 |
0201- |
● |
|
● |
● |
|
|
|
| |
6 |
03.632 BOLT; EXH BRAKE UNIT FIX
4JH1 ENG(RJX),4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
03.708
M8X70
|
0-10805-870-0 |
04 |
1 |
0201- |
● |
|
|
● |
|
|
|
| |
6 |
03.632 BOLT; EXH BRAKE UNIT FIX
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
03.708
M8X70
|
0-10805-870-0 |
04 |
1 |
0201- |
|
|
● |
|
● |
|
● |
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
03.613
ID=10.5
|
5-09500-013-0 |
04 |
1 |
9811-0002 |
● |
● |
● |
● |
● |
● |
|
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. CHARGE AIR COOLER<6PL>
03.613
ID=10.5
|
5-09500-013-0 |
04 |
1 |
0003-0012 |
● |
|
● |
● |
● |
● |
|
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
03.613
ID=10.5
|
5-09500-013-0 |
04 |
1 |
0003-0012 |
|
● |
|
|
|
|
|
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
03.613
ID=10.5
|
5-09500-013-0 |
04 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
● |
● |
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
03.613
ID=10.5
|
5-09500-013-0 |
04 |
1 |
0106- |
● |
● |
● |
● |
|
● |
● |
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
T=1.9
|
5-09500-012-0 |
04 |
1 |
9811-0002 |
● |
|
● |
● |
● |
|
● |
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
T=1.9
|
5-09500-012-0 |
04 |
1 |
9811-0002 |
● |
|
|
● |
|
|
|
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
T=1.9
|
5-09500-012-0 |
04 |
1 |
0003-0012 |
● |
|
● |
● |
● |
|
|
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
T=1.9
|
5-09500-012-0 |
04 |
1 |
0003-0012 |
● |
|
● |
● |
|
|
|
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
EXHAUST BRAKE<NF8>
T=1.9
|
5-09500-012-0 |
04 |
1 |
0003-0012 |
|
|
|
|
|
|
● |
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
T=1.9
|
5-09500-012-0 |
04 |
1 |
0101-0112 |
● |
|
● |
● |
● |
|
● |
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
T=1.9
|
5-09500-012-0 |
04 |
1 |
0101-0112 |
● |
|
● |
● |
|
|
|
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
T=1.9
|
5-09500-012-0 |
04 |
1 |
0201- |
● |
|
● |
● |
|
|
|
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
4JH1 ENG(RJX),4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
T=1.9
|
5-09500-012-0 |
04 |
1 |
0201- |
● |
|
|
● |
|
|
|
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
T=1.9
|
5-09500-012-0 |
04 |
1 |
0201- |
|
|
● |
|
● |
|
● |
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
03.613
M10 H=18
|
9-09640-014-0 |
04 |
1 |
9811-0002 |
● |
● |
● |
● |
● |
● |
|
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. CHARGE AIR COOLER<6PL>
03.613
M10 H=18
|
9-09640-014-0 |
04 |
1 |
0003-0012 |
● |
|
● |
● |
● |
● |
|
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
03.613
M10 H=18
|
9-09640-014-0 |
04 |
1 |
0003-0012 |
|
● |
|
|
|
|
|
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
03.613
M10 H=18
|
9-09640-014-0 |
04 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
● |
● |
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
03.613
M10 H=18
|
9-09640-014-0 |
04 |
1 |
0106- |
● |
● |
● |
● |
|
● |
● |
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
02.559
M8
|
9-09110-408-0 |
04 |
1 |
9811-0002 |
● |
|
● |
● |
● |
|
● |
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
02.559
M8
|
9-09110-408-0 |
04 |
1 |
9811-0002 |
● |
|
|
● |
|
|
|
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
02.559
M8
|
9-09110-408-0 |
04 |
1 |
0003-0012 |
● |
|
● |
● |
● |
|
|
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
02.559
M8
|
9-09110-408-0 |
04 |
1 |
0003-0012 |
● |
|
● |
● |
|
|
|
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
EXHAUST BRAKE<NF8>
02.559
M8
|
9-09110-408-0 |
04 |
1 |
0003-0012 |
|
|
|
|
|
|
● |
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
02.559
M8
|
9-09110-408-0 |
04 |
1 |
0101-0112 |
● |
|
● |
● |
● |
|
● |
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
02.559
M8
|
9-09110-408-0 |
04 |
1 |
0101-0112 |
● |
|
● |
● |
|
|
|
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
02.559
M8
|
9-09110-408-0 |
04 |
1 |
0201- |
● |
|
● |
● |
|
|
|
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
4JH1 ENG(RJX),4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
02.559
M8
|
9-09110-408-0 |
04 |
1 |
0201- |
● |
|
|
● |
|
|
|
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
02.559
M8
|
9-09110-408-0 |
04 |
1 |
0201- |
|
|
● |
|
● |
|
● |
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
(A)
|
8-97033-888-0 |
01 |
1 |
9811-9812 |
● |
|
● |
● |
|
|
● |
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
(A)
|
8-97033-888-0 |
01 |
1 |
9811-9812 |
● |
|
|
● |
|
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
(A)
|
8-97033-888-0 |
01 |
1 |
9901-9903 |
● |
|
● |
● |
|
|
● |
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
(A)
|
8-97033-888-0 |
01 |
1 |
9901-9903 |
● |
|
|
● |
|
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
(A)
|
8-97033-888-0 |
01 |
1 |
9904-0002 |
● |
|
● |
● |
● |
|
● |
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
(A)
|
8-97033-888-0 |
01 |
1 |
9904-0002 |
● |
|
|
● |
|
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
(A)
|
8-97033-888-0 |
01 |
1 |
0003-0112 |
● |
|
● |
● |
● |
|
● |
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
(A)
|
8-97033-888-0 |
01 |
1 |
0003-0112 |
● |
|
● |
● |
|
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
(A)
|
8-97033-888-0 |
01 |
1 |
0201- |
● |
|
● |
● |
● |
|
● |
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4JH1 ENG(RJX),4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
(A)
|
8-97033-888-0 |
01 |
1 |
0201- |
● |
|
● |
● |
|
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
FRAME-KICK UP<7EW>
(B)
|
8-97178-468-0 |
01 |
1 |
9901- |
|
|
● |
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. DUMP CHASSIS(V4D)
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9811-9812 |
● |
|
● |
● |
● |
|
● |
| |
15 |
03.634 NUT; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9811-9812 |
● |
|
|
● |
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9901-0002 |
● |
|
● |
● |
● |
|
● |
| |
15 |
03.634 NUT; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9901-0002 |
● |
|
|
● |
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0003-0003 |
● |
|
● |
● |
● |
|
● |
| |
15 |
03.634 NUT; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0003-0003 |
● |
|
● |
● |
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0003-0003 |
● |
|
● |
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0004-0012 |
● |
|
● |
● |
● |
|
● |
| |
15 |
03.634 NUT; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0004-0012 |
● |
|
● |
● |
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0004-0012 |
● |
|
|
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. REAR WIDE TREAD(V4T)
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0004-0012 |
|
|
● |
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0101-0105 |
● |
|
● |
● |
● |
|
● |
| |
15 |
03.634 NUT; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0101-0105 |
● |
|
● |
● |
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. REAR WIDE TREAD(V4T)
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0101-0105 |
● |
|
● |
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106-0112 |
● |
|
● |
● |
● |
|
● |
| |
15 |
03.634 NUT; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106-0112 |
● |
|
● |
● |
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. REAR WIDE TREAD(V4T)
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106-0112 |
● |
|
● |
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
BRK WHL LK CONT LSPV<6PH>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0201- |
● |
|
● |
● |
● |
|
● |
| |
15 |
03.634 NUT; AIR FILTER
4JH1 ENG(RJX),4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0201- |
● |
|
● |
● |
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. REAR WIDE TREAD(V4T)
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0201- |
● |
|
● |
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
BRK WHL LK CONT LSPV<6PH>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
18 |
03.636 BOLT; PROTECTOR
4JH1 ENG(RJX)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
02.664
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
18 |
03.636 BOLT; PROTECTOR
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
FIRE TRUCK CHASSIS(V4F)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9811-9812 |
|
|
● |
|
|
|
|
| |
18 |
03.636 BOLT; PROTECTOR
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
FIRE TRUCK CHASSIS(V4F)
EXC. FRAME-KICK UP<7EW>
01.062
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9901-0105 |
|
|
● |
|
|
|
|
| |
18 |
03.636 BOLT; PROTECTOR
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
REAR WIDE TREAD(V4T)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0003-0005 |
|
|
● |
|
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9811-9812 |
● |
|
● |
|
|
|
● |
| |
19 |
03.630 HOSE; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9811-9812 |
● |
|
|
|
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9901-0002 |
● |
|
● |
|
|
|
● |
| |
19 |
03.630 HOSE; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9901-0002 |
● |
|
|
|
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0003-0003 |
● |
|
● |
|
|
|
● |
| |
19 |
03.630 HOSE; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0003-0003 |
● |
|
● |
|
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0004-0012 |
● |
|
● |
|
|
|
● |
| |
19 |
03.630 HOSE; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0004-0012 |
● |
|
|
|
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. REAR WIDE TREAD(V4T)
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0004-0012 |
|
|
● |
|
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0101-0112 |
● |
|
|
|
|
|
● |
| |
19 |
03.630 HOSE; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0101-0112 |
● |
|
|
|
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. REAR WIDE TREAD(V4T)
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0101-0112 |
|
|
● |
|
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0101-0112 |
|
|
● |
|
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0201- |
● |
|
● |
|
|
|
● |
| |
19 |
03.630 HOSE; AIR FILTER
4JH1 ENG(RJX),4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
FRAME-KICK UP<7EW>
|
8-97091-033-0 |
01 |
1 |
9901- |
|
|
● |
|
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
REAR WIDE TREAD(V4T)
L=160
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0004- |
|
|
● |
|
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
L=180
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9811-0112 |
|
|
|
● |
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
L=180
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9811-0112 |
|
|
|
● |
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
L=180
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0201- |
|
|
|
● |
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4JH1 ENG(RJX),4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
L=180
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0201- |
|
|
|
● |
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
L=230
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9904-0105 |
|
|
|
|
● |
|
|
| |
19 |
03.630 HOSE; AIR FILTER
EXHAUST BRAKE<NF8>
L=230
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
25 |
03.640 PROTECTOR; HEAT,VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
FIRE TRUCK CHASSIS(V4F)
|
8-97119-017-0 |
01 |
1 |
9811-9812 |
|
|
● |
|
|
|
|
| |
25 |
03.640 PROTECTOR; HEAT,VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
FIRE TRUCK CHASSIS(V4F)
EXC. FRAME-KICK UP<7EW>
|
8-97119-017-0 |
01 |
1 |
9901-0105 |
|
|
● |
|
|
|
|
| |
25 |
03.640 PROTECTOR; HEAT,VLV
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
REAR WIDE TREAD(V4T)
|
8-97255-215-0 |
01 |
1 |
0003-0112 |
|
|
● |
|
|
|
|
| |
25 |
03.640 PROTECTOR; HEAT,VLV
4JH1 ENG(RJX)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
|
8-97255-215-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
25 |
03.640 PROTECTOR; HEAT,VLV
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
REAR WIDE TREAD(V4T)
|
8-97255-215-0 |
01 |
1 |
0201- |
|
|
● |
|
|
|
|
| |
27 |
03.632 NUT; HEAT PROTECTOR
4JH1 ENG(RJX)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
27 |
03.632 NUT; HEAT PROTECTOR
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
FIRE TRUCK CHASSIS(V4F)
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9811-9812 |
|
|
● |
|
|
|
|
| |
27 |
03.632 NUT; HEAT PROTECTOR
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
FIRE TRUCK CHASSIS(V4F)
EXC. FRAME-KICK UP<7EW>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9901-0105 |
|
|
● |
|
|
|
|
| |
27 |
03.632 NUT; HEAT PROTECTOR
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
REAR WIDE TREAD(V4T)
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0003-0005 |
|
|
● |
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
(B)
|
8-97170-945-0 |
01 |
1 |
9811-9911 |
● |
|
|
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
(B)
|
8-97219-362-0 |
01 |
1 |
9912-0002 |
● |
|
|
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
(B)
|
8-97219-362-0 |
01 |
1 |
0003-0005 |
● |
|
● |
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. REAR WIDE TREAD(V4T)
(B)
|
8-97219-362-0 |
01 |
1 |
0006-0112 |
● |
|
● |
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JH1 ENG(RJX),4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. REAR WIDE TREAD(V4T)
(B)
|
8-97219-362-0 |
01 |
1 |
0201- |
● |
|
● |
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
(C)
|
8-97069-300-2 |
01 |
1 |
9811-0002 |
● |
● |
● |
● |
● |
● |
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. CHARGE AIR COOLER<6PL>
(C)
|
8-97069-300-2 |
01 |
1 |
0003-0012 |
● |
|
● |
● |
● |
● |
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
(C)
|
8-97069-300-2 |
01 |
1 |
0003-0012 |
|
● |
|
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
(C)
|
8-97069-300-2 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
● |
● |
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
(C)
|
8-97069-300-2 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
● |
● |
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
(B)
|
8-97065-472-0 |
01 |
1 |
9811-9812 |
● |
|
● |
|
|
|
● |
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. REAR WIDE TREAD(V4T),
FRAME-KICKUP<7EW>
(B)
|
8-97065-472-0 |
01 |
1 |
9901-9911 |
● |
|
● |
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
(B)
|
8-97065-472-0 |
01 |
1 |
9901-9911 |
|
|
|
|
|
|
● |
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. REAR WIDE TREAD(V4T),
FRAME-KICKUP<7EW>
(B)
|
8-97239-246-0 |
01 |
1 |
9912-0012 |
● |
|
● |
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
(B)
|
8-97239-246-0 |
01 |
1 |
9912-0012 |
|
|
|
|
|
|
● |
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
(B)
|
8-97239-246-0 |
01 |
1 |
0101- |
● |
|
|
|
|
|
● |
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. REAR WIDE TREAD(V4T),
FRAME-KICKUP<7EW>
(B)
|
8-97239-246-0 |
01 |
1 |
0101- |
|
|
● |
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
FRAME-KICK UP<7EW>
(E)
|
8-97066-716-0 |
01 |
1 |
9901- |
|
|
● |
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
REAR WIDE TREAD(V4T)
EXC. FRAME-KICK UP<7EW>
(D)
|
8-97043-776-1 |
01 |
1 |
9901- |
|
|
● |
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
REAR WIDE TREAD(V4T)
(F)
|
8-97256-653-0 |
01 |
1 |
0006- |
|
|
● |
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
(A)
|
8-97101-047-0 |
01 |
1 |
9811-9903 |
|
|
|
● |
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
(A)
|
8-97101-047-0 |
01 |
1 |
9904- |
|
|
|
● |
● |
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
(A)
|
8-97161-801-0 |
01 |
1 |
9811-0112 |
|
|
|
● |
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JH1 ENG(RJX),4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
(A)
|
8-97161-801-0 |
01 |
1 |
0201- |
|
|
|
● |
|
|
|
| |
92 |
08.900 BOLT; MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
FRAME-KICK UP<7EW>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9901- |
|
|
● |
|
|
|
|
| |
93 |
08.917 NUT; MAG VLV
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9811-0002 |
● |
|
|
|
|
|
|
| |
93 |
08.917 NUT; MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0003-0112 |
● |
|
● |
● |
● |
|
● |
| |
93 |
08.917 NUT; MAG VLV
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0003-0112 |
● |
|
● |
● |
|
|
|
| |
93 |
08.917 NUT; MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0201- |
● |
|
● |
● |
● |
|
● |
| |
93 |
08.917 NUT; MAG VLV
4JH1 ENG(RJX),4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0201- |
● |
|
● |
● |
|
|
|
| |
93 |
08.917 NUT; MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9811-0002 |
● |
● |
● |
● |
● |
● |
|
| |
93 |
08.917 NUT; MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. CHARGE AIR COOLER<6PL>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0003-0012 |
● |
|
● |
● |
● |
● |
|
| |
93 |
08.917 NUT; MAG VLV
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0003-0012 |
|
● |
|
|
|
|
|
| |
93 |
08.917 NUT; MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
● |
● |
| |
93 |
08.917 NUT; MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
● |
● |
| |
93 |
08.917 NUT; MAG VLV
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9811-9812 |
● |
|
|
● |
|
|
|
| |
93 |
08.917 NUT; MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9811-9812 |
|
|
● |
● |
|
|
● |
| |
93 |
08.917 NUT; MAG VLV
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9901-9903 |
● |
|
|
● |
|
|
|
| |
93 |
08.917 NUT; MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9901-9903 |
|
|
● |
● |
|
|
● |
| |
93 |
08.917 NUT; MAG VLV
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9904-9909 |
● |
|
|
● |
|
|
|
| |
93 |
08.917 NUT; MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9904-9909 |
|
|
● |
● |
● |
|
● |
| |
93 |
08.917 NUT; MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9910-0002 |
|
|
● |
● |
● |
|
● |
| |
93 |
08.917 NUT; MAG VLV
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9910-0002 |
|
|
|
● |
|
|
|
| |
108 |
03.634 BRACKET; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
|
8-97106-474-2 |
01 |
1 |
9811-0002 |
● |
|
|
|
|
|
|
| |
108 |
03.634 BRACKET; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
|
8-97106-474-2 |
01 |
1 |
0003-0003 |
● |
|
● |
|
|
|
|
| |
108 |
03.634 BRACKET; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. REAR WIDE TREAD(V4T)
|
8-97106-474-2 |
01 |
1 |
0004-0105 |
● |
|
● |
|
|
|
|
| |
108 |
03.634 BRACKET; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. REAR WIDE TREAD(V4T)
|
8-97106-474-2 |
01 |
1 |
0106-0112 |
● |
|
● |
|
|
|
|
| |
108 |
03.634 BRACKET; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
BRK WHL LK CONT LSPV<6PH>
|
8-97106-474-2 |
01 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
108 |
03.634 BRACKET; AIR FILTER
4JH1 ENG(RJX),4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. REAR WIDE TREAD(V4T)
|
8-97106-474-2 |
01 |
1 |
0201- |
● |
|
● |
|
|
|
|
| |
108 |
03.634 BRACKET; AIR FILTER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
BRK WHL LK CONT LSPV<6PH>
|
8-97106-474-2 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
112 |
03.640 PLATE; BRKT
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
REAR WIDE TREAD(V4T)
EXC. FRAME-KICK UP<7EW>
|
8-97091-766-0 |
01 |
1 |
9901-0005 |
|
|
● |
|
|
|
|
| |
112 |
03.640 PLATE; BRKT
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
REAR WIDE TREAD(V4T)
EXC. FRAME-KICK UP<7EW>
|
8-97091-766-0 |
01 |
1 |
0006- |
|
|
● |
|
|
|
|
| |
112 |
03.640 PLATE; BRKT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
REAR WIDE TREAD(V4T)
|
8-97091-766-0 |
01 |
1 |
0006- |
|
|
● |
|
|
|
|
