1 |
03.609 PIPE; EXH
4JH1 ENG(RJX)
FRT INDEPENDENT SUSPENSION(6PP)
(H)
|
8-97305-629-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
1 |

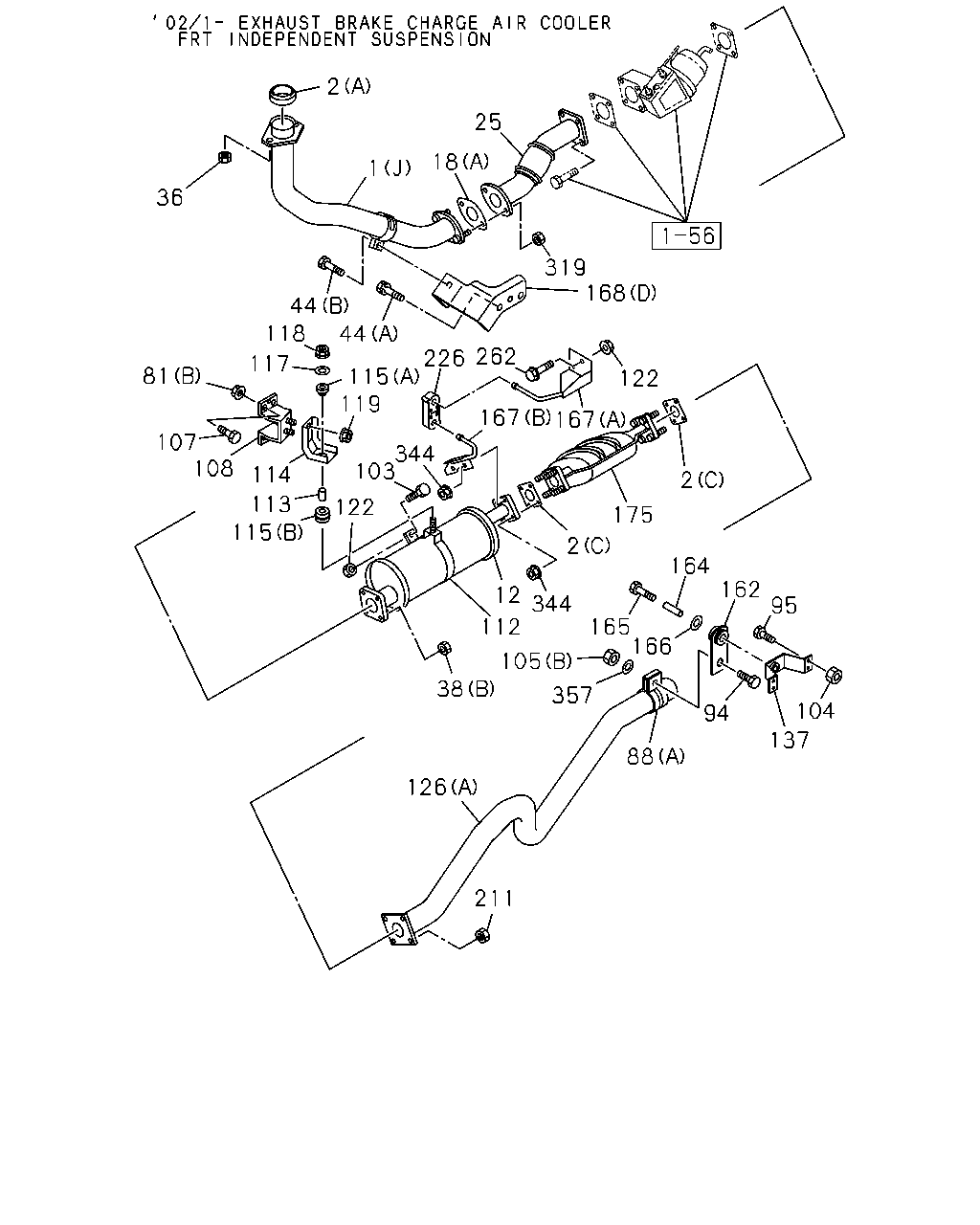

03.609 PIPE; EXH
4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
CHARGE AIR COOLER<6PL>
FRT INDEPENDENT SUSPENSION(6PP)
(J)
|
8-97206-024-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. EXHAUST BRAKE<NF8>
(F)
|
8-97206-025-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
(I)
|
8-97305-630-1 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JH1 ENG(RJX)
EXC. EXHAUST BRAKE<NF8>
(I)
|
8-97259-992-3 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
CHARGE AIR COOLER<6PL>
(C)
|
8-97206-026-0 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
EXC. EXHAUST BRAKE<NF8>
(F)
|
8-97206-027-0 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
1 |

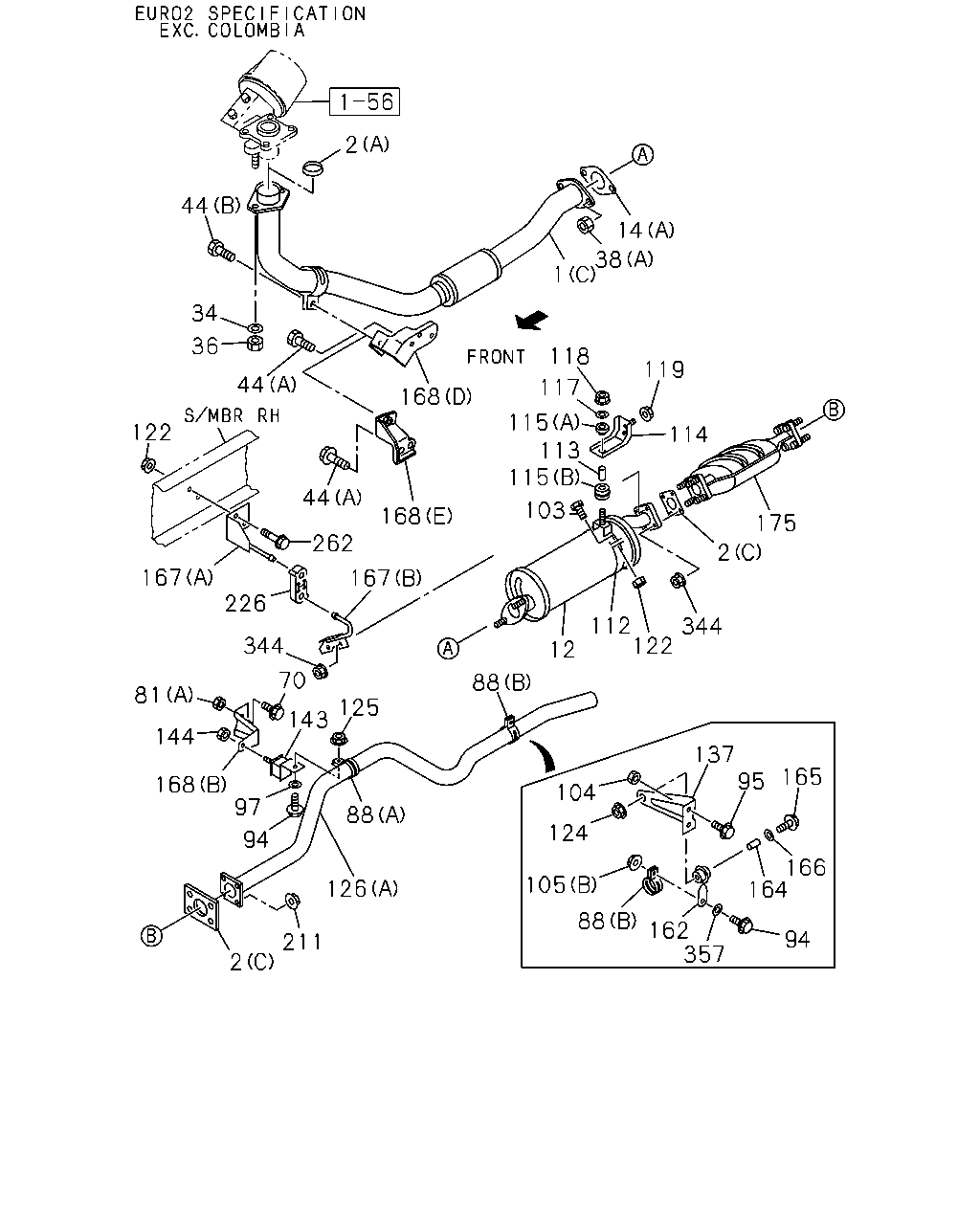

03.609 PIPE; EXH
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
EXC. EXHAUST BRAKE<NF8>
(C)
|
8-97167-462-0 |
01 |
1 |
9812-0105 |
● |
|
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
EXC. EXHAUST BRAKE<NF8>,FRT
INDEPENDENT SUSPENSION(6PP)
(C)
|
8-97167-462-0 |
01 |
1 |
0106- |
● |
|
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
EURO2 SPECIFICATION<7AF>
(C)
|
8-97167-463-0 |
01 |
1 |
9812-0105 |
● |
|
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
EURO2 SPECIFICATION<7AF>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(C)
|
8-97167-463-0 |
01 |
1 |
0106- |
● |
|
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>,CHARGE AIR
COOLER<6PL>
(B)
|
8-97102-669-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
● |
● |
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>,CHARGE AIR
COOLER<6PL>,FRT INDEPENDENT SUSPENSION
(6PP)
(B)
|
8-97102-669-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
● |
|
| |
1 |

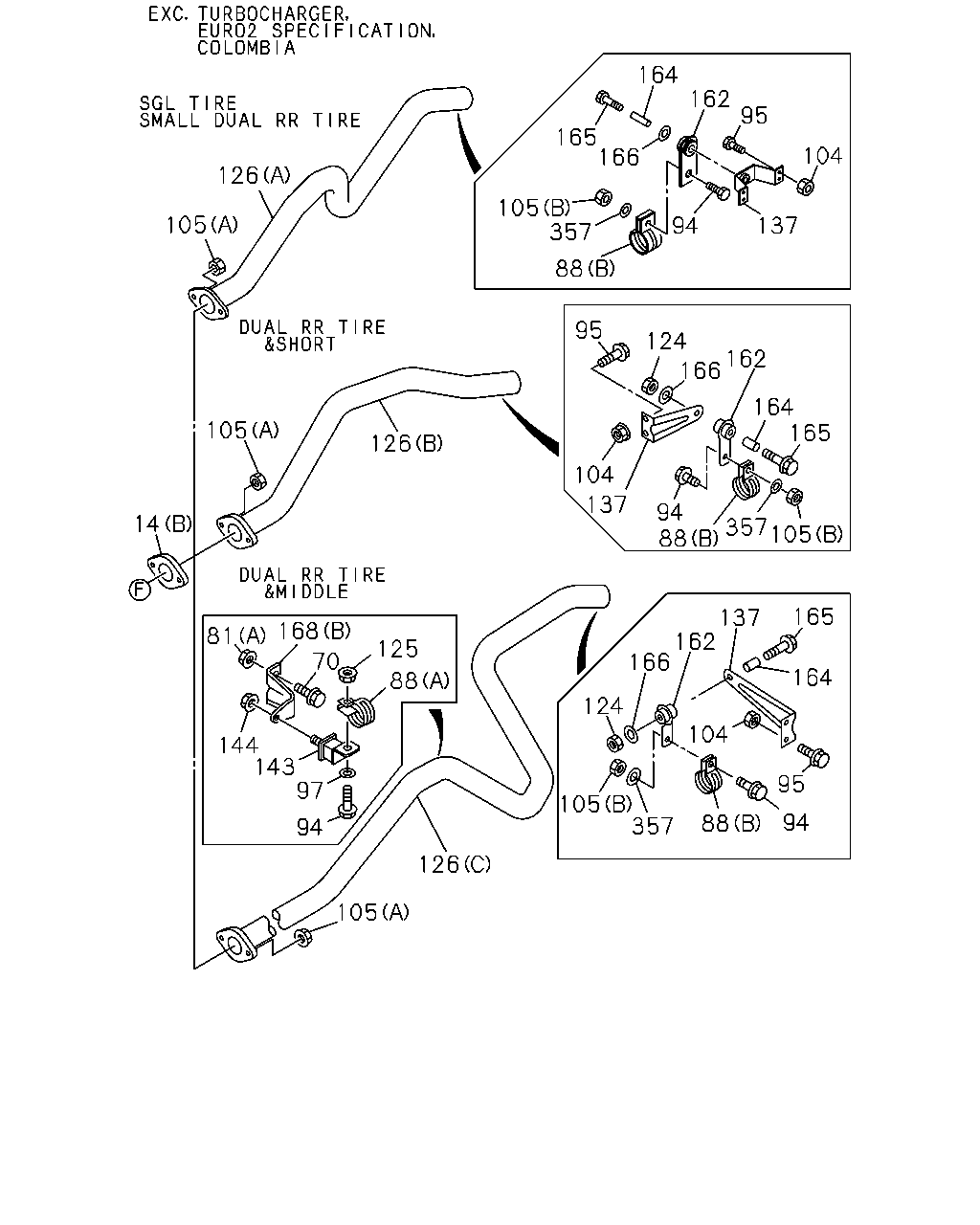

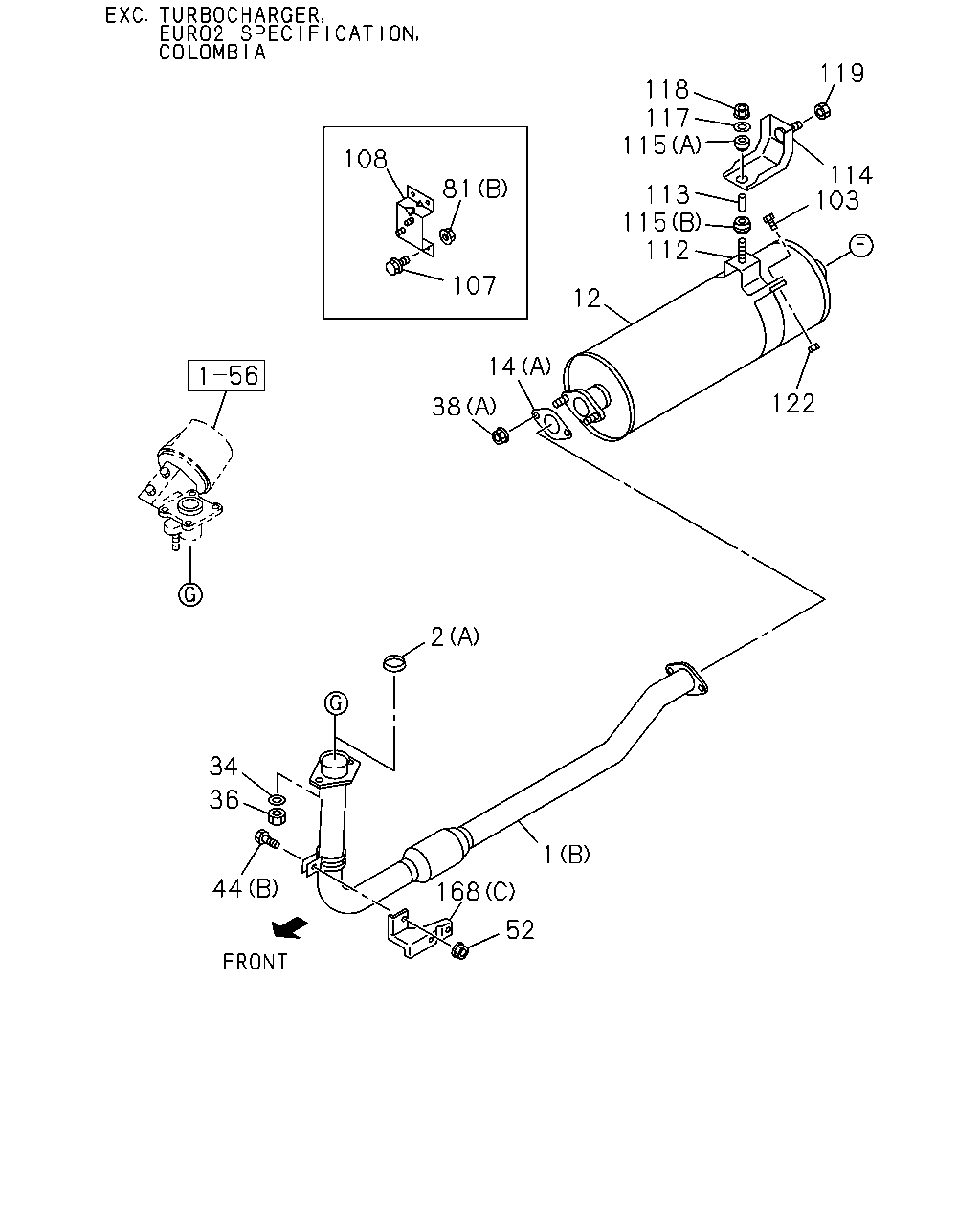

03.609 PIPE; EXH
4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EXHAUST
BRAKE<NF8>,CHARGE AIR COOLER<6PL>
(B)
|
8-97102-668-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
● |
● |
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EXHAUST
BRAKE<NF8>,CHARGE AIR COOLER<6PL>,FRT IND
EPENDENT SUSPENSION(6PP)
(B)
|
8-97102-668-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
● |
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. CHARGE AIR COOLER<6PL>
(E)
|
8-97161-694-0 |
01 |
1 |
9811-0002 |
● |
● |
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. CHARGE AIR COOLER<6PL>
(E)
|
8-97161-694-0 |
01 |
1 |
0003-0112 |
● |
● |
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. CHARGE AIR COOLER<6PL>,FRT
INDEPENDENT SUSPENSION(6PP)
(E)
|
8-97161-694-0 |
01 |
1 |
0201- |
● |
● |
|
● |
|
|
|
| |
1 |

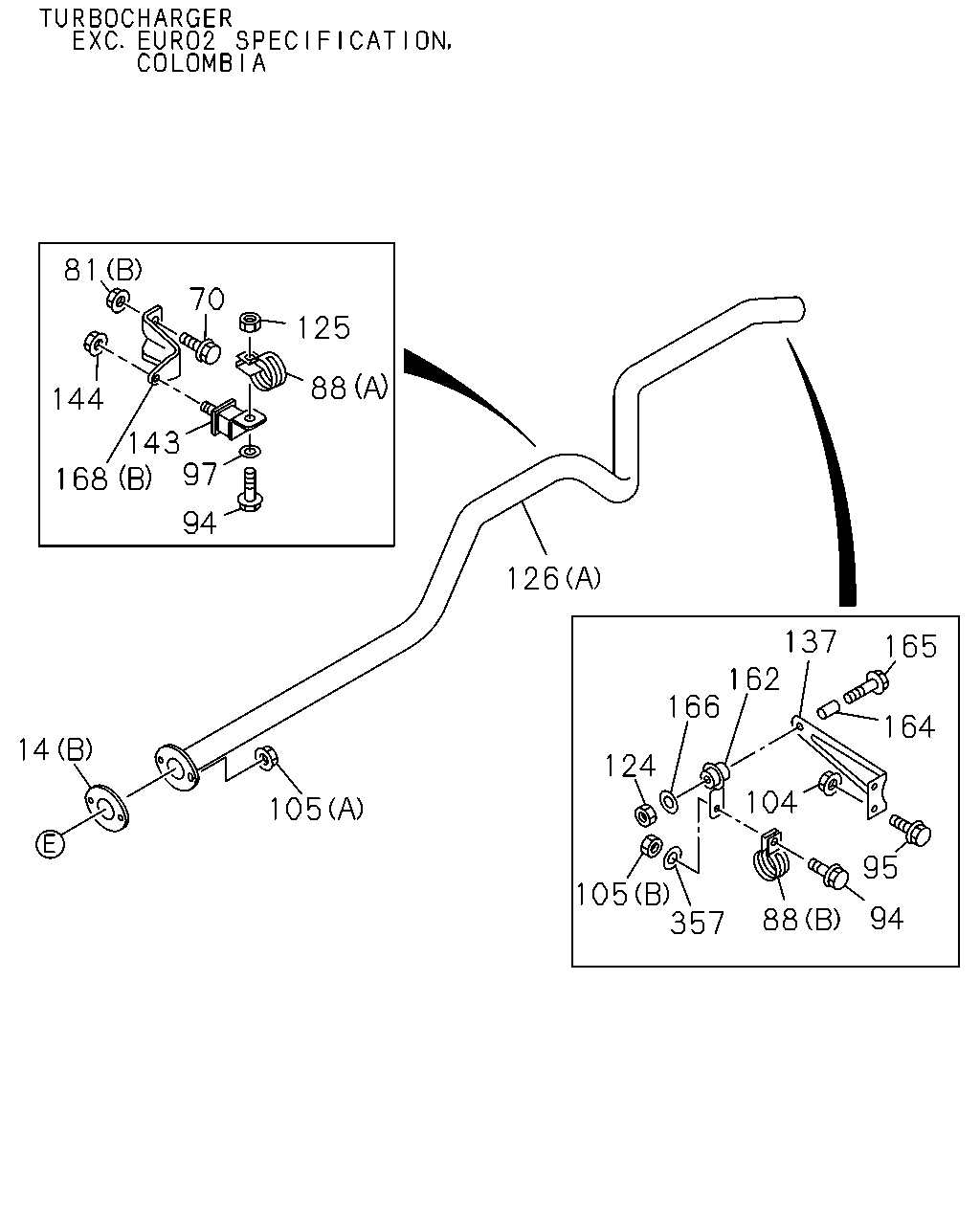

03.609 PIPE; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. EXHAUST BRAKE<NF8>,CHARGE AIR
COOLER<6PL>
(F)
|
8-97161-782-0 |
01 |
1 |
9811-0002 |
● |
● |
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. EXHAUST BRAKE<NF8>,CHARGE AIR
COOLER<6PL>
(F)
|
8-97161-782-0 |
01 |
1 |
0003-0112 |
● |
● |
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. EXHAUST BRAKE<NF8>,CHARGE AIR
COOLER<6PL>,FRT INDEPENDENT SUSPENSIO
N(6PP)
(F)
|
8-97161-782-0 |
01 |
1 |
0201- |
● |
● |
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
EXC. EURO2 SPECIFICATION<7AF>
(B)
|
8-97034-086-1 |
01 |
1 |
9811-0012 |
● |
● |
|
|
|
● |
|
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
EXC. EURO2 SPECIFICATION<7AF>
(B)
|
8-97034-086-1 |
01 |
1 |
0101-0105 |
● |
● |
|
|
|
● |
● |
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
,EURO2 SPECIFICATION<7AF>
(B)
|
8-97034-086-1 |
01 |
1 |
0106- |
● |
● |
|
|
|
|
● |
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EXC. EXHAUST BRAKE<NF8>,EURO2
SPECIFICATION<7AF>
(B)
|
8-97034-084-0 |
01 |
1 |
9811-0012 |
● |
● |
|
|
|
● |
|
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EXC. EXHAUST BRAKE<NF8>,EURO2
SPECIFICATION<7AF>
(B)
|
8-97034-084-0 |
01 |
1 |
0101-0105 |
● |
● |
|
|
|
● |
● |
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EXC. EXHAUST BRAKE<NF8>,FRT
INDEPENDENT SUSPENSION(6PP),EURO2 SPECIFICAT
ION<7AF>
(B)
|
8-97034-084-0 |
01 |
1 |
0106- |
● |
● |
|
|
|
|
● |
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
REAR WIDE TREAD(V4T)
EXC. FRAME-KICK UP<7EW>
(A)
|
8-97139-391-0 |
01 |
1 |
9811-9812 |
|
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
FRAME-KICK UP<7EW>
(A)
|
8-97139-391-0 |
01 |
1 |
9811-9812 |
|
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
(A)
|
8-97139-391-0 |
01 |
1 |
9811-9812 |
|
● |
|
|
● |
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
(A)
|
8-97139-391-2 |
01 |
1 |
9901- |
● |
● |
|
● |
● |
|
● |
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
FRAME-KICK UP<7EW>
EXC. EXHAUST BRAKE<NF8>
(A)
|
8-97218-433-1 |
01 |
1 |
9811- |
|
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
EXC. EXHAUST BRAKE<NF8>
(D)
|
8-97139-398-1 |
01 |
1 |
9811- |
|
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
REAR WIDE TREAD(V4T)

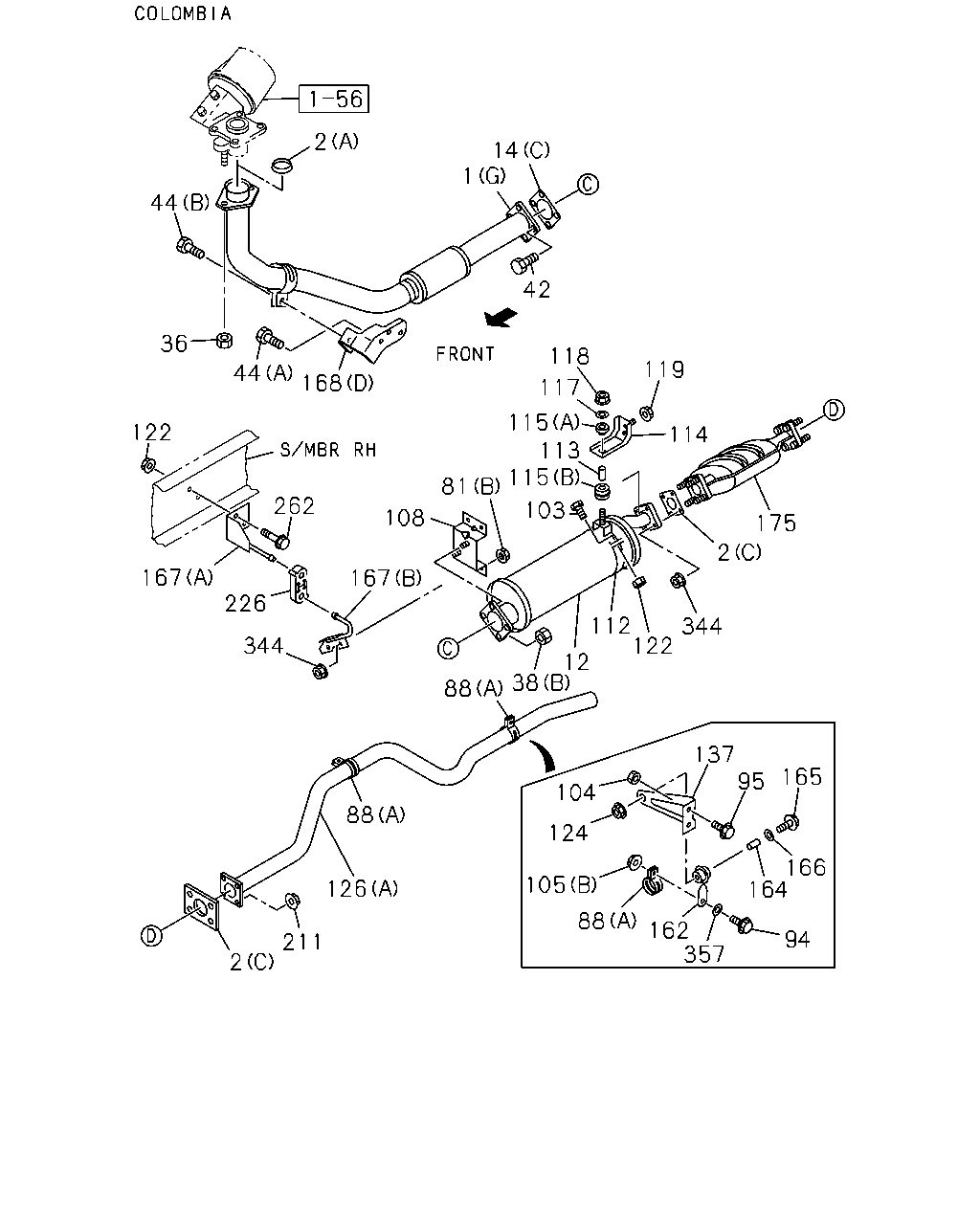

COLOMBIA EQUIPMENT(X74)
CHARGE AIR COOLER<6PL>
(G)
|
8-97254-978-1 |
01 |
1 |
0003- |
|
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
COLOMBIA EQUIPMENT(X74)
CHARGE AIR COOLER<6PL>
EXC. EXHAUST BRAKE<NF8>
(G)
|
8-97254-982-1 |
01 |
1 |
0003- |
|
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
EXC. EXHAUST BRAKE<NF8>
(D)
|
8-97221-724-0 |
01 |
1 |
9901-0012 |
|
|
|
|
|
|
● |
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
EXC. EXHAUST BRAKE<NF8>
(D)
|
8-97221-724-1 |
01 |
1 |
0101- |
|
|
|
|
|
|
● |
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
EXC. EXHAUST BRAKE<NF8>
(C)
|
8-97308-607-0 |
01 |
1 |
0101- |
|
|
|
|
|
|
● |
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
EURO2 SPECIFICATION<7AF>
(C)
|
8-97308-606-0 |
01 |
1 |
0101- |
|
|
|
|
|
|
● |
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
EXC. EXHAUST BRAKE<NF8>
(F)
|
8-97206-027-0 |
01 |
1 |
9811-0105 |
|
● |
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. EXHAUST BRAKE<NF8>
(C)
|
8-97034-085-2 |
01 |
1 |
0106- |
● |
|
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
CHARGE AIR COOLER<6PL>
(E)
|
8-97206-026-0 |
01 |
1 |
9811-0105 |
|
● |
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
FRT INDEPENDENT SUSPENSION(6PP)
EURO2 SPECIFICATION<7AF>
(C)
|
8-97144-944-0 |
01 |
1 |
0106- |
● |
|
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
EXC. EXHAUST BRAKE<NF8>
(C)
|
8-97161-736-0 |
01 |
1 |
9811- |
|
● |
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
EURO2 SPECIFICATION<7AF>
(C)
|
8-97144-945-0 |
01 |
1 |
9811- |
|
● |
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
EXC. EXHAUST BRAKE<NF8>
(D)
|
8-97139-397-0 |
01 |
1 |
9811-9812 |
|
● |
|
|
● |
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
EXC. EXHAUST BRAKE<NF8>
(D)
|
8-97139-397-1 |
01 |
1 |
9901- |
● |
● |
|
|
● |
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EXHAUST
BRAKE<NF8>
(A)
|
8-97180-750-2 |
01 |
1 |
9811-0002 |
● |
● |
● |
● |
● |
● |
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JB1 ENG(RLF)
TURBOCHARGER<K51>
(A)
|
8-97180-750-2 |
01 |
1 |
9811-0002 |
● |
● |
|
|
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EXHAUST
BRAKE<NF8>
(A)
|
8-97180-750-2 |
01 |
1 |
0003-0012 |
● |
● |
● |
● |
● |
● |
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JB1 ENG(RLF)
TURBOCHARGER<K51>
(A)
|
8-97180-750-2 |
01 |
1 |
0003-0012 |
● |
● |
|
● |
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EXHAUST
BRAKE<NF8>
(A)
|
8-97180-750-2 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JB1 ENG(RLF)
TURBOCHARGER<K51>
(A)
|
8-97180-750-2 |
01 |
1 |
0101-0105 |
● |
● |
|
● |
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EXHAUST
BRAKE<NF8>
(A)
|
8-97180-750-2 |
01 |
1 |
0106-0112 |
● |
● |
● |
● |
|
● |
● |
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JB1 ENG(RLF)
TURBOCHARGER<K51>
(A)
|
8-97180-750-2 |
01 |
1 |
0106-0112 |
● |
● |
|
● |
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EXHAUST
BRAKE<NF8>
(A)
|
8-97180-750-2 |
01 |
1 |
0201- |
● |
● |
● |
● |
|
● |
● |
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JB1 ENG(RLF)
TURBOCHARGER<K51>
(A)
|
8-97180-750-2 |
01 |
1 |
0201- |
● |
● |
|
● |
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JH1 ENG(RJX)
(A)
|
8-97180-750-2 |
01 |
1 |
0201- |
● |
● |
|
|
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4HF1 ENG(RLS)
(B)
|
8-97180-749-2 |
01 |
1 |
9811- |
● |
● |
|
● |
● |
|
● |
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(C)
ID=71
|
8-94324-194-0 |
02 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
(C)
ID=71
|
8-94324-194-0 |
02 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(C)
ID=71
|
8-94324-194-0 |
02 |
1 |
9812-0002 |
● |
● |
|
|
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
(C)
ID=71
|
8-94324-194-0 |
02 |
1 |
9812-0002 |
● |
● |
|
|
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
(C)
ID=71
|
8-94324-194-0 |
02 |
1 |
0003-0012 |
● |
● |
|
● |
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(C)
ID=71
|
8-94324-194-0 |
02 |
1 |
0003-0012 |
● |
● |
|
|
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
(C)
ID=71
|
8-94324-194-0 |
02 |
1 |
0101-0105 |
● |
● |
|
● |
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(C)
ID=71
|
8-94324-194-0 |
02 |
1 |
0101-0105 |
● |
● |
|
|
|
|
● |
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(C)
ID=71
|
8-94324-194-0 |
02 |
1 |
0106-0112 |
● |
● |
|
|
|
|
● |
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
(C)
ID=71
|
8-94324-194-0 |
02 |
1 |
0106-0112 |
|
|
|
● |
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
(C)
ID=71
|
8-94324-194-0 |
02 |
1 |
0201- |
● |
● |
|
● |
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(C)
ID=71
|
8-94324-194-0 |
02 |
1 |
0201- |
● |
● |
|
|
|
|
● |
| |
12 |
03.701 SILENCER ASM; EXH
4JH1 ENG(RJX)
|
8-97259-999-1 |
01 |
1 |
0201- |
● |
● |
|
|
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97206-035-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
|
8-97206-036-0 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
NOISE PACK FOR CHINESE
REGULATION<6QX>
EXC. TURBOCHARGER<K51>
|
8-97089-857-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
|
● |
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
NOISE PACK FOR CHINESE
REGULATION<6QX>
EXC. TURBOCHARGER<K51>
|
8-97089-857-0 |
01 |
1 |
0106- |
● |
● |
● |
|
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,NOISE PACK
FOR CHINESE REGULATION<6QX>
|
8-97049-721-0 |
01 |
1 |
9811-0002 |
● |
● |
● |
|
● |
● |
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
|
8-97049-721-0 |
01 |
1 |
9811-0002 |
|
|
|
● |
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,NOISE PACK
FOR CHINESE REGULATION<6QX>
|
8-97049-721-0 |
01 |
1 |
0003-0105 |
● |
● |
● |
|
● |
● |
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
EXC. TURBOCHARGER<K51>
|
8-97049-721-0 |
01 |
1 |
0003-0105 |
|
|
|
● |
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,NOISE PACK
FOR CHINESE REGULATION<6QX>
|
8-97049-721-0 |
01 |
1 |
0106- |
● |
● |
● |
|
|
● |
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
EXC. TURBOCHARGER<K51>
|
8-97049-721-0 |
01 |
1 |
0106- |
|
|
|
● |
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. CHARGE AIR COOLER<6PL>
|
8-97065-551-0 |
01 |
1 |
9811-0002 |
● |
● |
|
|
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. CHARGE AIR COOLER<6PL>
|
8-97065-551-0 |
01 |
1 |
0003-0112 |
● |
● |
|
● |
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. CHARGE AIR COOLER<6PL>
|
8-97065-551-0 |
01 |
1 |
0201- |
● |
● |
|
● |
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JG2 ENG(RJC)
EXC. EURO2 SPECIFICATION<7AF>
|
8-97103-505-1 |
01 |
1 |
9811-0012 |
● |
● |
|
|
|
● |
|
| |
12 |
03.701 SILENCER ASM; EXH
4JG2 ENG(RJC)
EXC. EURO2 SPECIFICATION<7AF>
|
8-97103-505-1 |
01 |
1 |
0101-0105 |
● |
● |
|
|
|
|
● |
| |
12 |
03.701 SILENCER ASM; EXH
4JG2 ENG(RJC)
|
8-97103-505-1 |
01 |
1 |
0101-0105 |
|
|
|
|
|
● |
|
| |
12 |
03.701 SILENCER ASM; EXH
4JG2 ENG(RJC)
EXC. EURO2 SPECIFICATION<7AF>
|
8-97103-505-1 |
01 |
1 |
0106- |
● |
● |
|
|
|
|
● |
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
COLOMBIA EQUIPMENT(X74)
CHARGE AIR COOLER<6PL>
|
8-97254-979-0 |
01 |
1 |
0003- |
|
|
|
● |
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4HF1 ENG(RLS)
|
8-97206-525-0 |
01 |
1 |
9811-9812 |
|
● |
|
● |
● |
|
|
| |
12 |
03.701 SILENCER ASM; EXH
|
8-97206-525-0 |
01 |
1 |
9811-9812 |
|
|
|
|
|
|
● |
| |
12 |
03.701 SILENCER ASM; EXH
4HF1 ENG(RLS)
|
8-97206-525-2 |
01 |
1 |
9901- |
● |
● |
|
● |
● |
|
● |
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
|
8-97206-036-0 |
01 |
1 |
9811-0105 |
|
● |
|
|
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97145-037-0 |
01 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97145-037-0 |
01 |
1 |
9812-0012 |
● |
● |
|
|
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97145-037-0 |
01 |
1 |
0101- |
● |
● |
|
|
|
|
● |
| |
18 |
03.611 GASKET; EXH PIPE TO PIPE
4JH1 ENG(RJX)
FRT INDEPENDENT SUSPENSION(6PP)
03.704
(A)
ID=53.0 NON-ASBESTOS
|
8-94328-353-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
18 |
03.611 GASKET; EXH PIPE TO PIPE
4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
CHARGE AIR COOLER<6PL>
03.704
(A)
ID=53.0 NON-ASBESTOS
|
8-94328-353-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
25 |
03.609 PIPE; EXH,BRK VLV TO SILENCER
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97305-633-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
25 |
03.609 PIPE; EXH,BRK VLV TO SILENCER
4JH1 ENG(RJX)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. EXHAUST BRAKE<NF8>
|
8-97259-996-1 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
25 |
03.609 PIPE; EXH,BRK VLV TO SILENCER
4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
CHARGE AIR COOLER<6PL>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97206-030-1 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
25 |
03.609 PIPE; EXH,BRK VLV TO SILENCER
4JH1 ENG(RJX)
|
8-97320-578-0 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
25 |
03.609 PIPE; EXH,BRK VLV TO SILENCER
4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
CHARGE AIR COOLER<6PL>
|
8-97206-031-0 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
25 |
03.609 PIPE; EXH,BRK VLV TO SILENCER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. CHARGE AIR COOLER<6PL>
|
8-97161-843-0 |
01 |
1 |
9811-0002 |
● |
● |
|
|
|
|
|
| |
25 |
03.609 PIPE; EXH,BRK VLV TO SILENCER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. CHARGE AIR COOLER<6PL>
|
8-97161-843-0 |
01 |
1 |
0003-0112 |
● |
● |
|
● |
|
|
|
| |
25 |
03.609 PIPE; EXH,BRK VLV TO SILENCER
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. CHARGE AIR COOLER<6PL>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97161-843-0 |
01 |
1 |
0201- |
● |
● |
|
● |
|
|
|
| |
25 |
03.609 PIPE; EXH,BRK VLV TO SILENCER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
FRAME-KICK UP<7EW>
|
8-97105-987-1 |
01 |
1 |
9811- |
|
|
|
● |
|
|
|
| |
25 |
03.609 PIPE; EXH,BRK VLV TO SILENCER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
REAR WIDE TREAD(V4T)
|
8-97162-361-1 |
01 |
1 |
9811- |
|
|
|
● |
|
|
|
| |
25 |
03.609 PIPE; EXH,BRK VLV TO SILENCER
EXHAUST BRAKE<NF8>
|
8-97166-025-0 |
01 |
1 |
9901-0012 |
|
|
|
|
|
|
● |
| |
25 |
03.609 PIPE; EXH,BRK VLV TO SILENCER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97166-025-1 |
01 |
1 |
0101- |
|
|
|
|
|
|
● |
| |
25 |
03.609 PIPE; EXH,BRK VLV TO SILENCER
4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
CHARGE AIR COOLER<6PL>
|
8-97206-031-0 |
01 |
1 |
9811-0105 |
|
● |
|
|
|
|
|
| |
25 |
03.609 PIPE; EXH,BRK VLV TO SILENCER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97077-364-1 |
01 |
1 |
9811-9812 |
|
● |
|
|
● |
|
|
| |
25 |
03.609 PIPE; EXH,BRK VLV TO SILENCER
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97077-364-2 |
01 |
1 |
9901- |
● |
● |
|
|
● |
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
M10 H=18
|
9-09640-014-0 |
02 |
1 |
9811-0002 |
● |
● |
● |
● |
● |
● |
|
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. CHARGE AIR COOLER<6PL>
M10 H=18
|
9-09640-014-0 |
02 |
1 |
0003-0012 |
● |
● |
|
● |
● |
● |
|
| |
36 |
03.613 NUT; EXH PIPE
M10 H=18
|
9-09640-014-0 |
02 |
1 |
0003-0012 |
|
|
● |
|
|
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
M10 H=18
|
9-09640-014-0 |
02 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
● |
● |
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
M10 H=18
|
9-09640-014-0 |
02 |
1 |
0106- |
● |
● |
● |
● |
|
● |
● |
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EXHAUST
BRAKE<NF8>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
9811-0002 |
● |
● |
● |
● |
● |
● |
|
| |
36 |
03.613 NUT; EXH PIPE
4JB1 ENG(RLF)
TURBOCHARGER<K51>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
9811-0002 |
● |
● |
|
|
|
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EXHAUST
BRAKE<NF8>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0003-0012 |
● |
● |
● |
● |
● |
● |
|
| |
36 |
03.613 NUT; EXH PIPE
4JB1 ENG(RLF)
TURBOCHARGER<K51>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0003-0012 |
● |
● |
|
● |
|
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EXHAUST
BRAKE<NF8>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
● |
● |
| |
36 |
03.613 NUT; EXH PIPE
4JB1 ENG(RLF)
TURBOCHARGER<K51>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0101-0105 |
● |
● |
|
● |
|
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EXHAUST
BRAKE<NF8>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0106-0112 |
● |
● |
● |
● |
|
● |
● |
| |
36 |
03.613 NUT; EXH PIPE
4JB1 ENG(RLF)
TURBOCHARGER<K51>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0106-0112 |
● |
● |
|
● |
|
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EXHAUST
BRAKE<NF8>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0201- |
● |
● |
● |
● |
|
● |
● |
| |
36 |
03.613 NUT; EXH PIPE
4JB1 ENG(RLF)
TURBOCHARGER<K51>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0201- |
● |
● |
|
● |
|
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JH1 ENG(RJX)
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0201- |
● |
● |
|
|
|
|
|
| |
36 |
03.613 NUT; EXH PIPE
4HF1 ENG(RLS)
M10 FLANGE
|
8-97096-192-1 |
03 |
1 |
9811- |
● |
● |
|
● |
● |
|
● |
| |
38 |
00.002 NUT; SILENCER
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
EXC. EXHAUST BRAKE<NF8>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0003-0105 |
● |
|
|
|
|
|
|
| |
38 |
00.002 NUT; SILENCER
4JB1 ENG(RLF)
COLOMBIA EQUIPMENT(X74)
CHARGE AIR COOLER<6PL>
EXC. EXHAUST BRAKE<NF8>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0003-0105 |
|
|
|
● |
|
|
|
| |
38 |
00.002 NUT; SILENCER
4JB1 ENG(RLF)
COLOMBIA EQUIPMENT(X74)
CHARGE AIR COOLER<6PL>
EXC. EXHAUST BRAKE<NF8>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0106-0112 |
|
|
|
● |
|
|
|
| |
38 |
00.002 NUT; SILENCER
4JH1 ENG(RJX)
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0201- |
● |
● |
|
|
|
|
|
| |
38 |
00.002 NUT; SILENCER
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
EXC. EXHAUST BRAKE<NF8>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
38 |
00.002 NUT; SILENCER
4JB1 ENG(RLF)
COLOMBIA EQUIPMENT(X74)
CHARGE AIR COOLER<6PL>
EXC. EXHAUST BRAKE<NF8>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0201- |
|
|
|
● |
|
|
|
| |
38 |
00.002 NUT; SILENCER
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9811-9811 |
● |
● |
● |
● |
● |
● |
● |
| |
38 |
00.002 NUT; SILENCER
EXC. CHARGE AIR COOLER<6PL>
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9812-0002 |
● |
|
|
|
|
|
|
| |
38 |
00.002 NUT; SILENCER
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9812-0002 |
|
● |
● |
● |
● |
● |
● |
| |
38 |
00.002 NUT; SILENCER
EXC. CHARGE AIR COOLER<6PL>
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0003-0105 |
● |
|
|
● |
|
|
|
| |
38 |
00.002 NUT; SILENCER
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0003-0105 |
|
● |
● |
|
● |
● |
● |
| |
38 |
00.002 NUT; SILENCER
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0106-0112 |
● |
● |
● |
|
● |
● |
● |
| |
38 |
00.002 NUT; SILENCER
EXC. CHARGE AIR COOLER<6PL>
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0106-0112 |
|
|
|
● |
|
|
|
| |
38 |
00.002 NUT; SILENCER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1
ENG(RLS)
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0201- |
● |
● |
● |
|
● |
● |
● |
| |
38 |
00.002 NUT; SILENCER
EXC. CHARGE AIR COOLER<6PL>
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0201- |
|
|
|
● |
|
|
|
| |
44 |
03.613 BOLT; BRKT
4HF1 ENG(RLS)
01.252
(A)
M8X45 W/LK WASHER
|
0-50040-845-0 |
01 |
1 |
9811- |
● |
● |
|
● |
● |
|
● |
| |
44 |
03.613 BOLT; BRKT
4HF1 ENG(RLS)
(B)
M10X25 W/LK&PL WASHER
|
0-50151-025-0 |
02 |
1 |
9811- |
● |
● |
|
● |
● |
|
● |
| |
44 |
03.613 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF)
03.706
(B)
M8X40 W/LK WASHER
|
0-50040-840-0 |
01 |
1 |
9811-0012 |
● |
● |
|
● |
● |
● |
|
| |
44 |
03.613 BOLT; BRKT
03.706
(B)
M8X40 W/LK WASHER
|
0-50040-840-0 |
01 |
1 |
9811-0012 |
|
|
● |
|
|
|
|
| |
44 |
03.613 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF)
03.706
(B)
M8X40 W/LK WASHER
|
0-50040-840-0 |
01 |
1 |
0101-0112 |
● |
● |
● |
● |
|
● |
● |
| |
44 |
03.613 BOLT; BRKT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1
ENG(RLF)
03.706
(B)
M8X40 W/LK WASHER
|
0-50040-840-0 |
01 |
1 |
0201- |
● |
● |
● |
● |
|
● |
● |
| |
44 |
03.613 BOLT; BRKT
4JG2 ENG(RJC)
01.062
(A)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9811-0002 |
● |
● |
|
|
|
● |
|
| |
44 |
03.613 BOLT; BRKT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
01.062
(A)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9811-0002 |
● |
● |
|
|
|
|
|
| |
44 |
03.613 BOLT; BRKT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
01.062
(A)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0003-0012 |
● |
● |
|
● |
|
|
|
| |
44 |
03.613 BOLT; BRKT
4JG2 ENG(RJC)
01.062
(A)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0003-0012 |
● |
● |
|
|
|
● |
|
| |
44 |
03.613 BOLT; BRKT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
01.062
(A)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0101-0105 |
● |
● |
|
● |
|
|
|
| |
44 |
03.613 BOLT; BRKT
4JG2 ENG(RJC)
01.062
(A)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0101-0105 |
● |
● |
|
|
|
● |
● |
| |
44 |
03.613 BOLT; BRKT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
01.062
(A)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0106-0112 |
● |
● |
|
● |
|
|
|
| |
44 |
03.613 BOLT; BRKT
4JG2 ENG(RJC)
01.062
(A)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0106-0112 |
● |
● |
|
|
|
|
● |
| |
44 |
03.613 BOLT; BRKT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
01.062
(A)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0201- |
● |
● |
|
● |
|
|
|
| |
44 |
03.613 BOLT; BRKT
4JG2 ENG(RJC),4JH1 ENG(RJX)
01.062
(A)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0201- |
● |
● |
|
|
|
|
● |
| |
44 |
03.613 BOLT; BRKT
4JB1 ENG(RLF)
FRT INDEPENDENT SUSPENSION(6PP)
01.062
(A)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
81 |
03.704 NUT; BRKT
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
03 |
1 |
9811- |
|
|
|
● |
|
|
|
| |
81 |
03.704 NUT; BRKT
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9811-9811 |
|
|
|
● |
|
|
|
| |
81 |
03.704 NUT; BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9812-0012 |
● |
|
|
|
|
|
|
| |
81 |
03.704 NUT; BRKT
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9812-0012 |
● |
|
|
|
|
|
|
| |
81 |
03.704 NUT; BRKT
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9812-0012 |
|
|
|
● |
|
|
|
| |
81 |
03.704 NUT; BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0101-0105 |
● |
|
|
|
|
|
|
| |
81 |
03.704 NUT; BRKT
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0101-0105 |
● |
|
|
|
|
|
|
| |
81 |
03.704 NUT; BRKT
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0101-0105 |
|
|
|
● |
|
|
|
| |
81 |
03.704 NUT; BRKT
4JG2 ENG(RJC)
REAR WIDE TREAD(V4T)
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
81 |
03.704 NUT; BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
81 |
03.704 NUT; BRKT
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0106-0112 |
|
|
|
● |
|
|
|
| |
81 |
03.704 NUT; BRKT
4JG2 ENG(RJC)
REAR WIDE TREAD(V4T)
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0106-0112 |
|
|
|
|
|
|
● |
| |
81 |
03.704 NUT; BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
81 |
03.704 NUT; BRKT
4JH1 ENG(RJX)
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
81 |
03.704 NUT; BRKT
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
81 |
03.704 NUT; BRKT
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0201- |
|
|
|
● |
|
|
|
| |
81 |
03.704 NUT; BRKT
4JG2 ENG(RJC)
REAR WIDE TREAD(V4T)
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0201- |
|
|
|
|
|
|
● |
| |
81 |
03.704 NUT; BRKT
07.633
(A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9811-9901 |
|
● |
|
|
● |
|
● |
| |
81 |
03.704 NUT; BRKT
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
07.633
(A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9902-0112 |
|
|
|
● |
|
|
|
| |
81 |
03.704 NUT; BRKT
07.633
(A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9902-0112 |
|
● |
|
|
● |
|
● |
| |
81 |
03.704 NUT; BRKT
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
07.633
(A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0201- |
|
|
|
● |
|
|
|
| |
81 |
03.704 NUT; BRKT
07.633
(A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0201- |
|
● |
|
|
● |
|
● |
| |
81 |
03.704 NUT; BRKT
4JH1 ENG(RJX)
07.633
(A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC)
CHILE EQUIPMENT(6KB)
EURO2 SPECIFICATION<7AF>
(A)
ID=51.5
|
8-97222-648-0 |
01 |
1 |
9901-9903 |
● |
|
|
|
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
(A)
ID=51.5
|
8-97222-648-0 |
01 |
1 |
9901-9903 |
|
● |
|
|
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
(A)
ID=51.5
|
8-97222-648-0 |
01 |
1 |
9904-0012 |
● |
● |
● |
● |
● |
● |
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC)
CHILE EQUIPMENT(6KB)
EURO2 SPECIFICATION<7AF>
(A)
ID=51.5
|
8-97222-648-0 |
01 |
1 |
9904-0012 |
● |
|
|
|
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
(A)
ID=51.5
|
8-97222-648-0 |
01 |
1 |
9904-0012 |
|
● |
|
|
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
(A)
ID=51.5
|
8-97222-648-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
● |
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC)
CHILE EQUIPMENT(6KB)
EURO2 SPECIFICATION<7AF>
(A)
ID=51.5
|
8-97222-648-0 |
01 |
1 |
0101-0105 |
● |
|
|
|
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
(A)
ID=51.5
|
8-97222-648-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
● |
|
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
(A)
ID=51.5
|
8-97222-648-0 |
01 |
1 |
0106-0112 |
● |
● |
● |
● |
|
● |
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC)
CHILE EQUIPMENT(6KB)
EURO2 SPECIFICATION<7AF>
(A)
ID=51.5
|
8-97222-648-0 |
01 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
(A)
ID=51.5
|
8-97222-648-0 |
01 |
1 |
0106-0112 |
|
● |
|
|
|
|
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
(A)
ID=51.5
|
8-97325-352-0 |
01 |
1 |
0201- |
● |
● |
● |
● |
|
● |
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC)
CHILE EQUIPMENT(6KB)
EURO2 SPECIFICATION<7AF>
(A)
ID=51.5
|
8-97325-352-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
(A)
ID=51.5
|
8-97325-352-0 |
01 |
1 |
0201- |
|
● |
|
|
|
|
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4HF1 ENG(RLS)
(C)
ID=61.6
|
8-97010-307-0 |
01 |
1 |
9811-9901 |
● |
● |
|
● |
● |
|
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4HF1 ENG(RLS)
(C)
ID=61.6
|
8-97010-307-0 |
01 |
1 |
9811-9901 |
|
● |
|
● |
● |
|
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4HF1 ENG(RLS)
(C)
ID=61.6
|
8-97010-307-0 |
01 |
1 |
9902-0112 |
● |
● |
|
● |
● |
|
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
(C)
ID=61.6
|
8-97010-307-0 |
01 |
1 |
9902-0112 |
|
|
|
● |
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4HF1 ENG(RLS)
(C)
ID=61.6
|
8-97010-307-0 |
01 |
1 |
9902-0112 |
|
● |
|
|
● |
|
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4JH1 ENG(RJX),4HF1 ENG(RLS)
(C)
ID=61.6
|
8-97010-307-0 |
01 |
1 |
0201- |
● |
● |
|
● |
● |
|
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
(C)
ID=61.6
|
8-97010-307-0 |
01 |
1 |
0201- |
|
|
|
● |
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JH1 ENG(RJX),4HF1 ENG(RLS)
(C)
ID=61.6
|
8-97010-307-0 |
01 |
1 |
0201- |
|
● |
|
|
● |
|
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
(A),(B)
ID=51.5
|
8-97016-034-0 |
01 |
1 |
9811-9812 |
● |
● |
|
● |
● |
● |
|
| |
88 |
03.708 CLAMP; EXH PIPE
(A),(B)
ID=51.5
|
8-97016-034-0 |
01 |
1 |
9811-9812 |
|
|
● |
|
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
(A),(B)
ID=51.5
|
8-97016-034-0 |
01 |
1 |
9811-9812 |
|
● |
|
|
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
(B)
ID=51.5
|
8-97016-034-0 |
01 |
1 |
9901-9903 |
● |
● |
|
● |
● |
● |
|
| |
88 |
03.708 CLAMP; EXH PIPE
(B)
ID=51.5
|
8-97016-034-0 |
01 |
1 |
9901-9903 |
|
|
● |
|
|
|
|
| |
94 |
03.704 BOLT; CLAMP
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
9811-9812 |
● |
● |
● |
● |
● |
● |
● |
| |
94 |
03.704 BOLT; CLAMP
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
9811-9812 |
|
● |
|
|
● |
|
● |
| |
94 |
03.704 BOLT; CLAMP
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
9901-9901 |
● |
● |
● |
● |
● |
● |
● |
| |
94 |
03.704 BOLT; CLAMP
4JG2 ENG(RJC)
CHILE EQUIPMENT(6KB)
EURO2 SPECIFICATION<7AF>
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
9901-9901 |
● |
|
|
|
|
|
|
| |
94 |
03.704 BOLT; CLAMP
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
9901-9901 |
|
● |
|
|
● |
|
● |
| |
94 |
03.704 BOLT; CLAMP
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
9902- |
● |
● |
● |
● |
● |
● |
● |
| |
94 |
03.704 BOLT; CLAMP
4JG2 ENG(RJC)
CHILE EQUIPMENT(6KB)
EURO2 SPECIFICATION<7AF>
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
9902- |
● |
|
|
|
|
|
|
| |
94 |
03.704 BOLT; CLAMP
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
9902- |
|
|
|
● |
|
|
|
| |
94 |
03.704 BOLT; CLAMP
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
9902- |
|
● |
|
|
● |
|
● |
| |
95 |
03.708 BOLT; BRKT
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9811-9901 |
● |
● |
● |
|
● |
● |
● |
| |
95 |
03.708 BOLT; BRKT
REAR WIDE TREAD(V4T)
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9811-9901 |
|
|
|
● |
|
|
|
| |
95 |
03.708 BOLT; BRKT
EXC. REAR WIDE TREAD(V4T),
FRAME-KICKUP<7EW>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9811-9901 |
|
|
|
● |
|
|
|
| |
95 |
03.708 BOLT; BRKT
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9902- |
● |
● |
● |
|
● |
● |
● |
| |
95 |
03.708 BOLT; BRKT
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
EXC. FRAME-KICK UP<7EW>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9902- |
|
|
|
● |
|
|
|
| |
95 |
03.708 BOLT; BRKT
EXC. REAR WIDE TREAD(V4T),
FRAME-KICKUP<7EW>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9902- |
|
|
|
● |
|
|
|
| |
95 |
03.708 BOLT; BRKT
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
9902- |
|
|
|
● |
|
|
|
| |
103 |
03.704 BOLT; SILENCER BRKT FIX
01.252
M8X45 W/LK WASHER
|
0-50040-845-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
104 |
03.704 NUT; BRKT
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9811-9901 |
● |
● |
● |
|
● |
● |
● |
| |
104 |
03.704 NUT; BRKT
REAR WIDE TREAD(V4T)
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9811-9901 |
|
|
|
● |
|
|
|
| |
104 |
03.704 NUT; BRKT
EXC. REAR WIDE TREAD(V4T),
FRAME-KICKUP<7EW>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9811-9901 |
|
|
|
● |
|
|
|
| |
104 |
03.704 NUT; BRKT
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9902- |
● |
● |
● |
|
● |
● |
● |
| |
104 |
03.704 NUT; BRKT
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
EXC. FRAME-KICK UP<7EW>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9902- |
|
|
|
● |
|
|
|
| |
104 |
03.704 NUT; BRKT
EXC. REAR WIDE TREAD(V4T),
FRAME-KICKUP<7EW>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9902- |
|
|
|
● |
|
|
|
| |
104 |
03.704 NUT; BRKT
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9902- |
|
|
|
● |
|
|
|
| |
105 |
03.704 NUT; CLAMP
02.559
(B)
M8
|
9-09110-408-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
105 |
03.704 NUT; CLAMP
EXC. CHARGE AIR COOLER<6PL>,EURO2
SPECIFICATION<7AF>
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9811-0112 |
● |
● |
● |
● |
● |
● |
● |
| |
105 |
03.704 NUT; CLAMP
EXC. CHARGE AIR COOLER<6PL>,EURO2
SPECIFICATION<7AF>
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0201- |
● |
● |
● |
● |
● |
● |
● |
| |
105 |
03.704 NUT; CLAMP
4JH1 ENG(RJX)
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0201- |
● |
● |
|
|
|
|
|
| |
107 |
03.704 BOLT; BRKT
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
03.405
M10X30 FLANGE
|
0-28681-030-0 |
01 |
1 |
9811- |
|
|
|
● |
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
9811-9811 |
|
|
|
● |
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
9812-0002 |
● |
|
|
|
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
9812-0002 |
● |
|
|
|
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
9812-0002 |
|
|
|
● |
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0003-0003 |
● |
|
|
|
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0003-0003 |
● |
|
|
|
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
EXC. COLOMBIA EQUIPMENT(X74)
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0003-0003 |
|
|
|
● |
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0004-0012 |
● |
|
|
|
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0004-0012 |
● |
|
|
|
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
EXC. CHARGE AIR COOLER<6PL>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0004-0012 |
|
|
|
● |
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0101-0105 |
● |
|
|
|
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0101-0105 |
● |
|
|
|
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
EXC. CHARGE AIR COOLER<6PL>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0101-0105 |
|
|
|
● |
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JG2 ENG(RJC)
REAR WIDE TREAD(V4T)
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
107 |
03.704 BOLT; BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
EXC. CHARGE AIR COOLER<6PL>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0106-0112 |
|
|
|
● |
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JG2 ENG(RJC)
REAR WIDE TREAD(V4T)
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0106-0112 |
|
|
|
|
|
|
● |
| |
107 |
03.704 BOLT; BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JH1 ENG(RJX)
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
EXC. CHARGE AIR COOLER<6PL>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0201- |
|
|
|
● |
|
|
|
| |
107 |
03.704 BOLT; BRKT
4JG2 ENG(RJC)
REAR WIDE TREAD(V4T)
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0201- |
|
|
|
|
|
|
● |
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JH1 ENG(RJX)
|
8-97260-004-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JH1 ENG(RJX)
|
8-97179-737-0 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
|
8-97087-222-2 |
01 |
1 |
9811- |
|
|
|
● |
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
|
8-94378-511-1 |
01 |
1 |
9811-9811 |
|
|
|
● |
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-94378-511-1 |
01 |
1 |
9812-0002 |
● |
|
|
|
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
|
8-94378-511-1 |
01 |
1 |
9812-0002 |
● |
|
|
|
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
|
8-94378-511-1 |
01 |
1 |
9812-0002 |
|
|
|
● |
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-94378-511-1 |
01 |
1 |
0003-0003 |
● |
|
|
|
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
|
8-94378-511-1 |
01 |
1 |
0003-0003 |
● |
|
|
|
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
EXC. COLOMBIA EQUIPMENT(X74)
|
8-94378-511-1 |
01 |
1 |
0003-0003 |
|
|
|
● |
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-94378-511-1 |
01 |
1 |
0004-0012 |
● |
|
|
|
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
|
8-94378-511-1 |
01 |
1 |
0004-0012 |
● |
|
|
|
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
EXC. CHARGE AIR COOLER<6PL>
|
8-94378-511-1 |
01 |
1 |
0004-0012 |
|
|
|
● |
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-94378-511-1 |
01 |
1 |
0101-0105 |
● |
|
|
|
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
|
8-94378-511-1 |
01 |
1 |
0101-0105 |
● |
|
|
|
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
EXC. CHARGE AIR COOLER<6PL>
|
8-94378-511-1 |
01 |
1 |
0101-0105 |
|
|
|
● |
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JG2 ENG(RJC)
REAR WIDE TREAD(V4T)
|
8-94378-511-1 |
01 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-94378-511-1 |
01 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
EXC. CHARGE AIR COOLER<6PL>
|
8-94378-511-1 |
01 |
1 |
0106-0112 |
|
|
|
● |
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JG2 ENG(RJC)
REAR WIDE TREAD(V4T)
|
8-94378-511-1 |
01 |
1 |
0106-0112 |
|
|
|
|
|
|
● |
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-94378-511-1 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
|
8-94378-511-1 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
EXC. CHARGE AIR COOLER<6PL>
|
8-94378-511-1 |
01 |
1 |
0201- |
|
|
|
● |
|
|
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JG2 ENG(RJC)
REAR WIDE TREAD(V4T)
|
8-94378-511-1 |
01 |
1 |
0201- |
|
|
|
|
|
|
● |
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
COLOMBIA EQUIPMENT(X74)
CHARGE AIR COOLER<6PL>
|
8-97254-980-1 |
01 |
1 |
0003- |
|
|
|
● |
|
|
|
| |
112 |
03.706 BRACKET; HANGER
4JH1 ENG(RJX)
|
8-97260-021-0 |
01 |
1 |
0201- |
● |
● |
|
|
|
|
|
| |
112 |
03.706 BRACKET; HANGER
4HF1 ENG(RLS)
|
8-97076-020-0 |
01 |
1 |
9811-0012 |
● |
● |
|
● |
● |
|
|
| |
112 |
03.706 BRACKET; HANGER
|
8-97076-020-0 |
01 |
1 |
9811-0012 |
|
|
|
|
|
|
● |
| |
112 |
03.706 BRACKET; HANGER
4HF1 ENG(RLS)
|
8-97076-020-0 |
01 |
1 |
0101- |
● |
● |
|
● |
● |
|
● |
| |
112 |
03.706 BRACKET; HANGER
4JB1 ENG(RLF)
|
8-97081-457-0 |
01 |
1 |
9811-0002 |
● |
● |
|
● |
● |
● |
|
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC)
EXC. EURO2 SPECIFICATION<7AF>
|
8-97081-457-0 |
01 |
1 |
9811-0002 |
● |
● |
|
|
|
● |
|
| |
112 |
03.706 BRACKET; HANGER
|
8-97081-457-0 |
01 |
1 |
9811-0002 |
|
|
● |
|
|
|
|
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC)
EXC. EURO2 SPECIFICATION<7AF>
|
8-97081-457-0 |
01 |
1 |
0003-0003 |
● |
● |
|
|
|
|
|
| |
112 |
03.706 BRACKET; HANGER
4JB1 ENG(RLF)
|
8-97081-457-0 |
01 |
1 |
0003-0003 |
● |
|
|
|
● |
|
|
| |
112 |
03.706 BRACKET; HANGER
|
8-97081-457-0 |
01 |
1 |
0003-0003 |
|
|
● |
|
|
|
|
| |
112 |
03.706 BRACKET; HANGER
4JB1 ENG(RLF)
EXC. COLOMBIA EQUIPMENT(X74)
|
8-97081-457-0 |
01 |
1 |
0003-0003 |
|
● |
|
● |
|
|
|
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-97081-457-0 |
01 |
1 |
0003-0003 |
|
|
|
|
|
● |
|
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC)
EXC. EURO2 SPECIFICATION<7AF>
|
8-97081-457-0 |
01 |
1 |
0004-0012 |
● |
● |
|
|
|
|
|
| |
112 |
03.706 BRACKET; HANGER
4JB1 ENG(RLF)
|
8-97081-457-0 |
01 |
1 |
0004-0012 |
● |
|
|
|
● |
|
|
| |
112 |
03.706 BRACKET; HANGER
|
8-97081-457-0 |
01 |
1 |
0004-0012 |
|
|
● |
|
|
|
|
| |
112 |
03.706 BRACKET; HANGER
4JB1 ENG(RLF)
EXC. CHARGE AIR COOLER<6PL>
|
8-97081-457-0 |
01 |
1 |
0004-0012 |
|
● |
|
● |
|
|
|
| |
112 |
03.706 BRACKET; HANGER
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
EXC. COLOMBIA EQUIPMENT(X74)
|
8-97081-457-0 |
01 |
1 |
0004-0012 |
|
● |
|
● |
|
|
|
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-97081-457-0 |
01 |
1 |
0004-0012 |
|
|
|
|
|
● |
|
| |
112 |
03.706 BRACKET; HANGER
4JB1 ENG(RLF)
EXC. CHARGE AIR COOLER<6PL>
|
8-97081-457-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
● |
|
| |
112 |
03.706 BRACKET; HANGER
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
EXC. COLOMBIA EQUIPMENT(X74)
|
8-97081-457-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
● |
|
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC)
EXC. EURO2 SPECIFICATION<7AF>
|
8-97081-457-0 |
01 |
1 |
0101-0105 |
● |
● |
|
|
|
● |
● |
| |
112 |
03.706 BRACKET; HANGER
4JB1 ENG(RLF)
EXC. CHARGE AIR COOLER<6PL>
|
8-97081-457-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
● |
|
| |
112 |
03.706 BRACKET; HANGER
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
EXC. COLOMBIA EQUIPMENT(X74)
|
8-97081-457-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
● |
|
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC)
EXC. EURO2 SPECIFICATION<7AF>
|
8-97081-457-0 |
01 |
1 |
0106- |
● |
● |
|
|
|
|
● |
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97076-018-0 |
01 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97076-018-0 |
01 |
1 |
9812-0002 |
● |
● |
|
|
|
|
|
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97076-018-0 |
01 |
1 |
0003-0012 |
● |
● |
|
|
|
|
|
| |
112 |
03.706 BRACKET; HANGER
4JB1 ENG(RLF)
COLOMBIA EQUIPMENT(X74)
CHARGE AIR COOLER<6PL>
|
8-97076-018-0 |
01 |
1 |
0003-0012 |
|
● |
|
● |
|
|
|
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97076-018-0 |
01 |
1 |
0101-0105 |
● |
● |
|
|
|
|
● |
| |
112 |
03.706 BRACKET; HANGER
4JB1 ENG(RLF)
COLOMBIA EQUIPMENT(X74)
CHARGE AIR COOLER<6PL>
|
8-97076-018-0 |
01 |
1 |
0101-0105 |
|
● |
|
● |
|
|
|
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97076-018-0 |
01 |
1 |
0106- |
● |
● |
|
|
|
|
● |
| |
112 |
03.706 BRACKET; HANGER
4JB1 ENG(RLF)
COLOMBIA EQUIPMENT(X74)
CHARGE AIR COOLER<6PL>
|
8-97076-018-0 |
01 |
1 |
0106- |
|
|
|
● |
|
|
|
| |
113 |
03.704 COLLAR; DIST,MTG BRKT
03.706
L=37.5
|
9-22151-217-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
114 |
03.704 BRACKET; EXH SILENCER
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97073-758-0 |
01 |
1 |
9812-0105 |
● |
|
|
|
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
|
8-97073-758-0 |
01 |
1 |
9812-0105 |
● |
|
|
|
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97073-758-0 |
01 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97073-758-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
4JH1 ENG(RJX)
|
8-97073-758-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
|
8-97073-758-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
|
8-94329-856-0 |
01 |
1 |
9811-9811 |
● |
● |
● |
|
● |
● |
|
| |
114 |
03.704 BRACKET; EXH SILENCER
EXC. REAR WIDE TREAD(V4T)
|
8-94329-856-0 |
01 |
1 |
9811-9811 |
|
|
|
● |
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
EXC. CHARGE AIR COOLER<6PL>,EURO2
SPECIFICATION<7AF>
|
8-94329-856-0 |
01 |
1 |
9812-0105 |
● |
|
|
|
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
|
8-94329-856-0 |
01 |
1 |
9812-0105 |
|
● |
● |
|
● |
● |
|
| |
114 |
03.704 BRACKET; EXH SILENCER
EXC. REAR WIDE TREAD(V4T)
|
8-94329-856-0 |
01 |
1 |
9812-0105 |
|
|
|
● |
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
EXC. EURO2 SPECIFICATION<7AF>
|
8-94329-856-0 |
01 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
|
8-94329-856-0 |
01 |
1 |
0106-0112 |
|
|
● |
|
● |
● |
|
| |
114 |
03.704 BRACKET; EXH SILENCER
4JB1 ENG(RLF),4HF1 ENG(RLS)
EXC. REAR WIDE TREAD(V4T)
|
8-94329-856-0 |
01 |
1 |
0106-0112 |
|
|
|
● |
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1
ENG(RLS)
|
8-94329-856-0 |
01 |
1 |
0106-0112 |
|
● |
|
|
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
EXC. CHARGE AIR COOLER<6PL>,EURO2
SPECIFICATION<7AF>
|
8-94329-856-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1
ENG(RLS)
|
8-94329-856-0 |
01 |
1 |
0201- |
|
● |
● |
|
● |
● |
|
| |
114 |
03.704 BRACKET; EXH SILENCER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1
ENG(RLS)
EXC. REAR WIDE TREAD(V4T)
|
8-94329-856-0 |
01 |
1 |
0201- |
|
|
|
● |
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
REAR WIDE TREAD(V4T)
|
8-94329-857-0 |
01 |
1 |
9811-0002 |
|
|
|
● |
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
|
8-94329-857-0 |
01 |
1 |
9811-0002 |
|
|
|
|
|
|
● |
| |
114 |
03.704 BRACKET; EXH SILENCER
REAR WIDE TREAD(V4T)
EXC. COLOMBIA EQUIPMENT(X74)
|
8-94329-857-0 |
01 |
1 |
0003-0003 |
|
|
|
● |
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
|
8-94329-857-0 |
01 |
1 |
0003-0003 |
|
|
|
|
|
|
● |
| |
114 |
03.704 BRACKET; EXH SILENCER
REAR WIDE TREAD(V4T)
EXC. CHARGE AIR COOLER<6PL>
|
8-94329-857-0 |
01 |
1 |
0004-0012 |
|
|
|
● |
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
|
8-94329-857-0 |
01 |
1 |
0004-0012 |
|
|
|
|
|
|
● |
| |
114 |
03.704 BRACKET; EXH SILENCER
REAR WIDE TREAD(V4T)
EXC. CHARGE AIR COOLER<6PL>
|
8-94329-857-0 |
01 |
1 |
0101- |
|
|
|
● |
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
REAR WIDE TREAD(V4T)
|
8-94329-857-0 |
01 |
1 |
0101- |
|
|
|
|
|
|
● |
| |
114 |
03.704 BRACKET; EXH SILENCER
4HF1 ENG(RLS)
FRAME-KICK UP<7EW>
|
8-97105-989-0 |
01 |
1 |
9811- |
|
|
|
● |
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
COLOMBIA EQUIPMENT(X74)
CHARGE AIR COOLER<6PL>
|
8-97172-313-0 |
01 |
1 |
0003-0112 |
|
|
|
● |
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
COLOMBIA EQUIPMENT(X74)
CHARGE AIR COOLER<6PL>
|
8-97172-313-0 |
01 |
1 |
0201- |
|
|
|
● |
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
4JH1 ENG(RJX)
|
8-97172-313-0 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
115 |
03.704 RUBBER; MTG,SILENCER
(A)
|
8-94457-277-1 |
01 |
1 |
9811-0112 |
● |
● |
● |
● |
● |
● |
● |
| |
115 |
03.704 RUBBER; MTG,SILENCER
(A)
|
8-94457-277-1 |
01 |
1 |
0201- |
● |
● |
● |
● |
● |
● |
● |
| |
115 |
03.704 RUBBER; MTG,SILENCER
4JH1 ENG(RJX)
(A)
|
8-94457-277-1 |
01 |
1 |
0201- |
● |
● |
|
|
|
|
|
| |
115 |
03.704 RUBBER; MTG,SILENCER
(B)
|
8-94457-278-1 |
01 |
1 |
9811-0112 |
● |
● |
● |
● |
● |
● |
● |
| |
115 |
03.704 RUBBER; MTG,SILENCER
(B)
|
8-94457-278-1 |
01 |
1 |
0201- |
● |
● |
● |
● |
● |
● |
● |
| |
115 |
03.704 RUBBER; MTG,SILENCER
4JH1 ENG(RJX)
(B)
|
8-94457-278-1 |
01 |
1 |
0201- |
● |
● |
|
|
|
|
|
| |
117 |
03.704 WASHER; PL,SILENCER MTG BRKT
OD=55
|
9-09852-169-0 |
01 |
1 |
9811-0112 |
● |
● |
● |
● |
● |
● |
● |
| |
117 |
03.704 WASHER; PL,SILENCER MTG BRKT
OD=55
|
9-09852-169-0 |
01 |
1 |
0201- |
● |
● |
● |
● |
● |
● |
● |
| |
117 |
03.704 WASHER; PL,SILENCER MTG BRKT
4JH1 ENG(RJX)
OD=55
|
9-09852-169-0 |
01 |
1 |
0201- |
● |
● |
|
|
|
|
|
| |
118 |
03.704 NUT; SILENCER MTG BRKT
07.874
M10 FLANGE
|
5-09440-006-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
119 |
03.704 NUT; BRKT
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
122 |
03.275 NUT; HANGER BRKT
02.559
M8
|
9-09110-408-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
122 |
03.275 NUT; HANGER BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
122 |
03.275 NUT; HANGER BRKT
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
122 |
03.275 NUT; HANGER BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9812-0002 |
● |
● |
|
|
|
|
|
| |
122 |
03.275 NUT; HANGER BRKT
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9812-0002 |
● |
● |
|
|
|
|
|
| |
122 |
03.275 NUT; HANGER BRKT
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0003-0012 |
● |
● |
|
● |
|
|
|
| |
122 |
03.275 NUT; HANGER BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0003-0012 |
● |
● |
|
|
|
|
|
| |
122 |
03.275 NUT; HANGER BRKT
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0101-0105 |
● |
● |
|
● |
|
|
|
| |
122 |
03.275 NUT; HANGER BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0101-0105 |
● |
● |
|
|
|
|
● |
| |
122 |
03.275 NUT; HANGER BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106-0112 |
● |
● |
|
|
|
|
● |
| |
122 |
03.275 NUT; HANGER BRKT
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106-0112 |
|
|
|
● |
|
|
|
| |
122 |
03.275 NUT; HANGER BRKT
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0201- |
● |
● |
|
● |
|
|
|
| |
122 |
03.275 NUT; HANGER BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0201- |
● |
● |
|
|
|
|
● |
| |
126 |
03.705 PIPE; EXH,RR
4JH1 ENG(RJX)
(F)
|
8-97260-000-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97206-037-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JH1 ENG(RJX)
CHILE EQUIPMENT(6KB)
(G)
|
8-97328-801-0 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JH1 ENG(RJX)
EXC. CHILE EQUIPMENT(6KB)
(G)
|
8-97260-001-1 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4HF1 ENG(RLS)
(D)
|
8-97174-370-1 |
01 |
1 |
9901- |
● |
|
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. CHARGE AIR COOLER<6PL>,EURO2
SPECIFICATION<7AF>
(A)
|
8-97300-134-0 |
01 |
1 |
0009-0105 |
● |
|
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. EURO2 SPECIFICATION<7AF>
(A)
|
8-97300-134-0 |
01 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. CHARGE AIR COOLER<6PL>,EURO2
SPECIFICATION<7AF>
(A)
|
8-97300-134-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC)
CHILE EQUIPMENT(6KB)
EURO2 SPECIFICATION<7AF>
(A)
|
8-97220-838-0 |
01 |
1 |
9812-9812 |
● |
|
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC)
CHILE EQUIPMENT(6KB)
EURO2 SPECIFICATION<7AF>
(A)
|
8-97223-581-0 |
01 |
1 |
9901- |
● |
|
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
EXC. CHILE EQUIPMENT(6KB)
(A)
|
8-97174-126-0 |
01 |
1 |
9812- |
● |
|
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
(A)
|
8-97081-460-0 |
01 |
1 |
9811-9811 |
● |
|
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
(A)
|
8-97081-460-0 |
01 |
1 |
9811-9811 |
|
|
● |
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. CHARGE AIR COOLER<6PL>,EURO2
SPECIFICATION<7AF>
(A)
|
8-97081-460-0 |
01 |
1 |
9812-0008 |
● |
|
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
(A)
|
8-97081-460-0 |
01 |
1 |
9812-0008 |
|
|
● |
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC)
EXC. EURO2 SPECIFICATION<7AF>
(A)
|
8-97081-460-0 |
01 |
1 |
0009- |
● |
|
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EURO2
SPECIFICATION<7AF>
(A)
|
8-97081-460-0 |
01 |
1 |
0009- |
● |
|
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
(A)
|
8-97081-460-0 |
01 |
1 |
0009- |
|
|
● |
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4HF1 ENG(RLS)
FRAME-KICK UP<7EW>
(D)
|
8-97213-051-0 |
01 |
1 |
9811- |
|
|
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
(D)
|
8-97048-450-0 |
01 |
1 |
9811-9901 |
|
|
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
(E)
|
8-97224-008-0 |
01 |
1 |
9902- |
|
|
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
(B)
|
8-97090-827-0 |
01 |
1 |
9811-0002 |
|
|
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
EXC. EURO2 SPECIFICATION<7AF>
(B)
|
8-97090-827-0 |
01 |
1 |
0003- |
|
|
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
COLOMBIA EQUIPMENT(X74)
CHARGE AIR COOLER<6PL>
(A)
|
8-97187-138-0 |
01 |
1 |
0003- |
|
|
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
(E)
|
8-97042-203-0 |
01 |
1 |
9901-0012 |
|
|
|
|
|
|
● |
| |
126 |
03.705 PIPE; EXH,RR
4HF1 ENG(RLS)
(E)
|
8-97042-203-0 |
01 |
1 |
0101- |
|
|
|
|
|
|
● |
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(A)
|
8-97308-608-0 |
01 |
1 |
0101- |
|
|
|
|
|
|
● |
| |
126 |
03.705 PIPE; EXH,RR
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. CHARGE AIR COOLER<6PL>
(A)
|
8-97161-696-0 |
01 |
1 |
9811-0105 |
|
● |
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 ENG(RLF)
TURBOCHARGER<K51>
(A)
|
8-97161-696-0 |
01 |
1 |
0106-0112 |
|
● |
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. CHARGE AIR COOLER<6PL>
(A)
|
8-97161-696-0 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC)
CHILE EQUIPMENT(6KB)
EURO2 SPECIFICATION<7AF>
(A)
|
8-97210-759-0 |
01 |
1 |
9811-0105 |
|
● |
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 ENG(RLF)
CHILE EQUIPMENT(6KB)
CHARGE AIR COOLER<6PL>
(A)
|
8-97210-759-0 |
01 |
1 |
9811-0105 |
|
● |
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC)
CHILE EQUIPMENT(6KB)
EURO2 SPECIFICATION<7AF>
(A)
|
8-97210-759-0 |
01 |
1 |
0106-0112 |
|
● |
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC)
CHILE EQUIPMENT(6KB)
EURO2 SPECIFICATION<7AF>
(A)
|
8-97210-759-0 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 ENG(RLF)
CHILE EQUIPMENT(6KB)
CHARGE AIR COOLER<6PL>
(A)
|
8-97210-759-0 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
EXC. CHILE EQUIPMENT(6KB)
(A)
|
8-97144-949-0 |
01 |
1 |
9811-0105 |
|
● |
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
EXC. CHILE EQUIPMENT(6KB)
(A)
|
8-97144-949-0 |
01 |
1 |
9811-0105 |
|
● |
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
EXC. CHILE EQUIPMENT(6KB)
(A)
|
8-97144-949-0 |
01 |
1 |
0106-0112 |
|
● |
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
EXC. CHILE EQUIPMENT(6KB)
(A)
|
8-97144-949-0 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
EXC. CHILE EQUIPMENT(6KB)
(A)
|
8-97144-949-0 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EURO2
SPECIFICATION<7AF>
(C)
|
8-97090-828-0 |
01 |
1 |
9811-0105 |
|
● |
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 ENG(RLF)
(C)
|
8-97090-828-0 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EURO2
SPECIFICATION<7AF>
(C)
|
8-97090-828-0 |
01 |
1 |
0106- |
|
● |
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4HF1 ENG(RLS)
(E)
|
8-97034-100-1 |
01 |
1 |
9811- |
|
● |
|
|
● |
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
(A)
|
8-97081-465-0 |
01 |
1 |
9811-0105 |
|
|
|
|
|
● |
|
| |
126 |
03.705 PIPE; EXH,RR
(A)
|
8-97081-465-0 |
01 |
1 |
0106- |
|
|
|
|
|
● |
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4HF1 ENG(RLS)
|
8-97175-260-1 |
01 |
1 |
9811-0211 |
● |
|
|
|
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
9-22121-146-1 |
01 |
1 |
9811-0105 |
● |
|
|
|
|
● |
|
| |
137 |
03.706 BRACKET; TAIL PIPE
|
9-22121-146-1 |
01 |
1 |
9811-0105 |
|
|
● |
|
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
9-22121-146-1 |
01 |
1 |
0106-0112 |
● |
|
|
|
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
|
9-22121-146-1 |
01 |
1 |
0106-0112 |
|
|
● |
|
|
● |
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1
ENG(RLF)
|
9-22121-146-1 |
01 |
1 |
0201-0211 |
● |
|
|
|
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
|
9-22121-146-1 |
01 |
1 |
0201-0211 |
|
|
● |
|
|
● |
|
| |
137 |
03.706 BRACKET; TAIL PIPE
|
9-22121-146-1 |
01 |
1 |
0212- |
● |
|
● |
|
|
● |
|
| |
137 |
03.706 BRACKET; TAIL PIPE
REAR WIDE TREAD(V4T)
|
8-97169-014-0 |
01 |
1 |
9811-9901 |
|
|
|
● |
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
|
8-97169-014-0 |
01 |
1 |
9902- |
|
|
|
● |
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
|
8-97209-186-0 |
01 |
1 |
9902- |
|
|
|
● |
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
|
8-94468-175-0 |
01 |
1 |
9811- |
|
● |
|
|
● |
|
● |
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
|
8-94156-255-0 |
01 |
1 |
9811-9903 |
● |
|
● |
|
|
● |
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
L=180
|
8-97222-646-0 |
01 |
1 |
9904- |
● |
|
● |
|
|
● |
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
REAR WIDE TREAD(V4T)
L=148
|
8-97145-971-0 |
01 |
1 |
9811- |
|
|
|
● |
|
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
EXC. REAR WIDE TREAD(V4T)
03.704
|
8-94156-257-0 |
01 |
1 |
9811-9903 |
|
|
|
● |
|
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
EXC. REAR WIDE TREAD(V4T)
L=70
|
8-97222-645-0 |
01 |
1 |
9904- |
|
|
|
● |
|
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
L=115
|
8-94156-256-0 |
01 |
1 |
9811- |
|
● |
|
|
● |
|
● |
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
03.616
L=23
|
9-22151-175-0 |
01 |
1 |
9811- |
● |
|
● |
|
|
● |
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
EXC. REAR WIDE TREAD(V4T)
03.616
L=23
|
9-22151-175-0 |
01 |
1 |
9811- |
|
|
|
● |
|
|
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
REAR WIDE TREAD(V4T)
L=37.5
|
9-22151-217-0 |
01 |
1 |
9811- |
|
|
|
● |
|
|
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
L=37.5
|
9-22151-217-0 |
01 |
1 |
9811- |
|
● |
|
|
● |
|
● |
| |
165 |
03.706 BOLT; SUPPORT RUBBER
01.540
M8X45 FLANGE
|
0-28080-845-0 |
01 |
1 |
9811- |
● |
|
● |
|
|
● |
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
EXC. REAR WIDE TREAD(V4T)
01.540
M8X45 FLANGE
|
0-28080-845-0 |
01 |
1 |
9811- |
|
|
|
● |
|
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
REAR WIDE TREAD(V4T)
M10X70 FLANGE
|
0-28081-070-0 |
01 |
1 |
9811- |
|
|
|
● |
|
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
M10X70 FLANGE
|
0-28081-070-0 |
01 |
1 |
9811- |
|
● |
|
|
● |
|
● |
| |
166 |
03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
02.334
ID=8.4 OD=26
|
9-09164-808-0 |
01 |
1 |
9811- |
● |
|
● |
|
|
● |
|
| |
166 |
03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
REAR WIDE TREAD(V4T)
ID=10.5 OD=32
|
9-09164-810-0 |
01 |
1 |
9811- |
|
|
|
● |
|
|
|
| |
166 |
03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
ID=10.5 OD=32
|
9-09164-810-0 |
01 |
1 |
9811- |
|
● |
|
|
● |
|
● |
| |
166 |
03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
EXC. REAR WIDE TREAD(V4T)
02.334
ID=8.4 OD=26
|
9-09164-808-0 |
02 |
1 |
9811- |
|
|
|
● |
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
(B)
|
8-97206-510-1 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
(B)
|
8-97206-510-0 |
01 |
1 |
9812-0105 |
● |
|
|
|
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(A)
|
8-97144-952-0 |
01 |
1 |
9812-0002 |
● |
|
|
|
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
(A)
|
8-97144-952-0 |
01 |
1 |
9812-0002 |
● |
|
|
|
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
(A)
|
8-97144-952-0 |
01 |
1 |
0003-0012 |
● |
|
|
● |
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(A)
|
8-97144-952-0 |
01 |
1 |
0003-0012 |
● |
|
|
|
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
(A)
|
8-97144-952-0 |
01 |
1 |
0101-0105 |
● |
|
|
● |
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(A)
|
8-97144-952-0 |
01 |
1 |
0101-0105 |
● |
|
|
|
|
|
● |
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(A)
|
8-97144-952-0 |
01 |
1 |
0106-0112 |
● |
|
|
|
|
|
● |
| |
167 |
03.706 HANGER; EXH PIPE
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
(A)
|
8-97144-952-0 |
01 |
1 |
0106-0112 |
|
|
|
● |
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
(A)
|
8-97144-952-0 |
01 |
1 |
0201- |
● |
|
|
● |
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(A)
|
8-97144-952-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
● |
| |
167 |
03.706 HANGER; EXH PIPE
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
COLOMBIA EQUIPMENT(X74)
CHARGE AIR COOLER<6PL>
(B)
|
8-97187-324-1 |
01 |
1 |
0003- |
|
|
|
● |
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(A)
|
8-97144-953-0 |
01 |
1 |
9811-0105 |
|
● |
|
|
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
(A)
|
8-97144-953-0 |
01 |
1 |
9811-0105 |
|
● |
|
|
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(A)
|
8-97144-953-0 |
01 |
1 |
0106-0112 |
|
● |
|
|
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(A)
|
8-97144-953-0 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
(A)
|
8-97144-953-0 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(B)
|
8-97144-955-0 |
01 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
(B)
|
8-97144-955-0 |
01 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(B)
|
8-97144-955-0 |
01 |
1 |
9812-0012 |
● |
● |
|
|
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
(B)
|
8-97144-955-0 |
01 |
1 |
9812-0012 |
|
● |
|
|
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(B)
|
8-97144-955-0 |
01 |
1 |
0101-0105 |
● |
● |
|
|
|
|
● |
| |
167 |
03.706 HANGER; EXH PIPE
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
(B)
|
8-97144-955-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(B)
|
8-97144-955-1 |
01 |
1 |
0106-0112 |
● |
● |
|
|
|
|
● |
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(B)
|
8-97144-955-1 |
01 |
1 |
0201- |
● |
● |
|
|
|
|
● |
| |
167 |
03.706 HANGER; EXH PIPE
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
(B)
|
8-97144-955-1 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX)
FRT INDEPENDENT SUSPENSION(6PP)
(G)
|
8-97240-858-1 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(F)
|
8-97240-857-0 |
01 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX)
(F)
|
8-97240-857-0 |
01 |
1 |
0201- |
|
● |
|
|
|
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC)
CHILE EQUIPMENT(6KB)
EURO2 SPECIFICATION<7AF>
(B)
|
8-97210-476-0 |
01 |
1 |
9901- |
● |
|
|
|
|
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC)
FRT INDEPENDENT SUSPENSION(6PP)
(E)
|
8-97081-704-3 |
01 |
1 |
0106- |
● |
|
|
|
|
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4HF1 ENG(RLS)
(A)
|
8-97075-343-1 |
01 |
1 |
9811- |
● |
● |
|
● |
● |
|
● |
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>
(C)
|
8-94445-704-0 |
01 |
1 |
9811-0105 |
● |
● |
|
● |
● |
● |
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
(C)
|
8-94445-704-0 |
01 |
1 |
9811-0105 |
|
|
● |
|
|
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,FRT
INDEPENDENT SUSPENSION(6PP)
(C)
|
8-94445-704-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
● |
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC)
(D)
|
8-97084-346-2 |
01 |
1 |
9811-0002 |
● |
● |
|
|
|
● |
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
(D)
|
8-97084-346-2 |
01 |
1 |
9811-0002 |
● |
● |
|
|
|
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
(D)
|
8-97084-346-2 |
01 |
1 |
0003-0012 |
● |
● |
|
● |
|
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC)
(D)
|
8-97084-346-2 |
01 |
1 |
0003-0012 |
● |
● |
|
|
|
● |
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
(D)
|
8-97084-346-2 |
01 |
1 |
0101-0105 |
● |
● |
|
● |
|
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC)
(D)
|
8-97084-346-2 |
01 |
1 |
0101-0105 |
● |
● |
|
|
|
● |
● |
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(D)
|
8-97084-346-2 |
01 |
1 |
0106- |
● |
● |
|
● |
|
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(D)
|
8-97084-346-2 |
01 |
1 |
0106- |
● |
● |
|
|
|
|
● |
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
03.704
(B)
|
8-94468-174-1 |
01 |
1 |
9811-9901 |
|
● |
|
|
● |
|
● |
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
03.704
(B)
|
8-94468-174-1 |
01 |
1 |
9902- |
|
|
|
● |
|
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
03.704
(B)
|
8-94468-174-1 |
01 |
1 |
9902- |
|
● |
|
|
● |
|
● |
| |
175 |
03.685 CONVERTER; CATALYST
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97140-417-1 |
01 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
175 |
03.685 CONVERTER; CATALYST
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
|
8-97140-417-1 |
01 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
175 |
03.685 CONVERTER; CATALYST
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97140-417-1 |
01 |
1 |
9812-0002 |
● |
● |
|
|
|
|
|
| |
175 |
03.685 CONVERTER; CATALYST
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
|
8-97140-417-1 |
01 |
1 |
9812-0002 |
● |
● |
|
|
|
|
|
| |
175 |
03.685 CONVERTER; CATALYST
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
|
8-97140-417-1 |
01 |
1 |
0003-0012 |
● |
● |
|
● |
|
|
|
| |
175 |
03.685 CONVERTER; CATALYST
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97140-417-1 |
01 |
1 |
0003-0012 |
● |
● |
|
|
|
|
|
| |
175 |
03.685 CONVERTER; CATALYST
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
|
8-97140-417-1 |
01 |
1 |
0101-0105 |
● |
● |
|
● |
|
|
|
| |
175 |
03.685 CONVERTER; CATALYST
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97140-417-1 |
01 |
1 |
0101-0105 |
● |
● |
|
|
|
|
● |
| |
175 |
03.685 CONVERTER; CATALYST
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97140-417-2 |
01 |
1 |
0106-0112 |
● |
● |
|
|
|
|
● |
| |
175 |
03.685 CONVERTER; CATALYST
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
|
8-97140-417-2 |
01 |
1 |
0106-0112 |
|
|
|
● |
|
|
|
| |
175 |
03.685 CONVERTER; CATALYST
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
|
8-97140-417-2 |
01 |
1 |
0201- |
● |
● |
|
● |
|
|
|
| |
175 |
03.685 CONVERTER; CATALYST
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97140-417-2 |
01 |
1 |
0201- |
● |
● |
|
|
|
|
● |
| |
211 |
03.685 NUT; CONV
4JG2 ENG(RJC)
CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
211 |
03.685 NUT; CONV
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
EXC. CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
211 |
03.685 NUT; CONV
4JG2 ENG(RJC)
CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9812-9812 |
● |
● |
|
|
|
|
|
| |
211 |
03.685 NUT; CONV
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
EXC. CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9812-9812 |
● |
● |
|
|
|
|
|
| |
211 |
03.685 NUT; CONV
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9901-0002 |
● |
● |
|
|
|
|
|
| |
211 |
03.685 NUT; CONV
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9901-0002 |
● |
● |
|
|
|
|
|
| |
211 |
03.685 NUT; CONV
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0003-0012 |
● |
● |
|
● |
|
|
|
| |
211 |
03.685 NUT; CONV
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0003-0012 |
● |
● |
|
|
|
|
|
| |
211 |
03.685 NUT; CONV
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0101-0105 |
● |
● |
|
● |
|
|
|
| |
211 |
03.685 NUT; CONV
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0101-0105 |
● |
● |
|
|
|
|
● |
| |
211 |
03.685 NUT; CONV
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0106-0112 |
● |
● |
|
|
|
|
● |
| |
211 |
03.685 NUT; CONV
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0106-0112 |
|
|
|
● |
|
|
|
| |
211 |
03.685 NUT; CONV
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0201- |
● |
● |
|
● |
|
|
|
| |
211 |
03.685 NUT; CONV
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0201- |
● |
● |
|
|
|
|
● |
| |
226 |
03.613 RUBBER; CUSHION
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97166-498-0 |
01 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
226 |
03.613 RUBBER; CUSHION
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
|
8-97166-498-0 |
01 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
226 |
03.613 RUBBER; CUSHION
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97166-498-0 |
01 |
1 |
9812-0002 |
● |
● |
|
|
|
|
|
| |
226 |
03.613 RUBBER; CUSHION
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
|
8-97166-498-0 |
01 |
1 |
9812-0002 |
● |
● |
|
|
|
|
|
| |
226 |
03.613 RUBBER; CUSHION
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
|
8-97166-498-0 |
01 |
1 |
0003-0012 |
● |
● |
|
● |
|
|
|
| |
226 |
03.613 RUBBER; CUSHION
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97166-498-0 |
01 |
1 |
0003-0012 |
● |
● |
|
|
|
|
|
| |
226 |
03.613 RUBBER; CUSHION
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
|
8-97166-498-0 |
01 |
1 |
0101-0105 |
● |
● |
|
● |
|
|
|
| |
226 |
03.613 RUBBER; CUSHION
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97166-498-0 |
01 |
1 |
0101-0105 |
● |
● |
|
|
|
|
● |
| |
226 |
03.613 RUBBER; CUSHION
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97166-498-0 |
01 |
1 |
0106-0112 |
● |
● |
|
|
|
|
● |
| |
226 |
03.613 RUBBER; CUSHION
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
|
8-97166-498-0 |
01 |
1 |
0106-0112 |
|
|
|
● |
|
|
|
| |
226 |
03.613 RUBBER; CUSHION
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
|
8-97166-498-0 |
01 |
1 |
0201- |
● |
● |
|
● |
|
|
|
| |
226 |
03.613 RUBBER; CUSHION
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97166-498-0 |
01 |
1 |
0201- |
● |
● |
|
|
|
|
● |
| |
262 |
03.704 BOLT; HANGER TO BODY
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
262 |
03.704 BOLT; HANGER TO BODY
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
262 |
03.704 BOLT; HANGER TO BODY
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9812-0002 |
● |
● |
|
|
|
|
|
| |
262 |
03.704 BOLT; HANGER TO BODY
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9812-0002 |
● |
● |
|
|
|
|
|
| |
262 |
03.704 BOLT; HANGER TO BODY
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0003-0012 |
● |
● |
|
● |
|
|
|
| |
262 |
03.704 BOLT; HANGER TO BODY
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0003-0012 |
● |
● |
|
|
|
|
|
| |
262 |
03.704 BOLT; HANGER TO BODY
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0101-0105 |
● |
● |
|
● |
|
|
|
| |
262 |
03.704 BOLT; HANGER TO BODY
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0101-0105 |
● |
● |
|
|
|
|
● |
| |
262 |
03.704 BOLT; HANGER TO BODY
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0106-0112 |
● |
● |
|
|
|
|
● |
| |
262 |
03.704 BOLT; HANGER TO BODY
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0106-0112 |
|
|
|
● |
|
|
|
| |
262 |
03.704 BOLT; HANGER TO BODY
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0201- |
● |
● |
|
● |
|
|
|
| |
262 |
03.704 BOLT; HANGER TO BODY
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0201- |
● |
● |
|
|
|
|
● |
| |
319 |
03.602 NUT; PROTECTOR
4JH1 ENG(RJX)
FRT INDEPENDENT SUSPENSION(6PP)
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
319 |
03.602 NUT; PROTECTOR
4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0201- |
● |
|
|
|
|
|
|
| |
344 |
03.602 NUT; SILENCER
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
344 |
03.602 NUT; SILENCER
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
344 |
03.602 NUT; SILENCER
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9812-0002 |
● |
● |
|
|
|
|
|
| |
344 |
03.602 NUT; SILENCER
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9812-0002 |
● |
● |
|
|
|
|
|
| |
344 |
03.602 NUT; SILENCER
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0003-0012 |
● |
● |
|
● |
|
|
|
| |
344 |
03.602 NUT; SILENCER
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0003-0012 |
● |
● |
|
|
|
|
|
| |
344 |
03.602 NUT; SILENCER
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0101-0105 |
● |
● |
|
● |
|
|
|
| |
344 |
03.602 NUT; SILENCER
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0101-0105 |
● |
● |
|
|
|
|
● |
| |
344 |
03.602 NUT; SILENCER
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0106-0112 |
● |
● |
|
|
|
|
● |
| |
344 |
03.602 NUT; SILENCER
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0106-0112 |
|
|
|
● |
|
|
|
| |
344 |
03.602 NUT; SILENCER
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0201- |
● |
● |
|
● |
|
|
|
| |
344 |
03.602 NUT; SILENCER
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0201- |
● |
● |
|
|
|
|
● |
| |
357 |
03.708 WASHER; PL,CLAMP
01.276
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
