1 |

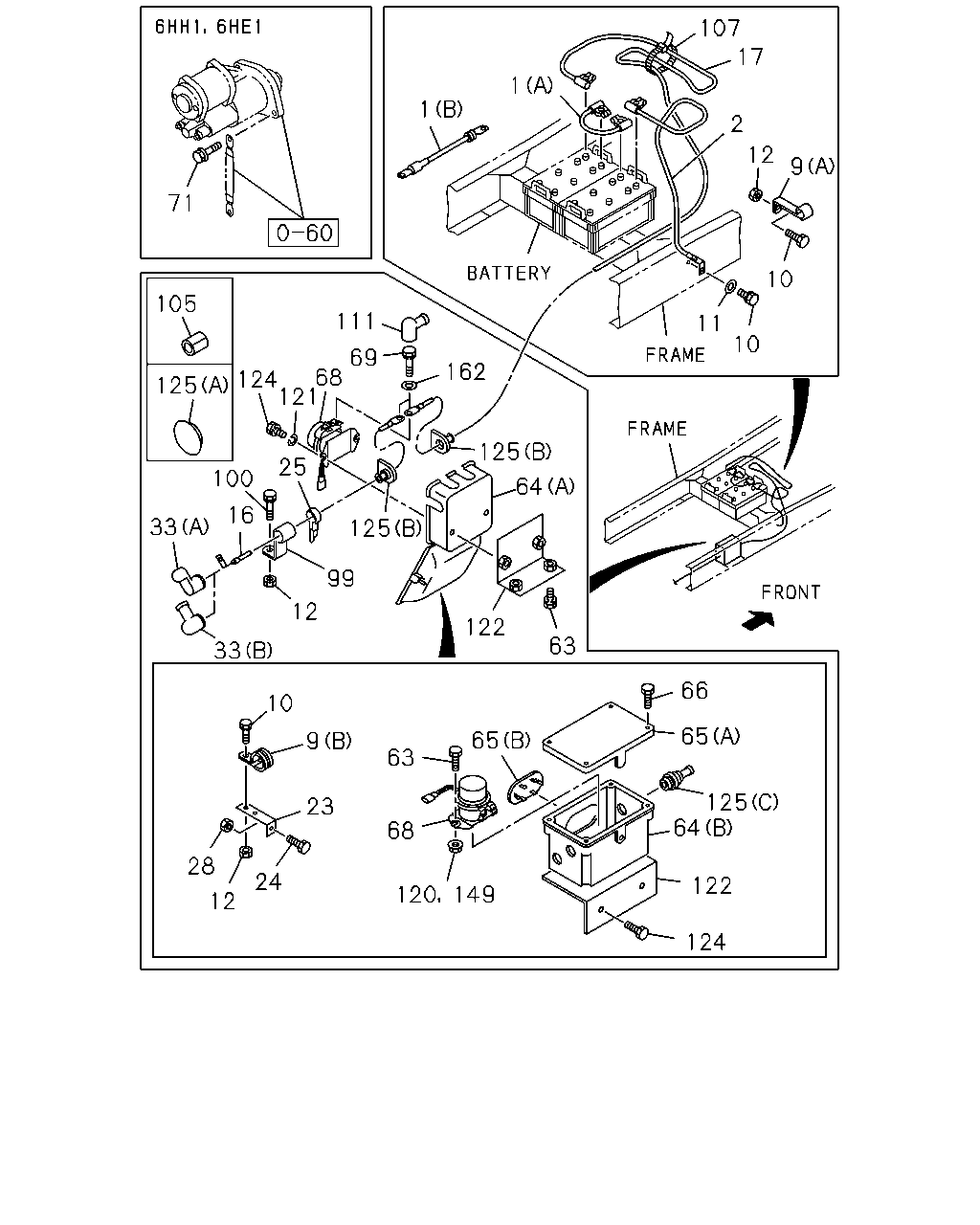

CABLE; BATTERY
(A) BATTERY<+>-BATTERY<->
L=500
|
1-82650-130-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
1 |
CABLE; BATTERY
(A) BATTERY<+>-BATTERY<->
L=500
|
1-82650-130-0 |
01 |
1 |
9505-9702 |
|
|
|
● |
|
|
| |
1 |
CABLE; BATTERY
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
(B) BATTERY<+>-FUSE L=350
L=350
|
1-82650-275-1 |
01 |
1 |
9505- |
|
|
|
● |
|
|
| |
1 |
CABLE; BATTERY
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
(B) BATTERY<+>-FUSE L=550
L=550
|
1-82650-276-1 |
01 |
1 |
9505-0312 |
|
|
|
● |
|
|
| |
1 |
CABLE; BATTERY
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
OVERHEAD COOLING SYSTEM<YS9>
(B) BATTERY<+>-FUSE L=550
L=550
|
1-82650-276-1 |
01 |
1 |
0401- |
|
|
|
● |
|
|
| |
1 |
CABLE; BATTERY
(A) BATTERY<+>-BATTERY<->
L=500
|
1-82650-130-0 |
01 |
1 |
9703-9709 |
|
|
|
● |
● |
|
| |
1 |
CABLE; BATTERY
(A) BATTERY<+>-BATTERY<->
L=500
|
1-82650-130-0 |
01 |
1 |
9710-0711 |
|
|
|
● |
● |
● |
| |
1 |
CABLE; BATTERY
(A) BATTERY<+>-BATTERY<->
L=500
|
8-97623-077-0 |
01 |
1 |
0712- |
|
|
|
● |
● |
● |
| |
2 |
CABLE; BATTERY
BATTERY CABLE COPPER<WP3>
L=1400
|
1-82650-082-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
2 |
CABLE; BATTERY
EXC. BATTERY CABLE COPPER<WP3>
L=1400
|
1-82652-163-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
2 |
CABLE; BATTERY
L=1400
|
1-82650-273-0 |
01 |
1 |
9505-9702 |
|
|
|
● |
|
|
| |
2 |
CABLE; BATTERY
L=1400
|
1-82650-273-0 |
01 |
1 |
9703-9709 |
|
|
|
● |
● |
|
| |
2 |
CABLE; BATTERY
L=1400
|
1-82650-273-0 |
01 |
1 |
9710-0711 |
|
|
|
● |
● |
● |
| |
2 |
CABLE; BATTERY
L=1400
|
1-82650-408-0 |
01 |
1 |
0712- |
|
|
|
● |
● |
● |
| |
9 |
CLIP; BATTERY CABLE
(A)
ID=17
|
1-09700-840-0 |
03 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
9 |
CLIP; BATTERY CABLE
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
(A)
ID=18 H=23 L=28
|
1-09701-070-0 |
06 |
1 |
9505-9705 |
|
|
|
● |
|
|
| |
9 |
CLIP; BATTERY CABLE
CENTER SPLIT TYPE FRAME<TLW>
(A)
ID=18 H=23 L=28
|
1-09701-070-0 |
17 |
1 |
9706-9709 |
|
|
|
● |
● |
|
| |
9 |
CLIP; BATTERY CABLE
CENTER SPLIT TYPE FRAME<TLW>
(A)
ID=18 H=23 L=28
|
1-09701-070-0 |
19 |
1 |
9710-0102 |
|
|
|
● |
● |
● |
| |
9 |
CLIP; BATTERY CABLE
CENTER SPLIT TYPE FRAME<TLW>
(A)
ID=18 H=23 L=28
|
1-09701-070-0 |
18 |
1 |
0103- |
|
|
|
● |
● |
● |
| |
9 |
CLIP; BATTERY CABLE
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
(A)
ID=18 H=23 L=28
|
1-09701-070-0 |
08 |
1 |
9505-9705 |
|
|
|
● |
|
|
| |
9 |
CLIP; BATTERY CABLE
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
EXC. CENTER SPLIT TYPE FRAME<TLW>
(A)
ID=18 H=23 L=28
|
1-09701-070-0 |
08 |
1 |
9706-0102 |
|
|
|
● |
|
|
| |
9 |
CLIP; BATTERY CABLE
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
EXC. CENTER SPLIT TYPE FRAME<TLW>
(A)
ID=18 H=23 L=28
|
1-09701-070-0 |
09 |
1 |
0103- |
|
|
|
● |
|
|
| |
9 |
CLIP; BATTERY CABLE
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
(A)
ID=18 H=23 L=28
|
1-09701-070-0 |
06 |
1 |
9703-9705 |
|
|
|
● |
● |
|
| |
9 |
CLIP; BATTERY CABLE
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),MTB643 A/T
ALLISON(X6N)
(A)
ID=18 H=23 L=28
|
1-09701-070-0 |
06 |
1 |
9706-9709 |
|
|
|
● |
● |
|
| |
9 |
CLIP; BATTERY CABLE
CENTER SPLIT TYPE FRAME<TLW>
(B)
ID=18 L=28
|
1-09701-067-0 |
01 |
1 |
0103- |
|
|
|
● |
● |
● |
| |
9 |
CLIP; BATTERY CABLE
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>,MTB643 A/T ALLISON(X6N)
(A)
ID=18 H=23 L=28
|
1-09701-070-0 |
06 |
1 |
9710-0102 |
|
|
|
● |
● |
● |
| |
9 |
CLIP; BATTERY CABLE
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>,MTB643 A/T ALLISON(X6N)
(A)
ID=18 H=23 L=28
|
1-09701-070-0 |
07 |
1 |
0103- |
|
|
|
● |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
M8X20 W/LK WASHER
|
9-01900-820-0 |
02 |
1 |
9101-9101 |
● |
● |
● |
|
|
|
| |
10 |
BOLT; BATTERY CABLE CLIP
M8X20 W/LK WASHER
|
9-01900-820-0 |
04 |
1 |
9101-9110 |
● |
● |
● |
|
|
|
| |
10 |
BOLT; BATTERY CABLE CLIP
M8X20 W/LK WASHER
|
9-01900-820-0 |
01 |
1 |
9111-9204 |
● |
● |
● |
|
|
|
| |
10 |
BOLT; BATTERY CABLE CLIP
M8X20 W/LK WASHER
|
0-50040-820-0 |
01 |
1 |
9205-9212 |
● |
● |
● |
|
|
|
| |
10 |
BOLT; BATTERY CABLE CLIP
M8X25 W/LK&PL WASHER
|
8-97087-203-0 |
01 |
1 |
9301-9504 |
● |
● |
● |
|
|
|
| |
10 |
BOLT; BATTERY CABLE CLIP
M8X25 W/LK&PL WASHER
|
8-97087-203-0 |
01 |
1 |
9505-9705 |
|
|
|
● |
|
|
| |
10 |
BOLT; BATTERY CABLE CLIP
EXC. CENTER SPLIT TYPE FRAME<TLW>
M8X25 W/LK&PL WASHER
|
8-97087-203-0 |
01 |
1 |
9710-1201 |
|
|
|
● |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
EXC. CENTER SPLIT TYPE FRAME<TLW>
M8X18.5 W/PL WASHER
|
8-98141-255-0 |
01 |
1 |
1202- |
|
|
|
● |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
M8X25 W/LK WASHER
|
9-01900-825-0 |
03 |
1 |
9111-9204 |
● |
● |
● |
|
|
|
| |
10 |
BOLT; BATTERY CABLE CLIP
M8X25 W/LK WASHER
|
0-50040-825-0 |
03 |
1 |
9205-9504 |
● |
● |
● |
|
|
|
| |
10 |
BOLT; BATTERY CABLE CLIP
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
M8X30 FLANGE
|
0-28080-830-0 |
08 |
1 |
9505-9606 |
|
|
|
● |
|
|
| |
10 |
BOLT; BATTERY CABLE CLIP
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
M8X30 FLANGE
|
0-28680-830-0 |
08 |
1 |
9607-9607 |
|
|
|
● |
|
|
| |
10 |
BOLT; BATTERY CABLE CLIP
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
M8X30 FLANGE
|
0-28680-830-0 |
07 |
1 |
9607-9705 |
|
|
|
● |
|
|
| |
10 |
BOLT; BATTERY CABLE CLIP
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
EXC. CENTER SPLIT TYPE FRAME<TLW>
M8X30 FLANGE
|
0-28680-830-0 |
07 |
1 |
9706-0102 |
|
|
|
● |
|
|
| |
10 |
BOLT; BATTERY CABLE CLIP
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
EXC. CENTER SPLIT TYPE FRAME<TLW>
M8X30 FLANGE
|
0-28680-830-0 |
08 |
1 |
0103-0512 |
|
|
|
● |
|
|
| |
10 |
BOLT; BATTERY CABLE CLIP
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
EXC. CENTER SPLIT TYPE FRAME<TLW>
M8X30 FLANGE
|
0-28650-830-0 |
08 |
1 |
0601- |
|
|
|
● |
|
|
| |
10 |
BOLT; BATTERY CABLE CLIP
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
M8X30 FLANGE
|
0-28080-830-0 |
06 |
1 |
9505-9606 |
|
|
|
● |
|
|
| |
10 |
BOLT; BATTERY CABLE CLIP
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
M8X30 FLANGE
|
0-28680-830-0 |
06 |
1 |
9607-9607 |
|
|
|
● |
|
|
| |
10 |
BOLT; BATTERY CABLE CLIP
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
M8X30 FLANGE
|
0-28680-830-0 |
05 |
1 |
9607-9705 |
|
|
|
● |
|
|
| |
10 |
BOLT; BATTERY CABLE CLIP
CENTER SPLIT TYPE FRAME<TLW>
M8X30 FLANGE
|
0-28680-830-0 |
16 |
1 |
9706-9709 |
|
|
|
● |
● |
|
| |
10 |
BOLT; BATTERY CABLE CLIP
CENTER SPLIT TYPE FRAME<TLW>
M8X30 FLANGE
|
0-28680-830-0 |
18 |
1 |
9710-0512 |
|
|
|
● |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
CENTER SPLIT TYPE FRAME<TLW>
M8X30 FLANGE
|
0-28650-830-0 |
18 |
1 |
0601- |
|
|
|
● |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
CENTER SPLIT TYPE FRAME<TLW>
M10X30 W/LK&PL WASHER
|
8-97087-206-0 |
01 |
1 |
9706-9805 |
|
|
|
● |
● |
|
| |
10 |
BOLT; BATTERY CABLE CLIP
CENTER SPLIT TYPE FRAME<TLW>
M10X30 W/LK&PL WASHER
|
8-97087-206-0 |
01 |
1 |
9706-1201 |
|
|
|
● |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
CENTER SPLIT TYPE FRAME<TLW>
M10X20 W/PL WASHER
|
8-98164-838-0 |
01 |
1 |
1202- |
|
|
|
● |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
EXC. CENTER SPLIT TYPE FRAME<TLW>
M8X25 W/LK&PL WASHER
|
8-97087-203-0 |
01 |
1 |
9706-9709 |
|
|
|
● |
● |
|
| |
10 |
BOLT; BATTERY CABLE CLIP
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
M8X30 FLANGE
|
0-28680-830-0 |
05 |
1 |
9706-0102 |
|
|
|
● |
● |
|
| |
10 |
BOLT; BATTERY CABLE CLIP
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
M8X30 FLANGE
|
0-28680-830-0 |
06 |
1 |
0103-0512 |
|
|
|
● |
● |
|
| |
10 |
BOLT; BATTERY CABLE CLIP
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
M8X30 FLANGE
|
0-28650-830-0 |
06 |
1 |
0601- |
|
|
|
● |
● |
|
| |
10 |
BOLT; BATTERY CABLE CLIP
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),MTB643 A/T
ALLISON(X6N)
M8X30 FLANGE
|
0-28680-830-0 |
05 |
1 |
9703-9705 |
|
|
|
● |
● |
|
| |
10 |
BOLT; BATTERY CABLE CLIP
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9607-0512 |
|
|
|
● |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0601- |
|
|
|
● |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>,MTB643 A/T ALLISON(X6N)
M8X30 FLANGE
|
0-28680-830-0 |
05 |
1 |
9710- |
|
|
|
● |
● |
● |
| |
11 |
WASHER; BATTERY CABLE EARTH
CENTER SPLIT TYPE FRAME<TLW>
ID=10.5 OD=22
|
9-09160-610-0 |
01 |
1 |
9706-9709 |
|
|
|
● |
● |
|
| |
11 |
WASHER; BATTERY CABLE EARTH
CENTER SPLIT TYPE FRAME<TLW>
ID=10.5 OD=22
|
9-09160-610-0 |
01 |
1 |
9710-9805 |
|
|
|
● |
● |
|
| |
11 |
WASHER; BATTERY CABLE EARTH
CENTER SPLIT TYPE FRAME<TLW>
ID=10.5 OD=22
|
9-09160-610-0 |
01 |
1 |
9806-0605 |
|
|
|
● |
● |
● |
| |
11 |
WASHER; BATTERY CABLE EARTH
CENTER SPLIT TYPE FRAME<TLW>
ID=10.5 OD=22 T=1.6
|
0-91610-610-0 |
01 |
1 |
0606- |
|
|
|
● |
● |
● |
| |
12 |
NUT; BATTERY CABLE CLIP
M8
|
9-09110-408-0 |
01 |
1 |
9101-9101 |
● |
● |
● |
|
|
|
| |
12 |
NUT; BATTERY CABLE CLIP
M8
|
9-09110-408-0 |
03 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
12 |
NUT; BATTERY CABLE CLIP
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
M8
|
9-09110-408-0 |
05 |
1 |
9505-9606 |
|
|
|
● |
|
|
| |
12 |
NUT; BATTERY CABLE CLIP
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
9607-9705 |
|
|
|
● |
|
|
| |
12 |
NUT; BATTERY CABLE CLIP
CENTER SPLIT TYPE FRAME<TLW>
M8 FLANGE
|
0-91150-108-0 |
16 |
1 |
9706-9709 |
|
|
|
● |
● |
|
| |
12 |
NUT; BATTERY CABLE CLIP
CENTER SPLIT TYPE FRAME<TLW>
M8 FLANGE
|
0-91150-108-0 |
18 |
1 |
9710-0602 |
|
|
|
● |
● |
● |
| |
12 |
NUT; BATTERY CABLE CLIP
CENTER SPLIT TYPE FRAME<TLW>
M8 FLANGE
|
0-91180-108-0 |
18 |
1 |
0603- |
|
|
|
● |
● |
● |
| |
12 |
NUT; BATTERY CABLE CLIP
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
M8
|
9-09110-408-0 |
07 |
1 |
9505-9606 |
|
|
|
● |
|
|
| |
12 |
NUT; BATTERY CABLE CLIP
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
M8 FLANGE
|
0-91150-108-0 |
07 |
1 |
9607-9705 |
|
|
|
● |
|
|
| |
12 |
NUT; BATTERY CABLE CLIP
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
EXC. CENTER SPLIT TYPE FRAME<TLW>
M8 FLANGE
|
0-91150-108-0 |
07 |
1 |
9706-0102 |
|
|
|
● |
|
|
| |
12 |
NUT; BATTERY CABLE CLIP
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
EXC. CENTER SPLIT TYPE FRAME<TLW>
M8 FLANGE
|
0-91150-108-0 |
08 |
1 |
0103-0602 |
|
|
|
● |
|
|
| |
12 |
NUT; BATTERY CABLE CLIP
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
EXC. CENTER SPLIT TYPE FRAME<TLW>
M8 FLANGE
|
0-91180-108-0 |
08 |
1 |
0603- |
|
|
|
● |
|
|
| |
12 |
NUT; BATTERY CABLE CLIP
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
9706-9709 |
|
|
|
● |
● |
|
| |
12 |
NUT; BATTERY CABLE CLIP
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),MTB643 A/T
ALLISON(X6N)
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
9703-9705 |
|
|
|
● |
● |
|
| |
12 |
NUT; BATTERY CABLE CLIP
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>,MTB643 A/T ALLISON(X6N)
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
9710-0102 |
|
|
|
● |
● |
● |
| |
12 |
NUT; BATTERY CABLE CLIP
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>,MTB643 A/T ALLISON(X6N)
M8 FLANGE
|
0-91150-108-0 |
06 |
1 |
0103-0602 |
|
|
|
● |
● |
● |
| |
12 |
NUT; BATTERY CABLE CLIP
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>,MTB643 A/T ALLISON(X6N)
M8 FLANGE
|
0-91180-108-0 |
06 |
1 |
0603- |
|
|
|
● |
● |
● |
| |
16 |
CABLE; STARTER TO RELAY
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,
BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,
BATTERY CABLE COPPER<WP3>
L=2400
|
1-82652-261-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
16 |
CABLE; STARTER TO RELAY
WHEEL BASE 5700MM(57W)
ISUZU M/T<X9A>
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BATTERY CABLE COPPER<WP3>
L=2400
|
1-82652-261-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
16 |
CABLE; STARTER TO RELAY
ISUZU M/T<X9A>
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY CABLE COPPER<WP3>
L=2400
|
1-82650-081-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
16 |
CABLE; STARTER TO RELAY
BATTERY CABLE COPPER<WP3>
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,
BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>
L=2400
|
1-82650-081-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
16 |
CABLE; STARTER TO RELAY
MT643 A/T ALLISON(PR7)
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY CABLE COPPER<WP3>
L=2650
|
1-82650-108-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
16 |
CABLE; STARTER TO RELAY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>
BRK SYSTEM AIR OVER HYDRAULIC DUAL
CIRCUIT(Z05)
BATTERY CABLE COPPER<WP3>
L=2650
|
1-82650-108-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
16 |
CABLE; STARTER TO RELAY
MT643 A/T ALLISON(PR7)
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BATTERY CABLE COPPER<WP3>
L=2530
|
1-82652-129-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
16 |
CABLE; STARTER TO RELAY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>
BRK SYSTEM AIR OVER HYDRAULIC DUAL
CIRCUIT(Z05)
EXC. BATTERY CABLE COPPER<WP3>
L=2530
|
1-82652-129-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
16 |
CABLE; STARTER TO RELAY
WHEEL BASE 5000MM(50W)
ISUZU M/T<X9A>
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BATTERY CABLE COPPER<WP3>
L=2530
|
1-82652-129-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
16 |
CABLE; STARTER TO RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
L=2300
|
1-82650-270-3 |
01 |
1 |
9505-9701 |
|
|
|
● |
|
|
| |
16 |
CABLE; STARTER TO RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
L=2300
|
1-82650-270-3 |
01 |
1 |
9702-9802 |
|
|
|
● |
● |
|
| |
16 |
CABLE; STARTER TO RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
L=2300
|
1-82650-270-3 |
01 |
1 |
9803-9808 |
|
|
|
● |
● |
● |
| |
16 |
CABLE; STARTER TO RELAY
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2),
OVERHEAD COOLING SYSTEM<YS9>
L=2300
|
1-82650-270-4 |
01 |
1 |
9809- |
|
|
|
● |
● |
● |
| |
16 |
CABLE; STARTER TO RELAY
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
L=2400
|
1-82650-274-2 |
01 |
1 |
9505-9802 |
|
|
|
● |
|
|
| |
16 |
CABLE; STARTER TO RELAY
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
L=2400
|
1-82650-274-2 |
01 |
1 |
9803-9808 |
|
|
|
● |
● |
● |
| |
16 |
CABLE; STARTER TO RELAY
GENERATOR NIKKO 24V-90A 2.5KW(SD2),OVERHEAD
COOLING SYSTEM<YS9>
L=2400
|
1-82650-274-2 |
01 |
1 |
9809- |
|
|
|
● |
● |
● |
| |
17 |
CABLE; BATTERY (+) TO RELAY
BATTERY CABLE COPPER<WP3>
L=2600
|
1-82650-080-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
17 |
CABLE; BATTERY (+) TO RELAY
EXC. BATTERY CABLE COPPER<WP3>
L=2600
|
1-82652-167-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
17 |
CABLE; BATTERY (+) TO RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
L=2600
|
1-82650-271-1 |
01 |
1 |
9505-9705 |
|
|
|
● |
|
|
| |
17 |
CABLE; BATTERY (+) TO RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
L=2600
|
1-82650-271-1 |
01 |
1 |
9706- |
|
|
|
● |
● |
● |
| |
17 |
CABLE; BATTERY (+) TO RELAY
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
L=6000
|
1-82650-272-1 |
01 |
1 |
9505-9705 |
|
|
|
● |
|
|
| |
17 |
CABLE; BATTERY (+) TO RELAY
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
EXC. CENTER SPLIT TYPE FRAME<TLW>
L=6000
|
1-82650-272-1 |
01 |
1 |
9706-9707 |
|
|
|
● |
● |
|
| |
17 |
CABLE; BATTERY (+) TO RELAY
CENTER SPLIT TYPE FRAME<TLW>
L=6000
|
1-82650-272-1 |
01 |
1 |
9706-9707 |
|
|
|
● |
● |
|
| |
17 |
CABLE; BATTERY (+) TO RELAY
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
L=6000
|
1-82650-272-2 |
01 |
1 |
9708- |
|
|
|
● |
|
|
| |
17 |
CABLE; BATTERY (+) TO RELAY
CENTER SPLIT TYPE FRAME<TLW>
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
L=6000
|
1-82650-312-0 |
01 |
1 |
9708- |
|
|
|
● |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
OVERHEAD COOLING SYSTEM<YS9>
L=95
|
1-82699-085-0 |
02 |
1 |
9505-9705 |
|
|
|
● |
|
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
EXC. CENTER SPLIT TYPE FRAME<TLW>
L=95
|
1-82699-085-0 |
02 |
1 |
9706- |
|
|
|
● |
|
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
EXC. OVERHEAD COOLING SYSTEM<YS9>
L=95
|
1-82699-085-0 |
01 |
1 |
9505-9705 |
|
|
|
● |
|
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
CENTER SPLIT TYPE FRAME<TLW>
L=95
|
1-82699-085-0 |
04 |
1 |
9706-9805 |
|
|
|
● |
● |
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
CENTER SPLIT TYPE FRAME<TLW>
L=95
|
1-82699-085-0 |
04 |
1 |
9806- |
|
|
|
● |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
CENTER SPLIT TYPE FRAME<TLW>
L=120
|
1-82699-465-0 |
01 |
1 |
9710- |
|
|
|
● |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
L=95
|
1-82699-085-0 |
01 |
1 |
9706- |
|
|
|
● |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
OVERHEAD COOLING SYSTEM<YS9>
M8X30 FLANGE
|
0-28080-830-0 |
02 |
1 |
9505-9606 |
|
|
|
● |
|
|
| |
24 |
BOLT; BRKT TO FRAME
OVERHEAD COOLING SYSTEM<YS9>
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9705 |
|
|
|
● |
|
|
| |
24 |
BOLT; BRKT TO FRAME
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
EXC. CENTER SPLIT TYPE FRAME<TLW>
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9706-0512 |
|
|
|
● |
|
|
| |
24 |
BOLT; BRKT TO FRAME
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
EXC. CENTER SPLIT TYPE FRAME<TLW>
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
|
|
|
● |
|
|
| |
24 |
BOLT; BRKT TO FRAME
EXC. OVERHEAD COOLING SYSTEM<YS9>
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
9505-9606 |
|
|
|
● |
|
|
| |
24 |
BOLT; BRKT TO FRAME
EXC. OVERHEAD COOLING SYSTEM<YS9>
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9607-9705 |
|
|
|
● |
|
|
| |
24 |
BOLT; BRKT TO FRAME
CENTER SPLIT TYPE FRAME<TLW>
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
9706-9709 |
|
|
|
● |
● |
|
| |
24 |
BOLT; BRKT TO FRAME
CENTER SPLIT TYPE FRAME<TLW>
M8X30 FLANGE
|
0-28680-830-0 |
05 |
1 |
9710-0512 |
|
|
|
● |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
CENTER SPLIT TYPE FRAME<TLW>
M8X30 FLANGE
|
0-28650-830-0 |
05 |
1 |
0601- |
|
|
|
● |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9706-0512 |
|
|
|
● |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0601- |
|
|
|
● |
● |
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
ID=18 L=48
|
9-09917-429-0 |
02 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
28 |
NUT; BRKT TO FRAME
OVERHEAD COOLING SYSTEM<YS9>
M8
|
9-09110-408-0 |
02 |
1 |
9505-9606 |
|
|
|
● |
|
|
| |
28 |
NUT; BRKT TO FRAME
OVERHEAD COOLING SYSTEM<YS9>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9705 |
|
|
|
● |
|
|
| |
28 |
NUT; BRKT TO FRAME
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
EXC. CENTER SPLIT TYPE FRAME<TLW>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9706-0602 |
|
|
|
● |
|
|
| |
28 |
NUT; BRKT TO FRAME
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
EXC. CENTER SPLIT TYPE FRAME<TLW>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
|
|
● |
|
|
| |
28 |
NUT; BRKT TO FRAME
EXC. OVERHEAD COOLING SYSTEM<YS9>
M8
|
9-09110-408-0 |
01 |
1 |
9505-9606 |
|
|
|
● |
|
|
| |
28 |
NUT; BRKT TO FRAME
EXC. OVERHEAD COOLING SYSTEM<YS9>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9705 |
|
|
|
● |
|
|
| |
28 |
NUT; BRKT TO FRAME
CENTER SPLIT TYPE FRAME<TLW>
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9706-9709 |
|
|
|
● |
● |
|
| |
28 |
NUT; BRKT TO FRAME
CENTER SPLIT TYPE FRAME<TLW>
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
9710-0602 |
|
|
|
● |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
CENTER SPLIT TYPE FRAME<TLW>
M8 FLANGE
|
0-91180-108-0 |
05 |
1 |
0603- |
|
|
|
● |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9706-9709 |
|
|
|
● |
● |
|
| |
28 |
NUT; BRKT TO FRAME
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9710-0602 |
|
|
|
● |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
|
|
|
● |
● |
● |
| |
33 |
CAP; INSULATOR
(A)
|
1-82699-206-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
33 |
CAP; INSULATOR
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
(A)
|
1-82699-206-0 |
01 |
1 |
9505-9808 |
|
|
|
● |
|
|
| |
33 |
CAP; INSULATOR
OVERHEAD COOLING SYSTEM<YS9>
(A)
|
1-82699-206-0 |
01 |
1 |
9809- |
|
|
|
● |
|
|
| |
33 |
CAP; INSULATOR
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
(B)
|
1-82699-431-0 |
01 |
1 |
9703-9709 |
|
|
|
● |
● |
|
| |
33 |
CAP; INSULATOR
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
(B)
|
1-82699-431-0 |
01 |
1 |
9710-9808 |
|
|
|
● |
● |
● |
| |
33 |
CAP; INSULATOR
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2),
OVERHEAD COOLING SYSTEM<YS9>
(B)
|
1-82699-431-0 |
01 |
1 |
9809- |
|
|
|
● |
● |
● |
| |
63 |
BOLT; RELAY BATTERY
M8X40 W/LK WASHER
|
9-01900-840-0 |
02 |
1 |
9101-9204 |
● |
● |
● |
|
|
|
| |
63 |
BOLT; RELAY BATTERY
M8X40 W/LK WASHER
|
0-50040-840-0 |
02 |
1 |
9205-9504 |
● |
● |
● |
|
|
|
| |
63 |
BOLT; RELAY BATTERY
M8X35 W/LK&PL WASHER
|
1-09030-025-0 |
02 |
1 |
9505-9702 |
|
|
|
● |
|
|
| |
63 |
BOLT; RELAY BATTERY
M8X35 W/LK&PL WASHER
|
1-09030-025-0 |
02 |
1 |
9703-9709 |
|
|
|
● |
● |
|
| |
63 |
BOLT; RELAY BATTERY
M8X35 W/LK&PL WASHER
|
1-09030-025-0 |
02 |
1 |
9710- |
|
|
|
● |
● |
● |
| |
64 |
BOX; BATTERY RELAY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS
BODY FRAME TYPE HEAVY DUTY VAR4<C3B>
(A)
|
1-81809-012-2 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
64 |
BOX; BATTERY RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
(B)
|
1-82699-352-2 |
01 |
1 |
9505-9611 |
|
|
|
● |
|
|
| |
64 |
BOX; BATTERY RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
(B)
|
1-82699-947-0 |
01 |
1 |
9612-9705 |
|
|
|
● |
|
|
| |
64 |
BOX; BATTERY RELAY
CENTER SPLIT TYPE FRAME<TLW>
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),ENG ROOM SW
BOX<TEK>
(B)
|
1-82699-947-0 |
01 |
1 |
9710- |
|
|
|
● |
● |
● |
| |
64 |
BOX; BATTERY RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
(B)
|
1-82699-947-0 |
01 |
1 |
9710- |
|
|
|
● |
● |
● |
| |
64 |
BOX; BATTERY RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
(B)
|
1-82699-947-0 |
01 |
1 |
9703-9705 |
|
|
|
● |
● |
|
| |
64 |
BOX; BATTERY RELAY
CENTER SPLIT TYPE FRAME<TLW>
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),ENG ROOM SW
BOX<TEK>
(B)
|
1-82699-947-0 |
01 |
1 |
9706-9709 |
|
|
|
● |
● |
|
| |
64 |
BOX; BATTERY RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
(B)
|
1-82699-947-0 |
01 |
1 |
9706-9709 |
|
|
|
● |
● |
|
| |
65 |
COVER; BATTERY RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
(A)
|
1-82699-353-1 |
01 |
1 |
9505-9705 |
|
|
|
● |
|
|
| |
65 |
COVER; BATTERY RELAY
CENTER SPLIT TYPE FRAME<TLW>
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),ENG ROOM SW
BOX<TEK>
(A)
|
1-82699-353-1 |
01 |
1 |
9706- |
|
|
|
● |
● |
● |
| |
65 |
COVER; BATTERY RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
(A)
|
1-82699-353-1 |
01 |
1 |
9706- |
|
|
|
● |
● |
● |
| |
65 |
COVER; BATTERY RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
(A)
|
1-82699-353-1 |
01 |
1 |
9703-9705 |
|
|
|
● |
● |
|
| |
65 |
COVER; BATTERY RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
(B)
|
1-82699-354-2 |
01 |
1 |
9505-9611 |
|
|
|
● |
|
|
| |
65 |
COVER; BATTERY RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
(B)
|
1-82699-980-0 |
01 |
1 |
9612-9705 |
|
|
|
● |
|
|
| |
65 |
COVER; BATTERY RELAY
CENTER SPLIT TYPE FRAME<TLW>
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),ENG ROOM SW
BOX<TEK>
(B)
|
1-82699-980-0 |
01 |
1 |
9706- |
|
|
|
● |
● |
● |
| |
65 |
COVER; BATTERY RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
(B)
|
1-82699-980-0 |
01 |
1 |
9706- |
|
|
|
● |
● |
● |
| |
65 |
COVER; BATTERY RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
(B)
|
1-82699-980-0 |
01 |
1 |
9703-9705 |
|
|
|
● |
● |
|
| |
66 |
BOLT; COVER,BATTERY RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
M6X16 W/LK&PL WASHER
|
0-50140-616-0 |
04 |
1 |
9505-9705 |
|
|
|
● |
|
|
| |
66 |
BOLT; COVER,BATTERY RELAY
CENTER SPLIT TYPE FRAME<TLW>
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),ENG ROOM SW
BOX<TEK>
M6X16 W/LK&PL WASHER
|
0-50140-616-0 |
04 |
1 |
9706-0512 |
|
|
|
● |
● |
● |
| |
66 |
BOLT; COVER,BATTERY RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
M6X16 W/LK&PL WASHER
|
0-50140-616-0 |
04 |
1 |
9706-0512 |
|
|
|
● |
● |
● |
| |
66 |
BOLT; COVER,BATTERY RELAY
CENTER SPLIT TYPE FRAME<TLW>
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),ENG ROOM SW
BOX<TEK>
M6X16 W/LK&PL WASHER
|
0-50640-616-0 |
04 |
1 |
0601- |
|
|
|
● |
● |
● |
| |
66 |
BOLT; COVER,BATTERY RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
M6X16 W/LK&PL WASHER
|
0-50640-616-0 |
04 |
1 |
0601- |
|
|
|
● |
● |
● |
| |
66 |
BOLT; COVER,BATTERY RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
M6X16 W/LK&PL WASHER
|
0-50140-616-0 |
04 |
1 |
9703-9705 |
|
|
|
● |
● |
|
| |
68 |
RELAY; BATTERY
|
1-82550-248-0 |
01 |
1 |
9101-9108 |
● |
● |
● |
|
|
|
| |
68 |
RELAY; BATTERY
|
1-82550-226-0 |
01 |
1 |
9109-9504 |
● |
● |
● |
|
|
|
| |
68 |
RELAY; BATTERY
|
1-82550-228-2 |
01 |
1 |
9505-9702 |
|
|
|
● |
|
|
| |
68 |
RELAY; BATTERY
|
1-82550-228-2 |
01 |
1 |
9703-9709 |
|
|
|
● |
● |
|
| |
68 |
RELAY; BATTERY
|
1-82550-228-2 |
01 |
1 |
9710-9711 |
|
|
|
● |
● |
● |
| |
68 |
RELAY; BATTERY
|
1-82550-282-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
● |
| |
69 |
BOLT; CABLE BATTERY
M8X18 W/LK WASHER
|
9-01900-818-0 |
02 |
1 |
9101-9204 |
● |
● |
● |
|
|
|
| |
69 |
BOLT; CABLE BATTERY
M8X18 W/LK WASHER
|
0-50040-818-0 |
02 |
1 |
9205-9404 |
● |
● |
● |
|
|
|
| |
69 |
BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER
|
0-50140-820-0 |
02 |
1 |
9405-9504 |
● |
● |
● |
|
|
|
| |
69 |
BOLT; CABLE BATTERY
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9505-9508 |
|
|
|
● |
|
|
| |
69 |
BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER
|
0-50140-820-0 |
02 |
1 |
9509-9709 |
|
|
|
● |
● |
|
| |
69 |
BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER
|
0-50140-820-0 |
02 |
1 |
9710-0512 |
|
|
|
● |
● |
● |
| |
69 |
BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER
|
0-50640-820-0 |
02 |
1 |
0601- |
|
|
|
● |
● |
● |
| |
71 |
BOLT; BATTERY CABLE
M10X20 FLANGE
|
0-28081-020-0 |
01 |
1 |
9606-9702 |
|
|
|
● |
|
|
| |
71 |
BOLT; BATTERY CABLE
M10X20 FLANGE
|
0-28081-020-0 |
01 |
1 |
9703-9709 |
|
|
|
● |
● |
|
| |
71 |
BOLT; BATTERY CABLE
M10X20 FLANGE
|
0-28081-020-0 |
01 |
1 |
9710-0512 |
|
|
|
● |
● |
● |
| |
71 |
BOLT; BATTERY CABLE
M10X20 FLANGE
|
0-28051-020-0 |
01 |
1 |
0601- |
|
|
|
● |
● |
● |
| |
99 |
CLIP; BATTERY CABLE
ID=17
|
1-09700-840-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
100 |
BOLT; BATTERY CABLE CLIP
M8X20 W/LK WASHER
|
9-01900-820-0 |
01 |
1 |
9101-9204 |
● |
● |
● |
|
|
|
| |
100 |
BOLT; BATTERY CABLE CLIP
M8X20 W/LK WASHER
|
0-50040-820-0 |
01 |
1 |
9205-9504 |
● |
● |
● |
|
|
|
| |
105 |
SLEEVE; RUBBER,BATTERY CAB
CENTER SPLIT TYPE FRAME<TLW>
ID=17 OD=21 L=40
|
1-09337-012-0 |
01 |
1 |
0103-0104 |
|
|
|
● |
● |
● |
| |
105 |
SLEEVE; RUBBER,BATTERY CAB
CENTER SPLIT TYPE FRAME<TLW>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0105- |
|
|
|
● |
● |
● |
| |
105 |
SLEEVE; RUBBER,BATTERY CAB
RETARDER BRK<RE2>
ID=15 OD=19 L=50
|
1-09337-014-0 |
01 |
1 |
0103-0103 |
|
|
|
● |
● |
● |
| |
105 |
SLEEVE; RUBBER,BATTERY CAB
RETARDER BRK<RE2>
CENTER SPLIT TYPE FRAME<TLW>
ID=15 OD=19 L=50
|
1-09337-014-0 |
01 |
1 |
0103- |
|
|
|
● |
● |
● |
| |
107 |
CLIP; BAND
L=250
|
5-09707-030-0 |
03 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
107 |
CLIP; BAND
L=250
|
5-09707-030-0 |
03 |
1 |
9505-9705 |
|
|
|
● |
|
|
| |
107 |
CLIP; BAND
RIGHT HAND DRIVE(LTR5FB)
THAILAND EQUIPMENT<PM9>
L=250
|
5-09707-030-1 |
05 |
1 |
9706-0203 |
|
|
|
● |
|
|
| |
107 |
CLIP; BAND
L=250
|
5-09707-030-1 |
03 |
1 |
0204- |
|
|
|
● |
● |
● |
| |
107 |
CLIP; BAND
EXC. THAILAND EQUIPMENT<PM9>
L=250
|
5-09707-030-1 |
03 |
1 |
9706-9805 |
|
|
|
● |
|
|
| |
107 |
CLIP; BAND
EXC. THAILAND EQUIPMENT<PM9>
L=250
|
5-09707-030-1 |
03 |
1 |
9710-0203 |
|
|
|
● |
|
|
| |
107 |
CLIP; BAND
CENTER SPLIT TYPE FRAME<TLW>
L=140
|
5-09707-031-0 |
01 |
1 |
9708-9709 |
|
|
|
● |
● |
|
| |
107 |
CLIP; BAND
CENTER SPLIT TYPE FRAME<TLW>
L=140
|
5-09707-031-1 |
02 |
1 |
9710-0102 |
|
|
|
● |
● |
● |
| |
107 |
CLIP; BAND
CENTER SPLIT TYPE FRAME<TLW>
L=250
|
5-09707-030-1 |
04 |
1 |
0103- |
|
|
|
● |
● |
● |
| |
107 |
CLIP; BAND
RETARDER BRK<RE2>
L=140
|
5-09707-031-1 |
01 |
1 |
0103-0207 |
|
|
|
● |
● |
● |
| |
107 |
CLIP; BAND
RETARDER BRK<RE2>
CENTER SPLIT TYPE FRAME<TLW>
L=140
|
5-09707-031-1 |
01 |
1 |
0208- |
|
|
|
● |
● |
● |
| |
111 |
CAP; INSULATOR,BATTERY RELAY
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,
BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>
|
1-82699-001-0 |
02 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
120 |
NUT; RELAY BATTERY
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
M8
|
9-09110-408-0 |
02 |
1 |
9511-9606 |
|
|
|
● |
|
|
| |
120 |
NUT; RELAY BATTERY
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9705 |
|
|
|
● |
|
|
| |
120 |
NUT; RELAY BATTERY
ENG ROOM SW BOX<TEK>
CENTER SPLIT TYPE FRAME<TLW>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9710-0602 |
|
|
|
● |
● |
● |
| |
120 |
NUT; RELAY BATTERY
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
EXC. CENTER SPLIT TYPE FRAME<TLW>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9710-0602 |
|
|
|
● |
|
|
| |
120 |
NUT; RELAY BATTERY
ENG ROOM SW BOX<TEK>
CENTER SPLIT TYPE FRAME<TLW>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
|
|
● |
● |
● |
| |
120 |
NUT; RELAY BATTERY
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
EXC. CENTER SPLIT TYPE FRAME<TLW>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
|
|
● |
|
|
| |
120 |
NUT; RELAY BATTERY
ENG ROOM SW BOX<TEK>
CENTER SPLIT TYPE FRAME<TLW>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9706-9709 |
|
|
|
● |
● |
|
| |
120 |
NUT; RELAY BATTERY
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-90A 2.5KW(SD2)
EXC. CENTER SPLIT TYPE FRAME<TLW>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9706-9709 |
|
|
|
● |
|
|
| |
121 |
WASHER; PL,RELAY,BATTERY
ID=8.4 OD=22
|
9-09160-708-0 |
04 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
122 |
BRACKET; BATTERY RELAY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS
BODY FRAME TYPE HEAVY DUTY VAR4<C3B>
|
1-53618-029-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
122 |
BRACKET; BATTERY RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
|
1-53618-029-0 |
01 |
1 |
9505-9705 |
|
|
|
● |
|
|
| |
122 |
BRACKET; BATTERY RELAY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
|
1-53618-029-1 |
01 |
1 |
9706- |
|
|
|
● |
● |
● |
| |
122 |
BRACKET; BATTERY RELAY
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,
BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>
|
1-53487-009-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
122 |
BRACKET; BATTERY RELAY
CENTER SPLIT TYPE FRAME<TLW>
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),ENG ROOM SW
BOX<TEK>
|
1-82699-999-0 |
01 |
1 |
9706-9709 |
|
|
|
● |
● |
|
| |
122 |
BRACKET; BATTERY RELAY
CENTER SPLIT TYPE FRAME<TLW>
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),ENG ROOM SW
BOX<TEK>
|
1-82699-999-0 |
01 |
1 |
9710- |
|
|
|
● |
● |
● |
| |
124 |
BOLT; RELAY,BATTERY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS
BODY FRAME TYPE HEAVY DUTY VAR4<C3B>
M10X30 W/LK WASHER
|
0-50041-030-0 |
02 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
124 |
BOLT; RELAY,BATTERY
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,
BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>
M8X25 W/LK WASHER
|
0-50040-825-0 |
02 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
124 |
BOLT; RELAY,BATTERY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
M10X40 FLANGE
|
0-28081-040-0 |
02 |
1 |
9505-9606 |
|
|
|
● |
|
|
| |
124 |
BOLT; RELAY,BATTERY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
M10X45 FLANGE
|
0-28081-045-0 |
02 |
1 |
9607-9705 |
|
|
|
● |
|
|
| |
124 |
BOLT; RELAY,BATTERY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
M10X45 FLANGE
|
0-28081-045-0 |
02 |
1 |
9706-0512 |
|
|
|
● |
● |
● |
| |
124 |
BOLT; RELAY,BATTERY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE
FRAME<TLW>
M10X45 FLANGE
|
0-28051-045-0 |
02 |
1 |
0601- |
|
|
|
● |
● |
● |
| |
124 |
BOLT; RELAY,BATTERY
CENTER SPLIT TYPE FRAME<TLW>
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),ENG ROOM SW
BOX<TEK>
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9706-9709 |
|
|
|
● |
● |
|
| |
124 |
BOLT; RELAY,BATTERY
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
M10X45 FLANGE
|
0-28081-045-0 |
02 |
1 |
9703-9705 |
|
|
|
● |
● |
|
| |
124 |
BOLT; RELAY,BATTERY
CENTER SPLIT TYPE FRAME<TLW>
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),ENG ROOM SW
BOX<TEK>
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9710-0512 |
|
|
|
● |
● |
● |
| |
124 |
BOLT; RELAY,BATTERY
CENTER SPLIT TYPE FRAME<TLW>
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),ENG ROOM SW
BOX<TEK>
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
|
|
|
● |
● |
● |
| |
125 |
GROMMET; CABLE BATTERY
EXC. EXH BRK<NF8>
(A)
|
9-09756-038-0 |
01 |
1 |
9101-9504 |
● |
● |
|
|
|
|
| |
125 |
GROMMET; CABLE BATTERY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS
BODY FRAME TYPE HEAVY DUTY VAR4<C3B>
(B)
|
1-09333-061-0 |
02 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
125 |
GROMMET; CABLE BATTERY
(C)
ID=26
|
1-09333-140-0 |
01 |
1 |
9505-9609 |
|
|
|
● |
|
|
| |
149 |
NUT; BRKT BATTERY RELAY
CENTER SPLIT TYPE FRAME<TLW>
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),ENG ROOM SW
BOX<TEK>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9706-9709 |
|
|
|
● |
● |
|
| |
149 |
NUT; BRKT BATTERY RELAY
CENTER SPLIT TYPE FRAME<TLW>
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),ENG ROOM SW
BOX<TEK>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9710-0602 |
|
|
|
● |
● |
● |
| |
149 |
NUT; BRKT BATTERY RELAY
CENTER SPLIT TYPE FRAME<TLW>
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),
GENERATOR NIKKO 24V-90A 2.5KW(SD2),ENG ROOM SW
BOX<TEK>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
|
|
● |
● |
● |
| |
162 |
WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18
|
9-09164-608-0 |
02 |
1 |
9405-9504 |
● |
● |
● |
|
|
|
| |
162 |
WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18
|
9-09164-608-0 |
02 |
1 |
9509-9702 |
|
|
|
● |
|
|
| |
162 |
WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18
|
9-09164-608-0 |
02 |
1 |
9703-9709 |
|
|
|
● |
● |
|
| |
162 |
WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18
|
9-09164-608-0 |
02 |
1 |
9710-0605 |
|
|
|
● |
● |
● |
| |
162 |
WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18
|
0-91614-608-0 |
02 |
1 |
0606- |
|
|
|
● |
● |
● |
